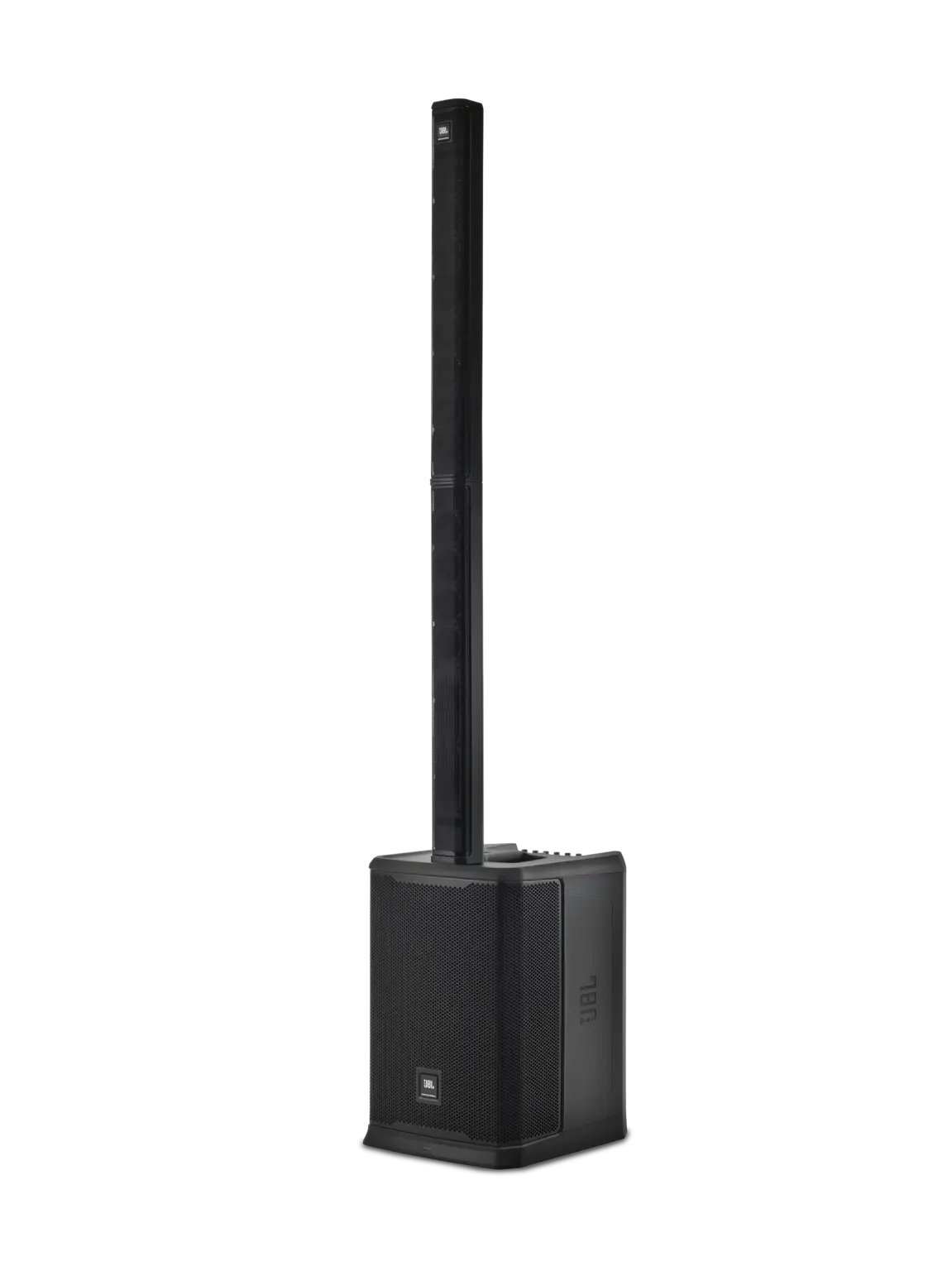

JBL PRX ONE all-in-one powered column PA with 7-channel digital mixer, a full suite of professional DSP

JBL PRX ONE All-in-One Powered Column PA System

The JBL PRX ONE is an all-in-one powered column PA system featuring an acoustically optimized column array, a 7-channel digital mixer, professional DSP, Bluetooth connectivity, and JBL Pro Connect app control. With up to 130dB maximum SPL, a custom-engineered 12-tweeter column array, and a 12-inch bass-reflex woofer, it delivers powerful sound with deep low-end response and consistent front-to-back coverage.

The system features a built-in 2,000W peak Class-D amplifier, Lexicon effects, dbx DriveRack with Automatic Feedback Suppression, and a dual-mode Soundcraft-designed mixer. Its rugged portable enclosure and ComfortGrip handle make it suitable for DJs, musicians, presenters, rental companies, houses of worship, and portable or fixed installations.

Features & Benefits

• All-in-one powered column PA system with acoustically optimized column array
• 7-channel digital mixer with professional DSP suite
• Built-in Bluetooth functionality and JBL Pro Connect app control
• Maximum SPL up to 130dB
• Custom-engineered 12-tweeter column array with JBL A.I.M. technology
• 12-inch bass-reflex woofer for deep low-end response
• Built-in 2,000W peak Class-D amplifier
• Lexicon effects including reverb, delay, chorus, echo, compression, and sub synth
• dbx DriveRack with Automatic Feedback Suppression (AFS Pro)
• Triple Tier DSP control for beginner to advanced users

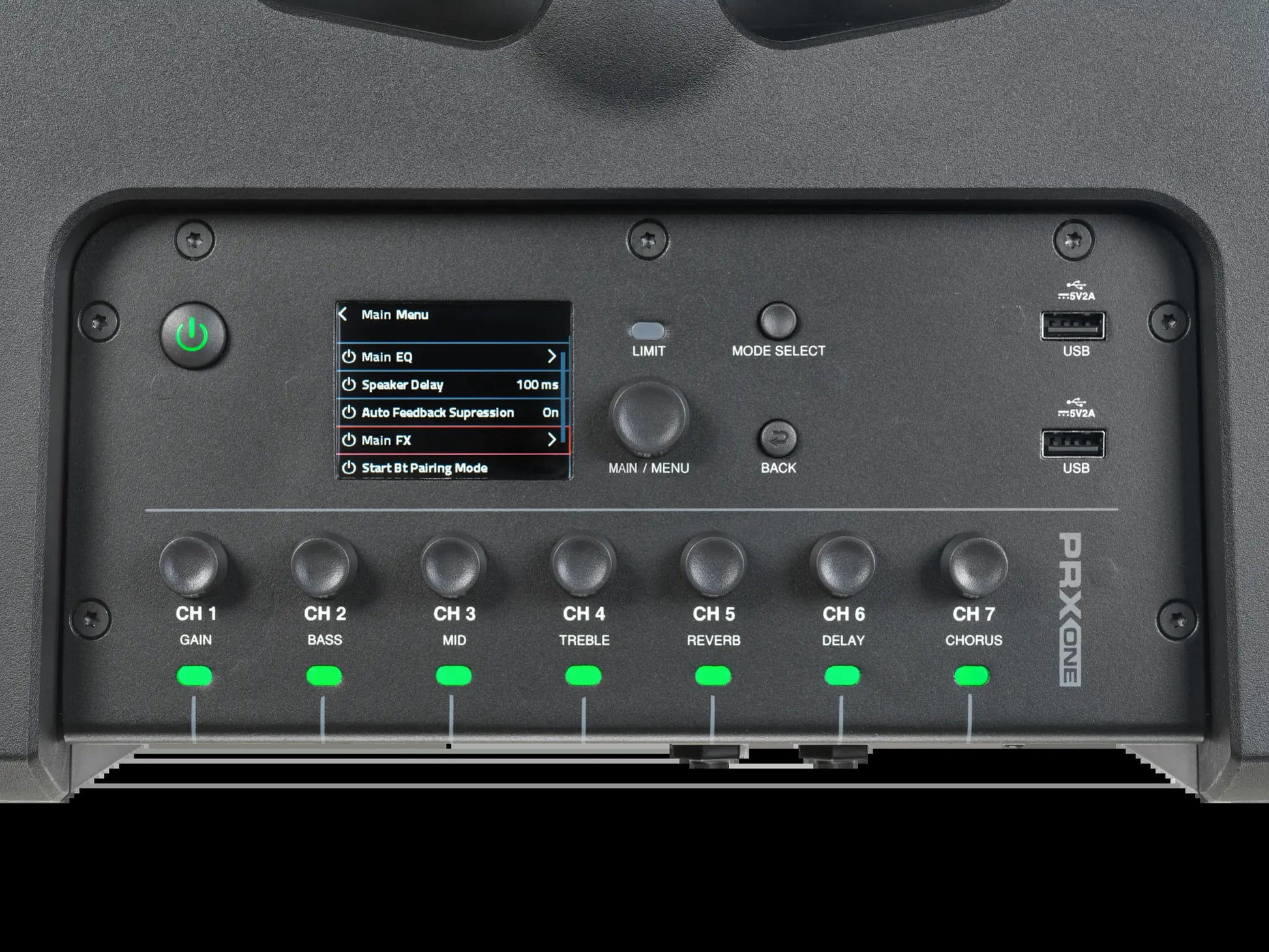

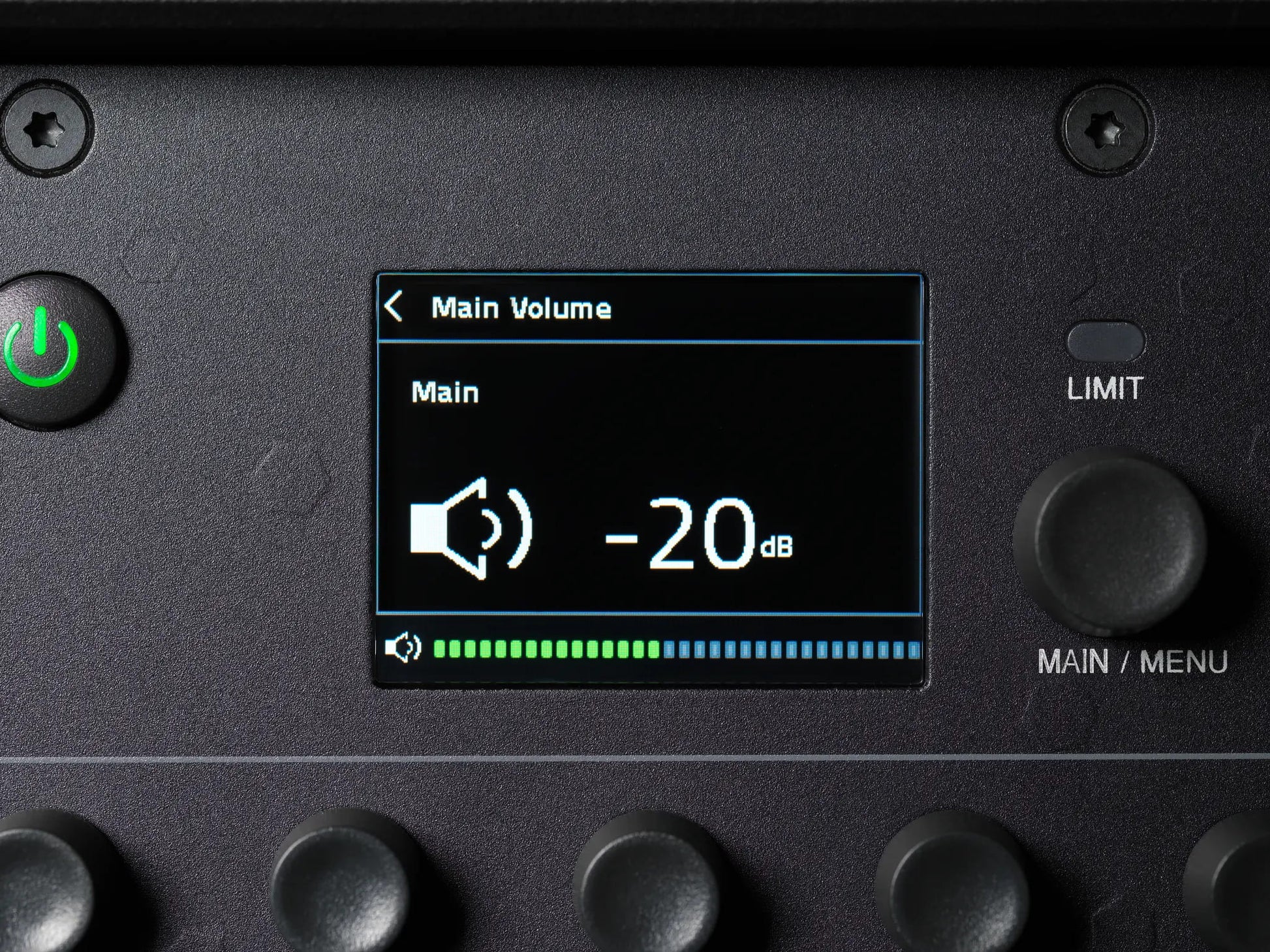

• Full-color LCD display for system control
• Bluetooth 5.0 audio streaming and remote control
• Supports control of up to 10 units via JBL Pro Connect app
• Dual-mode Soundcraft-designed mixer
• Built-in one-touch ducking for speech clarity

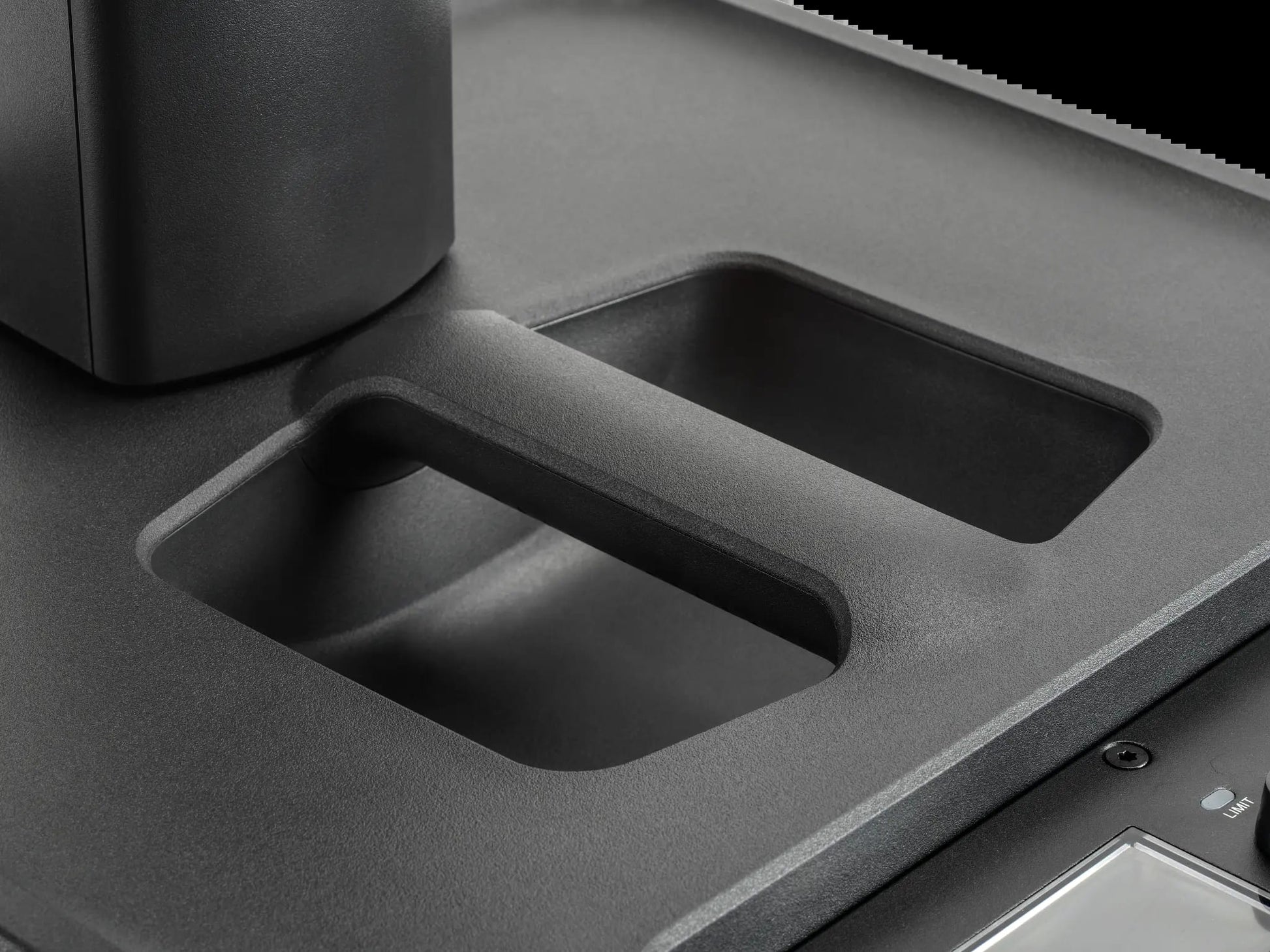

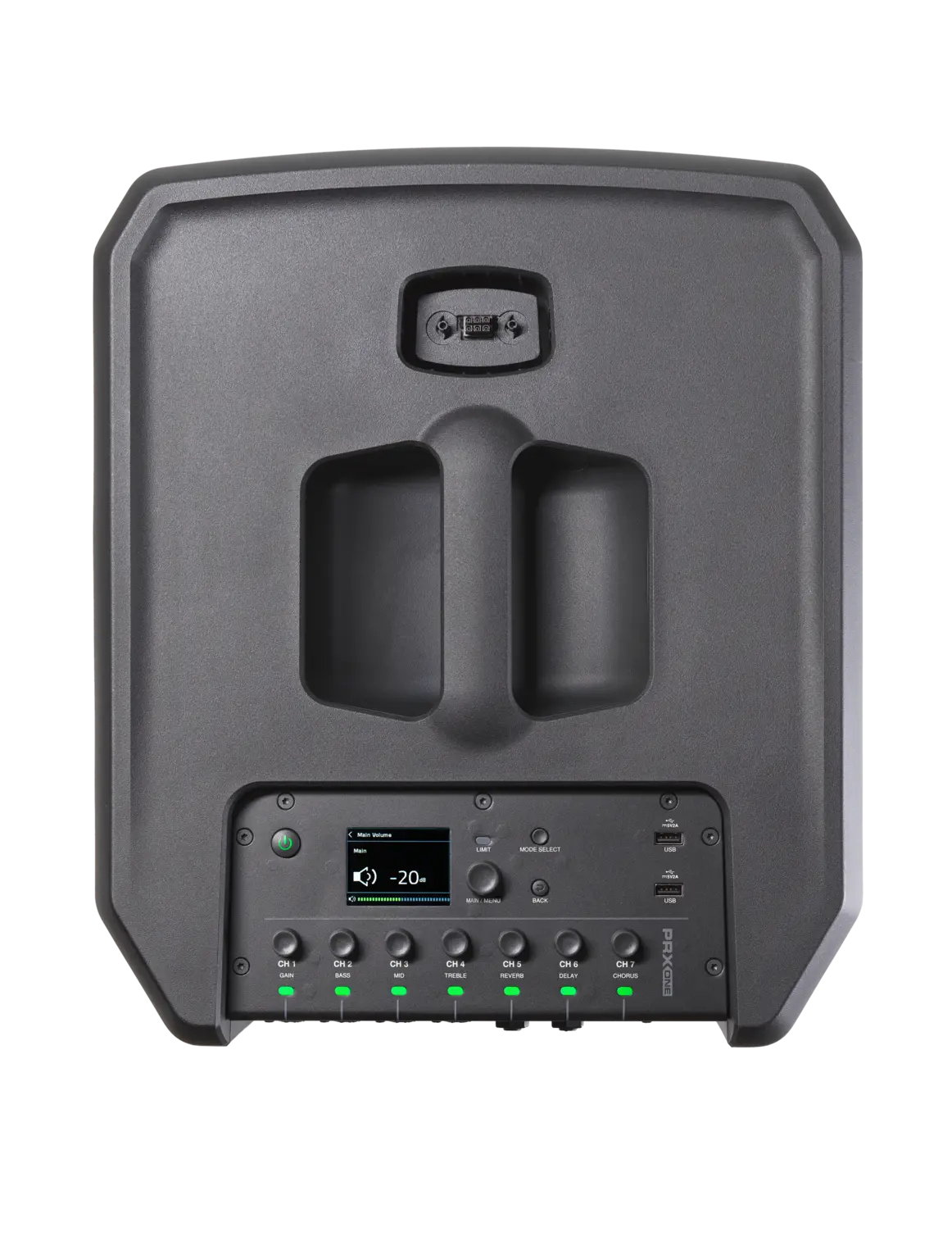

• Rugged portable enclosure with ComfortGrip handle

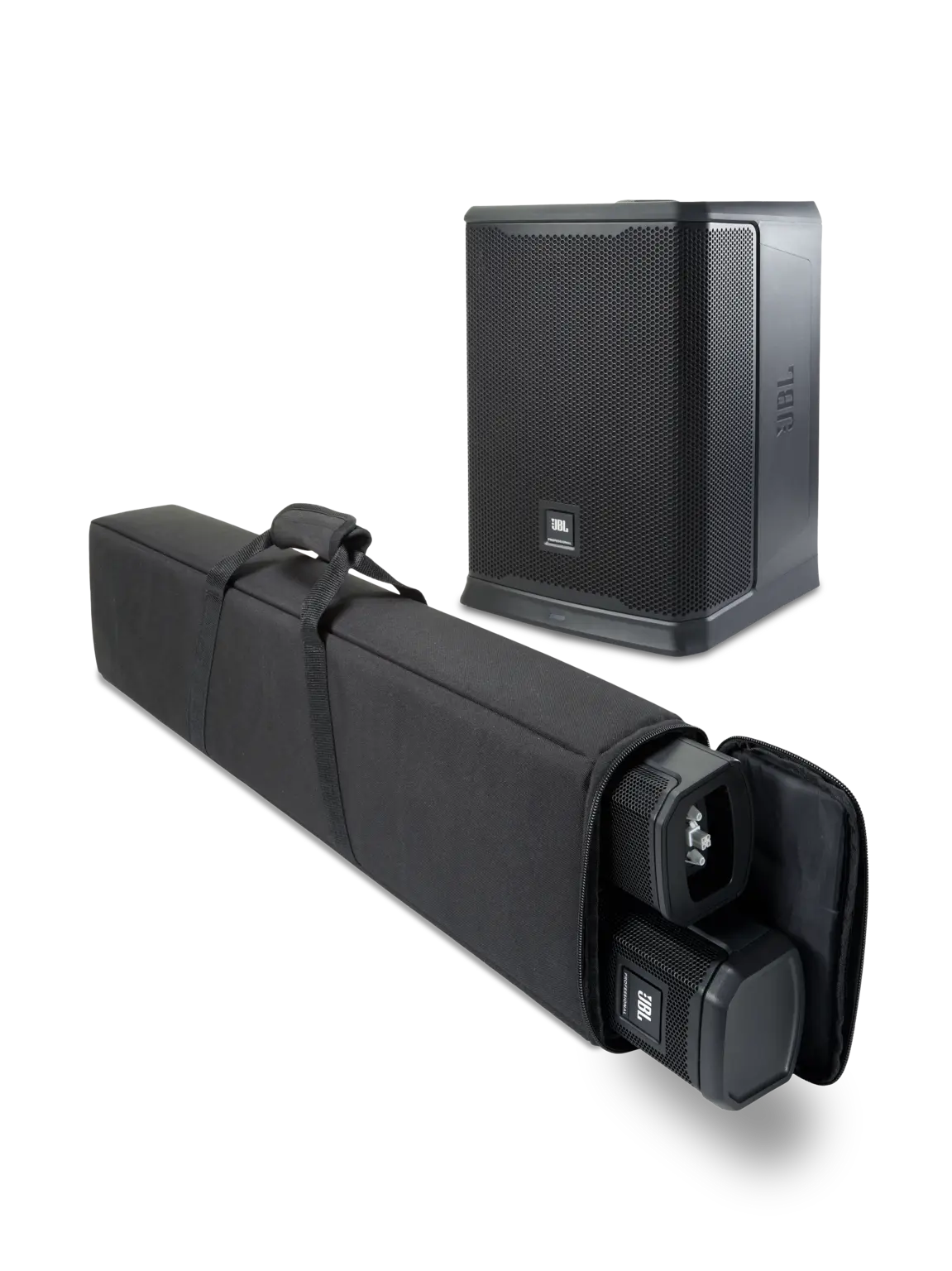

• Included nylon carrying bag for array
• Suitable for DJs, musicians, presenters, rental companies, houses of worship, and portable/fixed installations

Speaker System

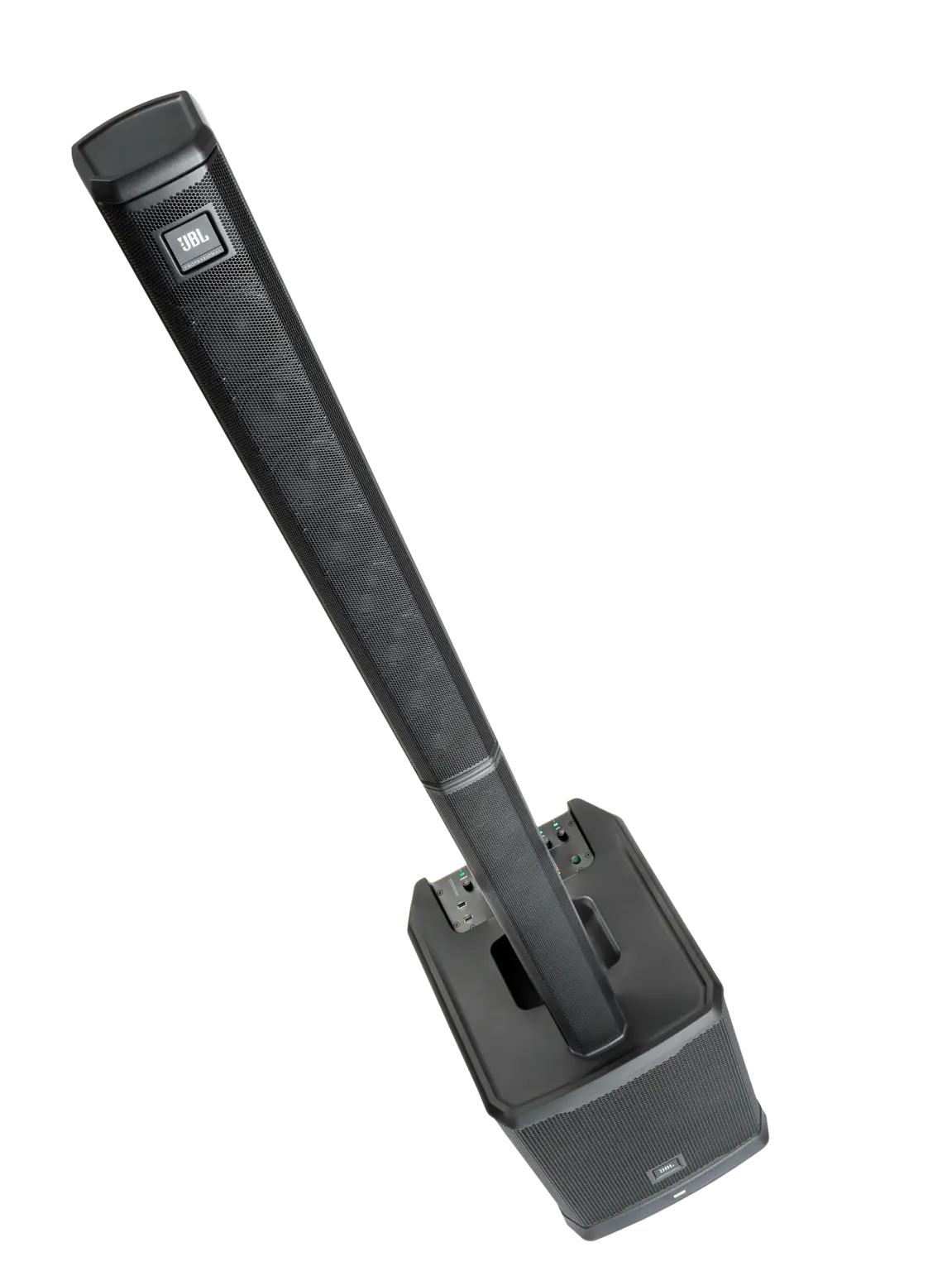

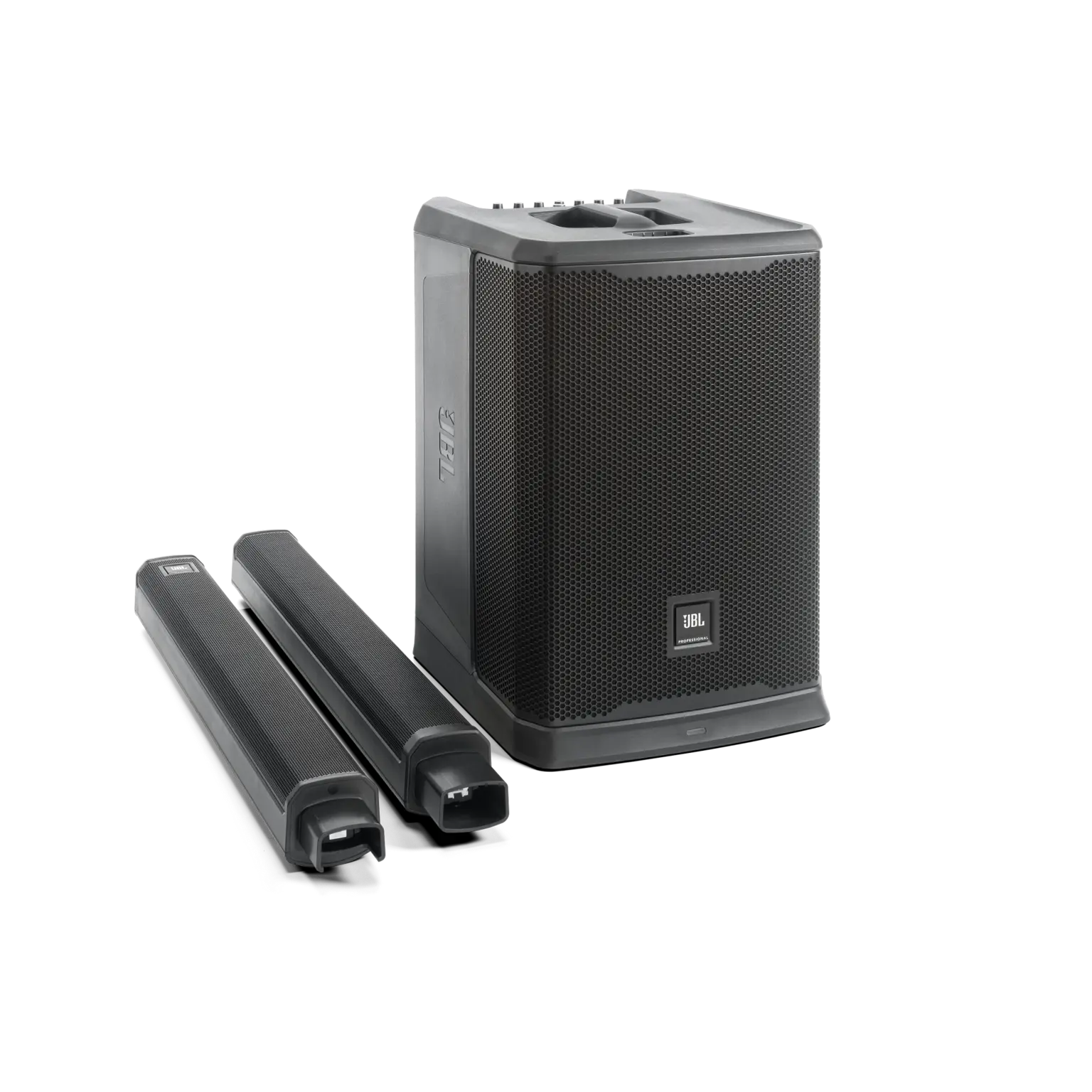

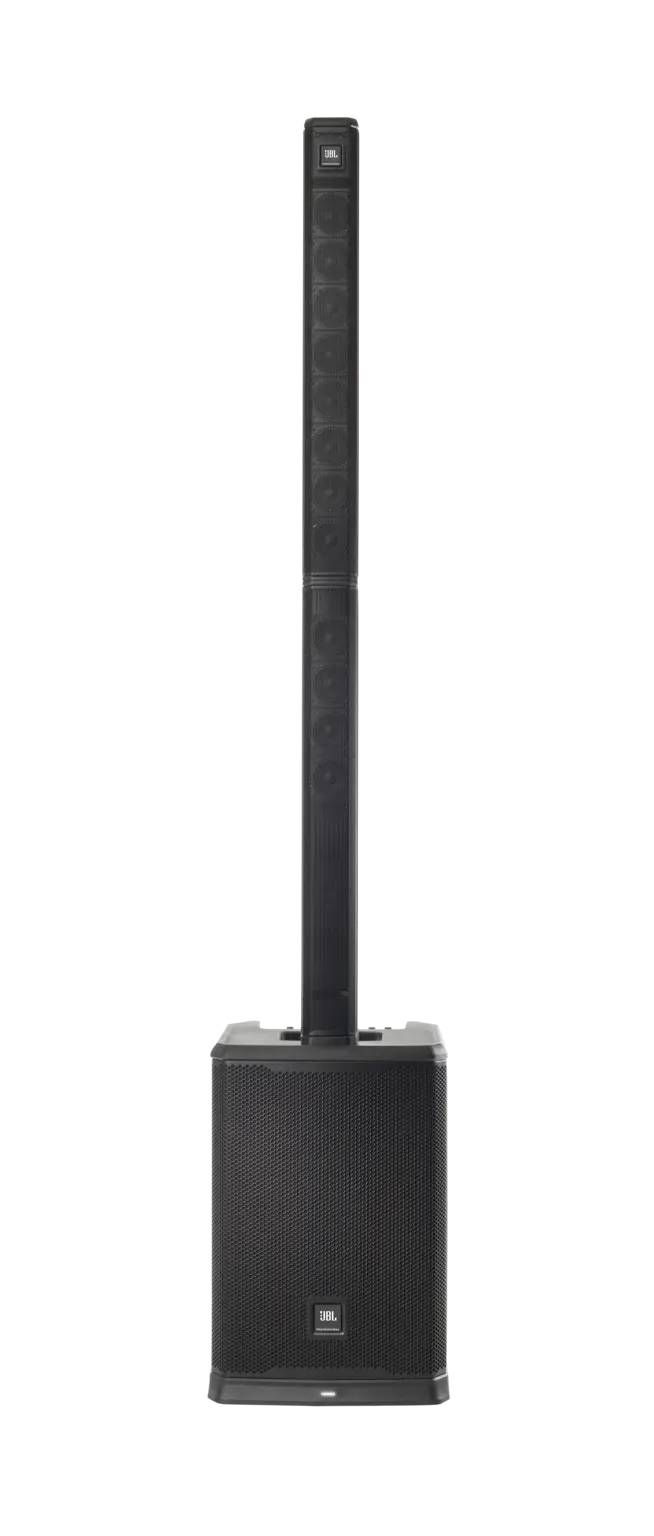

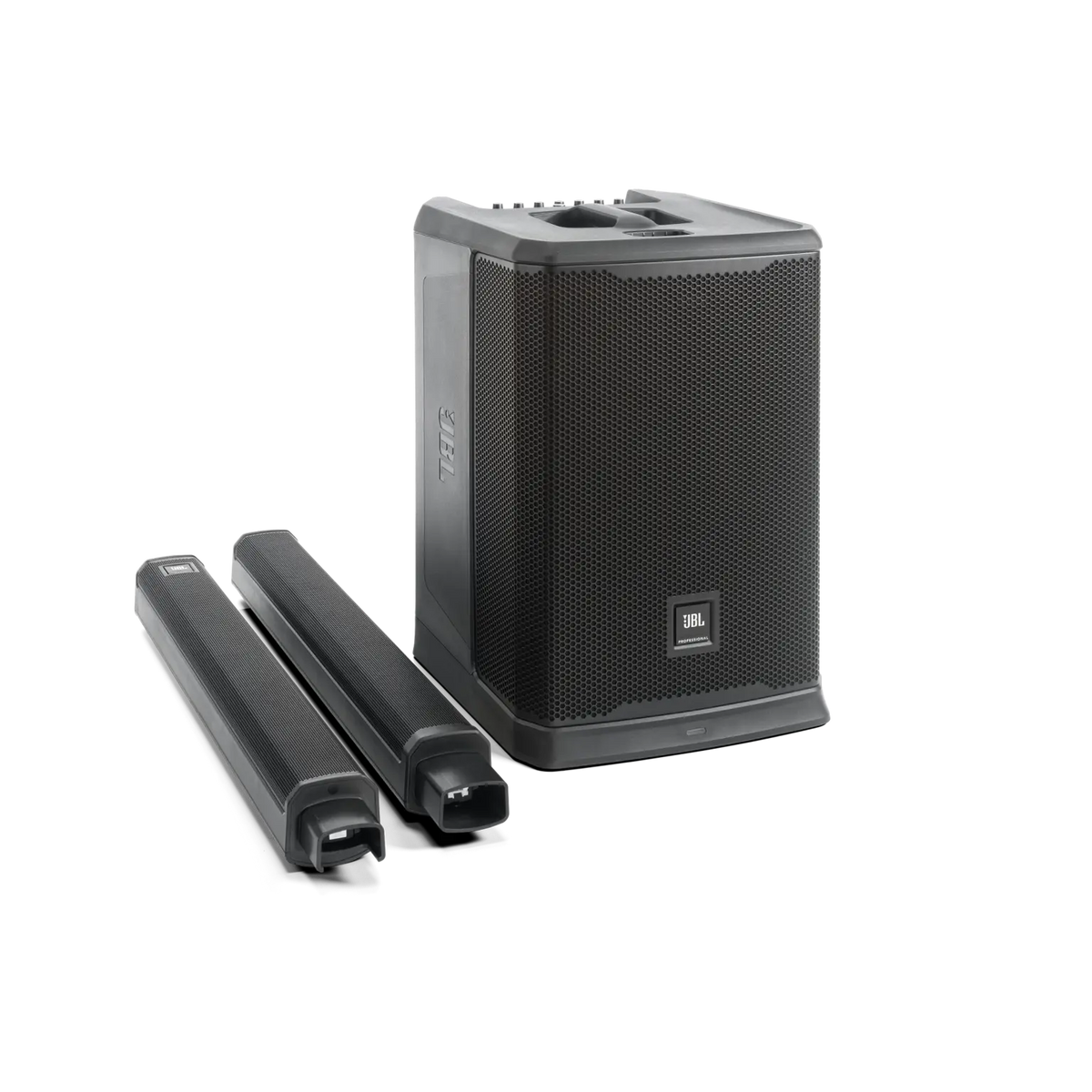

• Vertical array with 12 × 2.5-inch drivers
• 12-inch bass-reflex woofer
• JBL A.I.M. (Array Inumbration Mechanics) optimized array shading technology
• Dispersion Pattern: 130° (H) × 30° (V)
• Frequency response extends down to 35Hz
• Consistent front-to-back coverage
• Smooth and natural high-frequency response

Amplifier

• Amplifier Type: Fully bridged Class-D
• Peak Power Output: 2,000W
• High-linearity inductors for low distortion
• Power factor correction for stable operation
• Clean, efficient system power with superior headroom

Audio Performance

• Maximum SPL: 130dB
• Four high-efficiency low-noise microphone preamps
• Studio-quality sound reproduction
• Sophisticated crossover management and HF/LF coupling
• Low THD and optimized system response

Mixer & DSP

• Integrated 7-channel digital mixer
• Dual operating modes: Mix Mode & Channel Strip Mode
• 8 user presets for instant sound optimization
• Triple Tier DSP user interface
• dbx DriveRack Inside technology
• 8-band master EQ
• System limiter
• Gates and compressors on every channel
• Built-in Automatic Feedback Suppression (AFS Pro)
• One-touch ducking by Soundcraft

Effects

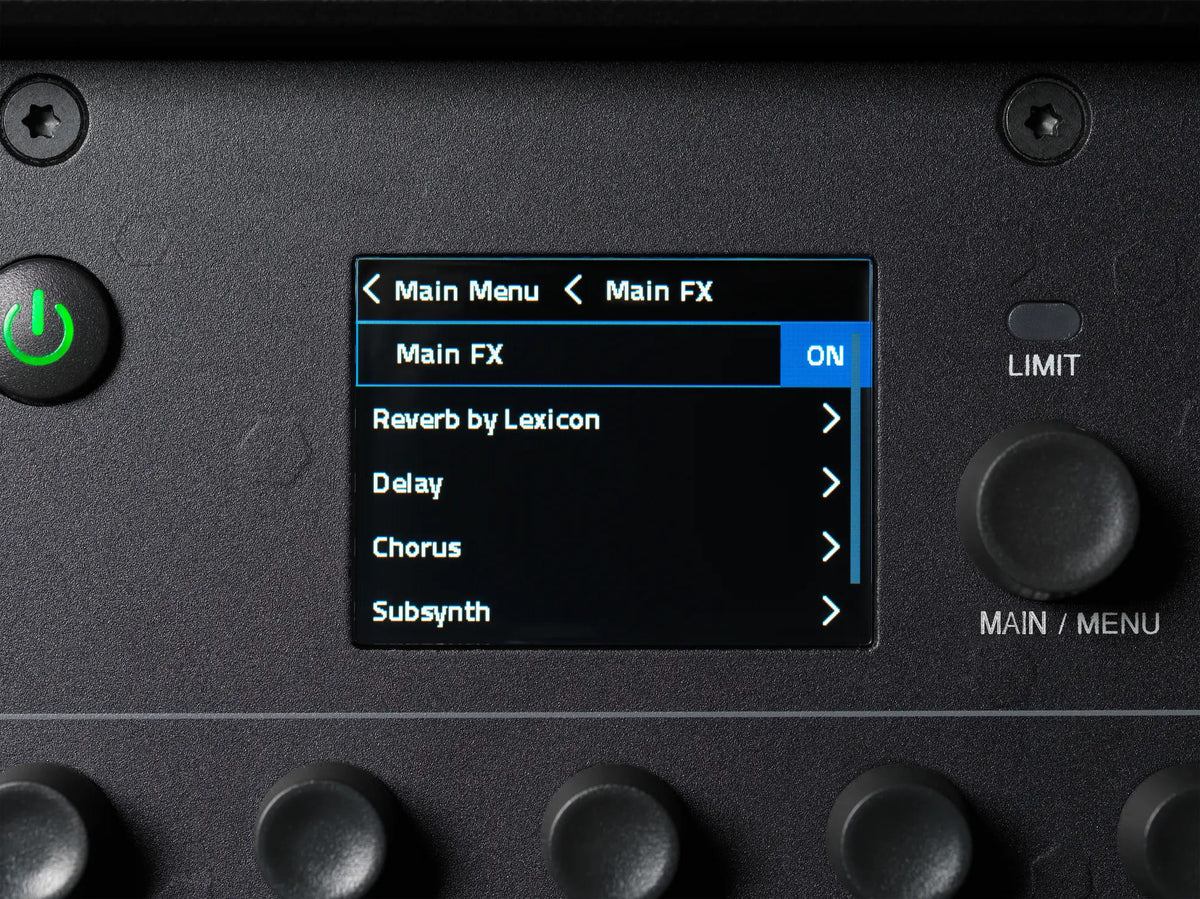

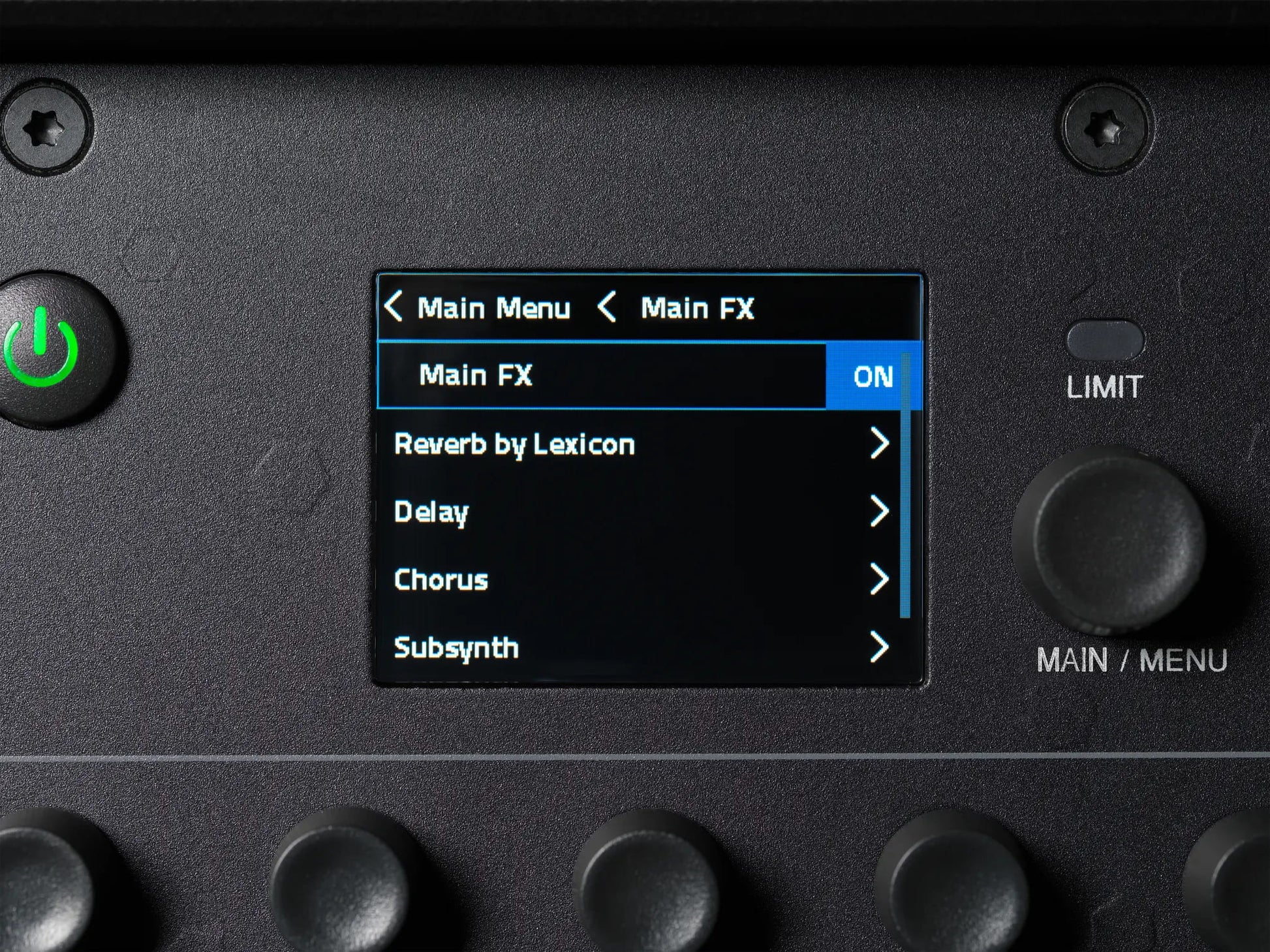

• Lexicon effects engine
• Reverb
• Delay
• Chorus
• Echo
• Compression
• Sub synth

Connectivity

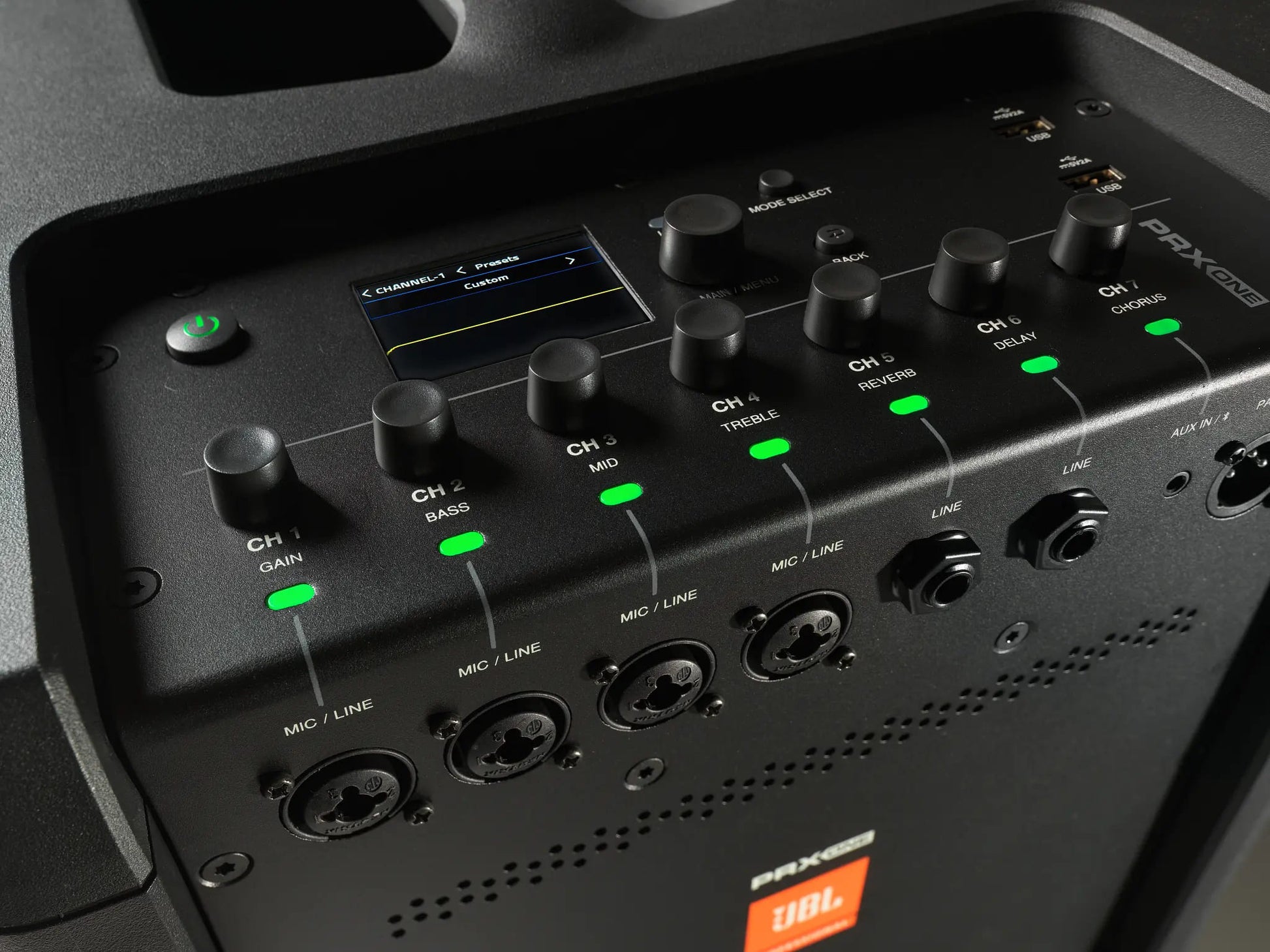

• 4 × XLR Combo inputs
• 2 × Hi-Z inputs
• 1 × 1/8-inch input
• Bluetooth audio input
• 1 × XLR Pass Thru
• 2 × USB 2.0 ports for device charging and AKG wireless systems
• Two channels of +48V phantom power
• Bluetooth 5.0 connectivity
• Remote control via JBL Pro Connect app

App Control

• JBL Pro Connect app support
• Remote mixer and DSP control
• Speaker grouping
• Delay tap tempo
• Snapshot recall
• Remote control of up to 10 units

Dimensions & Weight

• Weight: 25.7kg / 55.65 lbs
