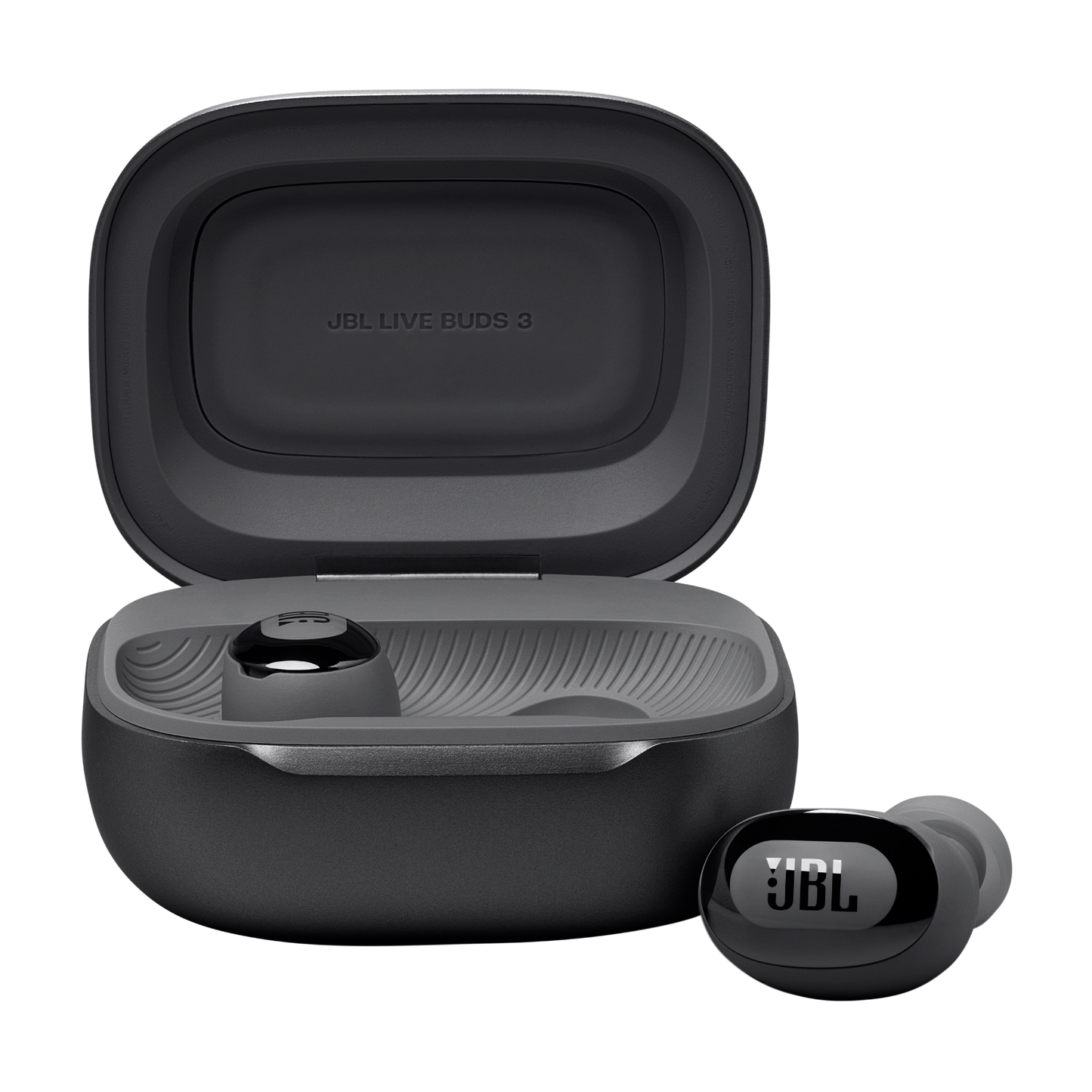

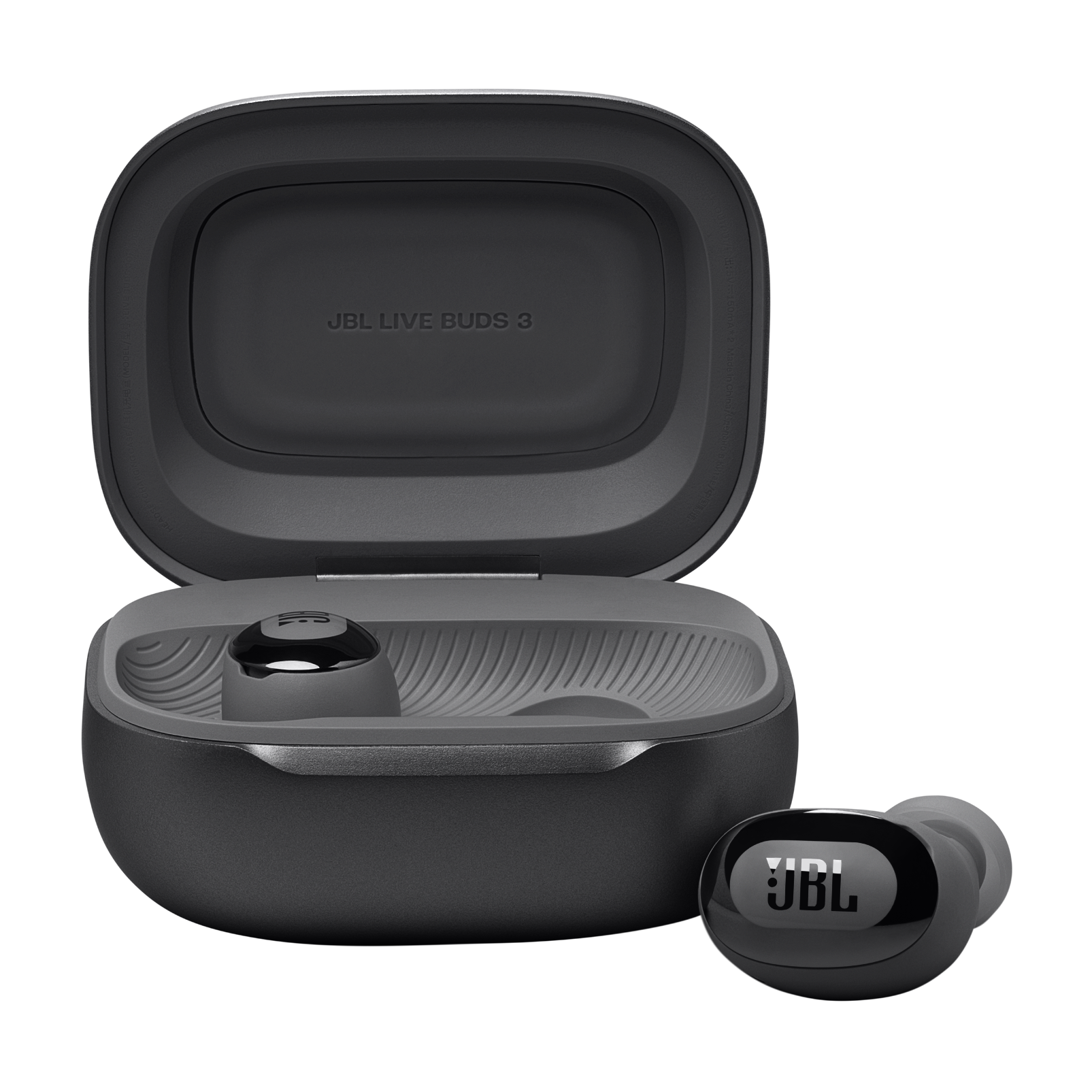

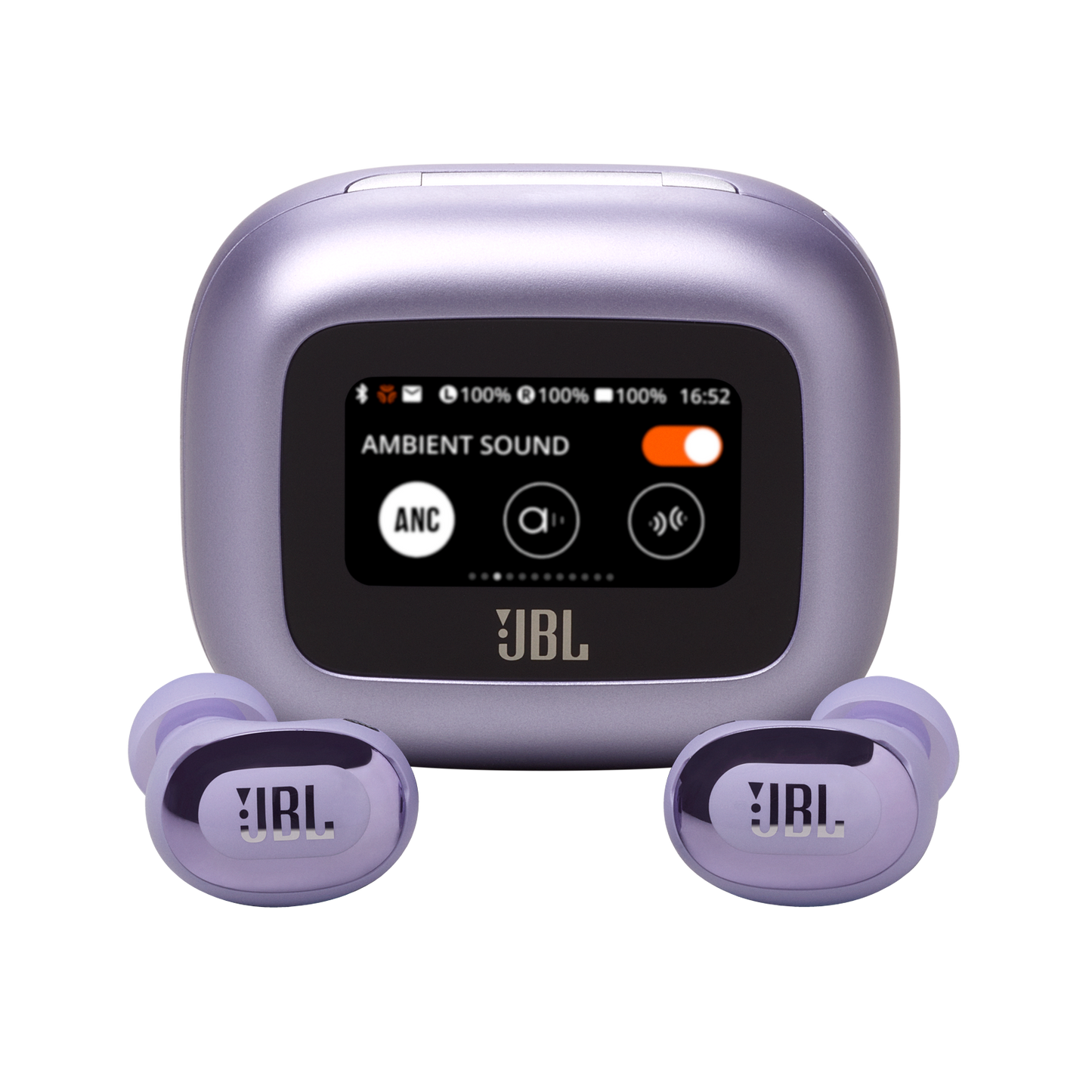

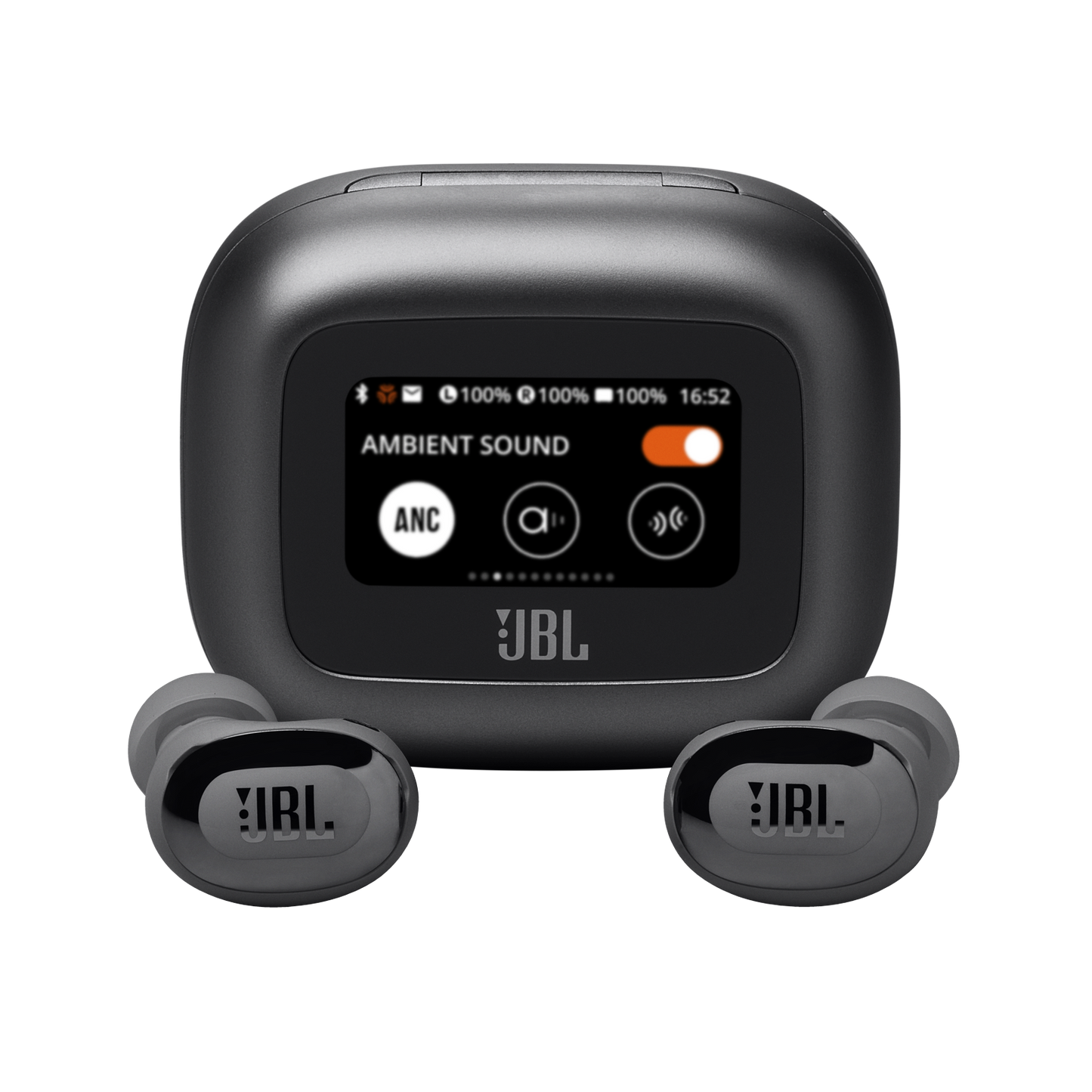

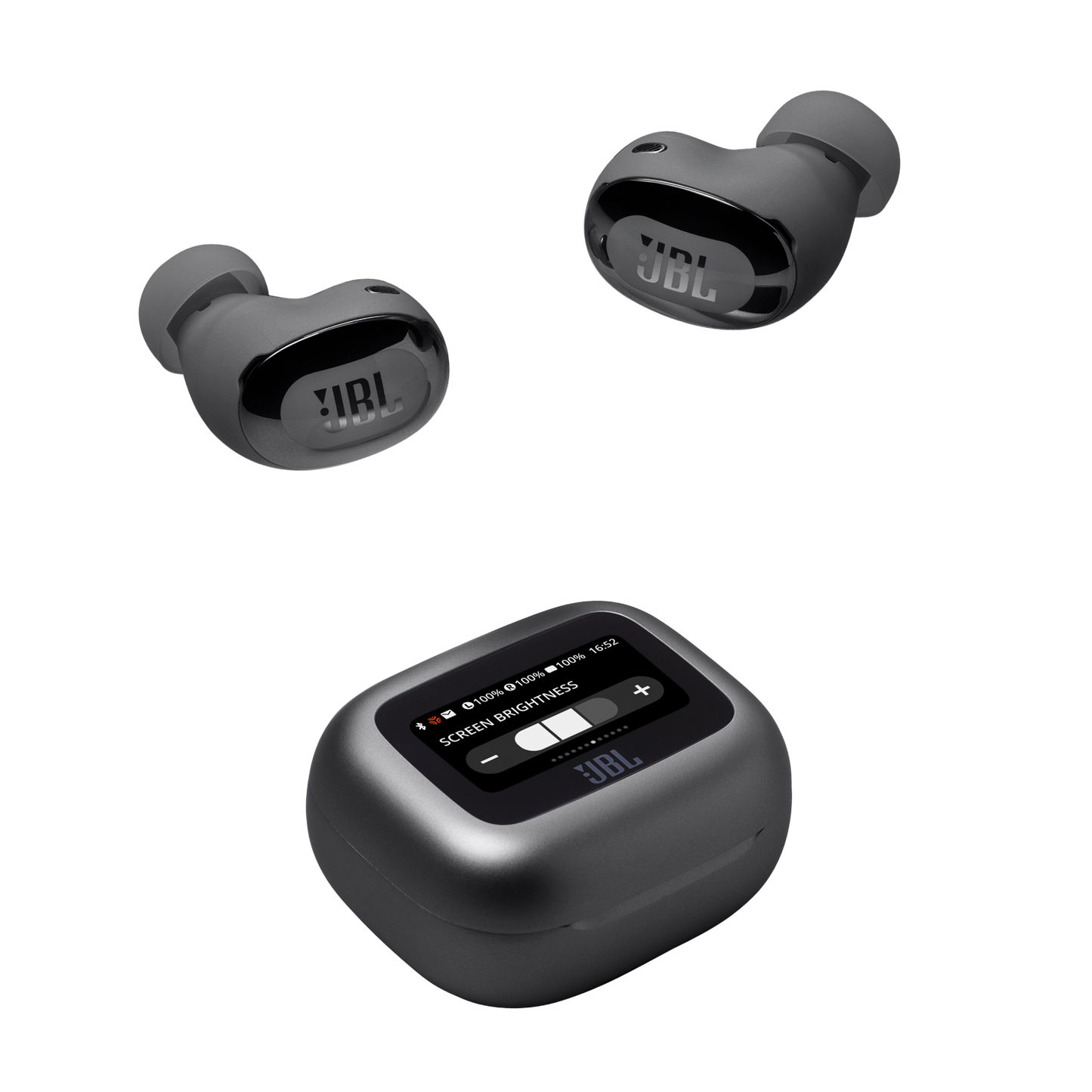

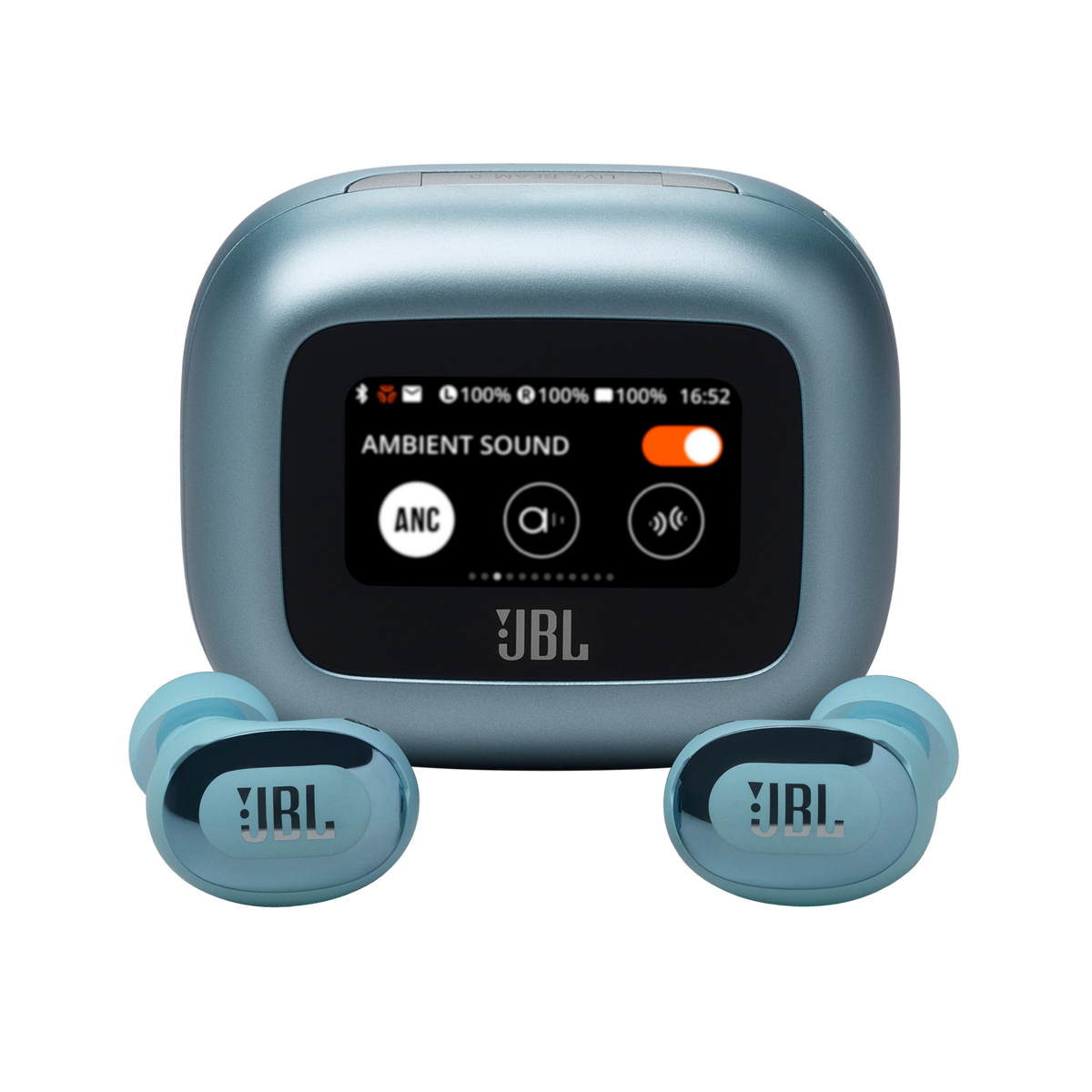

JBL Live Buds 3
Warranty Information
• 1 year official warranty by JBL Singapore
• Service Centre Location: 60 Marsiling Rd, SKM Building, Singapore 739107
Features
• Hi-Res Audio Wireless with JBL Signature Sound

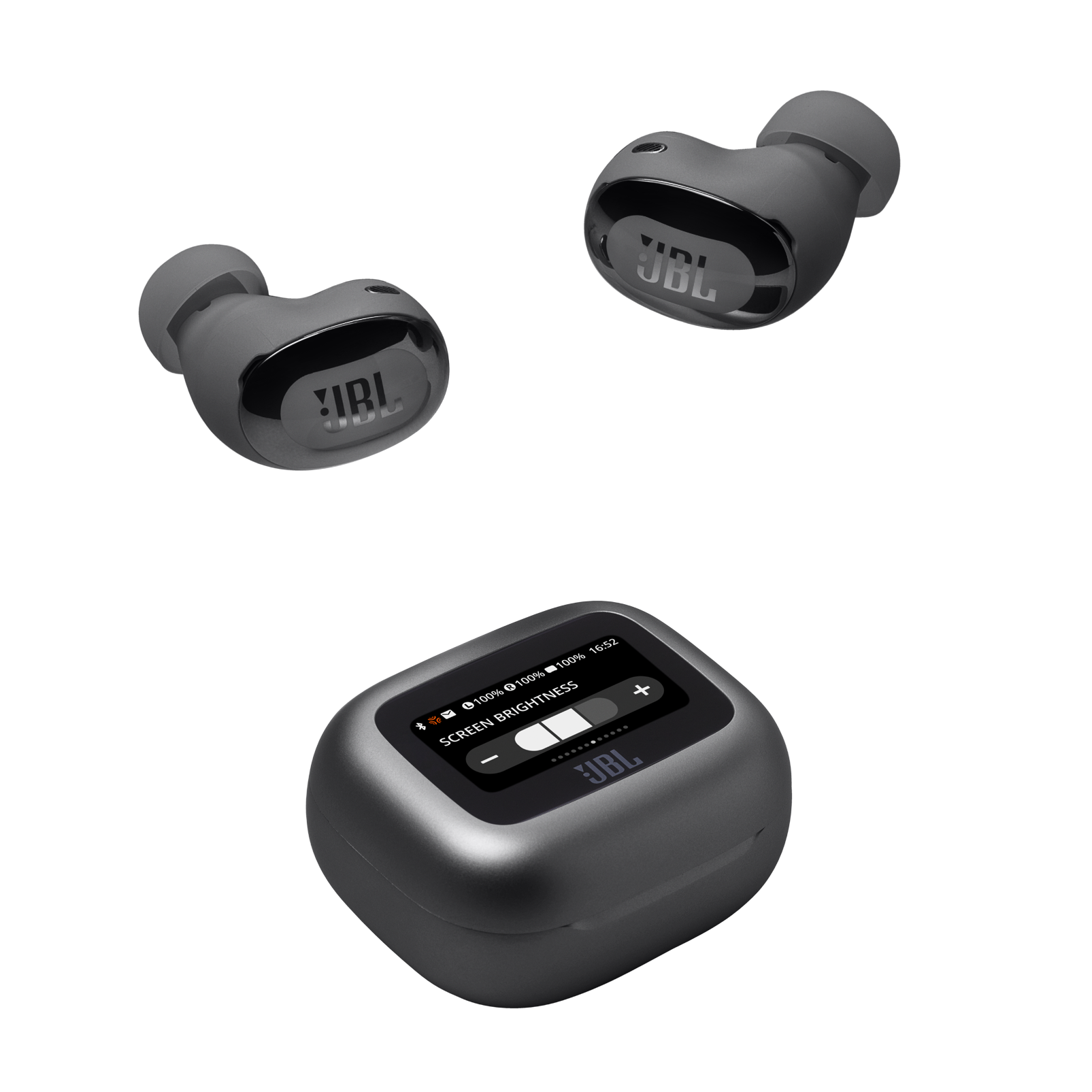

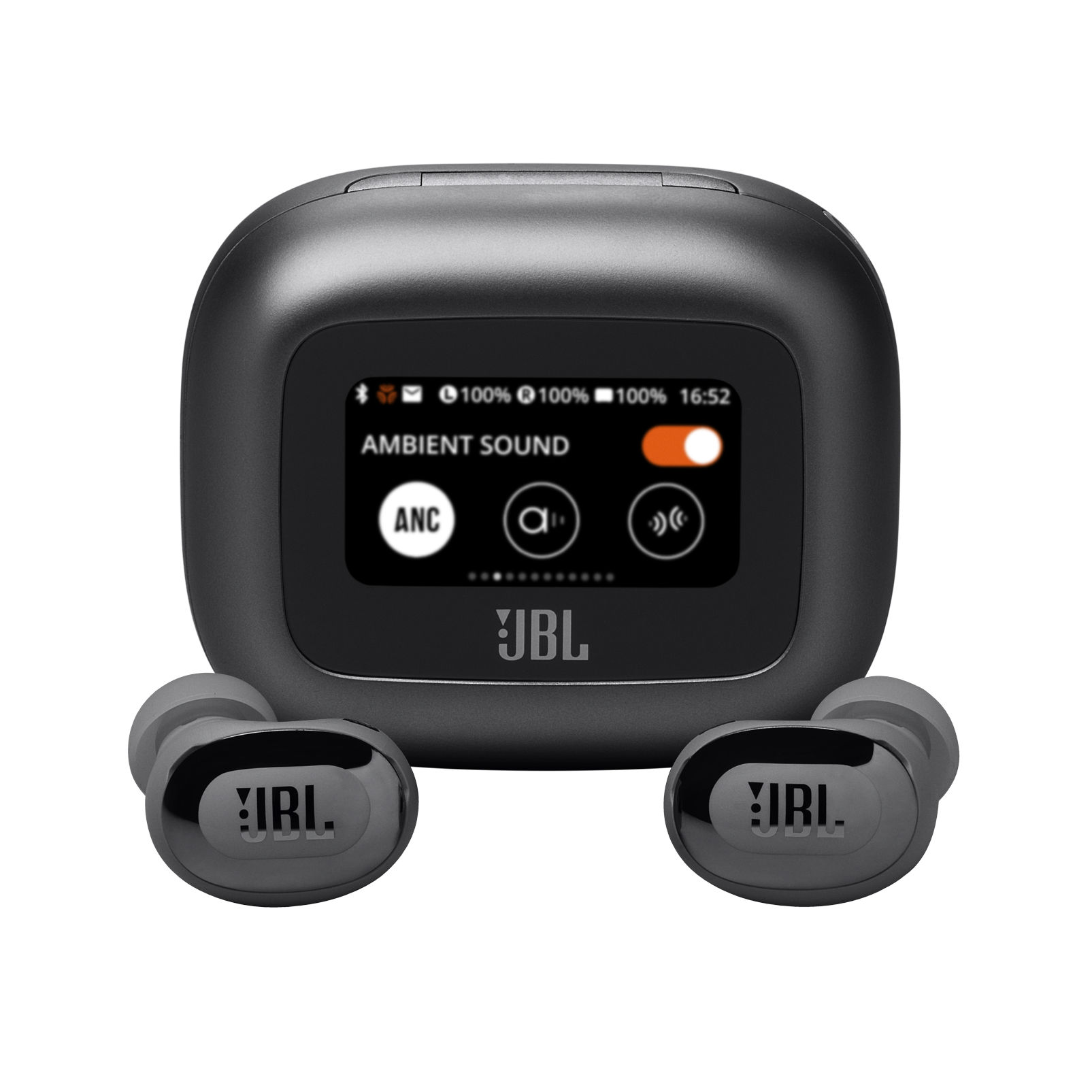

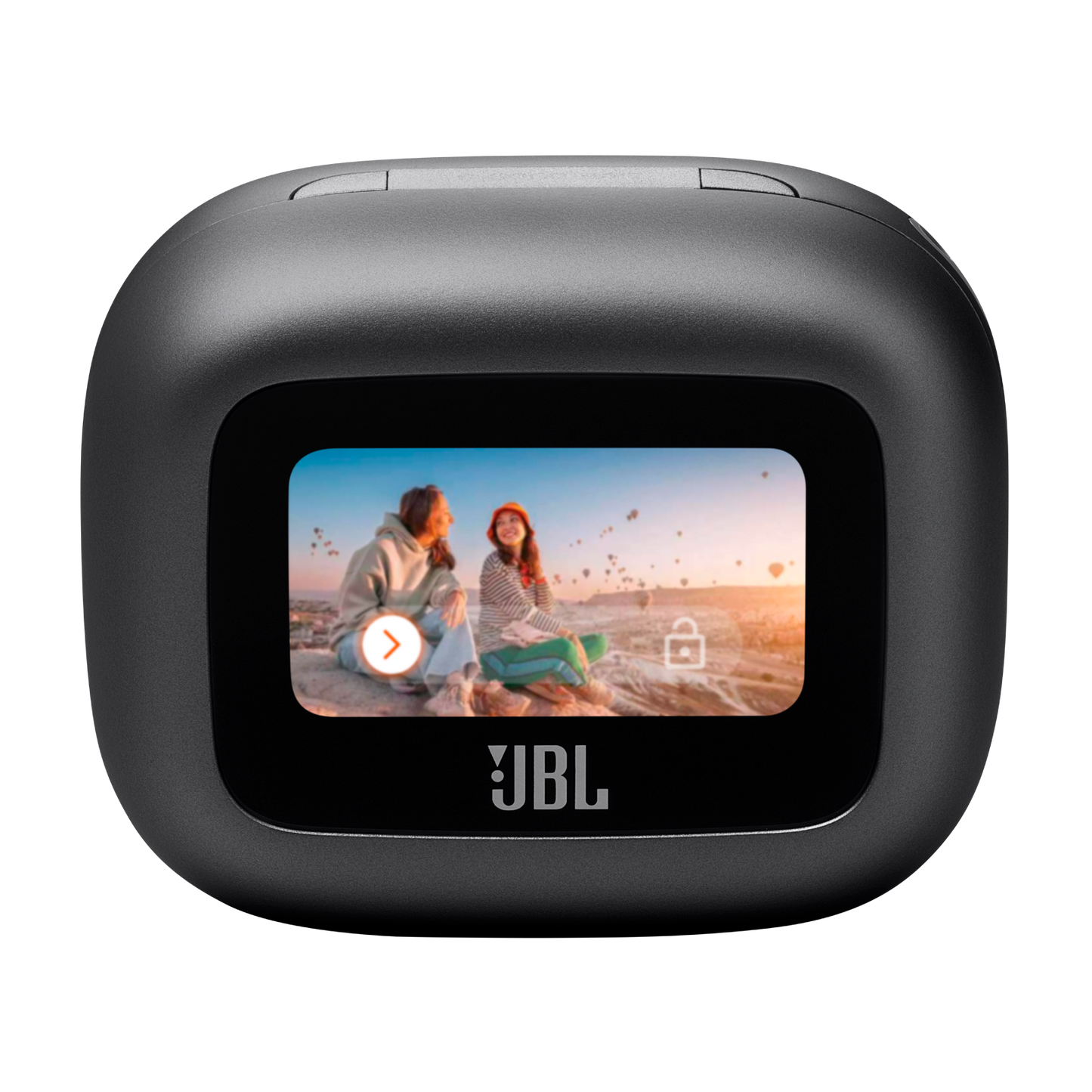

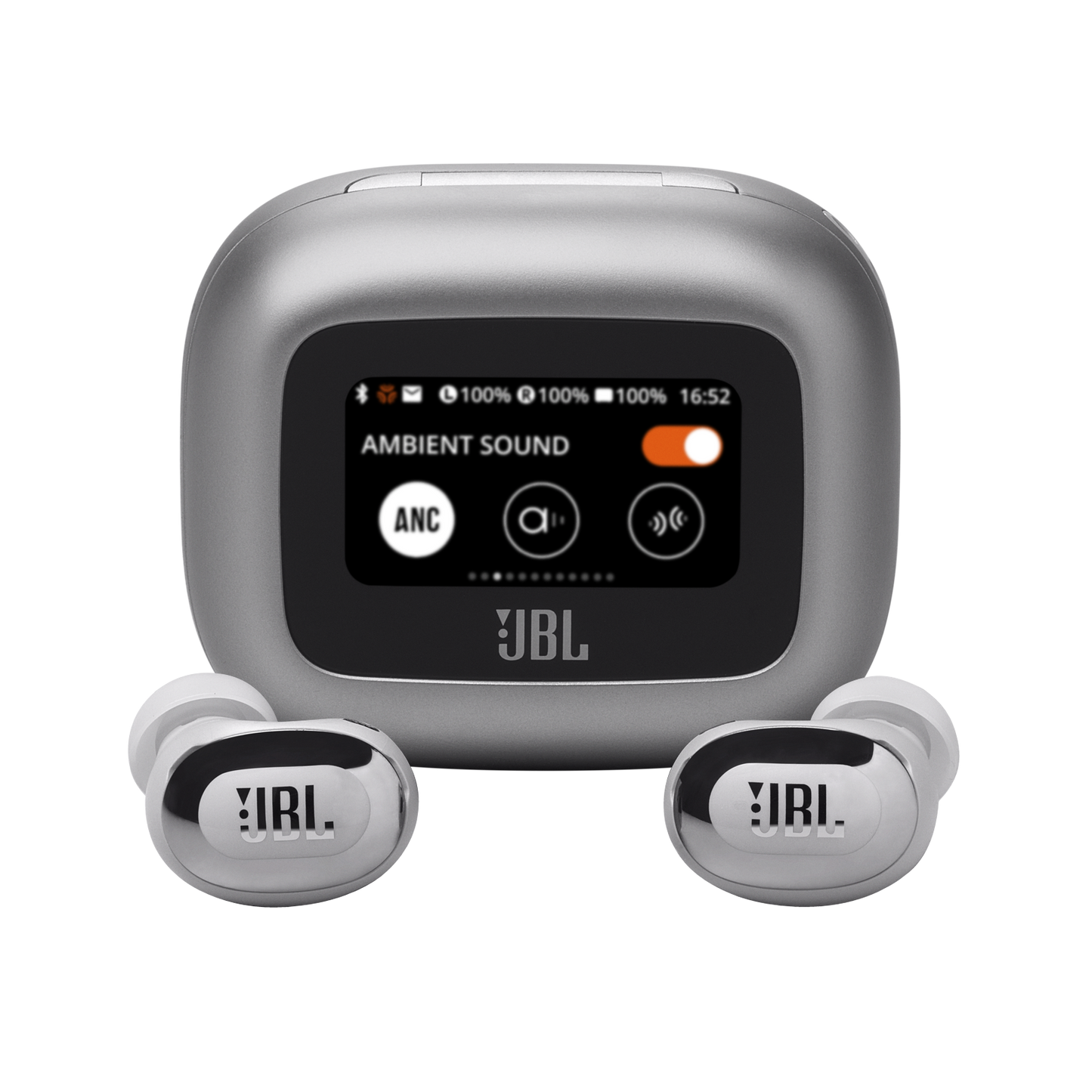

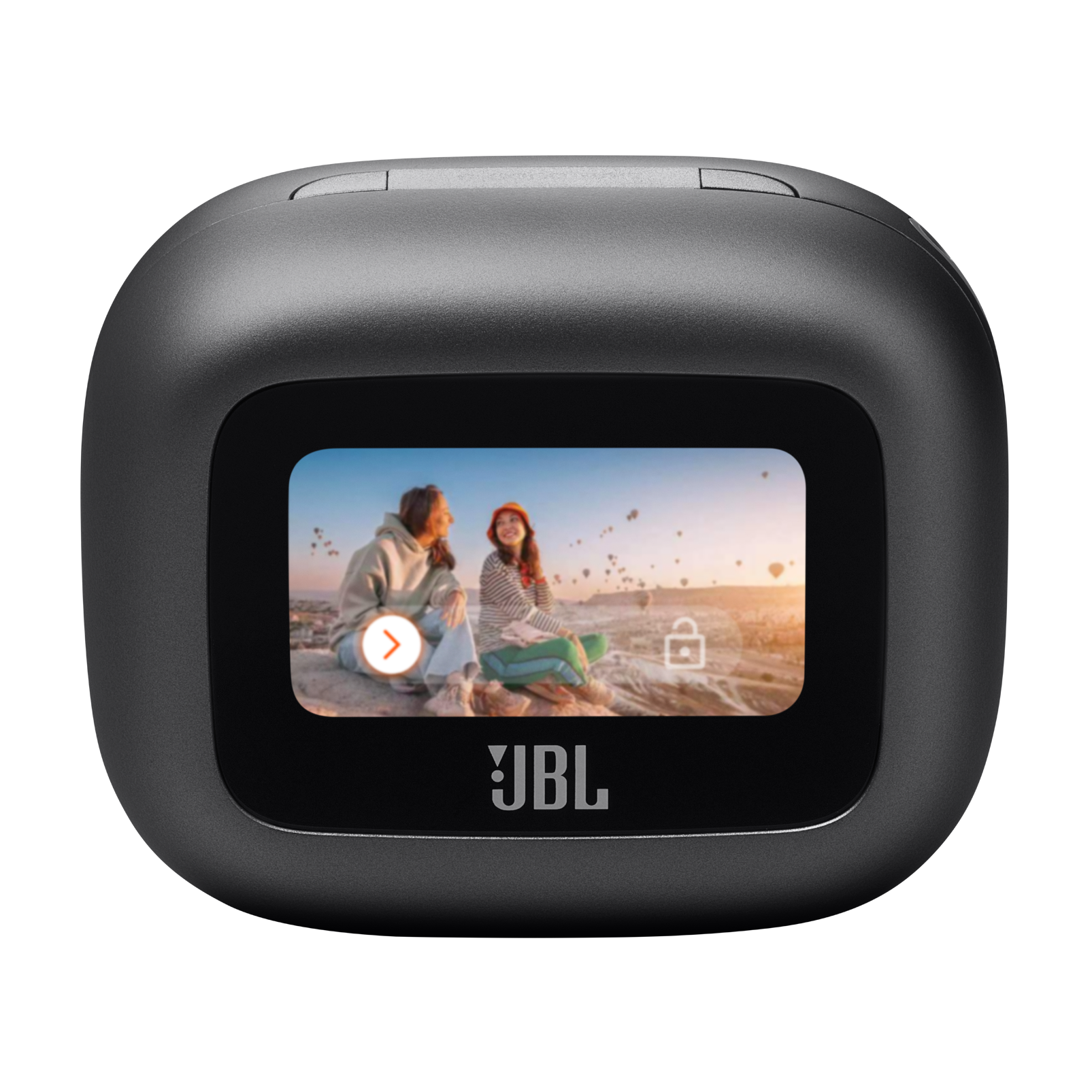

• Smart Charging Case™ for app-free control
• True Adaptive Noise Cancelling with custom control
• Up to 40 hours total playback with wireless charging
• 6 microphones for customizable crystal-clear calls
• Multi-point connection
• Google Finder & Audio Switch support
• IP55 waterproof and dustproof
• JBL Headphones App support
• Personi-Fi 3.0 personalization
Technical Specifications
Audio Specifications
• Driver size: 10 mm / 0.39” Dynamic Driver
• Frequency response: 20 Hz – 40 kHz
• Impedance: 16 ohm
• Sensitivity: 103 dB SPL @1 kHz
• Maximum SPL: 97 dB
• Microphone sensitivity: -38 dBV/Pa @1 kHz
Bluetooth & Connectivity
• Bluetooth® version (Earbuds): 5.3
• Bluetooth® version (Charging Case): 5.1
• Bluetooth® profile version: A2DP V1.4, AVRCP V1.6.2, HFP V1.8
• Bluetooth® transmitter frequency range: 2.4 GHz – 2.4835 GHz
• Bluetooth® transmitter power (Earbuds): <10 dBm (EIRP)
• Bluetooth® transmitter power (Charging Case): <7 dBm (EIRP)
• Bluetooth® transmitter modulation (Earbuds): GFSK, π/4-DQPSK, 8DPSK
• Bluetooth® transmitter modulation (Charging Case): GFSK
Battery Specifications
• Earbud battery type: Lithium-ion battery (60 mAh / 3.85 V)
• Charging case battery type: Lithium-ion battery (620 mAh / 3.8 V)
• Charging time: 2 hours from empty
• Music playtime with ANC off: Up to 10 hours
• Music playtime with ANC on: Up to 8 hours
• Music playtime with True Adaptive ANC on: Up to 7 hours
• Talk time with ANC off: Up to 5.5 hours
• Talk time with ANC on: Up to 4.5 hours
Dimensions & Weight

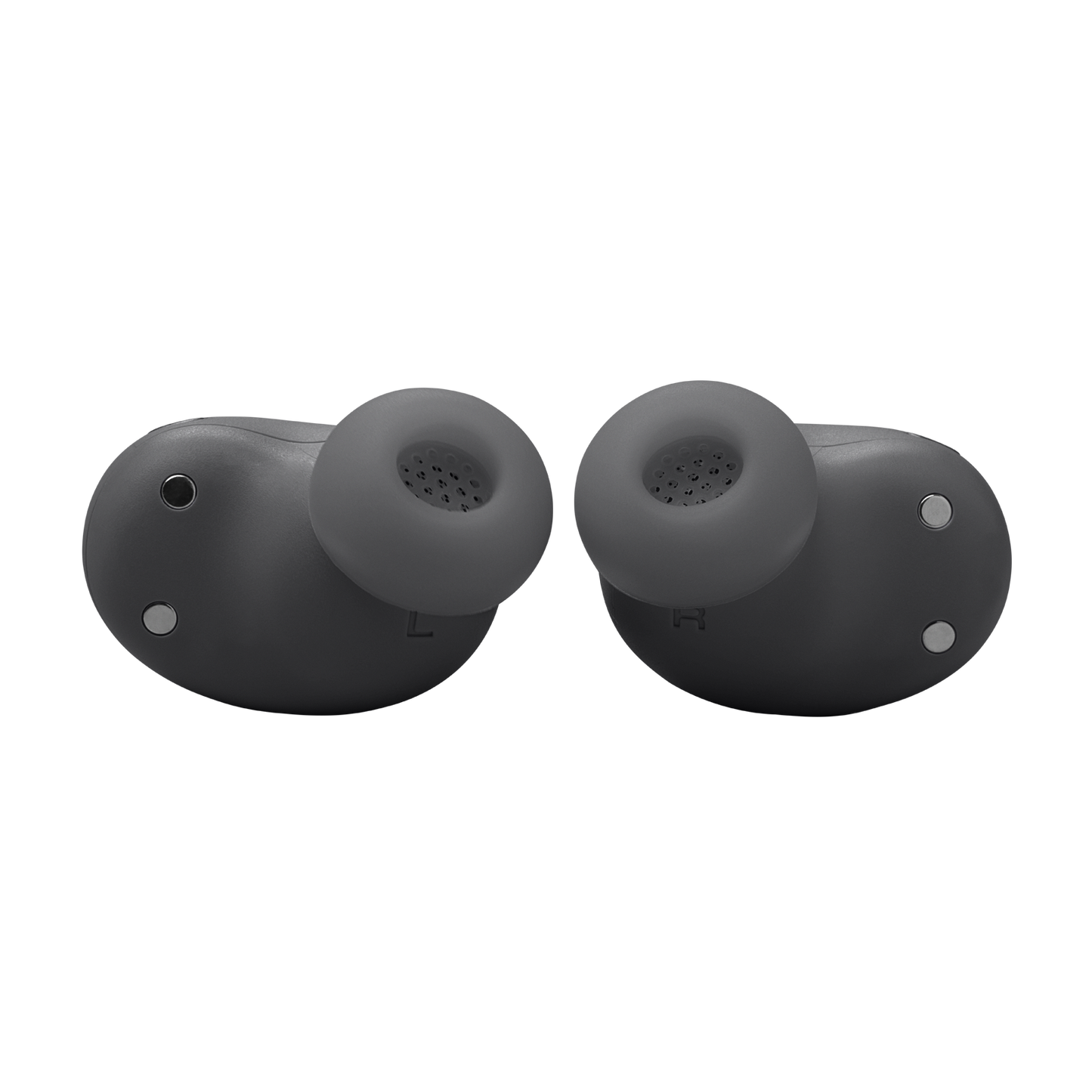

• Earbud dimensions: 21.8 × 15.9 × 21.2 mm

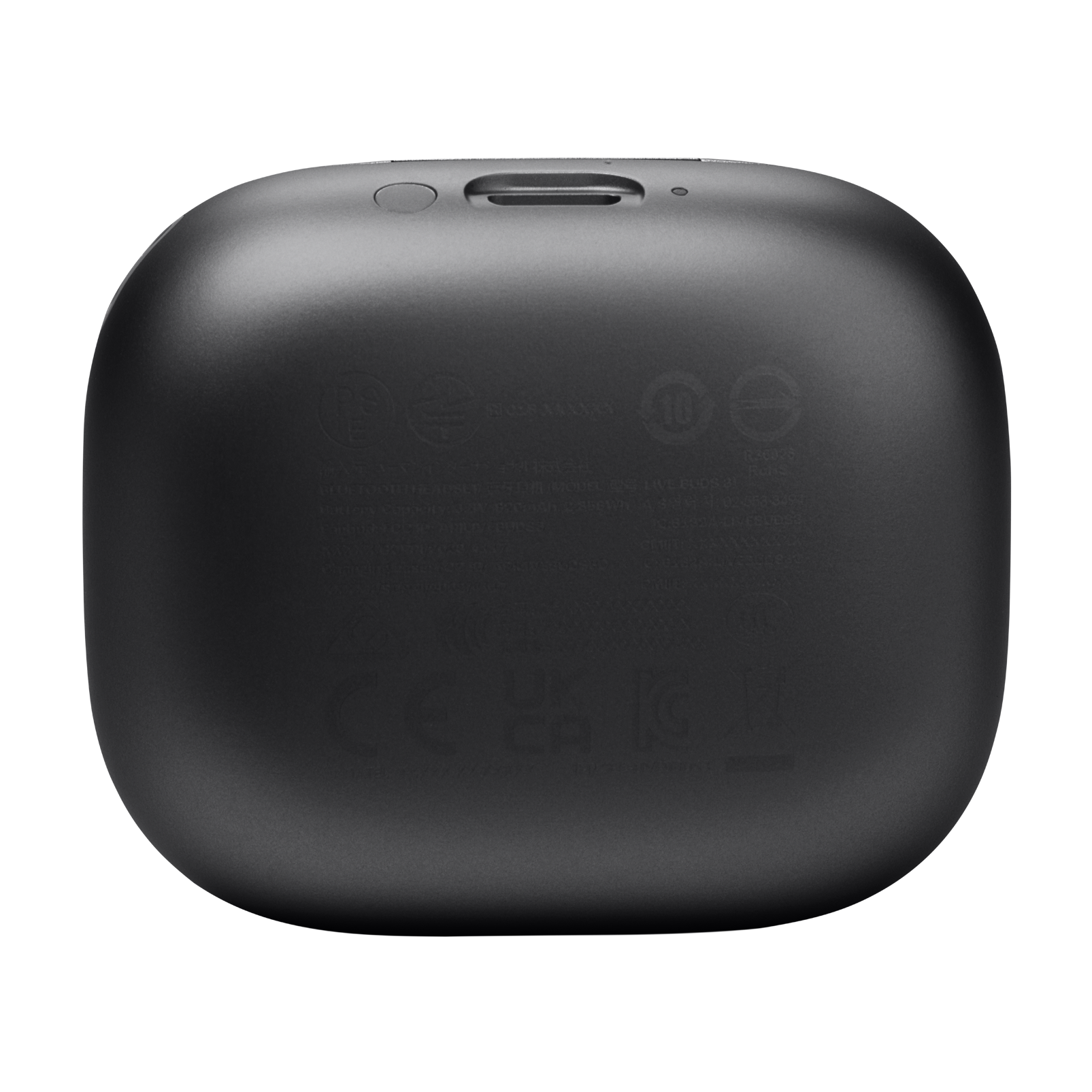

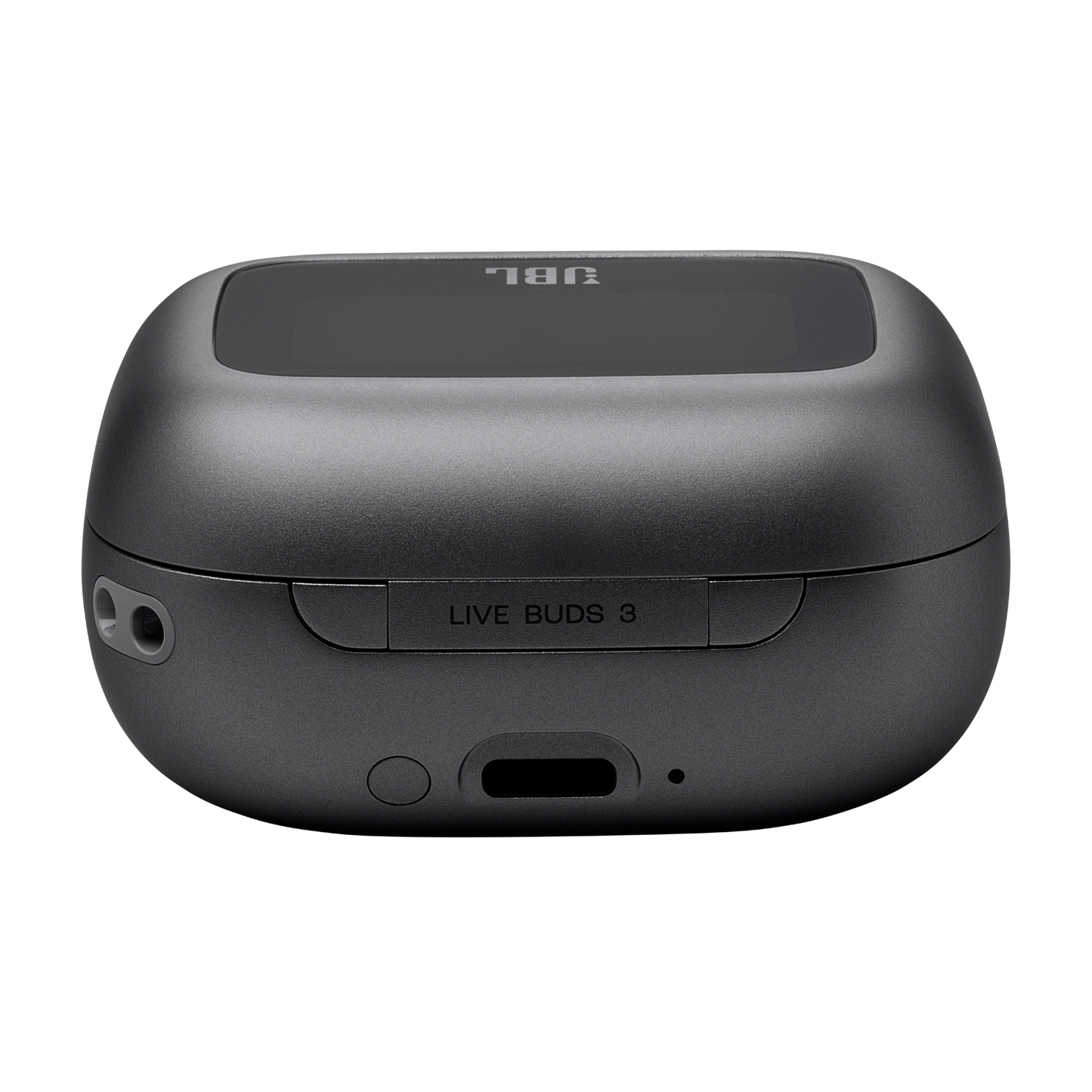

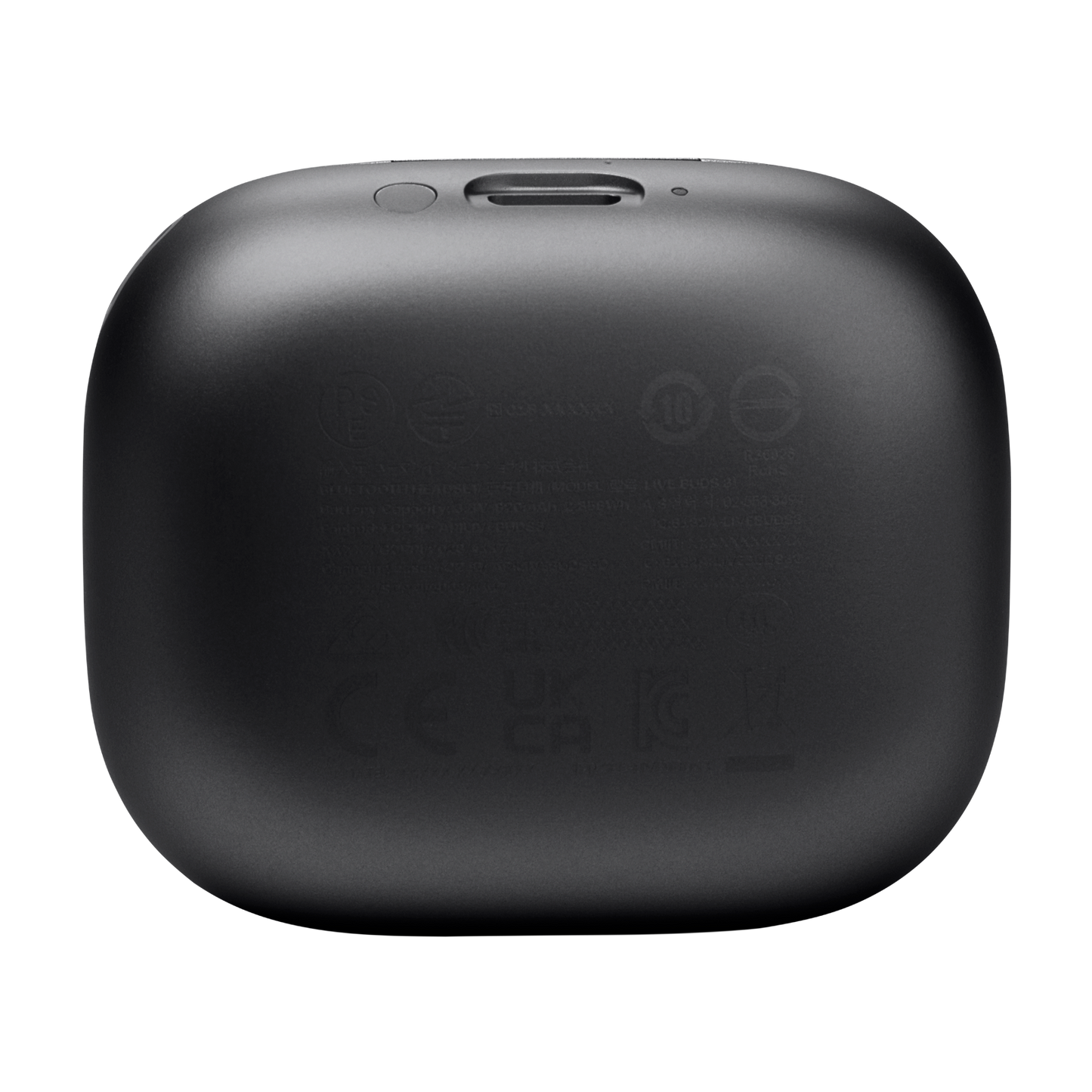

• Charging case dimensions: 61 × 51 × 30.8 mm
• Earbud weight: 4.6 g each (9.2 g combined)
• Charging case weight: 73 g / 0.16 lbs
Additional Information
• Power supply: 5V ⎓ 1A
• Maximum operation temperature: 45 °C
• IP Rating (Earbuds): IP55
What’s in the Box

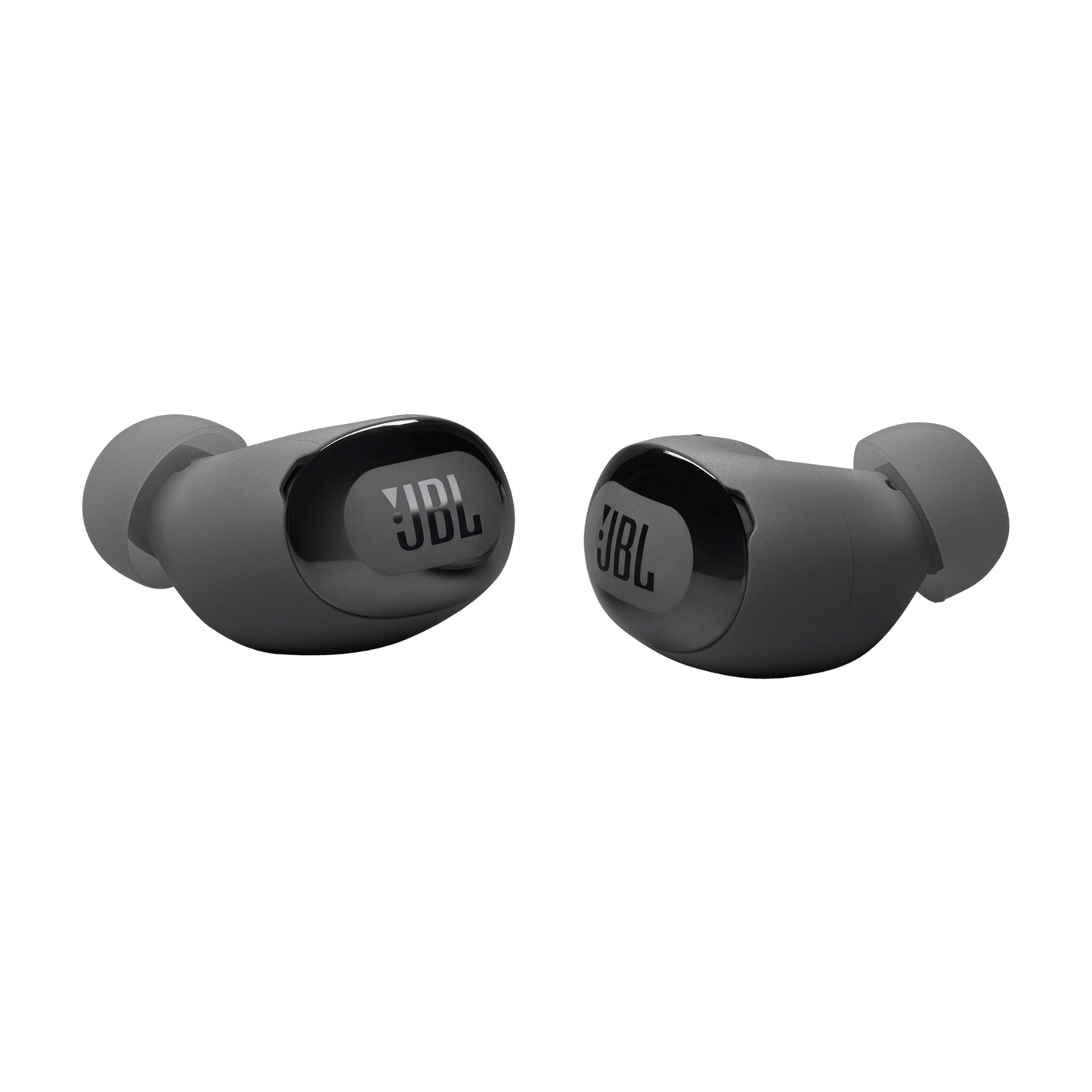

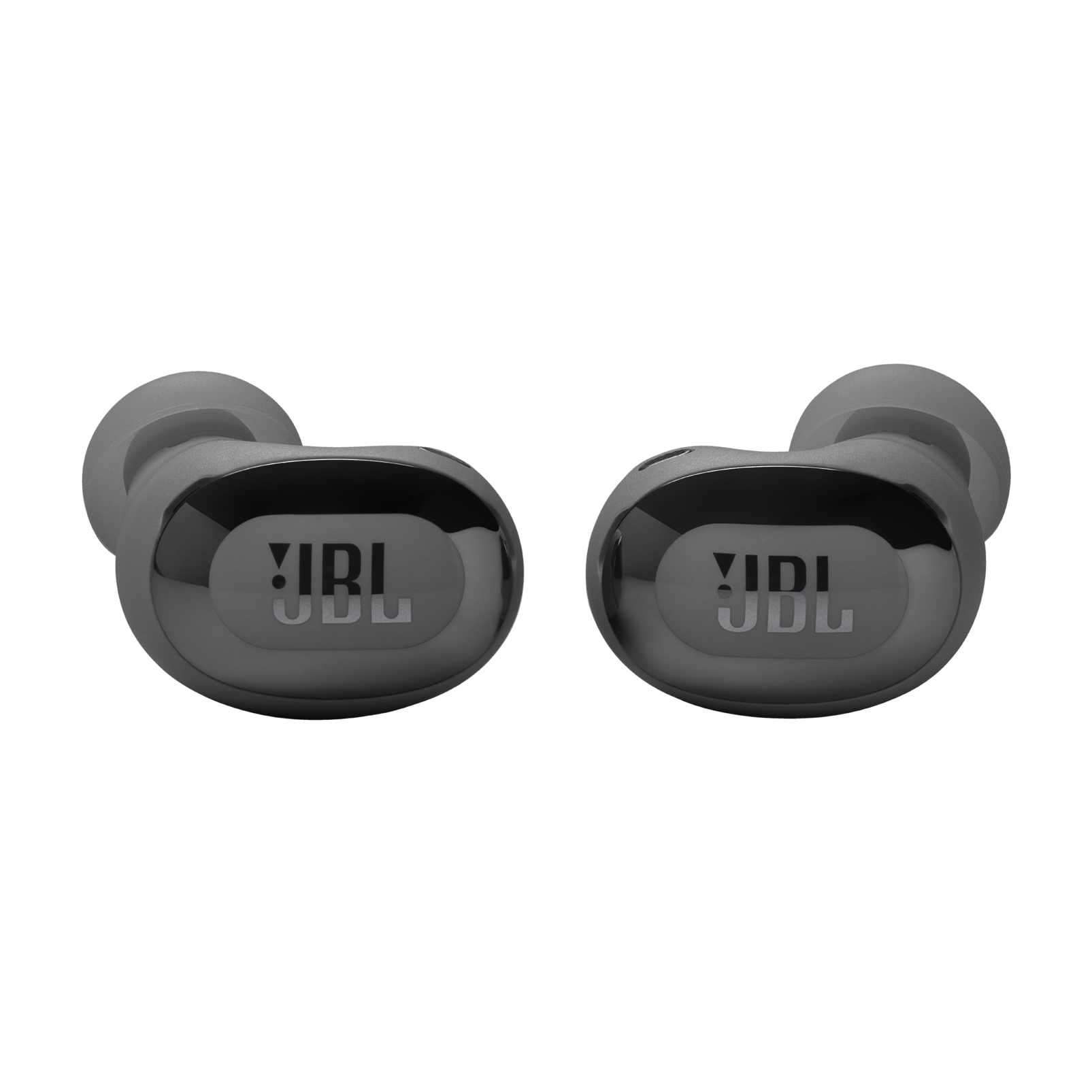

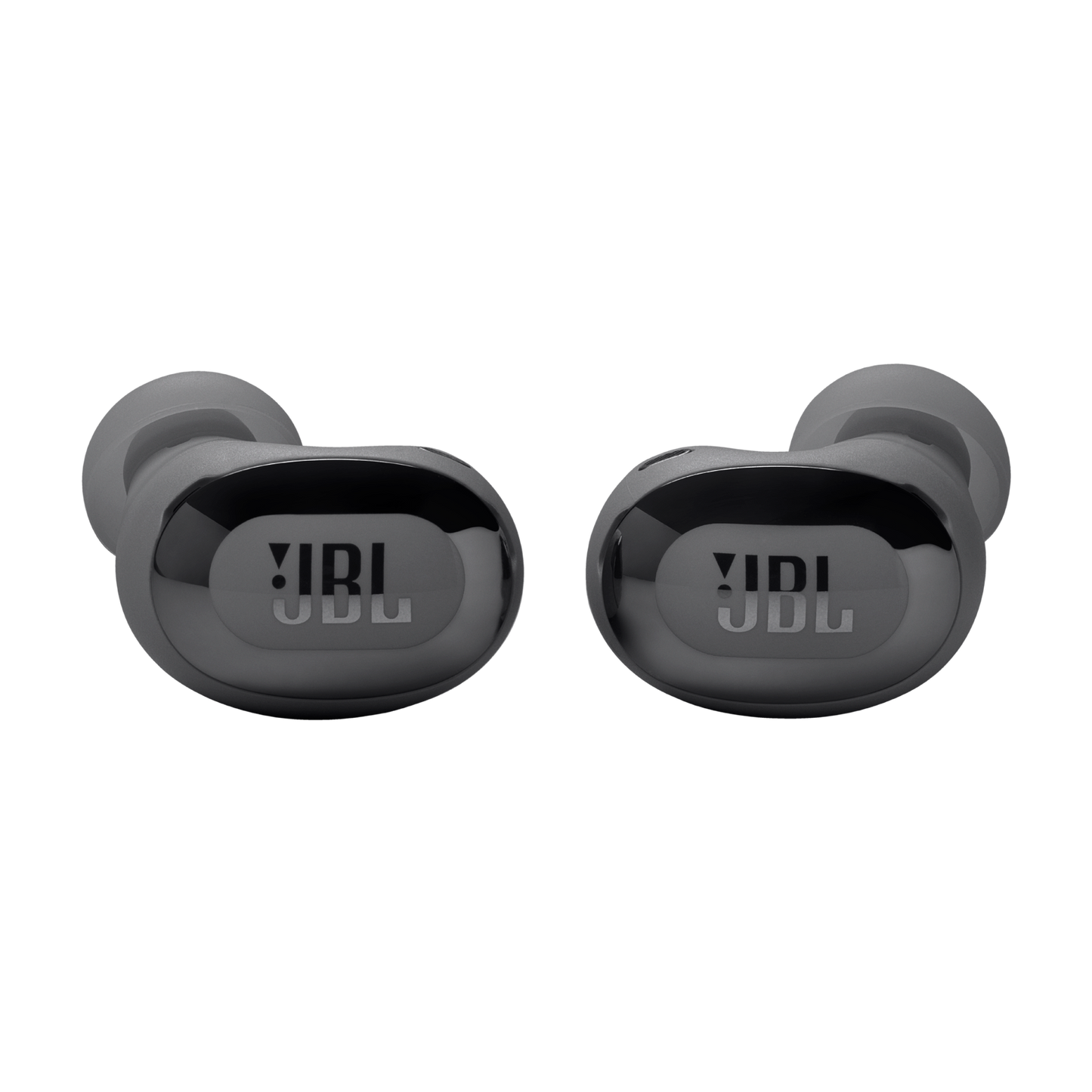

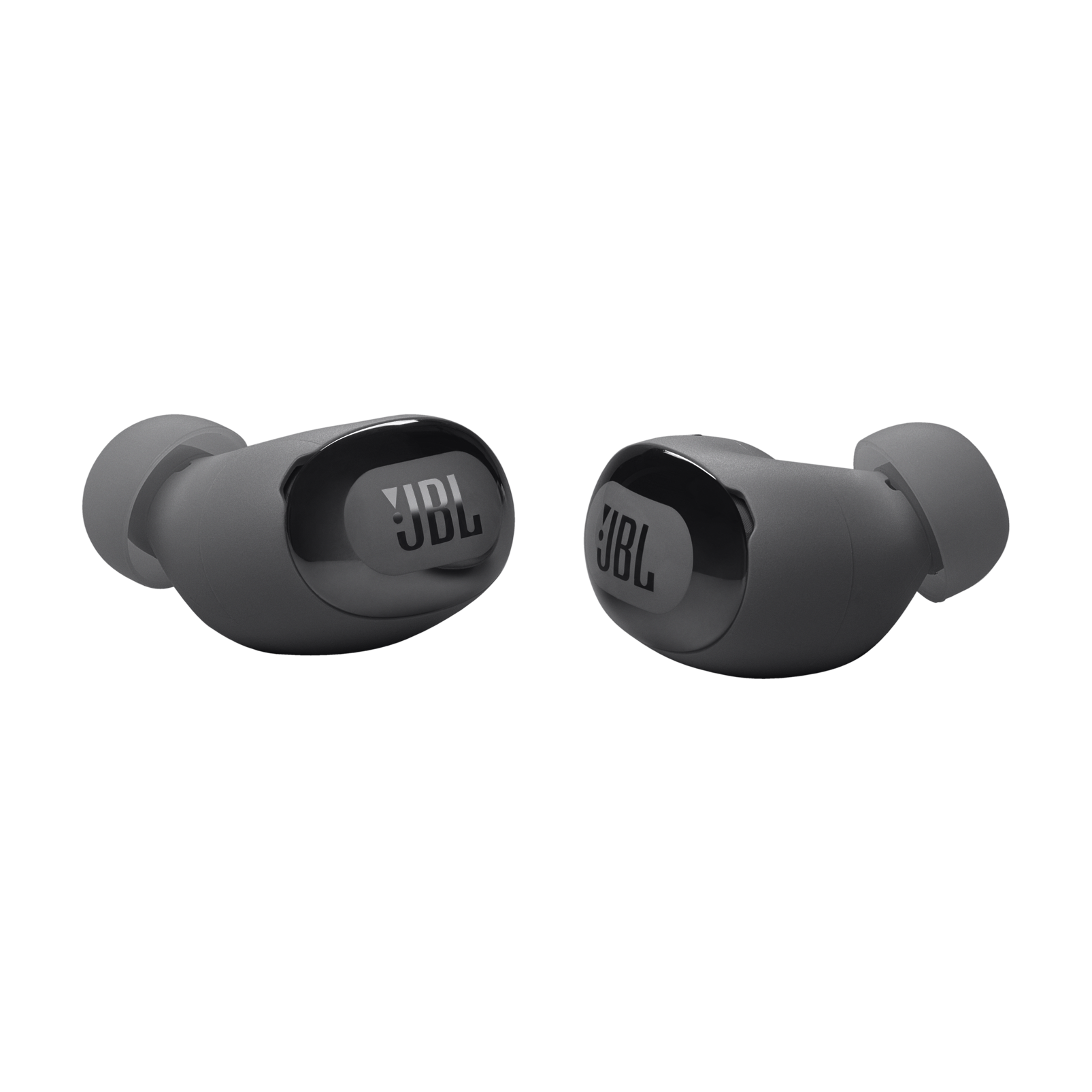

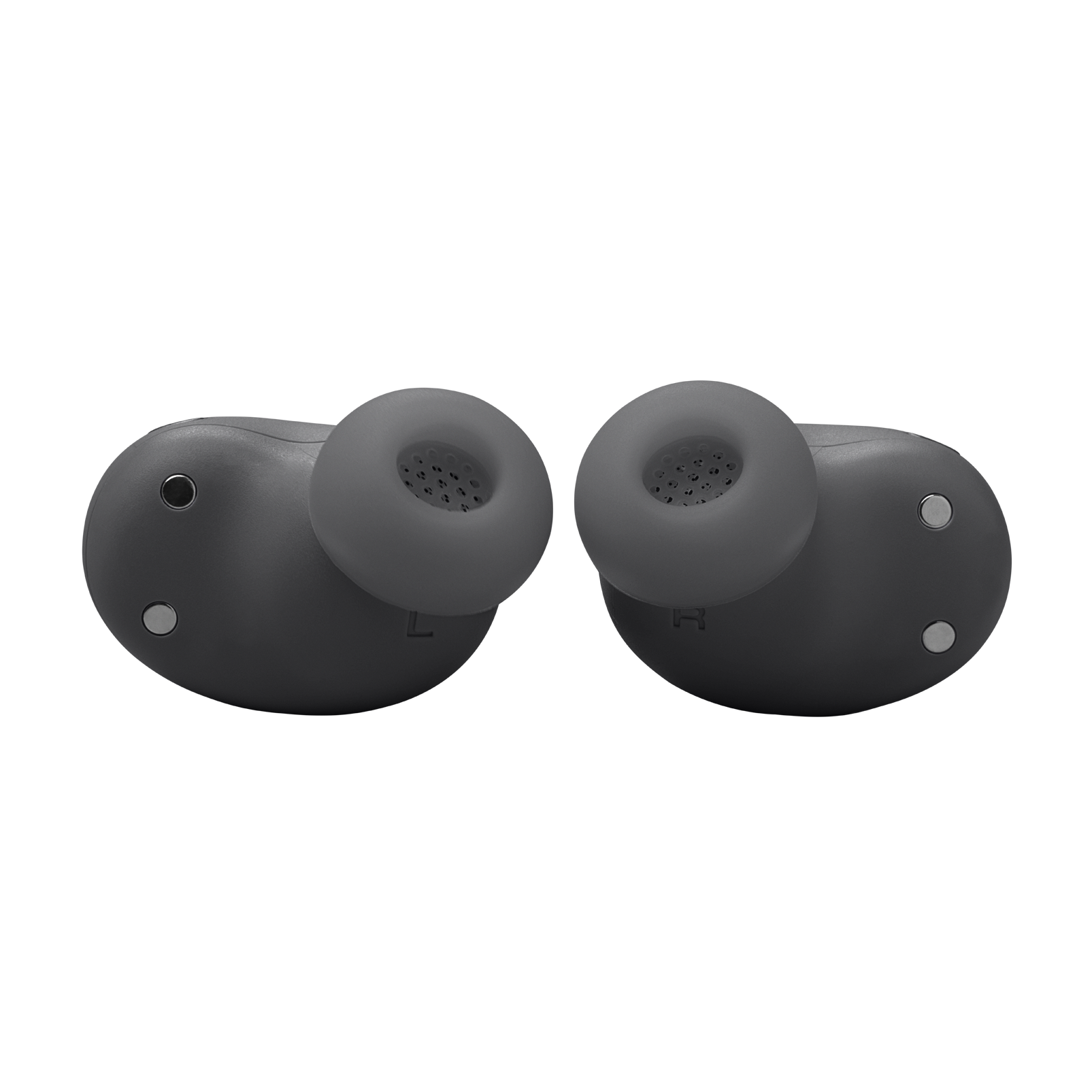

• 1 × JBL Live Buds 3 earbuds

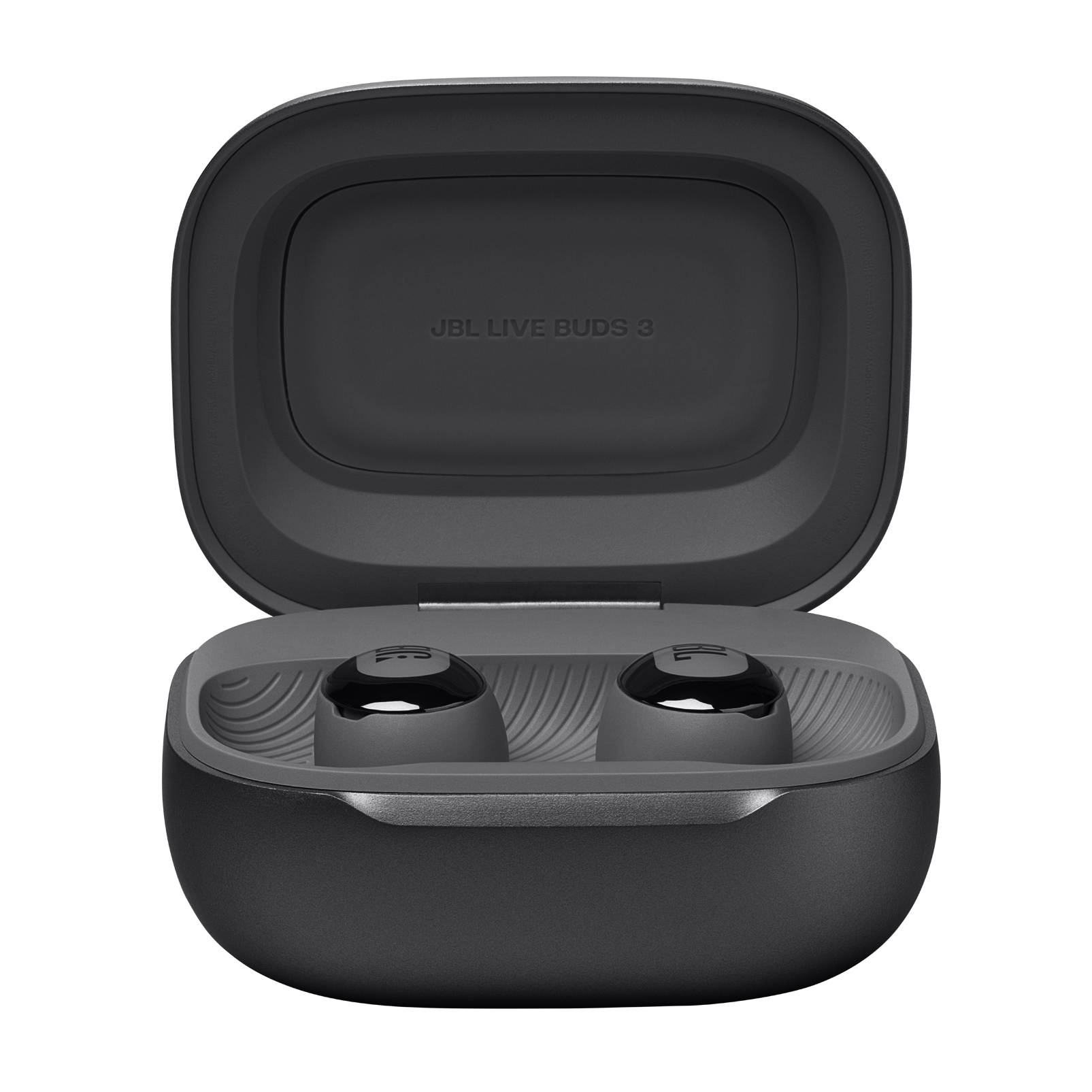

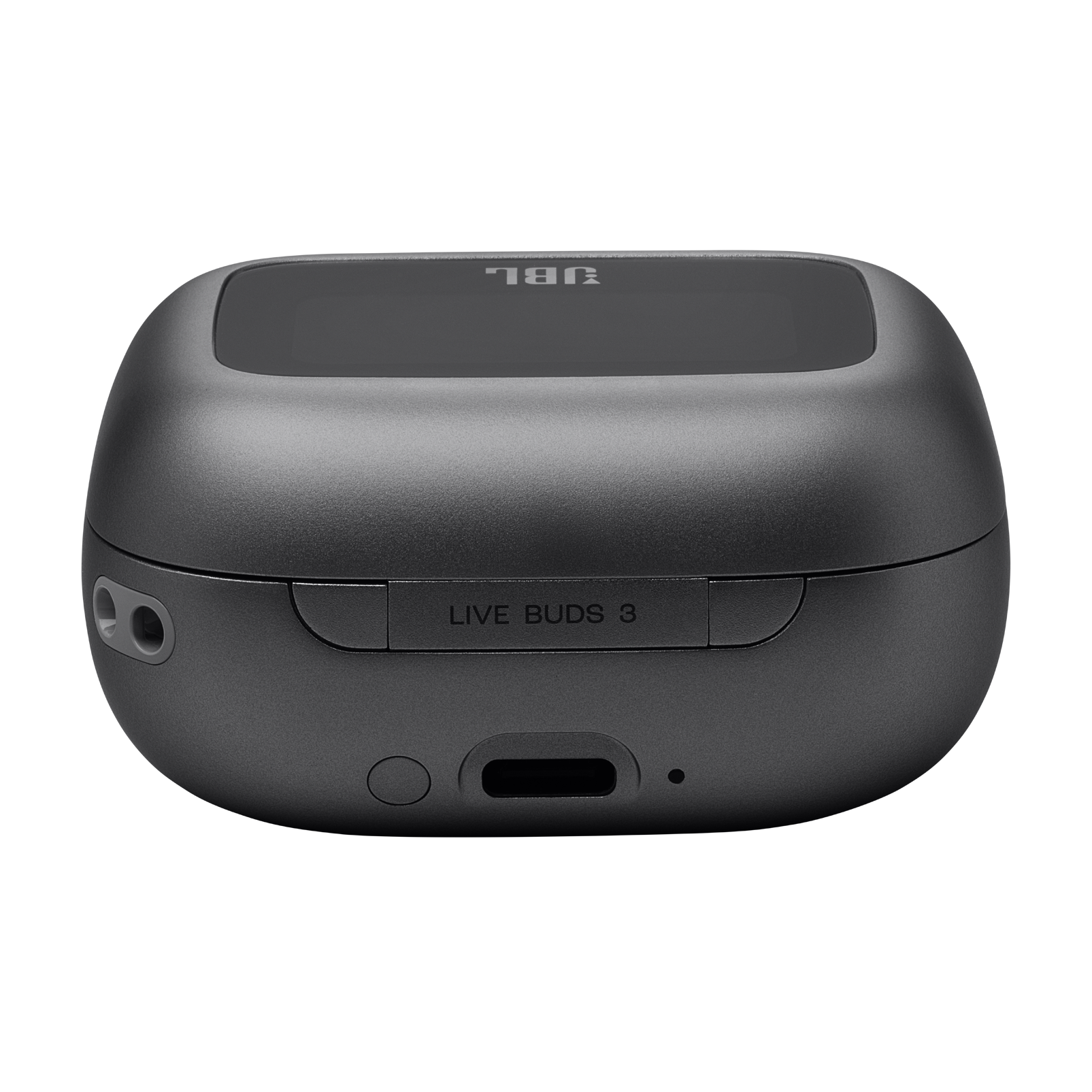

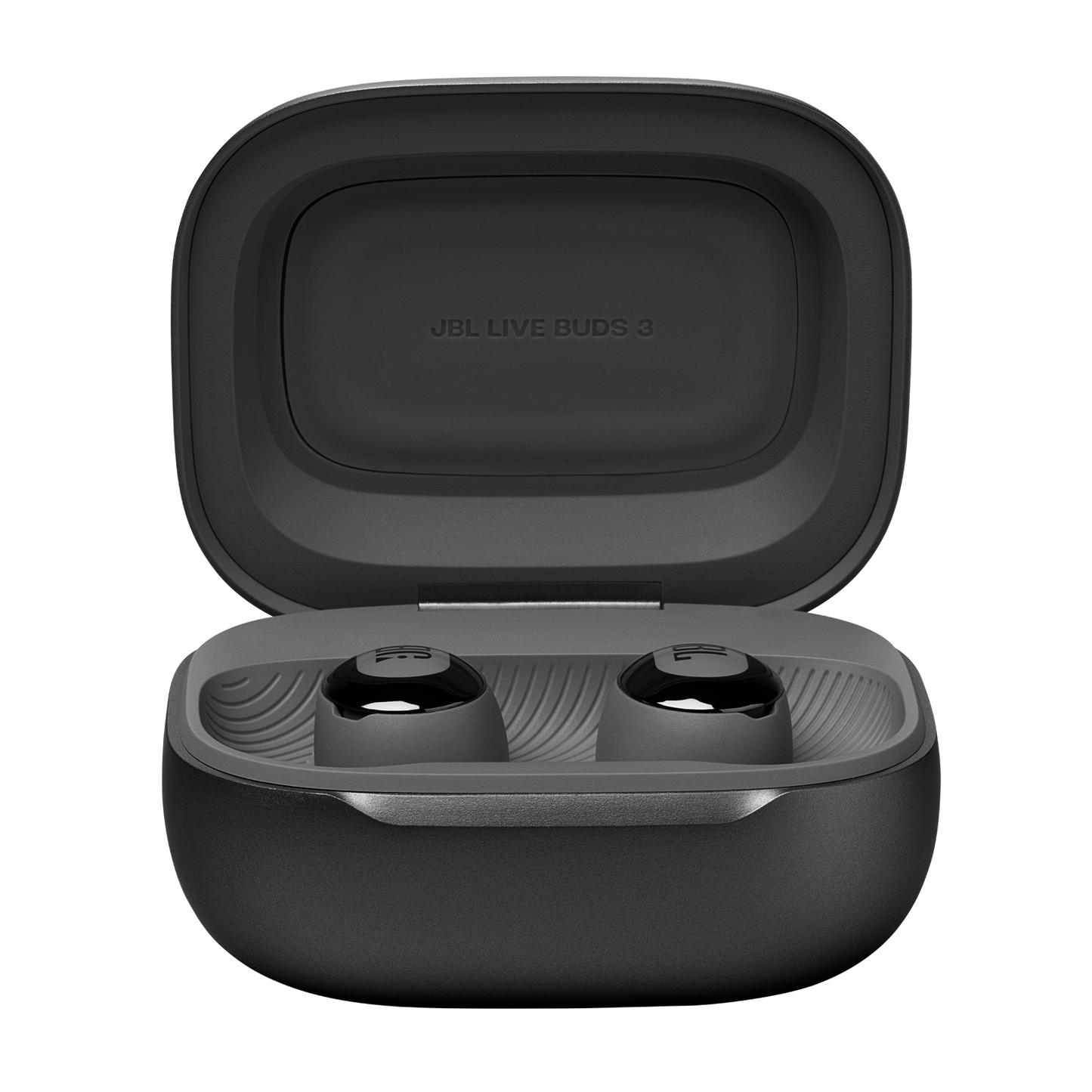

• 1 × Charging case
• 1 × Type-C USB charging cable
• 1 × 4 sizes of ear tips
• 1 × Warranty / Warning (W / !)
• 1 × Product QSG / Safety Sheet (S / i)
