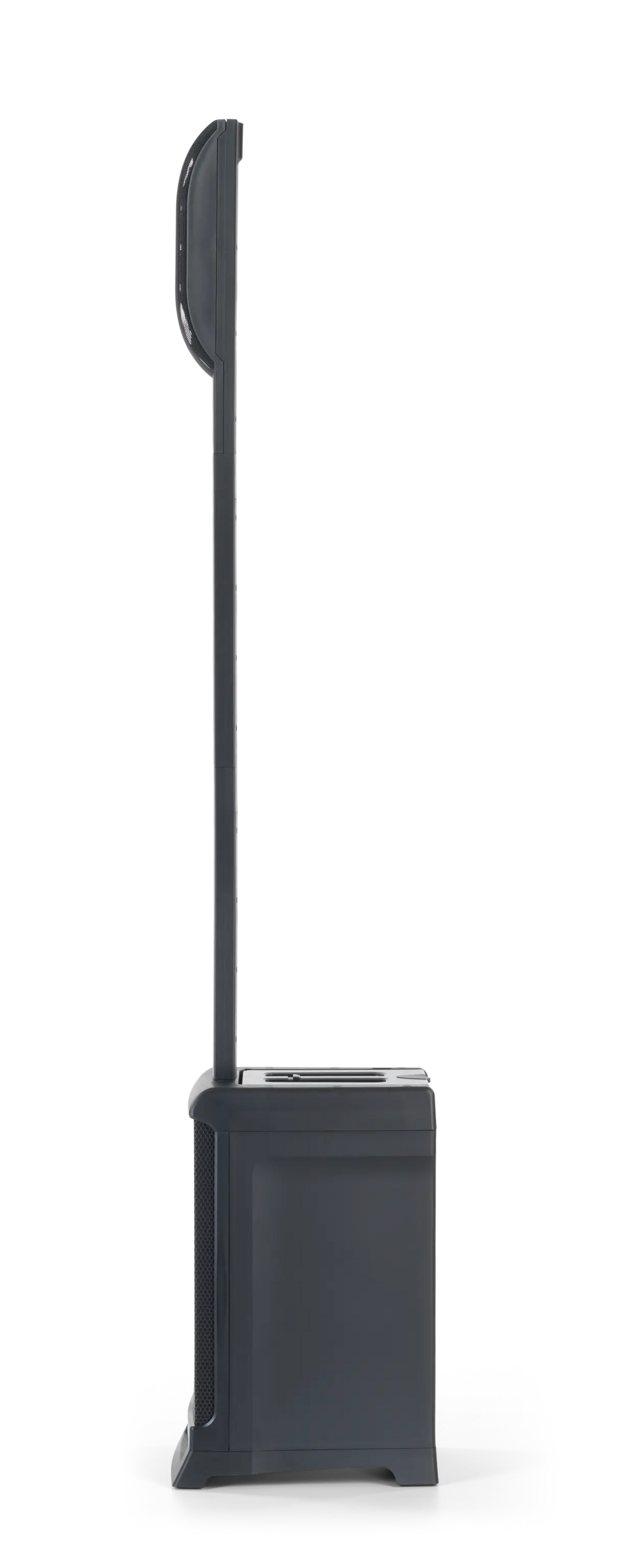

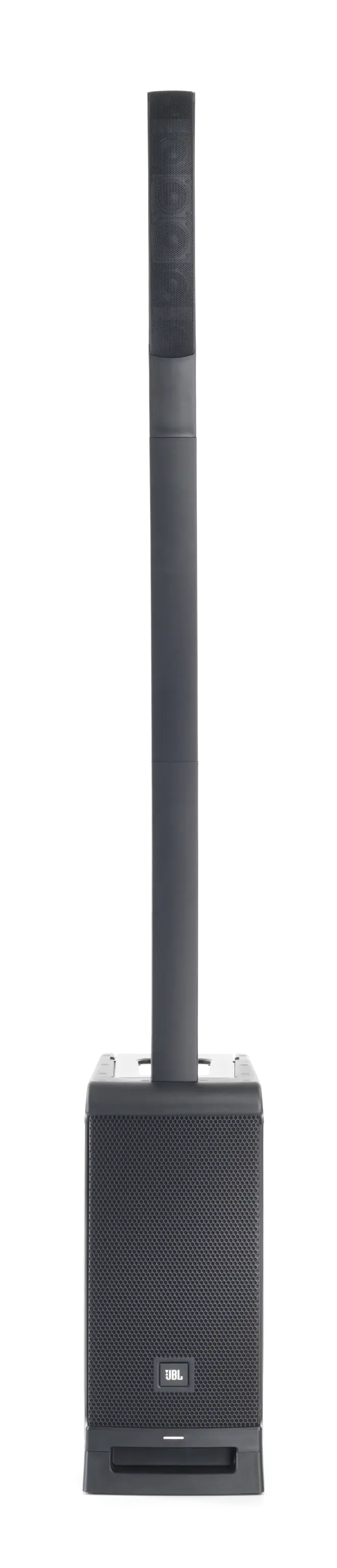

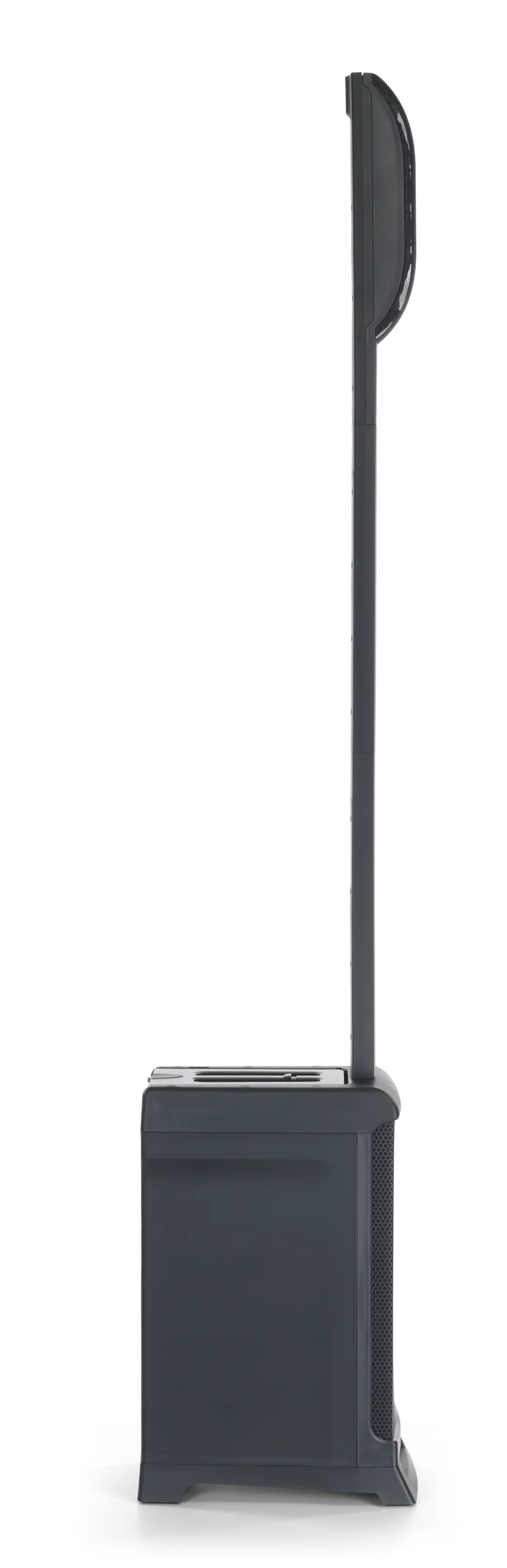

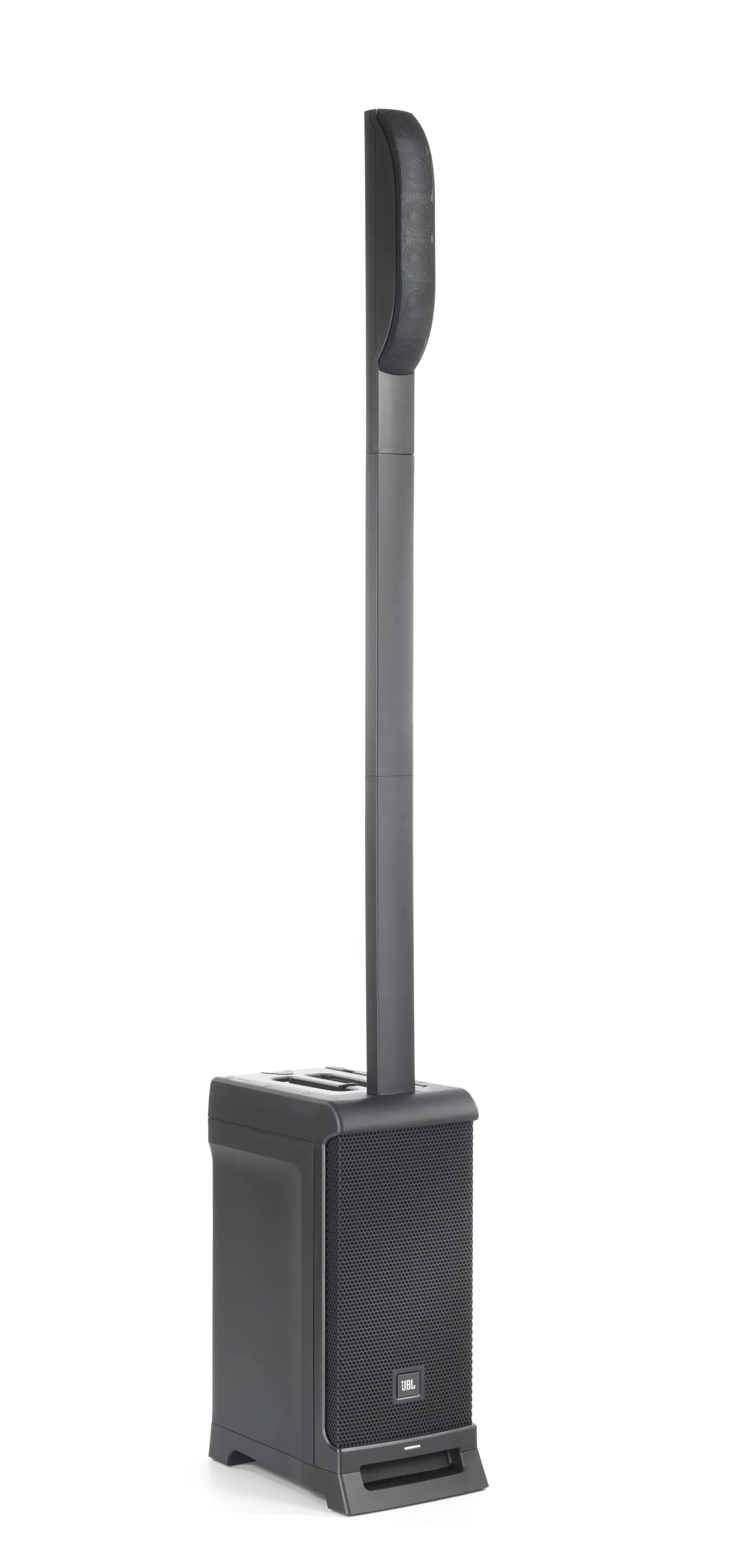

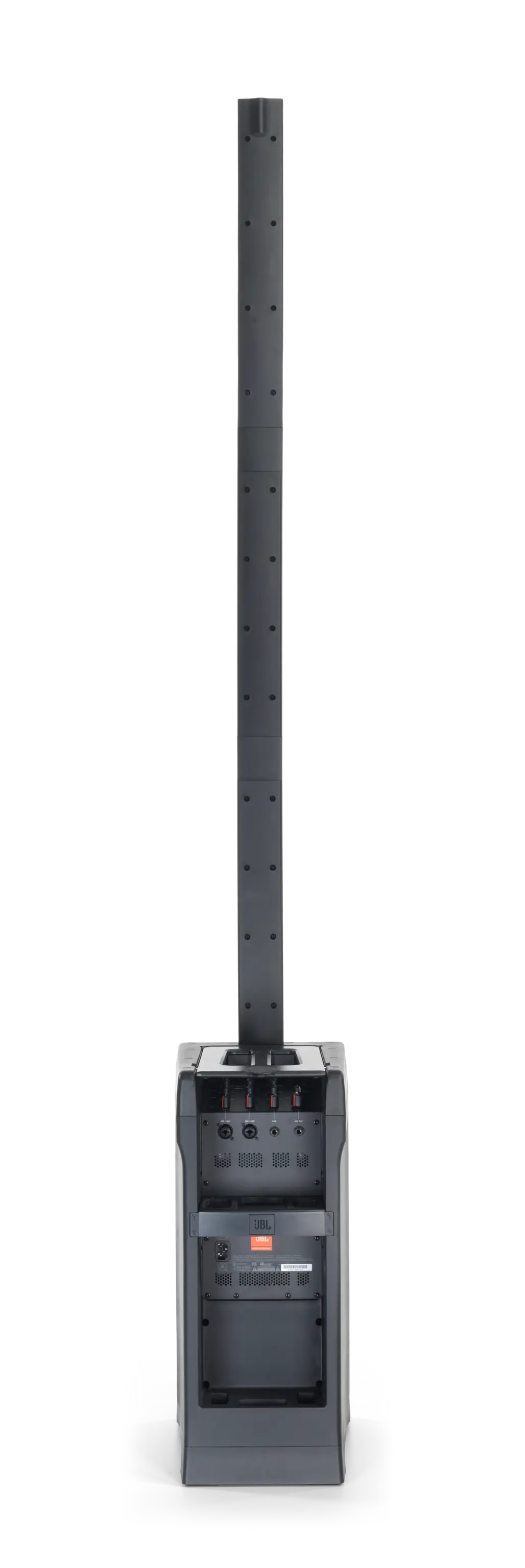

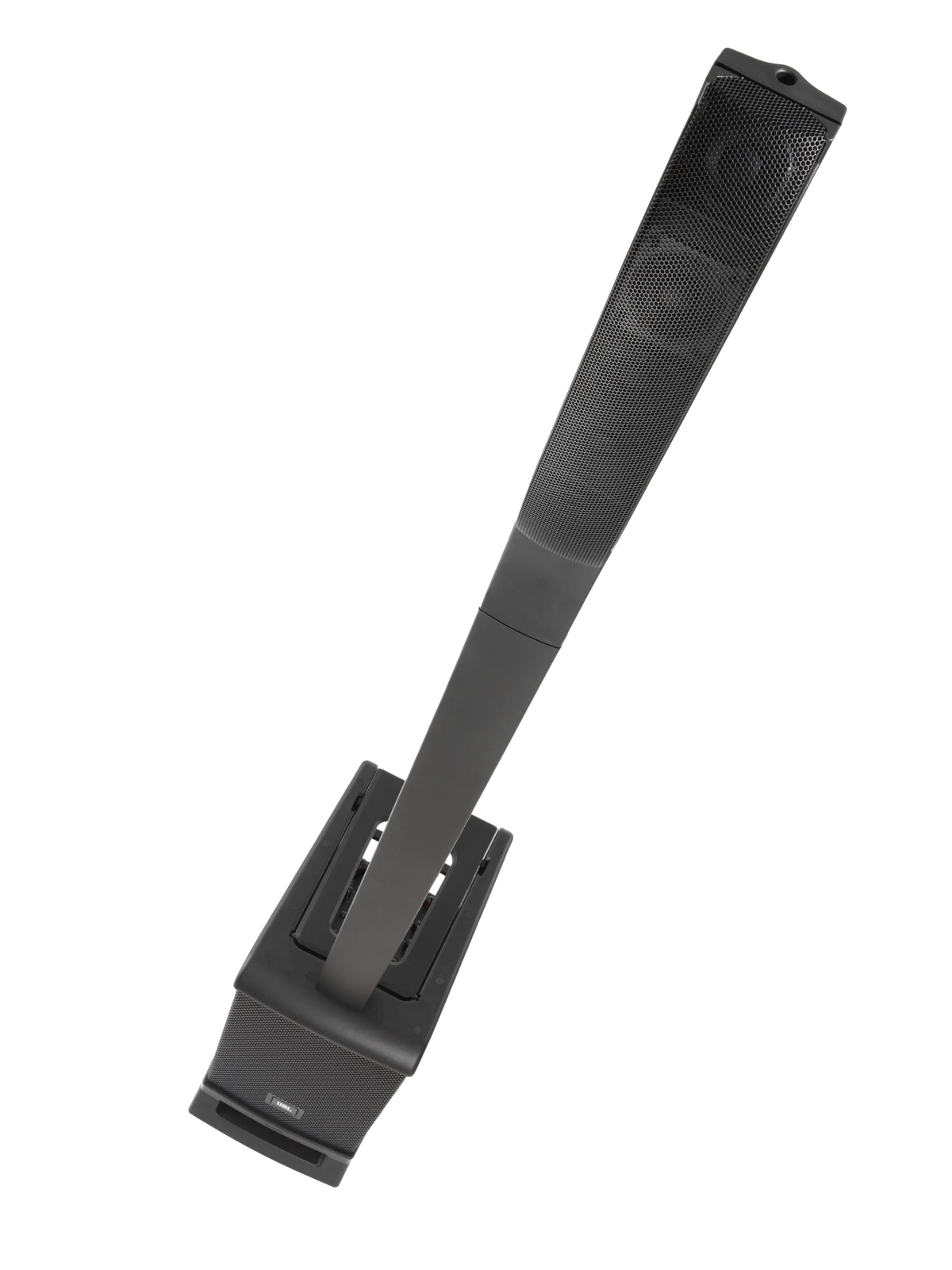

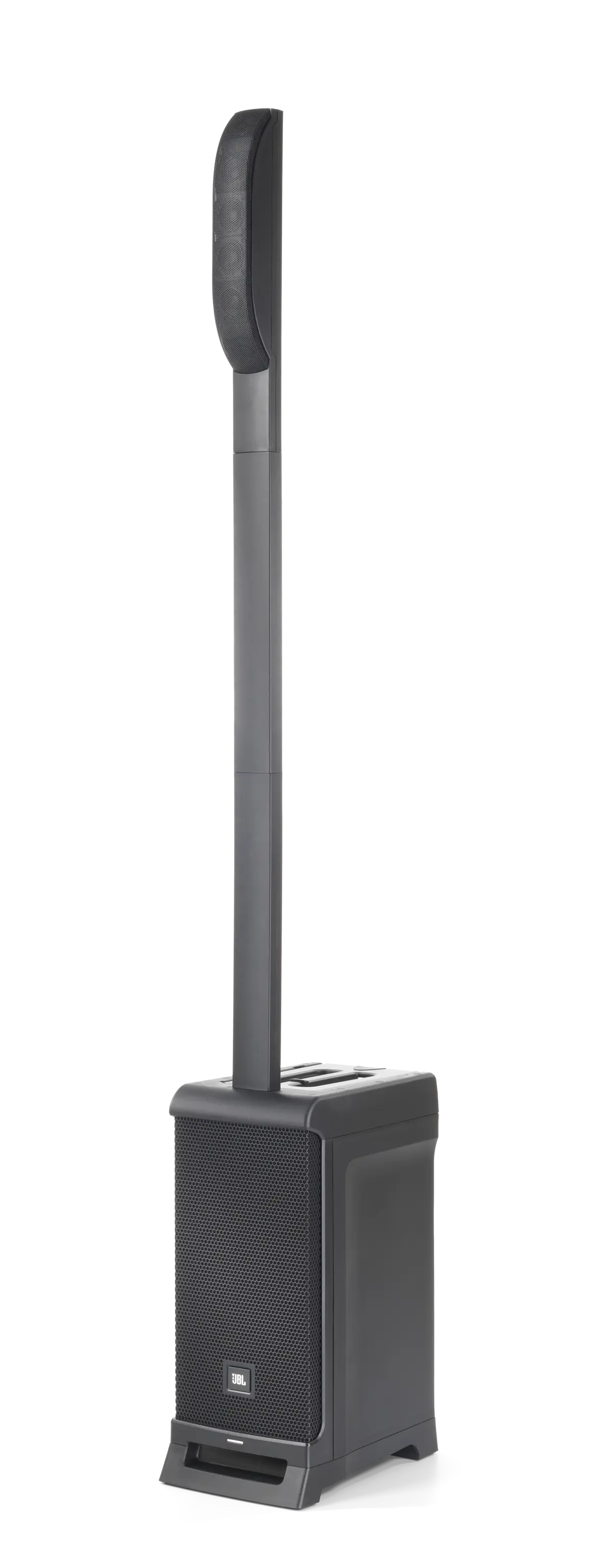

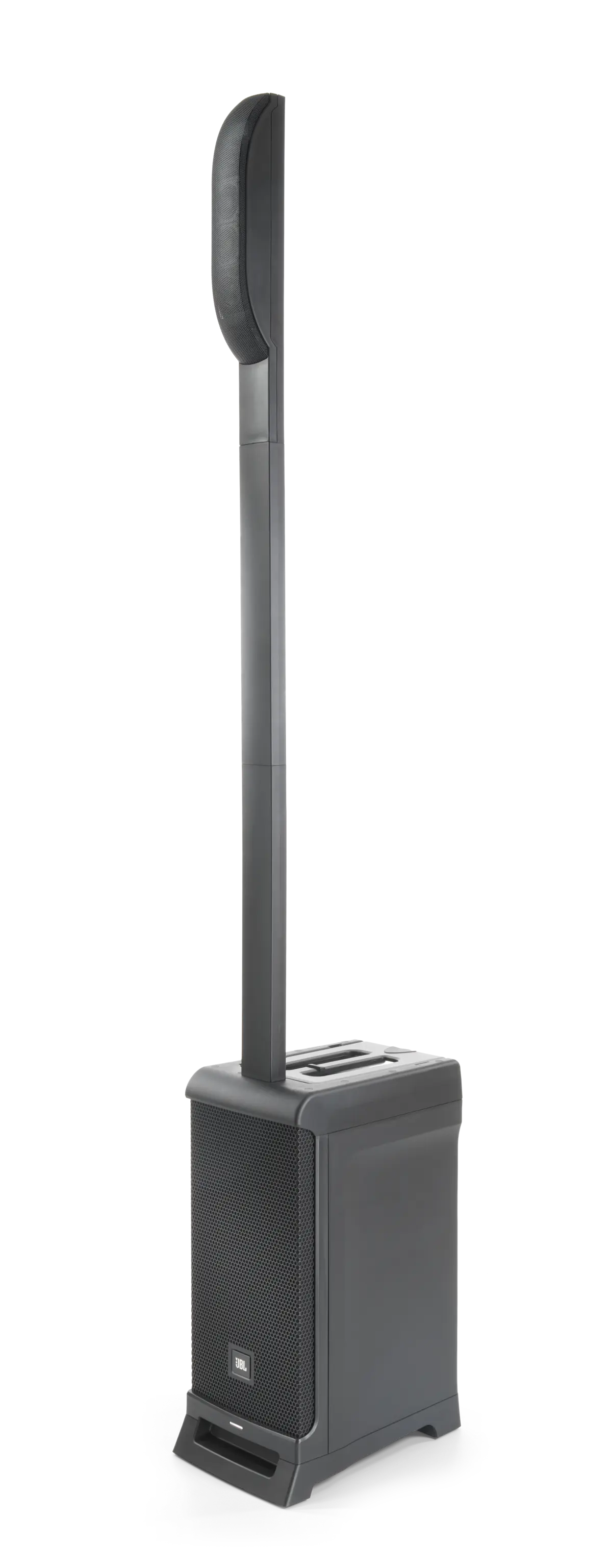

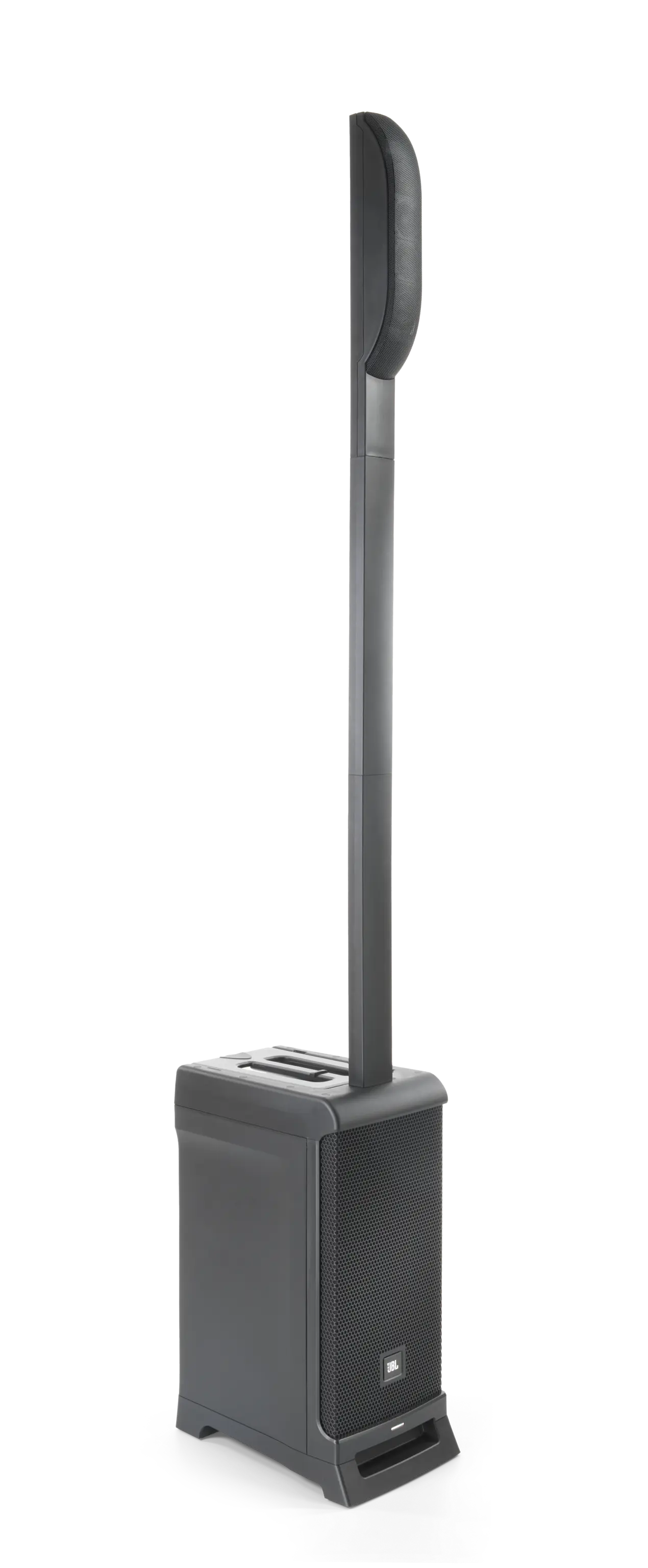

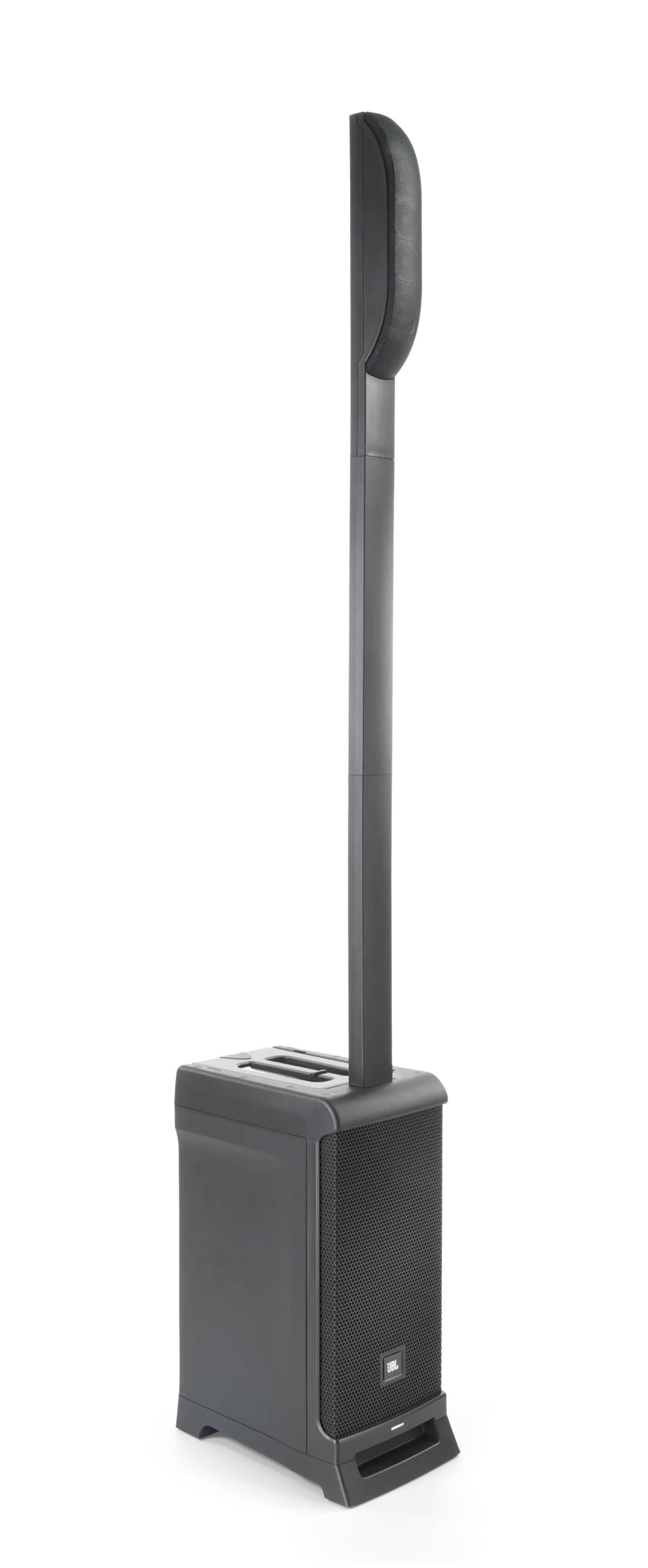

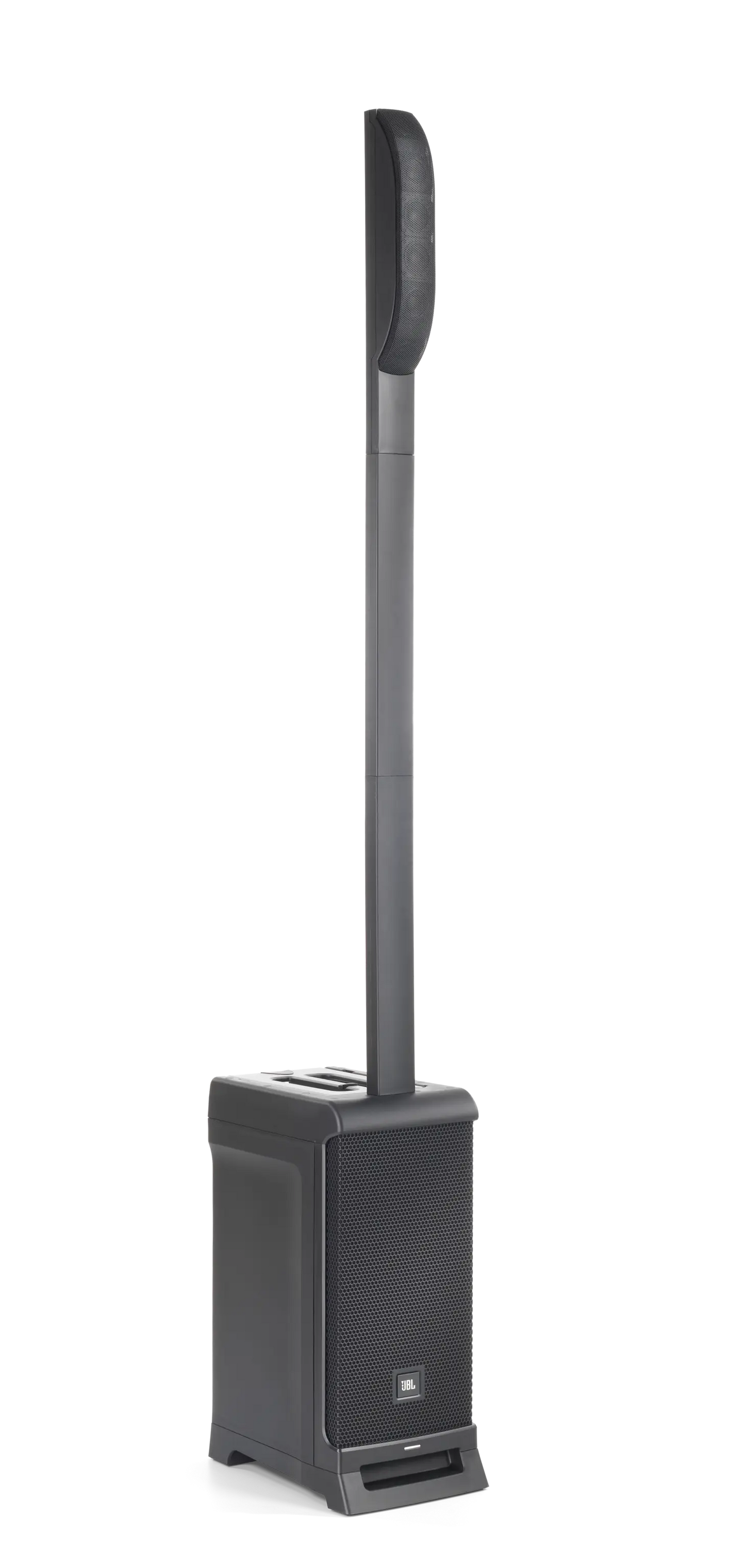

JBL IRX ONE All-in-One Column PA System
The JBL IRX ONE is an all-in-one column PA system with a built-in 3-channel mixer and Bluetooth 5.0 audio streaming, designed for simple setup and easy portability. It features a C-shaped array with six 2-inch tweeters and an 8-inch woofer with a bass-reflex design, delivering clear sound, a wide sweet spot, and low-frequency response down to 40Hz.
The IRX ONE includes popular connections such as ÂĽ-inch and XLR inputs, 48V phantom power, ÂĽ-inch balanced mix-out, and Bluetooth 5.0. It also features dbx Automatic Feedback Suppression (AFS), 5 EQ presets, Soundcraft Easy Ducking, and automatic system tuning based on the number of spacers used.
Key Features
• All-in-one column PA system with built-in 3-channel mixer
• C-shaped array with six 2" tweeters
• 8" woofer with bass-reflex design
• Frequency response: 40Hz – 20kHz
• Built-in 3-channel mixer
• Fixed bass and treble control
• Automatic Feedback Suppression (AFS)
• 5 EQ presets
• 48V phantom power
• Soundcraft Easy Ducking automatically lowers music when speech is detected
• ¼" and XLR inputs
• ¼" balanced mix-out
• Bluetooth 5.0 audio streaming
• Bluetooth SBC
• Speaker automatically adjusts tuning depending on the number of spacers used

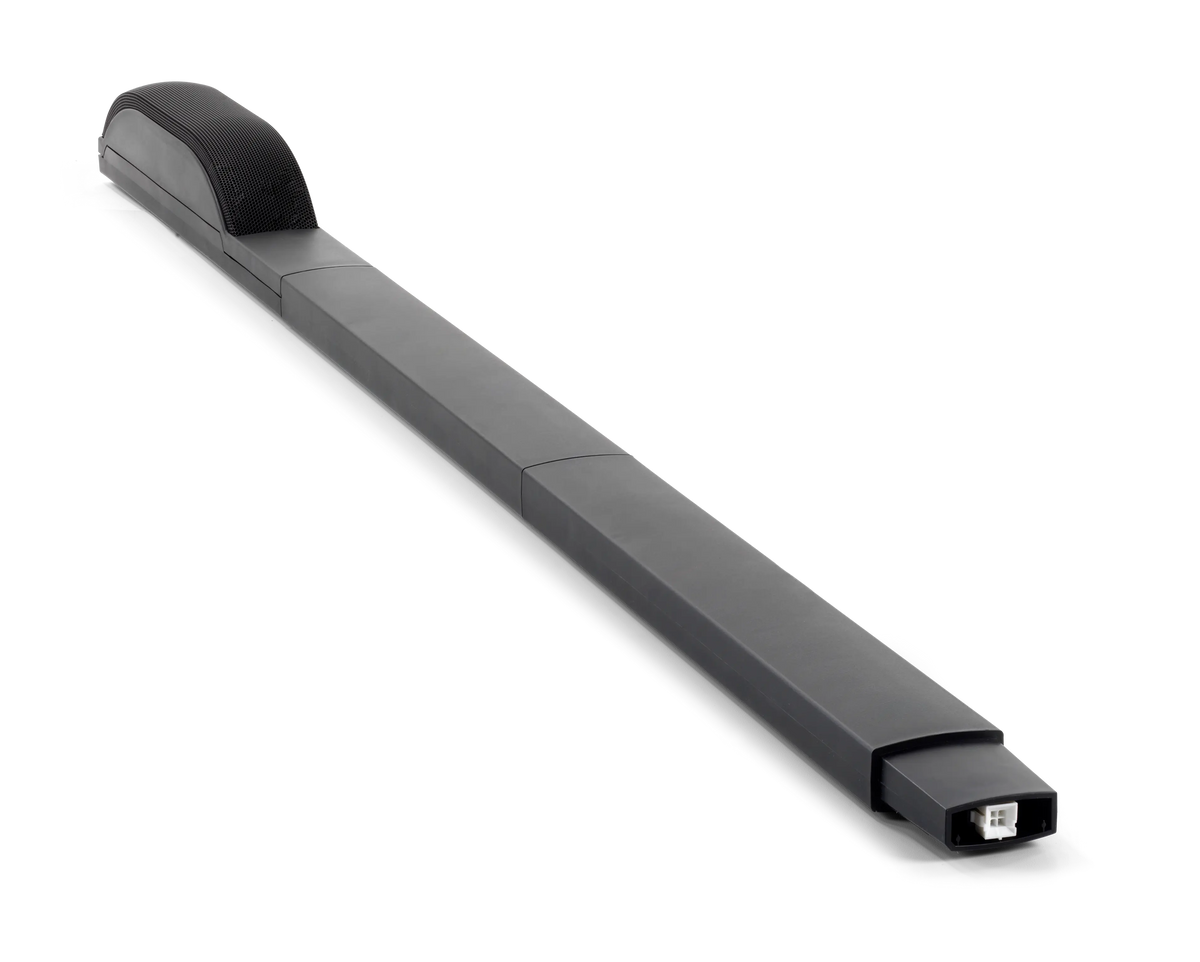

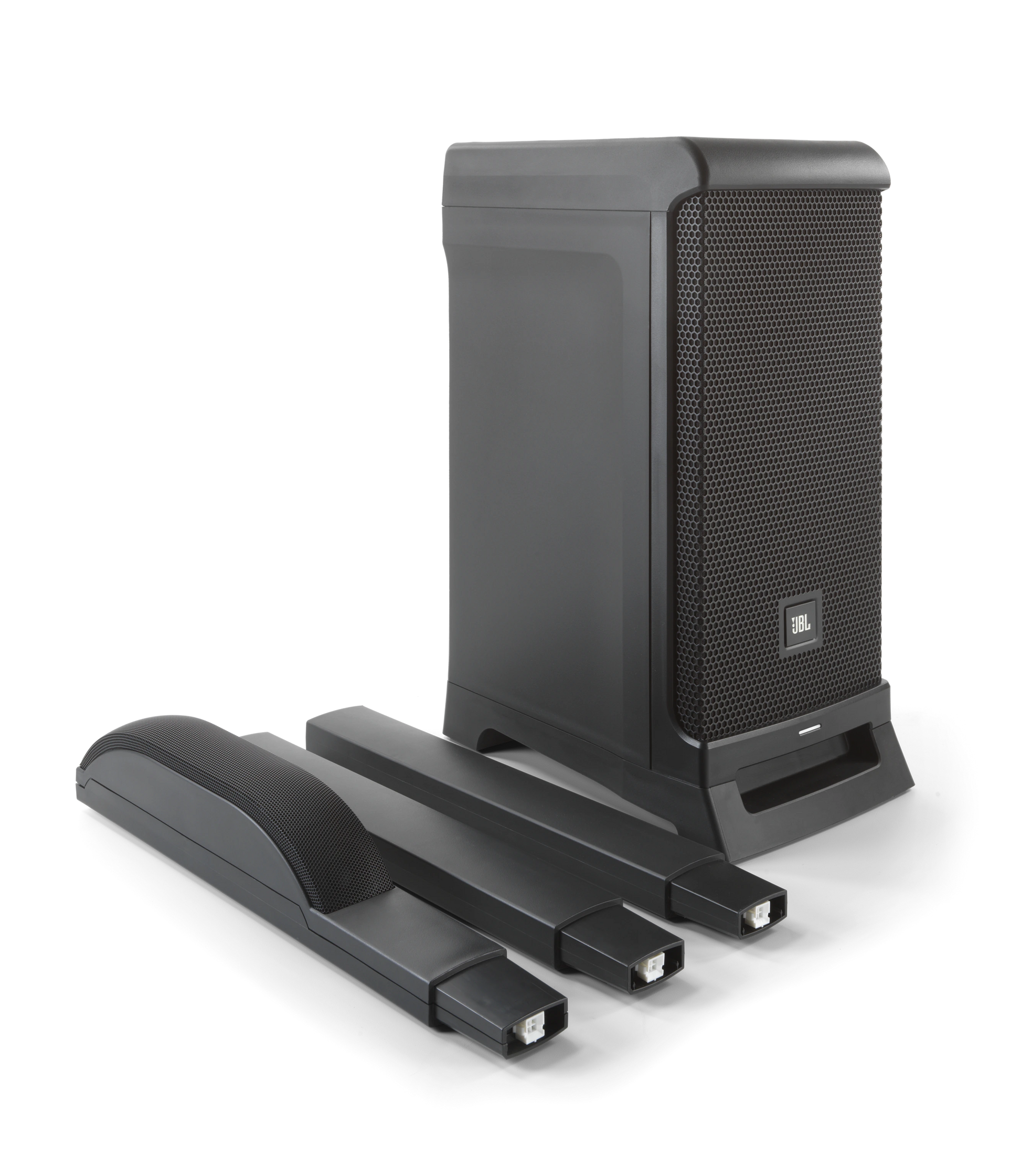

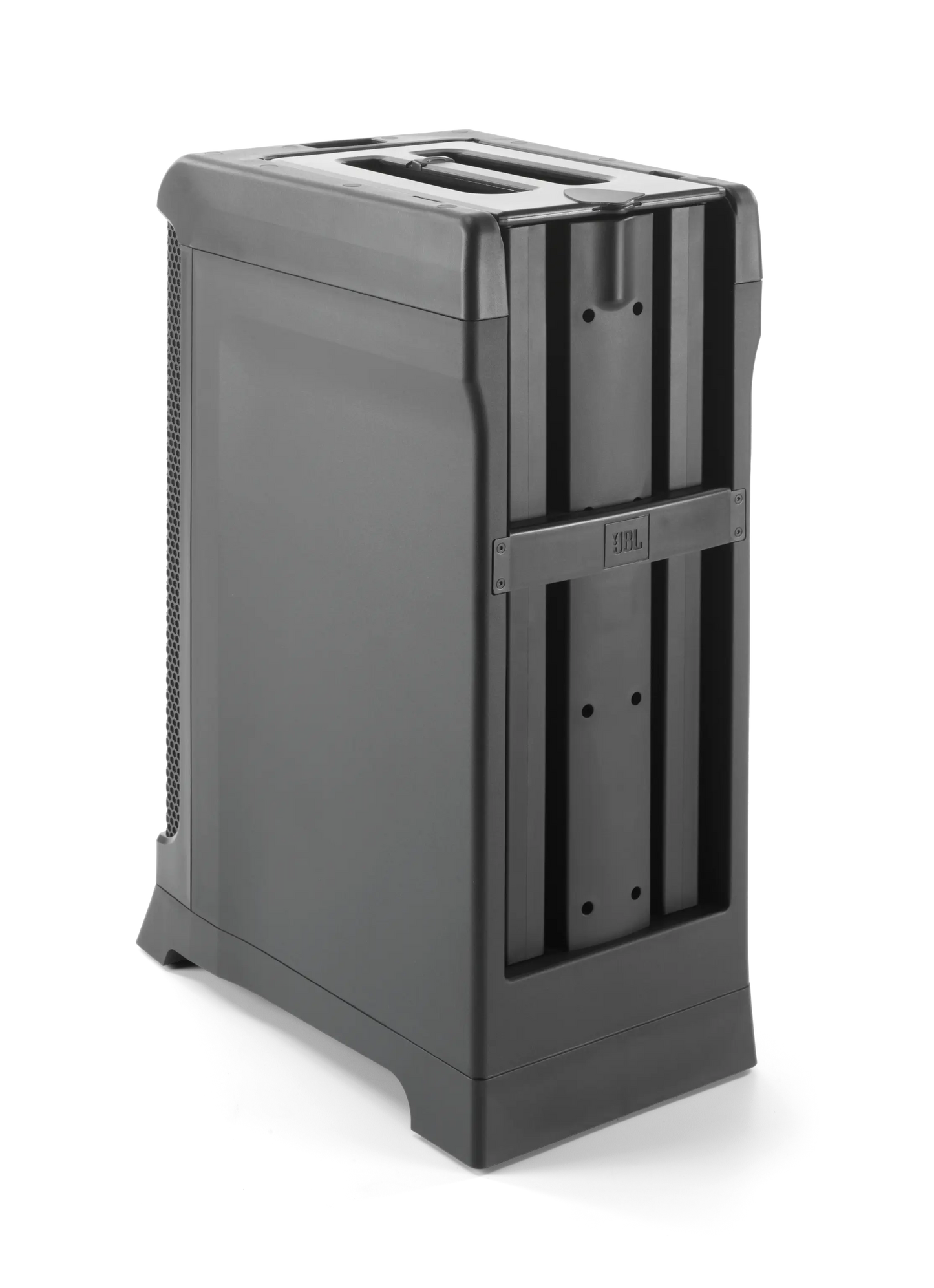

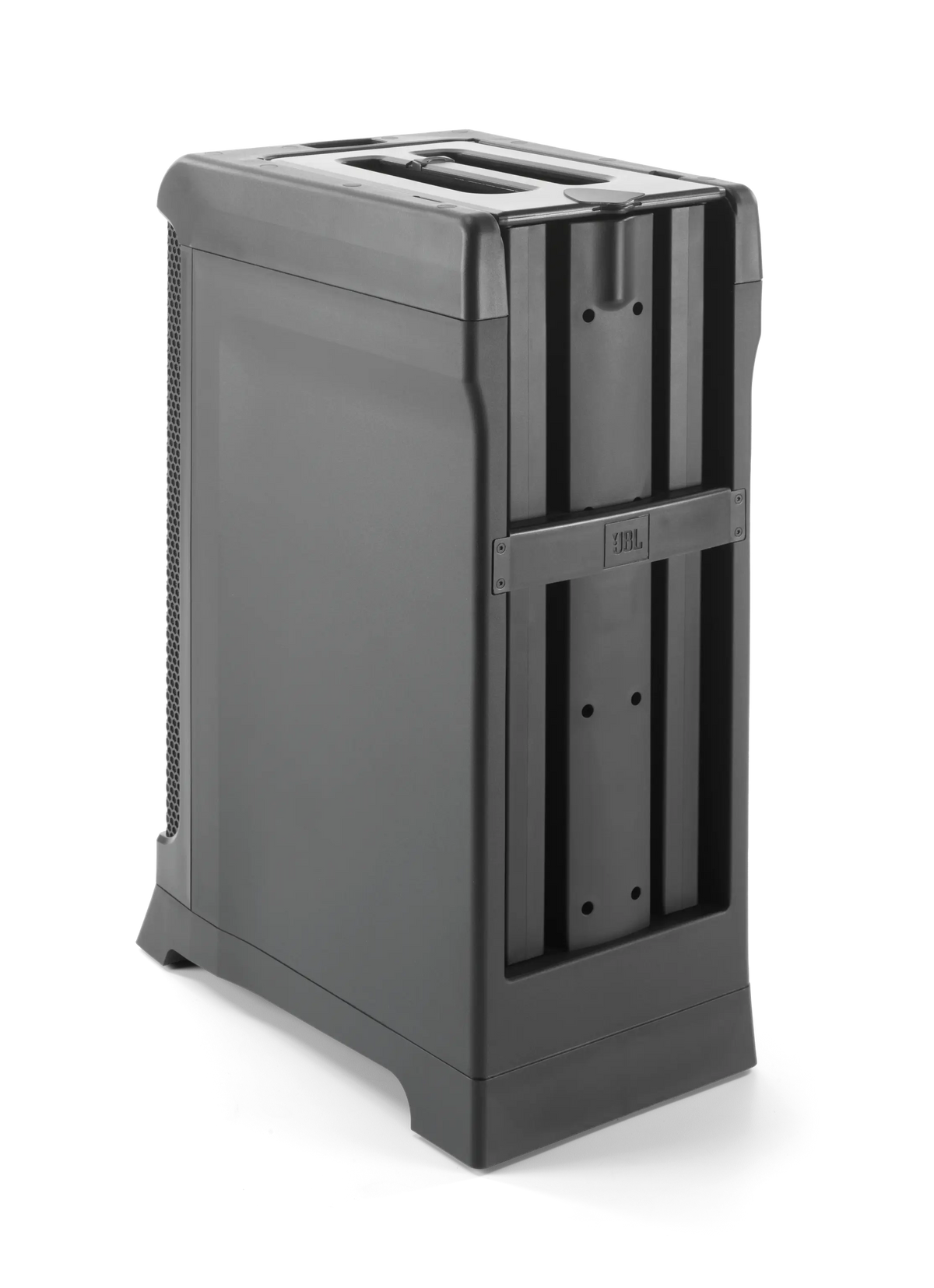

• Column spacers and array cabinet fit conveniently into the back of the base unit
• Easy to carry with one hand
• Sets up and tears down in seconds
• Ergonomically optimized carry handle
• Road-tough, lightweight cabinet
• Complete three-year warranty
Advanced Acoustic Technology
• Concert line array-inspired directivity control

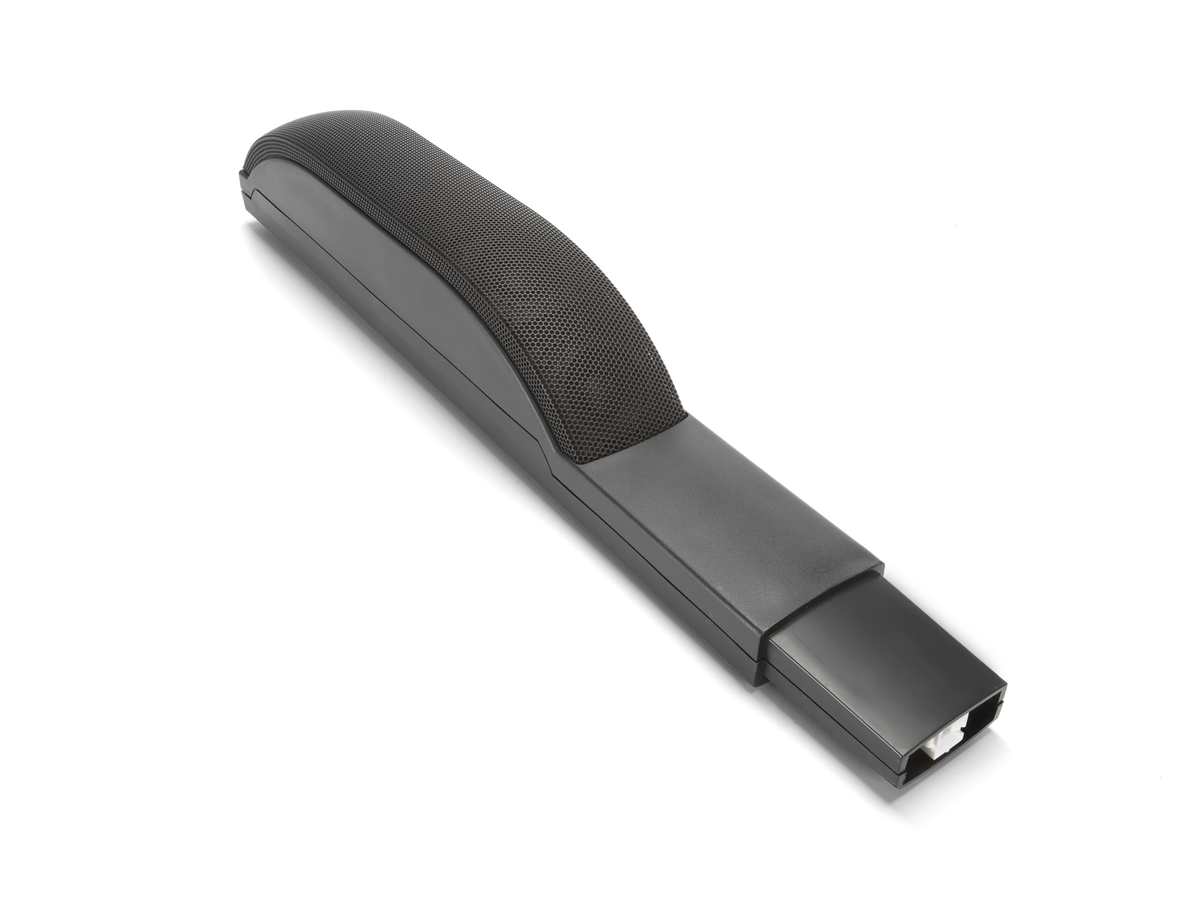

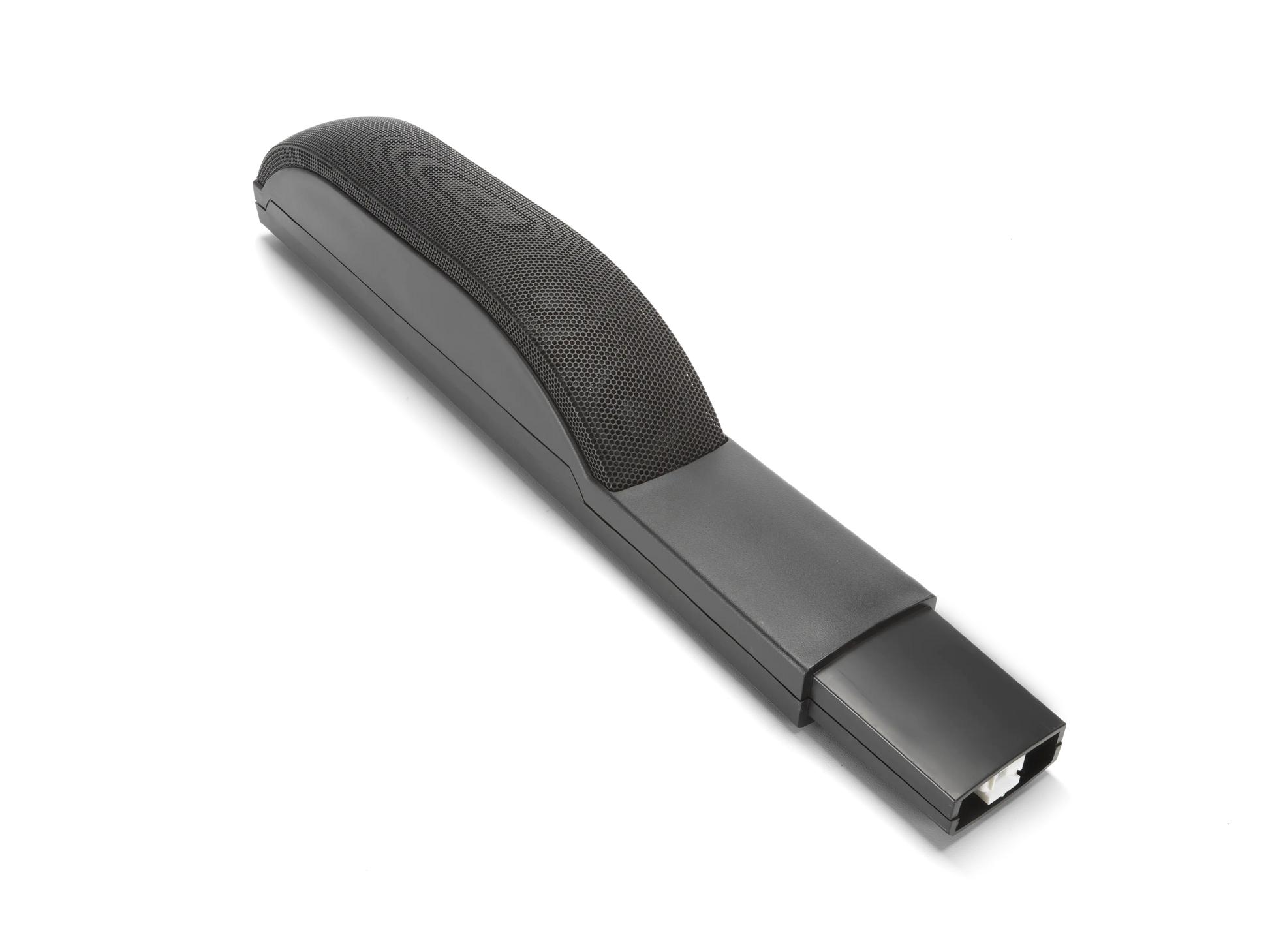

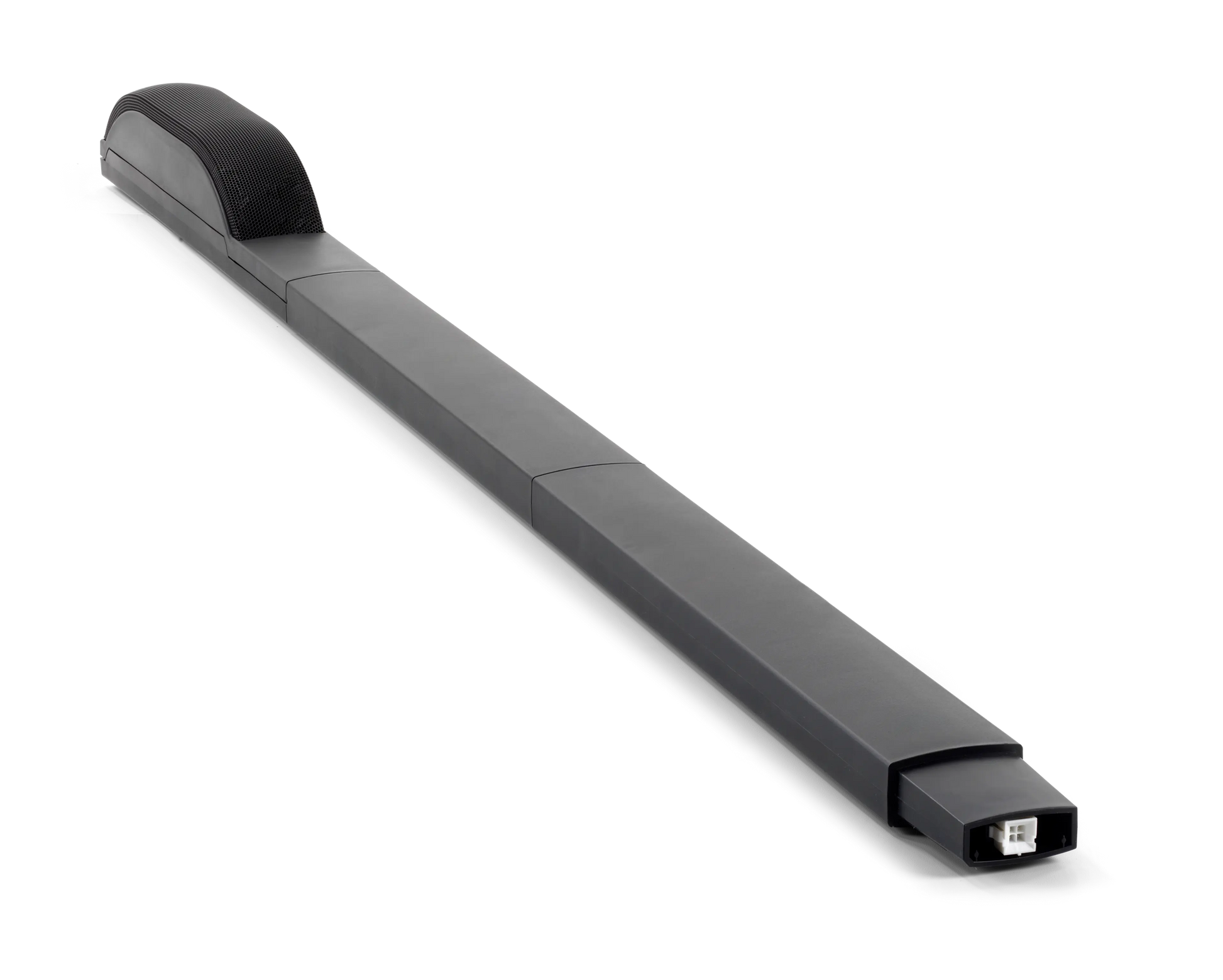

• Custom-tuned C-shaped array
• Six 2" high-frequency drivers
• Wide sweet spot
• Seamless front-to-back coverage
• 8" woofer with bass-reflex design
• Low-frequency response down to 40Hz

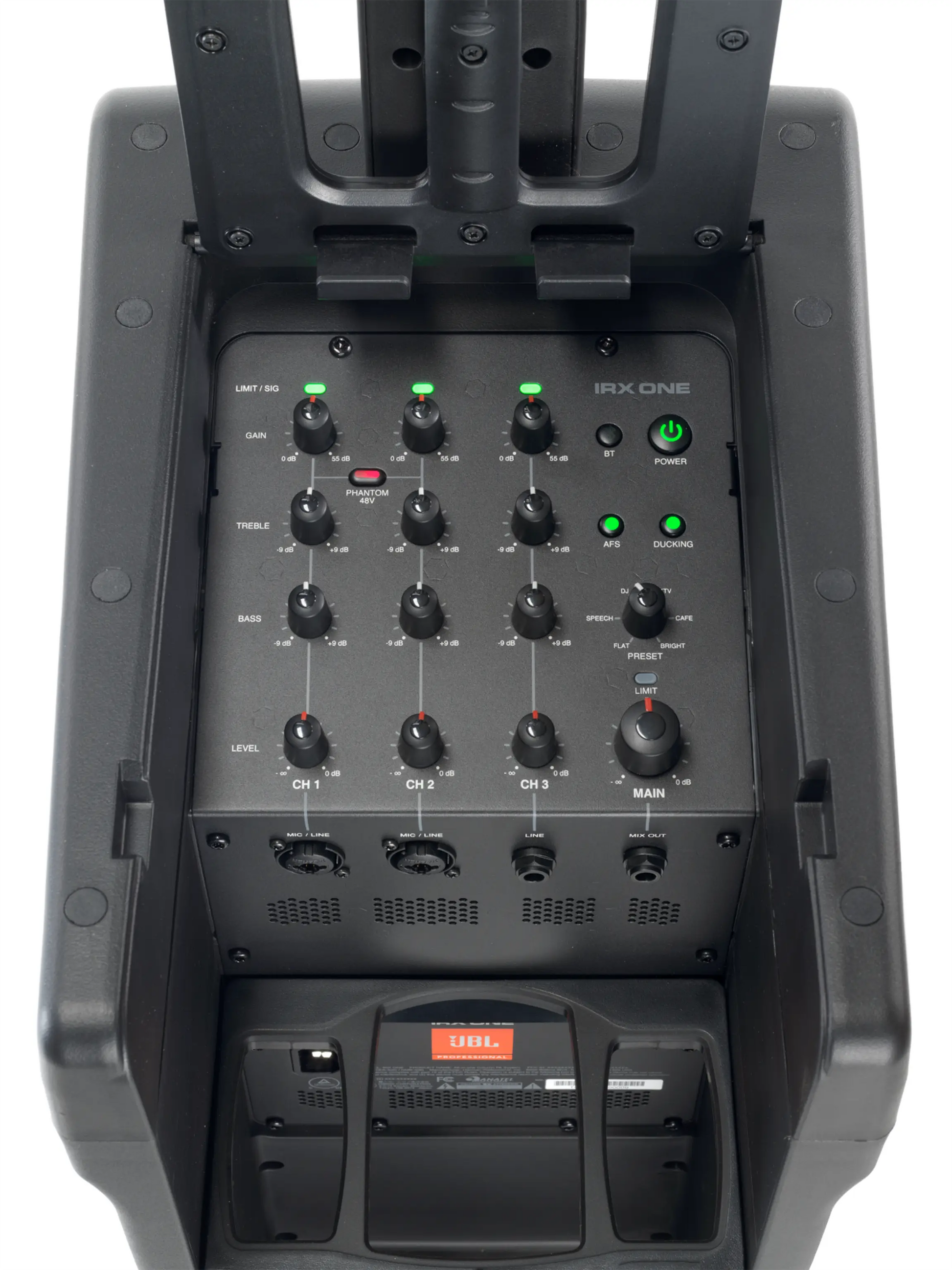

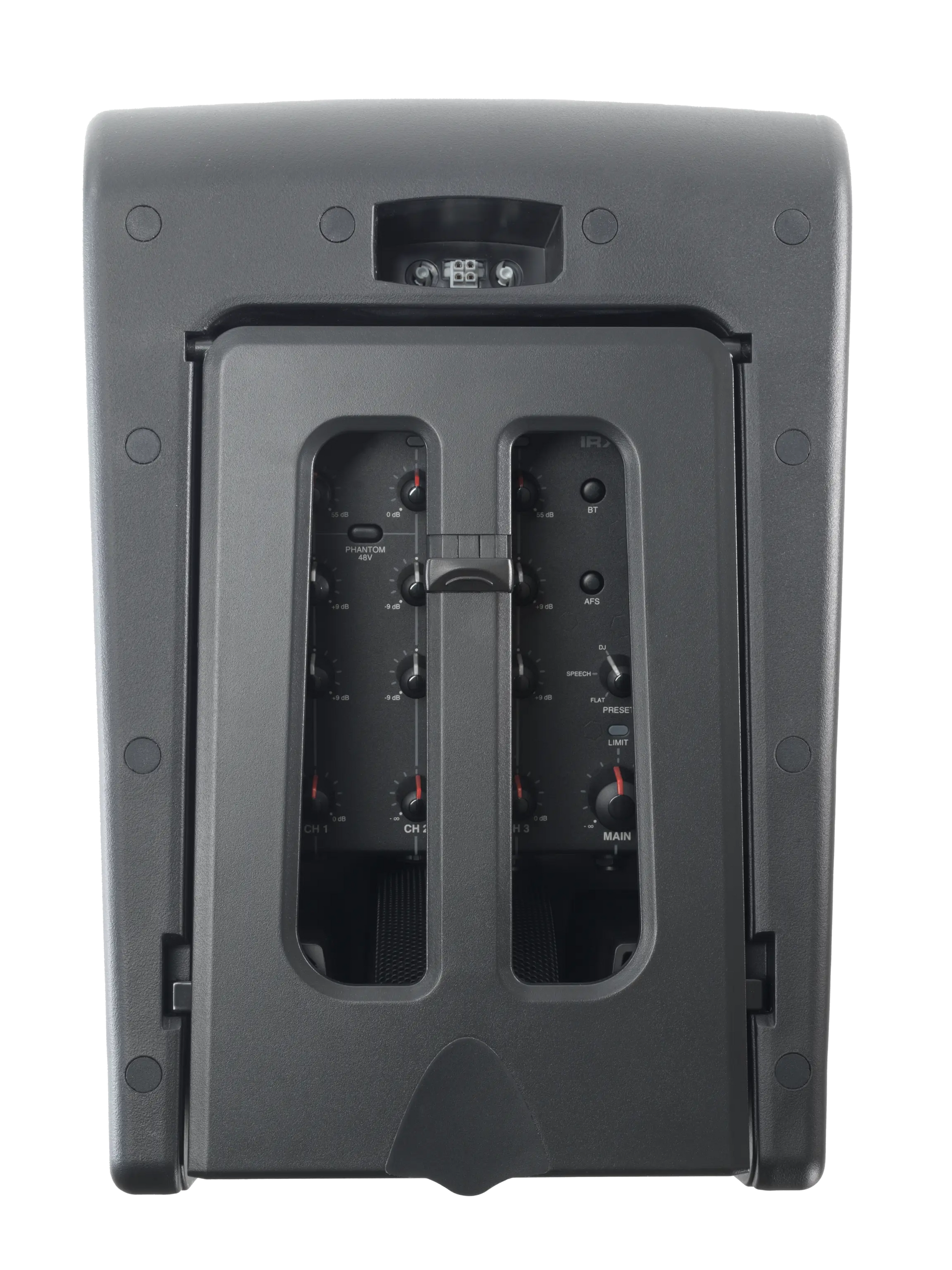

Mixer & Audio Features
• 3-channel mixer
• ¼" and XLR inputs
• 48V phantom power
• ¼" balanced mix-out
• dbx Automatic Feedback Suppression (AFS)
• 5 EQ presets
• Soundcraft audio ducking
• Bluetooth 5.0 audio streaming
Technical Specifications
System
• System Type: Powered Column PA Speaker
• Woofer Size: 8 Inch
• Tweeter Size: 2 Inch
• Tweeter Count: 6
• Max SPL: 118dB (Peak)
• Frequency Range (-10dB): 40Hz ~ 20kHz @ 4π
• Frequency Range (-3dB): 50Hz ~ 18kHz @ 4π
• Horizontal Dispersion: 160°
• Vertical Dispersion: 80°
• Power Rating: 1300W Peak
Power & Input
• AC Power Input: 100V–120V or 220–240V
• Input Impedance: 4.4kΩ Input Mic / 1MΩ Balanced Hi-Z Jack
• Input Gain Mic: 55dB
• Input Gain Hi-Z: 48dB
• Crossover Frequency: 260Hz
I/O
• 2 × Mic/Line XLR Combo
• 1 × Hi-Z In – 6.3mm Jack
• 1 × Mix Out – 6.3mm Jack
• 1 × Bluetooth SBC
Cabinet & Weight
• Cabinet: PP
• Gross Weight: 18.39kg (40.5lbs)
• Net Weight: 15.5kg (34.1lbs)
Product Dimensions
• Dimensions (L × W × H): 267 × 400 × 597mm
• Dimensions (L × W × H): 10.5 × 15.73 × 23.5in
Shipping Dimensions
• Dimensions (L × W × H): 395 × 519 × 725mm
• Dimensions (L × W × H): 15.6 × 20.4 × 28.6in
In the Box
• 1 × JBL IRX ONE
• 1 × IEC Cable
• 1 × Quickstart Guide
