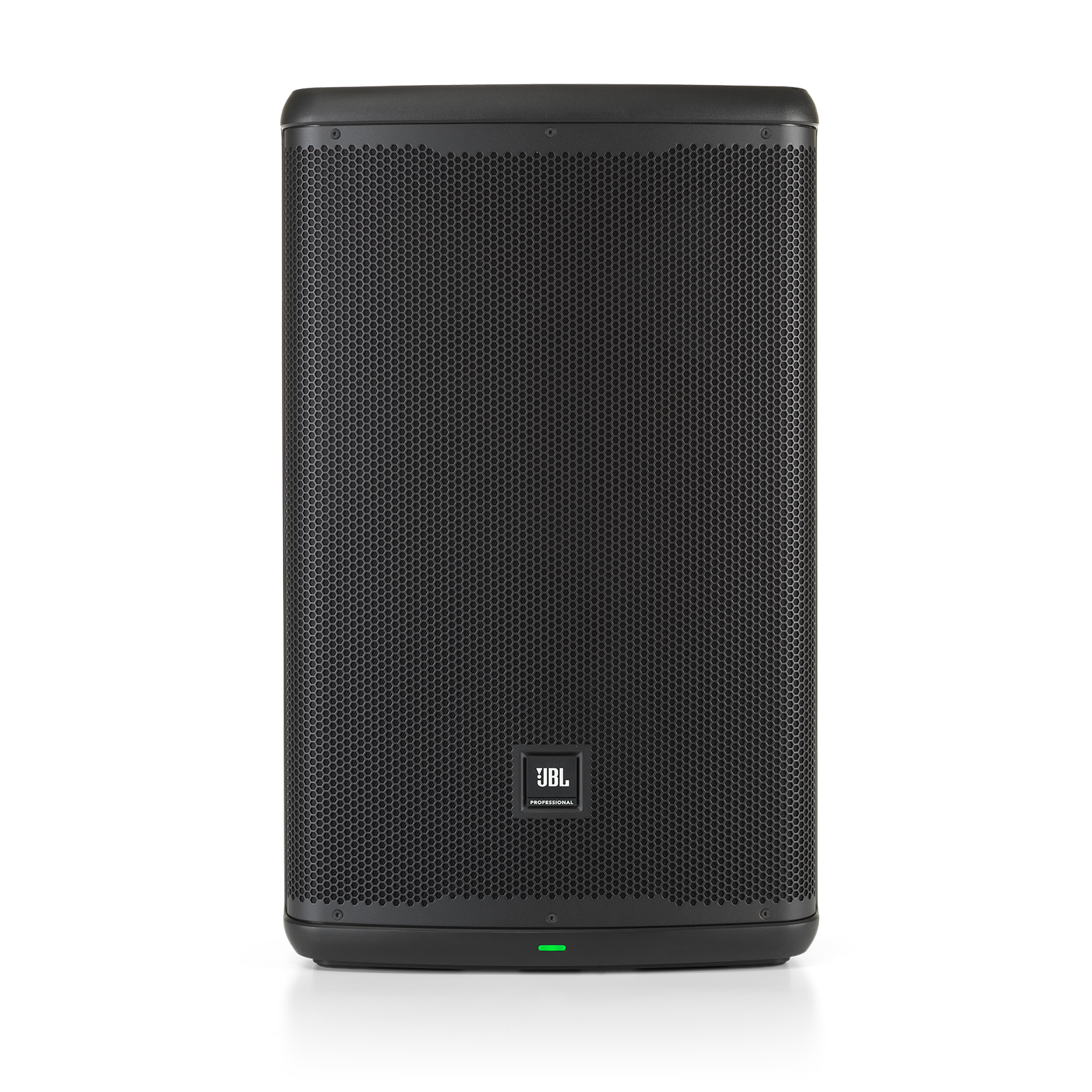

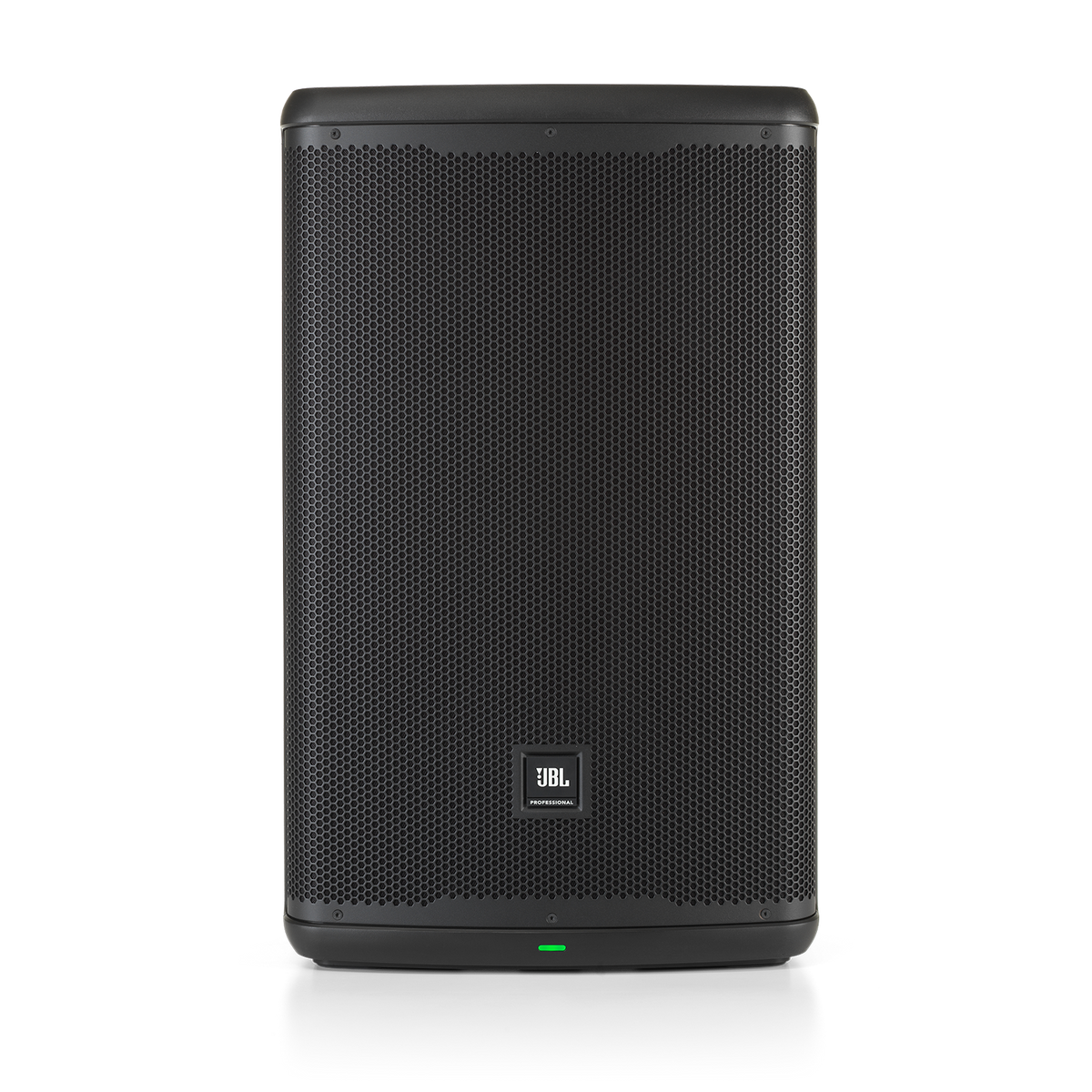

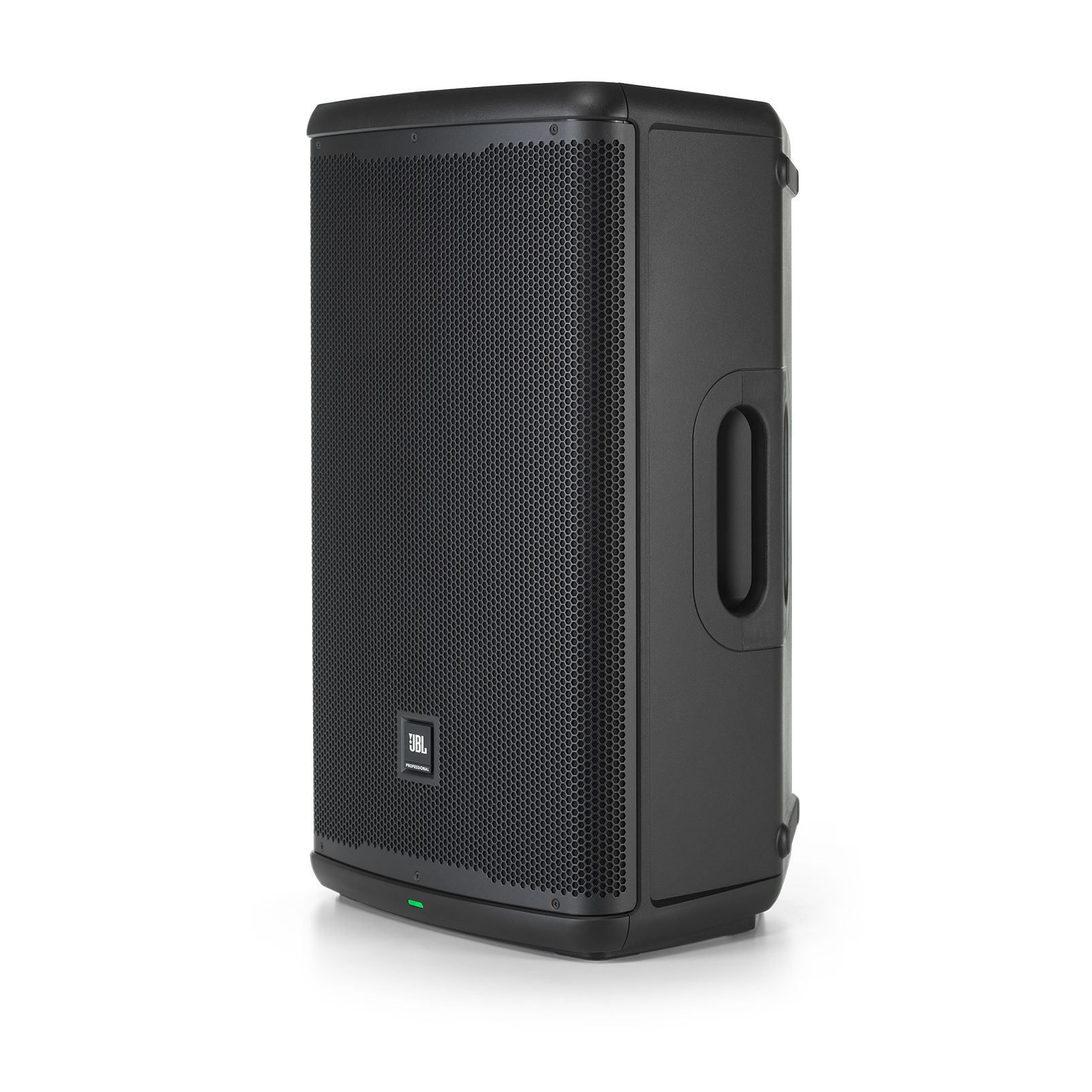

JBL EON715 – 15-inch Powered PA Speaker with Bluetooth
Overview
The JBL EON715 15-inch loudspeaker, part of JBL’s new EON700 Series of powered PAs, brings advanced DSP and control to portable systems for live sound and installed applications, with class-leading volume and clarity and comprehensive features that make setup and operation a breeze.
Product Highlights

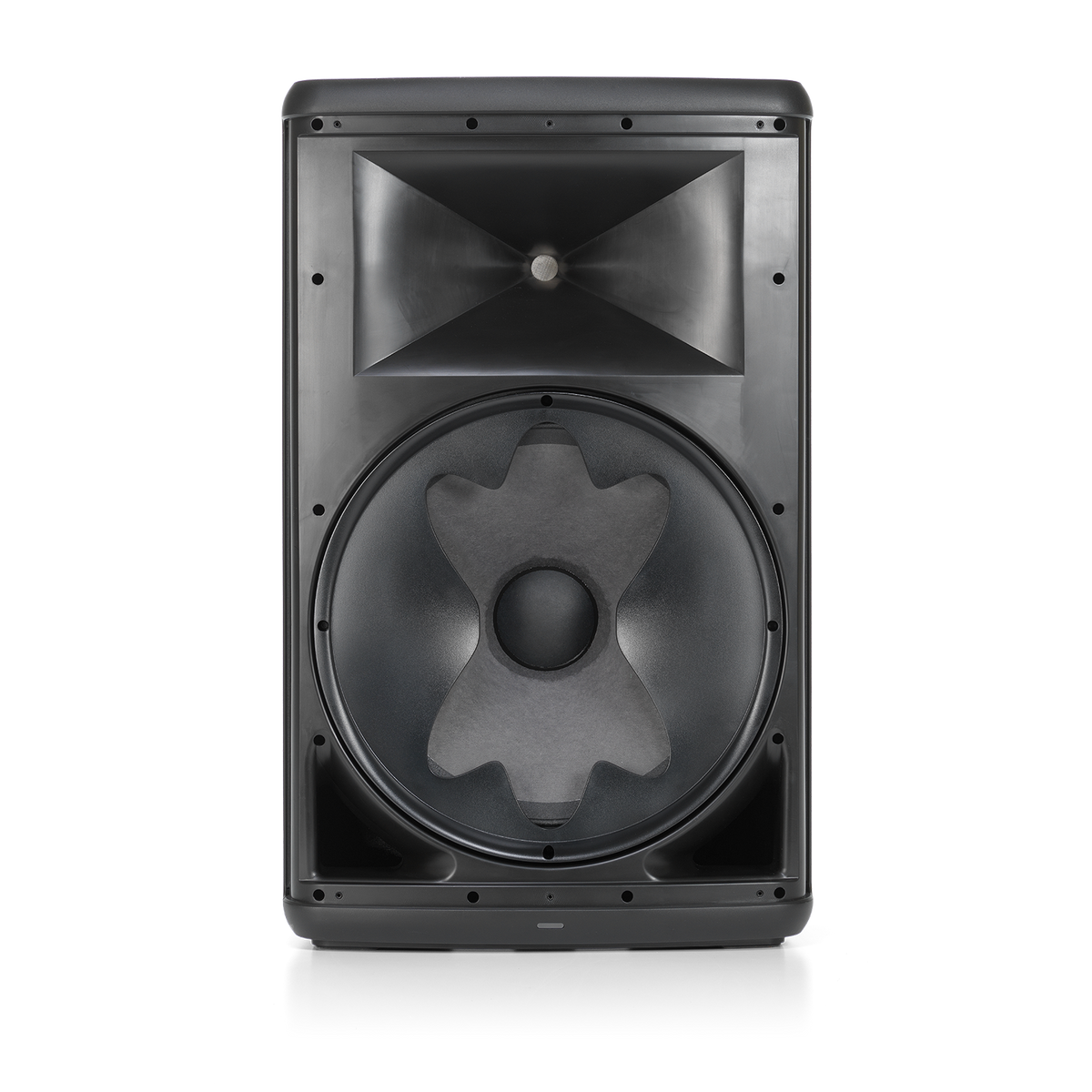

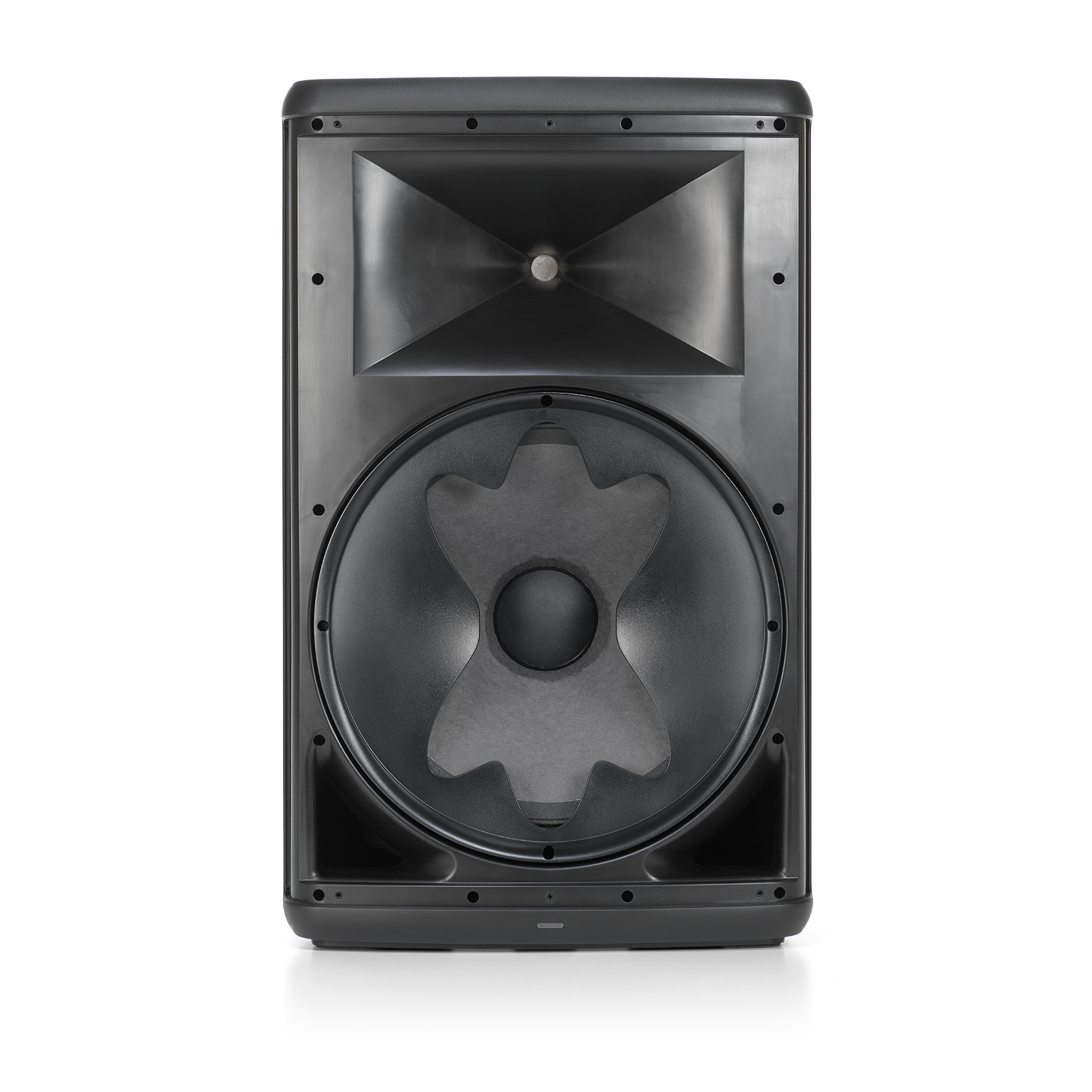

• Custom-designed 15-inch woofer
• 2414H compression driver
• Redesigned high-frequency horn
• Power: 1,300W Peak / 650 RMS
• Frequency response: 45Hz - 20kHz (-10) / 55Hz - 20kHz (-3)
• Max SPL: 128 dB
• Dispersion: 90° H × 60° V
• Audio I/Os: 2 XLR Combo, 1 XLR passthrough
• Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
• Built-in 3-channel digital mixer
• Color backlit LCD screen provides easy access to functions
• Universal JBL Pro Connect app control
• Bluetooth 5.0 streaming and control
• Durable polypropylene cabinet and metal grille

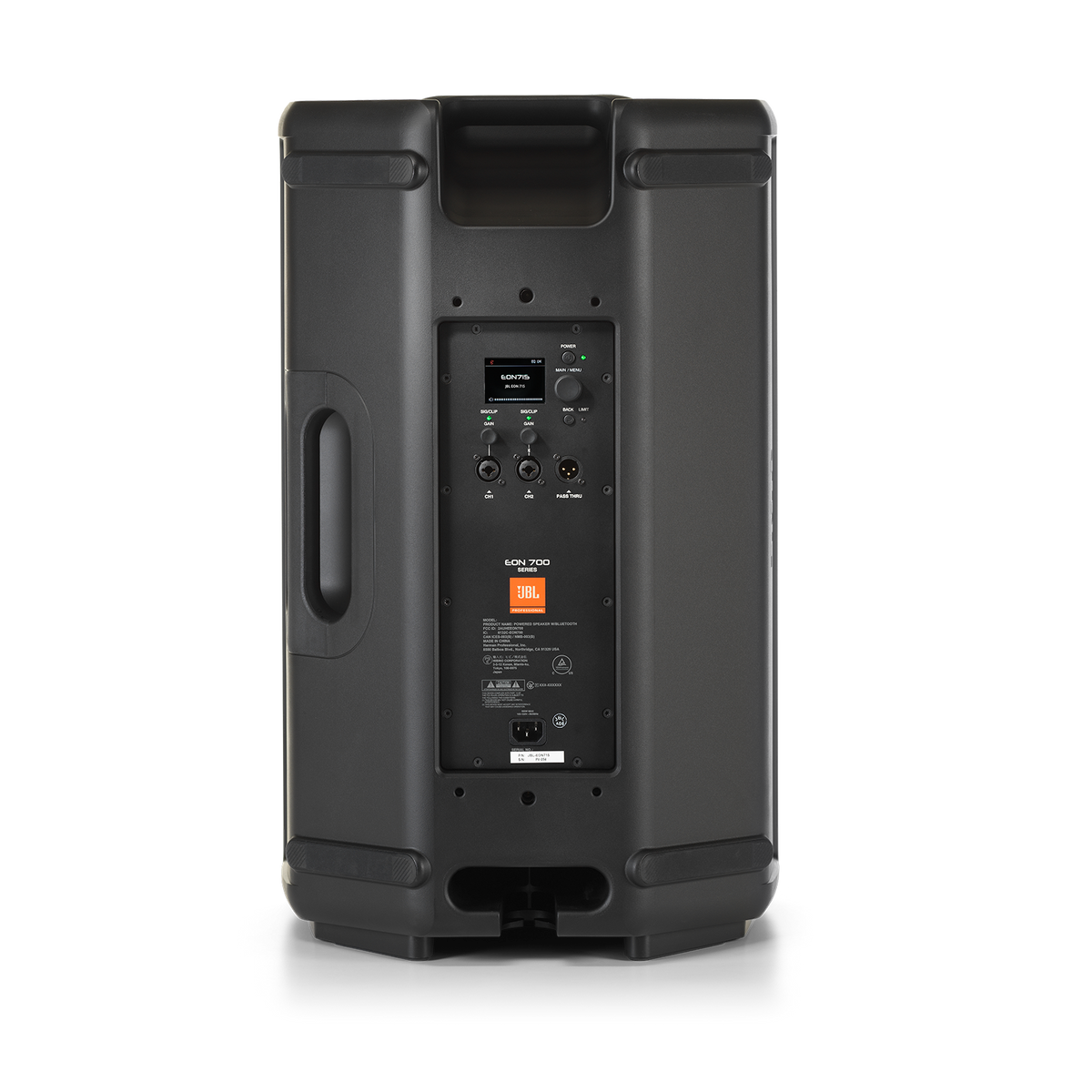

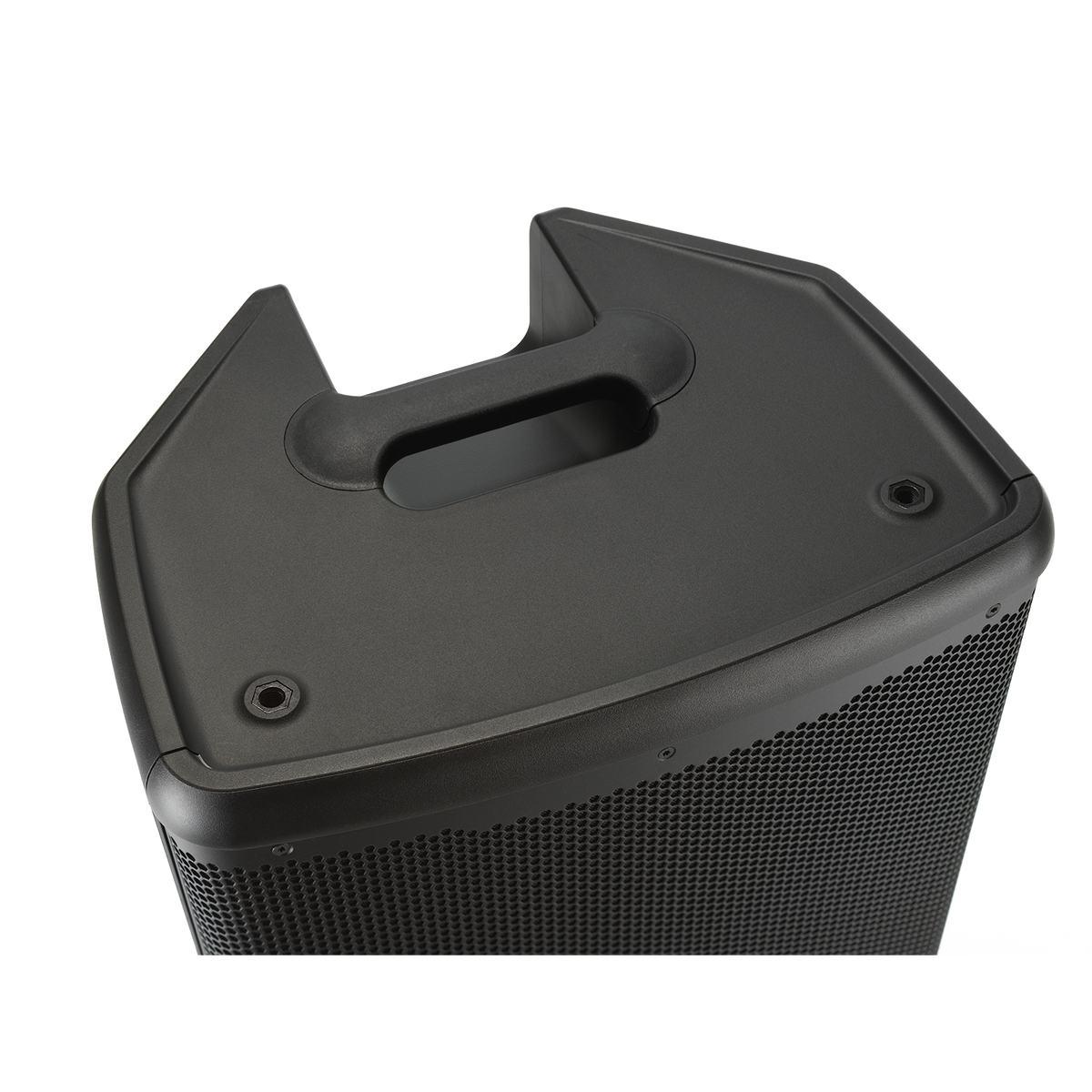

• Two ergonomic handles simplify transport
• Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
• Stackable components are easy to store
• Net Weight: 17 kg (37.48 lbs.)
Specifications
• System Type: 15IN Powered Loudspeaker
• Woofer Model: 715G
• Woofer Size: 15"
• Woofer Magnet: Ferrite
• Woofer Voice Coil: 2"
• Tweeter Model: 2414H Compression Driver
• Tweeter Size: 1"
• Tweeter Magnet: Neodymium
• Transducer Impedance: LF 4ohm rated, HF 8ohm rated
• Max SPL: 128dB @1m/4Pi
• Freq Range -10: 45Hz - 20kHz
• Freq Range -3: 55Hz - 20kHz
• Hor Dispersion: 90°
• Vert Dispersion: 60°
• Power Rating: 1300W peak / 650 RMS
• AC Power Input: 100V-120V or 220V-240V
• Cooling: Passive
• LED Indicators: 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
• Input Impedance: 50k/100k un-balanced/balanced
• Input Gain: -∞ to +36db
• Crossover Freq: 1.9 kHz

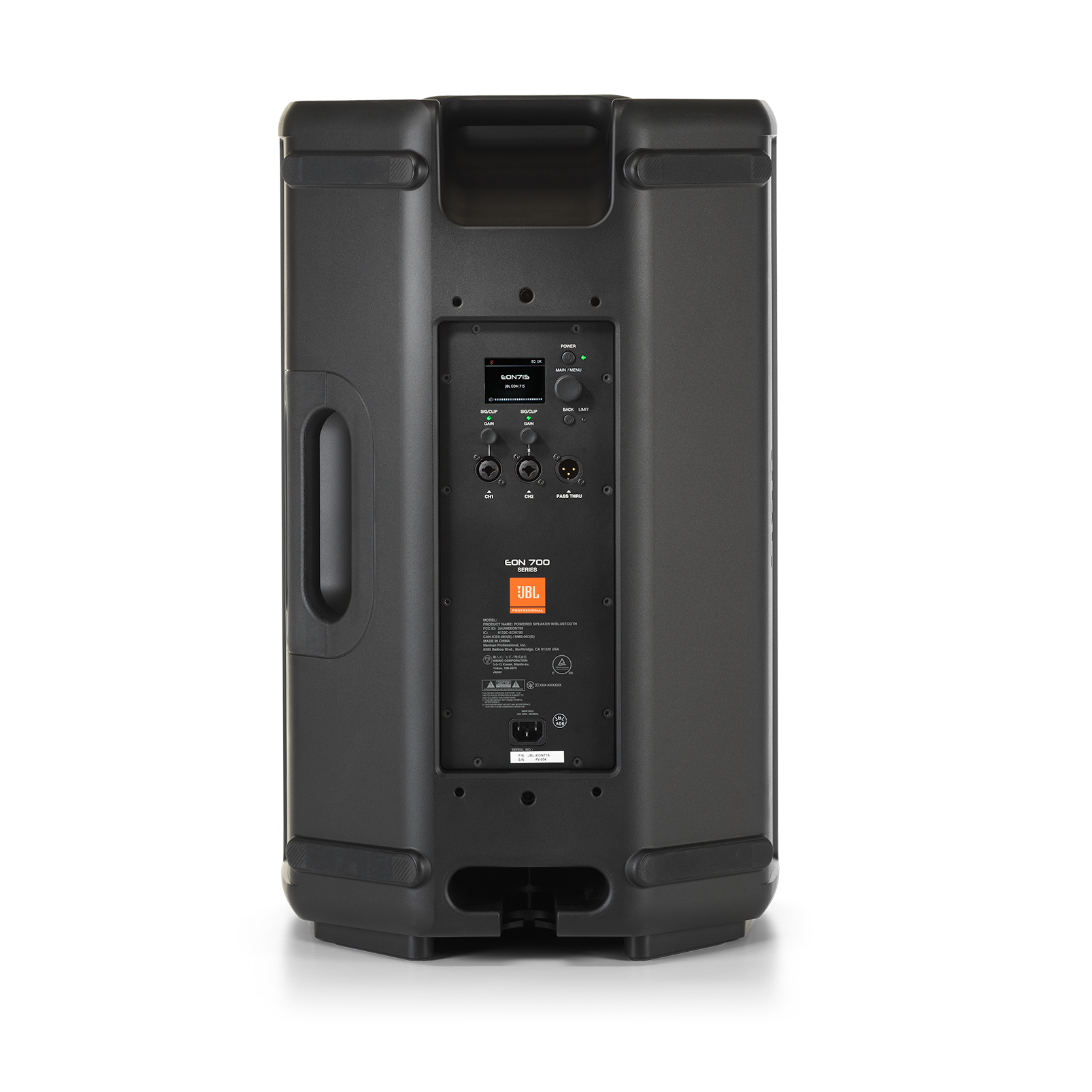

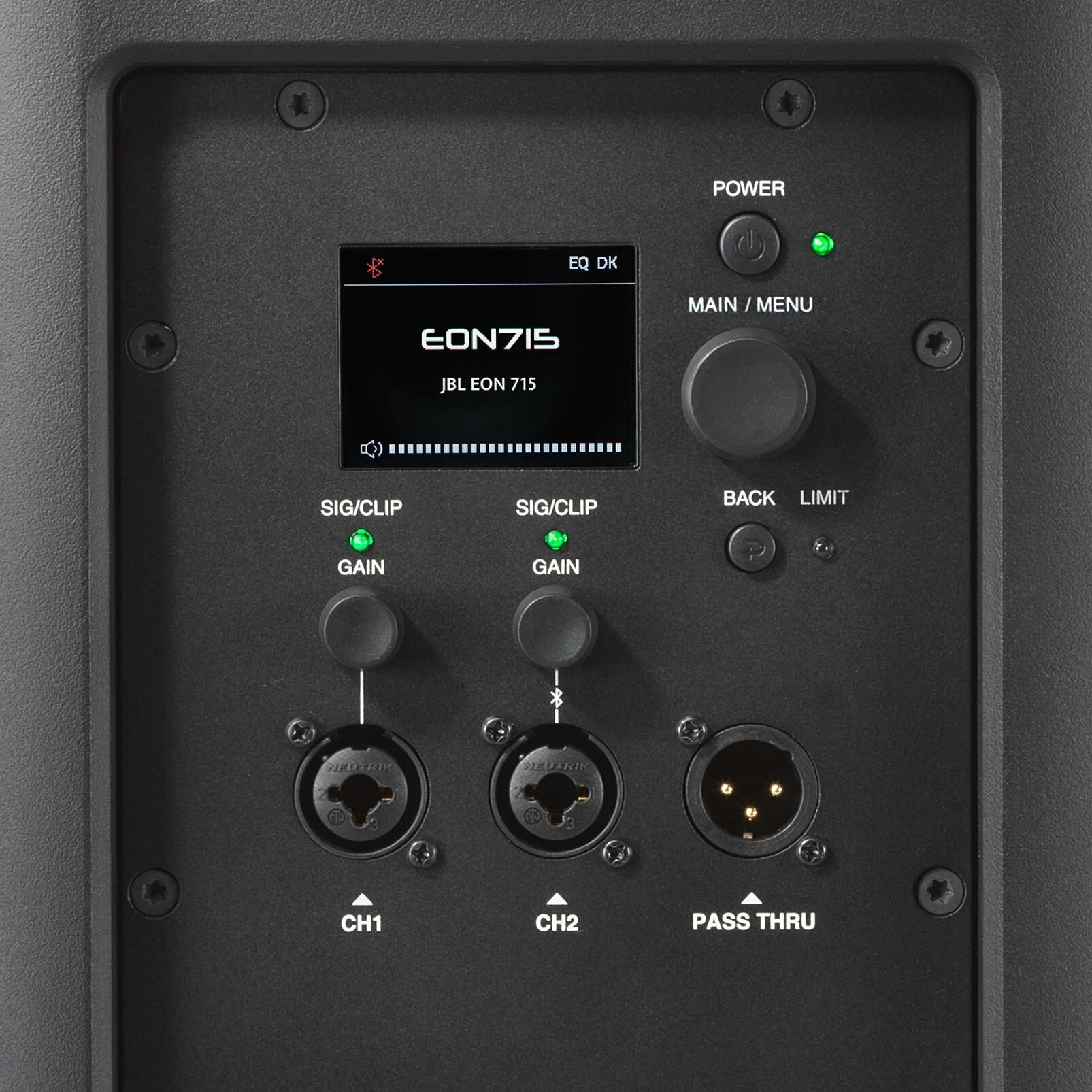

• I/O: 2 XLR Combo Jacks / BT, 1 XLR M Thru
• Cabinet: PP+10% Talc
• Grille: 16GA perforated steel with acoustically transparent black cloth backing

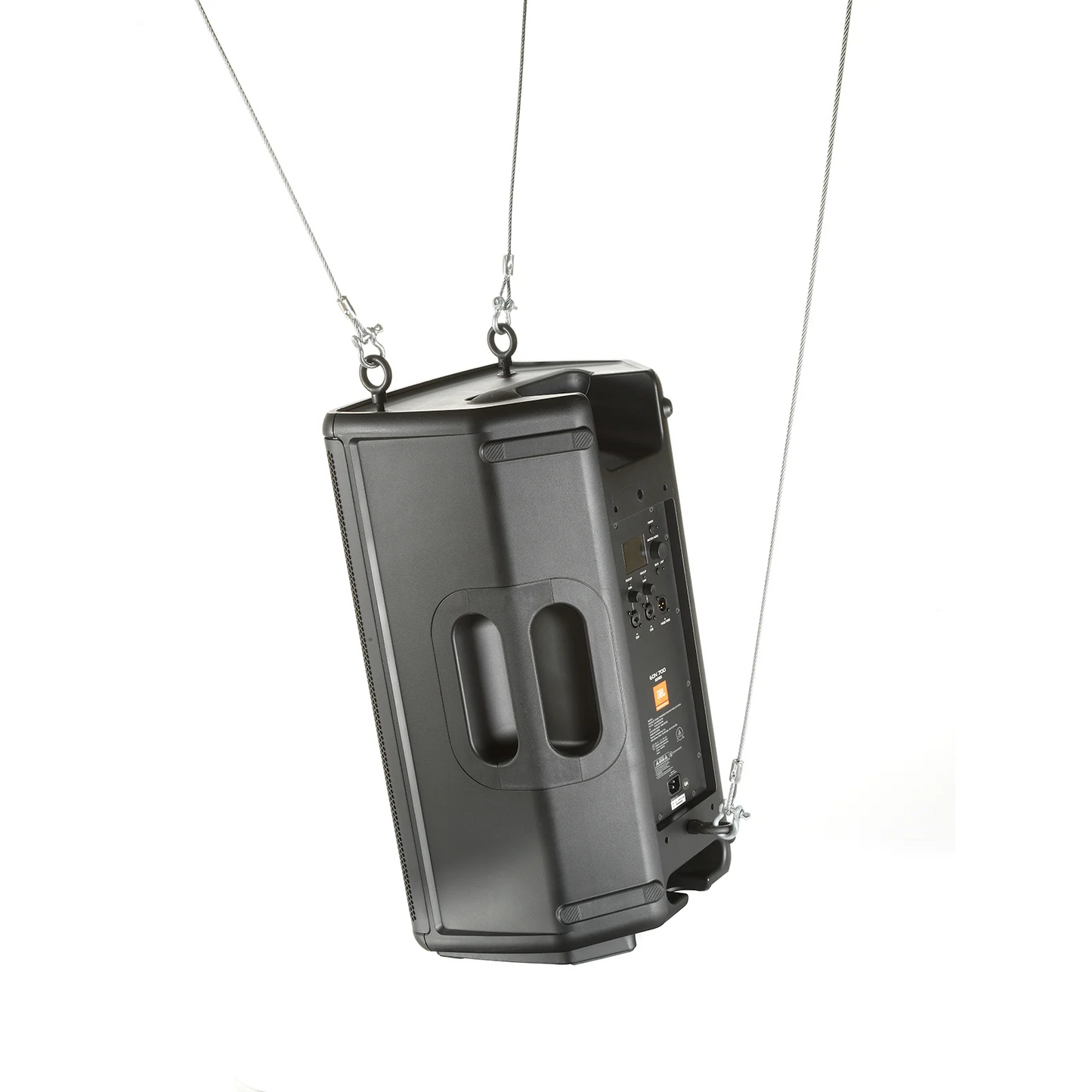

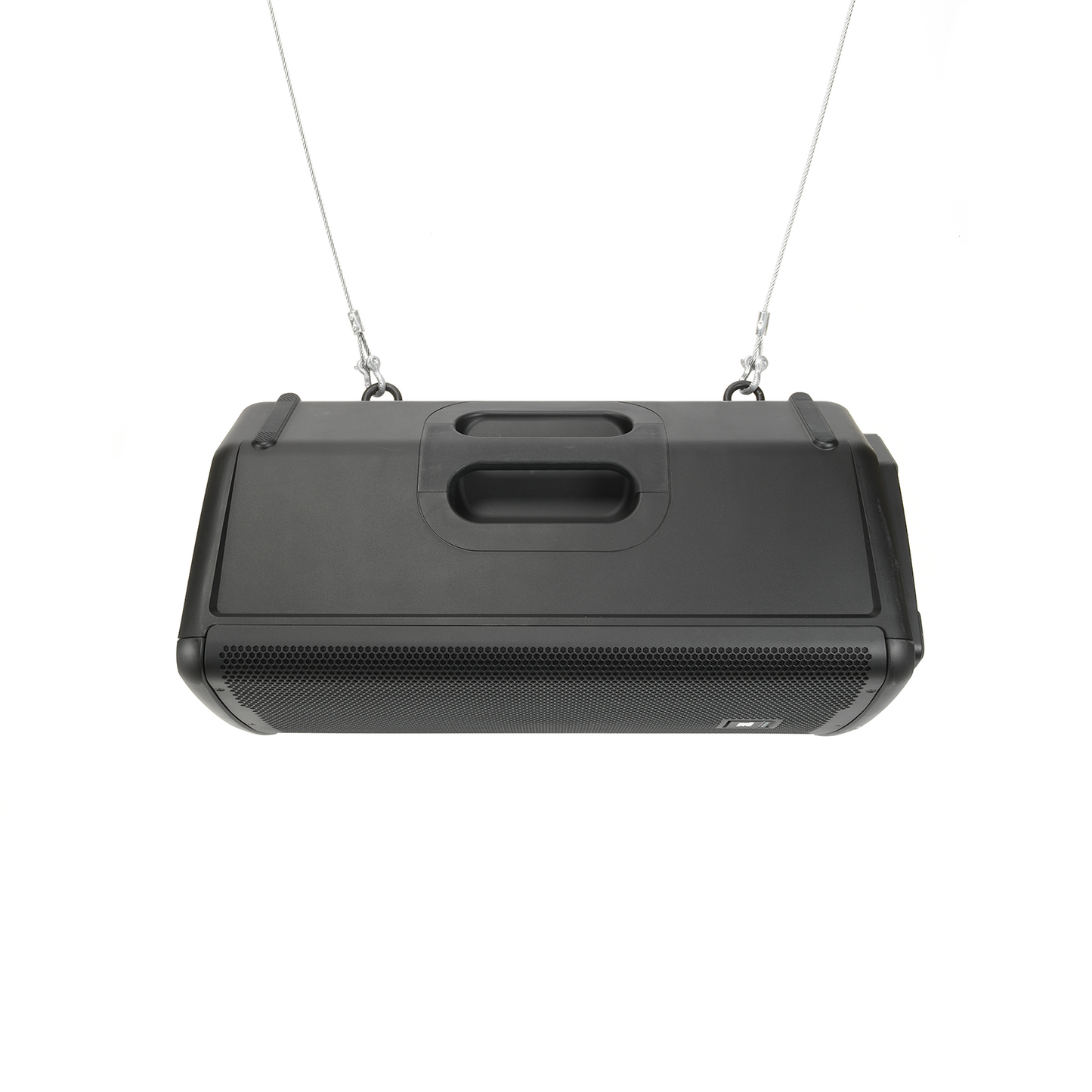

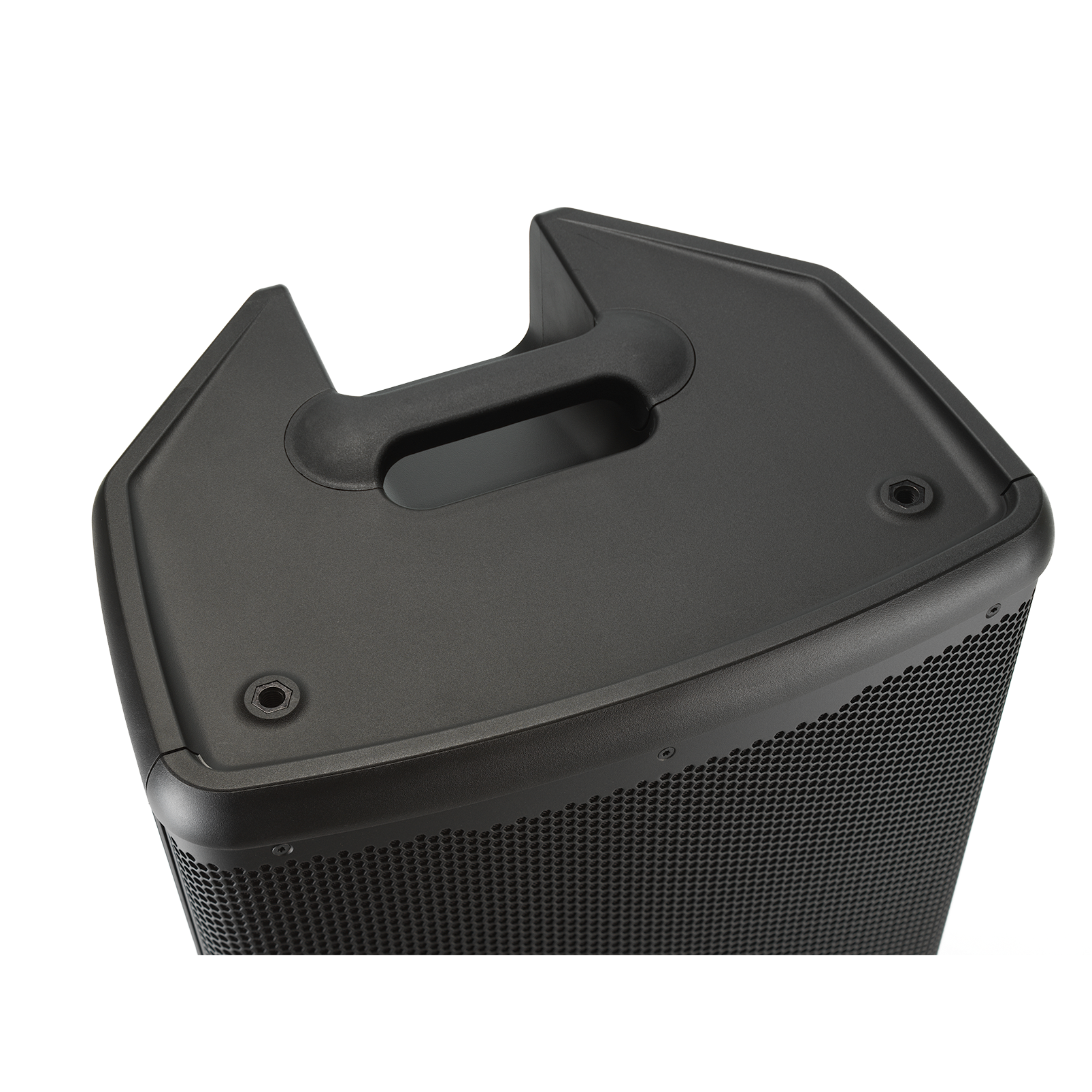

• Suspension/Mount: 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes

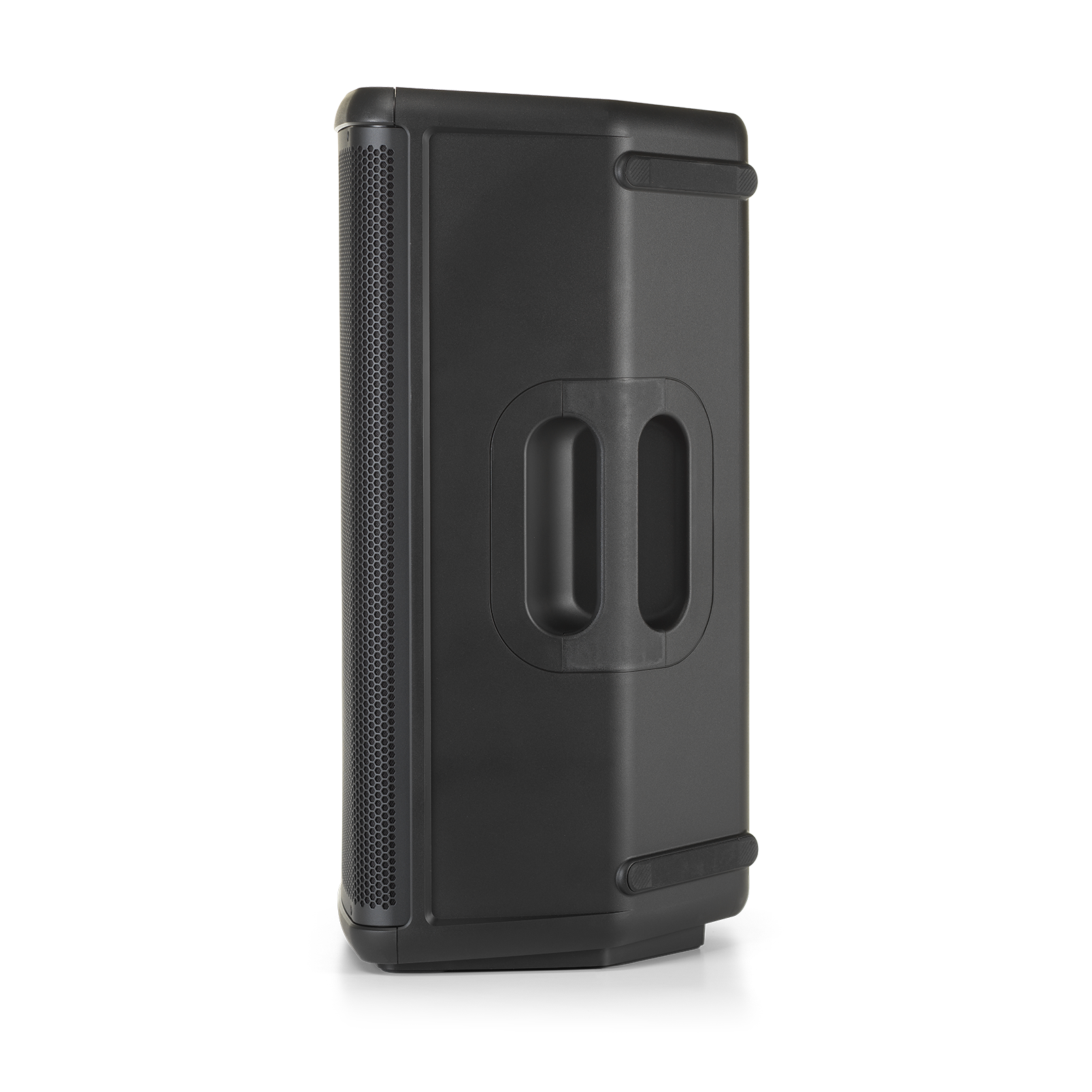

• Handles: 2, cable channel on bottom
• Net Weight: 17 kg (37.48 lbs.)
• Gross Weight: 21.5 kg (47.40 lbs.)
• Product Dims: LxWxH 438 x 358 x 716 mm (17.24 x 13.82 x 28.19 in.)
• Shipping Dims: LxWxH 543 x 458 x 738 mm (21.38 x 18.03 x 29.06 in.)

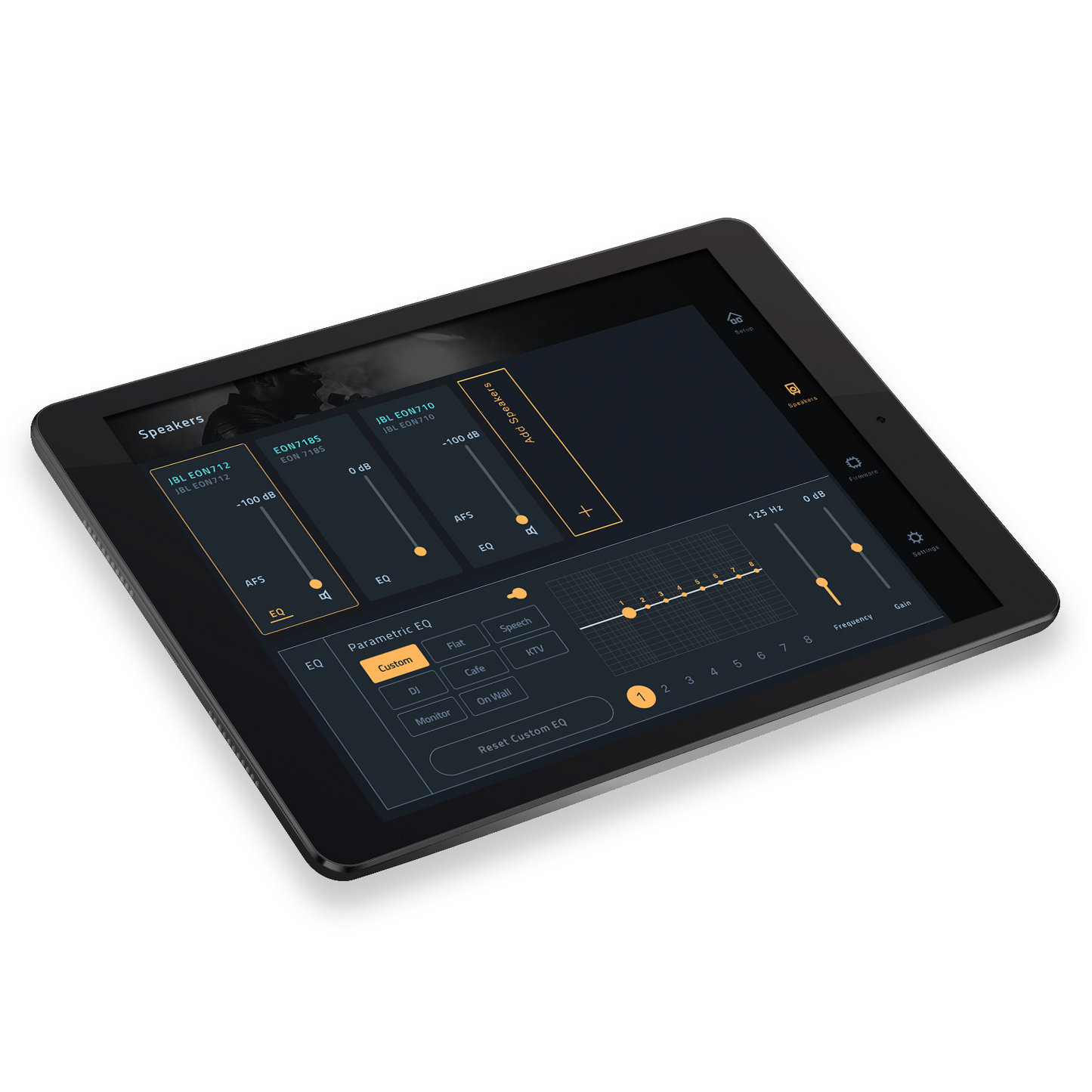

Customer Note: Tablet shown in the images is not included with the product and is for illustration purposes only.
