JBL EON712 – 12-inch Powered PA Speaker with Bluetooth
Overview
The JBL EON712 12-inch loudspeaker, part of JBL’s new EON700 Series of powered PAs, brings advanced DSP and control to portable systems for live sound and installed applications, with class-leading volume and clarity and comprehensive features that make setup and operation a breeze.
Product Highlights

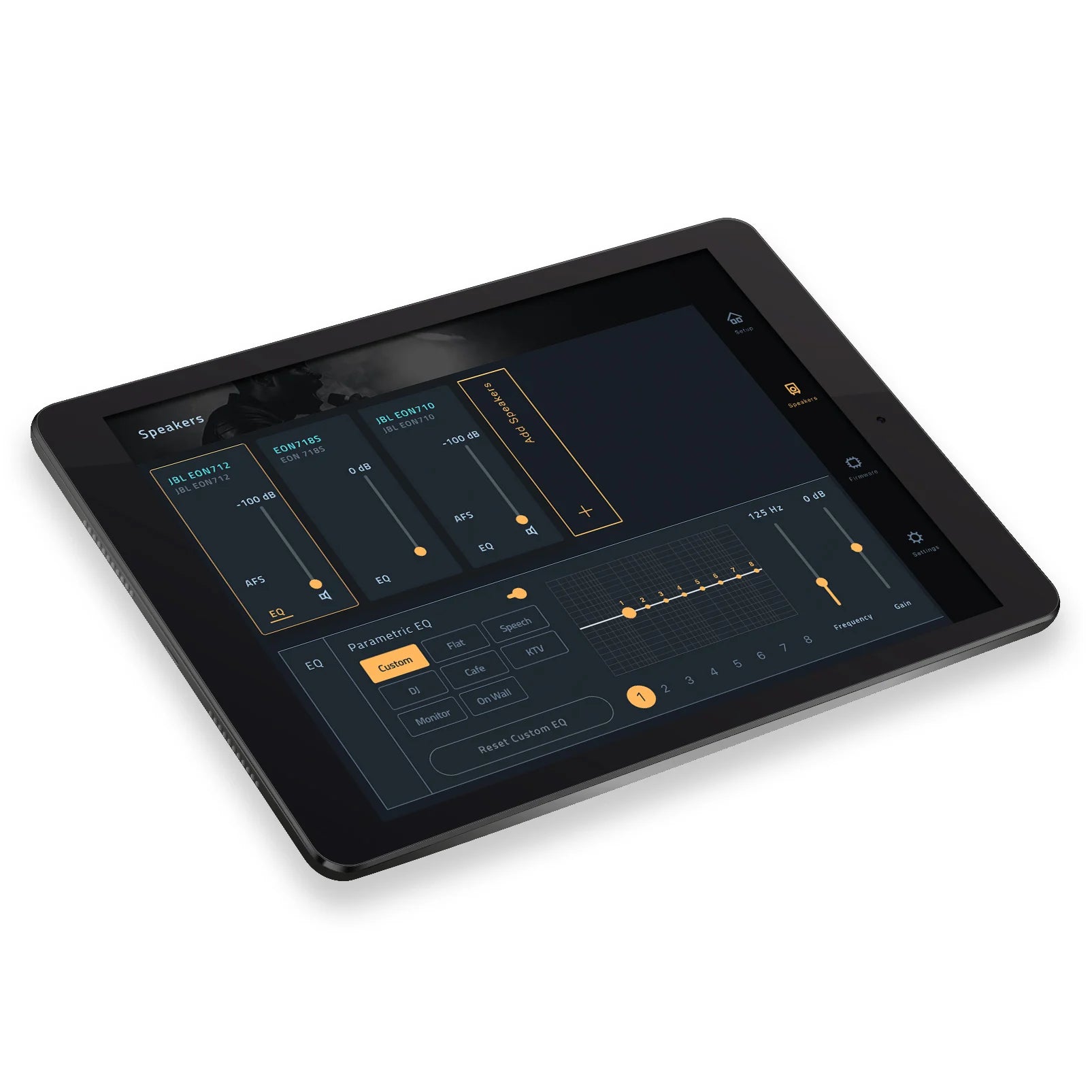

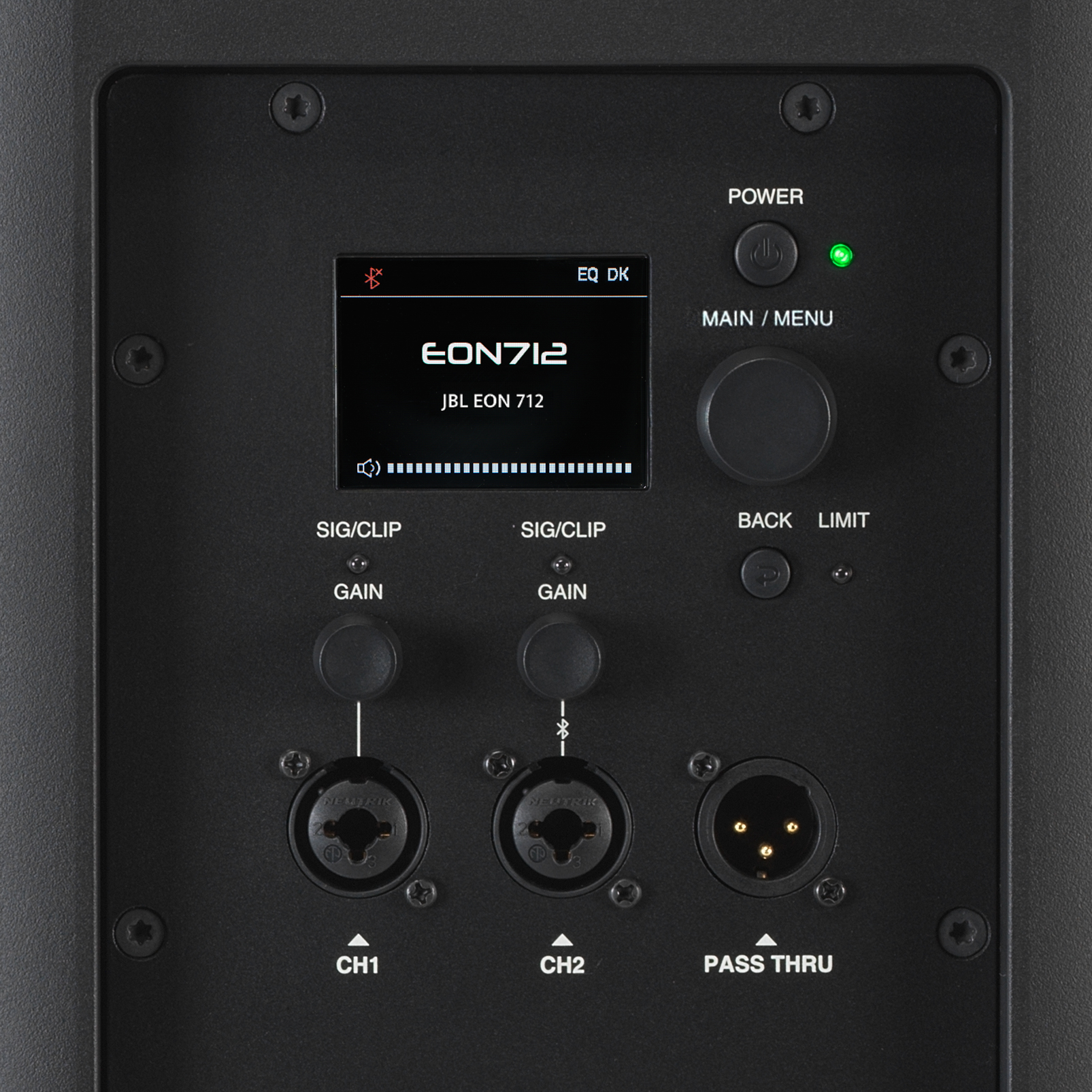

• Custom-designed 12-inch woofer • 2414H compression driver • Redesigned high-frequency horn • Power: 1,300W Peak / 650 RMS • Frequency response: 50Hz - 20kHz (-10) / 60Hz - 20kHz (-3) • Max SPL: 127 dB • Dispersion: 100° H × 60° V • Audio I/Os: 2 XLR Combo, 1 XLR passthrough • Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ • Built-in 3-channel digital mixer • Color backlit LCD screen provides easy access to functions • Universal JBL Pro Connect app control • Bluetooth 5.0 streaming and control • Durable polypropylene cabinet and metal grille • Two ergonomic handles simplify transport • Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options • Stackable cabinets for easy storage • Net Weight: 14.6 kg (32.19 lbs.)
Specifications

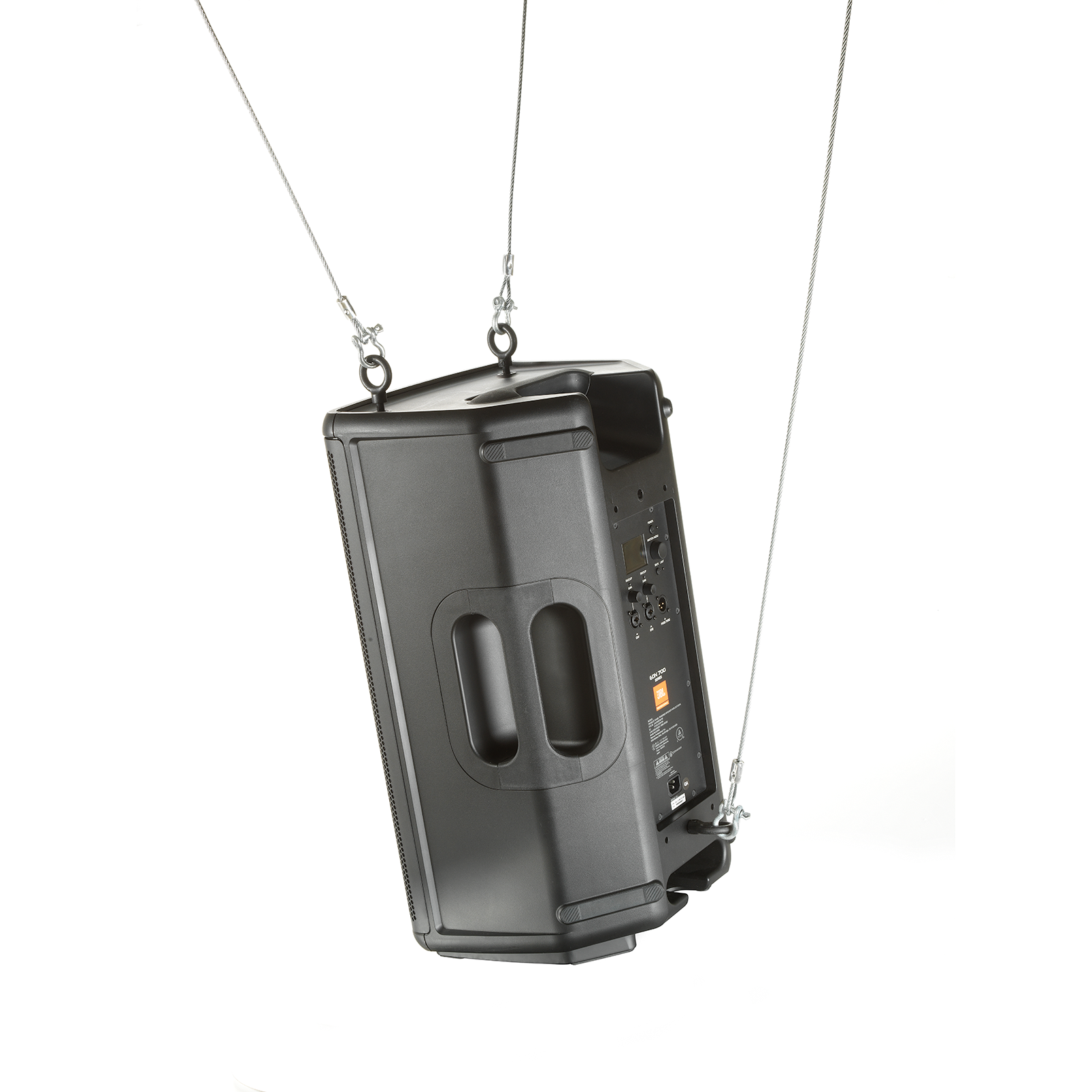

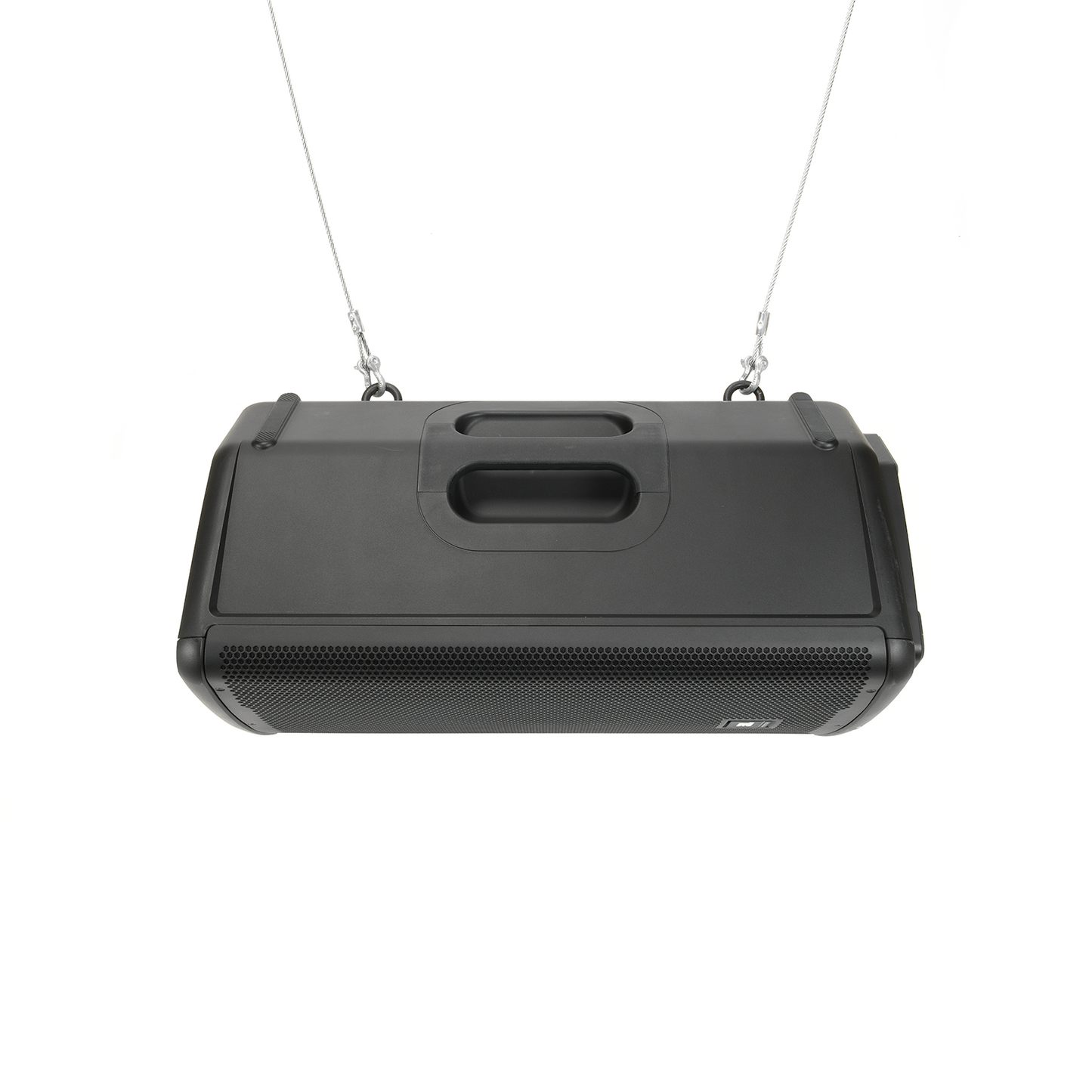

• System Type: 12IN Powered Loudspeaker • Woofer Model: 712G • Woofer Size: 12" • Woofer Magnet: Ferrite • Woofer Voice Coil: 2" • Tweeter Model: 2414H Compression Driver • Tweeter Size: 1" • Tweeter Magnet: Neodymium • Transducer Impedance: LF 4ohm rated, HF 8ohm rated • Max SPL: 127dB @1m/4Pi • Freq Range -10: 50Hz - 20kHz • Freq Range -3: 60Hz - 20kHz • Hor Dispersion: 100° • Vert Dispersion: 60° • Power Rating: 1300W peak / 650 RMS • AC Power Input: 100V-120V or 220V-240V • Cooling: Passive • LED Indicators: 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs • Input Impedance: 50k/100k un-balanced/balanced • Input Gain: -∞ to +36db • Crossover Freq: 2 kHz • I/O: 2 XLR Combo Jacks / BT, 1 XLR M Thru • Cabinet: PP+10% Talc • Grille: 16GA perforated steel with acoustically transparent black cloth backing • Suspension/Mount: 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes • Handles: 2, cable channel on bottom
• Net Weight: 14.6 kg (32.19 lbs.) • Gross Weight: 18.3 kg (40.34 lbs.) • Product Dims: LxWxH 381 x 328 x 670 mm (15 x 12.91 x 26.38 in.) • Shipping Dims: LxWxH 490 x 430 x 684 mm (26.93 x 19.29 x 16.93 in.)
