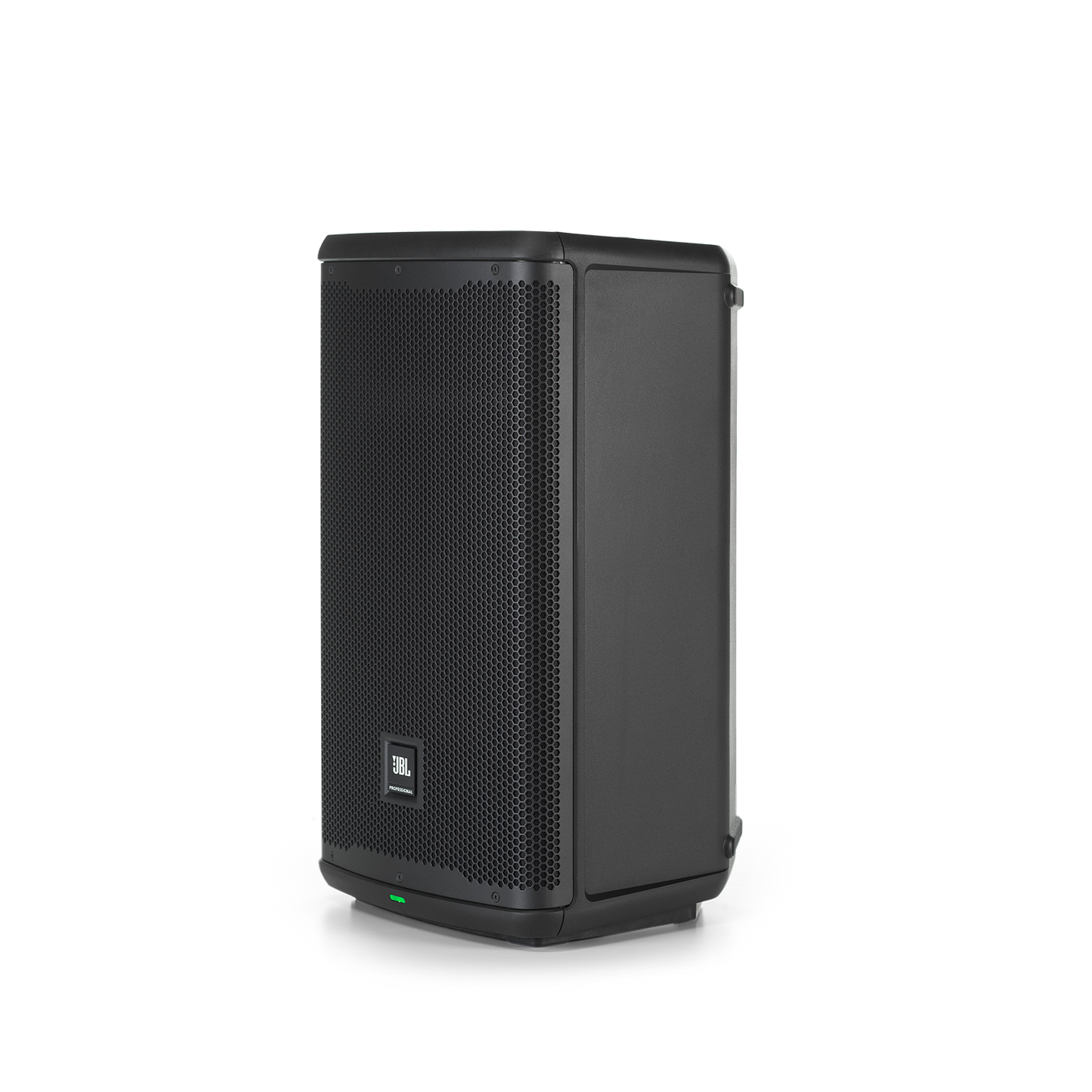

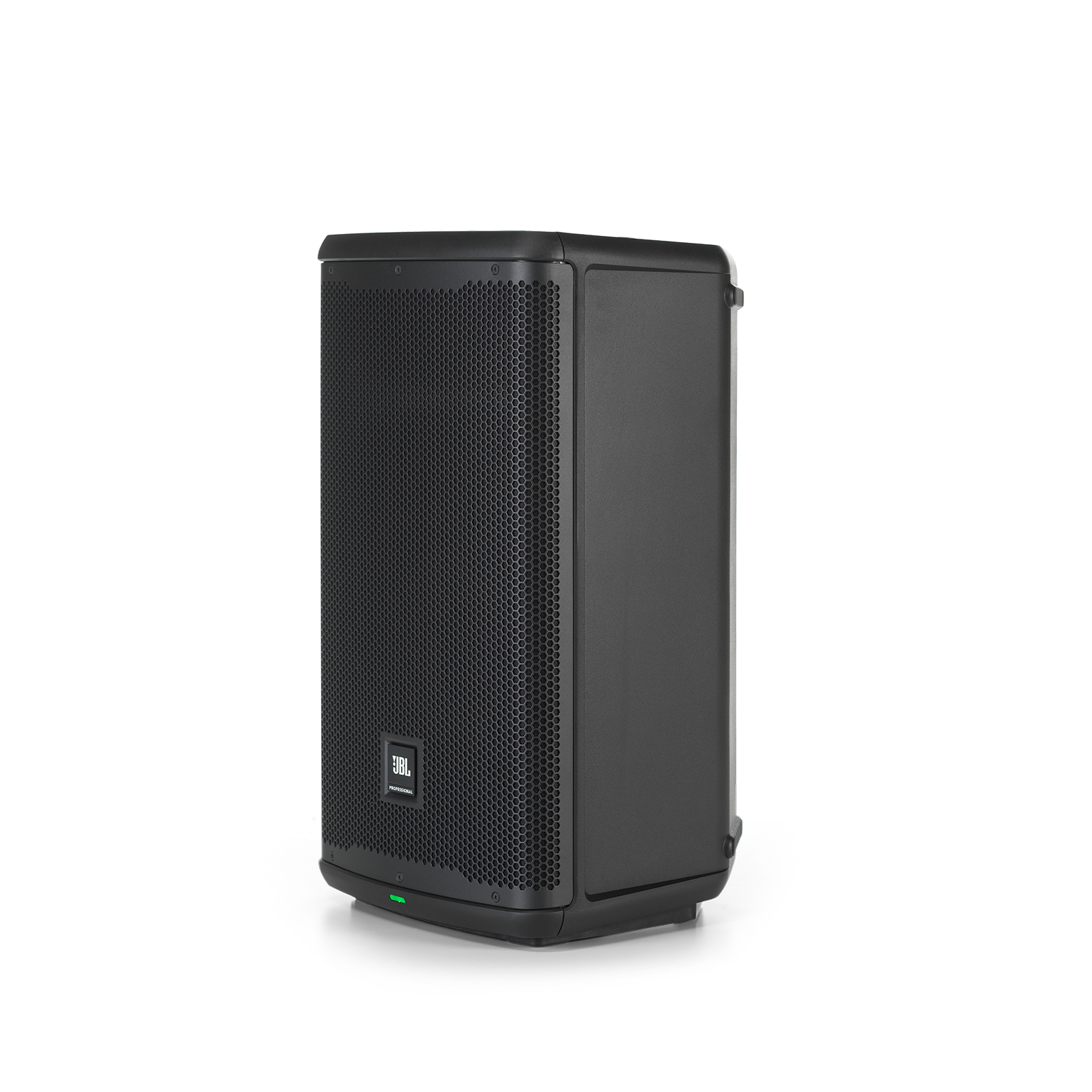

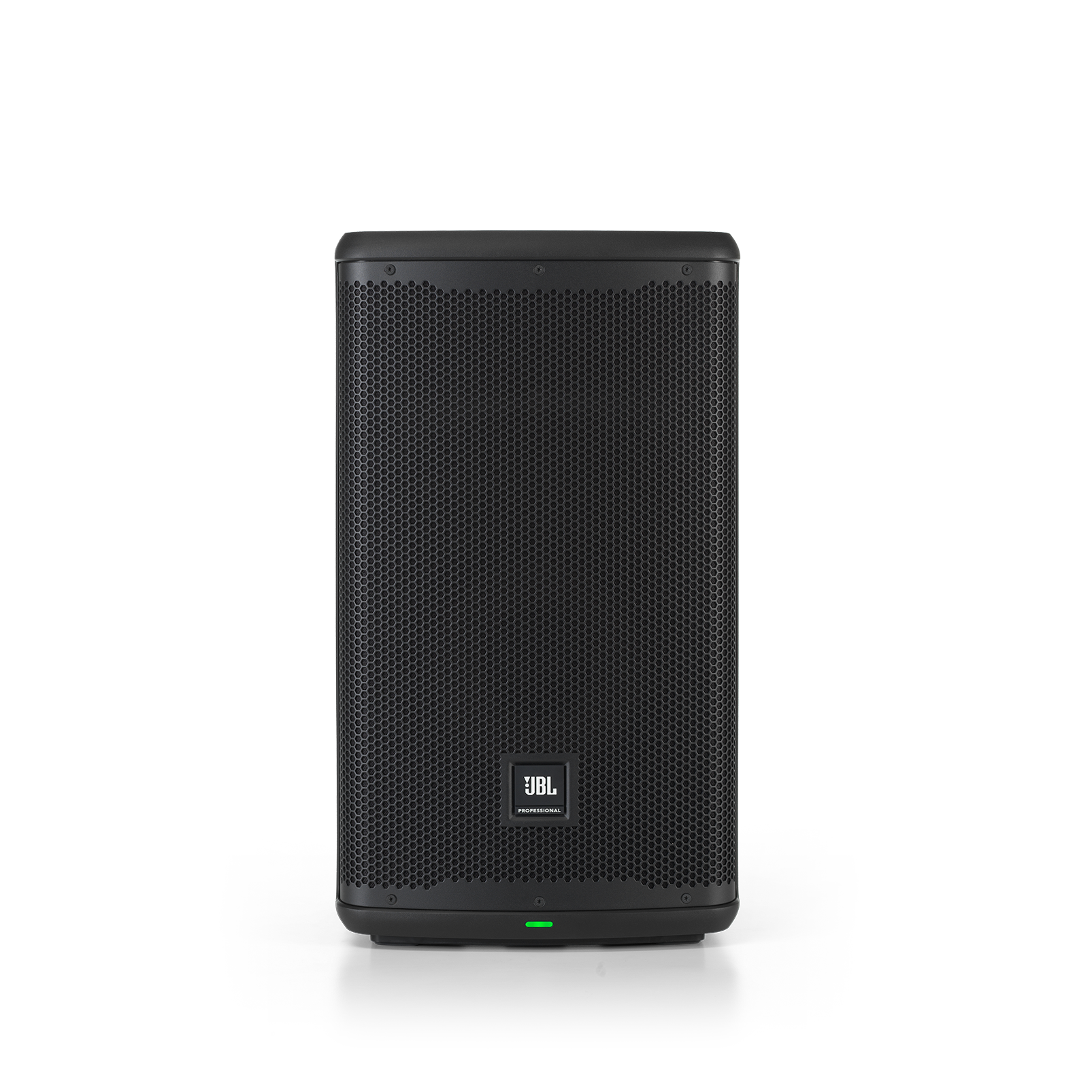

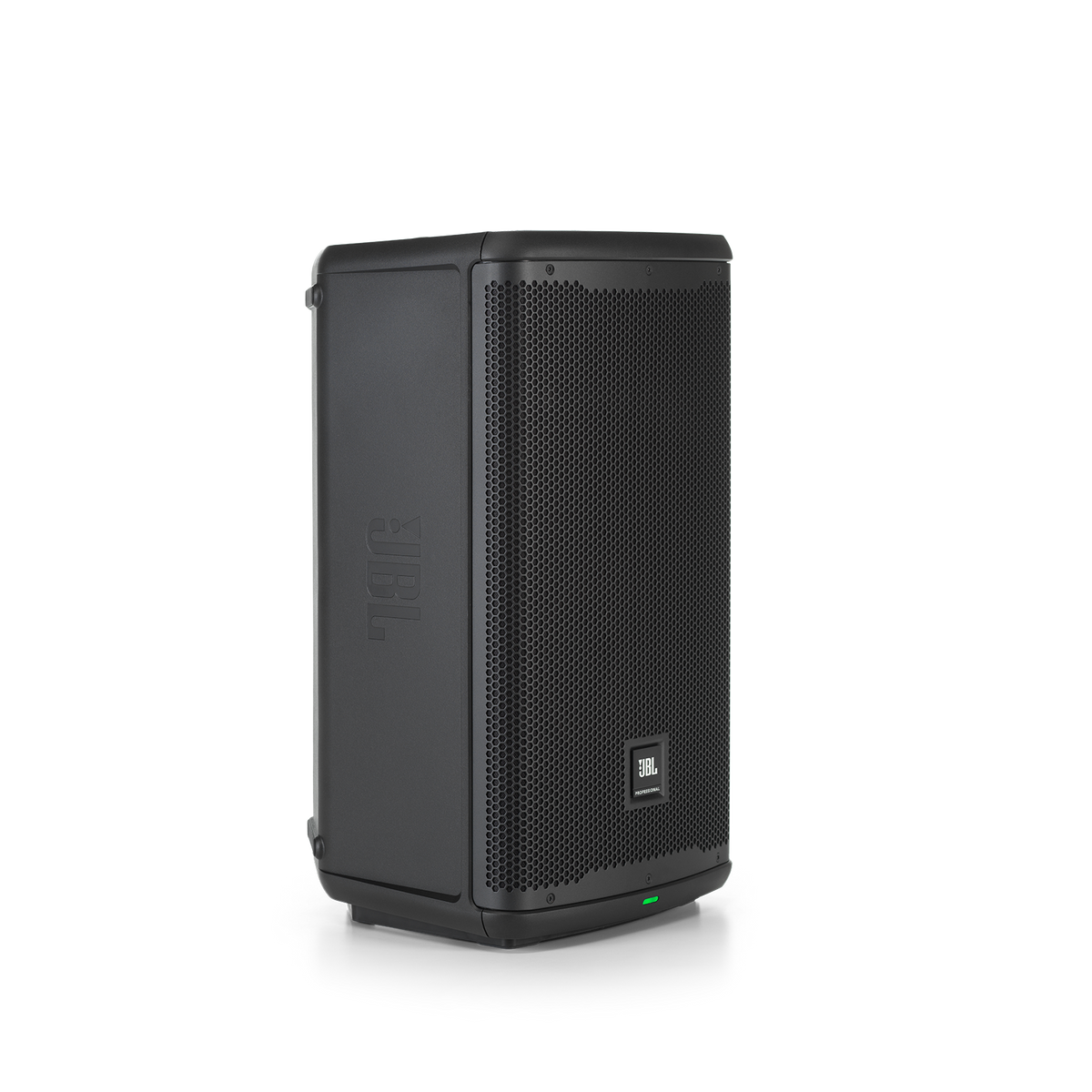

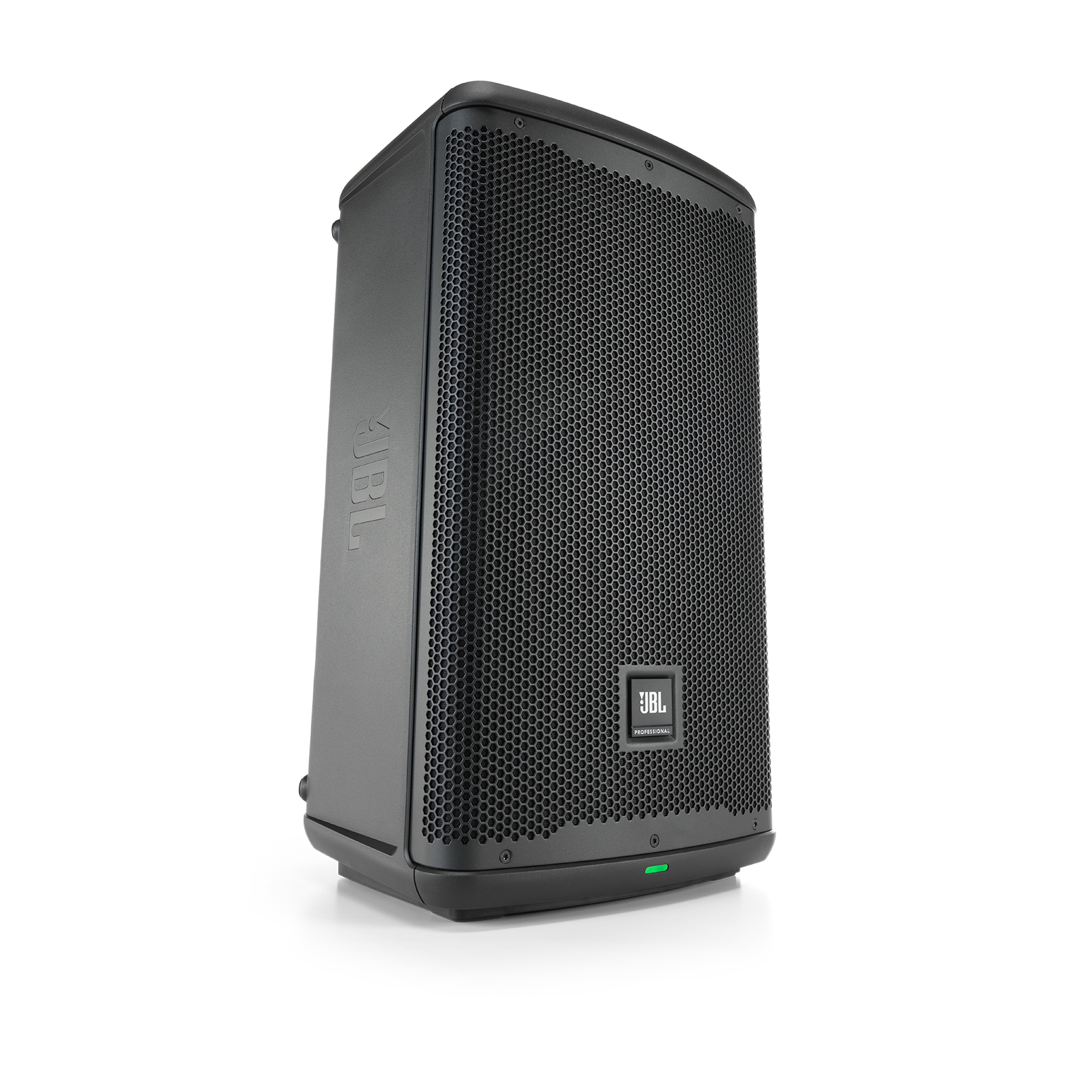

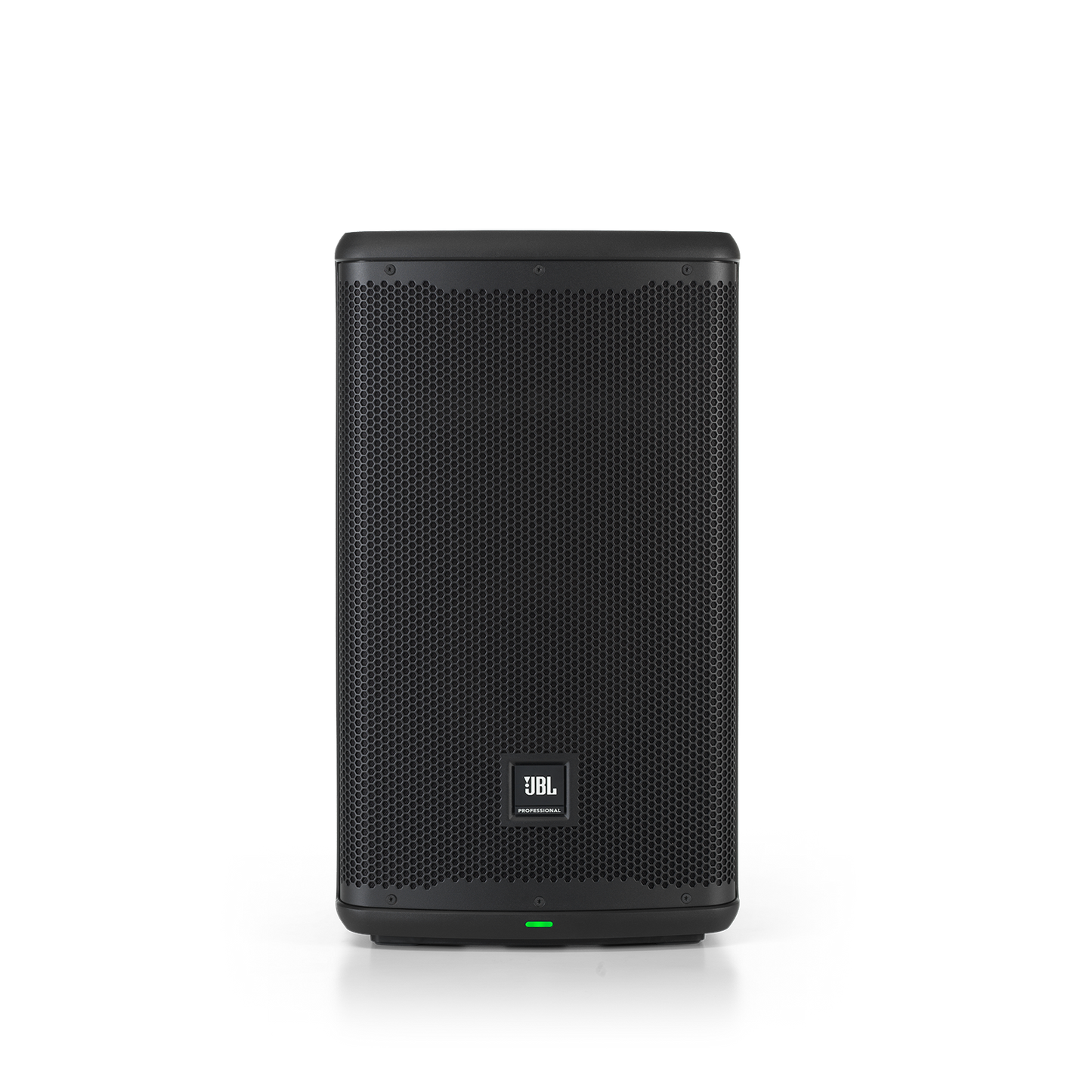

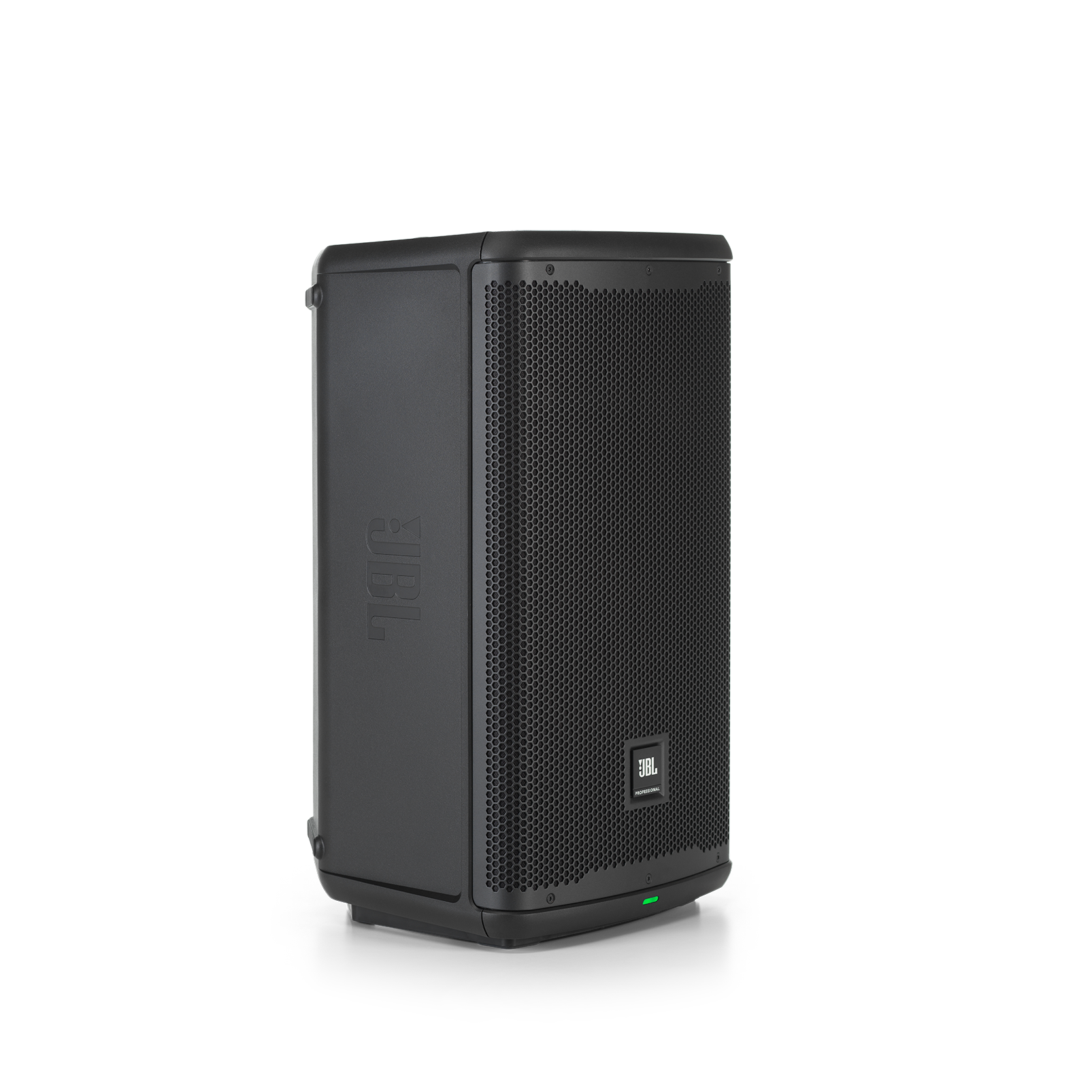

JBL EON710 – 10-inch Powered PA Speaker with Bluetooth

Overview

The JBL EON710 10-inch loudspeaker, part of JBL’s new EON700 Series of powered PAs, brings advanced DSP and control to portable systems for live sound and installed applications, with class-leading volume and clarity and comprehensive features that make setup and operation a breeze.

Product Highlights

• Custom-designed 10-inch woofer
• 2414H compression driver
• Redesigned high-frequency horn
• Power: 1,300W Peak / 650W RMS
• Frequency response: 52Hz – 20kHz (-10) / 65Hz – 20kHz (-3)
• Max SPL: 125 dB
• Dispersion: 110° H × 60° V
• Audio I/Os: 2 XLR Combo, 1 XLR passthrough
• Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
• Built-in 3-channel digital mixer
• Color backlit LCD screen provides easy access to functions

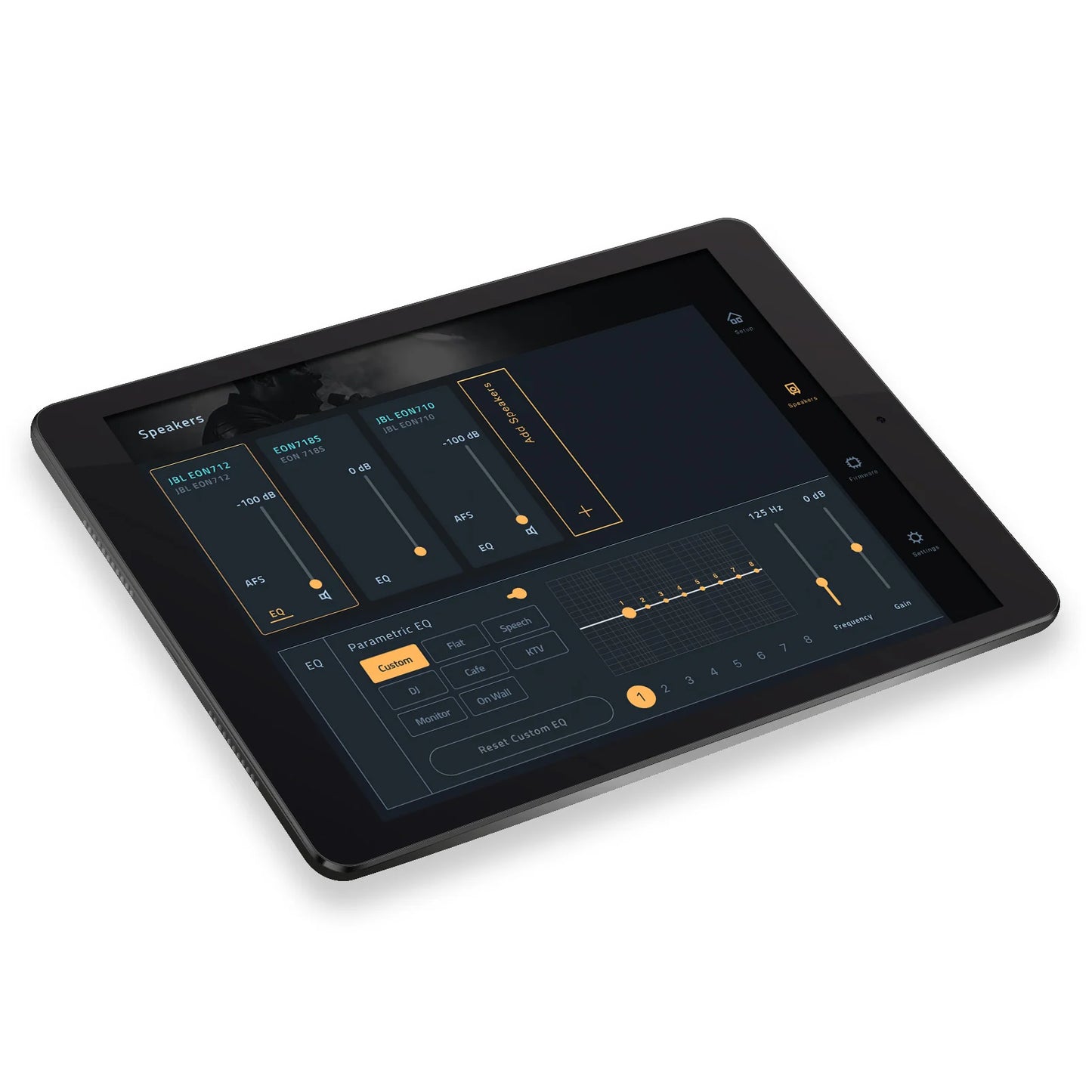

• Universal JBL Pro Connect app control
• Bluetooth 5.0 streaming and control
• Durable polypropylene cabinet and metal grille

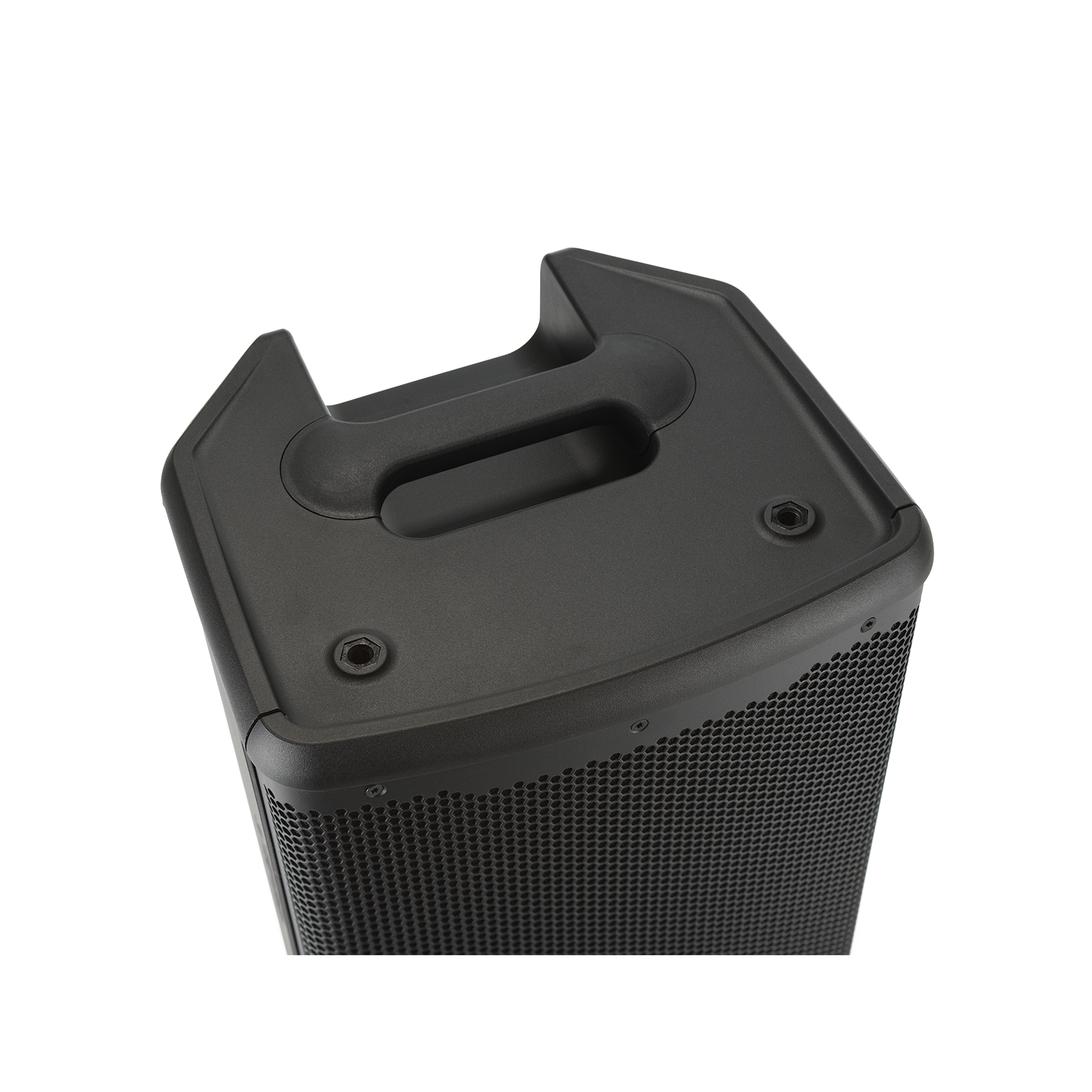

• Ergonomic handle simplifies transport
• Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
• Stackable cabinets for easy storage
• Net Weight: 12.0 kg (26.46 lbs.)
• Shipping Weight: 15.4 kg (33.95 lbs.)

Specifications

• System Type: 10IN Powered Loudspeaker
• Woofer Model: 710G
• Woofer Size: 10"
• Woofer Magnet: Ferrite
• Woofer Voice Coil: 2"
• Tweeter Model: 2414H Compression Driver
• Tweeter Size: 1"
• Tweeter Magnet: Neodymium
• Transducer Impedance: LF 4ohm rated, HF 8ohm rated
• Max SPL: 125dB @1m/4Pi
• Freq Range -10: 52Hz - 20kHz
• Freq Range -3: 65Hz - 20kHz
• Hor Dispersion: 110°
• Vert Dispersion: 60°
• Power Rating: 1300W peak / 650 RMS
• AC Power Input: 100V-120V or 220V-240V
• Cooling: Passive
• LED Indicators: 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
• Input Impedance: 50k/100k un-balanced/balanced
• Input Gain: -∞ to +36db
• Crossover Freq: 2 kHz

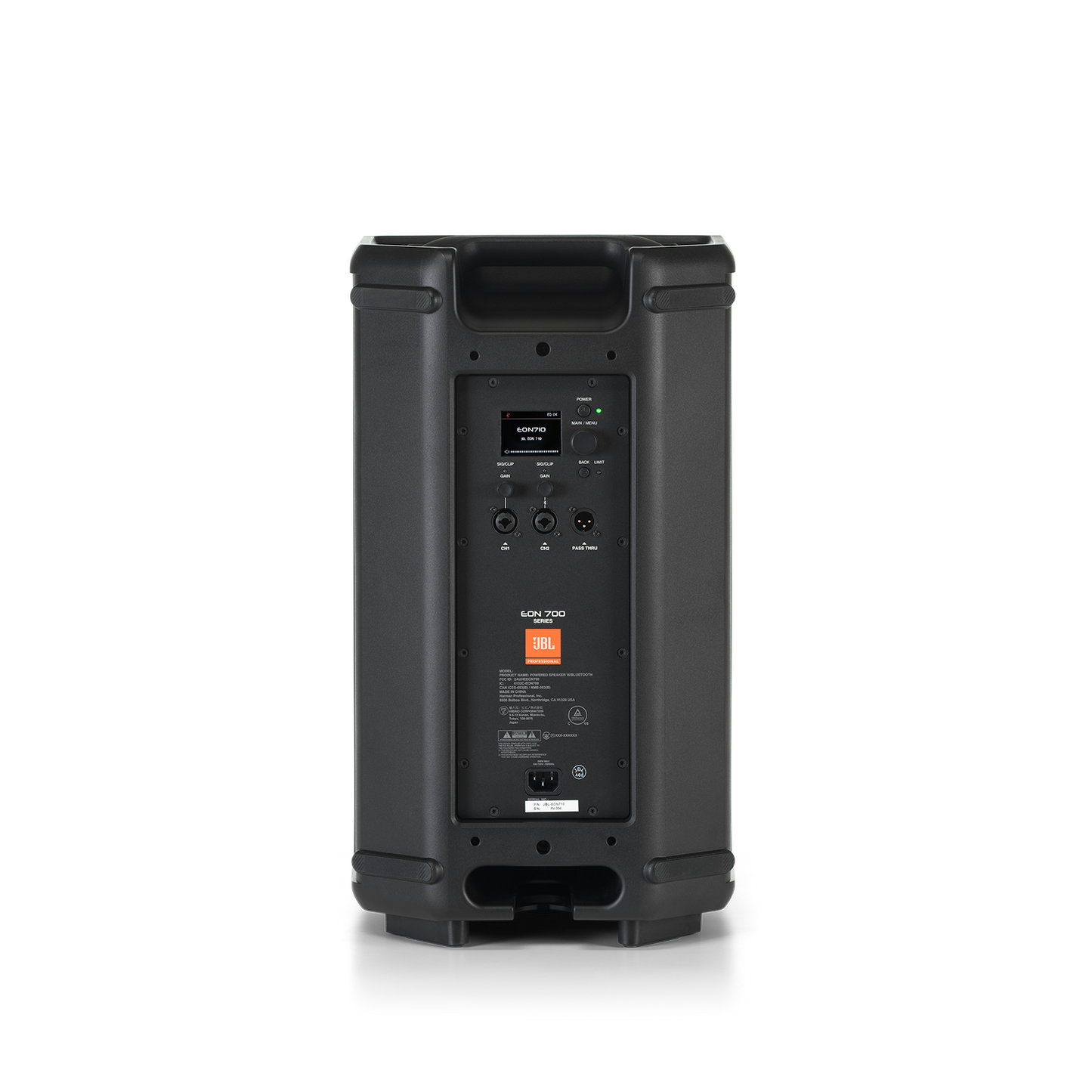

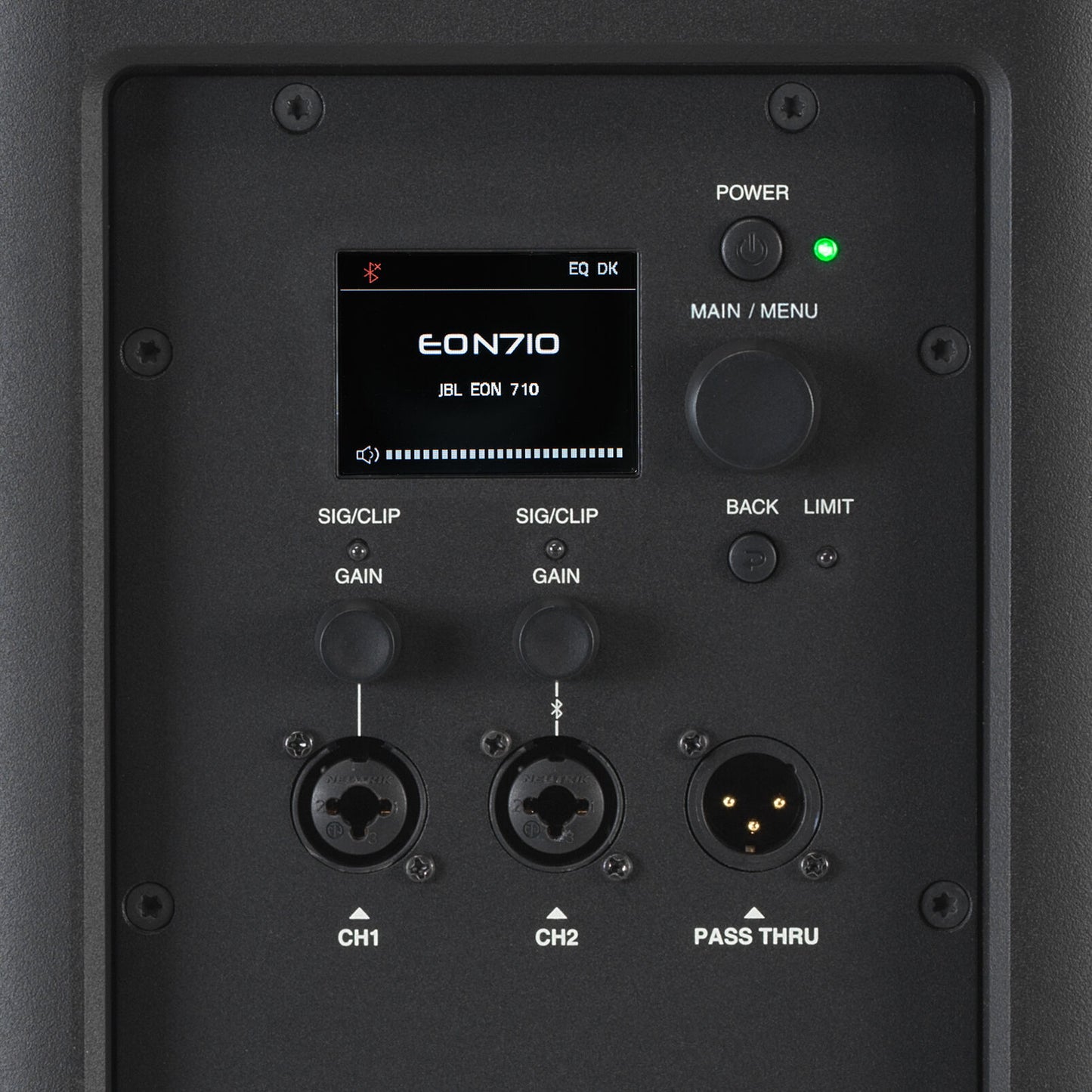

• I/O: 2 XLR Combo Jacks / BT, 1 XLR M Thru
• Cabinet: PP+10% Talc
• Grille: 16GA perforated steel with acoustically transparent black cloth backing

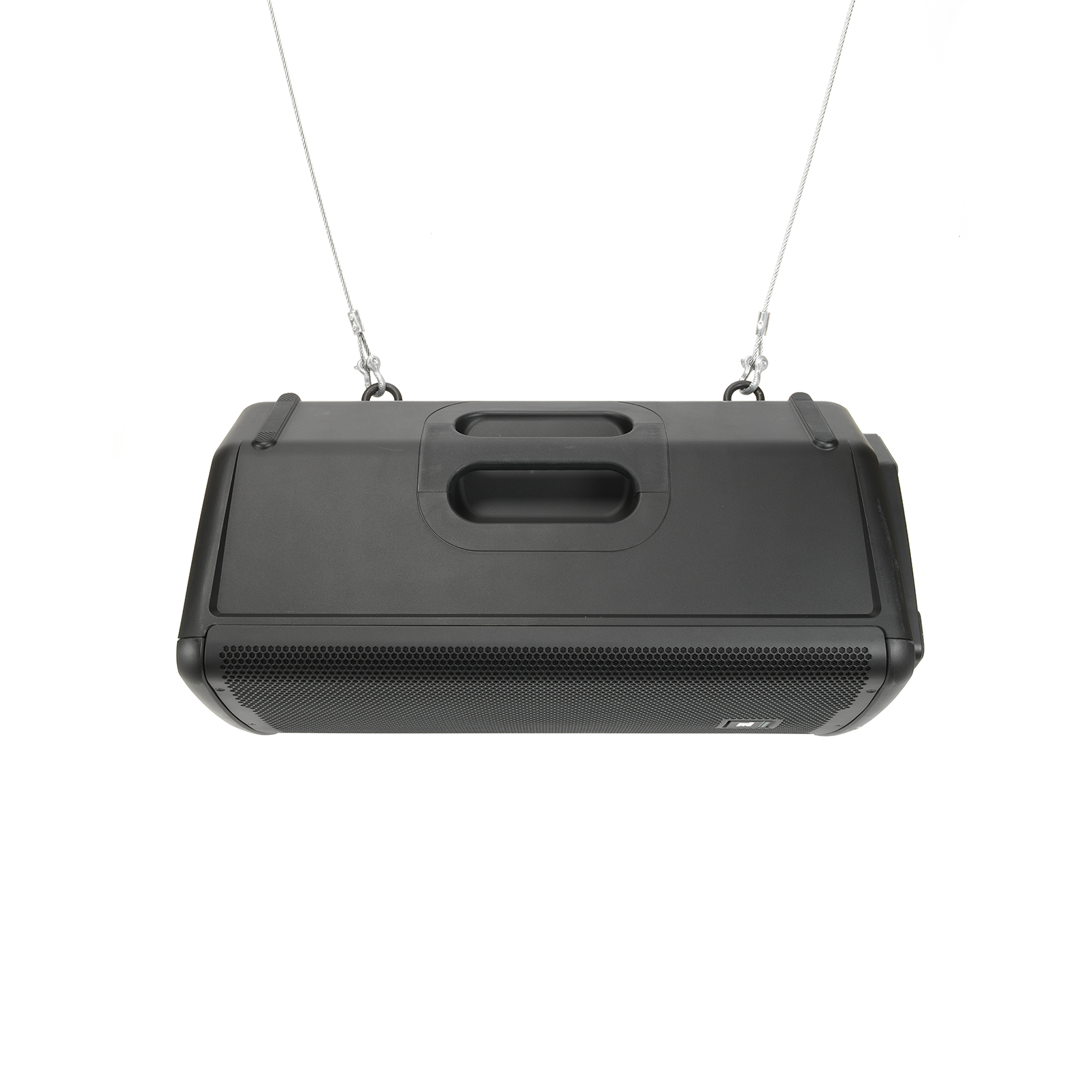

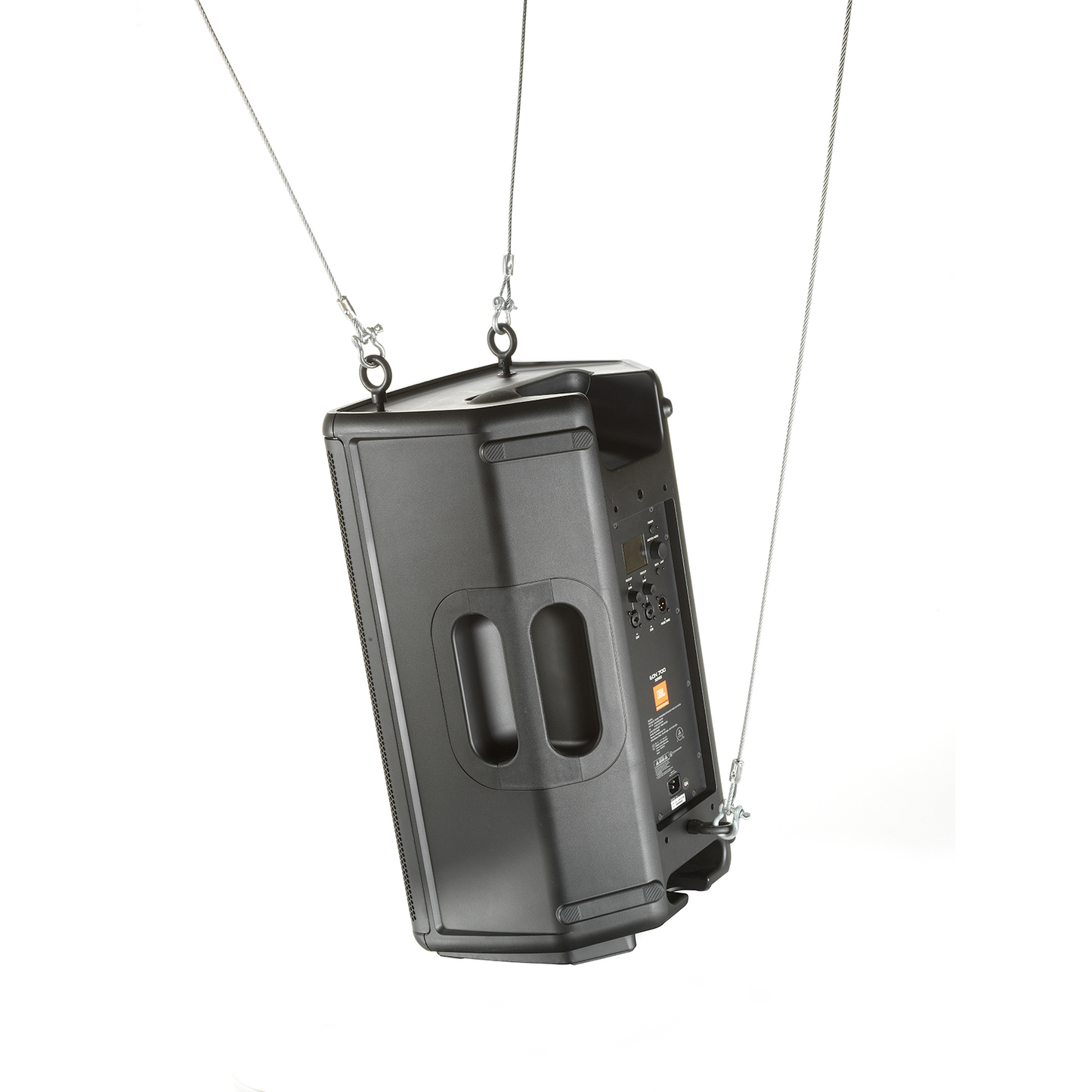

• Suspension/Mount: 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
• Handles: 1, Cable channel on bottom
• Net Weight: 12 kg (26.46 lbs.)
• Gross Weight: 15.4 kg (33.95 lbs.)
• Product Dims: LxWxH 332 x 305 x 587 mm (13.07 x 12 x 23.11 in.)
• Shipping Dims: LxWxH 439 x 407 x 606 mm (17.28 x 16.02 x 23.86 in.)

Product Dimensions

• Height: 587 mm (23.11 in.)
• Width: 305 mm (12.00 in.)
• Depth: 332 mm (13.07 in.)

Customer note: Tablet shown in the images is not included with the product and is for illustration purposes only.
