JBL Eon One MK2 battery-powered column PA system

JBL EON ONE Mk2 All-in-One Battery-Powered Column PA System

The JBL EON ONE Mk2 is an all-in-one, battery-powered column PA system featuring a class-leading acoustic package, 5-channel digital mixer, dbx and Lexicon DSP, Bluetooth functionality, and universal app control in a lightweight, portable design. Its geometrically optimized C-shaped array of eight 2-inch tweeters and 10-inch woofer delivers clear sound, wide dispersion, and low-frequency response down to 37 Hz.

Designed for versatility, the EON ONE Mk2 provides professional-grade Lexicon effects and dbx DriveRack processing, Variable Power Performance for optimized AC or battery operation, and Soundcraft Easy Ducking for improved speech clarity. Its rechargeable battery provides up to 6 hours of playtime, while the integrated PA components and ergonomic carry handle make the system easy to transport.

Key Features

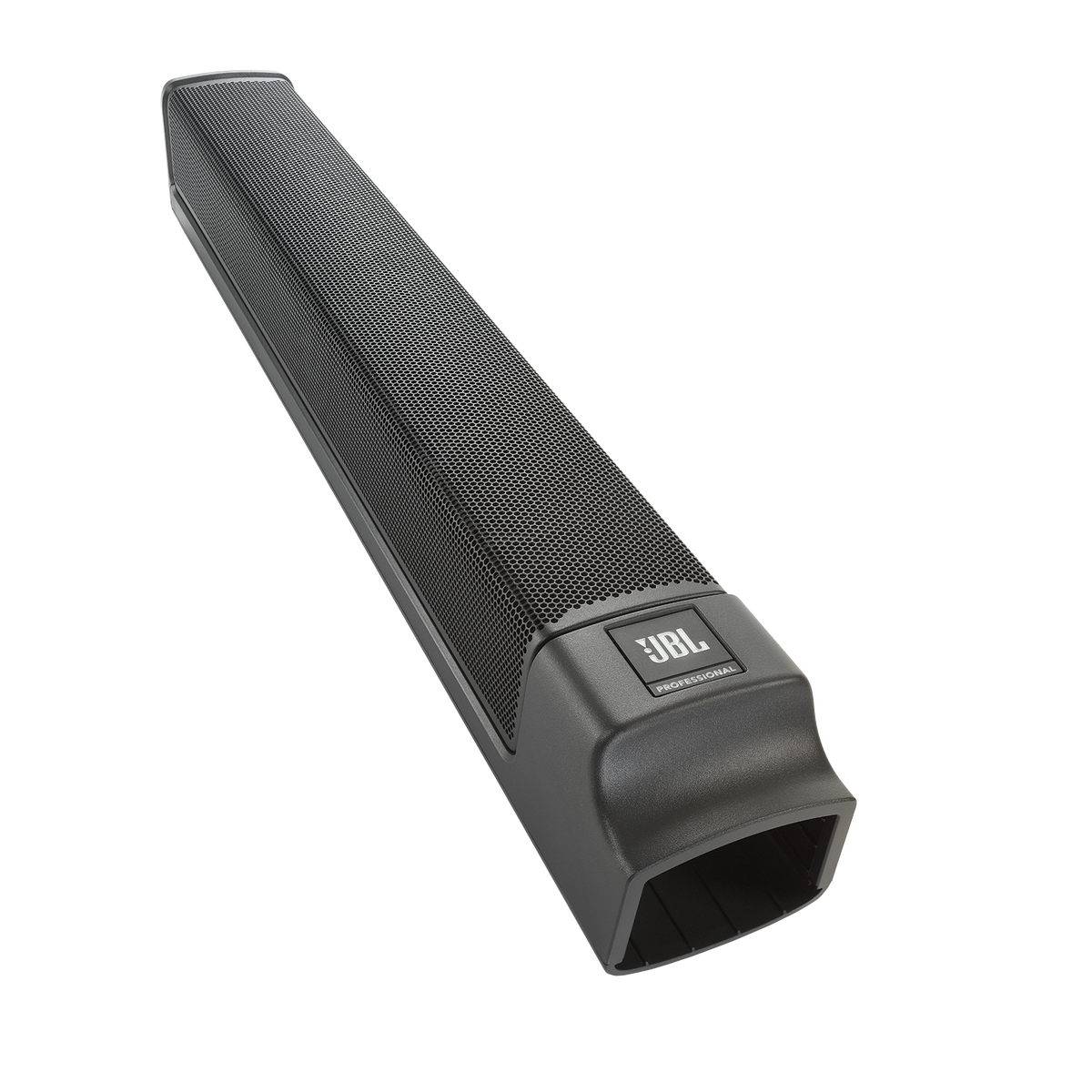

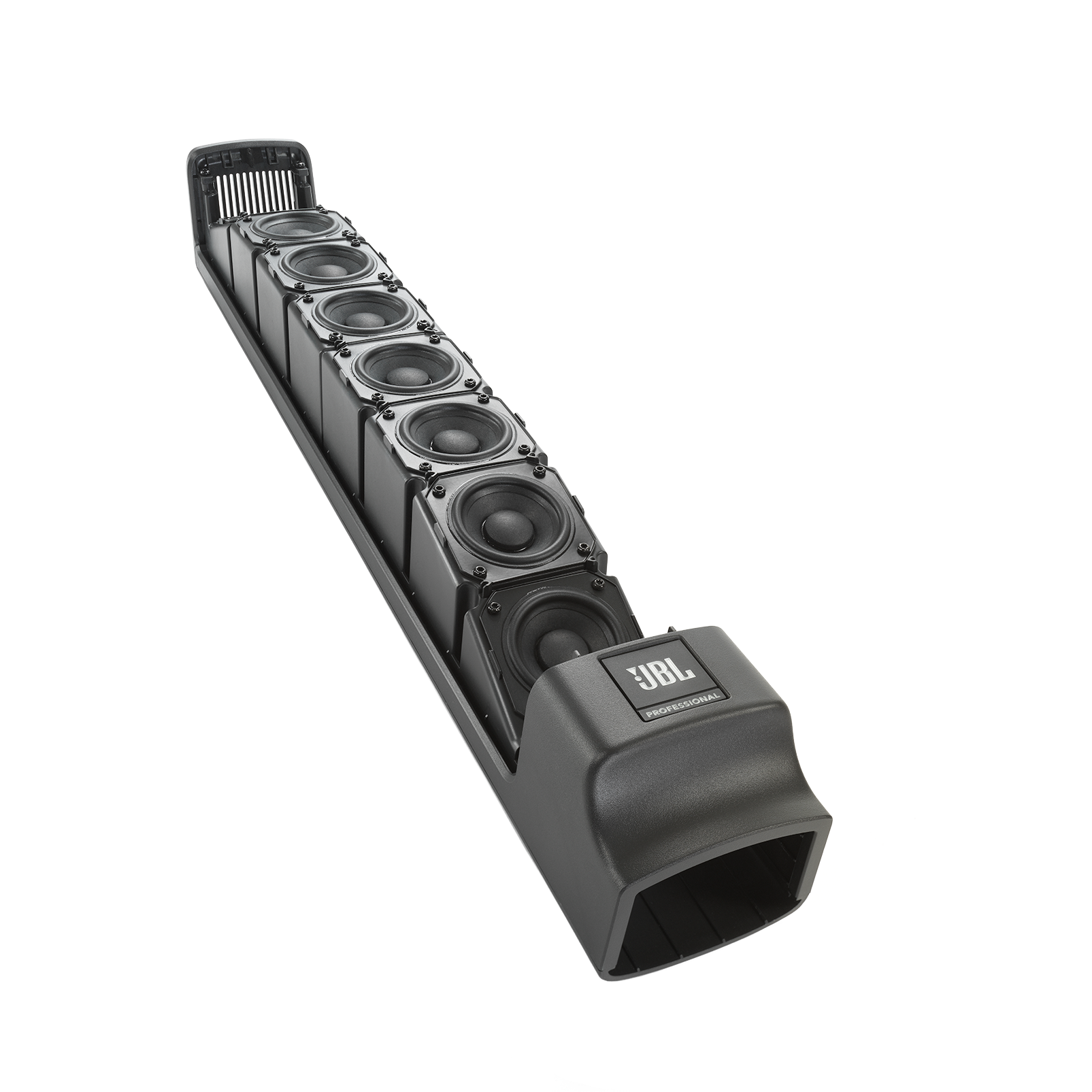

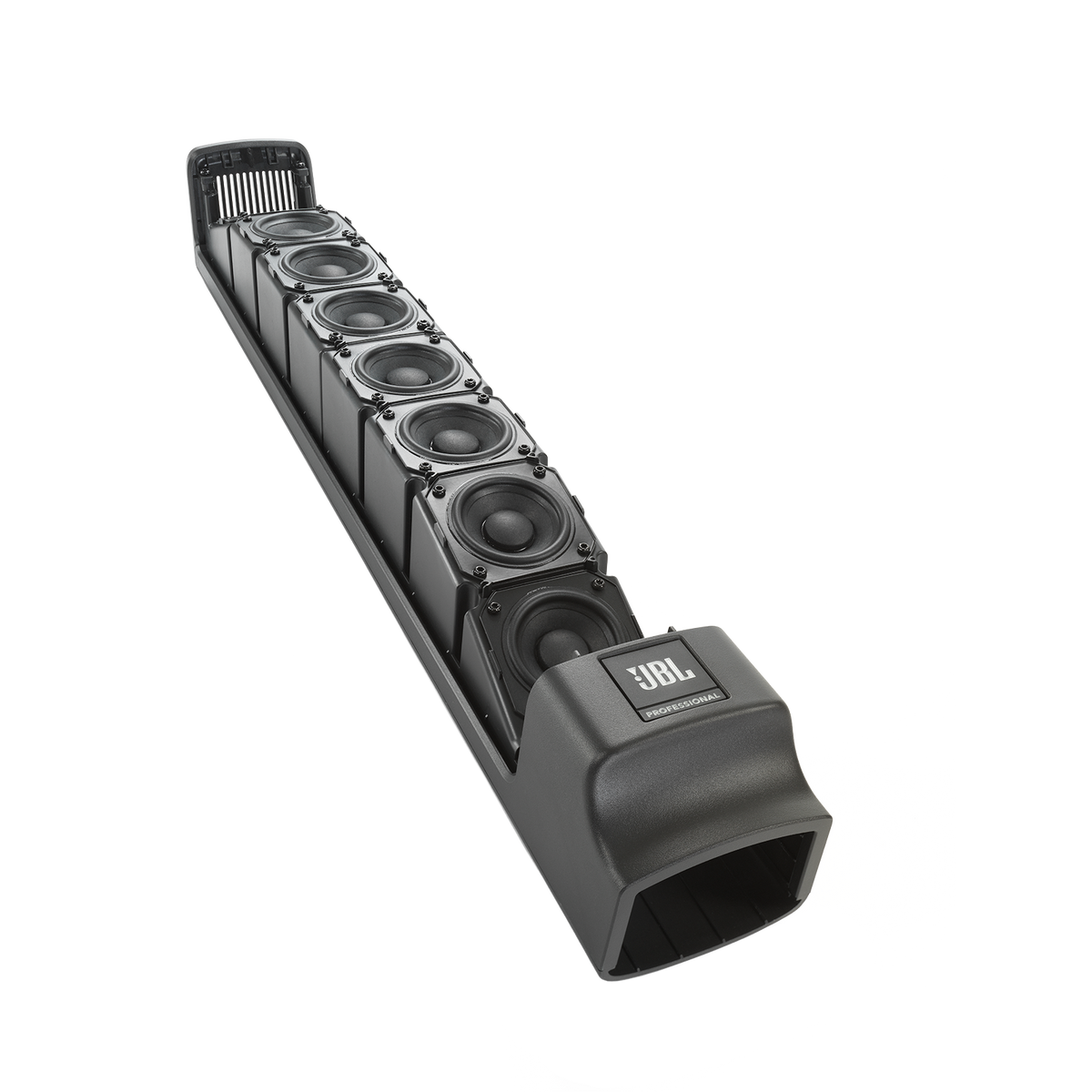

• C-shaped array of 8 × 2" tweeters
• 140° horizontal × 30° vertical dispersion

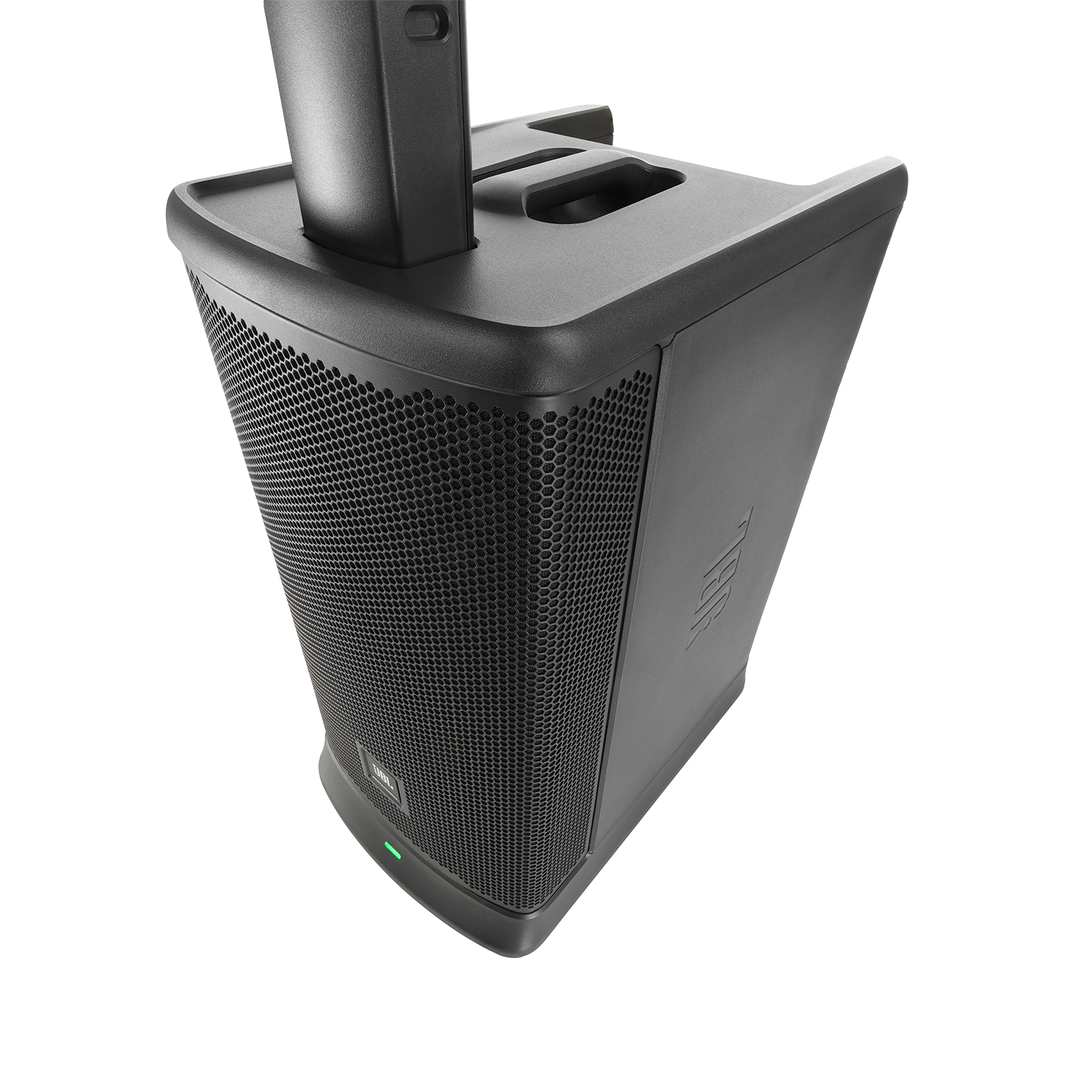

• 10" woofer in an acoustically optimized cabinet
• Frequency response: 37 Hz–20 kHz @ -10 dB; 45 Hz–20 kHz @ -3 dB
• Variable Power Performance
• Up to 123 dB peak SPL using AC power
• Up to 119 dB peak SPL using battery power
• Built-in 1,500-watt peak amplifier
• 400W RMS power rating
• Easily swappable battery providing up to 6 hours of playtime
• Battery integrated into the column spacer for improved stability and low-frequency performance

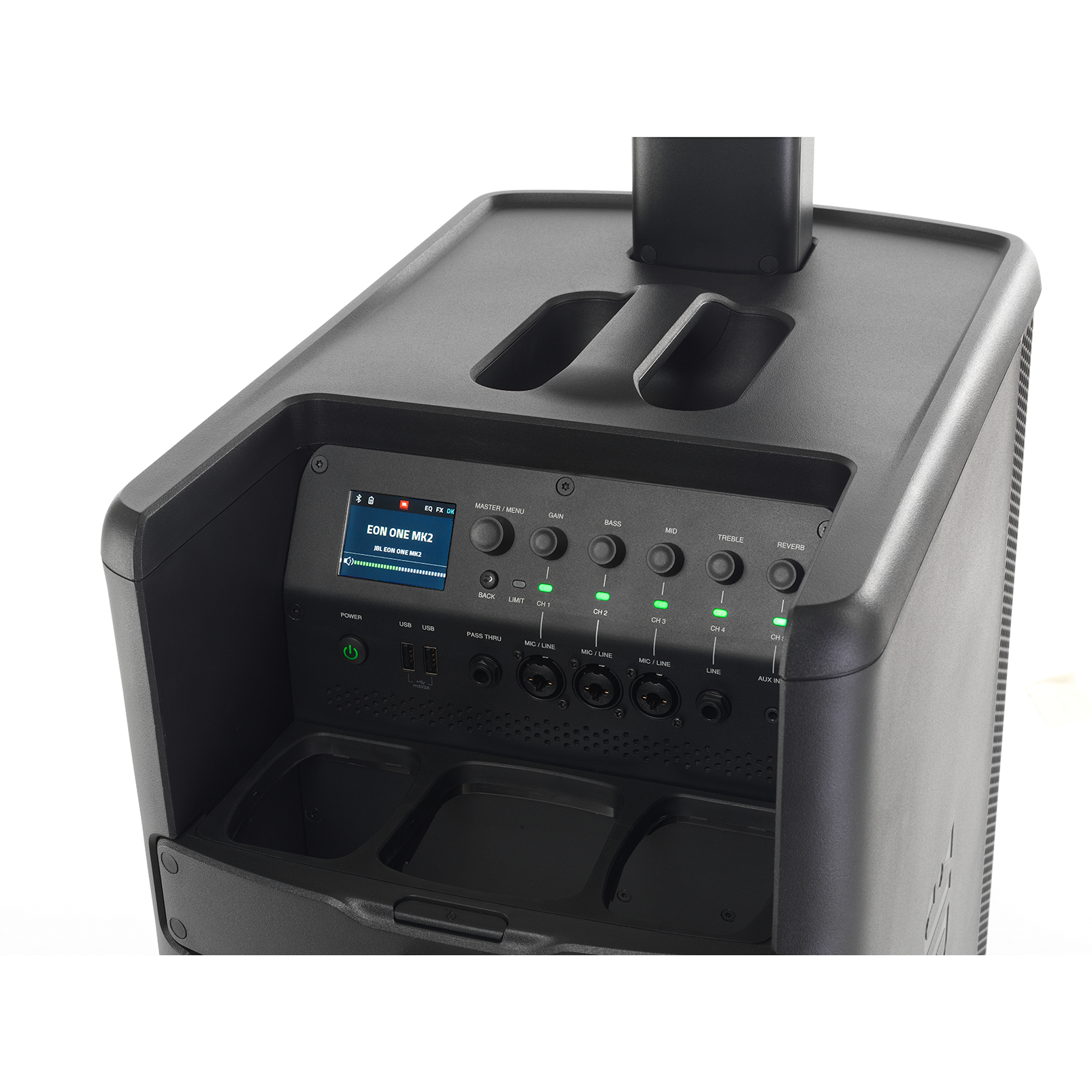

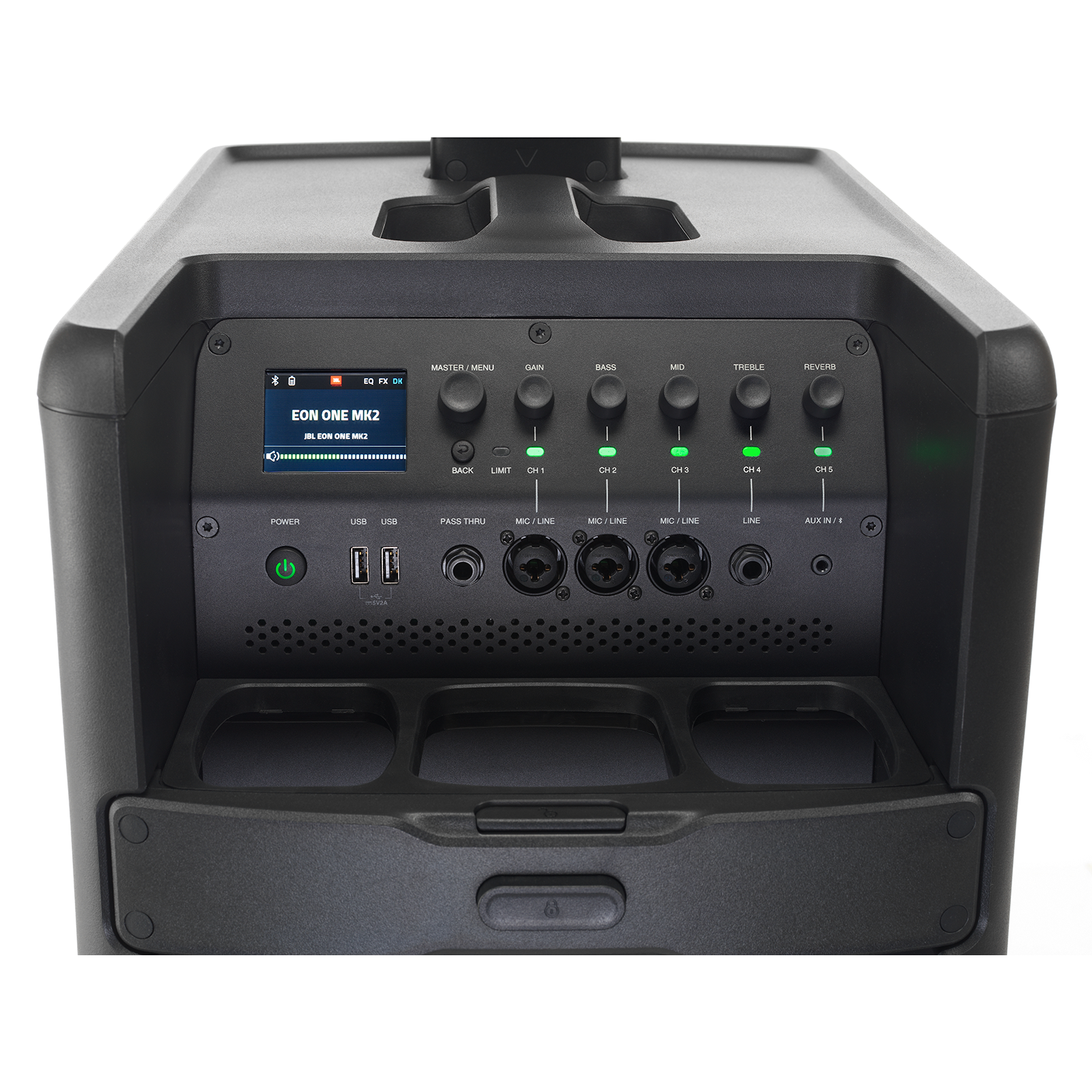

• Built-in 5-channel digital mixer
• Three fixed EQ knobs for onboard EQ control
• Professional-grade Lexicon DSP with reverb, chorus and delay
• dbx DriveRack Inside with AFS (Automatic Feedback Suppression)
• 8 bands of parametric EQ
• Soundcraft Easy Ducking automatically lowers music when speech is detected
• Triple-Tier DSP for beginner, intermediate and advanced control
• 3 Neutrik XLR Combo inputs
• 1 Hi-Z input
• Summed 3.5mm/BT input
• 1/4" balanced passthrough with independent volume control and speaker delay allow for analog system expansion
• Two channels of true 48V phantom power
• Two USB ports for device charging from onboard battery or AC power
• Bluetooth 5.0 audio streaming to one device
• Control of up to 10 units via JBL Pro Connect app
• Full-color EasyNav LCD
• Simple Success LED meters for mixer functions including mute, signal detection and clipping
• JBL Pro Connect universal app control

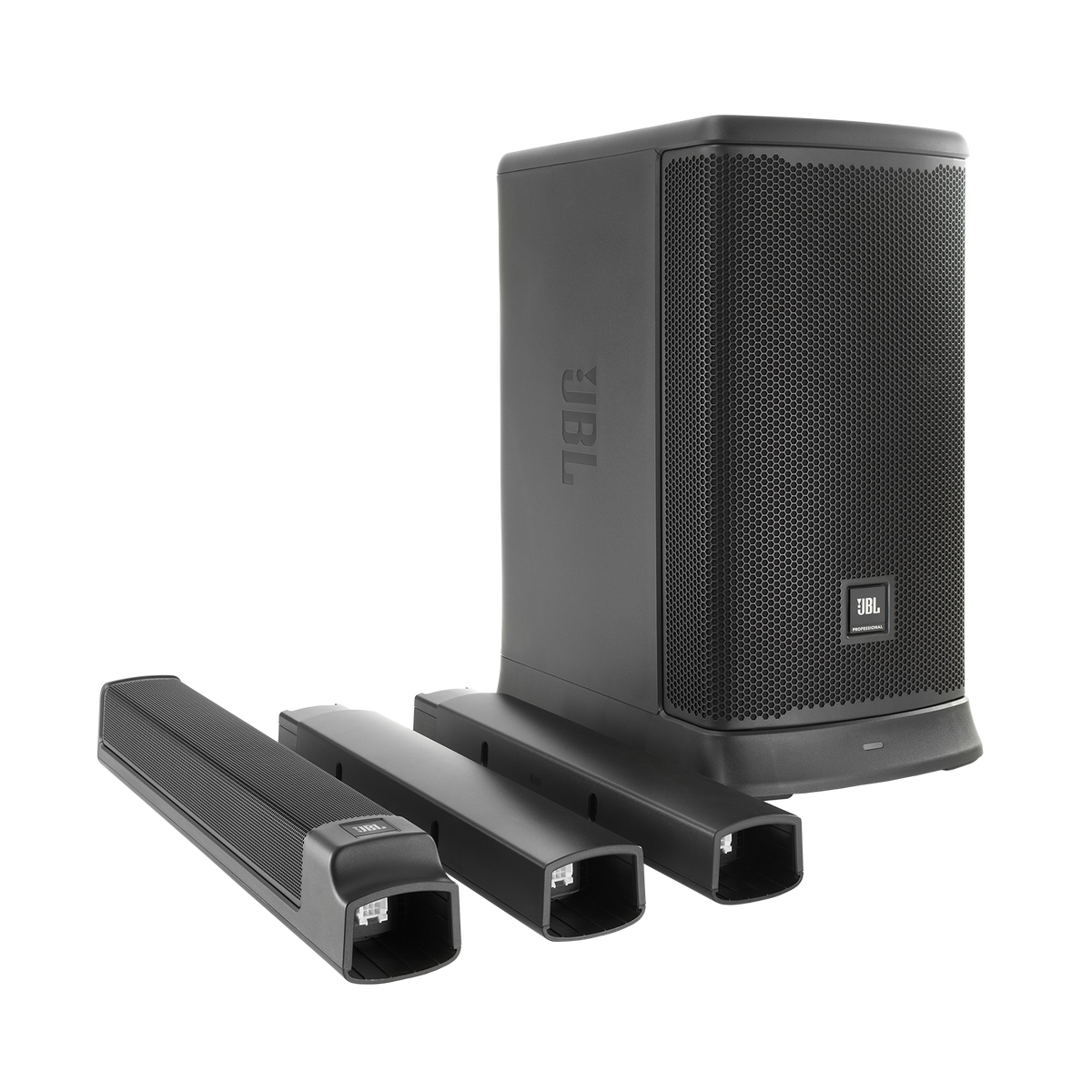

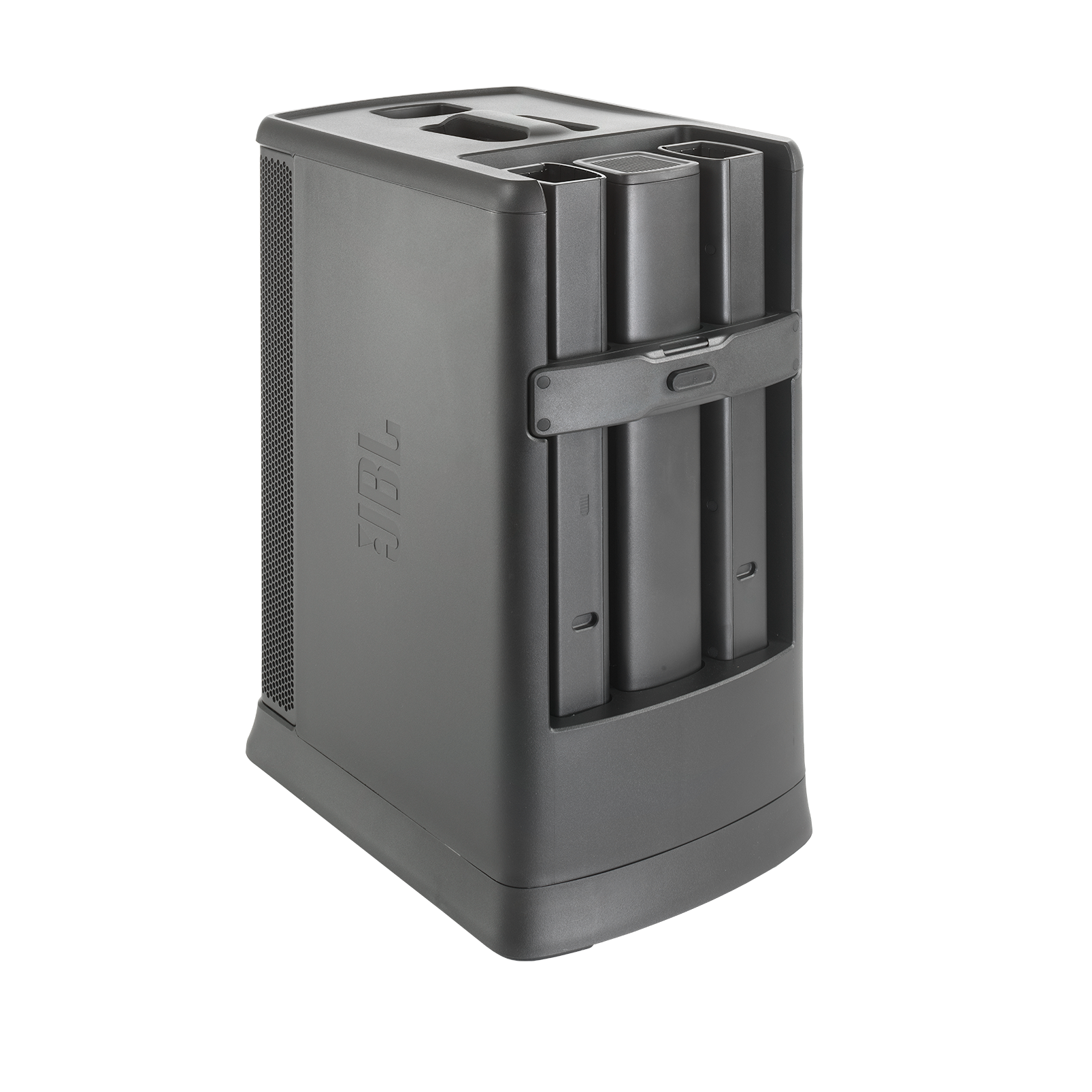

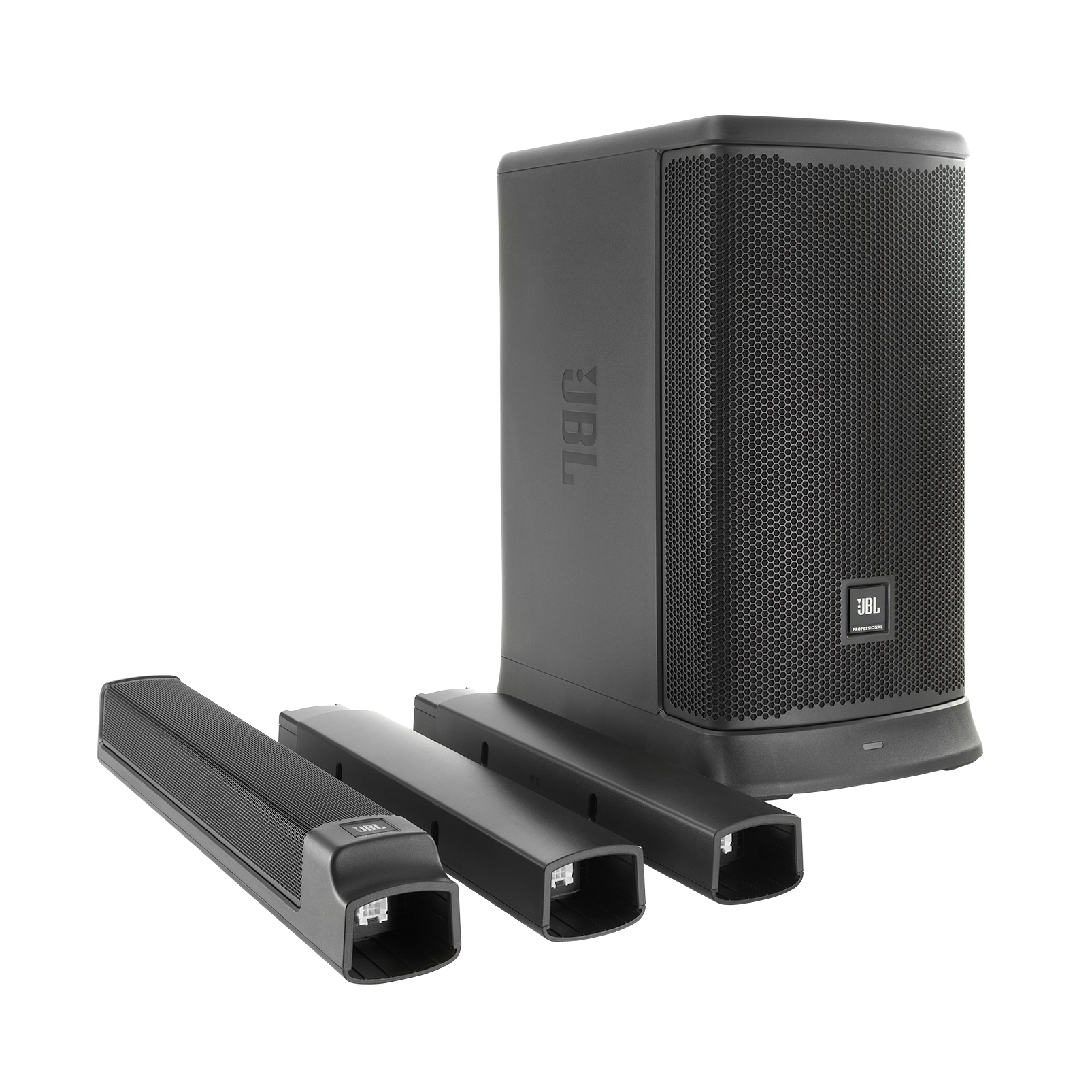

• PA components stored in the woofer cabinet for easy one-hand carry

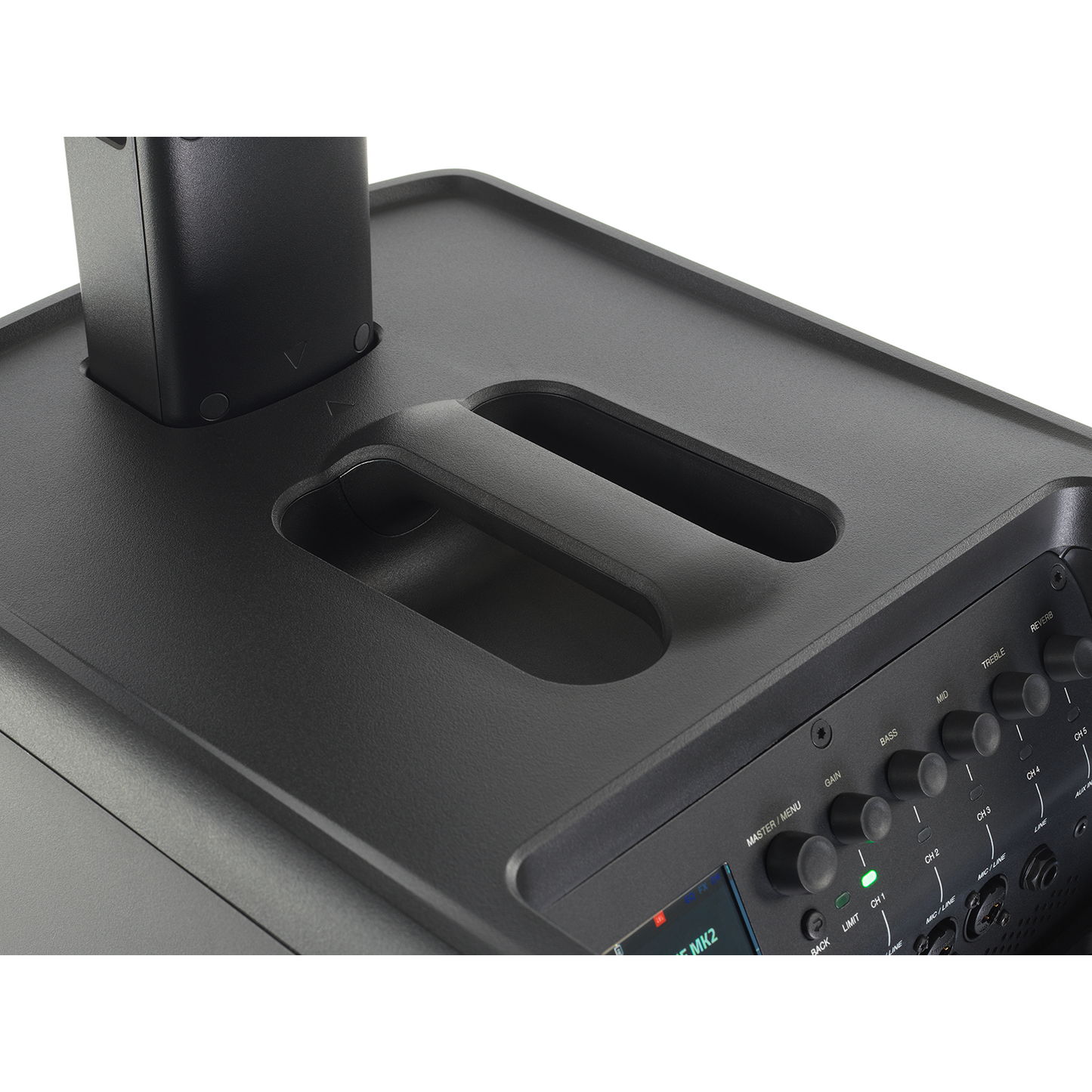

• Ergonomically optimized carry handle

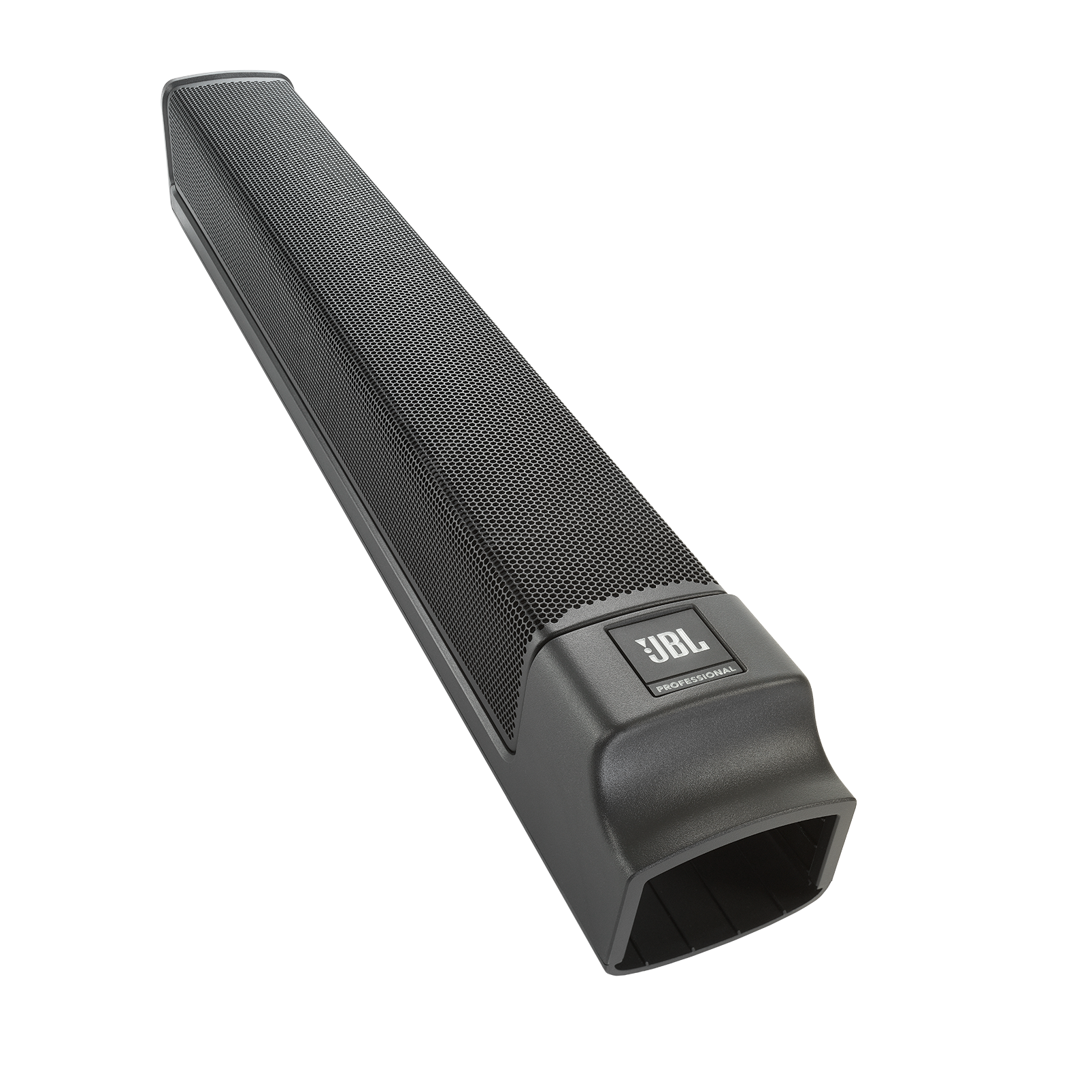

• Road-tough, lightweight polypropylene cabinet with steel grille
• Accessories include dual battery charger and additional batteries

Technical Specifications

• System Type: Powered Column PA Speaker
• Woofer Size: 10"
• Tweeter Size: 2"
• Tweeter Count: 8
• Maximum SPL: 123 dB / 119 dB AC/Battery
• Frequency Range (-10 dB): 37–20 kHz
• Frequency Range (-3 dB): 45–20 kHz
• Horizontal Dispersion: 140°
• Vertical Dispersion: 30°
• Power Rating: 1500W Peak / 400W RMS
• AC Power Input: 300W, 100–120V or 220–240V AC, 50–60Hz
• Input Impedance: 4kΩ balanced Combo / 2MΩ balanced Hi-Z Jack / 10kΩ 3.5mm single-ended 2-channel
• Crossover Frequency: 230Hz

Inputs & Outputs

• 3 × XLR Combo Jacks
• 1 × 1/4" Hi-Z
• 1 × 1/8" BT Summed
• 1 × XLR/1/4" balanced passthrough
• Two channels of 48V phantom power
• Two USB charging ports

Battery

• Battery Type: Lithium Ion
• Battery Capacity: 97.2 Wh, 36V
• Battery Playtime: Up to 6 hours
• Battery Charge Time: 2.5 hours

Dimensions & Weight

• Cabinet: PP
• Net Weight: 19.3 kg (42.5 lbs.)
• Gross Weight: 22.38 kg (49.3 lbs.)
• Product Dimensions (L × W × H): 19.25 × 12.67 × 21.65 in (490 × 322 × 550 mm)

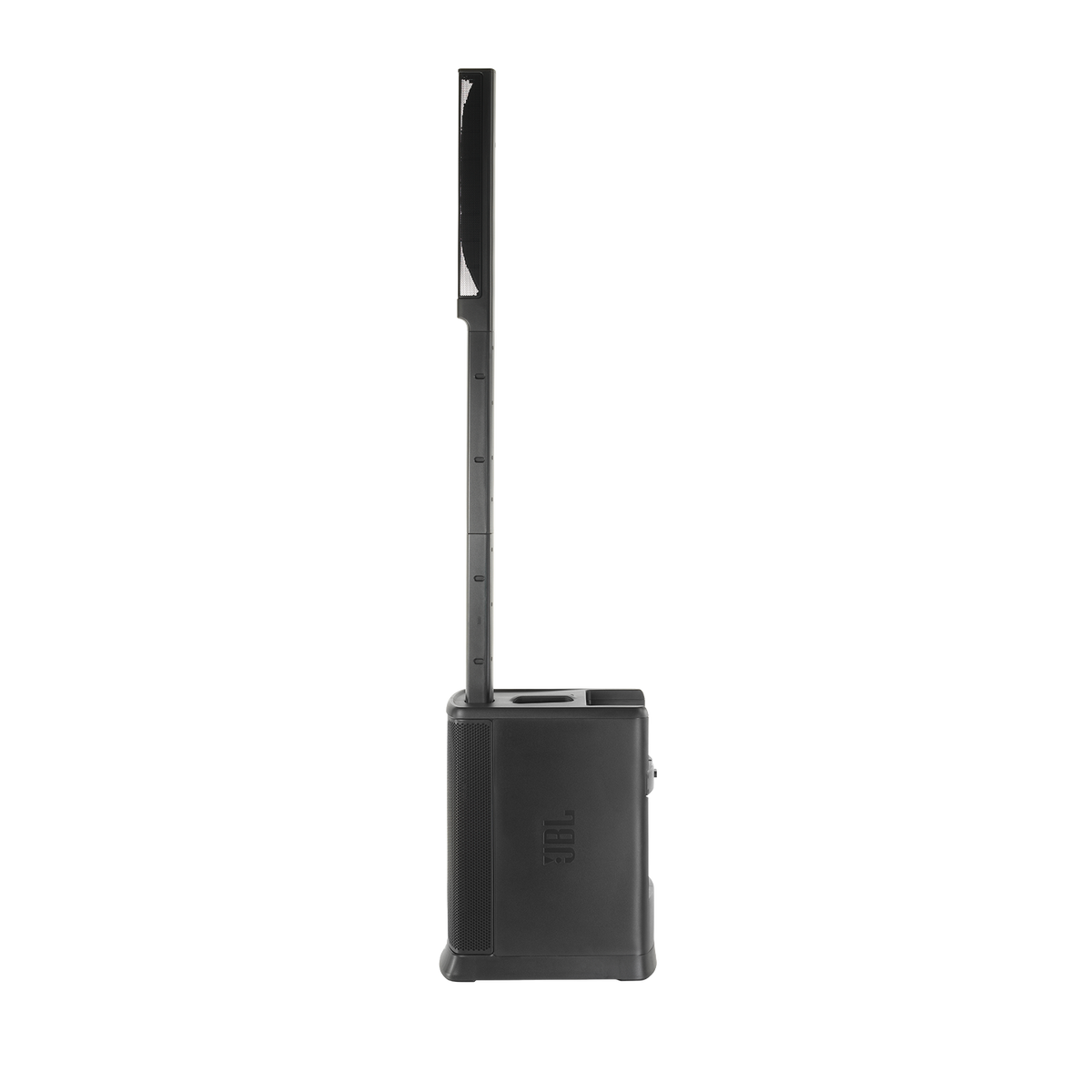

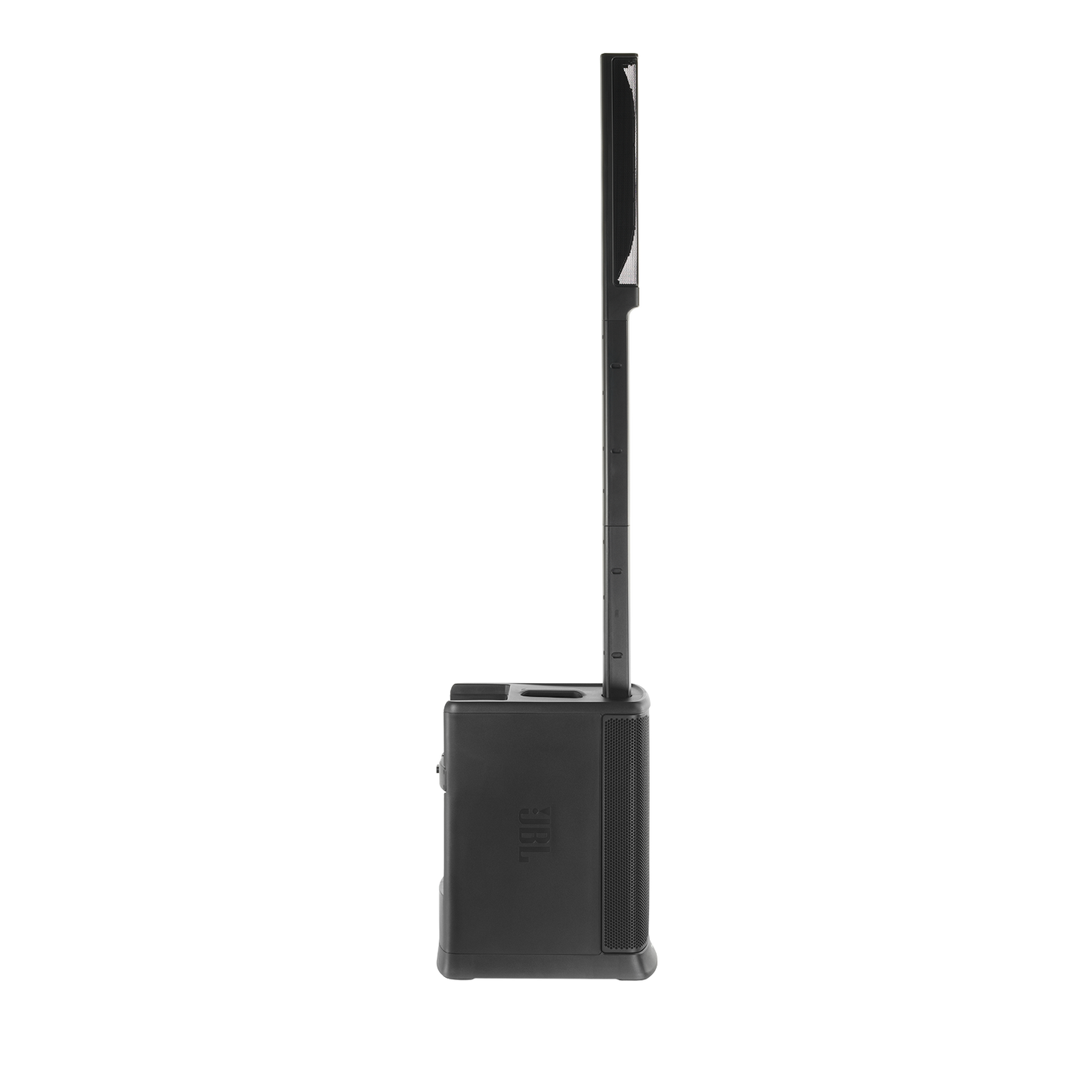

• Fully Assembled Height: 78 in (2000 mm)
• Shipping Dimensions (L × W × H): 26.06 × 19.17 × 33.86 in (627 × 452 × 732 mm)

In the Box

• JBL EON ONE Mk2
• Rechargeable Battery
• Column Spacer
• IEC Charging Cable
• Quickstart Guide
