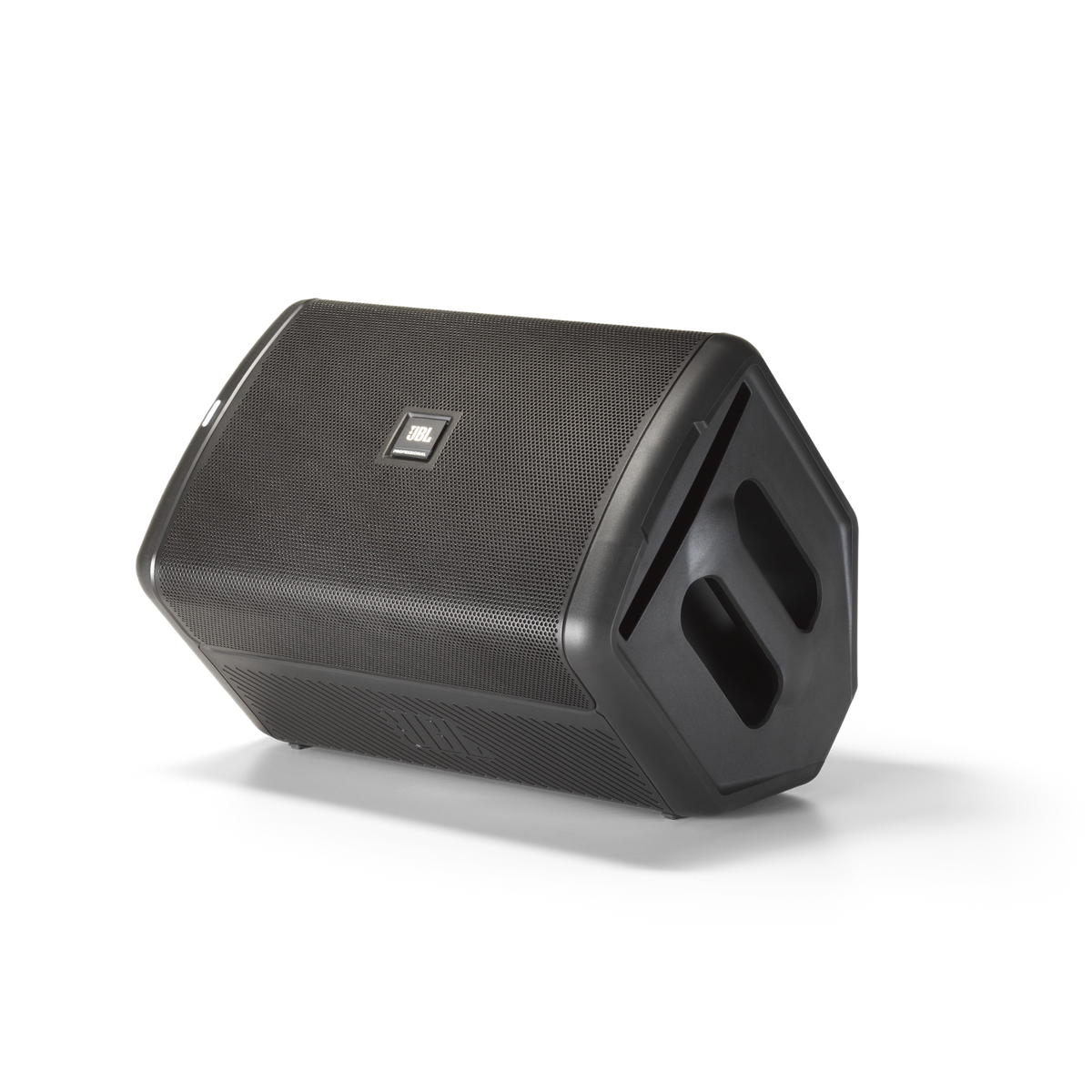

JBL EON ONE Compact 4-channel digital mixer and Bluetooth audio streaming All-In-One Rechargeable Personal PA Speaker

JBL EON ONE Compact All-In-One Rechargeable Personal PA

The JBL EON ONE Compact is an all-in-one rechargeable personal PA system combining a professional-grade loudspeaker, full-featured 4-channel digital mixer, Bluetooth audio streaming, and control in a compact, highly portable package. With a maximum SPL of 112dB and an 8-inch woofer delivering low-frequency response down to 37.5Hz, it provides powerful sound in a compact system.

The JBL Compact Connect app allows you to customize effects and presets from a phone or tablet, while Bluetooth audio streaming can broadcast music to up to four EON ONE Compact units. The built-in ducking feature automatically lowers background music when speech input is detected.

With multiple input options, phantom power, professional-grade preamps, built-in effects, and a rechargeable, swappable battery, the EON ONE Compact is suitable for singer-songwriters, DJs, presenters, fitness instructors, educators, corporations, hotels, and small gigs.

Highlights

• Professional performance in a compact package
• 112dB maximum SPL
• 8-inch woofer with low-frequency response down to 37.5Hz
• Bluetooth audio streaming and control
• JBL Compact Connect app available for iOS® and Android™ devices

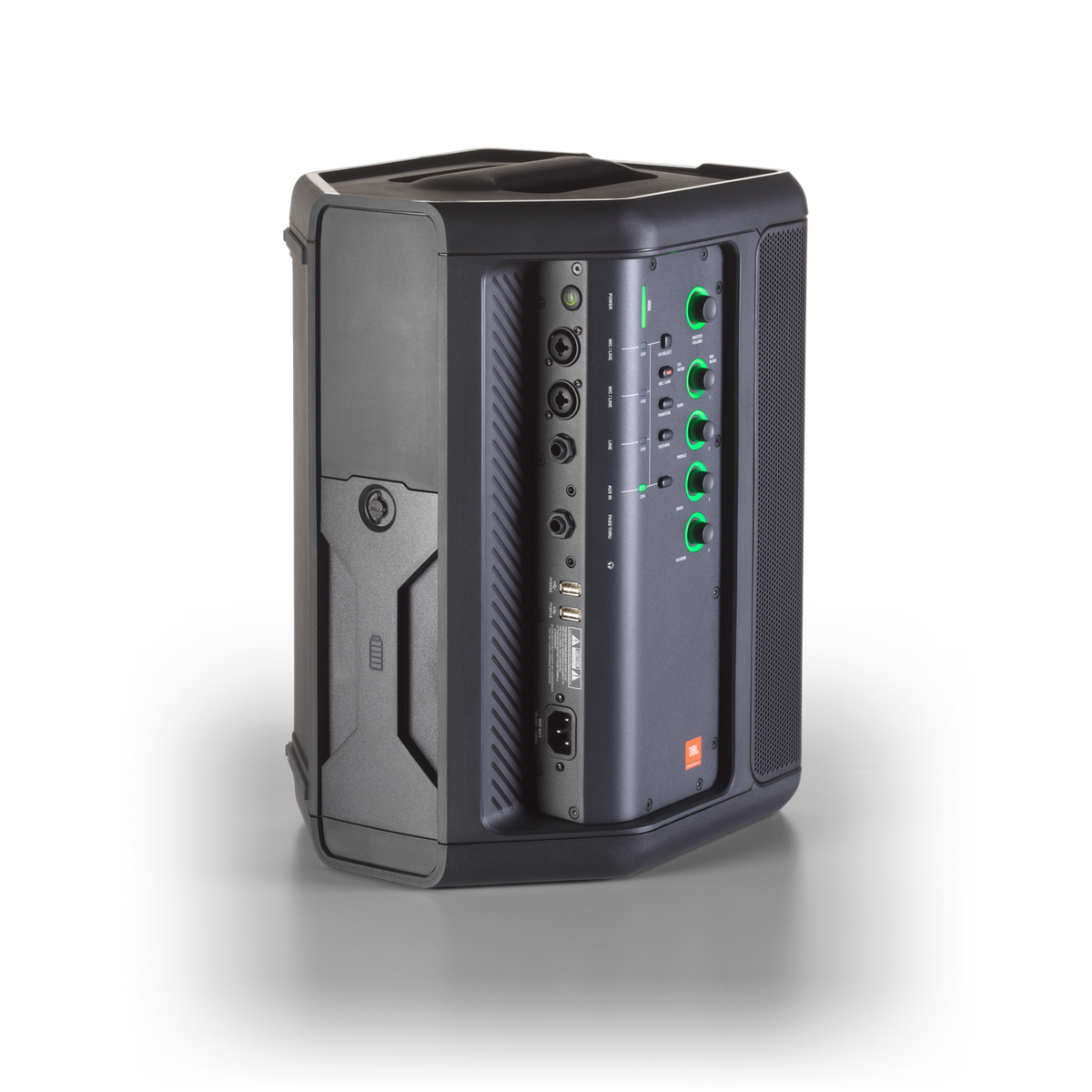

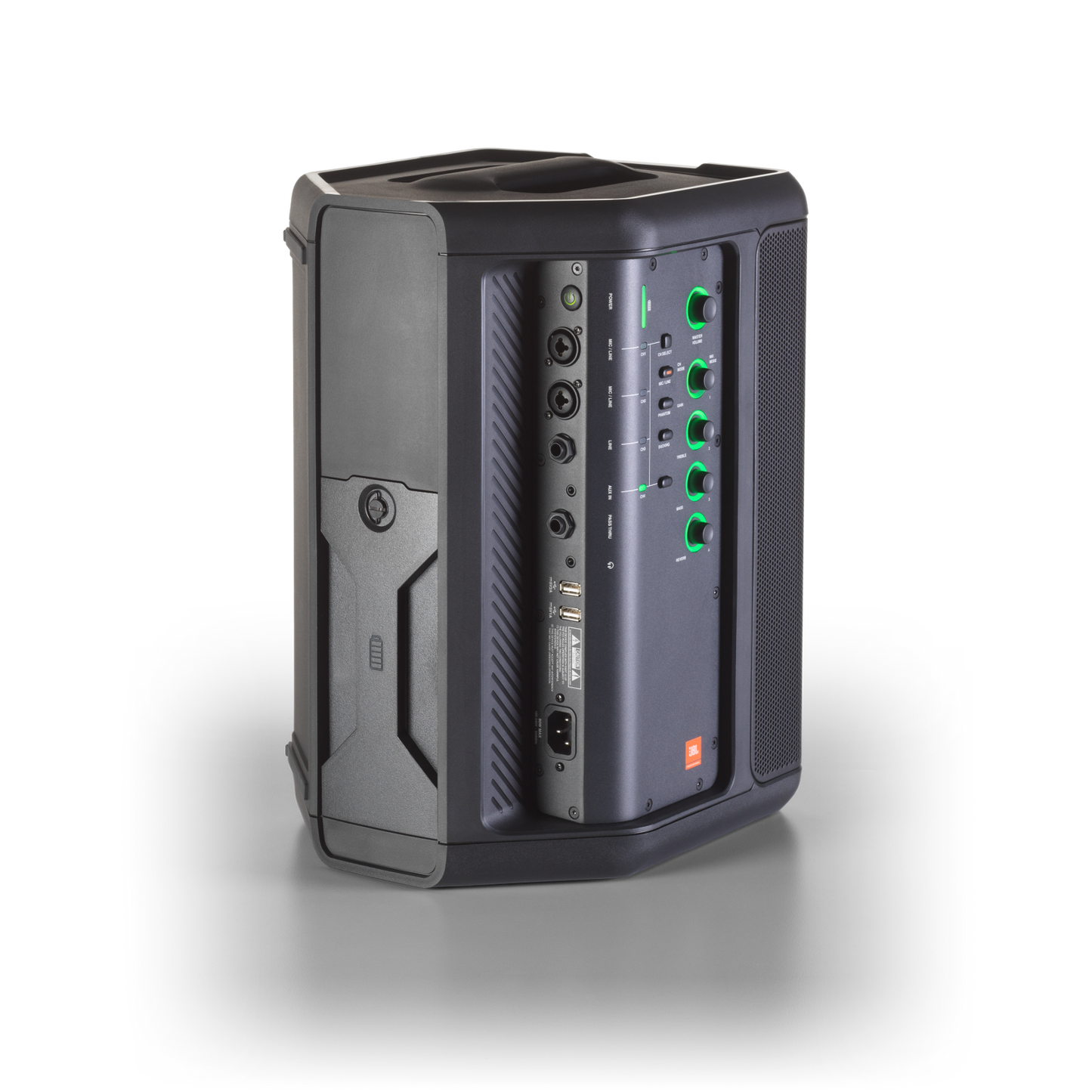

• Full-featured 4-channel digital mixer
• Built-in effects, phantom power, music ducking, bass and treble control
• Up to 12 hours of playtime per charge
• Rechargeable and easily swappable battery

Key Features

• 112dB output
• 8-inch woofer with deep low-frequency performance down to 37.5Hz
• 1-inch tweeter
• 150W peak power rating
• 100° × 60° coverage pattern
• JBL Compact Connect app presets for quick setup
• Built-in EQ, reverb, chorus and delay effects
• 8-band output EQ, customizable via presets

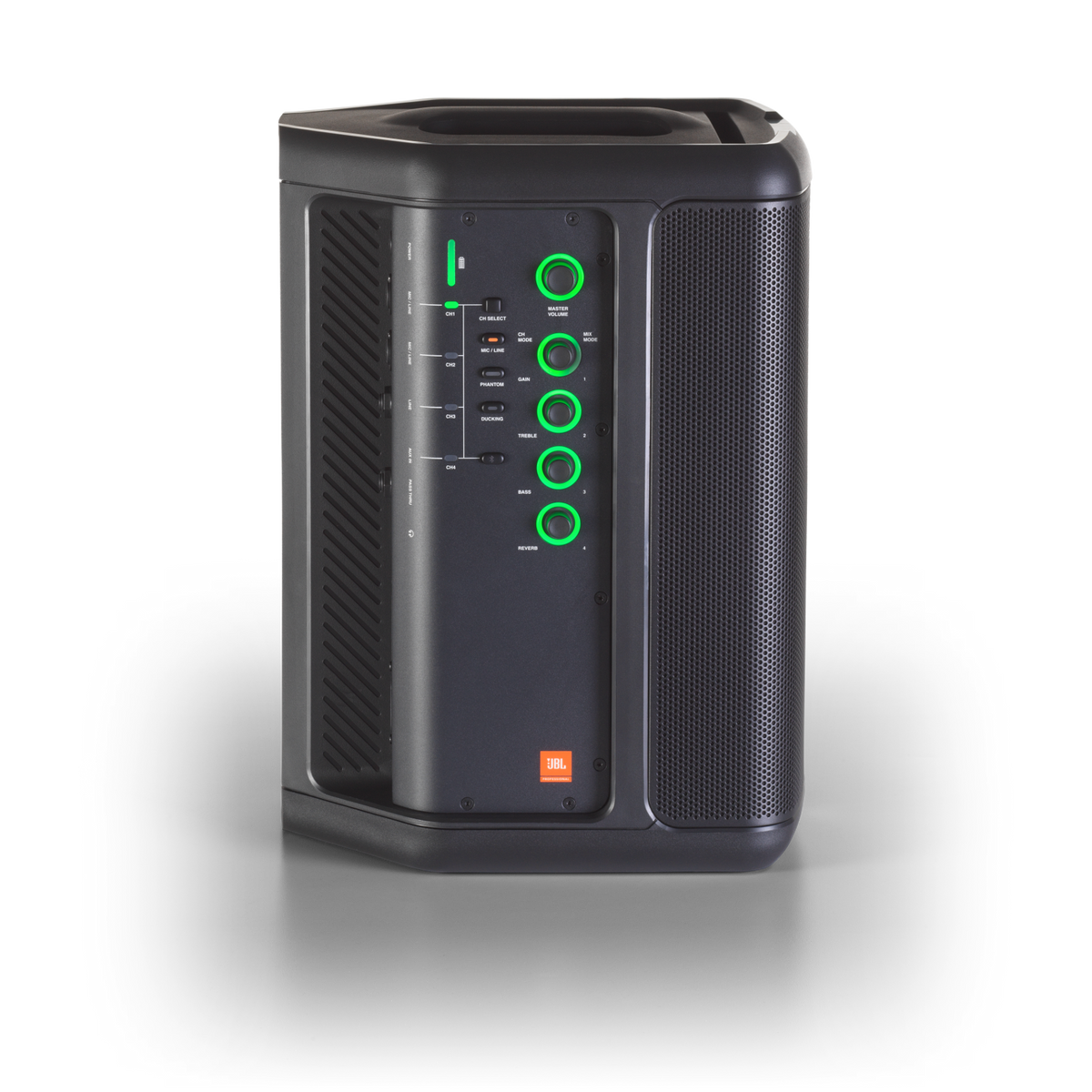

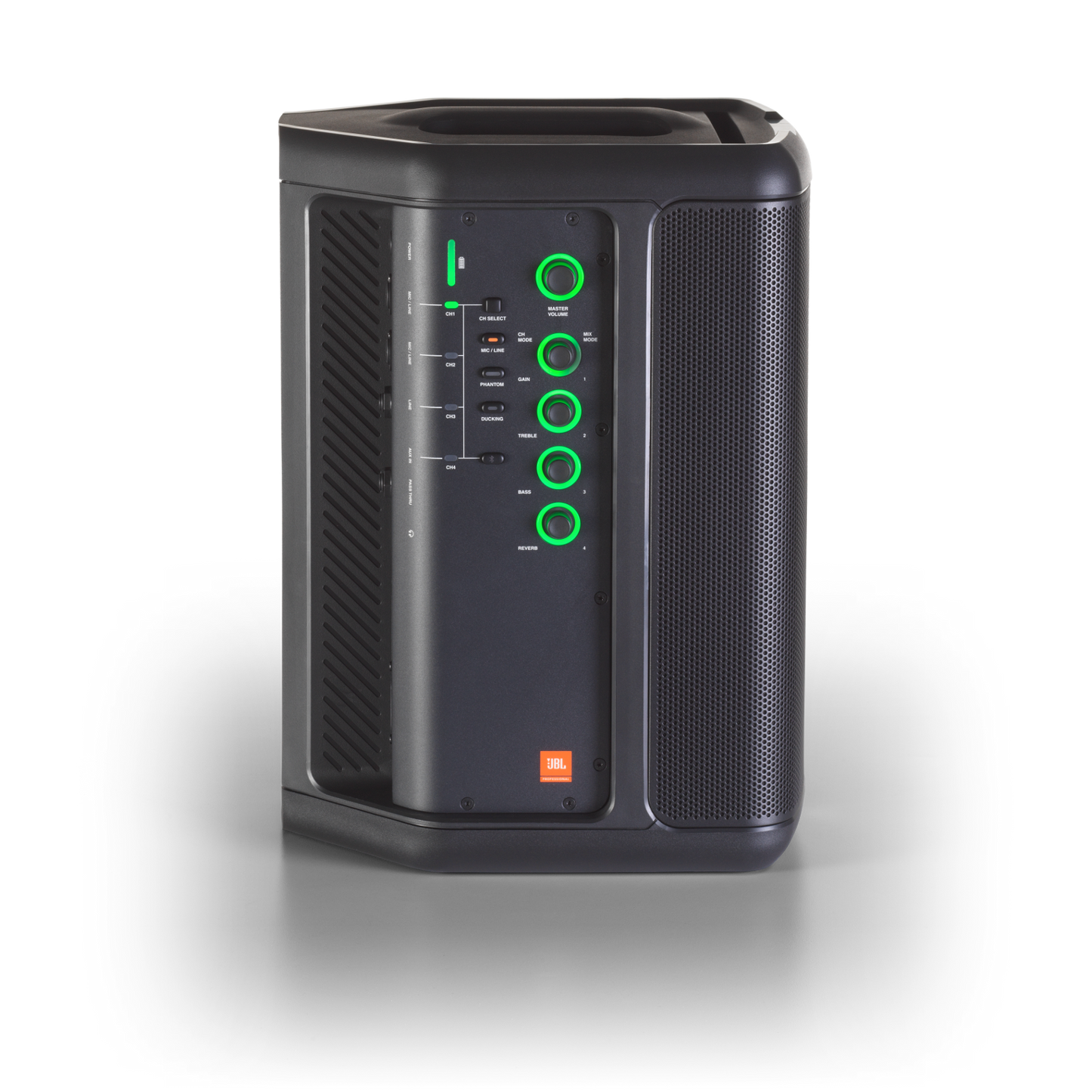

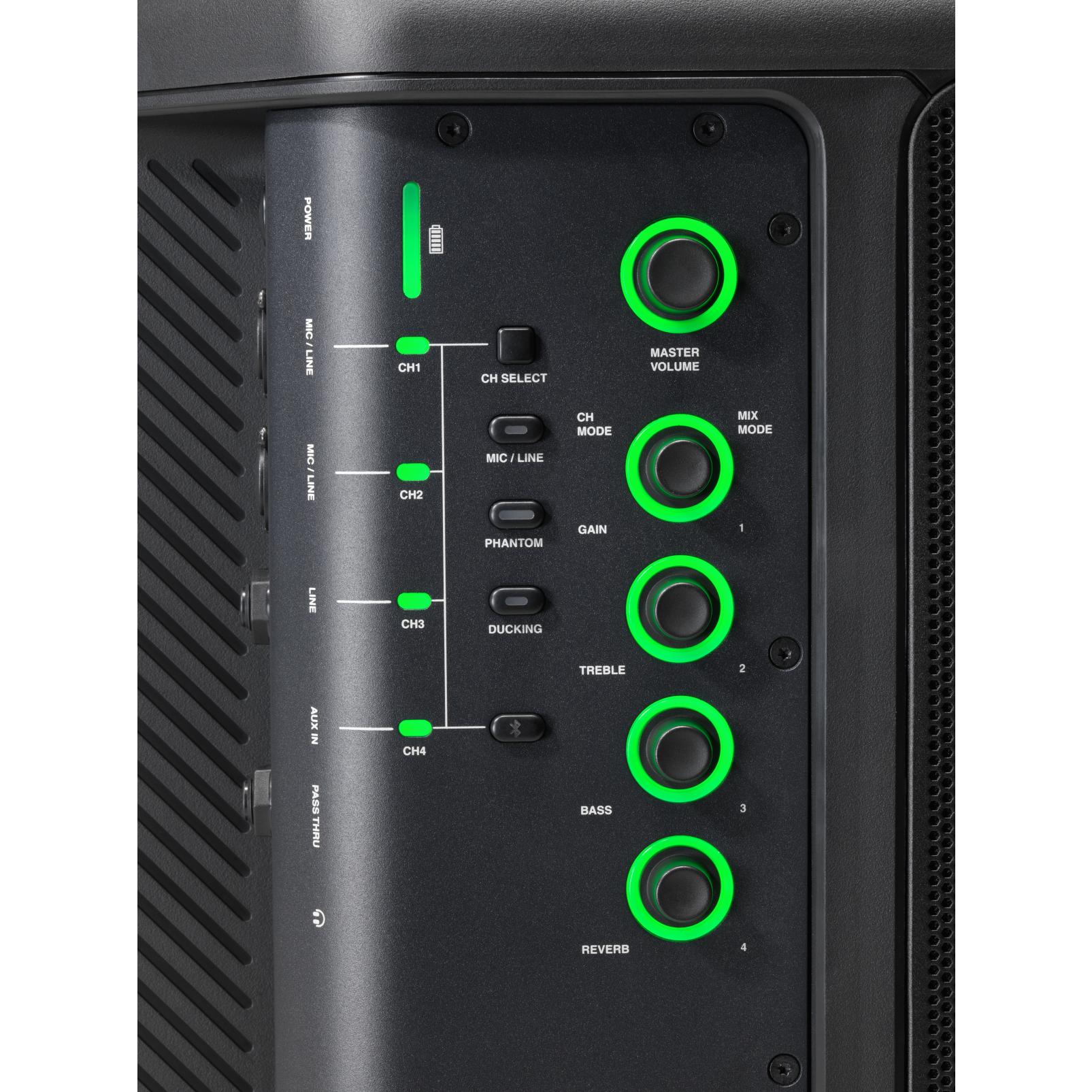

• 4-channel digital mixer
• Bluetooth audio streaming and full control
• Broadcast Bluetooth to up to four EON ONE Compact units
• Operate two EON ONE Compact units in stereo mode
• Two XLR/TRS combo jacks
• 1/4-inch Hi-Z guitar input
• 1/8-inch (3.5mm) auxiliary input
• Two pro-grade preamps
• Phantom power for condenser microphones
• One-touch ducking feature
• 1/4-inch pass-thru output for system expansion
• Built-in headphone jack for private monitoring
• Two USB 3.0 ports for high-speed charging of external devices

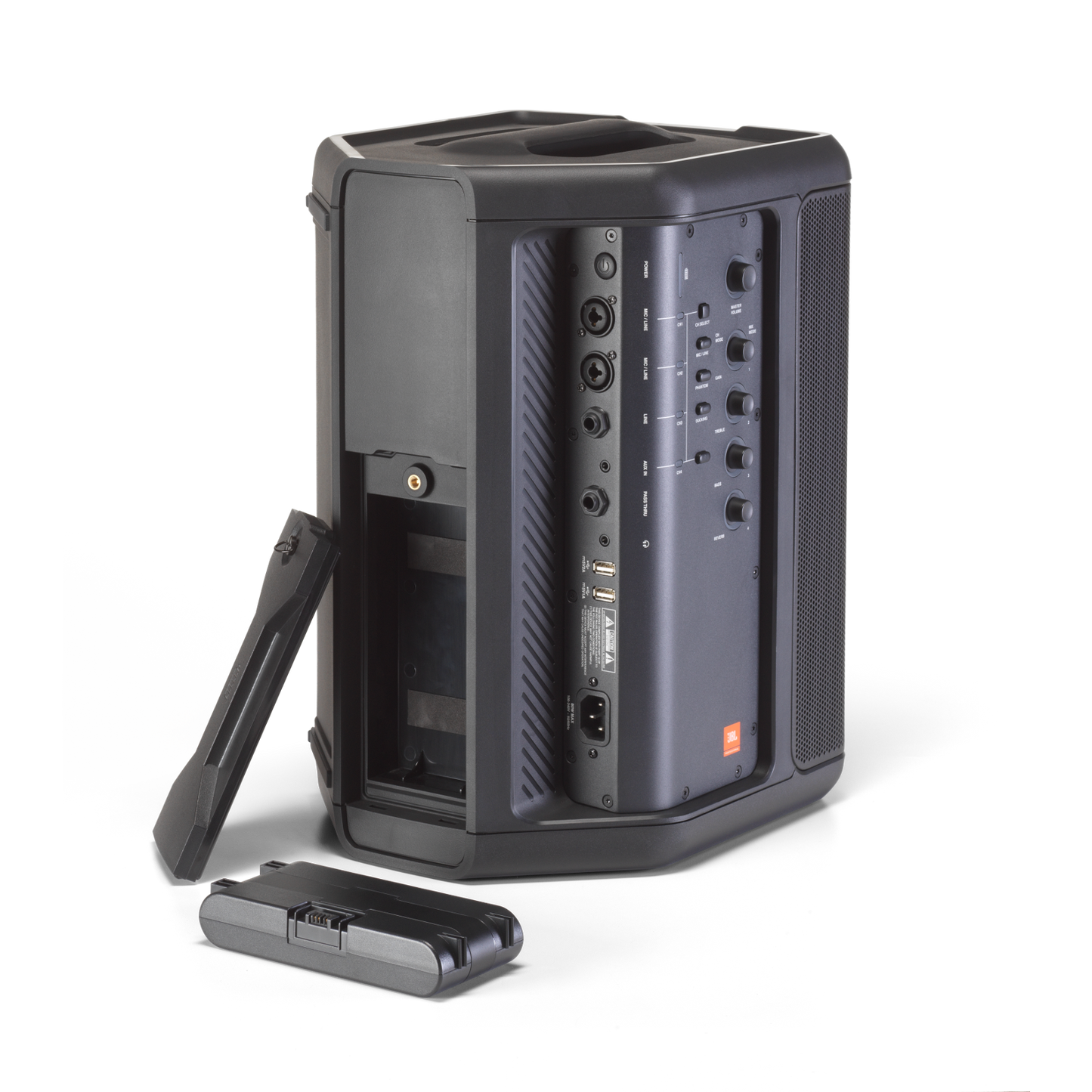

• Tool-free, swappable battery

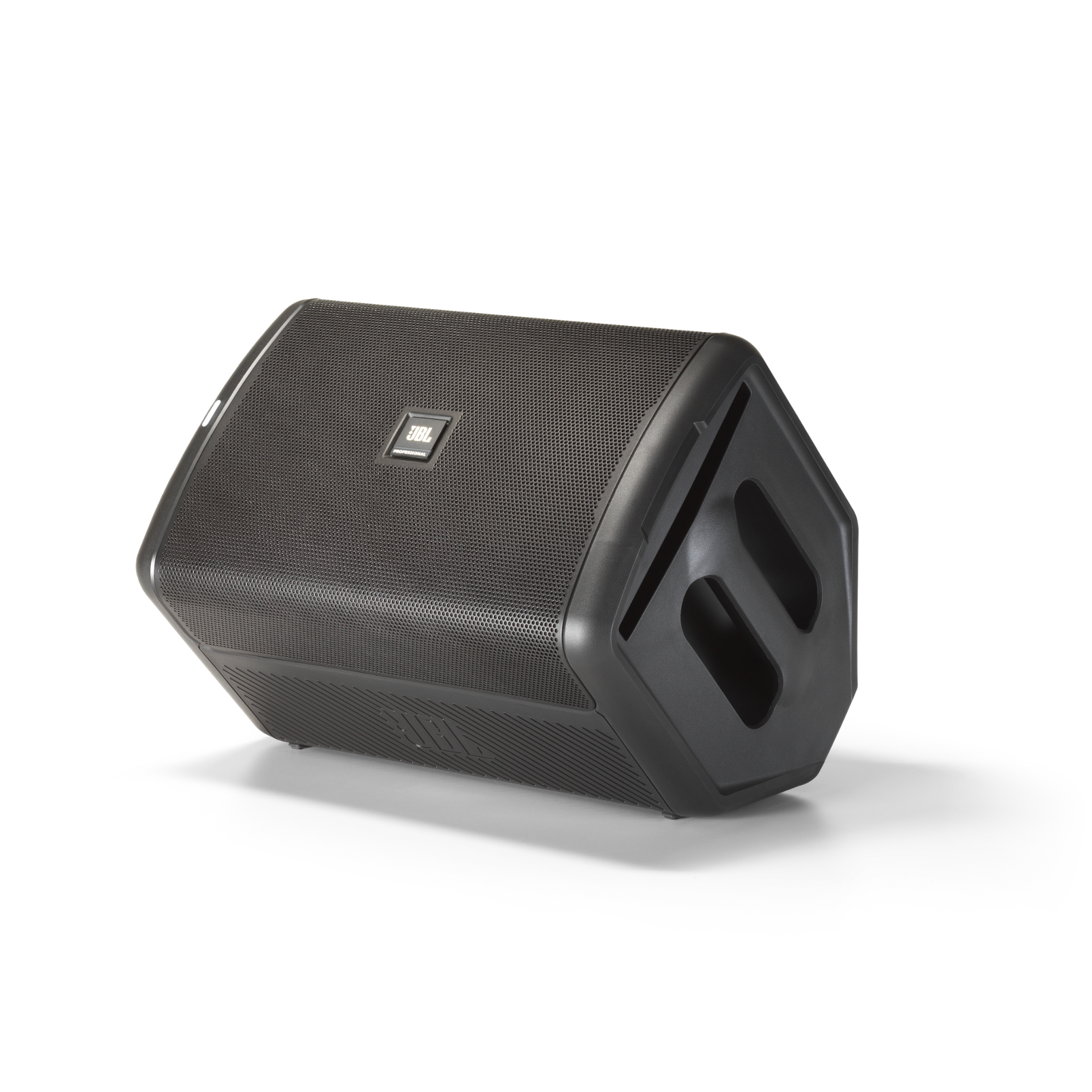

• Two performance orientations: monitor and vertical
• Built-in tilting tablet stand
• Built-in pole mount

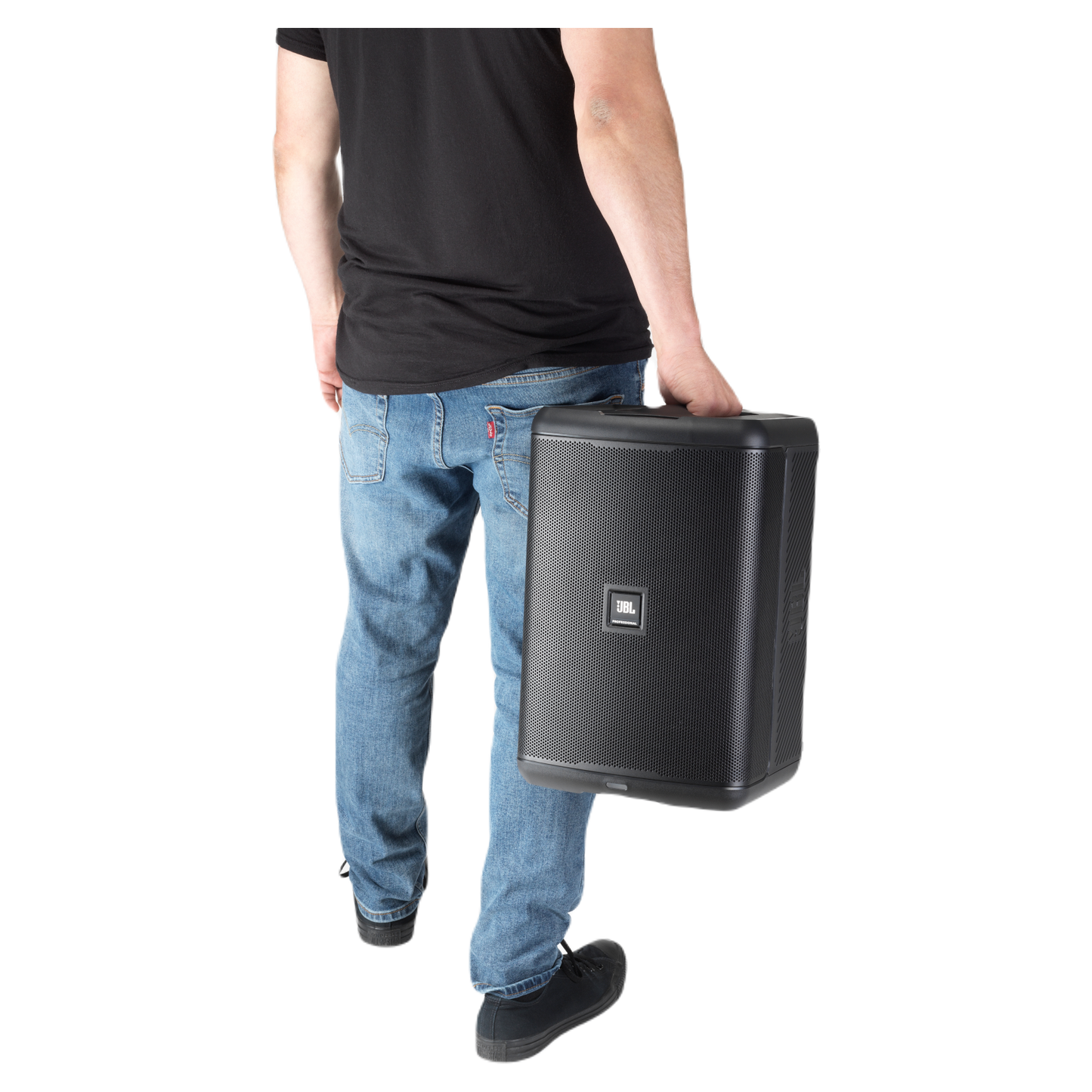

• Ergonomic handle and even weight distribution
• External battery charger option available separately
• Additional batteries available separately

Applications

• Singer-songwriters or emcees looking for a highly portable, easy-to-use PA system for small gigs
• Fitness instructors or coaches looking for an all-in-one PA with music playback and ducking
• Corporations or hotels looking for a compact, all-in-one PA system
• Educators and presenters requiring a small-format PA system with built-in music ducking

Technical Specifications

EON ONE Compact System

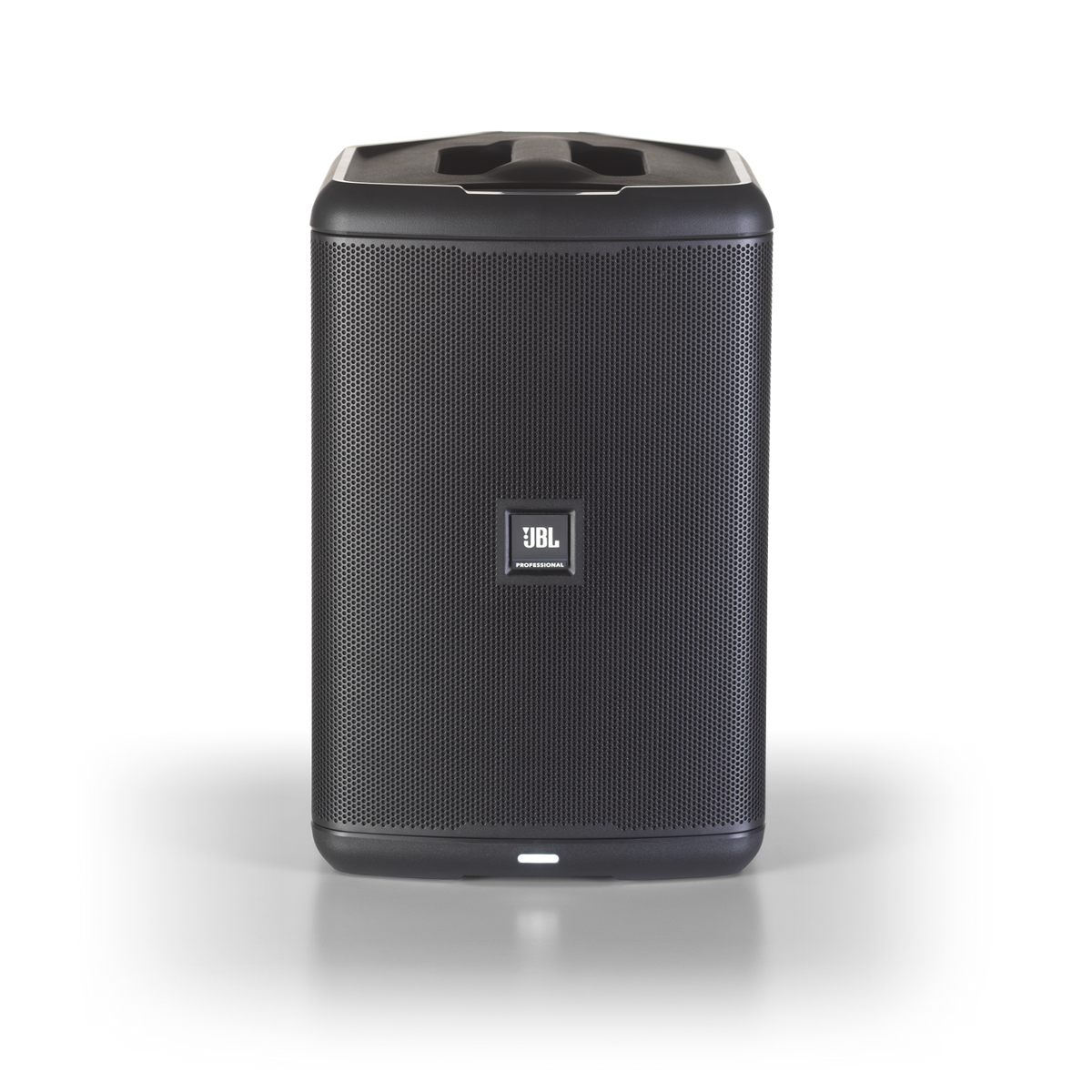

• System Type: Self-powered, two-way, 8" woofer, 1" tweeter
• Max SPL: 112dB
• Frequency Response: 37.5Hz – 20kHz
• Power Rating: 150W peak
• Coverage Pattern: 100° × 60°

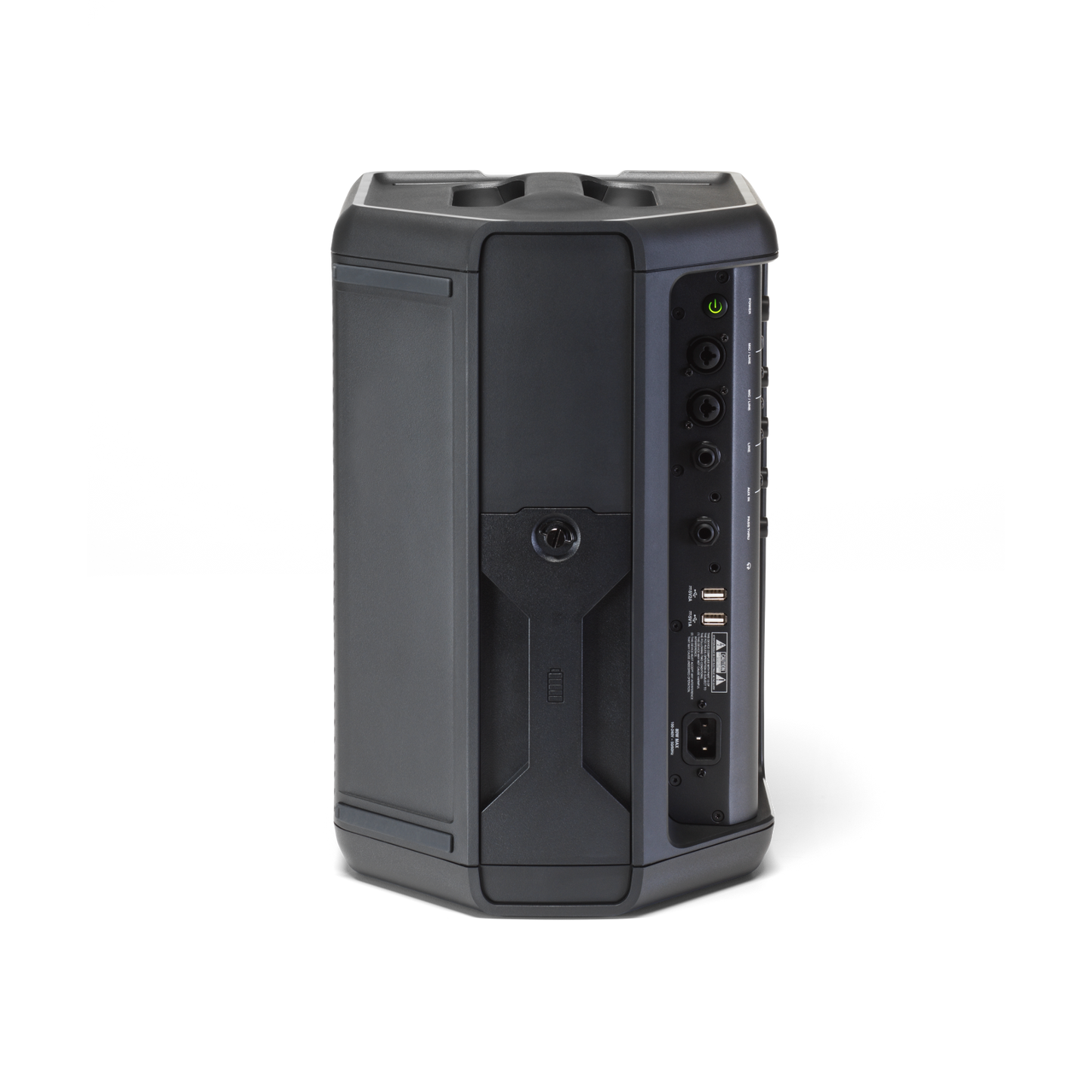

• Inputs: 2 × XLR/TRS combo jacks, 1 × 1/4" Hi-Z, 1 × 1/8" aux
• Outputs: 1 × 1/8" headphone, 1 × 1/4" pass thru
• Mixer: 4 channels
• Effects: Reverb, delay, chorus
• Bluetooth: Audio streaming and full control
• Bluetooth Range: 10m (30ft)
• USB: 2 × external charging ports
• USB Port 1: 5V, 2A
• USB Port 2: 5V, 1A
• Battery Charge Time: 2.5 hours with no signal, 6 hours with signal
• Battery Life: Up to 12 hours
• Net Weight: 8kg (17.63lb)

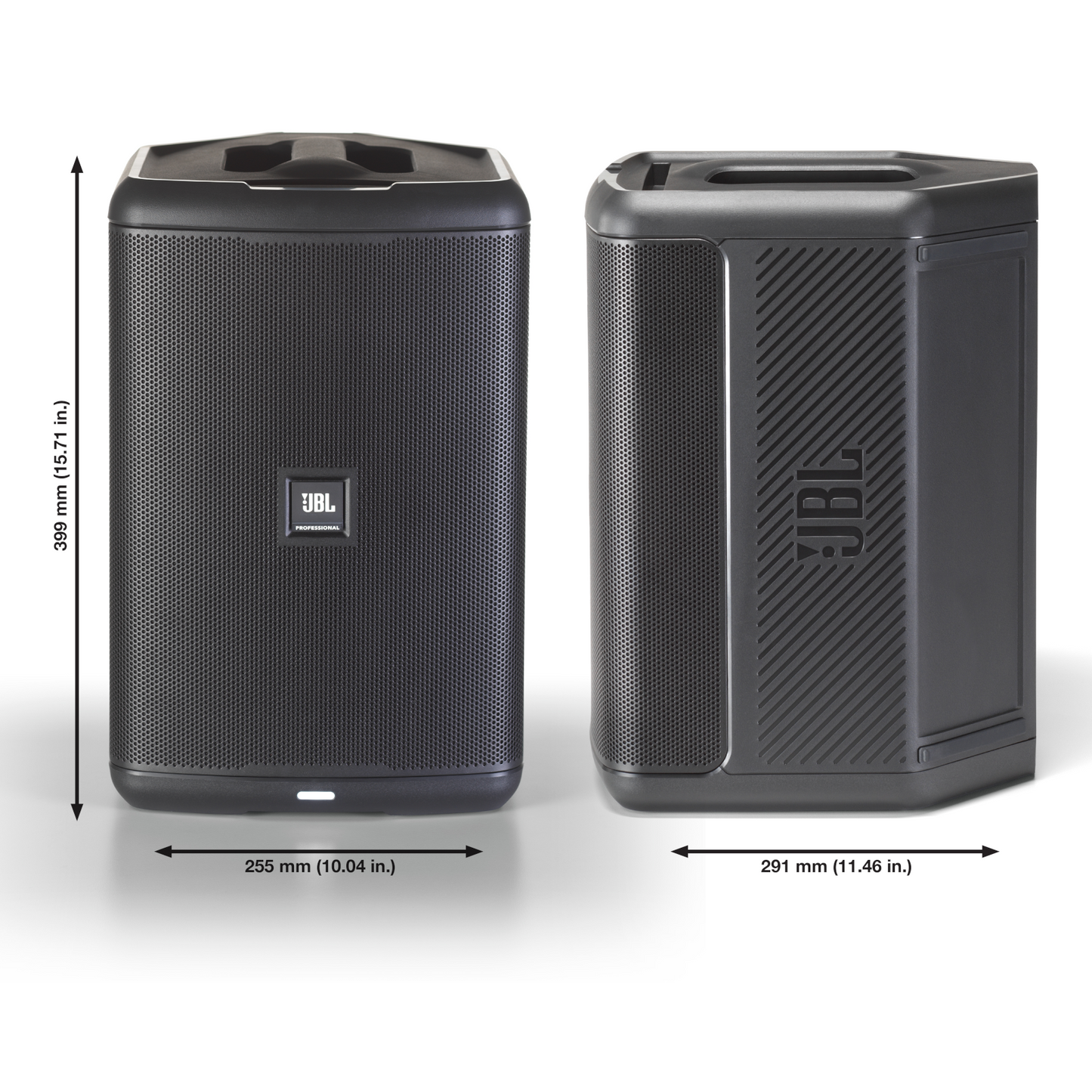

• Dimensions (D × W × H): 291 × 255 × 399mm (11.46 × 10.04 × 15.71in)

Optional External Dual Battery Charger

• Power Draw: USB Type A to 5.5mm barrel jack
• Battery Charge Time: 1 battery = <3.5 hours; 2 batteries = <7 hours
• Dimensions (D × W × H): 171 × 220 × 67mm (6.72 × 8.65 × 2.62in)

Optional USB Power Cables

• Connectors: 70W
• Voltage (Up-Convert): 5V to 9V (9V DC cable); 5V to 12V (12V DC cable)
• Output Current: 1300mA
• Length: 1m

Order Specifications – System

• Box Dimensions (L × W × H): 392 × 352 × 490mm (15.43 × 13.86 × 19.29in)
• Shipping Weight: 10.66kg (23.5lb)
• Country of Origin: CN
• UPC Code:
• EK: 691991016295
• NA: 691991016288
• AU: 691991016271
• CN: 691991016264

Order Specifications – Spare Battery

• Box Dimensions (L × W × H): 169 × 82 × 47.5mm (6.65 × 3.23 × 1.87in)
• Net Shipping Weight: 514g (18.13oz)
• Case Pack Quantity: 16 pcs.
• Case Pack Dimensions (L × W × H): 358 × 338 × 135mm (14.09 × 13.31 × 5.31in)
• Case Pack Gross Weight: 8.23kg (18.14lb)

Order Specifications – External Dual Battery Charger

• Box Dimensions (L × W × H): 294 × 183 × 72mm (11.57 × 7.20 × 2.83in)
• Net Shipping Weight: 1.271kg (2.80lb)
• Case Pack Quantity: 8 pcs.
• Case Pack Dimensions (L × W × H): 385 × 315 × 340mm (15.16 × 12.40 × 13.39in)
• Case Pack Gross Weight: 10.94kg (24.11lb)
• Country of Origin: CN
• UPC Code:
• EK: 691991034565
• NA: 691991034558
• AU: 691991034572
• CN: 691991034589

Order Specifications – USB 9V DC Power Cable

• Package Dimensions (W × H): 120 × 150mm (4.72 × 5.91in)
• Net Shipping Weight: 39.3g (1.39oz)
• Case Pack Quantity: 70 pcs.
• Case Pack Dimensions (L × W × H): 370 × 260 × 160mm (13.05 × 9.17 × 5.64in)
• Case Pack Gross Weight: 3.15kg (6.94lb)
• Country of Origin: CN
• UPC Code: 691991033865

Order Specifications – USB 12V DC Power Cable

• Package Dimensions (W × H): 120 × 150mm (4.72 × 5.91in)
• Net Shipping Weight: 39.3g (1.39oz)
• Case Pack Quantity: 70 pcs.
• Case Pack Dimensions (L × W × H): 370 × 260 × 160mm (13.05 × 9.17 × 5.64in)
• Case Pack Gross Weight: 3.15kg (6.94lb)

In the Box

• 1 × EON ONE Compact Portable PA System
• 1 × Rechargeable Battery
• 1 × IEC Charging Cable
• 1 × Quickstart Guide

Additional Information

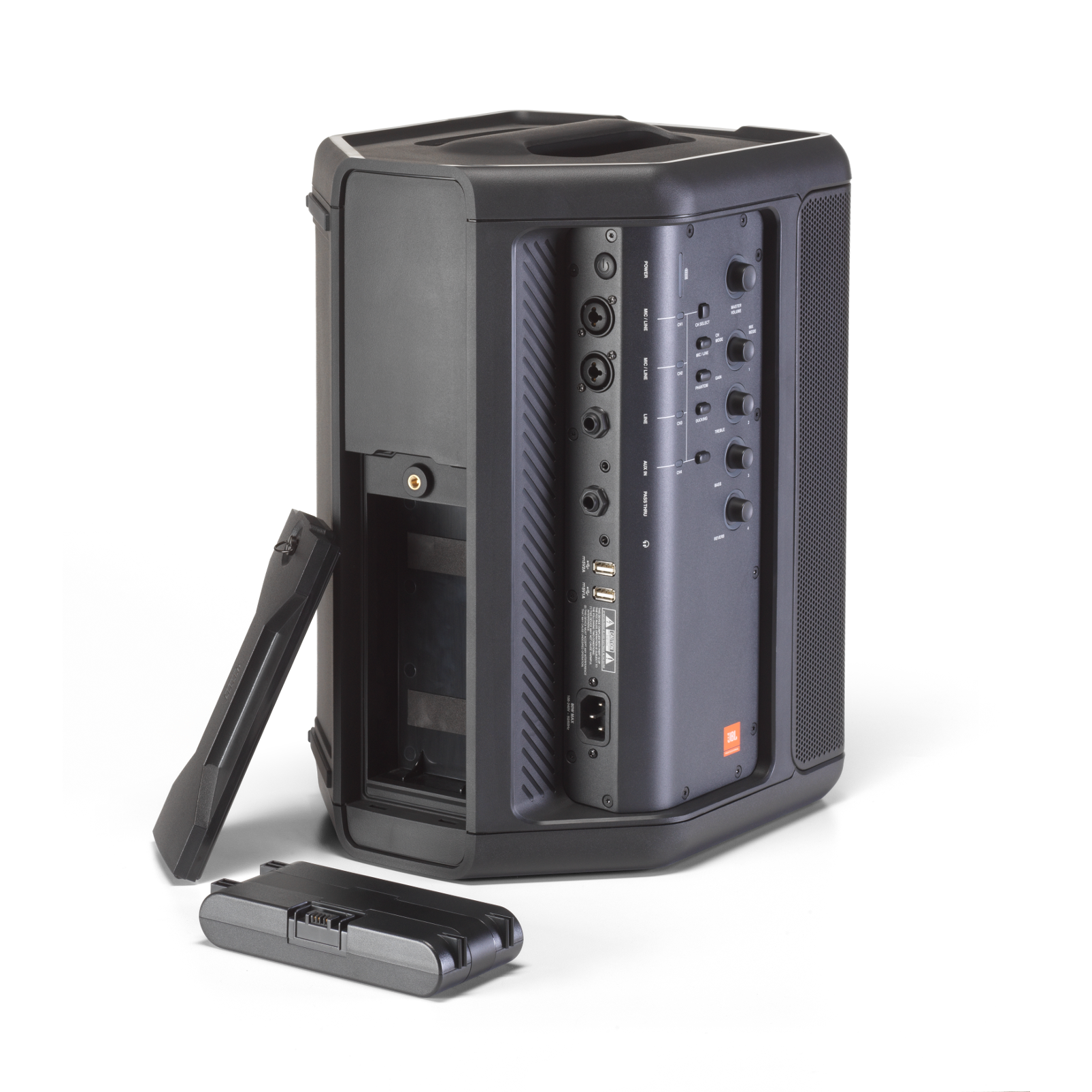

• The rechargeable battery can be swapped without tools
• The system can be charged while in use
• Additional batteries are available separately
• The JBL Compact Connect app allows setup, effects and preset control from a phone or tablet
• Broadcast Bluetooth can sync and control up to four EON ONE Compact units from one source
• The 1/4-inch pass-thru jack allows expansion with additional EON ONE Compact units
• The system features a light, durable polypropylene shell
• The EON ONE Compact undergoes 100 hours of stress testing
• Optional accessories include spare battery, dual battery charger, USB 9V DC power cable and USB 12V DC power cable
