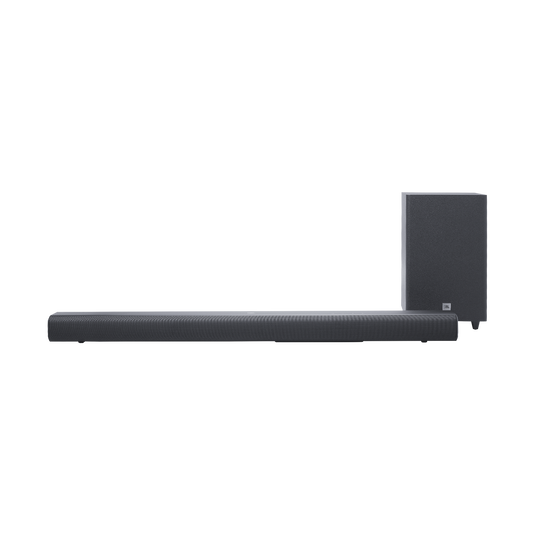

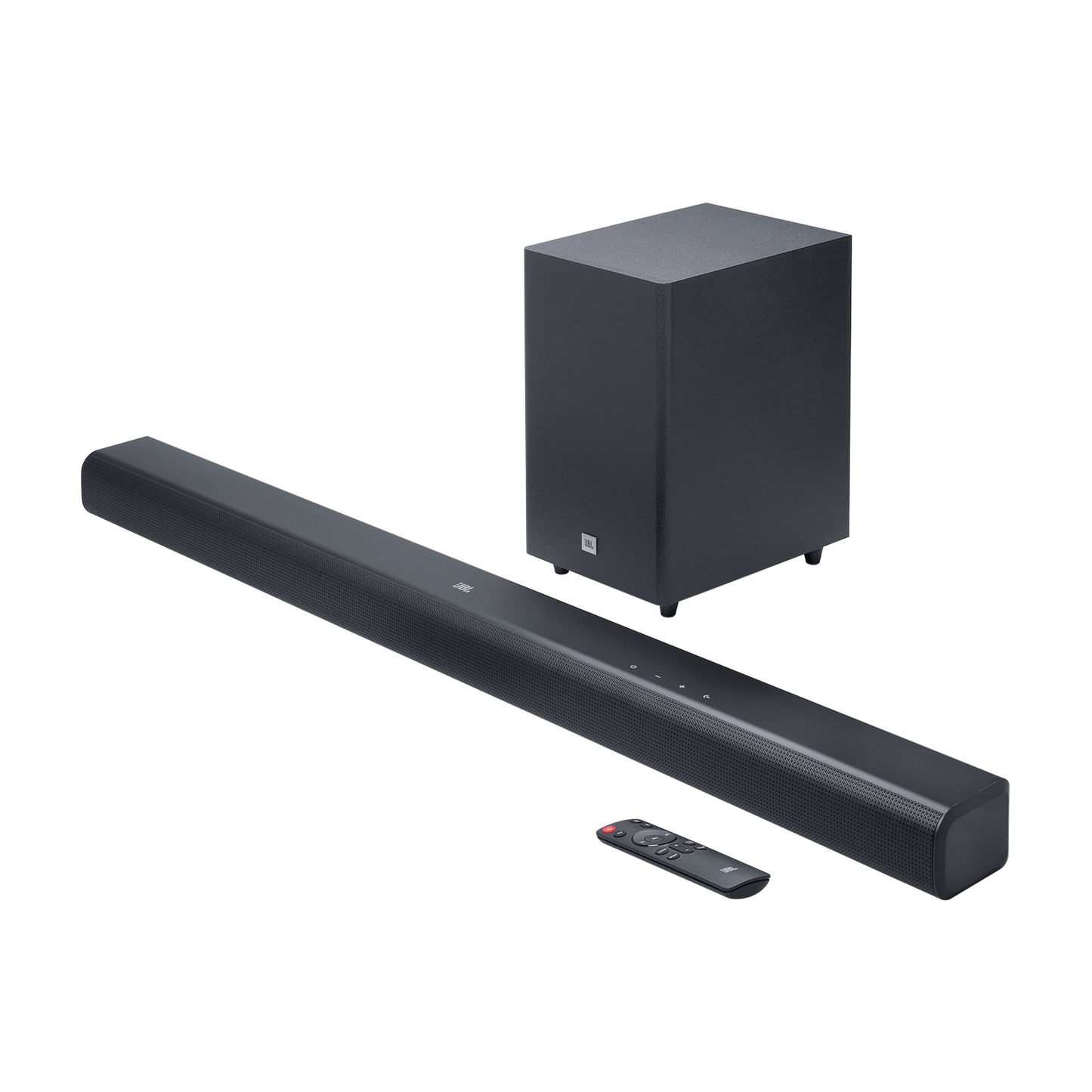

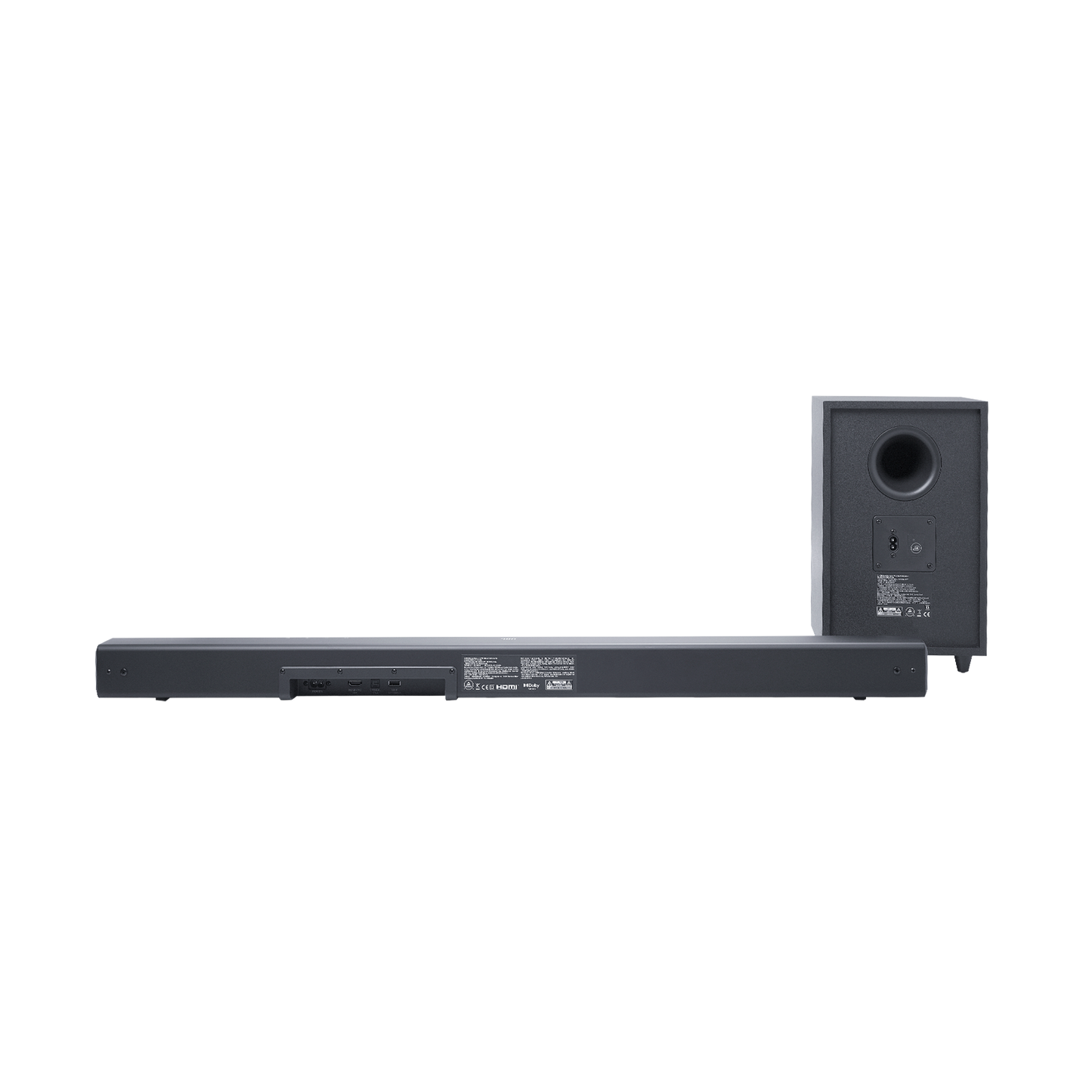

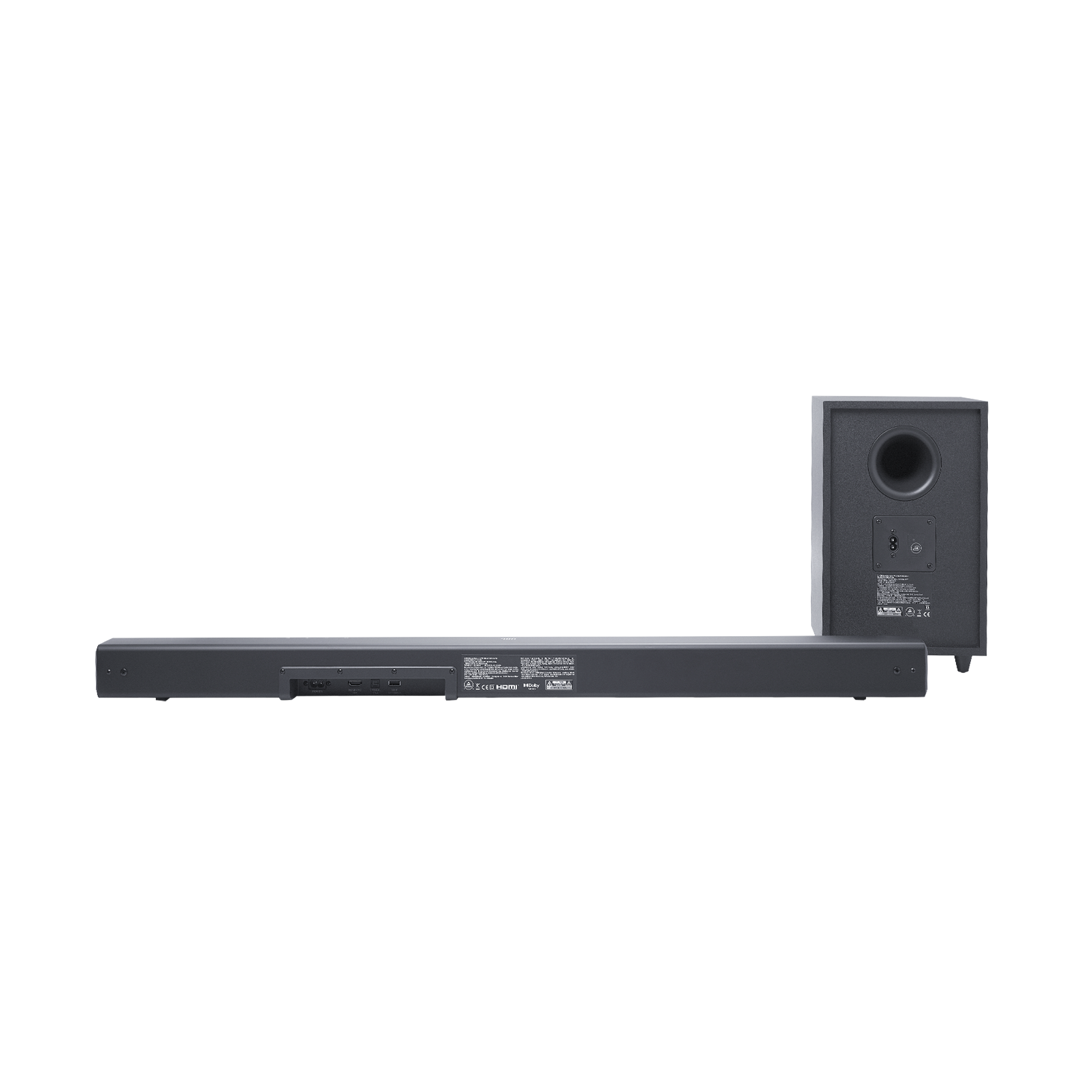

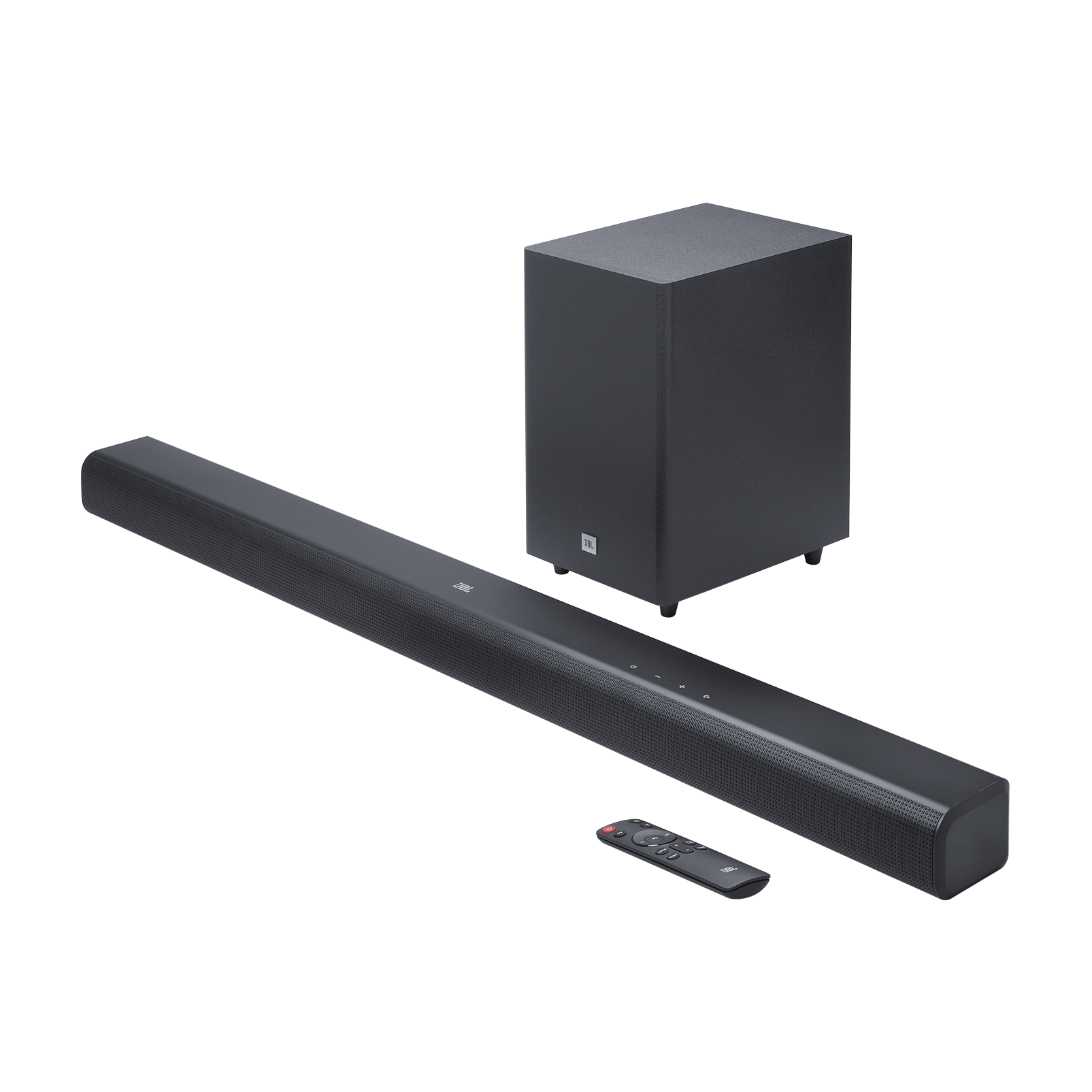

JBL Cinema SB550
Warranty
• 1-Year Official Warranty by JBL Singapore
• Service Centre Location: 60 Marsiling Rd, SKM Building, Singapore 739107
Features
• Dedicated Center Channel for Superior Voice Clarity
• 250W Total Power Output
• Wireless Subwoofer for Extra Deep Bass
• One-Cable Connection with HDMI ARC
• Wireless Music Streaming via Bluetooth
• Dolby Audio Embedded
Technical Specifications
General Specifications
• Model: JBL Cinema SB550
• Sound System: 3.1 Channel
• Power Supply: 100 – 240V AC, ~50/60Hz
• Total Speaker Power Output (Max @ THD 1%): 250W
• Soundbar Output Power (Max @ THD 1%): 150W
• Subwoofer Output Power (Max @ THD 1%): 100W
• Standby Power: <0.5W
• Operating Temperature: 0°C – 45°C
Speaker Configuration

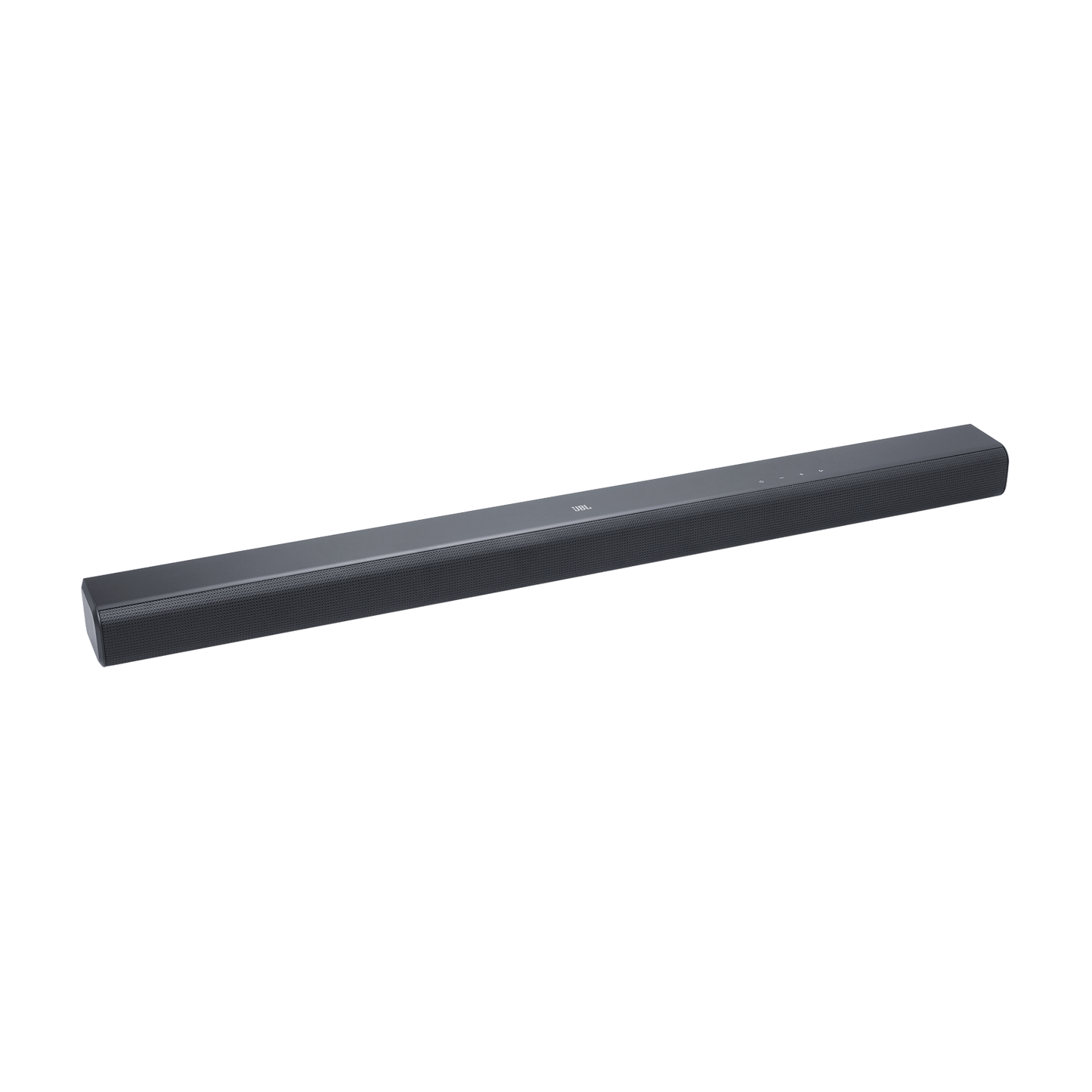

Soundbar
• 3 × (45 × 100mm) Racetrack Drivers
• 2 × 13mm Tweeters
Wireless Subwoofer

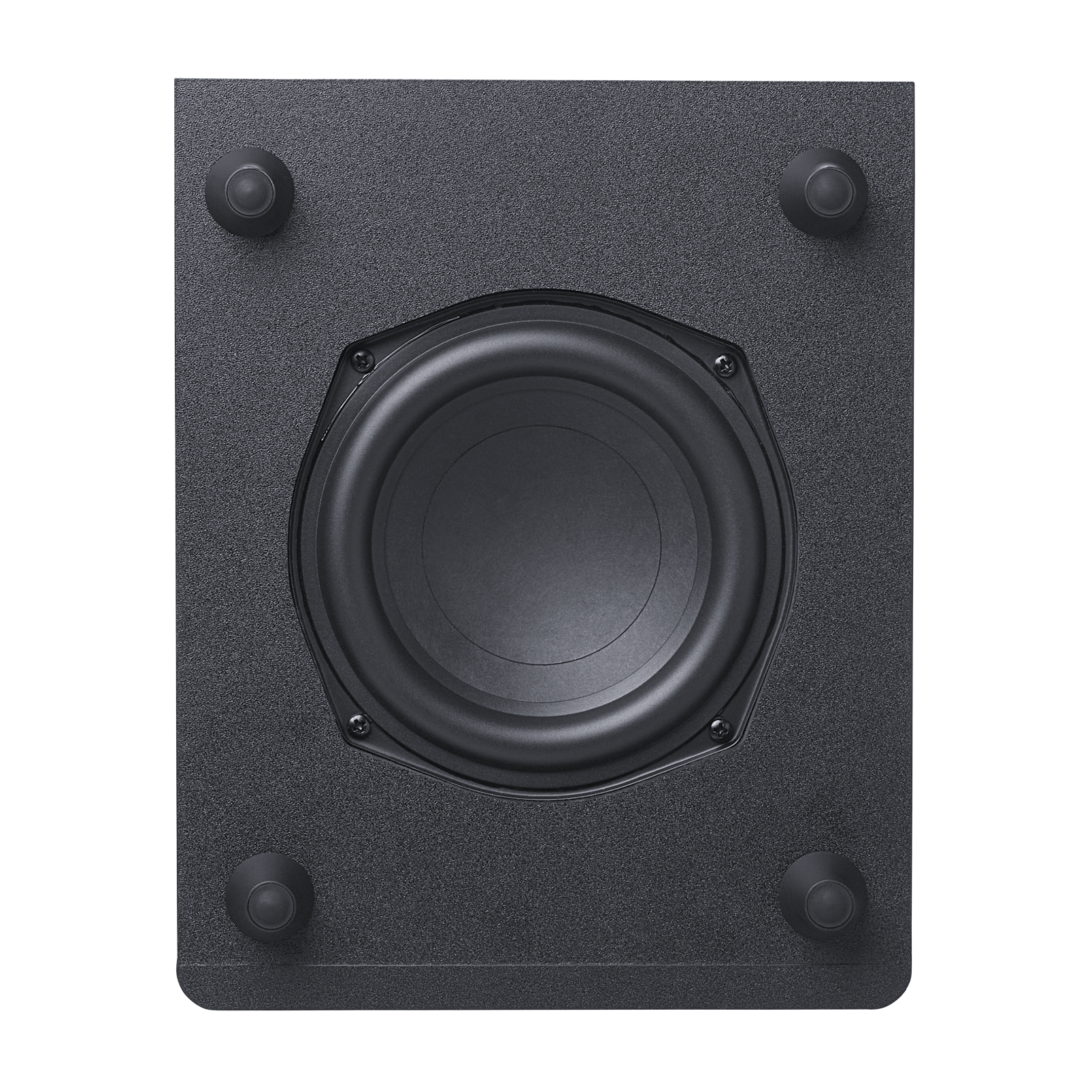

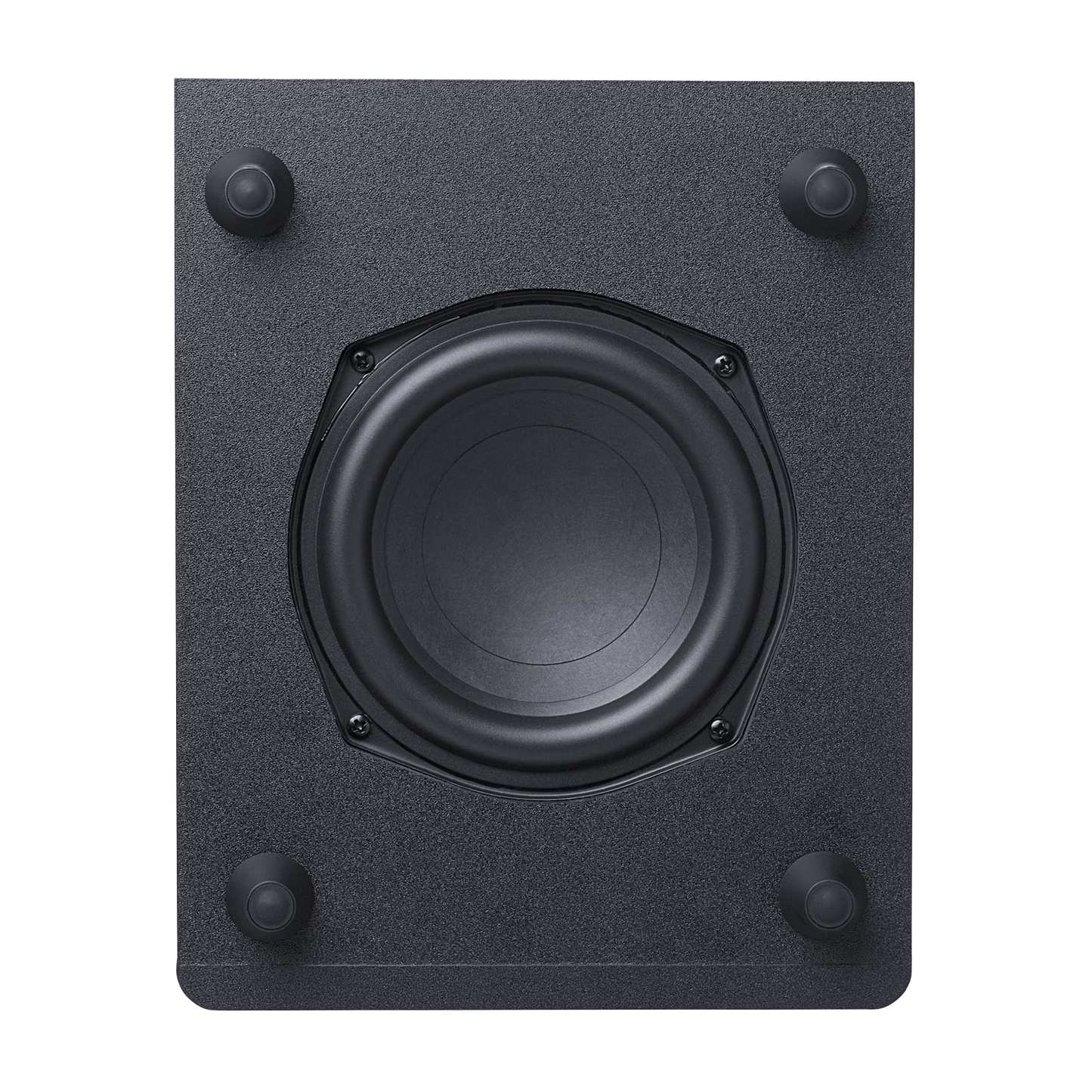

• 5.25" (133mm) Driver
HDMI Specifications
• HDMI ARC (Audio Return Channel): 1
• HDMI HDCP Version: 1.4
Audio Specifications
• Frequency Response: 45Hz – 20kHz (-10dB)
• Audio Inputs:
• Optical
• Bluetooth
• USB (USB playback available in US version only. Other versions use USB for service purposes.)
USB Specifications
• USB Port: Type-A
• USB Rating: 5V DC, 0.5A
• Supported File Format: MP3
MP3 Codec Support
• MPEG 1 Layer 2/3
• MPEG 2 Layer 3
• MPEG 2.5 Layer 3
MP3 Sampling Rate
• 16 – 48 kHz
MP3 Bitrate
• MPEG 1 Layer 1: 32 – 448 kbps
• MPEG 1 Layer 2: 32 – 384 kbps
• MPEG 1 Layer 3: 32 – 320 kbps
• MPEG 2/2.5 Layer 1: 32 – 256 kbps
• MPEG 2/2.5 Layer 2/3: 8 – 160 kbps
Wireless Specifications
Bluetooth
• Bluetooth Version: 5.3
• Bluetooth Profile: A2DP 1.3, AVRCP 1.6
• Bluetooth Frequency Range: 2400MHz – 2483.5MHz
• Bluetooth Transmitter Power: <10dBm (EIRP)
• Bluetooth Modulation: GFSK, π/4 DQPSK, 8DPSK
Wireless Subwoofer
• 2.4GHz Wireless Frequency Range: 2402 – 2481MHz
• 2.4GHz Wireless Transmitter Power: <10dBm (EIRP)
• 2.4GHz Wireless Modulation: GFSK
Dimensions & Weight

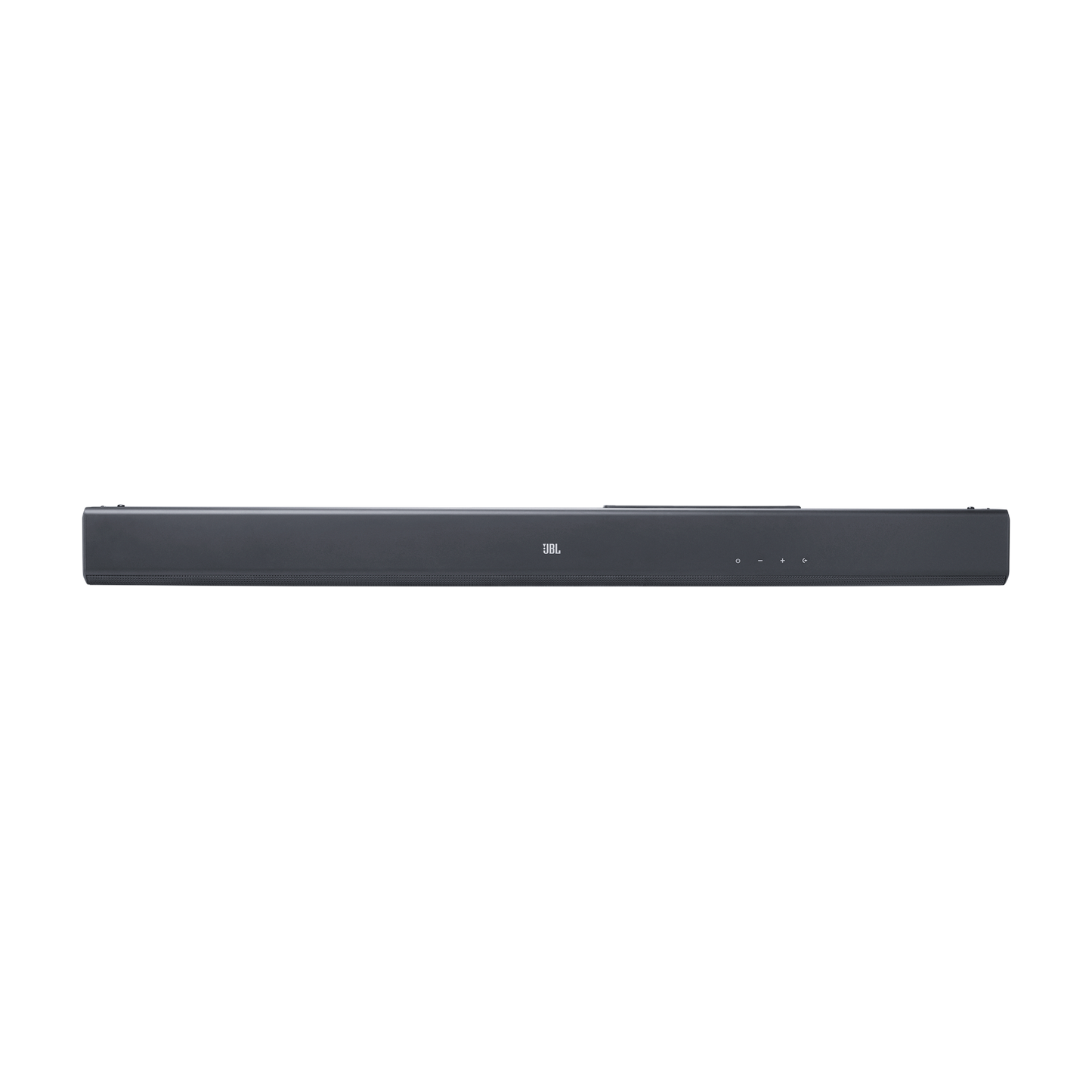

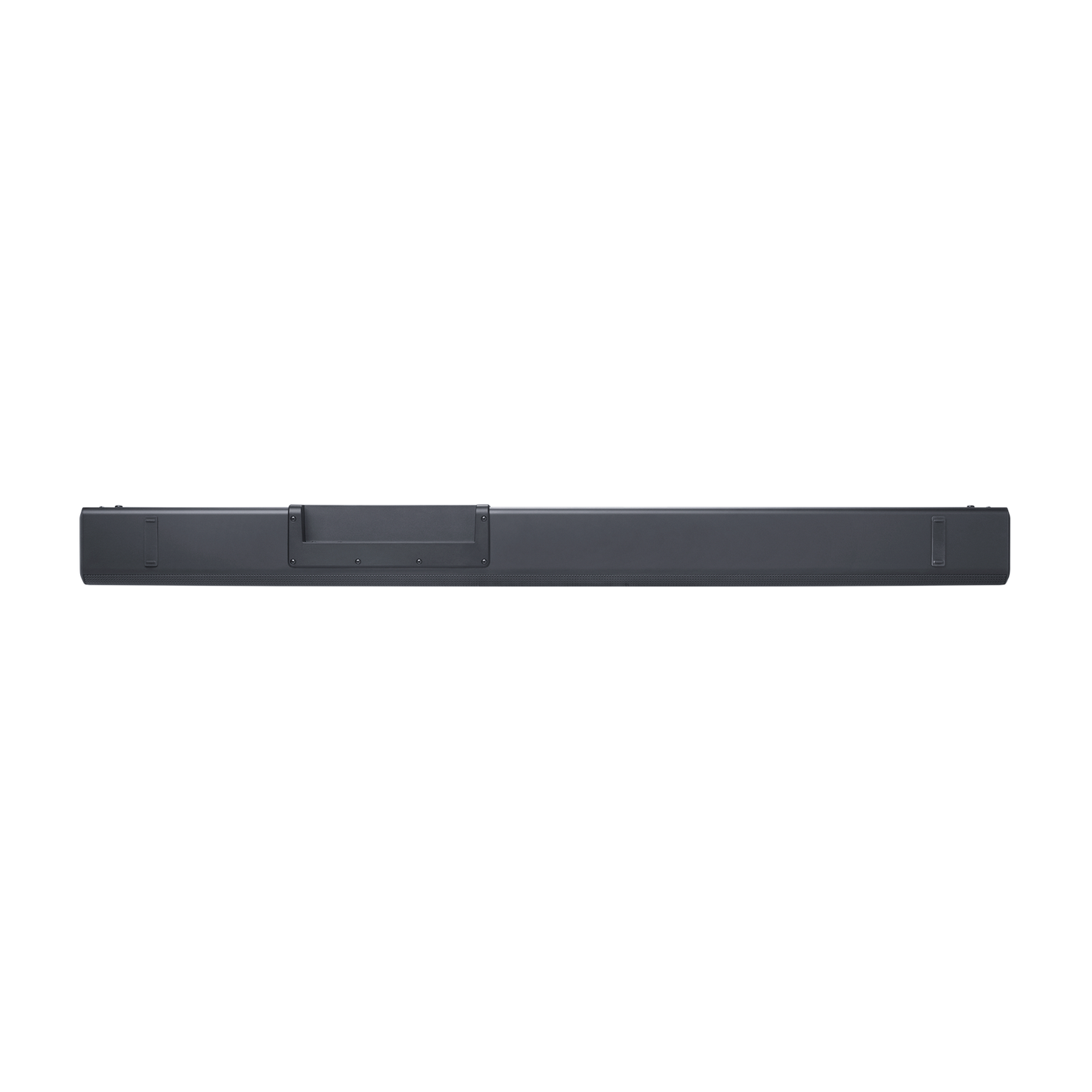

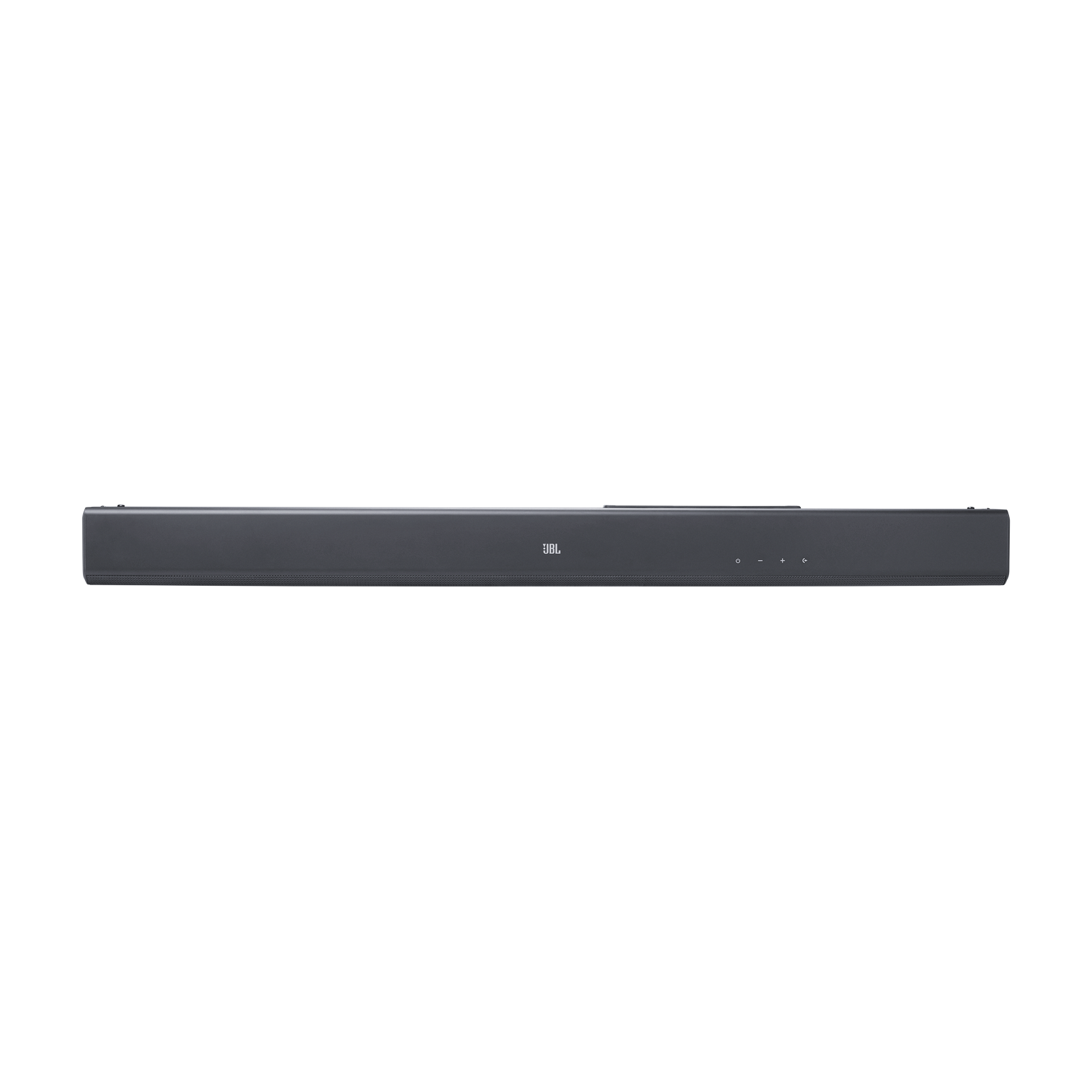

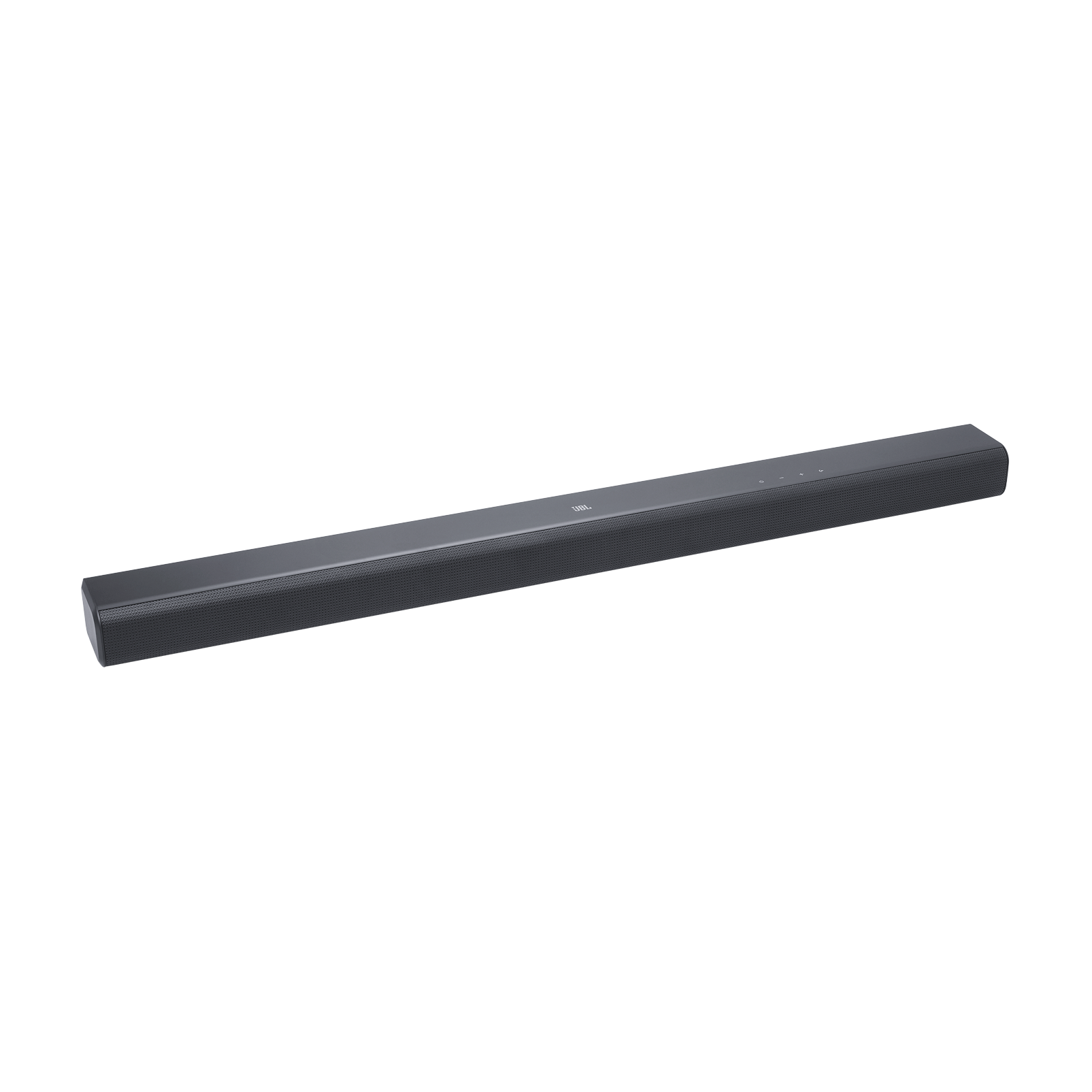

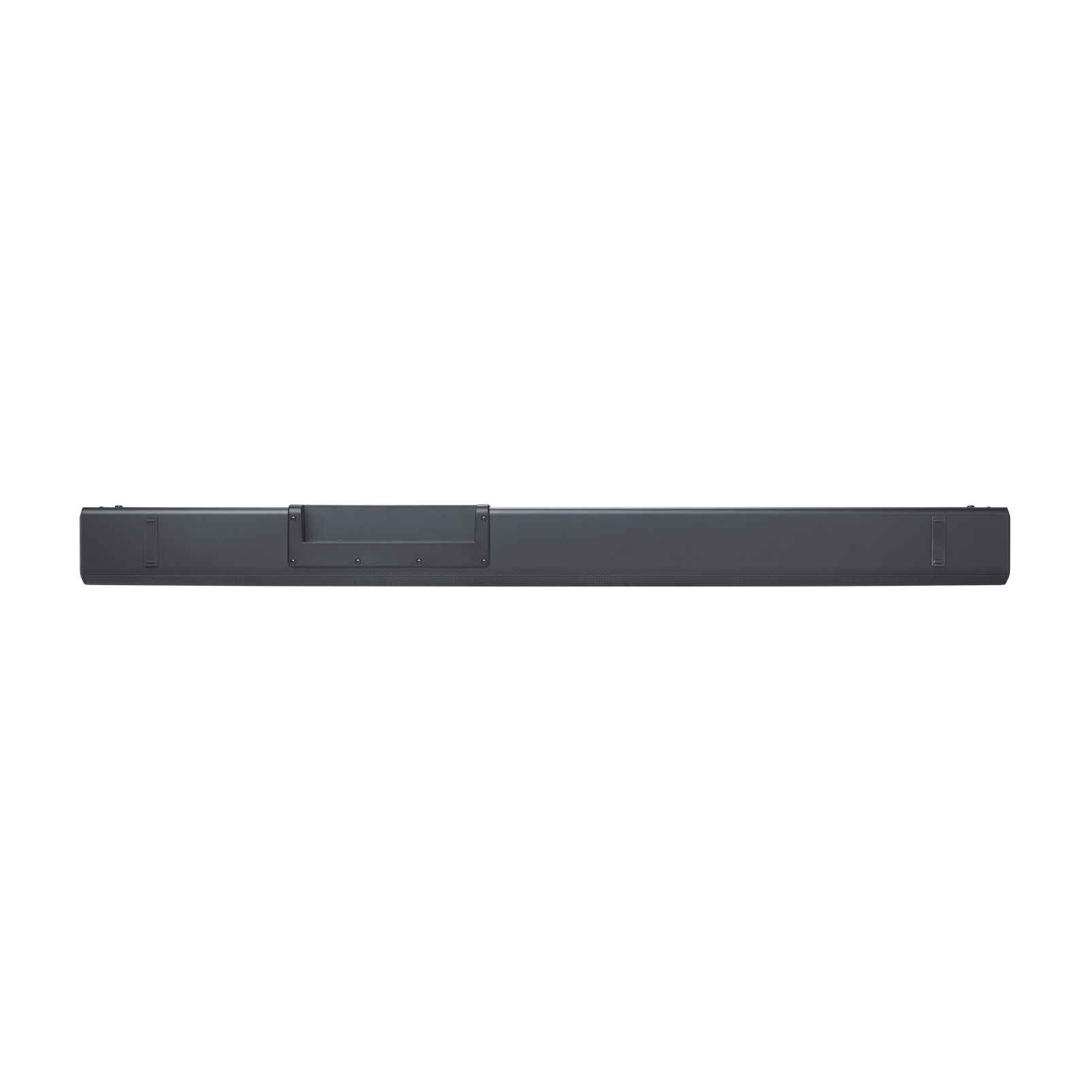

Soundbar
• Dimensions (W × H × D): 950 × 64 × 80 mm
• 37.4" × 2.5" × 3.1"
• Weight: 2.5kg / 5.5 lbs

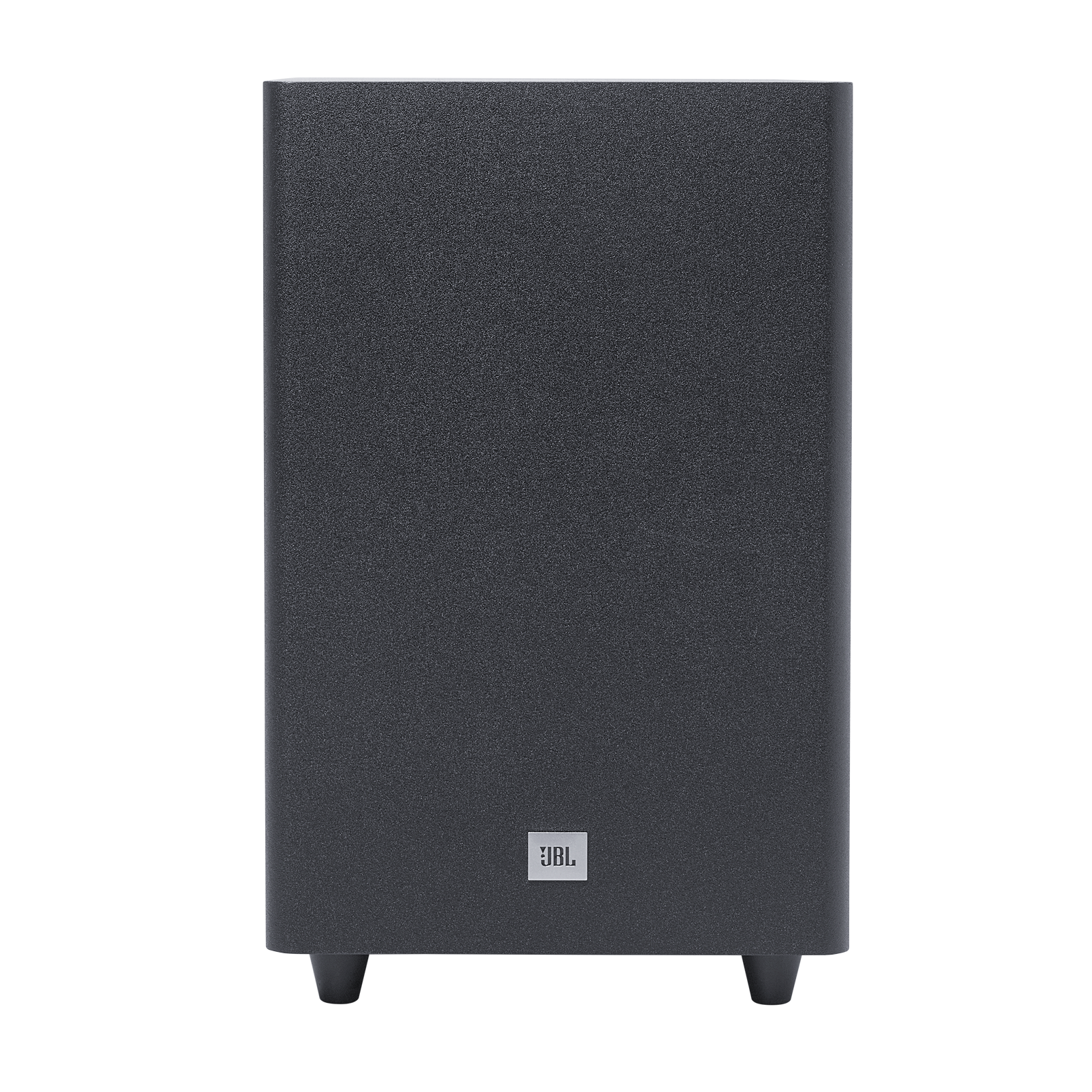

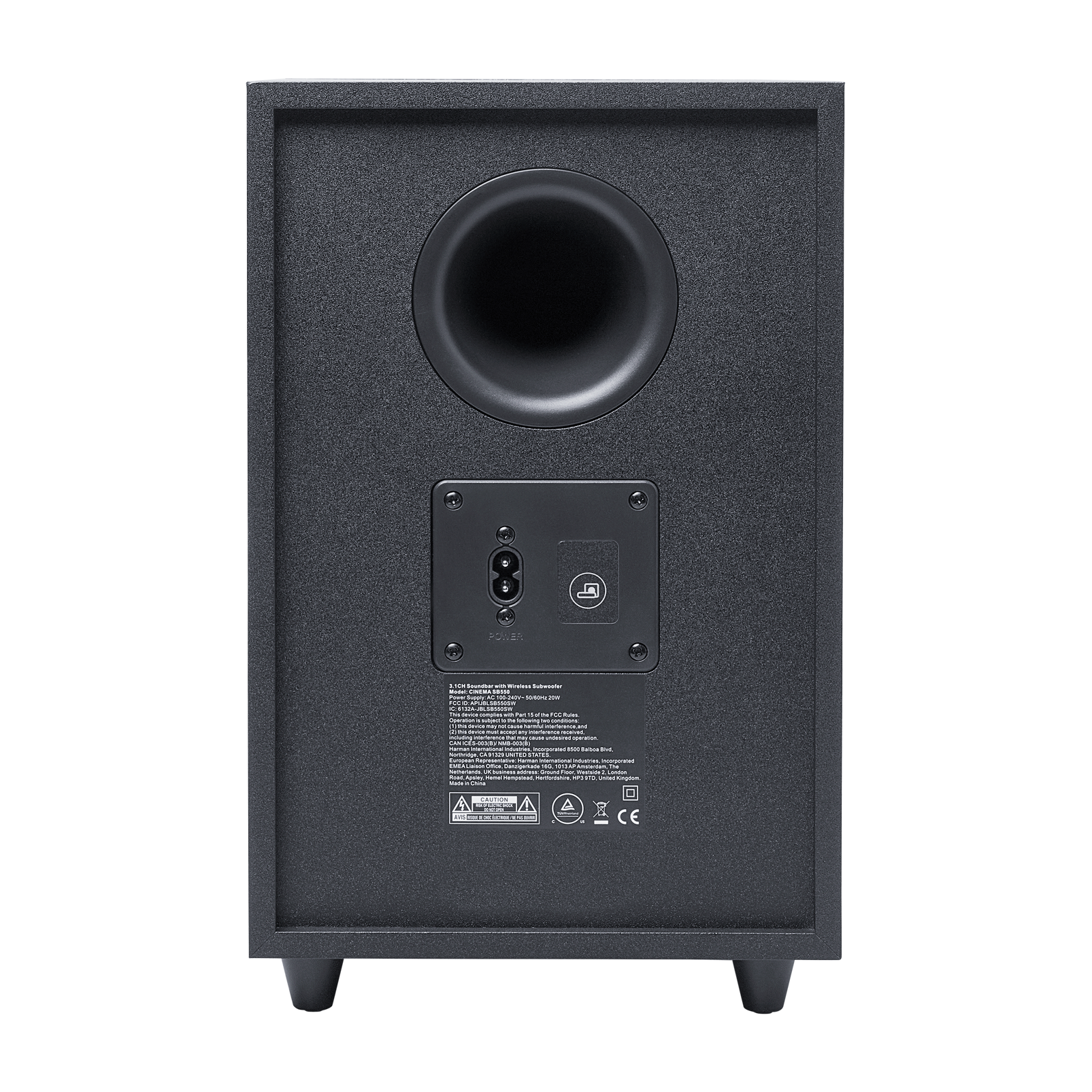

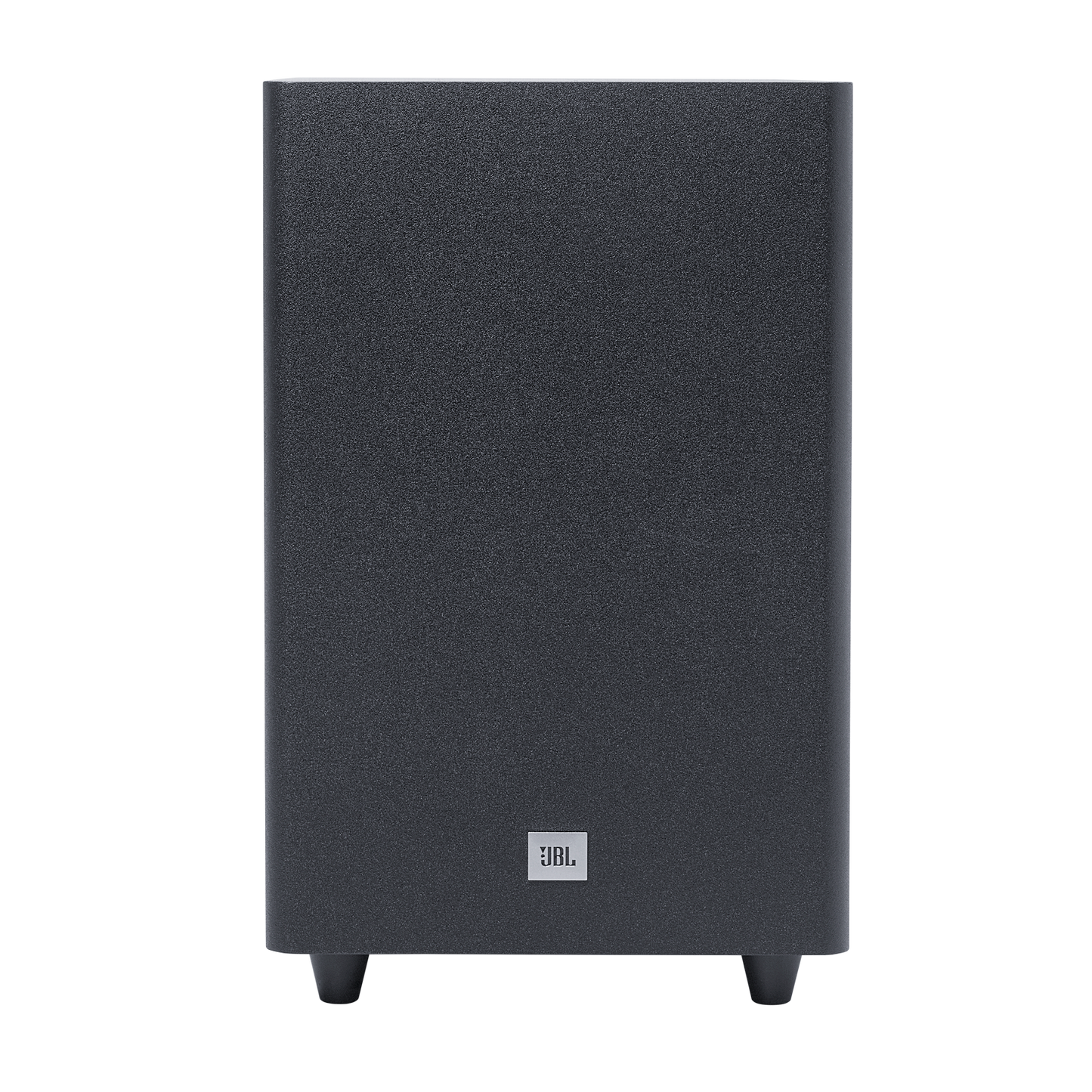

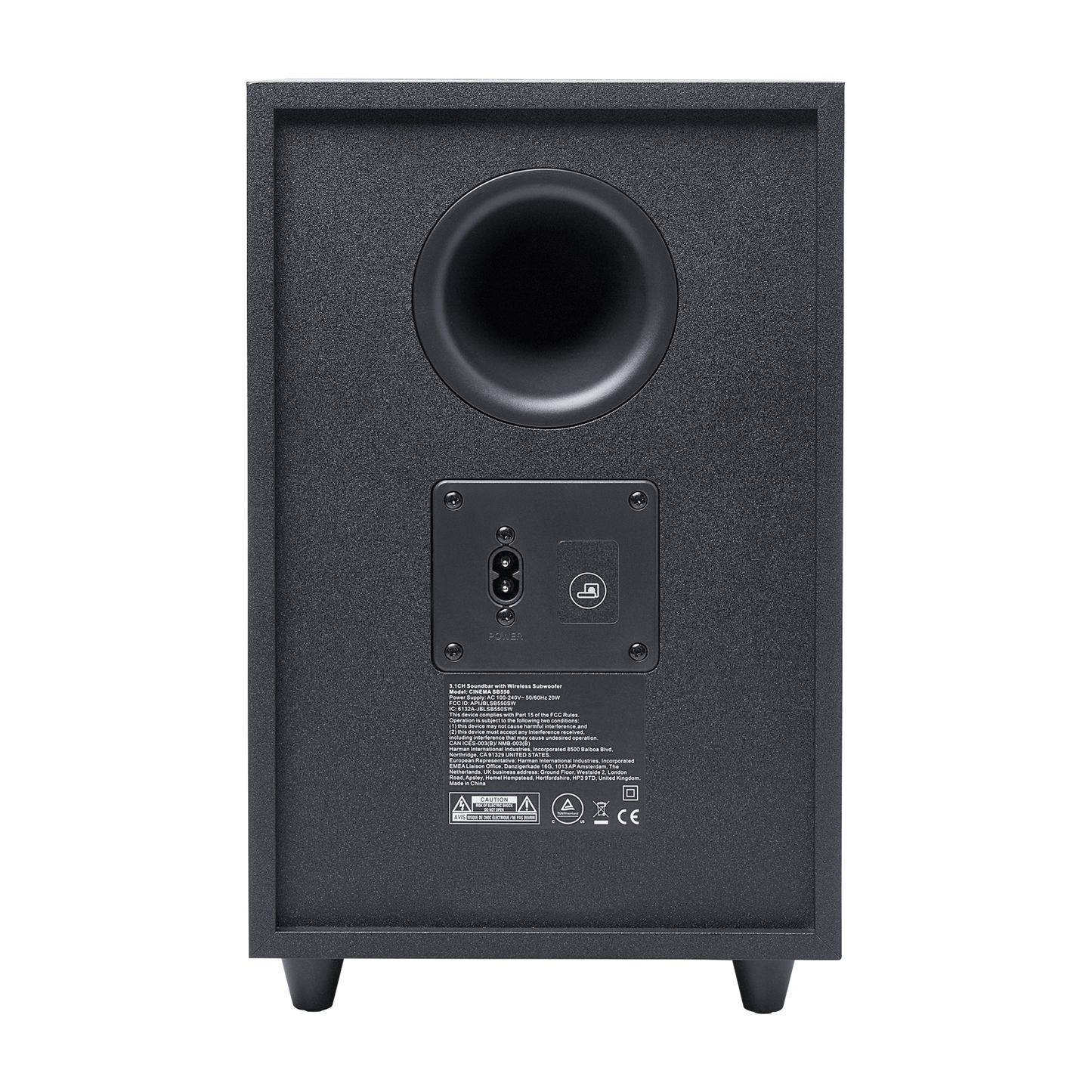

Wireless Subwoofer
• Dimensions (W × H × D): 200 × 324 × 250 mm
• 7.9" × 12.8" × 9.9"
• Weight: 4.2kg / 9.3 lbs
Packaging
• Dimensions (W × H × D): 1025 × 235 × 397 mm
• 40.4" × 9.3" × 15.6"
• Gross Weight: 8.8kg / 19.4 lbs

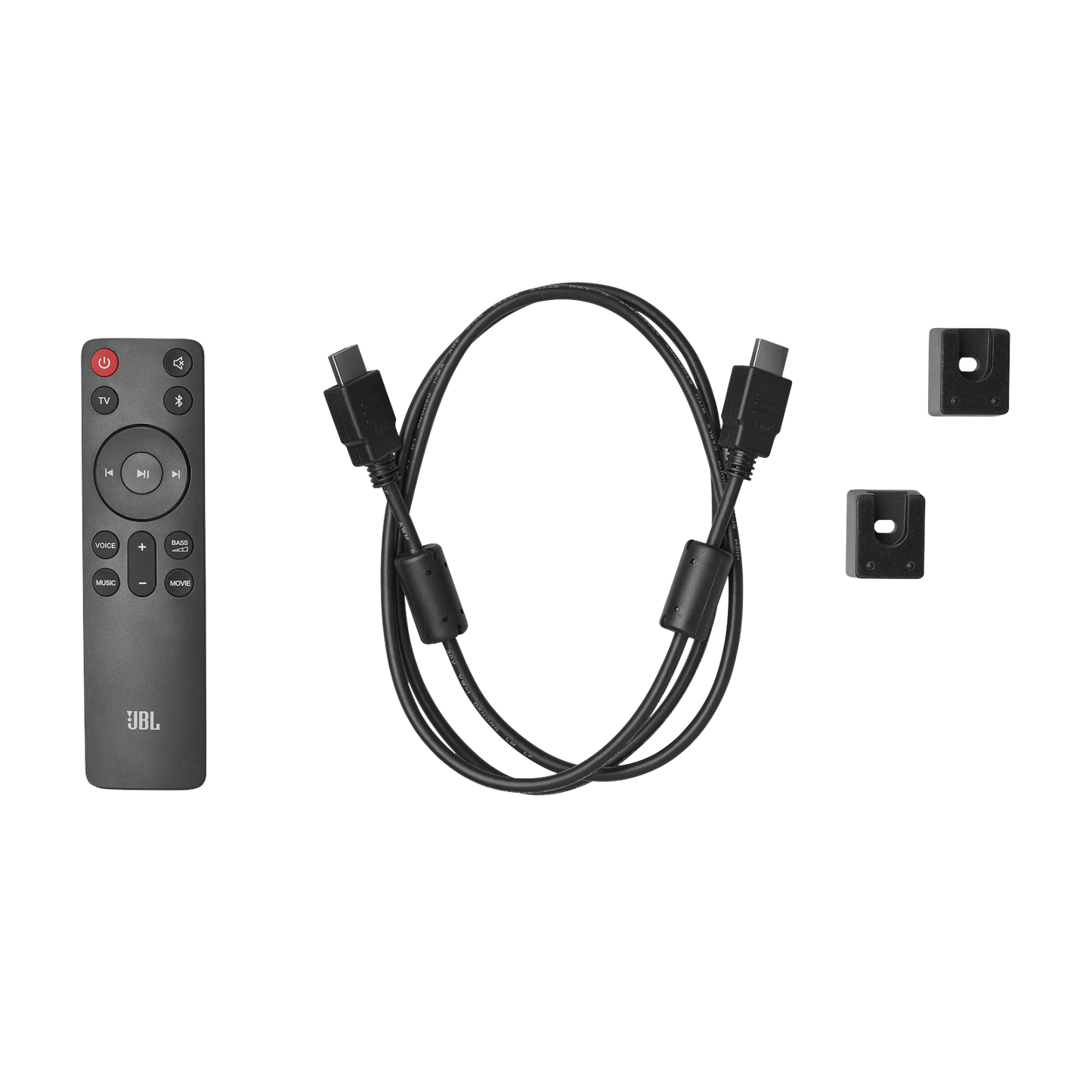

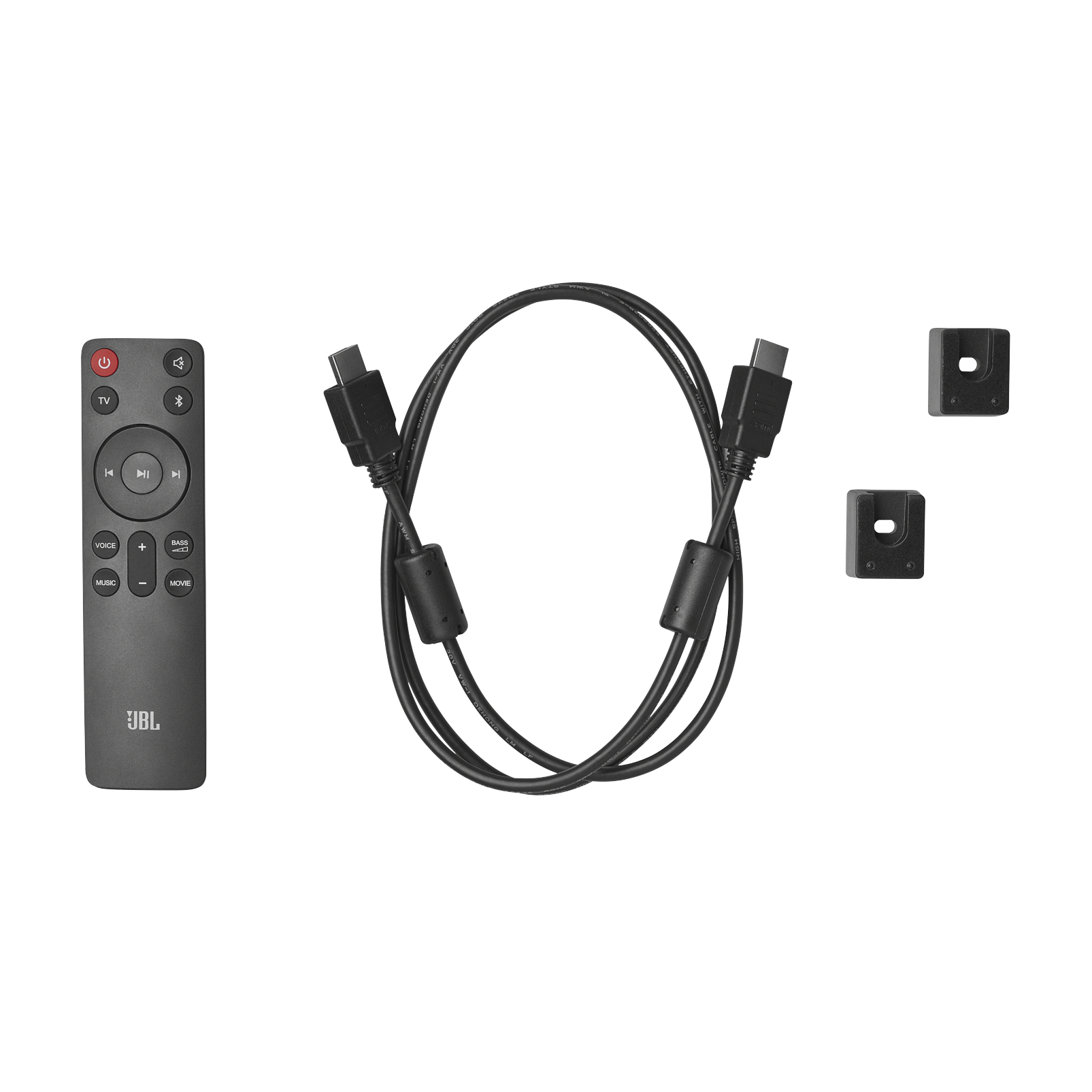

What's in the Box
• 1 × JBL Cinema SB550 Soundbar
• 1 × Wireless Subwoofer
• 1 × Remote Control with Batteries
• Power Cords (up to 8 pcs depending on region)
• 1 × HDMI Cable
• Wall-Mount Bracket Kit with Screws
• 1 × Quick Start Guide
• 1 × Warranty Card
• 1 × Safety Sheet
