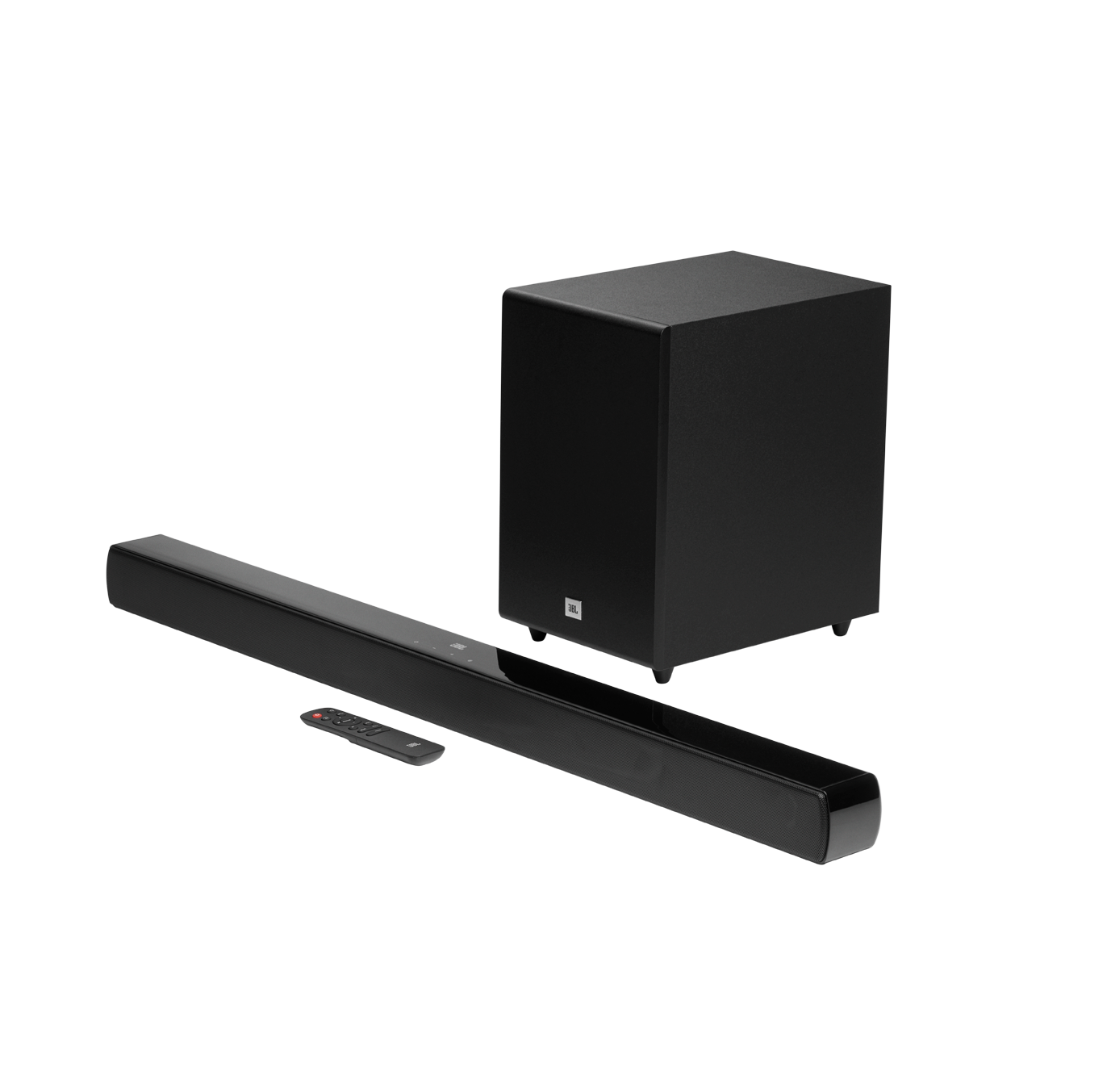

JBL Bar 2.1 Deep Bass
Warranty
• 1-Year Official Warranty by JBL Singapore
• Service Centre Location: 60 Marsiling Rd, SKM Building, Singapore 739107
Features
• 220W Total Power Output
• Dedicated Sound Mode to Enhance Voice Clarity
• Wireless Subwoofer for Extra Deep Bass
• Dolby Digital Embedded
• Wireless Music Streaming via Bluetooth
• One-Cable Connection with HDMI ARC
Technical Specifications
General Specifications
• Power Supply: 100 – 240V AC, ~50/60Hz
• Total Speaker Power Output (Max. @ THD 1%): 220W
• Soundbar Power Output (Max. @ THD 1%): 2 × 52W
• Subwoofer Power Output (Max. @ THD 1%): 116W
• Operating Temperature: 0°C – 45°C
• Max SPL: 82dB
Speaker Configuration

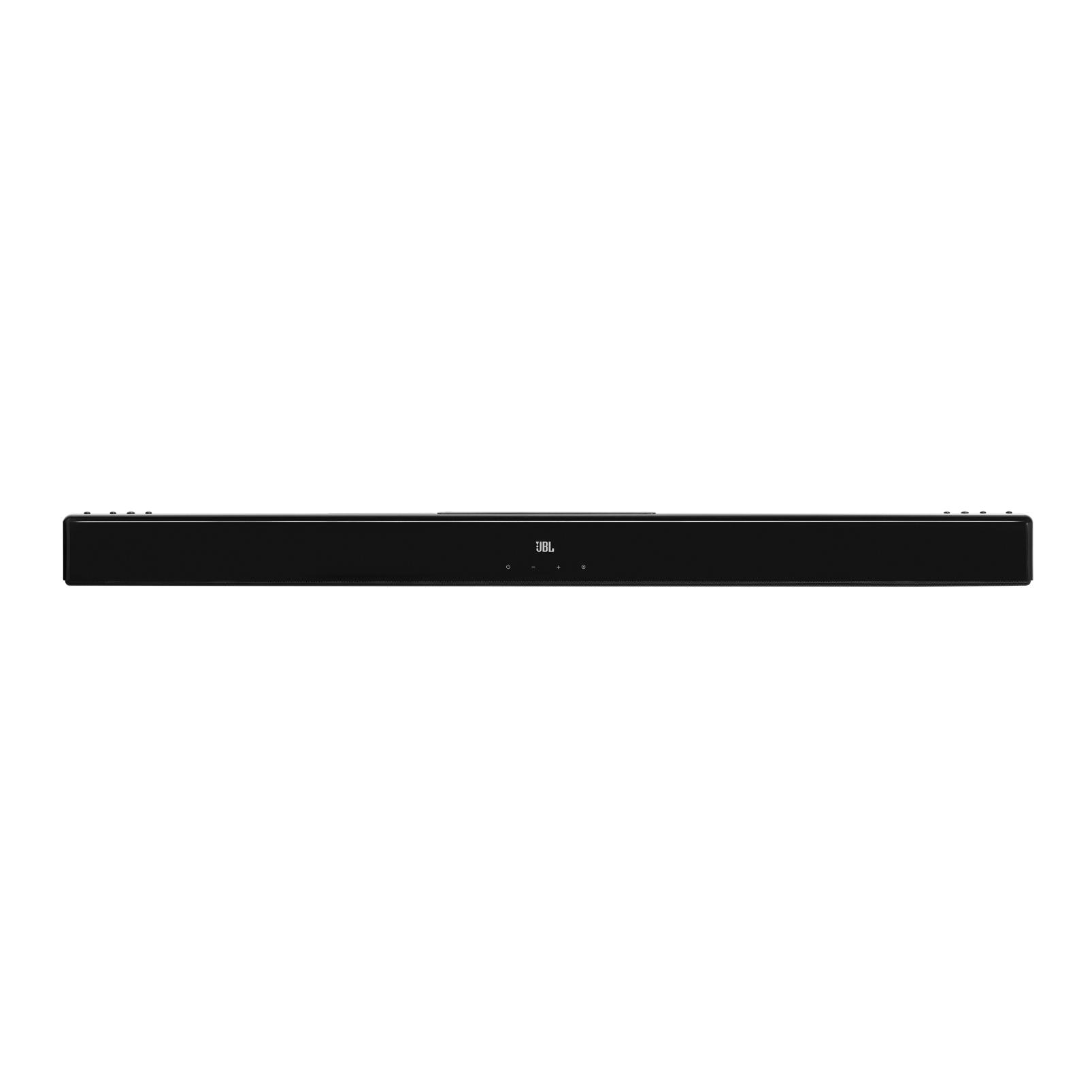

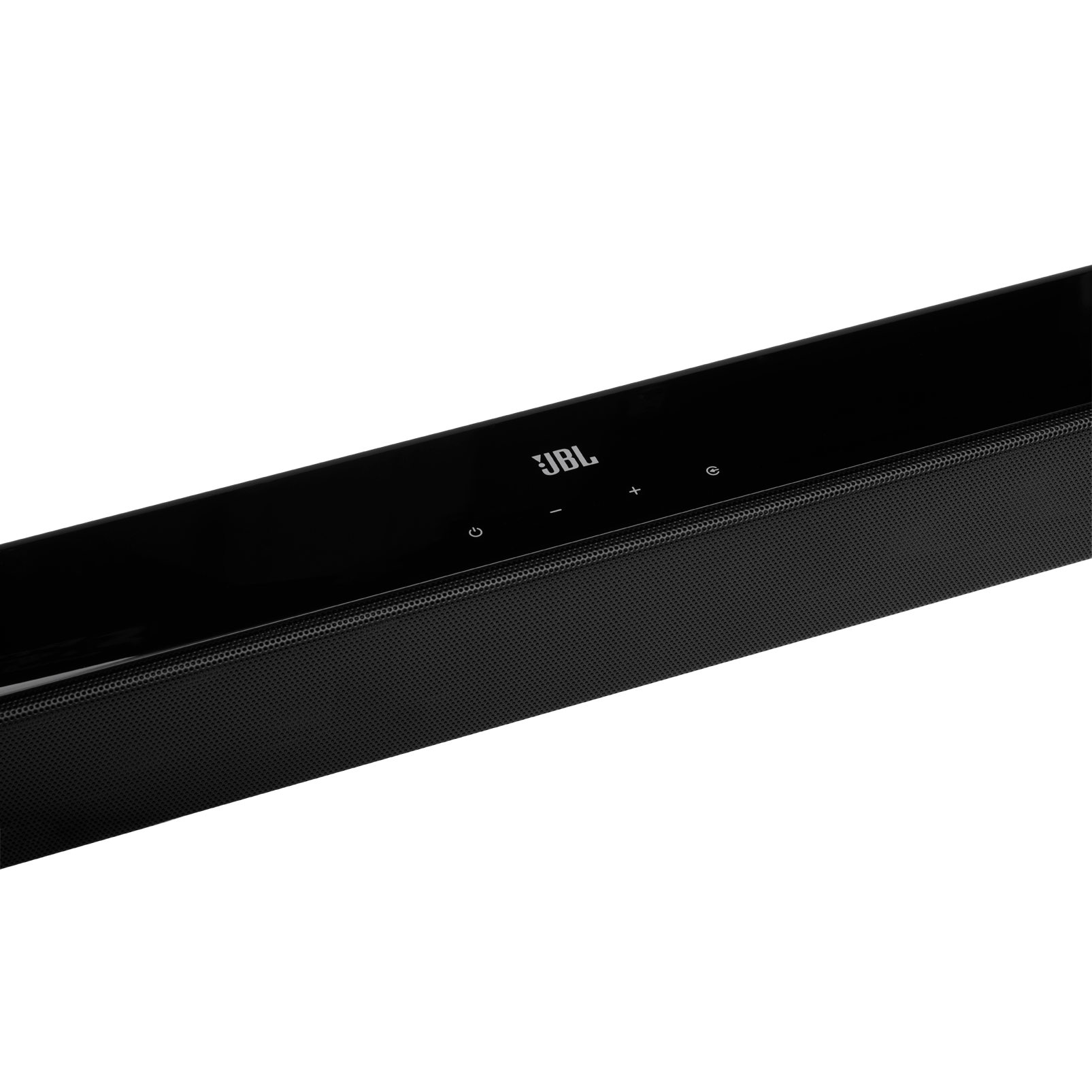

Soundbar
• 2 × (48 × 90mm) Racetrack Drivers
• 2 × 0.5" Tweeters

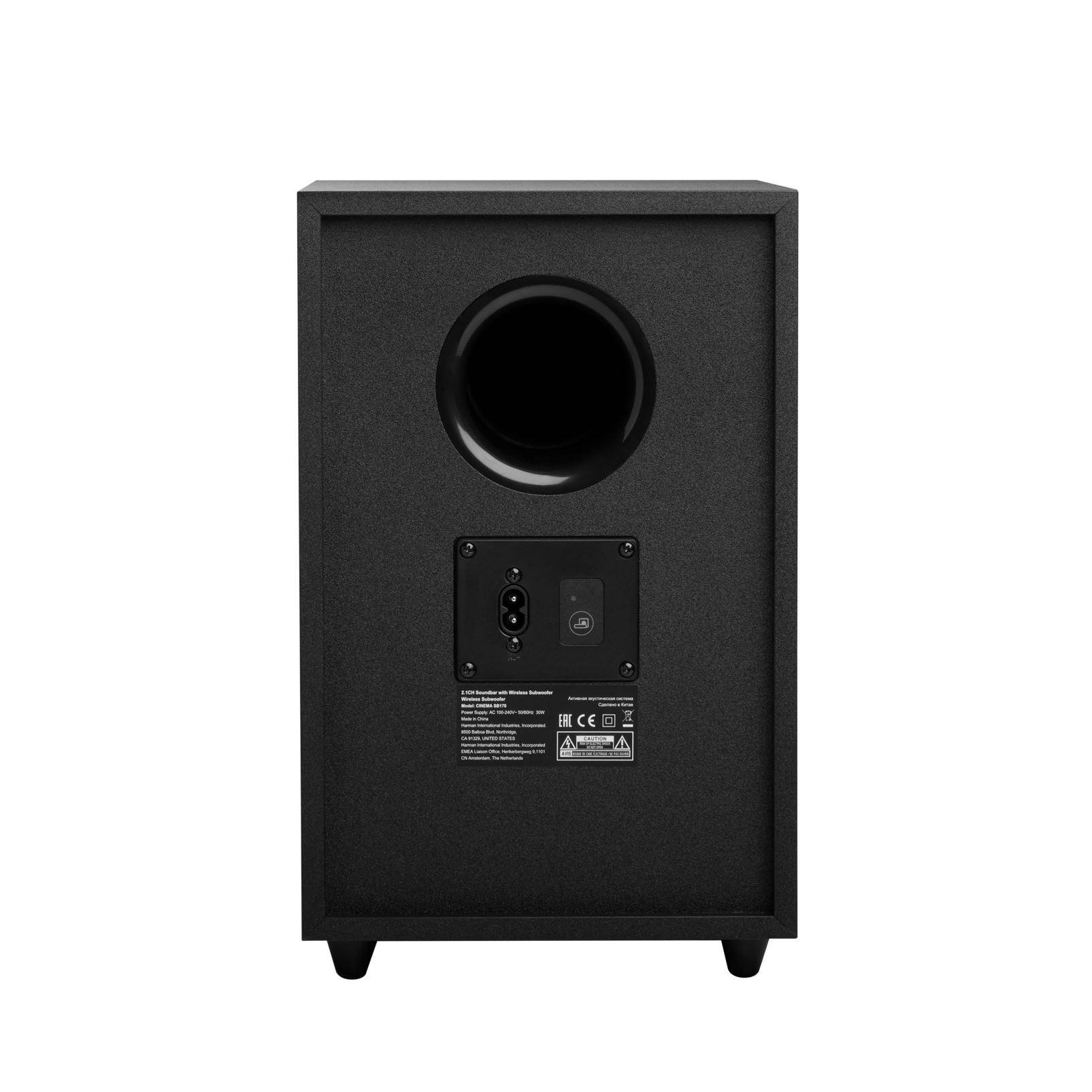

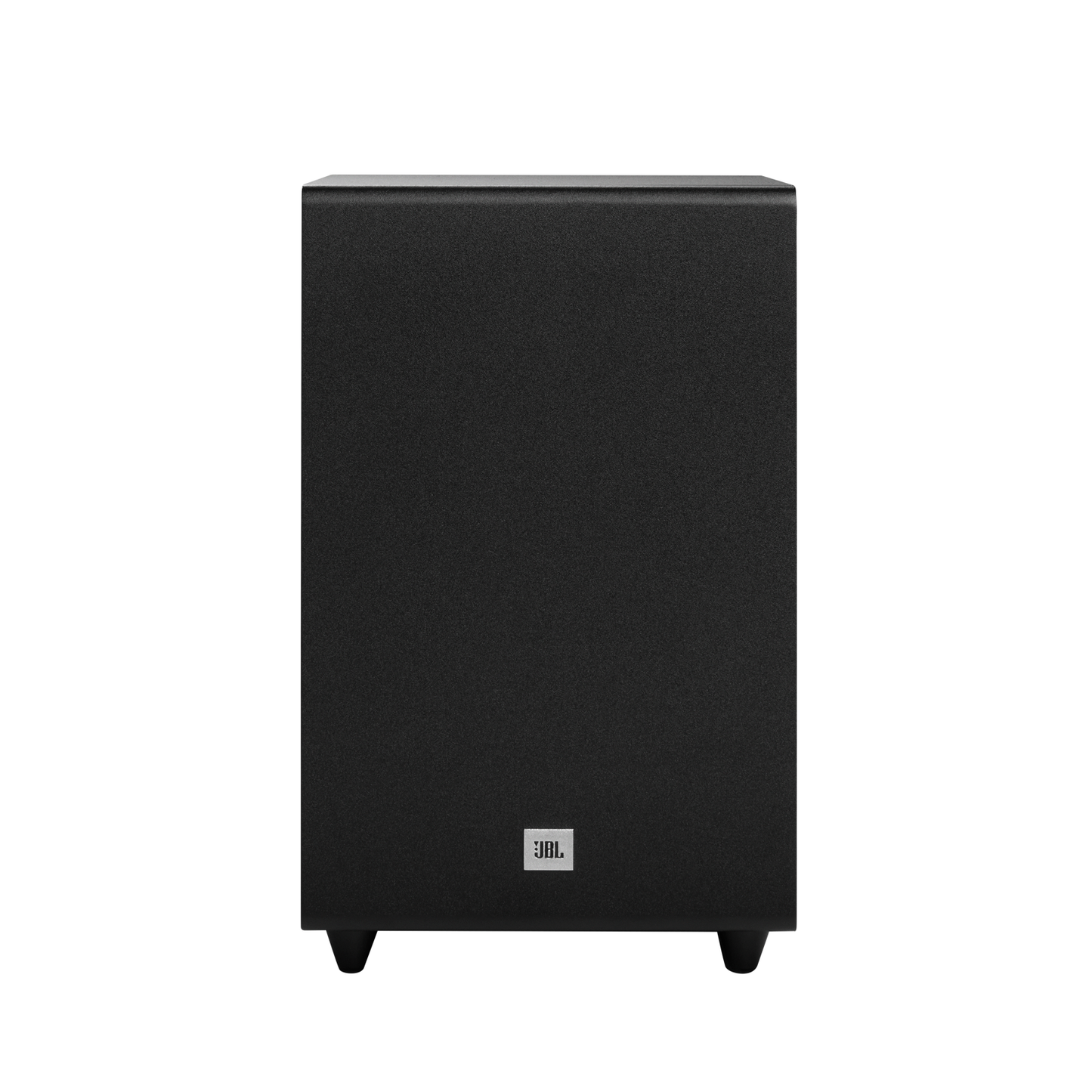

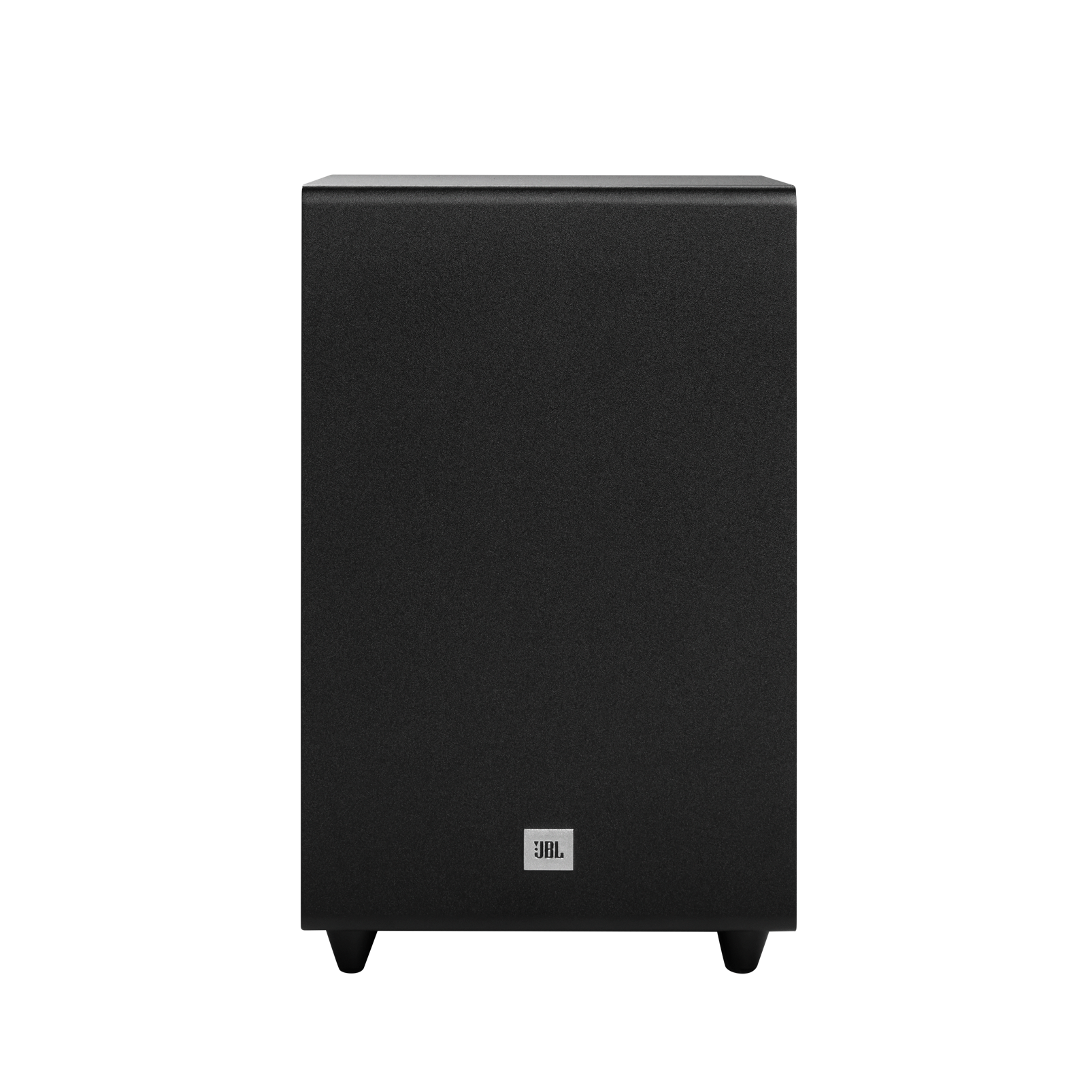

Wireless Subwoofer

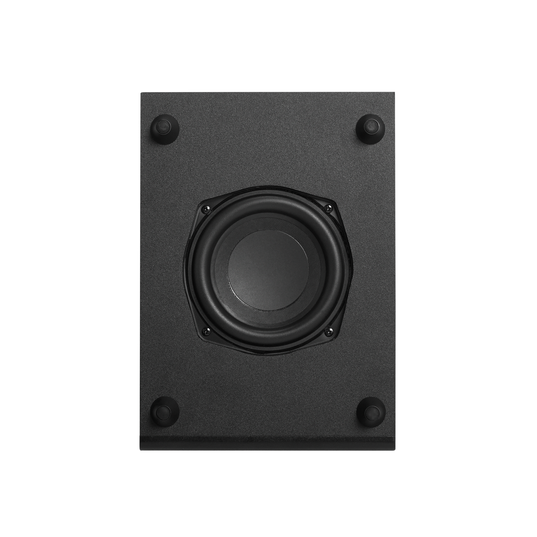

• 5.25" Driver
Audio Specifications
• Frequency Response: 40Hz – 20kHz
• Audio Inputs:
• Optical
• Bluetooth
• USB (USB playback available in US version only. Other versions use USB for service purposes.)
HDMI Specifications
• HDMI Output with Audio Return Channel (ARC): 1
• HDMI HDCP Version: 1.4
Wireless Specifications
Bluetooth
• Bluetooth Version: 4.2
• Bluetooth Profile: A2DP V1.3 / AVRCP V1.5
• Bluetooth Frequency Range: 2402MHz – 2480MHz
• Bluetooth Transmitter Power: <0dBm (EIRP)
• Bluetooth Modulation: GFSK, π/4 DQPSK
Wireless Subwoofer
• 2.4GHz Wireless Frequency Range: 2400 – 2483MHz
• 2.4GHz Wireless Transmitter Power: 3dBm
Dimensions & Weight

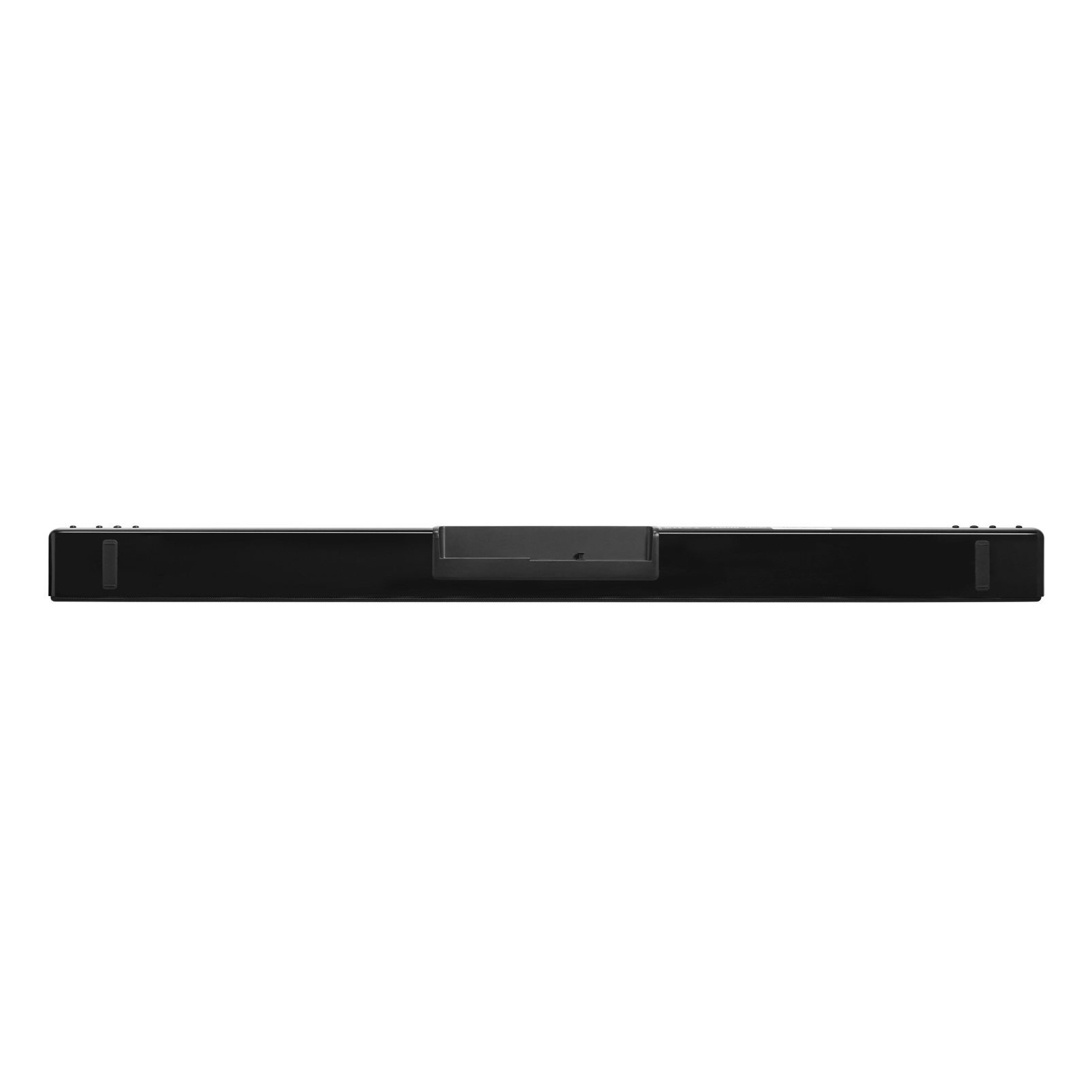

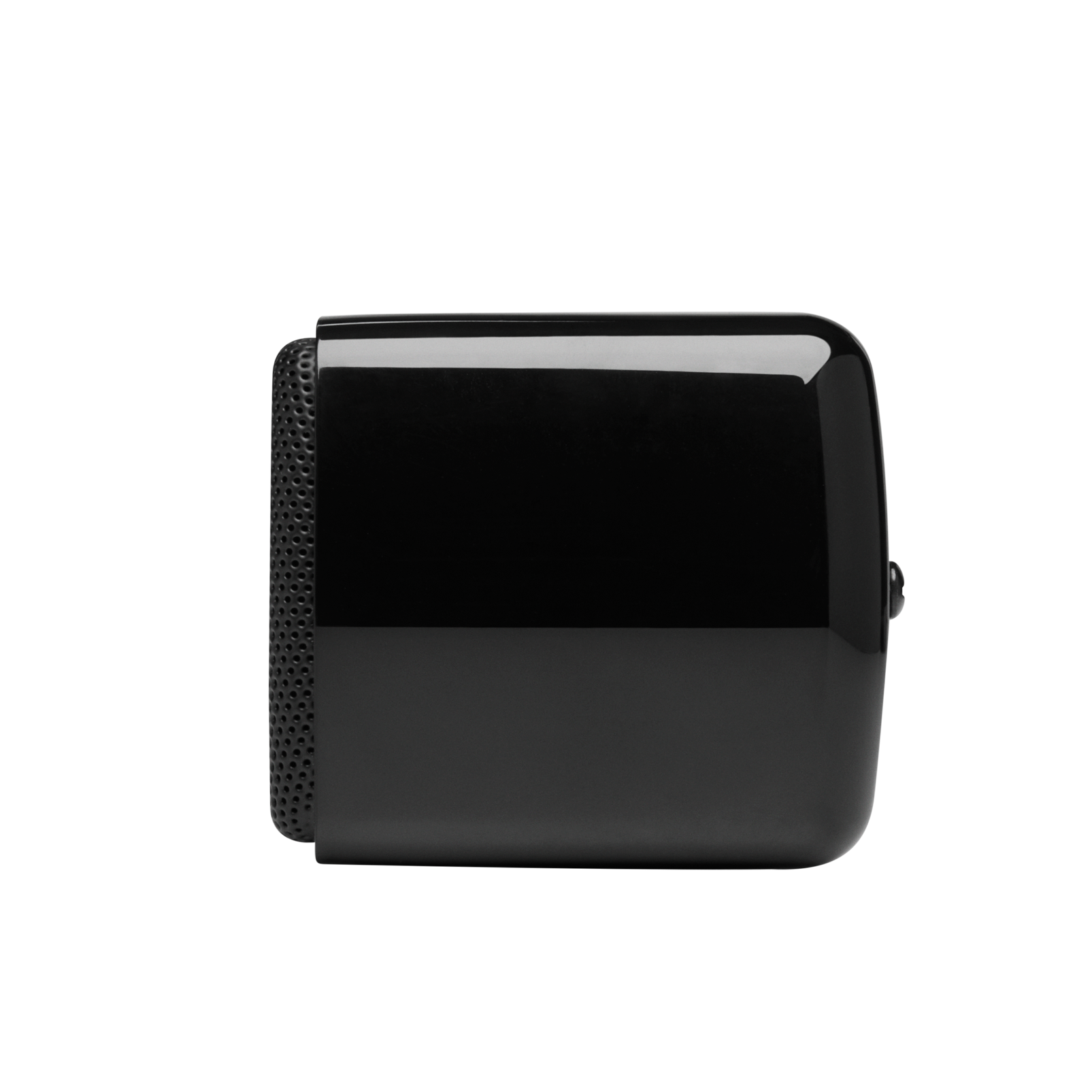

Soundbar
• Dimensions (W × H × D): 900 × 62 × 67 mm
• 35.4" × 2.44" × 2.64"
• Weight: 1.65kg

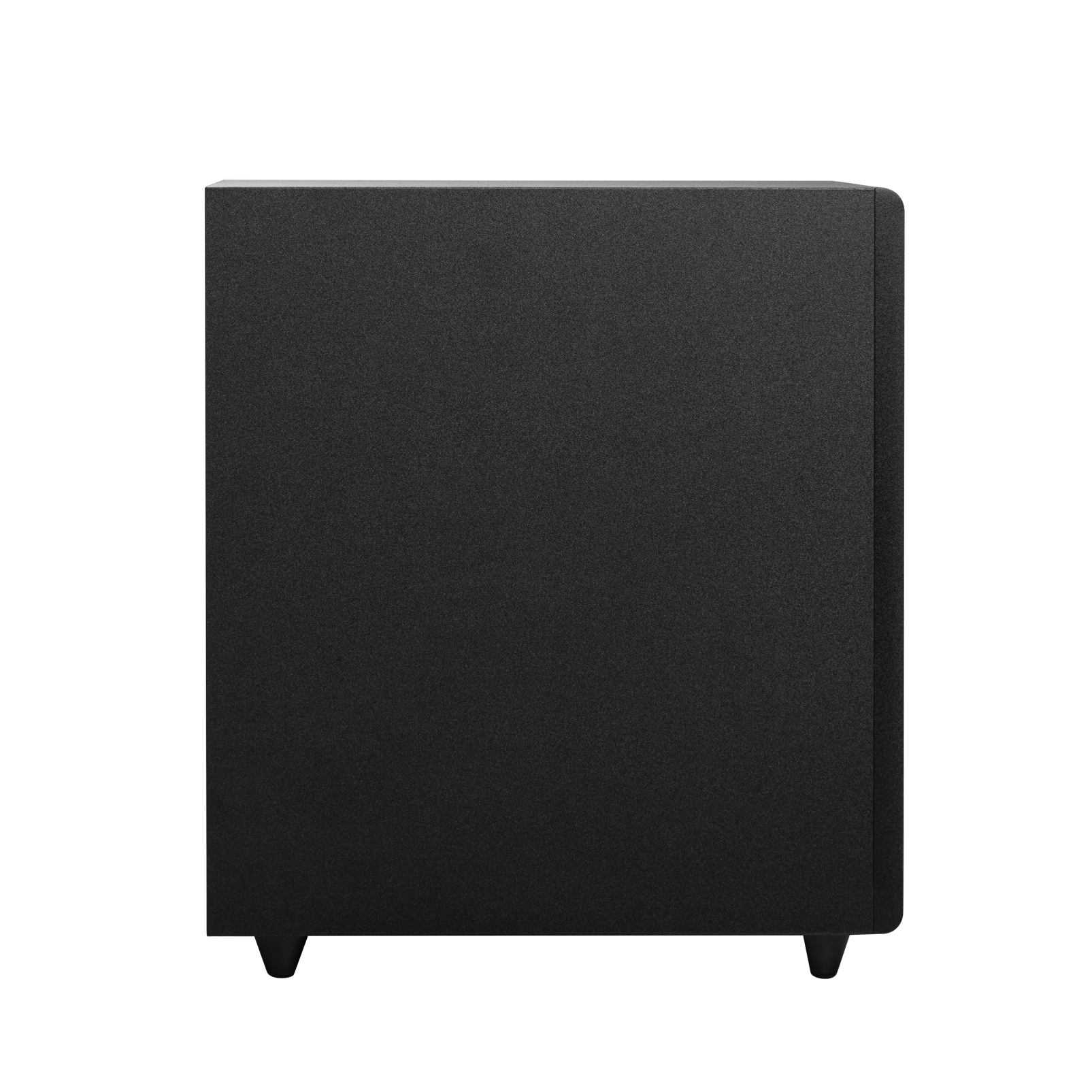

Wireless Subwoofer
• Dimensions (W × H × D): 200 × 320 × 280 mm
• 7.87" × 12.6" × 11"
• Weight: 5kg

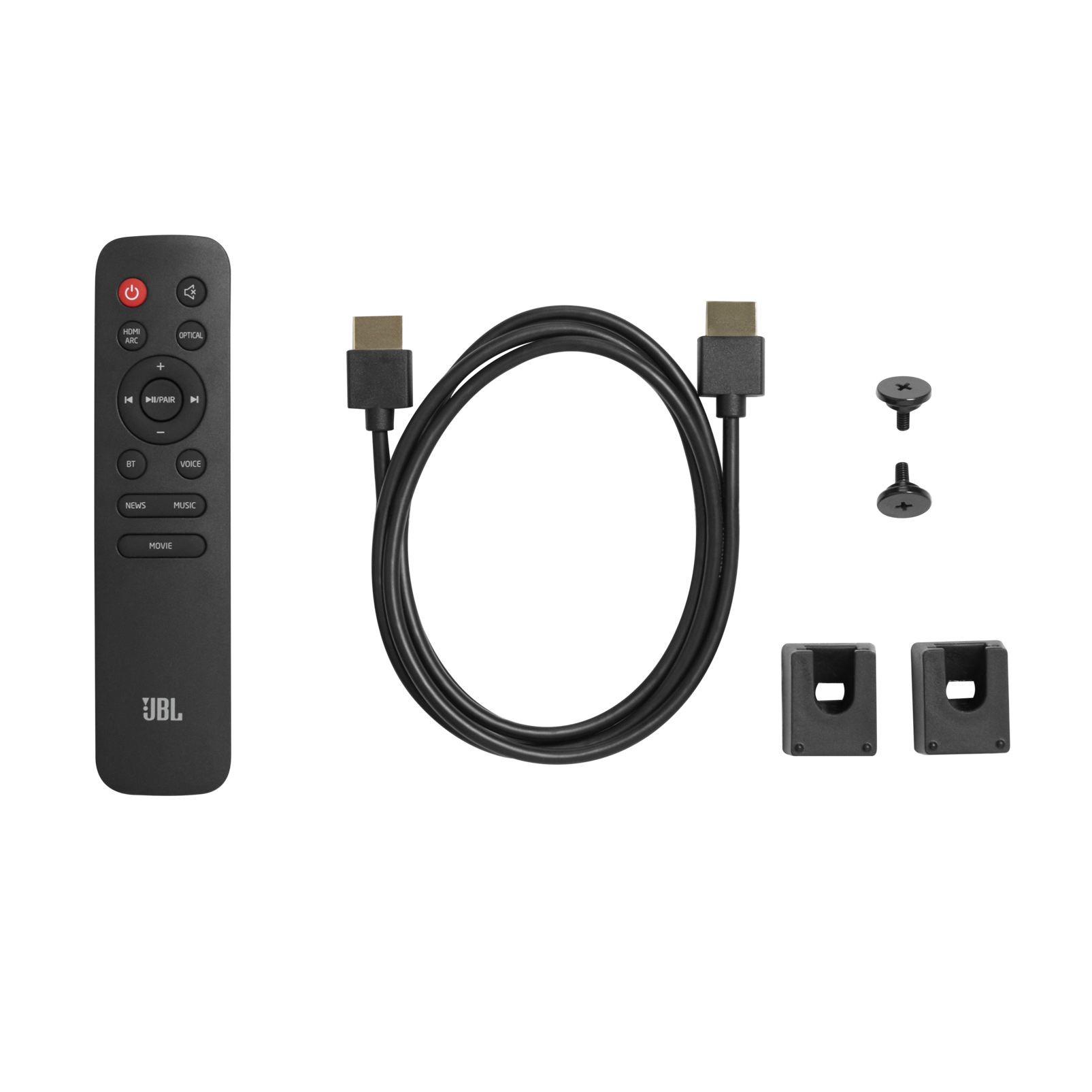

What's in the Box
• 1 × JBL Bar 2.1 Deep Bass Soundbar
• 1 × Wireless Subwoofer
• 1 × Remote Control with Batteries
• Power Cords (up to 8 pcs depending on region)
• 1 × HDMI Cable
• Wall-Mount Bracket Kit with Screws
• 1 × Quick Start Guide
• 1 × Warranty Card
• 1 × Safety Sheet
