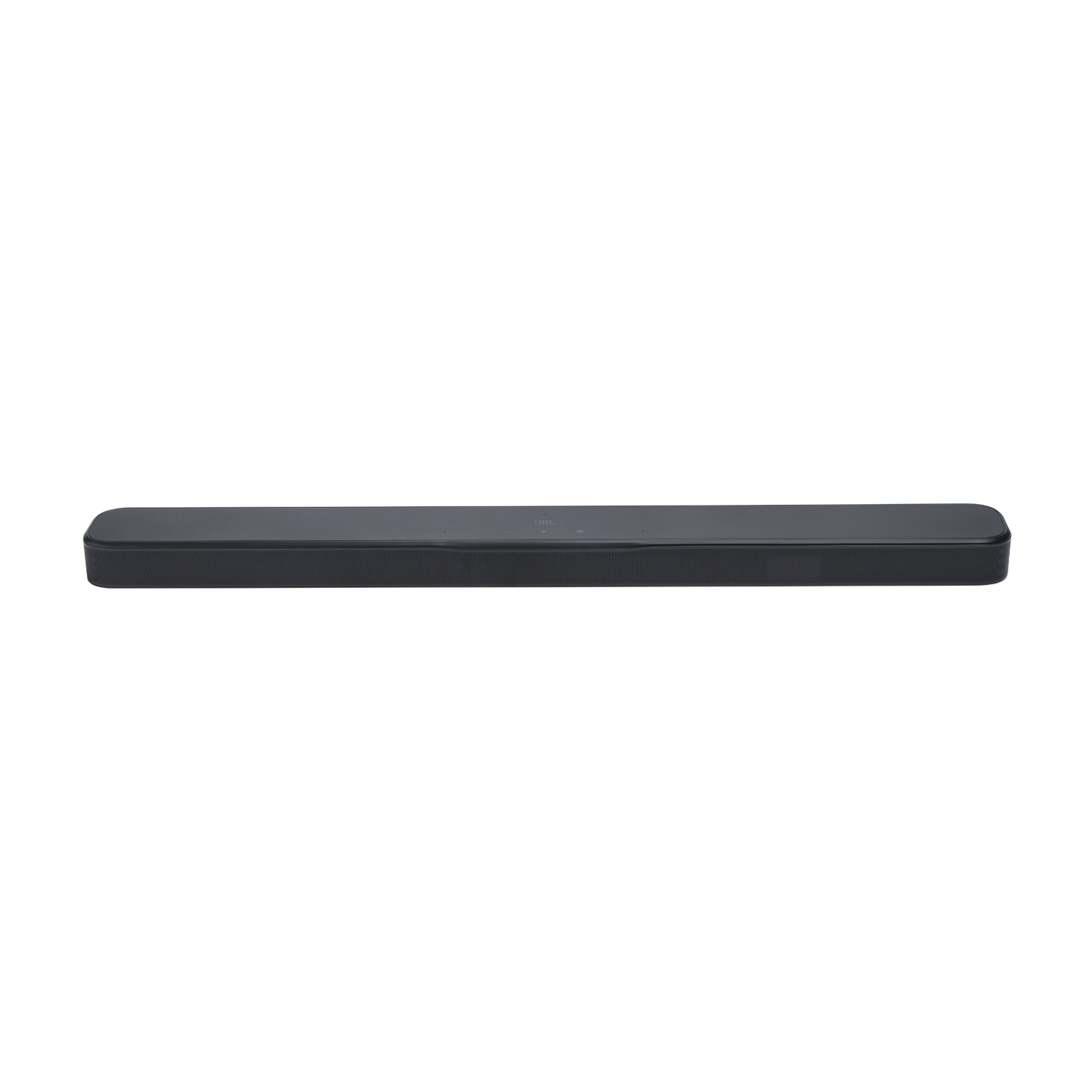

JBL Bar 300MK2 5.0 channel all-in-one soundbar with Dolby Atmos® and DTS Virtual:X® -1 year JBL Warranty

JBL Bar 300 (MK2)

Warranty

• 1-Year Official Warranty by JBL Singapore
• Service Centre Location: 60 Marsiling Rd, SKM Building, Singapore 739107

Features

• 450W Max Output Power with Punchy Bass (No Separate Subwoofer Required)
• Dolby Atmos® and DTS Virtual:X®
• MultiBeam™ 3.0
• PureVoice 2.0
• SmartDetails
• Easy Sound Calibration
• Works with All Ecosystems and Music Streaming Services
• JBL One App
• HDMI eARC with 4K Dolby Vision Passthrough

Technical Specifications

General Specifications

• Sound System: 5.0 Channel
• Power Supply: 100 - 240V AC, ~50/60Hz
• Total Speaker Power Output (Max. @ THD 1%): 450W
• RMS Power Output (@ THD 1%): 225W
• Soundbar Transducers:
• 5 × (42 × 80mm) Racetrack Drivers
• 4 × 0.75" (20mm) Tweeters

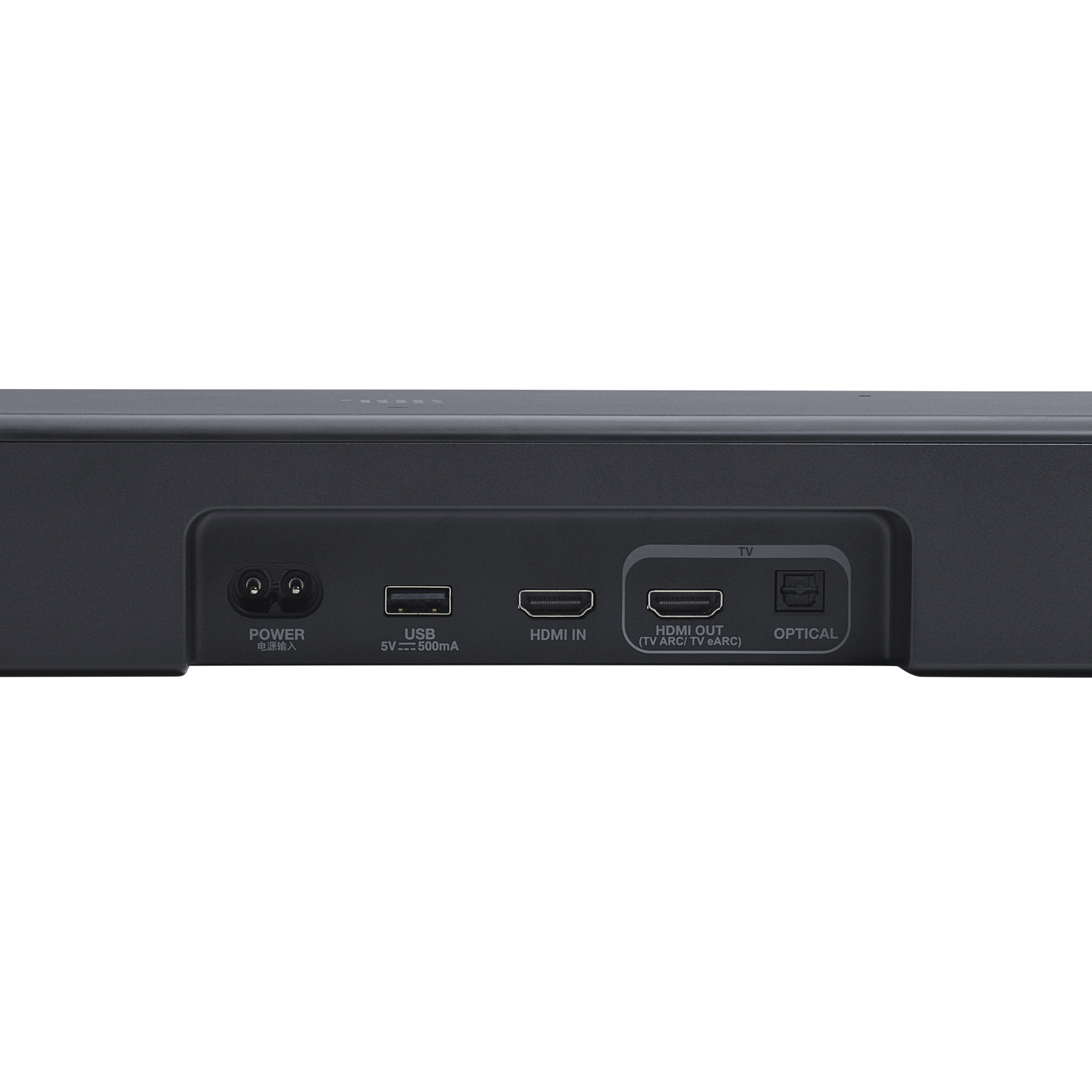

HDMI Specifications

• HDMI Video Input: 1
• HDMI Video Output (with eARC): 1
• HDMI HDCP Version: 2.3
• HDR Passthrough: HDR10+, Dolby Vision

Audio Specifications

• Frequency Response: 50Hz – 20kHz (-6dB)
• Audio Inputs:
• Optical
• Bluetooth
• USB (USB playback available in US version only; service port for other regions)

USB Specifications

• USB Port: Type-A
• USB Rating: 5V DC, 0.5A
• Supported File Format: MP3

Wireless Specifications

Bluetooth

• Bluetooth Version: 5.3
• Bluetooth Profile: A2DP v1.3, AVRCP v1.5
• Bluetooth Frequency Range: 2400MHz – 2483.5MHz
• Bluetooth Transmitter Power: <15dBm (EIRP)

Wi-Fi

• Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz)

2.4GHz Wi-Fi
• Frequency Range: 2412 – 2472MHz
• Transmitter Power: <20dBm (EIRP)

5GHz Wi-Fi
• Frequency Range:
• 5.15 – 5.35GHz
• 5.470 – 5.725GHz
• 5.725 – 5.825GHz
• Transmitter Power:
• 5.15 – 5.25GHz: <23dBm
• 5.25 – 5.35GHz & 5.470 – 5.725GHz: <20dBm
• 5.725 – 5.825GHz: <14dBm (EIRP)

Note: Band 5.6 – 5.64GHz is disabled in Australia and New Zealand.

Dimensions & Weight

Soundbar

• Dimensions (W × H × D): 940 × 50.5 × 104 mm
• Dimensions (Imperial): 37" × 2.0" × 4.1"
• Weight: 2.9 kg / 6.5 lbs

Packaging

• Dimensions (W × H × D): 1180 × 120 × 160 mm
• Dimensions (Imperial): 46.5" × 4.7" × 6.3"
• Gross Weight: 4.8 kg / 10.6 lbs

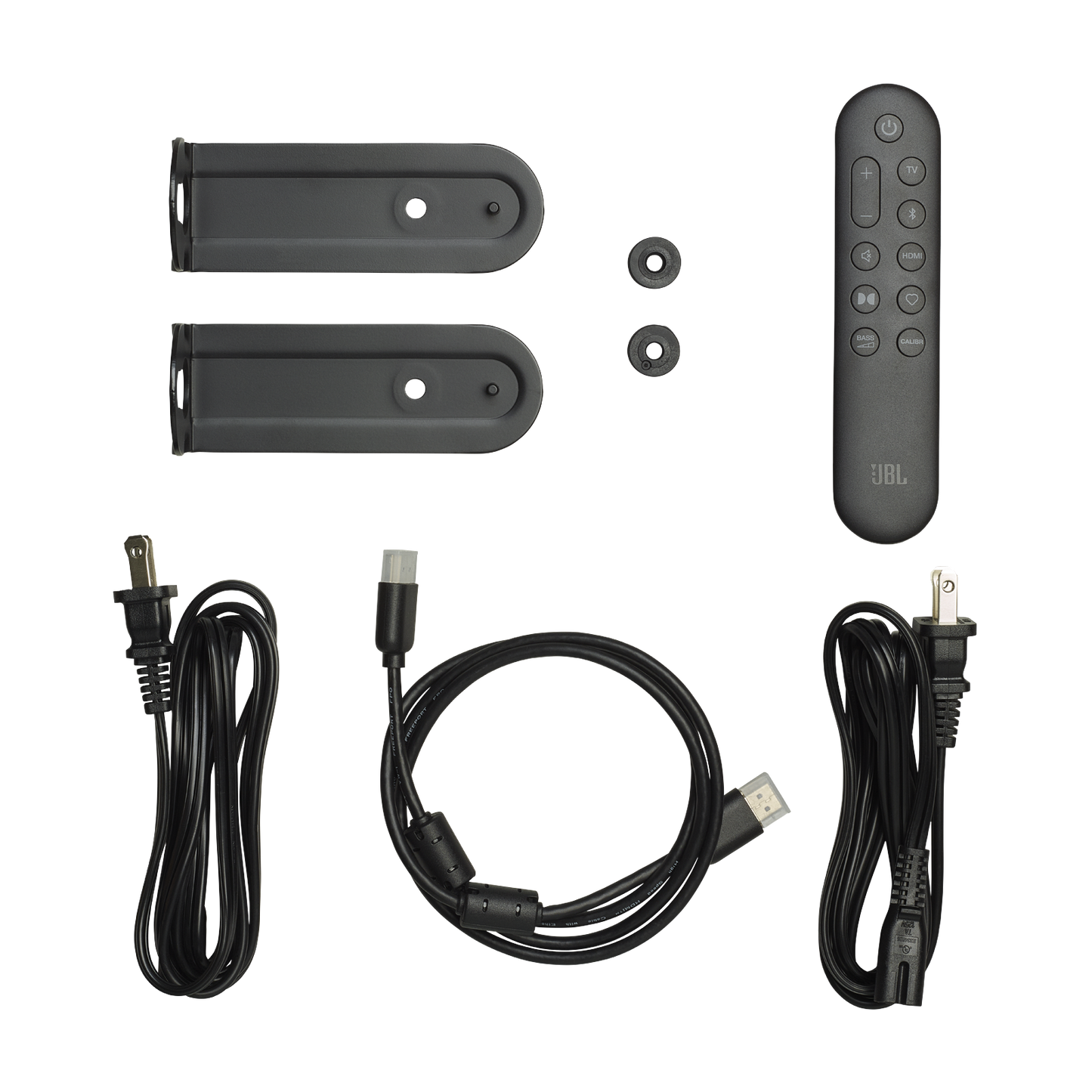

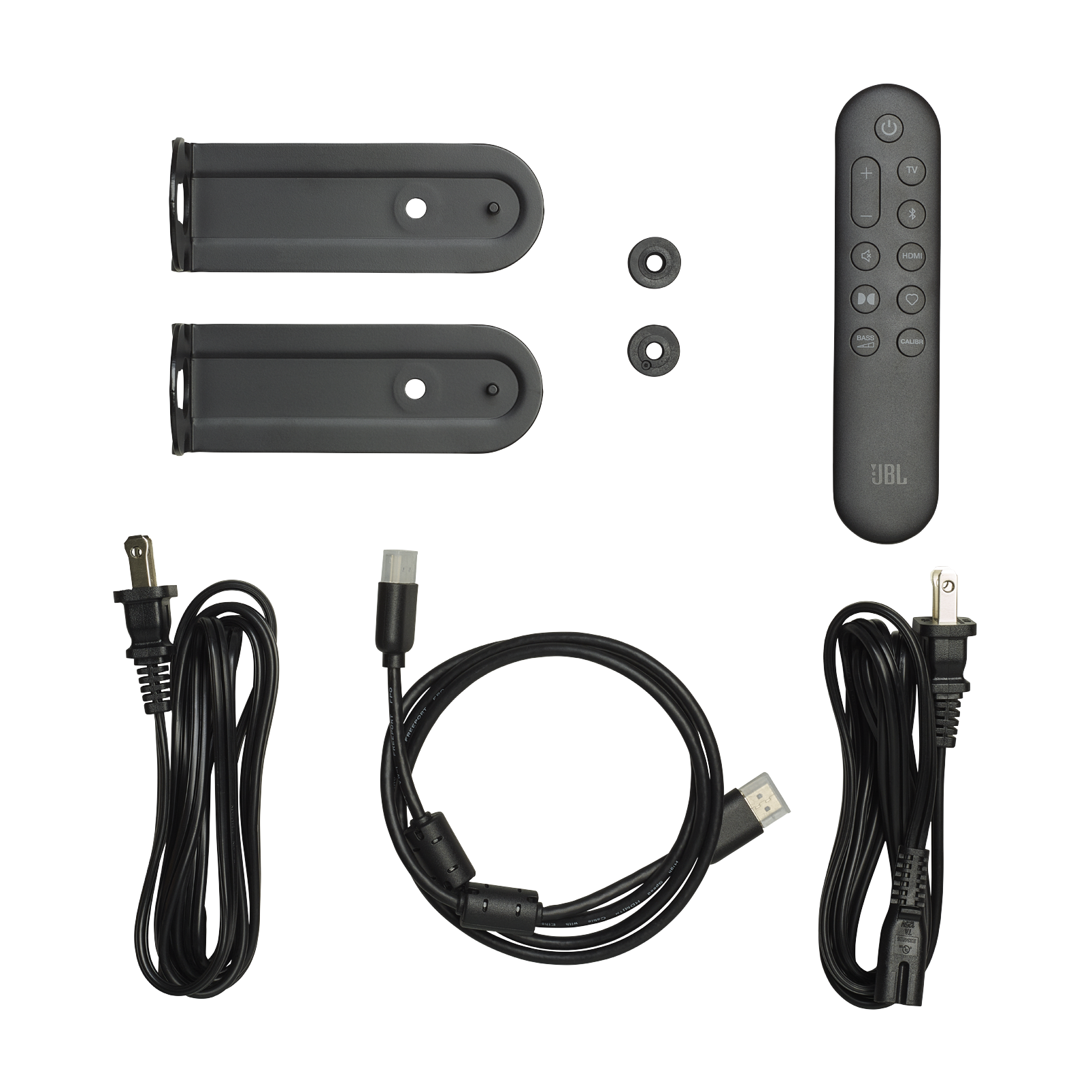

What's in the Box

• 1 × JBL Bar 300 Soundbar
• 1 × Remote Control with 2 Batteries
• Power Cords (quantity varies by region)
• 1 × HDMI Cable
• 2 × L-Shaped Wall-Mount Brackets
• 1 × Wall-Mount Template
• 1 × Quick Start Guide
• 1 × Safety Instruction & Warranty Card

Disclaimer

Some features may require subscriptions or services that are not available in all countries.
