JBL Bar 2.0 All-in-one (MK2) Compact 2.0 channel soundbar -1 year JBL Warranty

JBL Bar 2.0 All-in-One

Warranty

• 1-Year Official Warranty by JBL Singapore
• Service Centre Location: 60 Marsiling Rd, SKM Building, Singapore 739107

Features

• Deep Bass
• Surround Yourself with Sound
• Visit the Movies, From Your Sofa
• Stream It All
• Low-Profile Design
• Make a Connection

Technical Specifications

General Specifications

• Power Supply: 100 - 240V AC, ~50/60Hz
• Total Speaker Power Output (Max. @ THD 1%): 80W
• Soundbar Output Power (Max. @ THD 1%): 2 × 40W
• Soundbar Transducers: 2 × Racetrack Drivers
• Soundbar Standby Power: <0.5W
• Operating Temperature: 0°C – 45°C

Video Specifications

• HDMI Video Output (with Audio Return Channel): 1

Audio Specifications

• Frequency Response: 70Hz – 20kHz
• Audio Inputs:
• Optical Input ×1
• Bluetooth
• USB (USB playback available in US version only; service port for other regions)

USB Specifications

• USB Port: Type-A
• USB Rating: 5V DC / 0.5A
• Supported File Formats: MP3, WAV

MP3 Support

• Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• Sampling Rate: 16kHz – 48kHz
• Bitrate: 80kbps – 320kbps

WAV Support

• Sampling Rate: 16kHz – 48kHz
• Bitrate: Up to 3000kbps

Wireless Specifications

Bluetooth

• Bluetooth Version: 4.2
• Bluetooth Profile: A2DP V1.3, AVRCP V1.5
• Bluetooth Frequency Range: 2402MHz – 2480MHz
• Bluetooth Max Transmitting Power: <10dBm (EIRP)
• Bluetooth Modulation: GFSK, π/4-DQPSK, 8DPSK

Dimensions & Weight

Soundbar

• Dimensions (W × H × D): 614 × 56 × 90 mm / 24.2" × 2.2" × 3.5"
• Weight: 1.6 kg

Packaging

• Packaging Dimensions (W × H × D): 855 × 125 × 145 mm
• Gross Weight: 2.6 kg

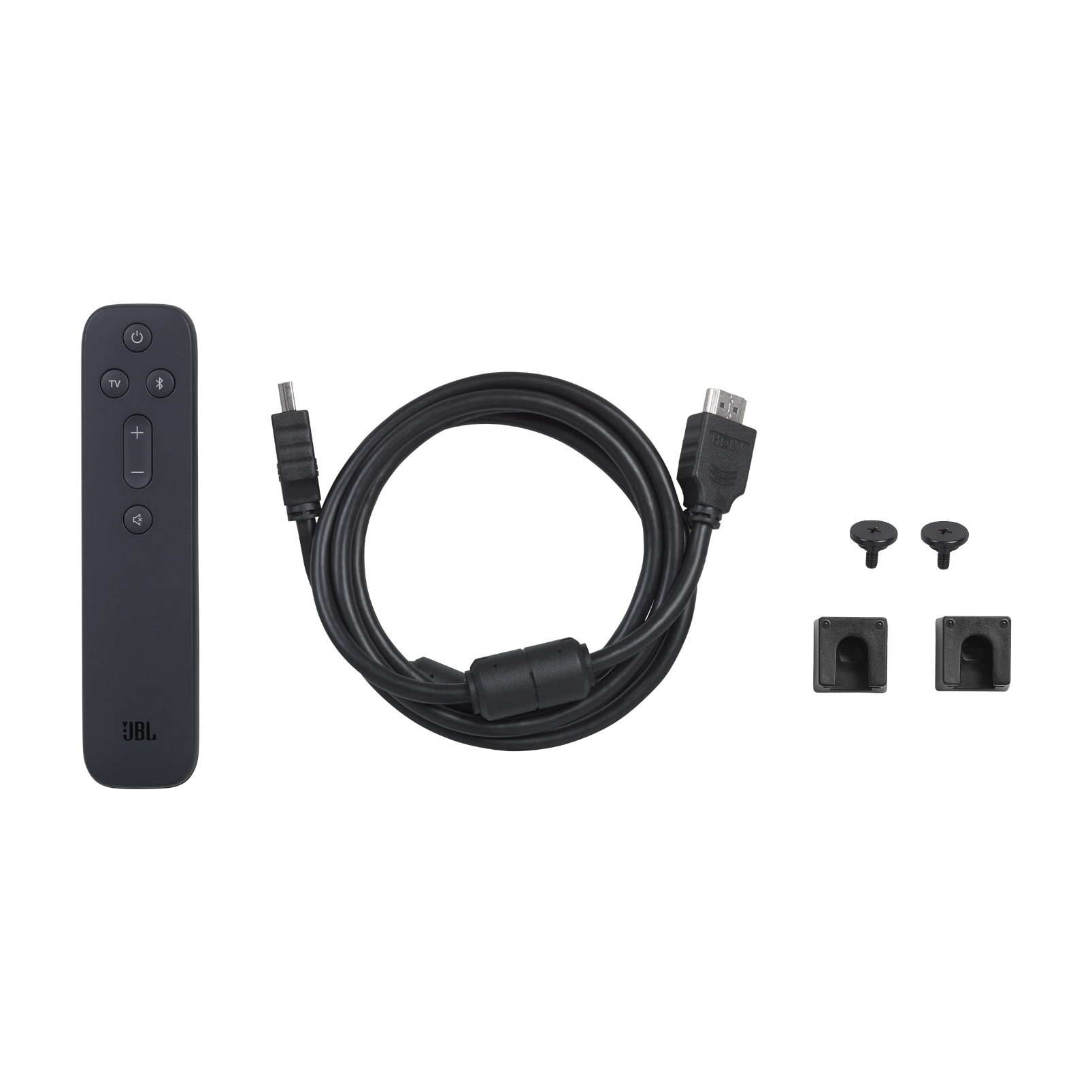

What's in the Box

• 1 × JBL Bar 2.0 All-in-One Soundbar
• 1 × Remote Control with Batteries
• Power Cables (up to 4 pcs depending on region)
• 1 × HDMI Cable
• 1 × Wall-Mount Bracket Kit with Screws
• 1 × Quick Start Guide
• 1 × Warranty Card
• 1 × Safety Sheet
