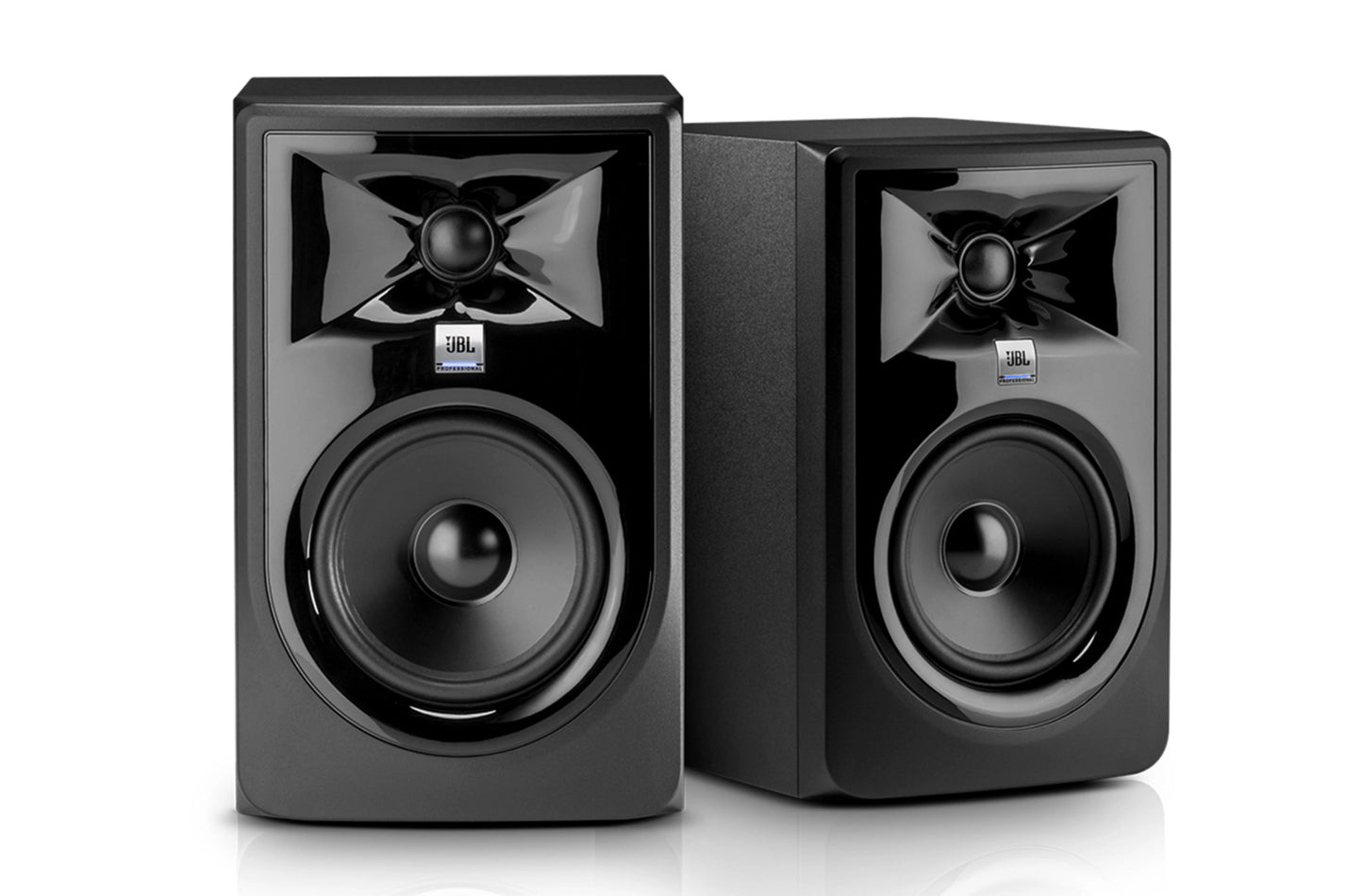

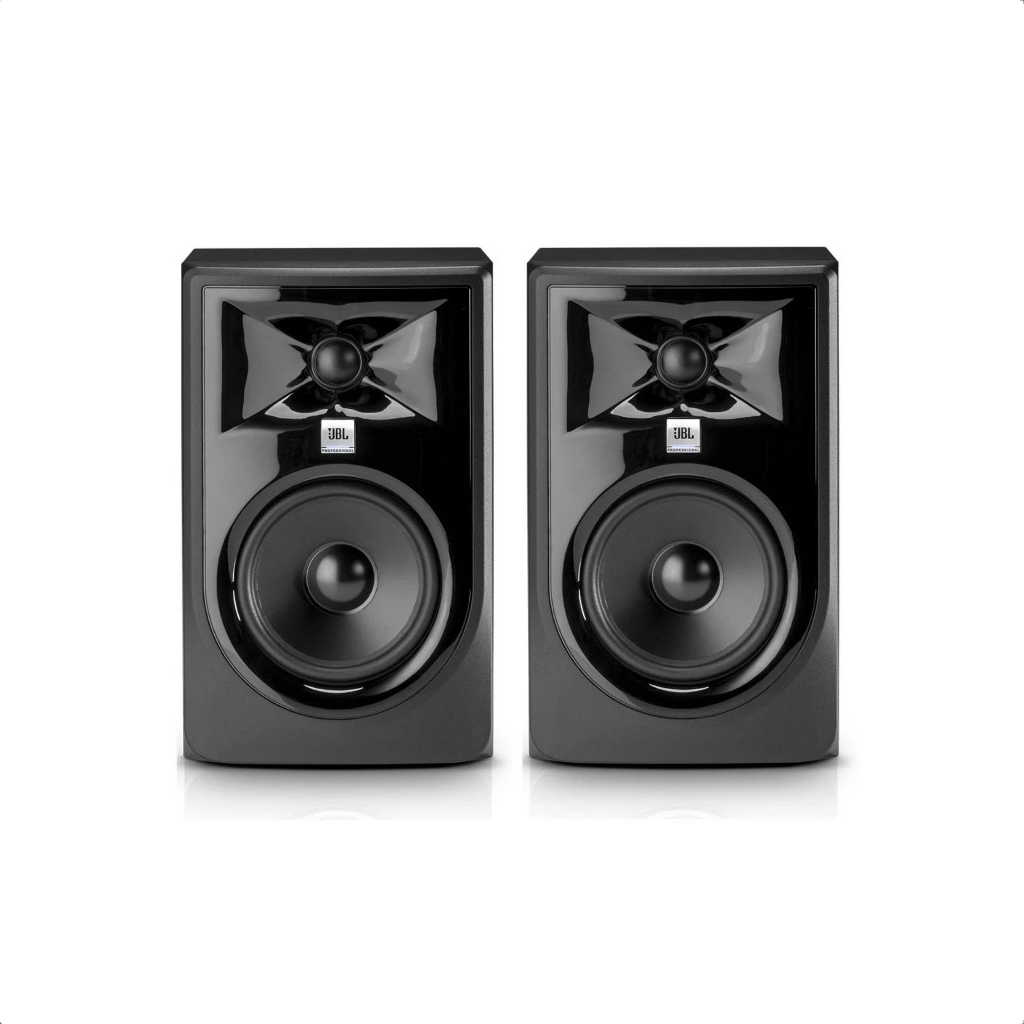

JBL 305P MkII Powered 5" Two-Way Studio Monitor Speaker (Single) (Pair)

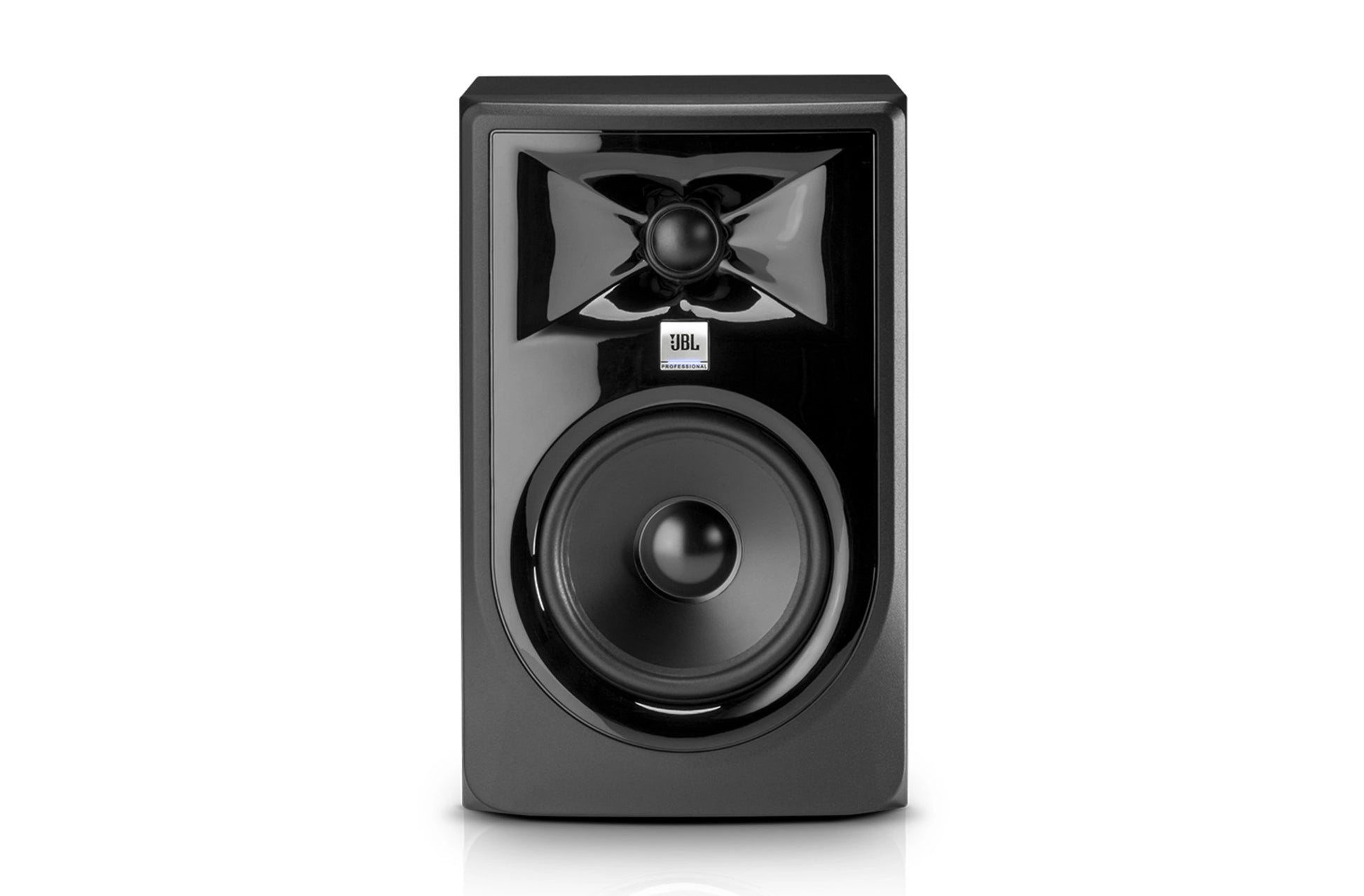

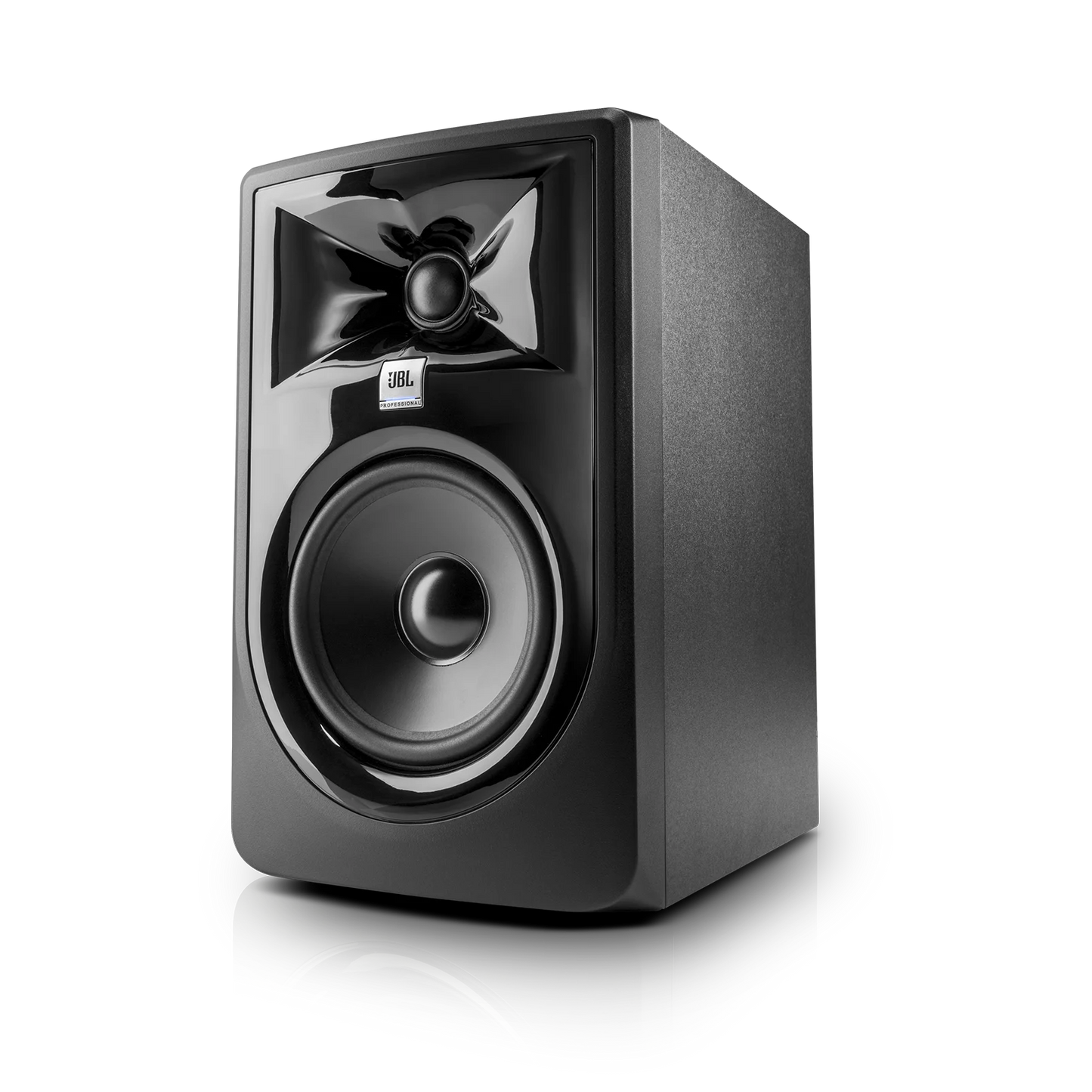

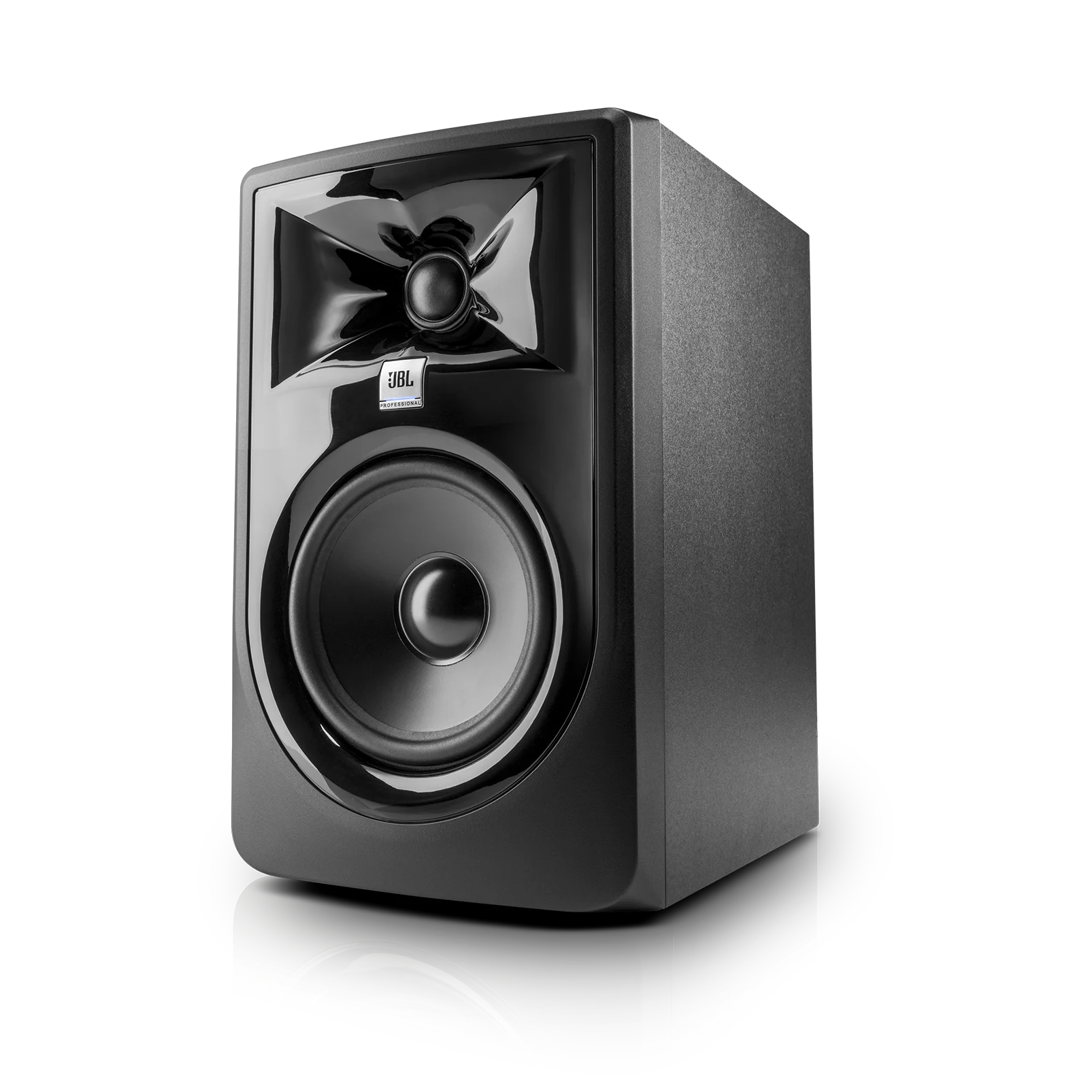

JBL 305P MkII Powered Studio Monitor

The JBL 305P MkII is a powered studio monitor designed to deliver detailed sound, precise imaging, a wide sweet spot, and impressive dynamic range. Featuring JBL's patented Image Control Waveguide, next-generation JBL transducers, and the patented Slip Stream™ low-frequency port, the 305P MkII provides accurate low-end performance and clear, detailed highs.

The monitor features dual integrated Class-D amplifiers providing 82W of total power, along with Boundary EQ and a 3-position HF Trim switch to adjust the sound according to the listening environment or personal preference.

Highlights

• Patented Image Control Waveguide for precise imaging, depth, wide sweet spot, and neutral response
• Next-generation JBL transducers for optimized transient response and improved linearity
• Dual Class-D power amplifiers for ample headroom and dynamic range
• New Boundary EQ to compensate for low-end boost when placed on a desktop or near walls
• 3-position HF Trim switch for high-frequency adjustment
• Patented Slip Stream™ low-frequency port for improved bass performance
• Woven-composite 1" Neodymium tweeter
• Long-throw 5" woofer
• 82W total power
• Designed according to JBL Linear Spatial Reference criteria
• JBL 100-hour full-power test for reliability
• Sleek, modern design

Features

• Patented Image Control Waveguide
• Next-generation JBL transducers
• Patented Slip Stream™ low-frequency port
• Dual integrated, custom Class-D amplifiers
• New Boundary EQ settings
• HF Trim switch

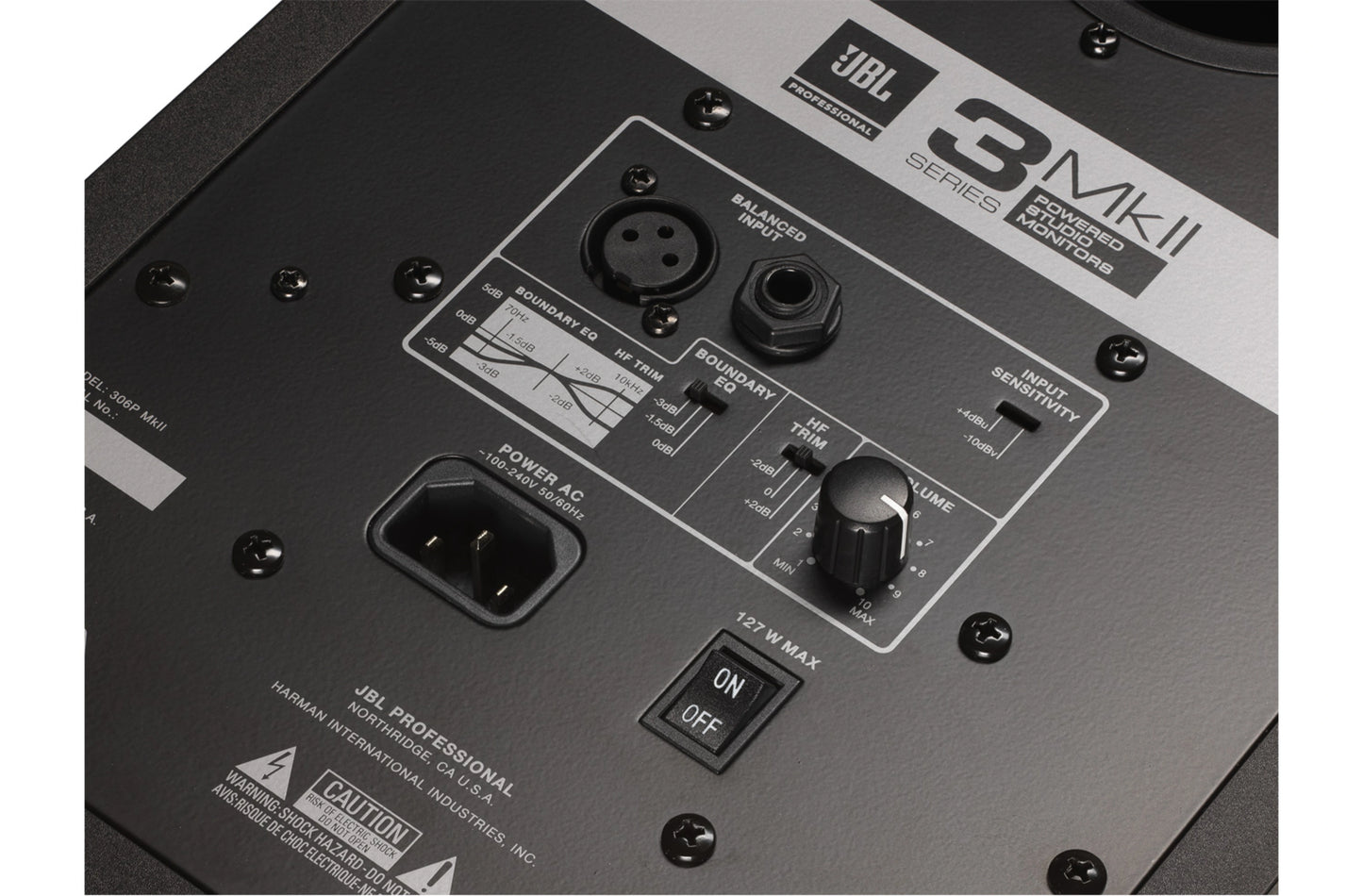

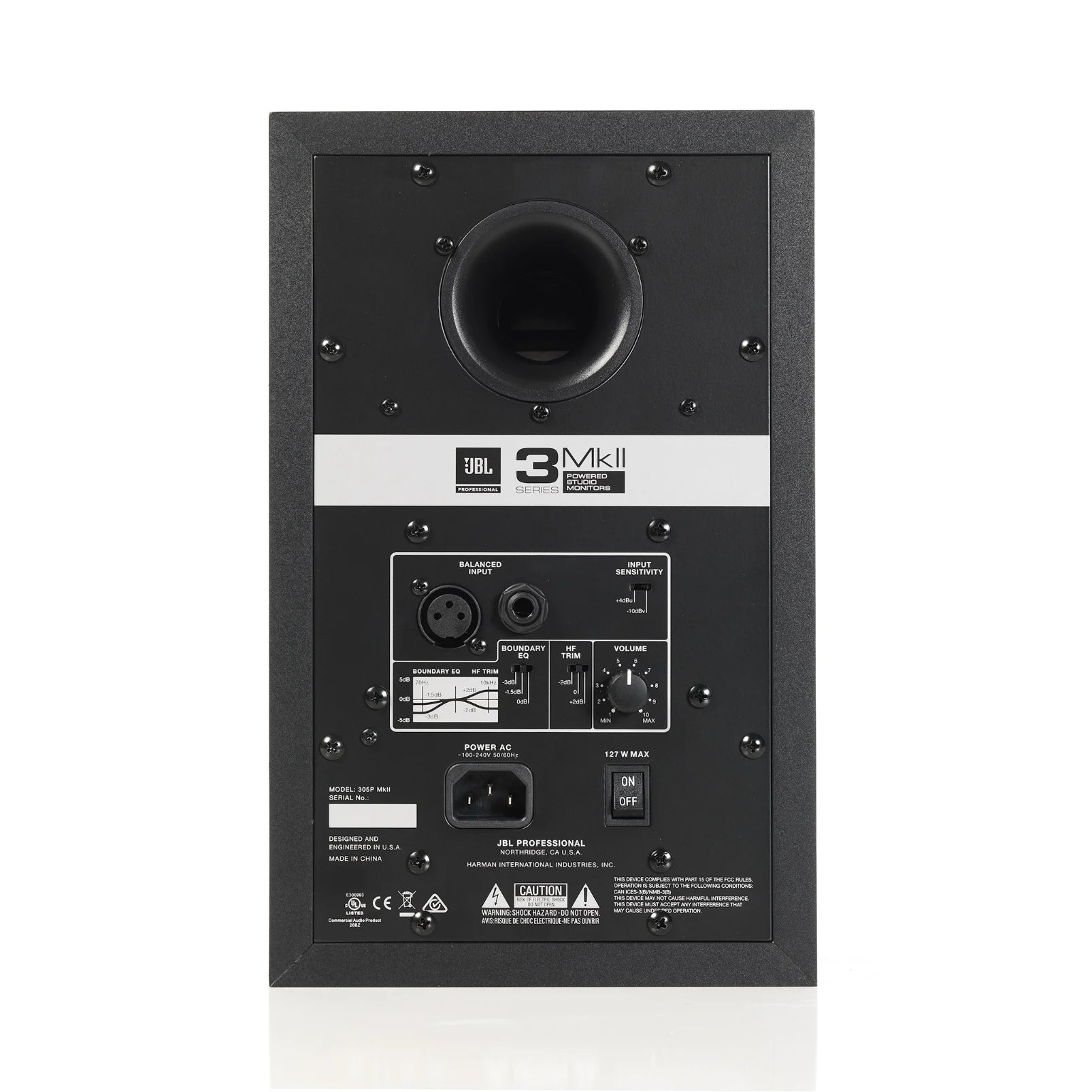

• Balanced XLR and 1/4" TRS inputs
• +4dBu / -10dBV input-sensitivity switch
• Adjustable volume control
• JBL Linear Spatial Reference design criteria
• JBL 100-hour full-power test
• Modern studio design

Technical Specifications

• LF Driver Size: 203mm (5")
• HF Driver Size: 25mm (1")
• HF Driver Type: Soft dome
• Crossover: 1725Hz 4th order acoustic Linkwitz-Riley
• OK for Use Near Magnetically Sensitive Equipment: Yes
• Input Sensitivity (-10dBV Input): 92dB / 1m
• Power Configuration: Bi-amplified
• HF Driver Power Amp: 41W, Class-D
• LF Driver Power Amp: 41W, Class-D
• Frequency Response (±3dB): 49Hz – 20kHz
• Frequency Range (-10dB): 43Hz – 24kHz
• Low Frequency Extension (-10dB): 43Hz
• Maximum Continuous SPL*: 94dB
• Maximum Peak SPL**: 108dB
• Maximum Peak Input Level (-10dBV / +4dBu): +6dBV / +20.3dBu
• System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
• Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
• Signal to Noise Ratio: 75dBA (A-weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage Horizontal × Vertical: 120° × 90°
• Analog Input Types: 1 × XLR female, 1 × TRS female, balanced
• HF Trim Control: -2dB, 0dB, +2dB
• Boundary EQ: LF Shelf: 50Hz: -3dB, -1.5dB, 0dB
• AC Input Voltage: 100 – 240VAC (±10%), 50 / 60Hz
• Enclosure Type: Ported
• Enclosure Construction: 15mm MDF
• Enclosure Finish: Matte black PVC
• Baffle Construction: Injection-molded structural ABS

Dimensions & Weight

• Cabinet Dimensions (H × W × D***): 298 × 185 × 231mm (11.7" × 7.3" × 9.1")
• Display Carton (H × W × D): 354 × 244 × 299mm (13.9" × 9.6" × 11.8")
• Shipping Carton (H × W × D): 373 × 260 × 315mm (14.7" × 10.2" × 12.4")
• Net Weight: 4.73kg (10.43lbs)
• Shipping Gross Weight: 5.72kg (12.61lbs)

Order Specifications

• Box Dimensions (H × W × D): 14.7" × 10.2" × 12.4"
• Shipping Weight: 12.61lbs
