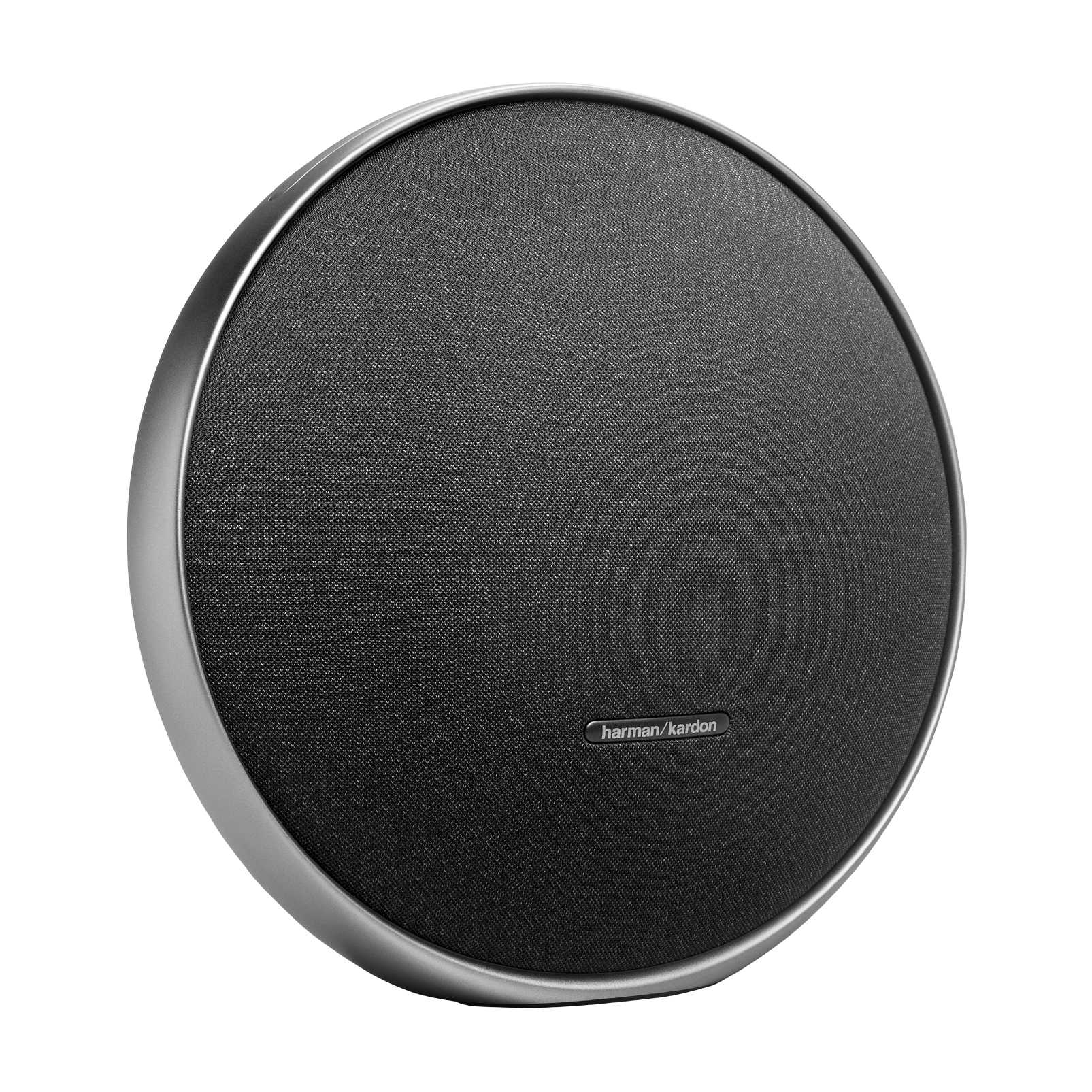

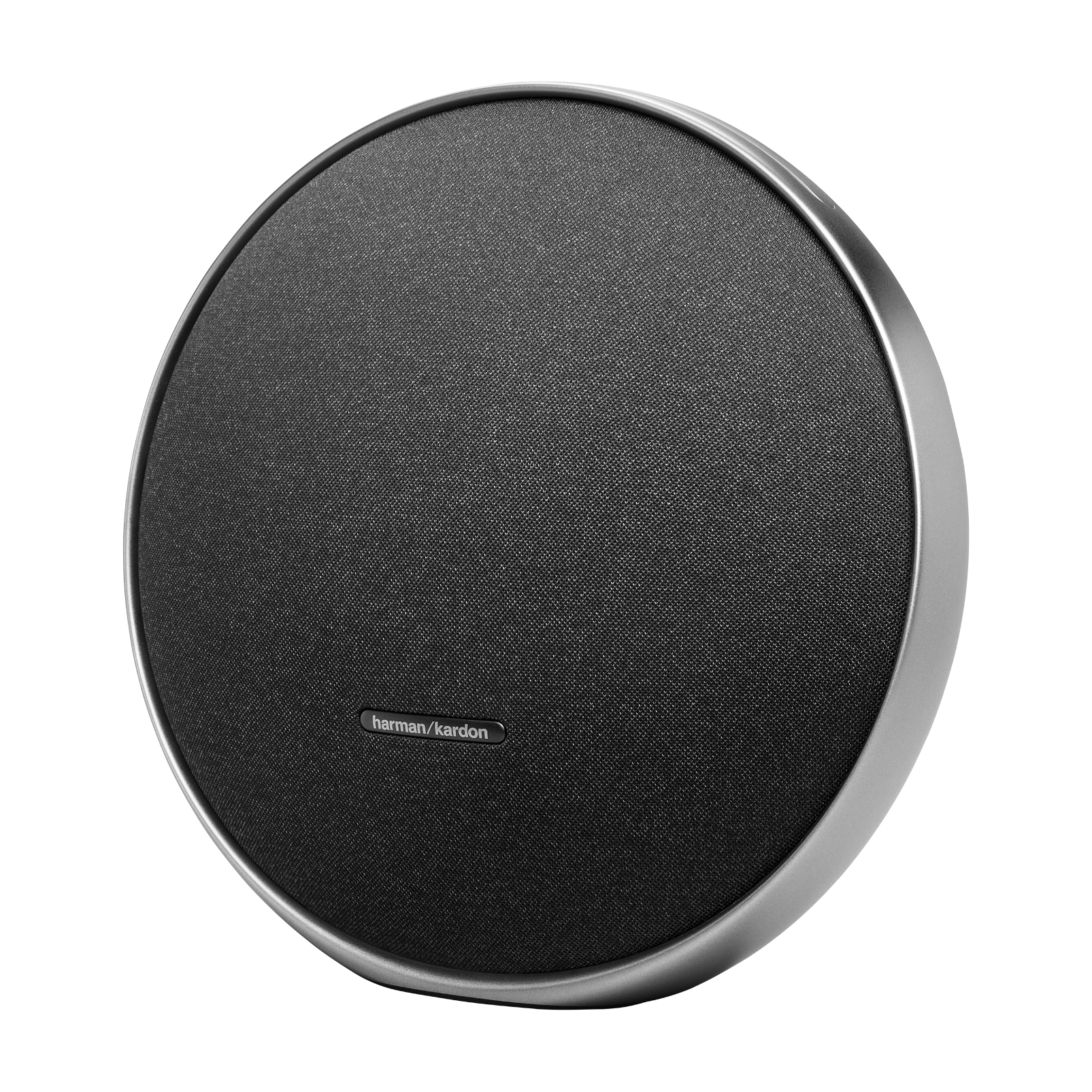

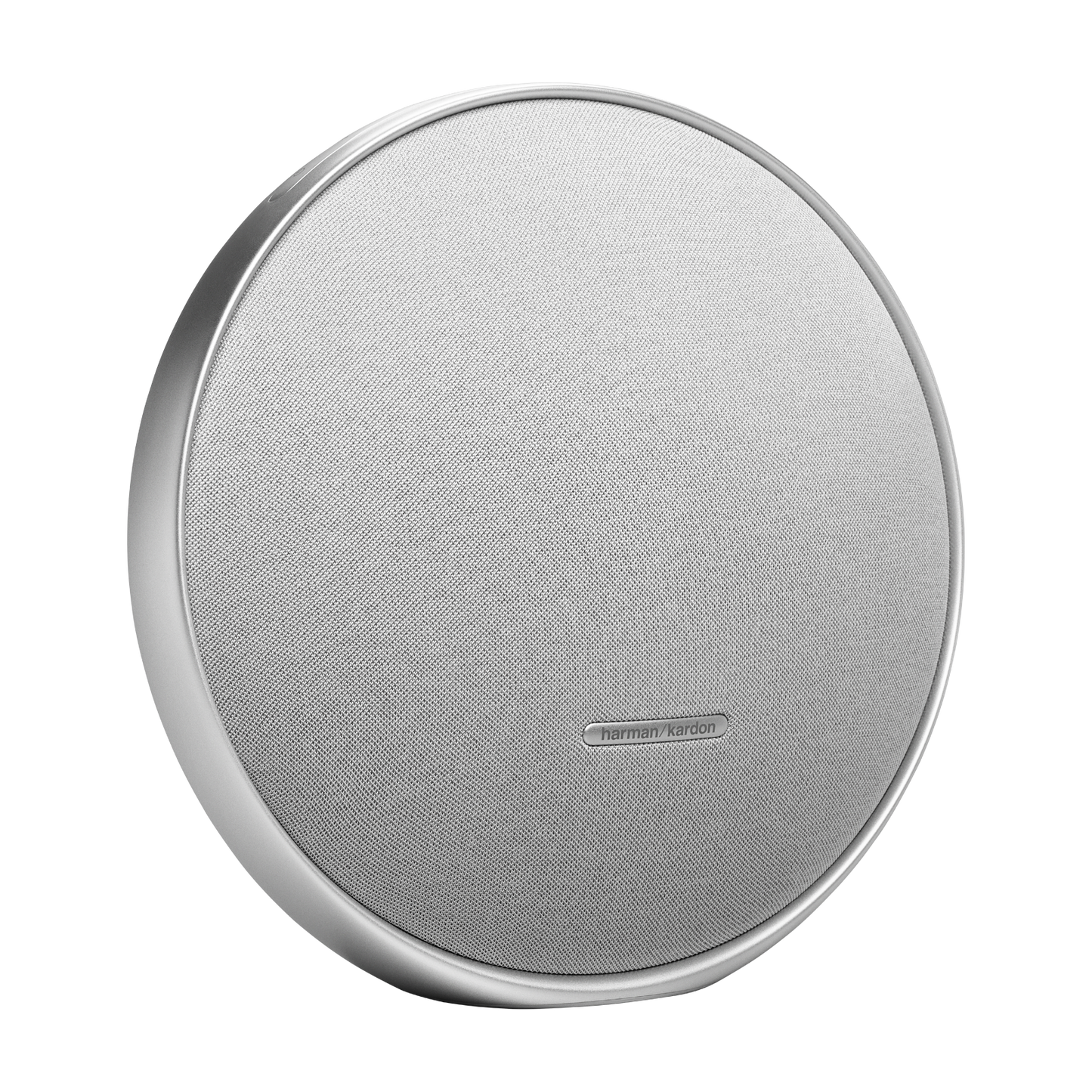

Harman Kardon Onyx Studio 9 Portable Bluetooth Speaker
Warranty
• 1-Year Official Warranty by Harman Kardon Singapore
Features

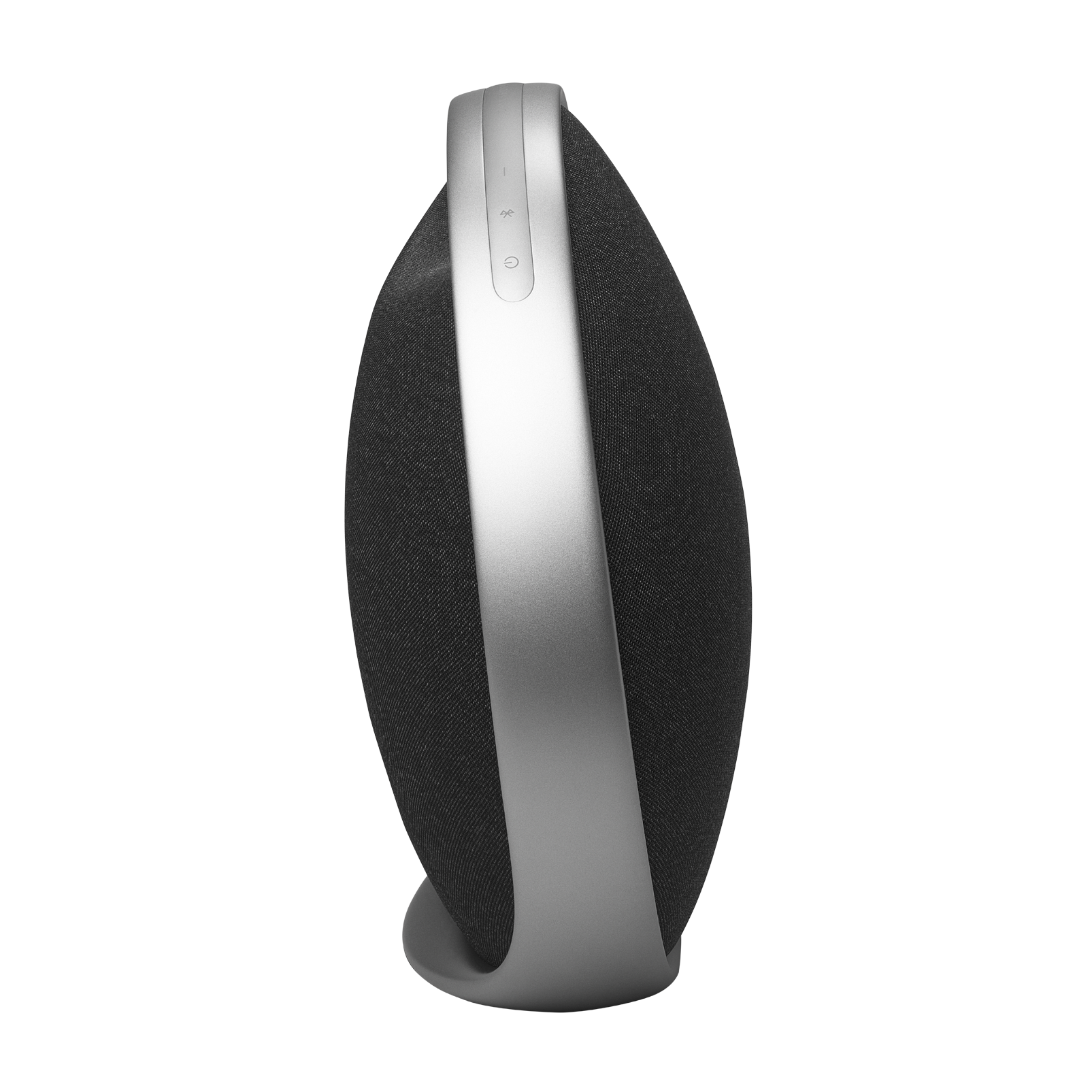

• Superior Sound Performance with a Wider Soundstage • Iconic Premium Design with Integrated Aluminum Handle • Bluetooth® Music Streaming (Connect up to 2 Mobile Devices Simultaneously) • Multi-Speaker Connection via Auracast™ • Built-in Rechargeable Battery with Up to 8 Hours Playtime • Automatic Self-Tuning for Optimized Sound Anywhere • Stereo Pairing with Two Onyx Studio 9 Speakers • USB Charging Port for Mobile Devices • Control & Customize with Harman Kardon One App
Technical Specifications
Audio Specifications

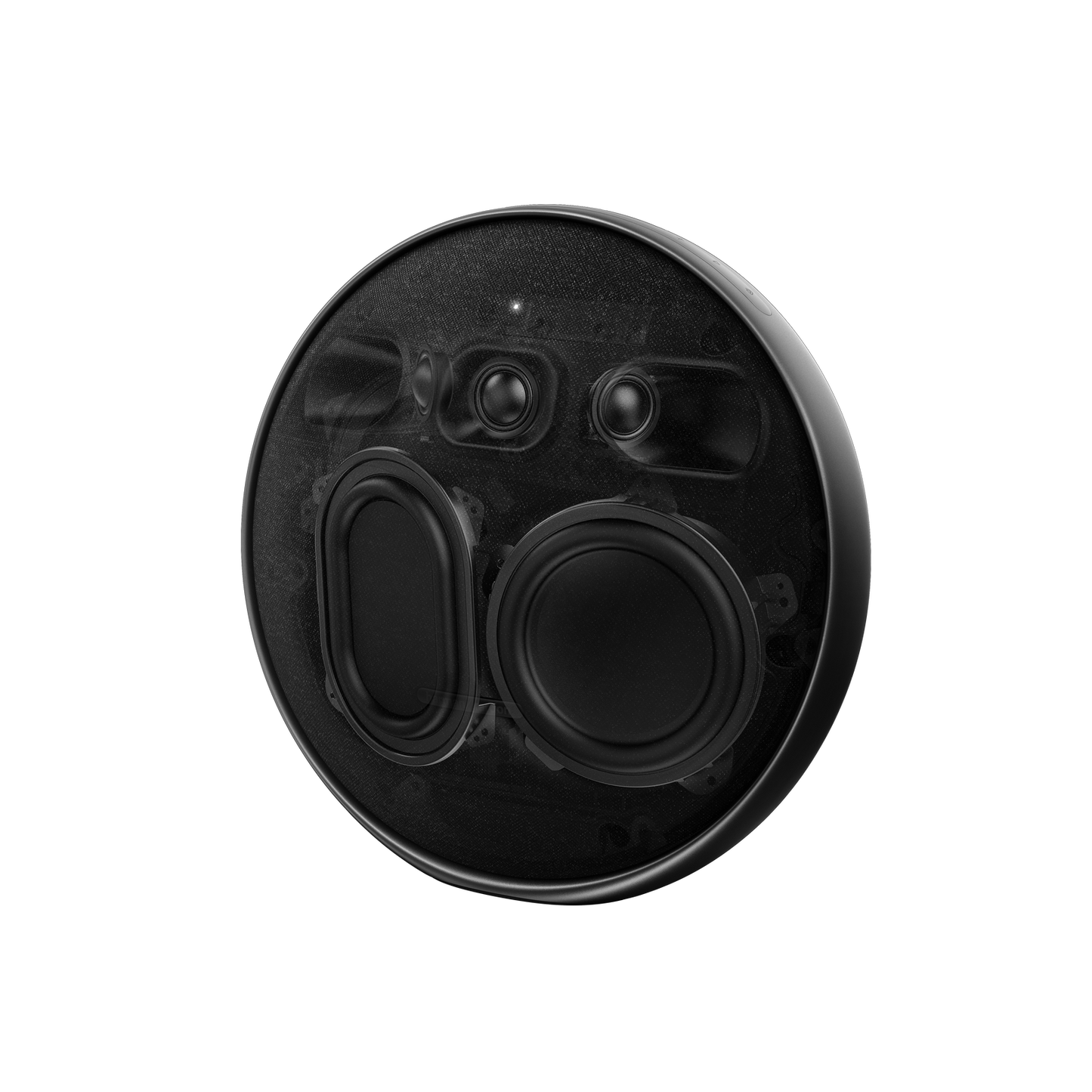

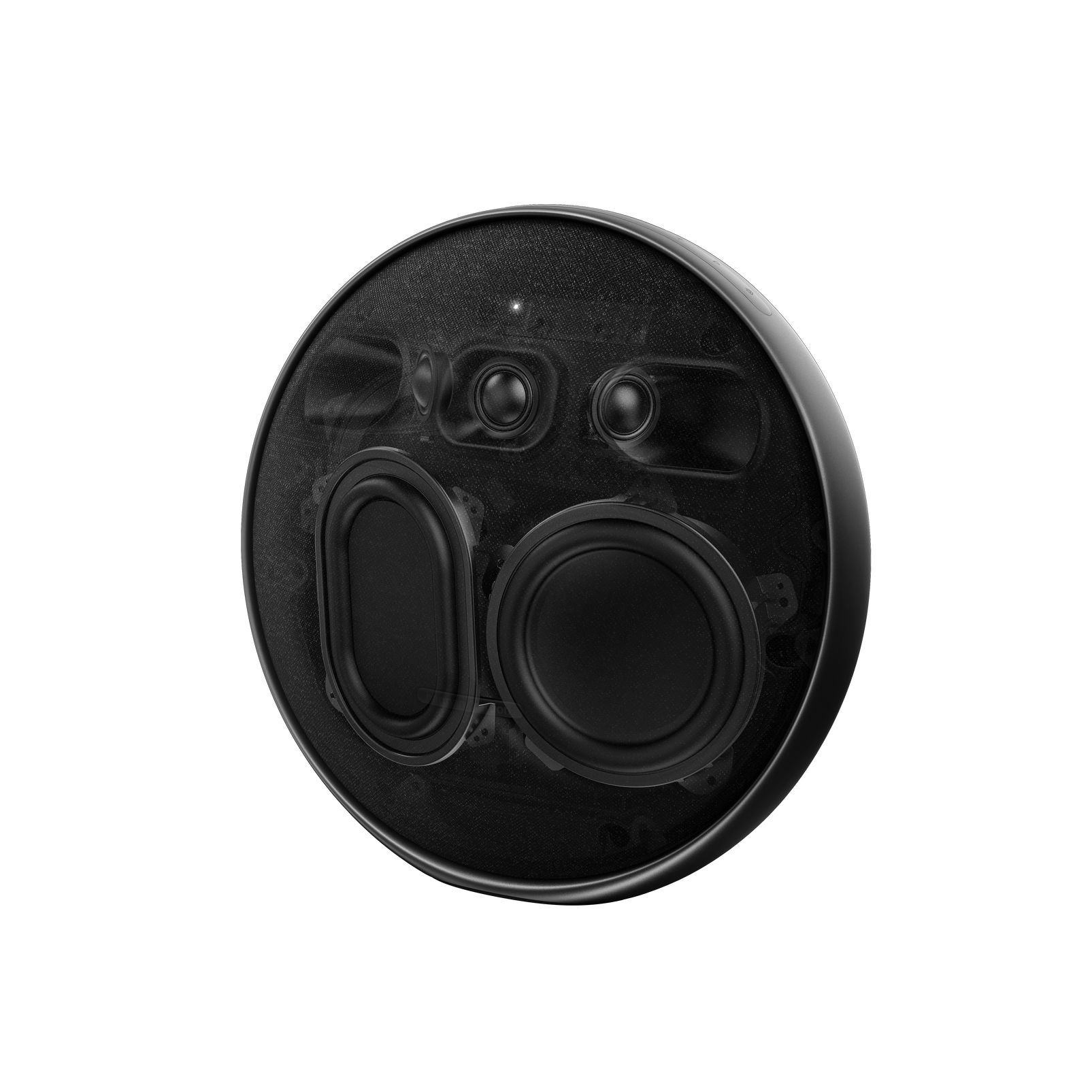

• Speaker Configuration: • 1 × 120 mm Woofer • 3 × 20 mm Tweeters
• Bluetooth Version: 5.3 • Bluetooth Profiles: • A2DP 1.4 • AVRCP 1.6
• Bluetooth Frequency Range: 2400 MHz – 2483.5 MHz • Bluetooth Transmitter Power: ≤16 dBm (EIRP) • Bluetooth Modulation: • GFSK • π/4 DQPSK • 8DPSK
Battery Specifications
• Battery Type: Li-ion 17.15 Wh (Equivalent to 3.63V / 4722mAh) • Battery Charging Time: 4 Hours • Music Playback Time: Up to 8 Hours (Varies by Volume Level and Audio Content)
USB Specifications
• USB Port: USB Type-C • USB Output: 5V / 2.1A (Max) • Supported File Format: MP3 • USB Playback: • US Version: Audio Playback Supported • Other Regions: Service Use Only
Power
• Power Supply: 100–240V AC, 50/60Hz • AC Power Cable Length: 2.0 m (6.6 ft)
Dimensions & Weight
• Product Dimensions (W × H × D): 289.2 × 287.5 × 130 mm (11.39" × 11.32" × 5.12") • Packaging Dimensions (W × H × D): 312 × 322 × 172 mm (12.28" × 12.67" × 6.77") • Net Weight: 3.36 kg (7.42 lbs) • Gross Weight: 4.2 kg (9.25 lbs)

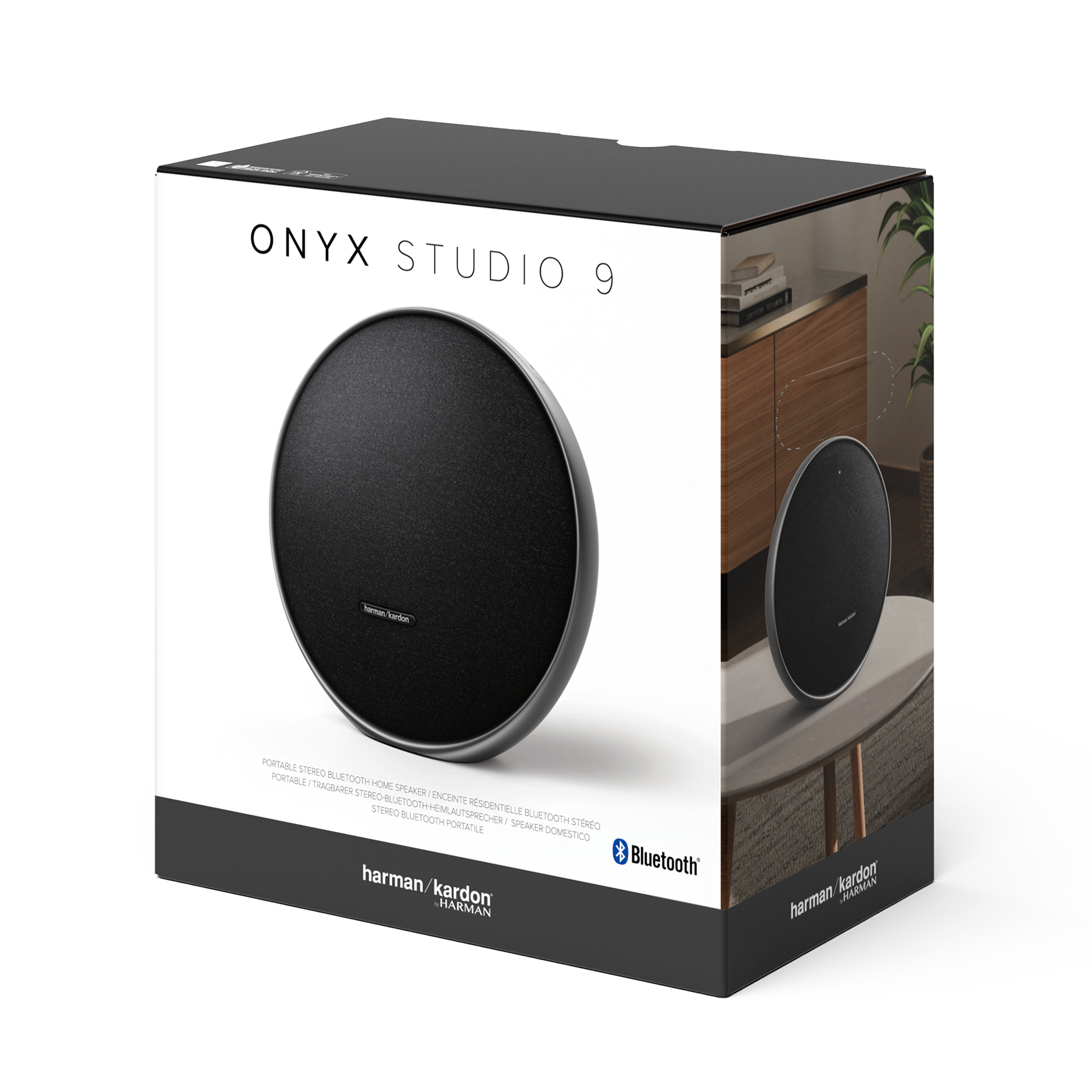

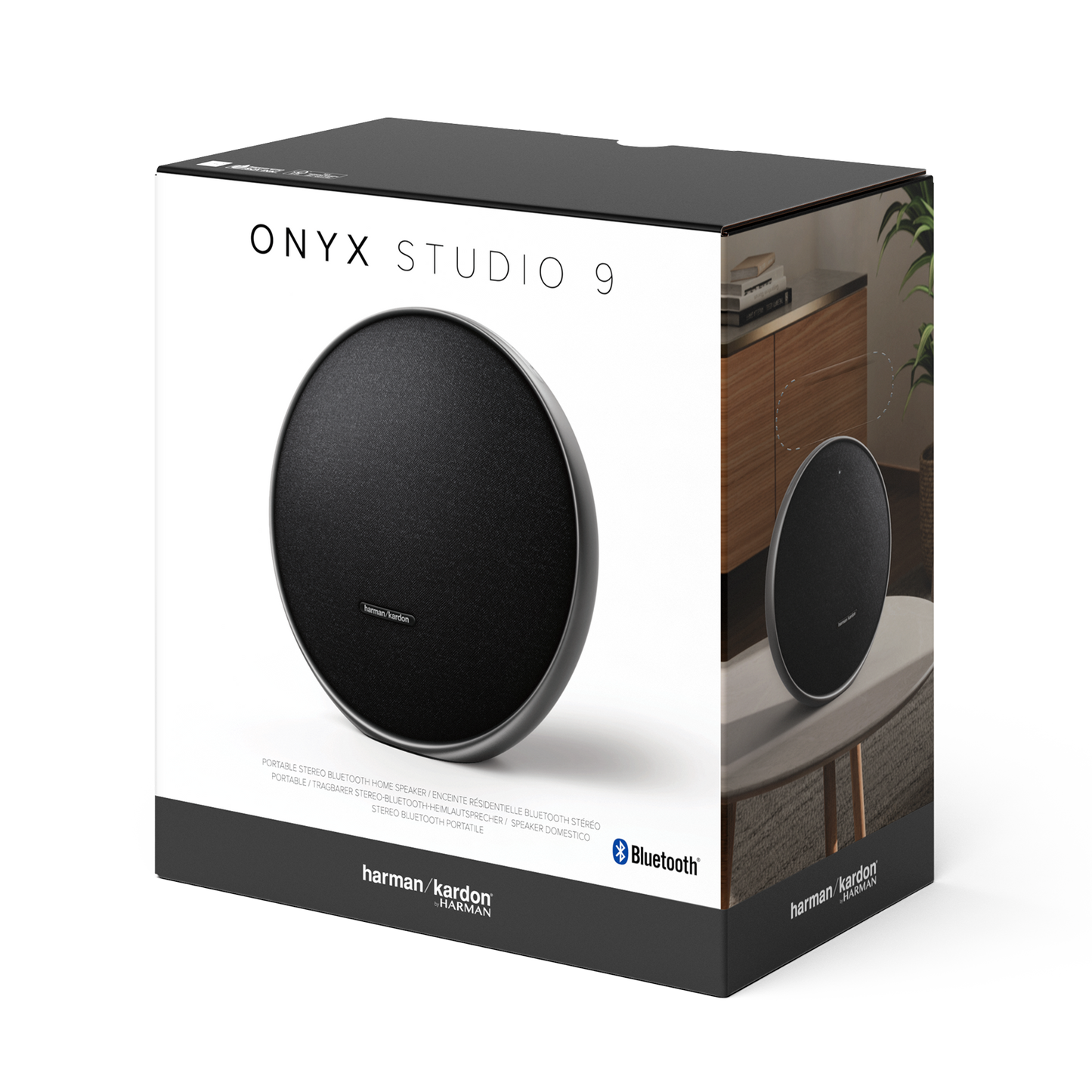

What's in the Box
• 1 × Harman Kardon Onyx Studio 9 • 1 × AC Power Cable • 1 × Quick Start Guide • 1 × Safety Sheet • 1 × Warranty Card
