CINEMA SB510 3.1 Channel Soundbar with a Built-in Subwoofer - 1 Year JBL Warranty

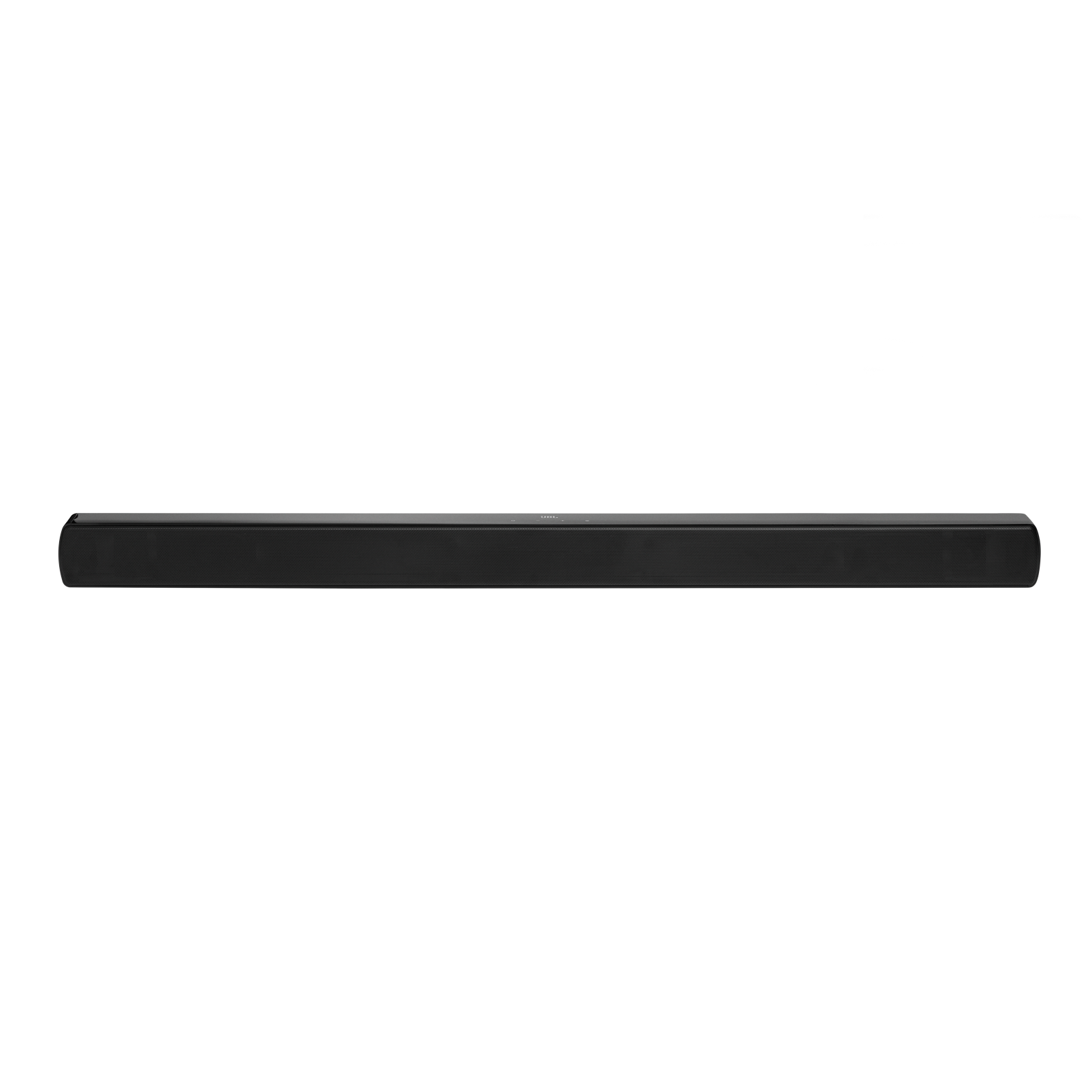

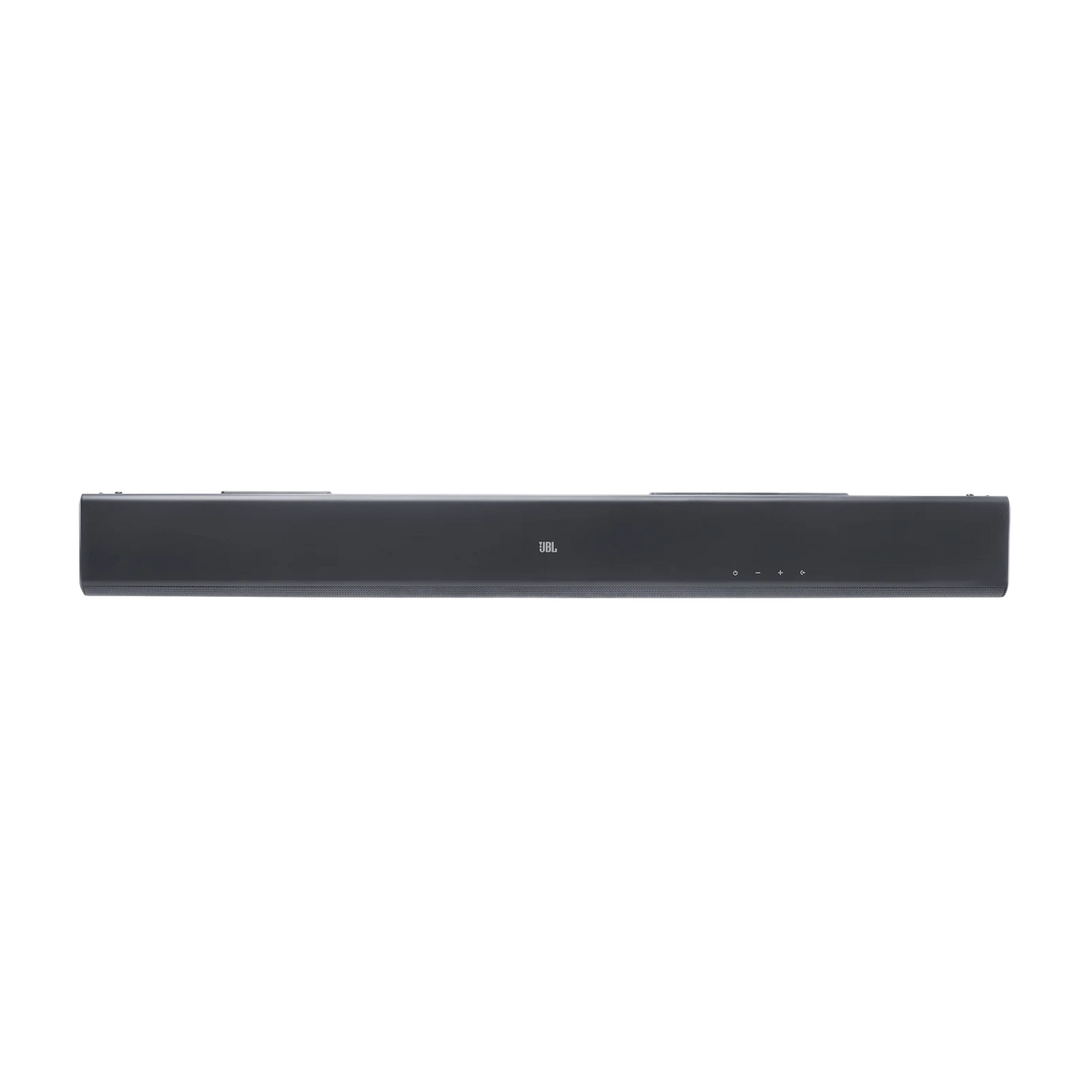

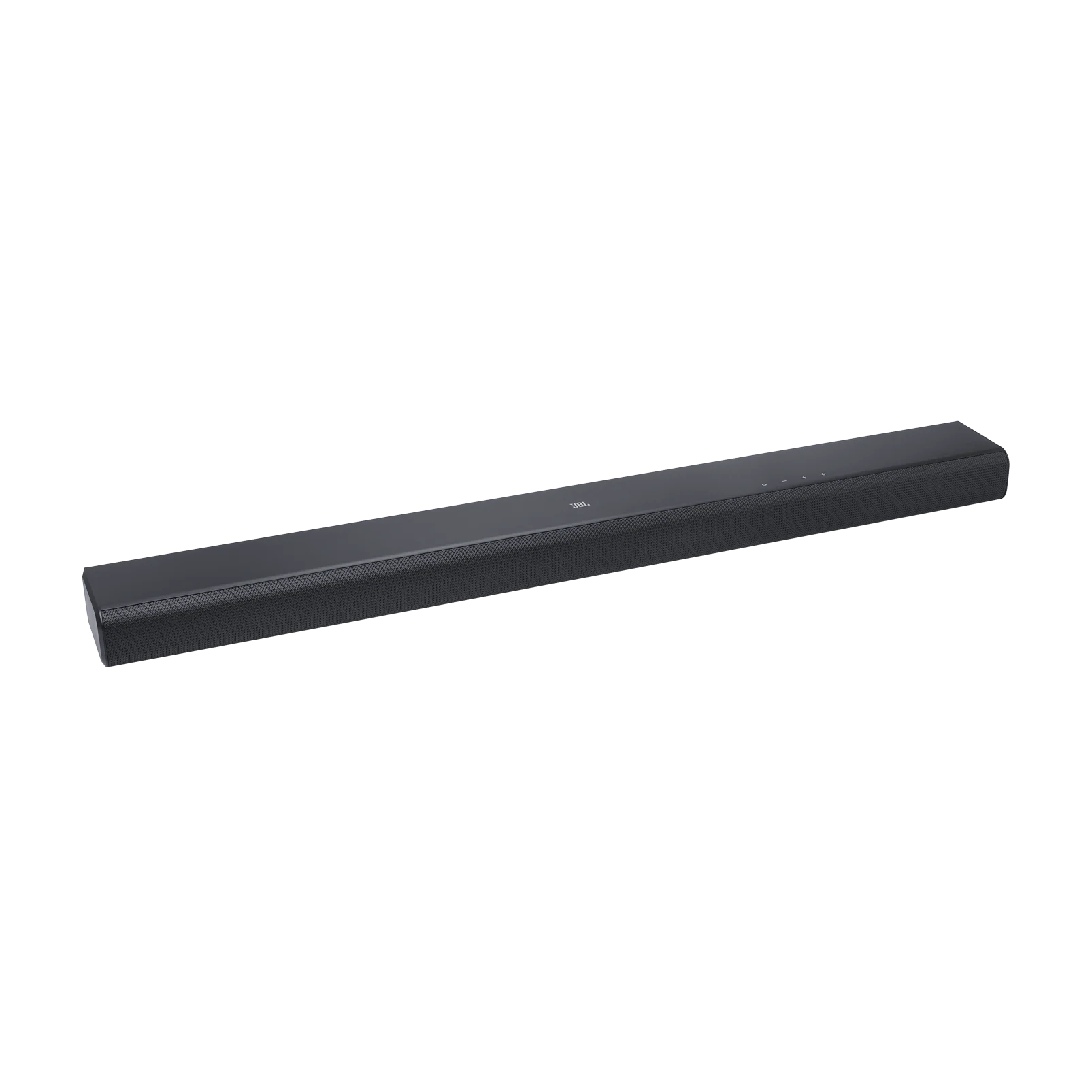

JBL Cinema SB510

Warranty

• 1-Year Official Warranty by JBL Singapore
• Service Centre Location: 60 Marsiling Rd, SKM Building, Singapore 739107

Features

• Dedicated Center Channel for Superior Voice Clarity
• Built-in Subwoofer
• One-Cable Connection with HDMI ARC
• Wireless Music Streaming via Bluetooth
• Dolby Audio Embedded

Technical Specifications

General Specifications

• Model: JBL Cinema SB510
• Sound System: 3.1 Channel
• Power Supply: 100 – 240V AC, ~50/60Hz
• Total Speaker Power Output (Max @ THD 1%): 200W
• Soundbar Output Power (Max @ THD 1%): 150W
• Built-in Subwoofer Output Power (Max @ THD 1%): 50W
• Standby Power: <0.5W
• Operating Temperature: 0°C – 45°C

Speaker Configuration

Soundbar

• 3 × (45 × 80mm) Racetrack Drivers

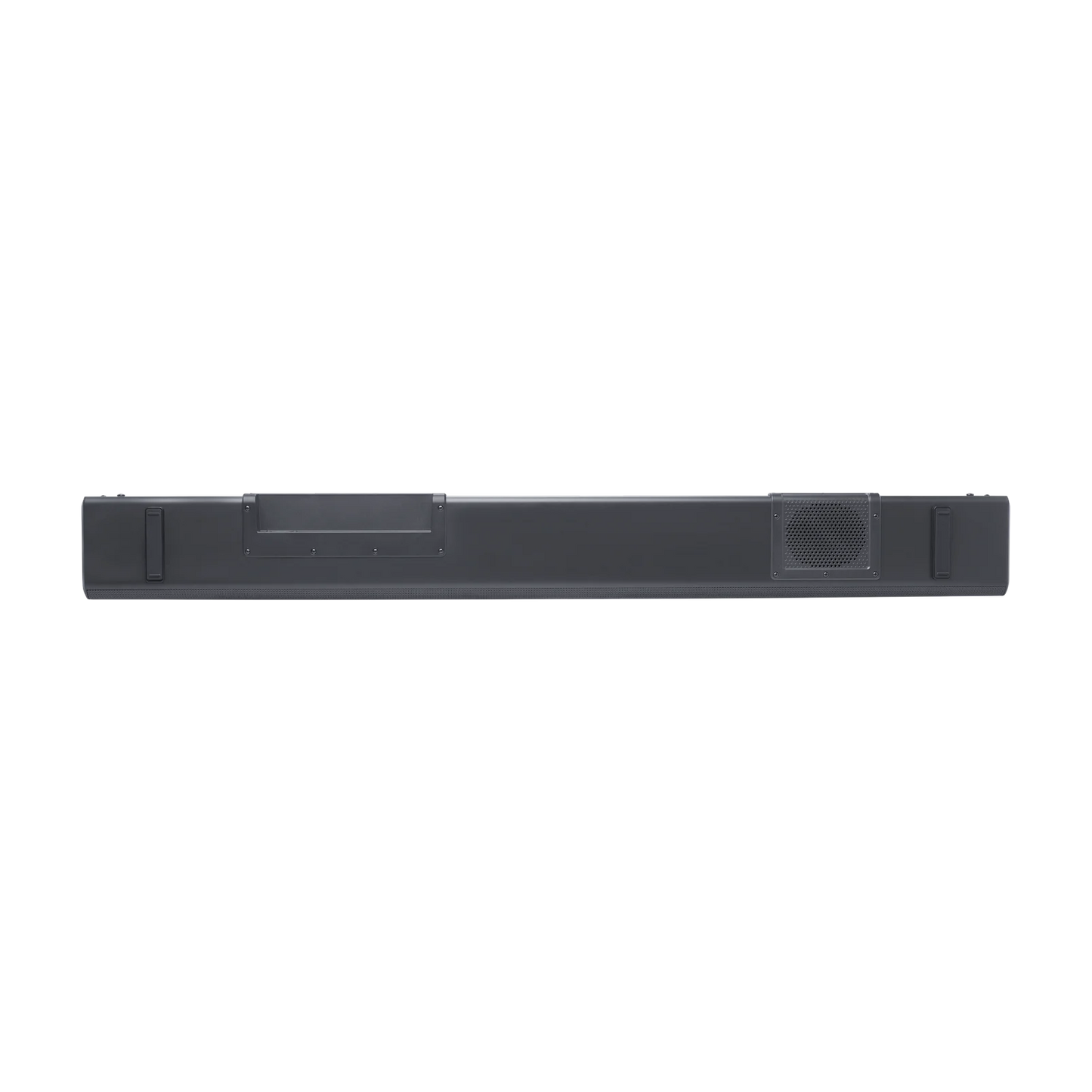

Built-in Subwoofer

• 1 × (70 × 88mm) Driver

HDMI Specifications

• HDMI ARC (Audio Return Channel): 1
• HDMI HDCP Version: 1.4

Audio Specifications

• Frequency Response: 55Hz – 20kHz (-10dB)
• Audio Inputs:
• Optical
• Bluetooth
• USB (USB playback available in US version only. Other versions use USB for service purposes.)

USB Specifications

• USB Port: Type-A
• USB Rating: 5V DC, 0.5A
• Supported File Format: MP3

MP3 Codec Support
• MPEG 1 Layer 2/3
• MPEG 2 Layer 3
• MPEG 2.5 Layer 3

MP3 Sampling Rate
• 16 – 48 kHz

MP3 Bitrate
• MPEG 1 Layer 1: 32 – 448 kbps
• MPEG 1 Layer 2: 32 – 384 kbps
• MPEG 1 Layer 3: 32 – 320 kbps
• MPEG 2/2.5 Layer 1: 32 – 256 kbps
• MPEG 2/2.5 Layer 2/3: 8 – 160 kbps

Wireless Specifications

• Bluetooth Version: 5.3
• Bluetooth Profile: A2DP 1.3, AVRCP 1.6
• Bluetooth Frequency Range: 2400MHz – 2483.5MHz
• Bluetooth Transmitter Power: <10dBm (EIRP)
• Bluetooth Modulation: GFSK, π/4 DQPSK, 8DPSK

Dimensions & Weight

Soundbar

• Dimensions (W × H × D): 950 × 67 × 105 mm
• 37.4" × 2.6" × 4.1"
• Weight: 3.5kg / 7.7 lbs

Packaging

• Dimensions (W × H × D): 1112 × 116 × 164 mm
• 43.8" × 4.6" × 6.5"
• Gross Weight: 5.0kg / 11.0 lbs

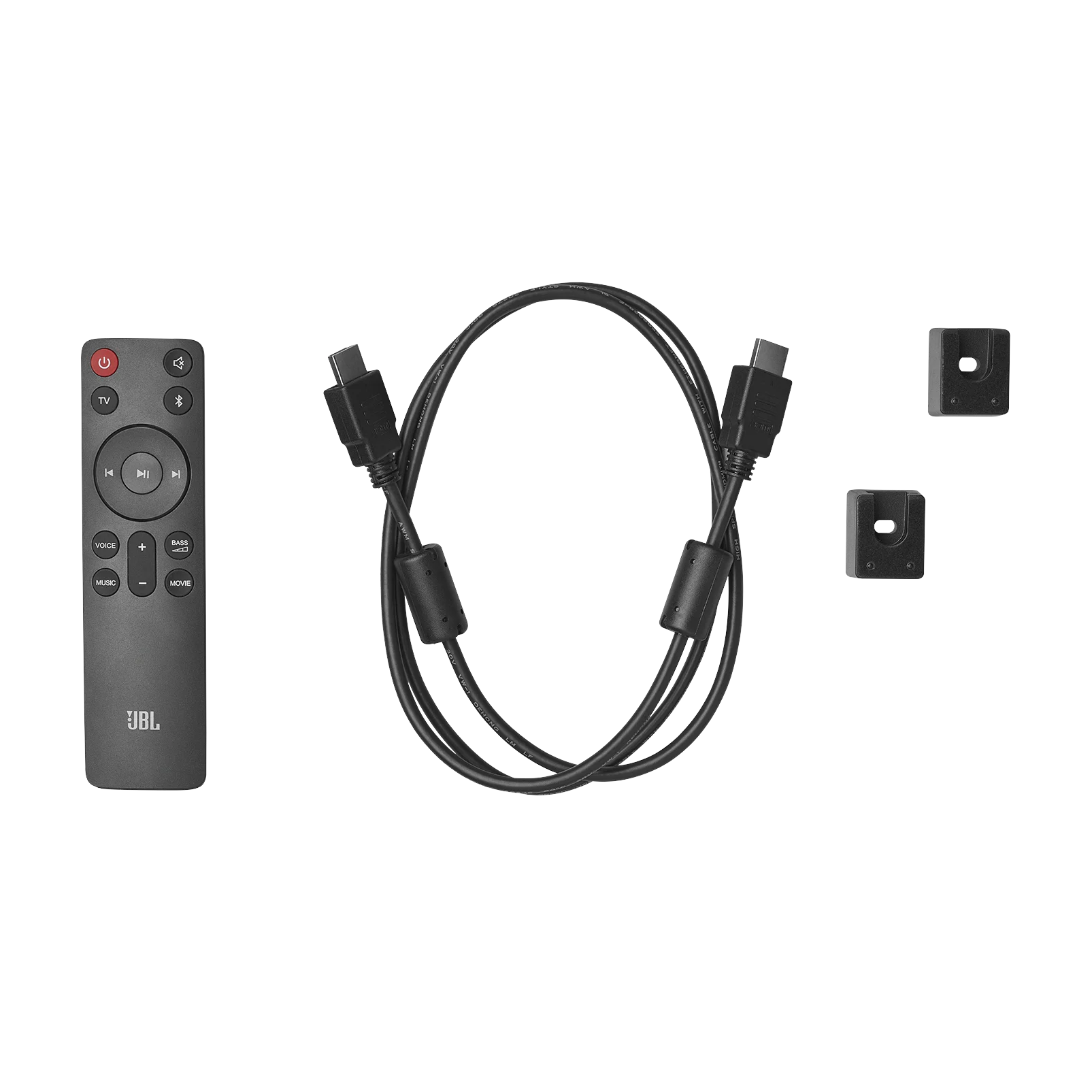

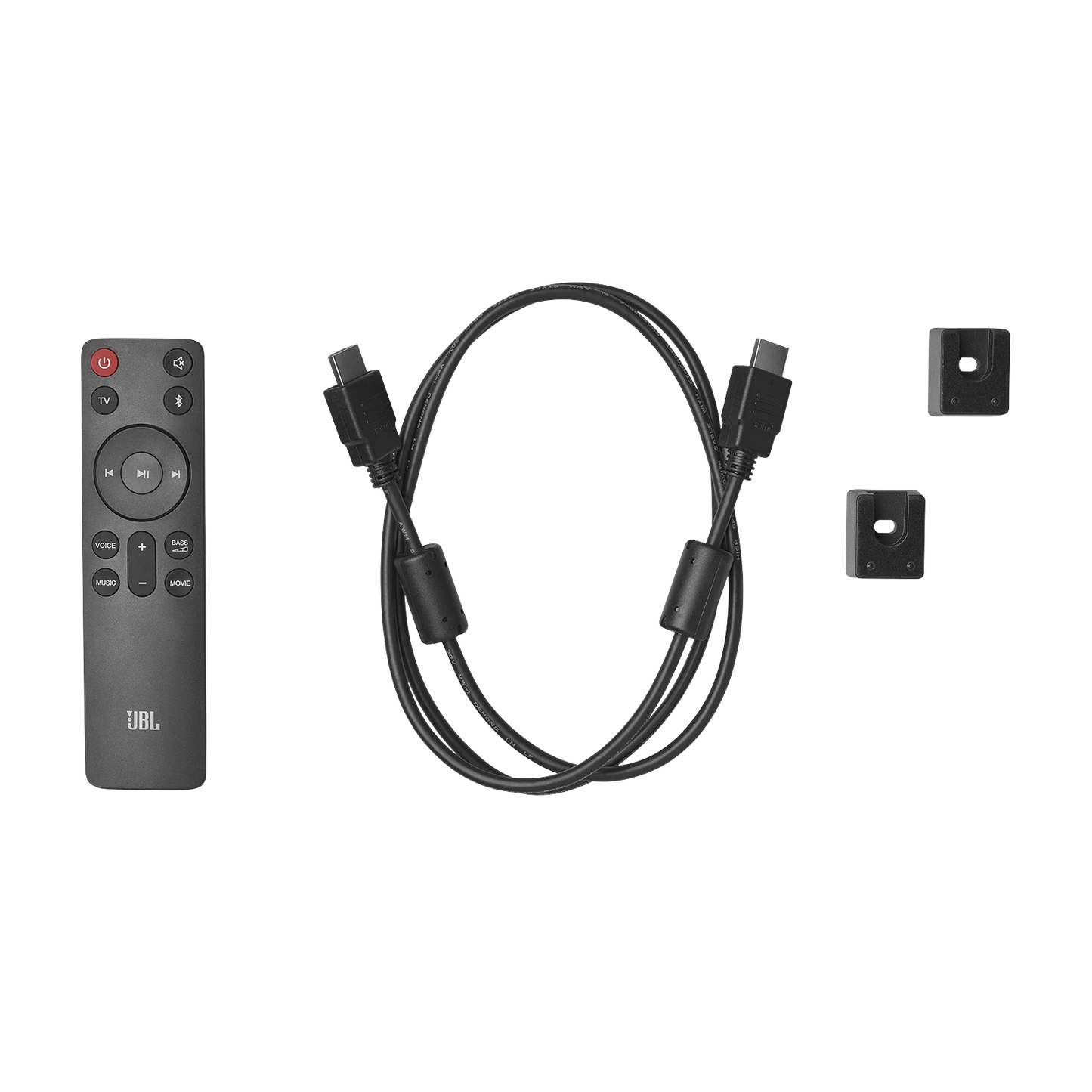

What's in the Box

• 1 × JBL Cinema SB510 Soundbar
• 1 × Remote Control with Batteries
• Power Cables (up to 4 pcs depending on region)
• 1 × HDMI Cable
• Wall-Mount Bracket Kit with Screws
• 1 × Quick Start Guide
• 1 × Warranty Card
• 1 × Safety Sheet
