ADAM Audio T8V Studio Nearfield Monitor, 2-way, 8" woofer -5 Years official warranty No ratings yet 1 Sold

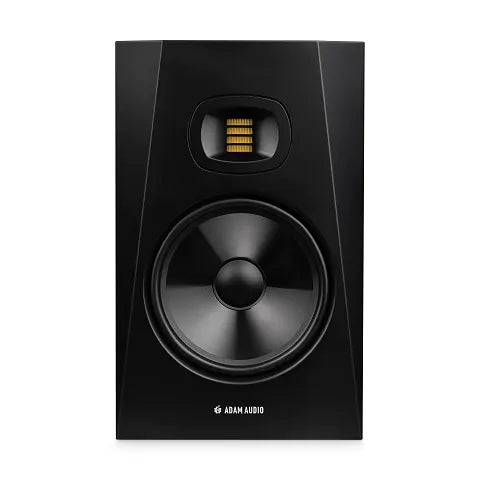

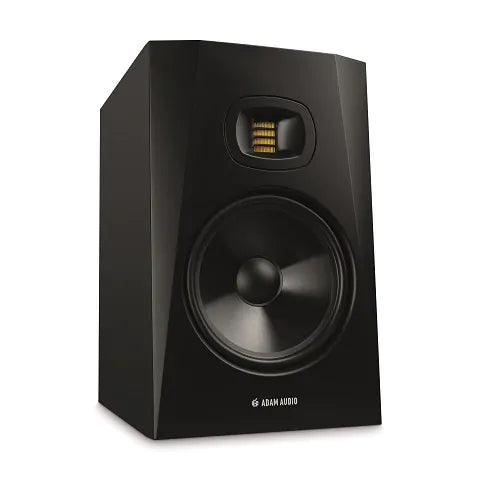

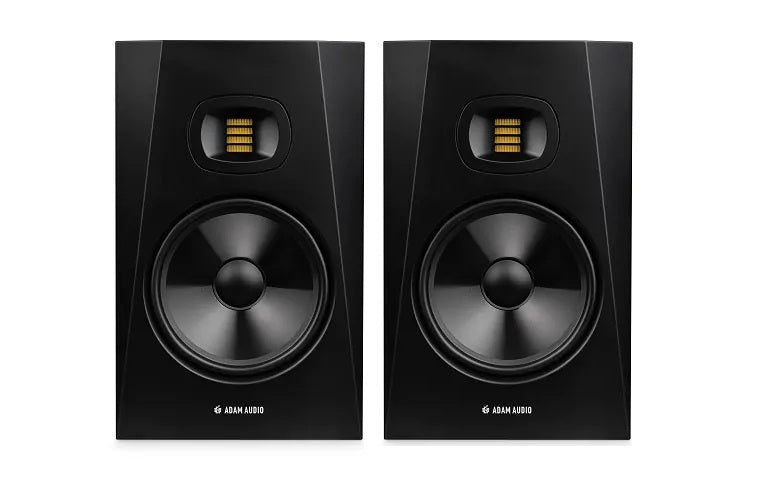

ADAM Audio T8V Active Studio Monitor

Warranty

• 5-Year Warranty (2 Years Standard + Additional 3 Years with Product Registration)

Features

• U-ART 1.9" Accelerated Ribbon Tweeter with HPS Waveguide
• 8" Polypropylene Woofer with Rear-Firing Bass Reflex Port
• Deep Bass Extension Down to 33 Hz
• Wide Sweet Spot with HPS Waveguide Technology
• 90W RMS Class D Bi-Amplification
• Balanced XLR & Unbalanced RCA Inputs
• Rear Panel Acoustic Tuning Controls
• Ideal for Bass-Heavy Music Production, Mixing & Studio Monitoring

Technical Specifications

Acoustic Performance

• Frequency Response: 33 Hz – 25 kHz (-6 dB)
• Maximum SPL (Per Pair @ 1 m): ≥118 dB
• THD (>80 Hz): 0.5%
• Crossover Frequency: 2.6 kHz

Drivers

Woofer

• Driver Size: 8" Polypropylene Woofer
• Voice Coil Diameter: 1"
• Cone Material: Polypropylene

Tweeter

• Type: U-ART Accelerated Ribbon Tweeter
• Equivalent Diaphragm Diameter: 1.9" (48 mm)
• Diaphragm Area: 2420 mm² (4 in²)
• Velocity Transform Ratio: 4:1
• Diaphragm Weight: 0.17 g
• Waveguide: HPS (High Frequency Propagation System)

Amplification

Woofer Amplifier

• Amplifier Type: PWM Class D
• RMS Power: 70W

Tweeter Amplifier

• Amplifier Type: PWM Class D
• RMS Power: 20W

• Total RMS Power: 90W

Audio Connectivity

Analog Inputs

• Balanced XLR
• Unbalanced RCA

• Input Impedance:
• XLR: 10 kΩ
• RCA: 20 kΩ

Control Features

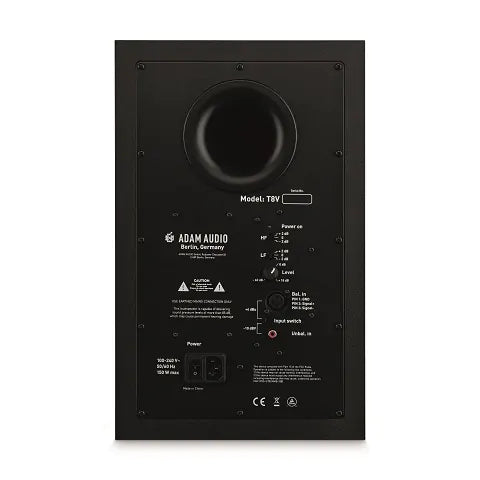

• Rear Panel Controls
• Gain Control
• Input Sensitivity: -10 dB to +4 dB

High Shelf EQ (>5 kHz)

• -2 dB / 0 dB / +2 dB

Low Shelf EQ (<300 Hz)

• -2 dB / 0 dB / +2 dB

General Specifications

• Rear Panel Design
• Rear-Firing Bass Reflex Port
• Maximum Power Consumption: 150W

Dimensions & Weight

• Dimensions (H × W × D): 400 × 250 × 335 mm (15.8" × 9.8" × 13.2")
• Weight: 9.8 kg (21.6 lbs)

What's in the Box

• 1 × ADAM Audio T8V Active Studio Monitor
• 1 × Power Cable
• 1 × Quick Start Guide
