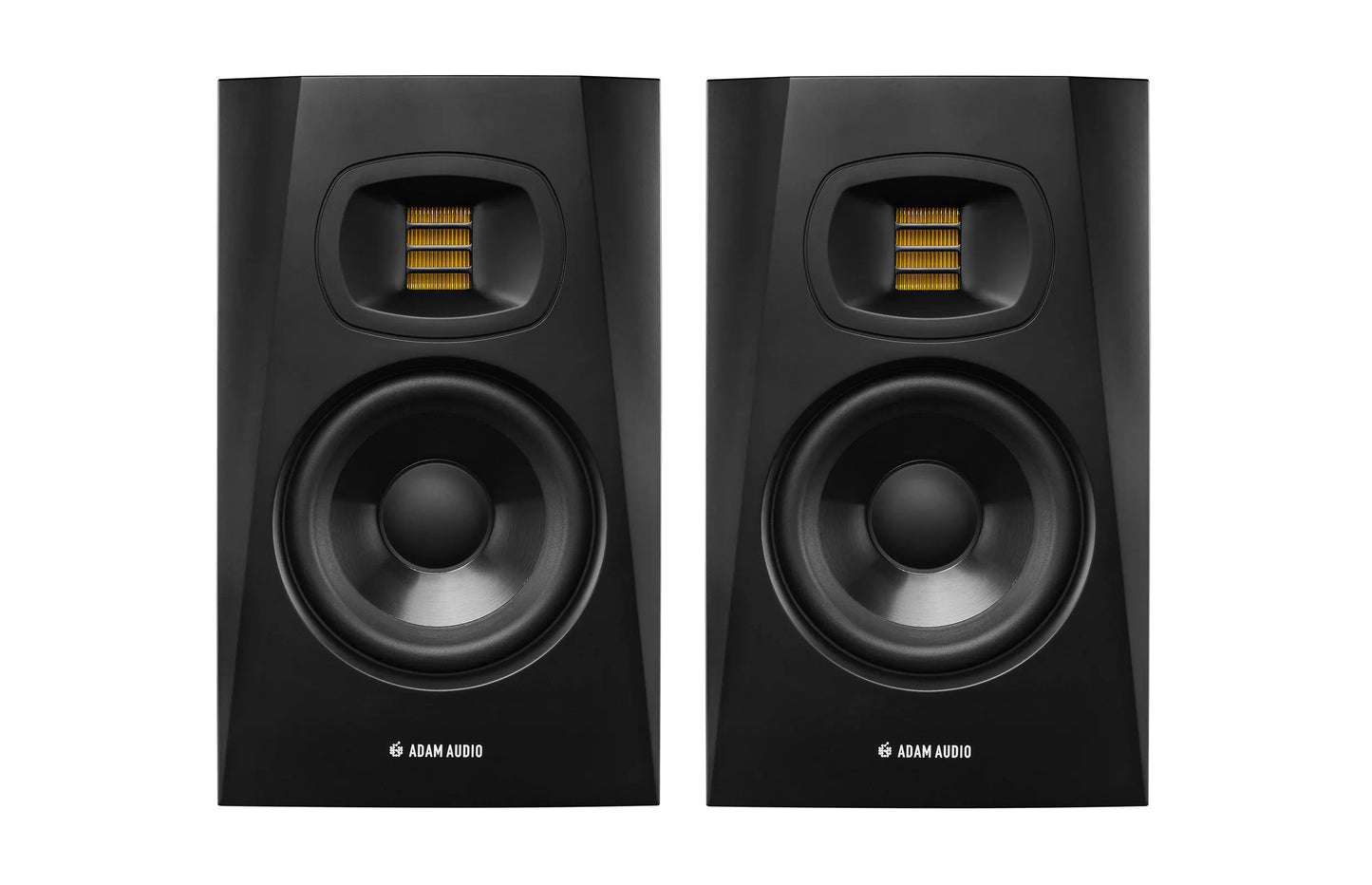

ADAM Audio T5V Active Nearfield Monitor Two-Way 5-Inch professional speakers -5 years official warranty

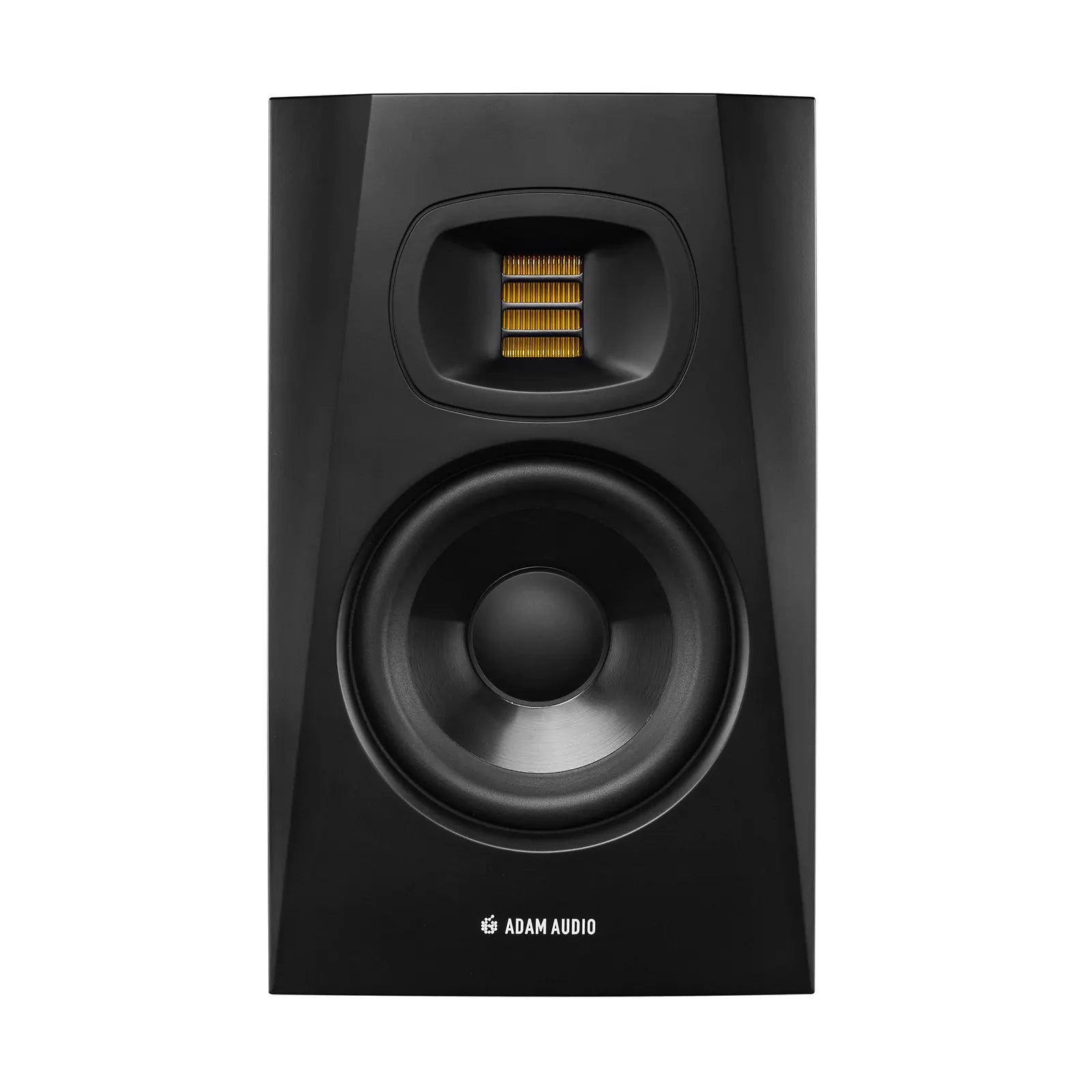

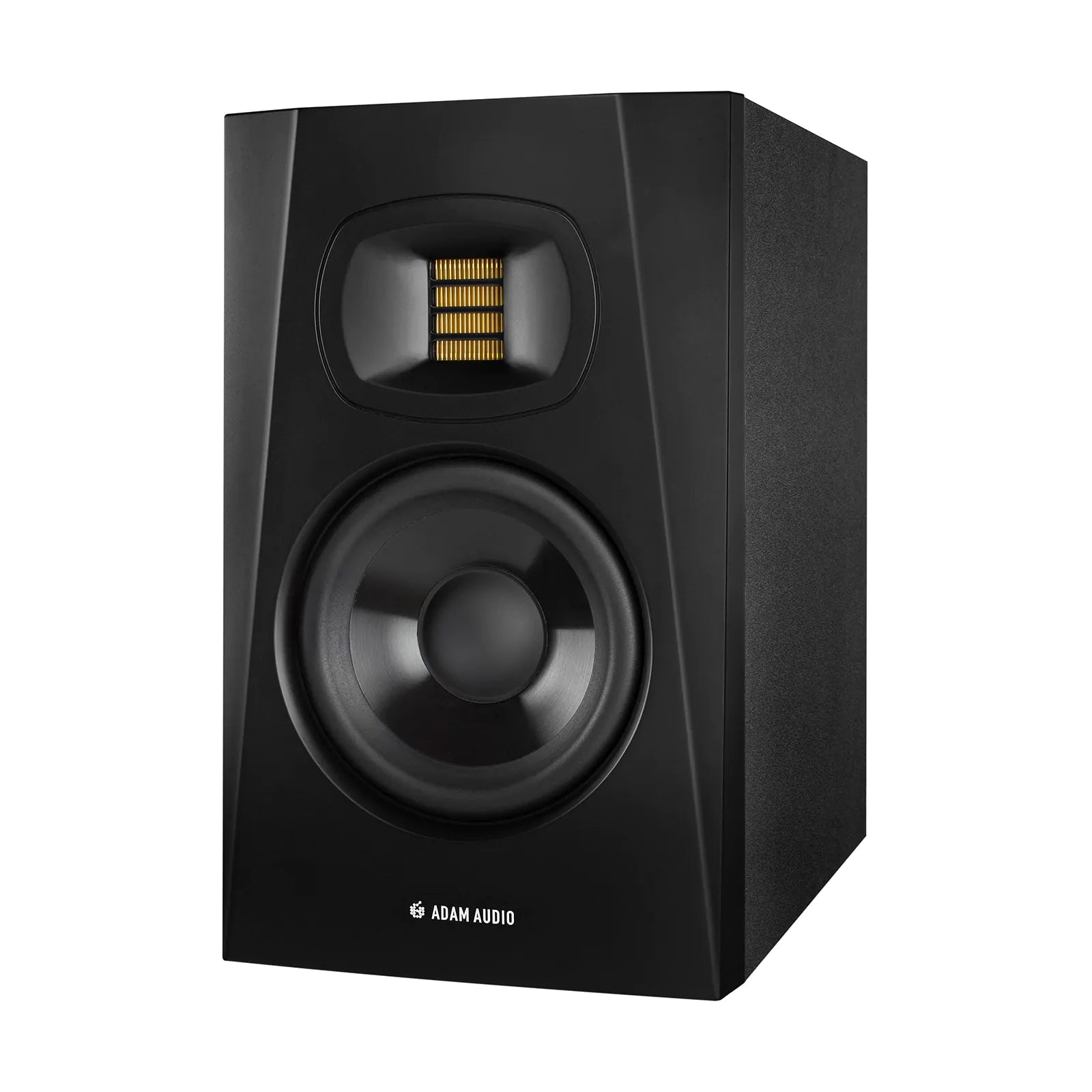

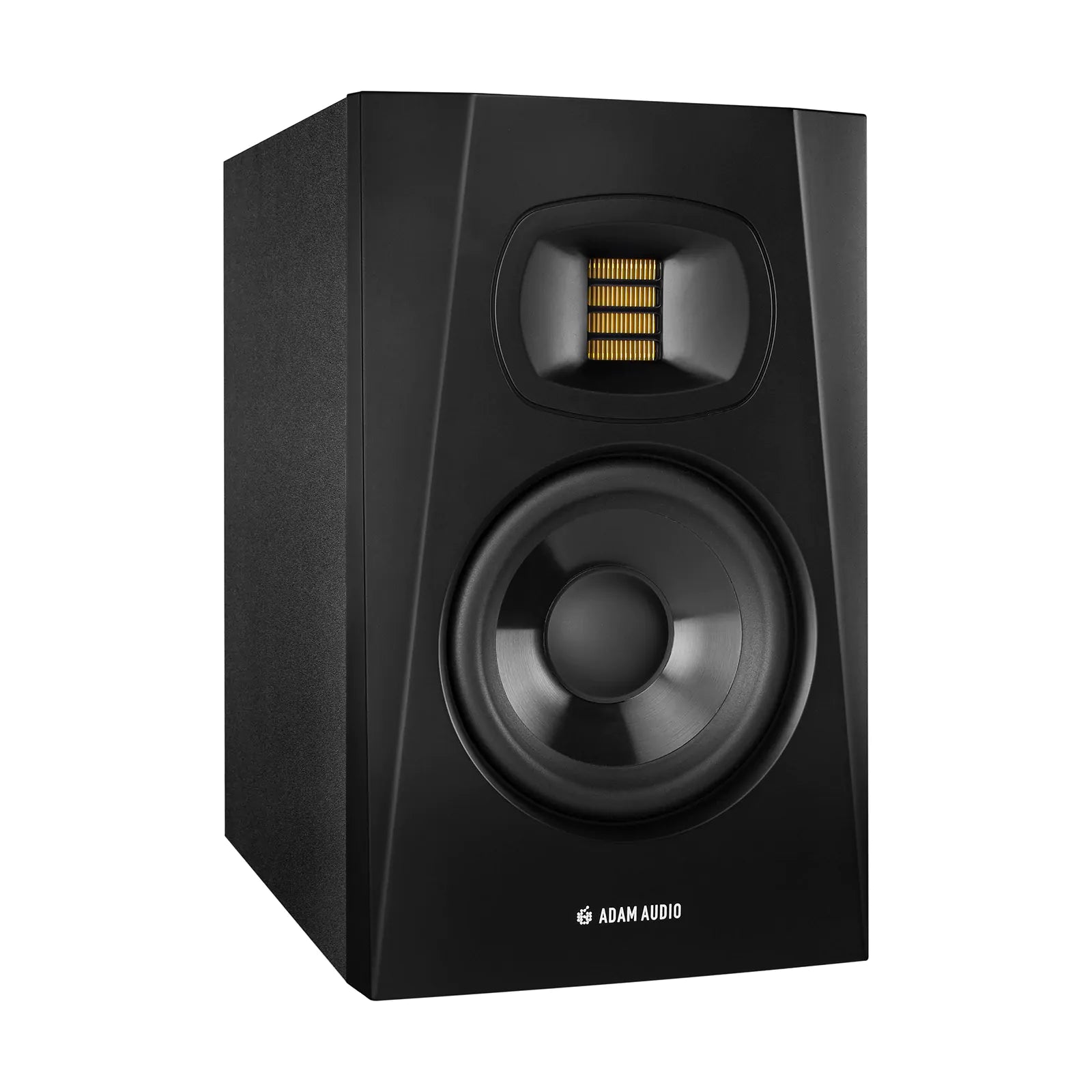

ADAM Audio T5V Active Studio Monitor

Warranty

• 5-Year Warranty (2 Years Standard + Additional 3 Years with Product Registration)

Features

• U-ART 1.9" Accelerated Ribbon Tweeter with HPS Waveguide
• 5" Polypropylene Woofer with Rear-Firing Bass Reflex Port
• Wide Sweet Spot with HPS Waveguide Technology
• DSP-Controlled Crossovers & Equalization
• 70W RMS Class D Bi-Amplification
• Balanced XLR & Unbalanced RCA Inputs
• Compact Cabinet for Small Studio Spaces
• Ideal for Music Production, Video Editing & Broadcast Applications

Technical Specifications

Acoustic Performance

• Frequency Response: 45 Hz – 25 kHz (-6 dB)
• Maximum SPL (Per Pair @ 1 m): ≥106 dB
• THD (>80 Hz): 0.5%
• Crossover Frequency: 3 kHz

Drivers

Woofer

• Driver Size: 5" Polypropylene Woofer
• Voice Coil Diameter: 1"
• Cone Material: Polypropylene

Tweeter

• Type: U-ART Accelerated Ribbon Tweeter
• Equivalent Diaphragm Diameter: 1.9" (48 mm)
• Diaphragm Area: 2420 mm² (4 in²)
• Velocity Transform Ratio: 4:1
• Diaphragm Weight: 0.17 g
• Waveguide: HPS (High Frequency Propagation)

Amplification

Woofer Amplifier

• Amplifier Type: PWM Class D
• RMS Power: 50W

Tweeter Amplifier

• Amplifier Type: PWM Class D
• RMS Power: 20W

• Total RMS Power: 70W

Audio Connectivity

Analog Inputs

• Balanced XLR
• Unbalanced RCA

• Input Impedance:
• XLR: 10 kΩ
• RCA: 20 kΩ

Control Features

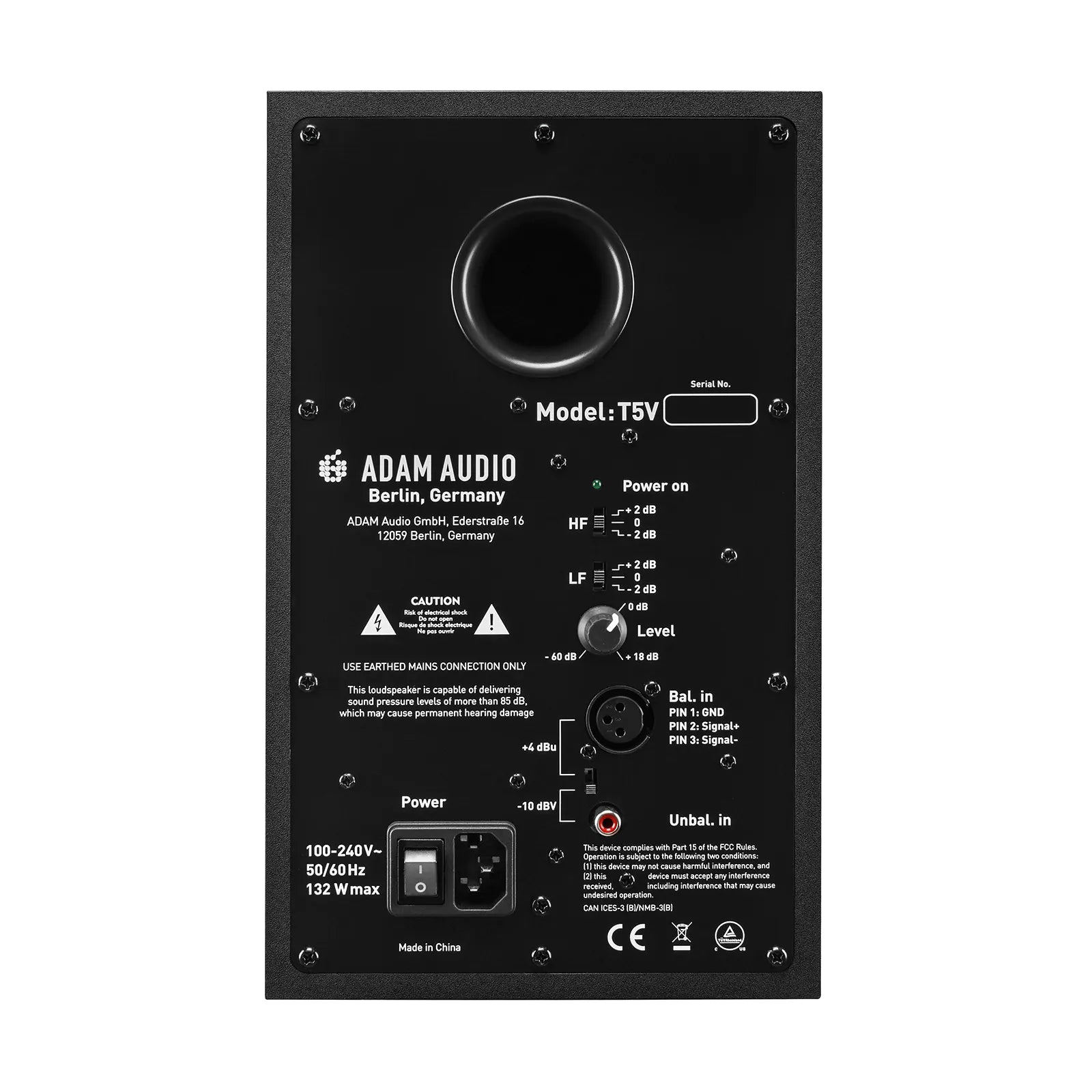

• Rear Panel Controls
• Gain Control
• Input Sensitivity: -10 dB to +4 dB

High Shelf EQ (>5 kHz)

• -2 dB / 0 dB / +2 dB

Low Shelf EQ (<300 Hz)

• -2 dB / 0 dB / +2 dB

General Specifications

• Rear Panel Design
• Rear-Firing Bass Reflex Port
• Maximum Power Consumption: 132W

Dimensions & Weight

• Dimensions (H × W × D): 298 × 179 × 297 mm (11.7" × 7.0" × 11.7")
• Weight: 5.7 kg (12.6 lbs)

What's in the Box

• 1 × ADAM Audio T5V Active Studio Monitor
• 1 × Power Cable
• 1 × Quick Start Guide
