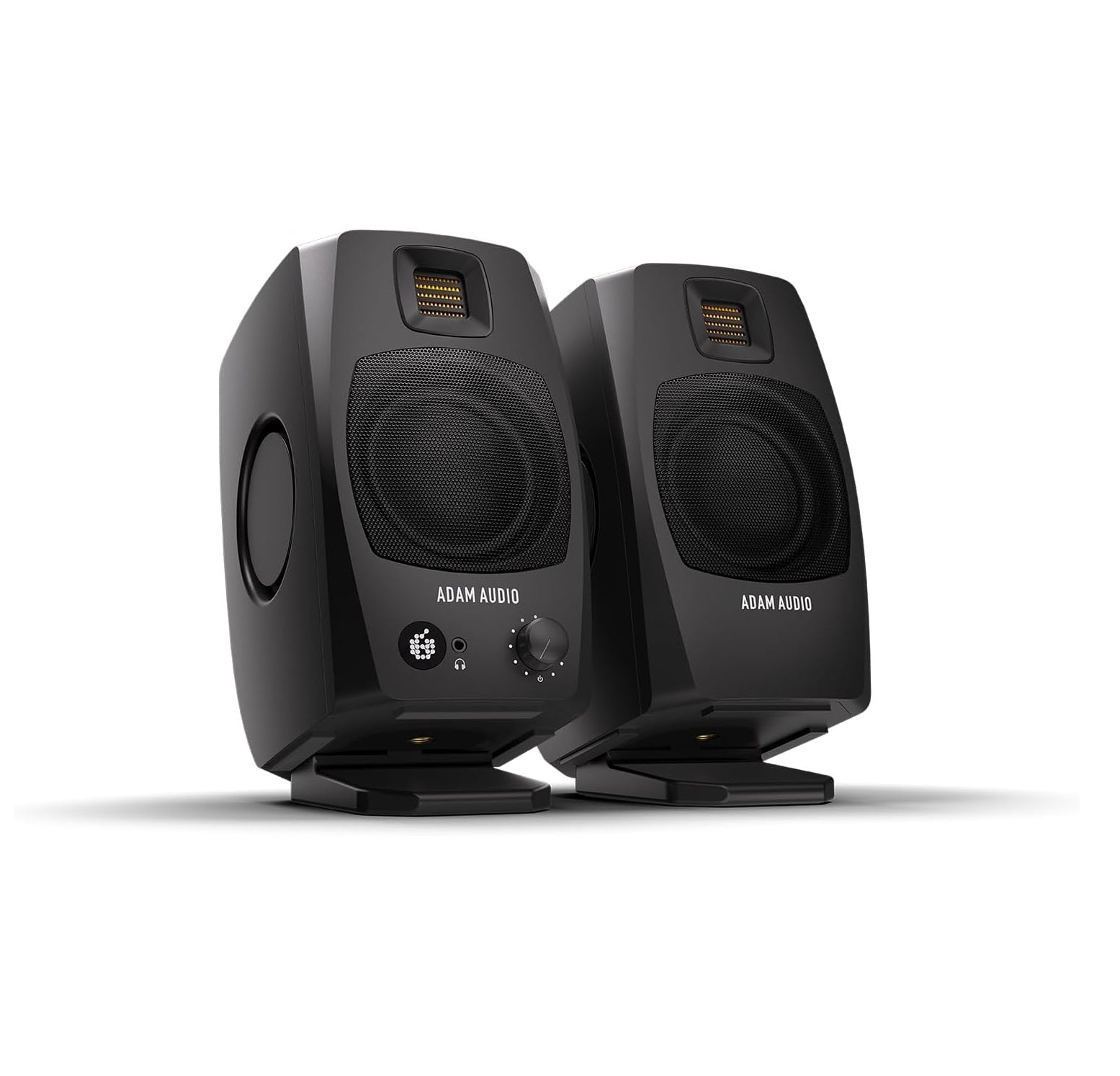

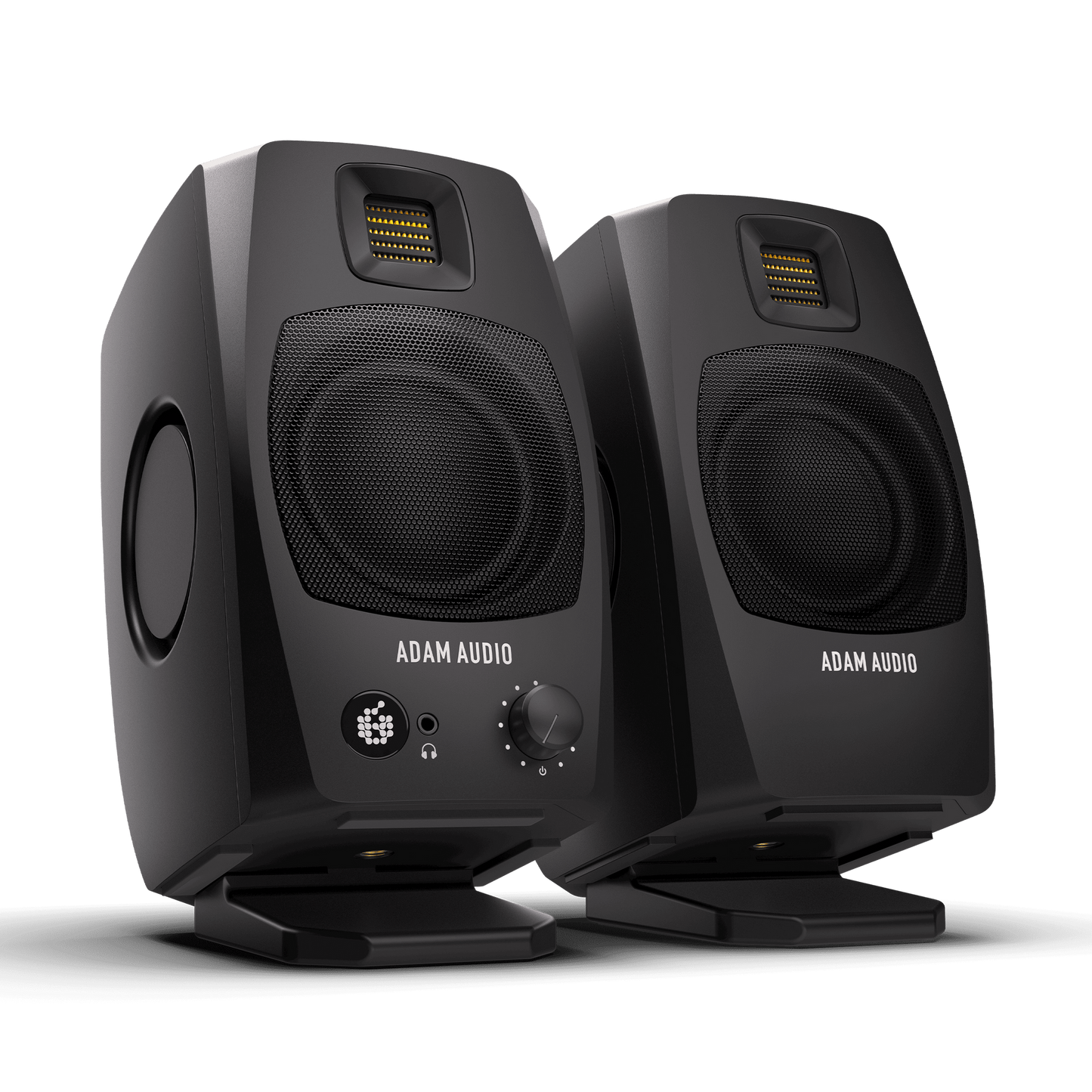

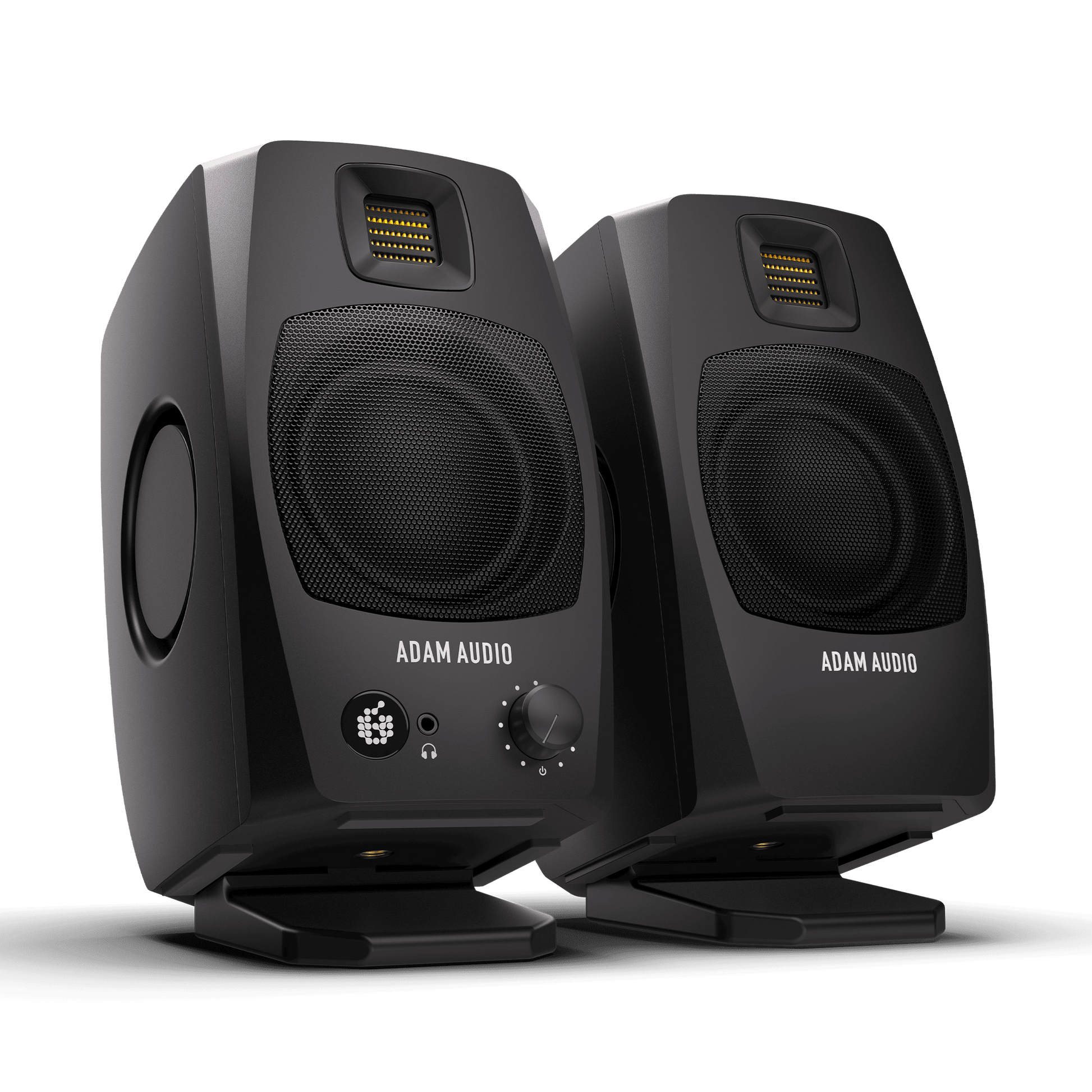

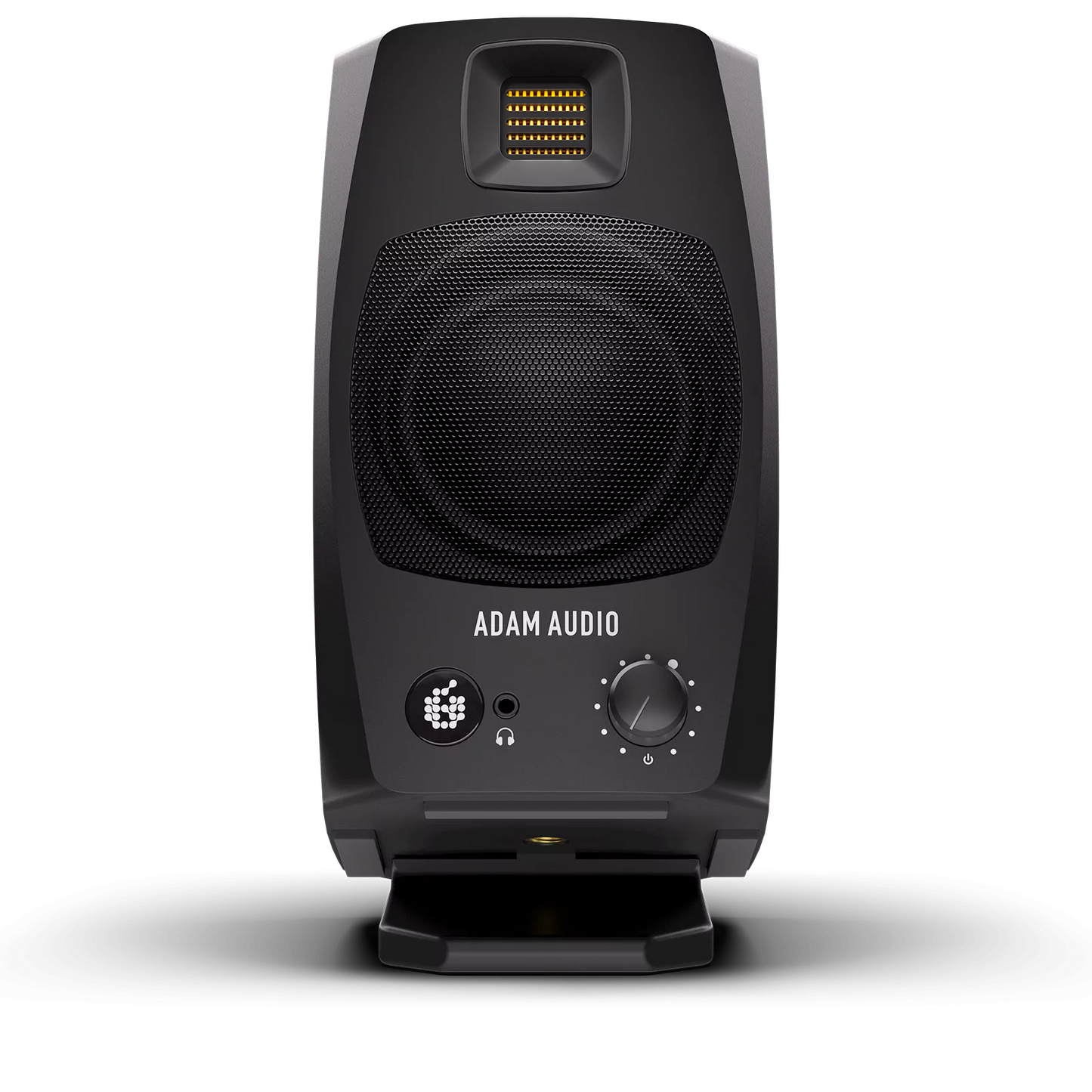

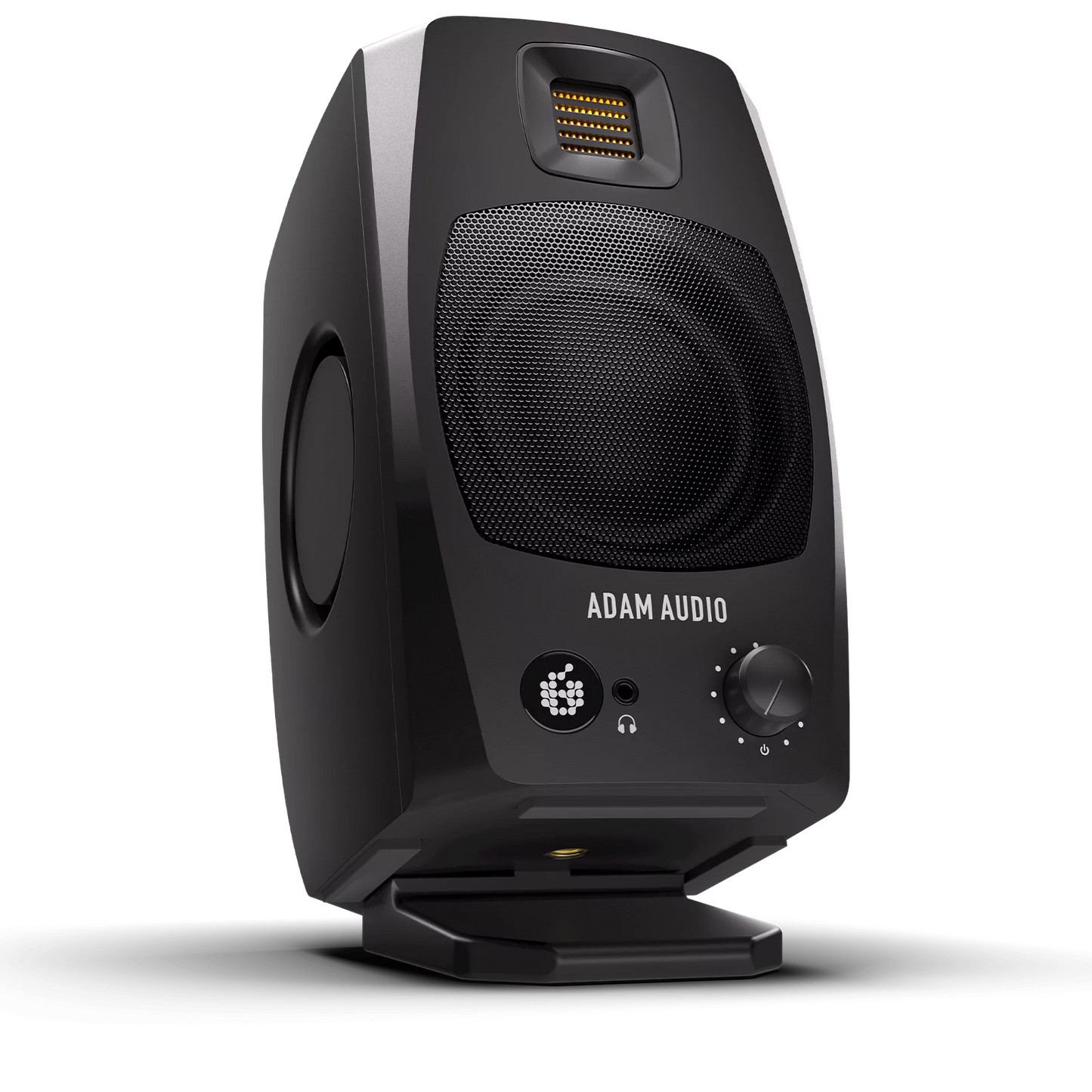

ADAM Audio D3V Active Desktop Studio Monitor Speakers (Pair) with USB-C connection to computers, mobiles, and tablets

ADAM Audio D3V Active Desktop Studio Monitor Speakers (Pair)

Warranty

• 5-Year Warranty (2 Years Standard + Additional 3 Years with Product Registration)

Features

• Handmade Precision D-ART AMT Tweeters
• 3.5" Aluminum Woofers with Dual 3.5" Passive Radiators
• Powerful 240W Peak Total System Amplification
• Deep Bass Extension Down to 45Hz
• USB-C Digital & Balanced TRS Analog Inputs
• Front Panel Multi-Function Control with Headphone Output
• Built-in Room Compensation Controls
• Detachable 15° Desktop Stands Included
• 3/8" Threaded Mounting for Microphone Stands

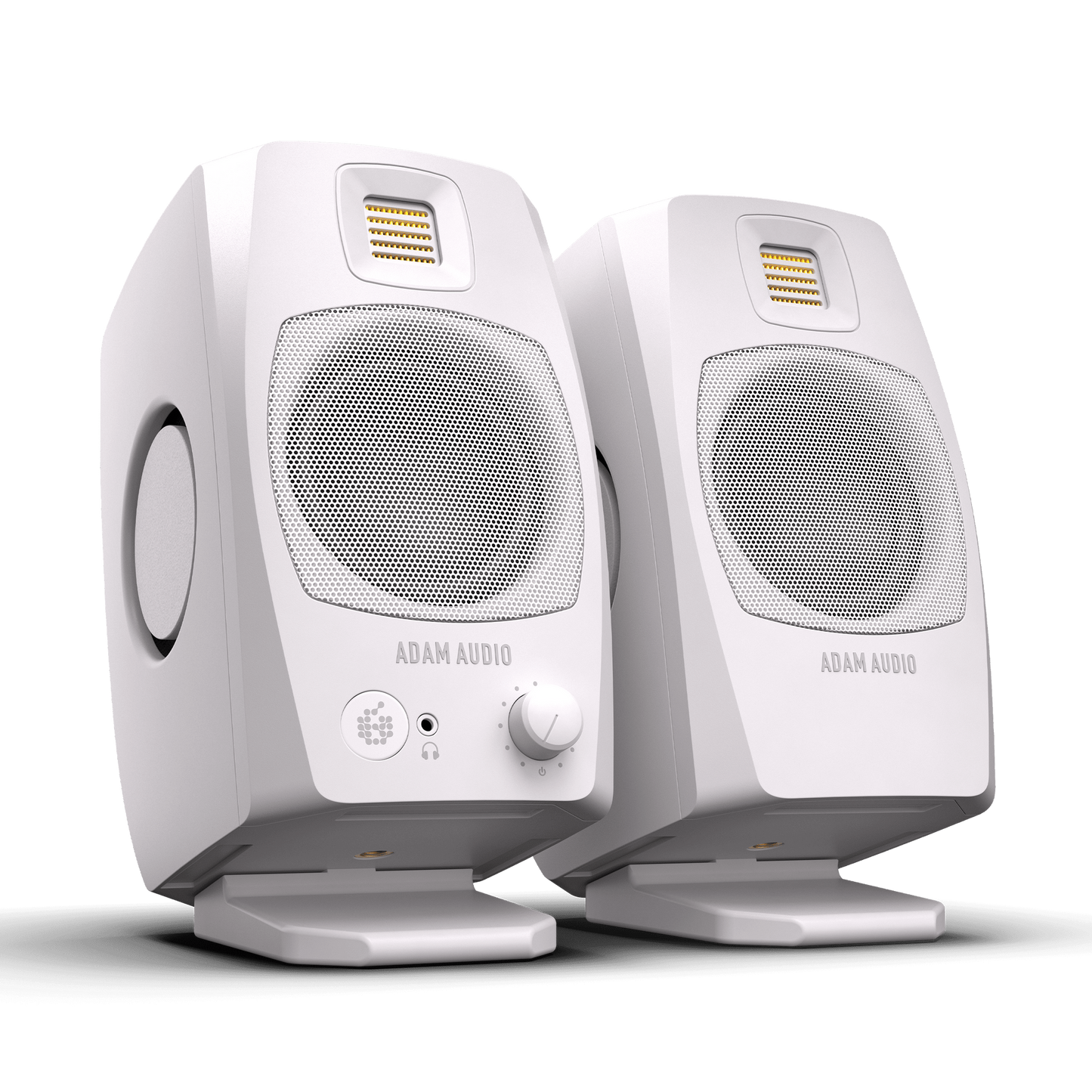

• Available in Black & White Finishes

Technical Specifications

Acoustic Performance

• Frequency Response (-3 dB): 48 Hz – 22.6 kHz
• Frequency Response (-6 dB): 45 Hz – 23.2 kHz
• Crossover Frequency: 4.0 kHz
• Maximum Peak SPL (Per Speaker @ 1m): 97 dB SPL
• Maximum IEC Peak SPL: 98 dB SPL
• Dolby DARDT Maximum SPL: 103 dB SPL
• Dolby DARDT Maximum SPL (Bass Managed): 106 dB SPL

Drivers

Woofer

• Driver Size: 3.5" Aluminum Woofer
• Voice Coil Diameter: 25 mm (1")
• Cone Material: Single-Piece Aluminum

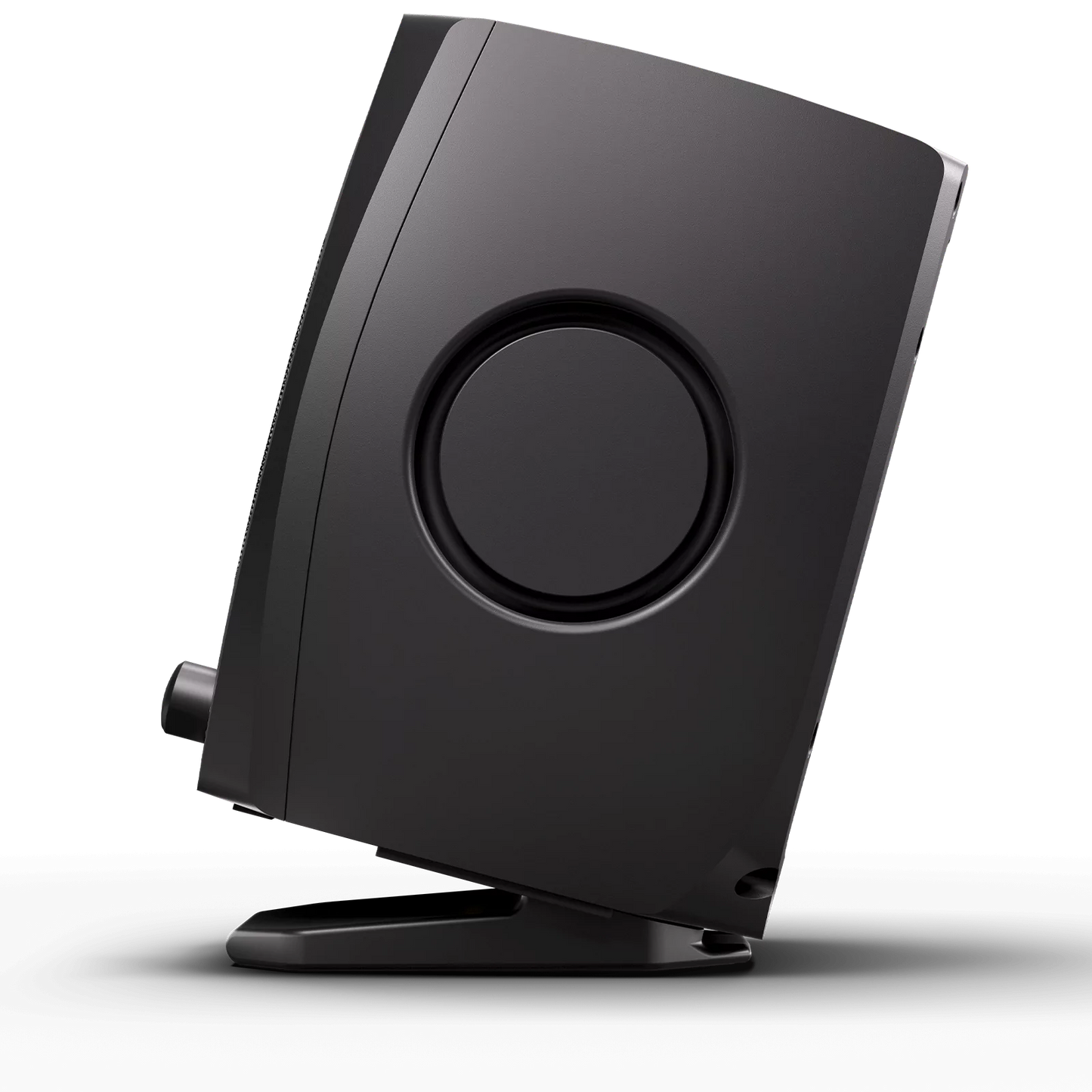

• Dual 3.5" Passive Radiators

Tweeter

• Type: Handmade D-ART AMT Tweeter
• Diaphragm Area: 1800 mm² (2.8 in²)
• Equivalent Diaphragm Diameter: 48 mm (1.9")
• Velocity Transform Ratio: 5:1
• Diaphragm Weight: 0.085 g
• Dispersion: 120° Horizontal × 120° Vertical

Amplification

Woofer Amplifier

• Amplifier Type: PWM
• Peak Power: 2 × 80W
• RMS Power: 2 × 70W

Tweeter Amplifier

• Amplifier Type: PWM
• Peak Power: 2 × 40W
• RMS Power: 2 × 30W

• Total Peak System Power: 240W

Audio Connectivity

Analog Input

• Balanced TRS Input
• Input Impedance: 47 kΩ
• Maximum Input Level: +9 dBu

Digital Input

• USB Type-C
• USB Audio Class 1.1 Compliant
• USB Audio Resolution: 16-bit

Headphone Output

• 3.5 mm TRS Mini Jack
• Output Impedance: 32 Ω

Signal Processing

• Analog ADC: 24-bit
• USB Audio Bit Depth: 16-bit
• Internal Sample Rate: 48 kHz
• Independent Peak & Thermal Protection for Each Driver
• Amplifier Thermal Protection

Control Features

• Front Multi-Function Volume Knob
• Volume Range: -∞ dB to +6 dB
• Input Selection (USB-C / TRS)
• Channel Swap (L/R)
• Mute & Standby Functions
• Firmware Update Mode

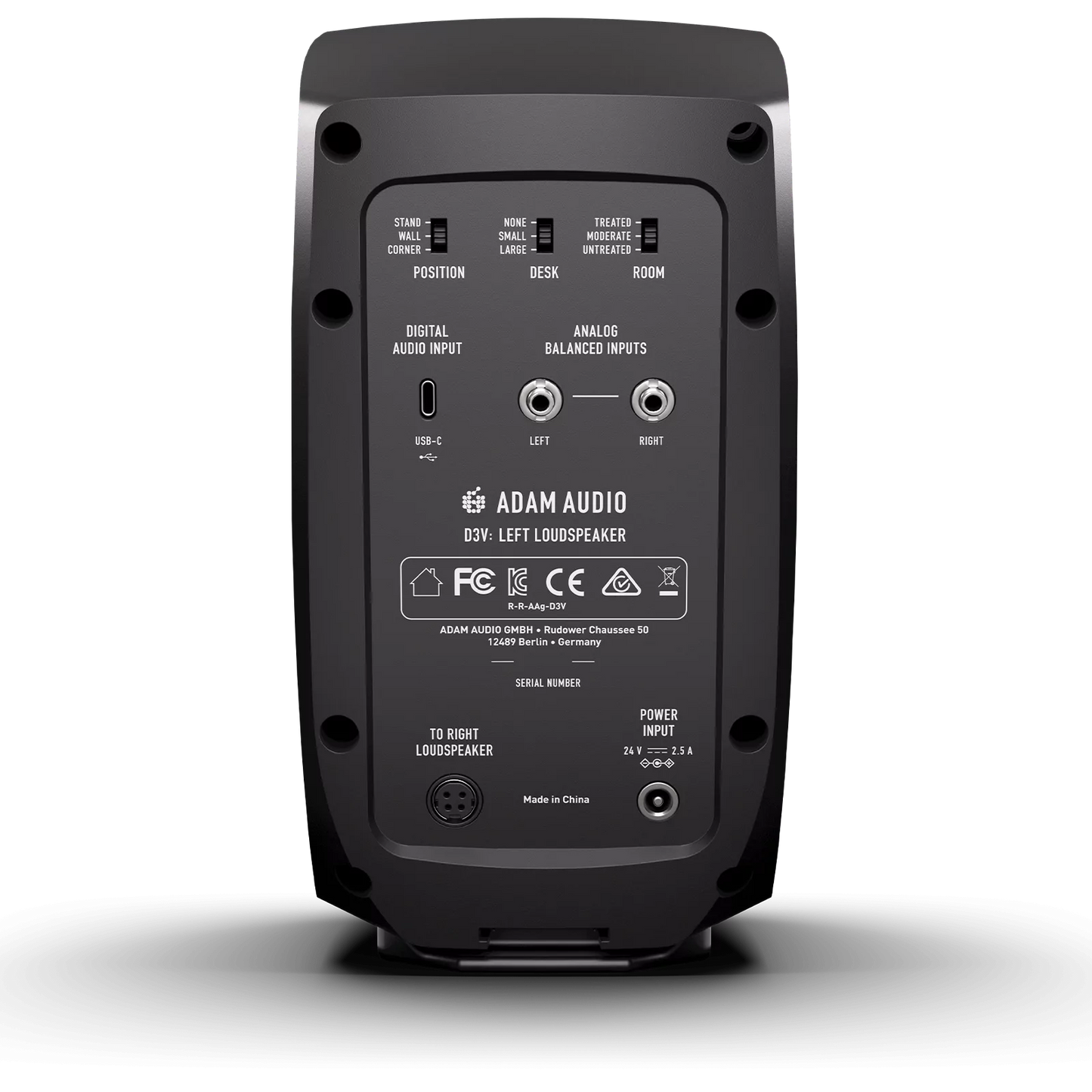

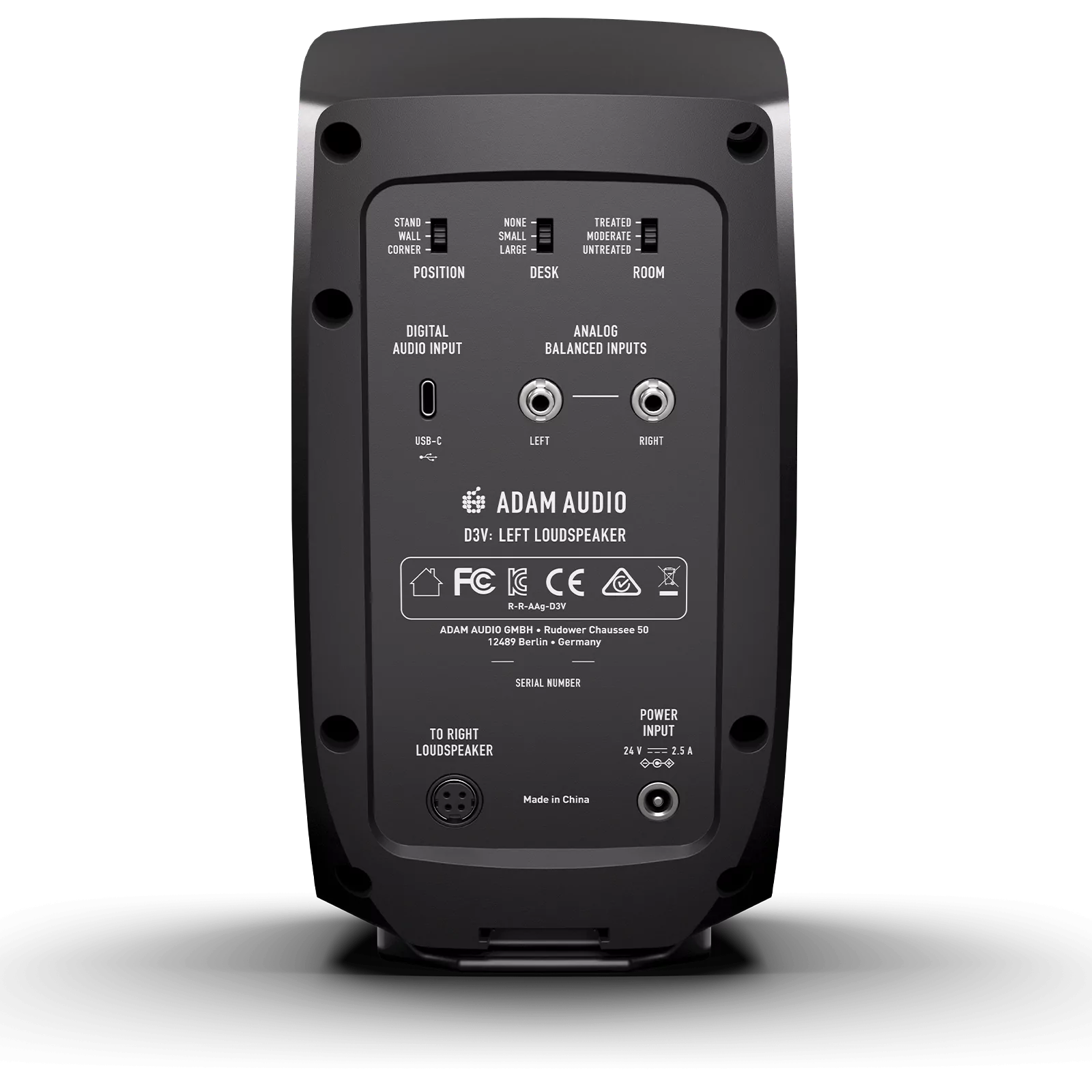

• Back Panel Room Compensation Controls

Bass Adjustment

• 0 / -3 / -6 dB

Desk Compensation

• Low-Mid: 0 / -3 / -6 dB
• Mid: 0 / -2 / -4 dB

Treble Adjustment

• 0 / -1.5 / -3 dB

General Specifications

• Cabinet Design: Dual Passive Radiator
• Cabinet Material: PC-ABS
• Front Panel Multi-Color Status LED
• Mounting Options:
• Desktop Placement
• 15° Angled Desktop Stand (Included)
• 3/8" Threaded Microphone Stand Mount

• Power Consumption:
• Maximum: 60W
• Idle: 5W
• Sleep: 0.3W

• AC Input: 100–240V, 50/60Hz
• Operating Temperature: -10°C to +45°C
• Humidity: <70% RH (Non-condensing)

Dimensions & Weight

• Dimensions (Without Stand): 200 × 115 × 150 mm
• Height with Stand: 240 mm
• Total Weight (Pair): 3.58 kg (7.9 lbs)

What's in the Box

• 1 × ADAM Audio D3V Primary Speaker
• 1 × ADAM Audio D3V Secondary Speaker
• 1 × USB-C Cable with USB-A Adapter
• 1 × 2 m Speaker Connection Cable
• 1 × Power Adapter
• 1 × AC Power Cable
• 2 × Detachable Desktop Monitor Stands
• 1 × Quick Start Guide
