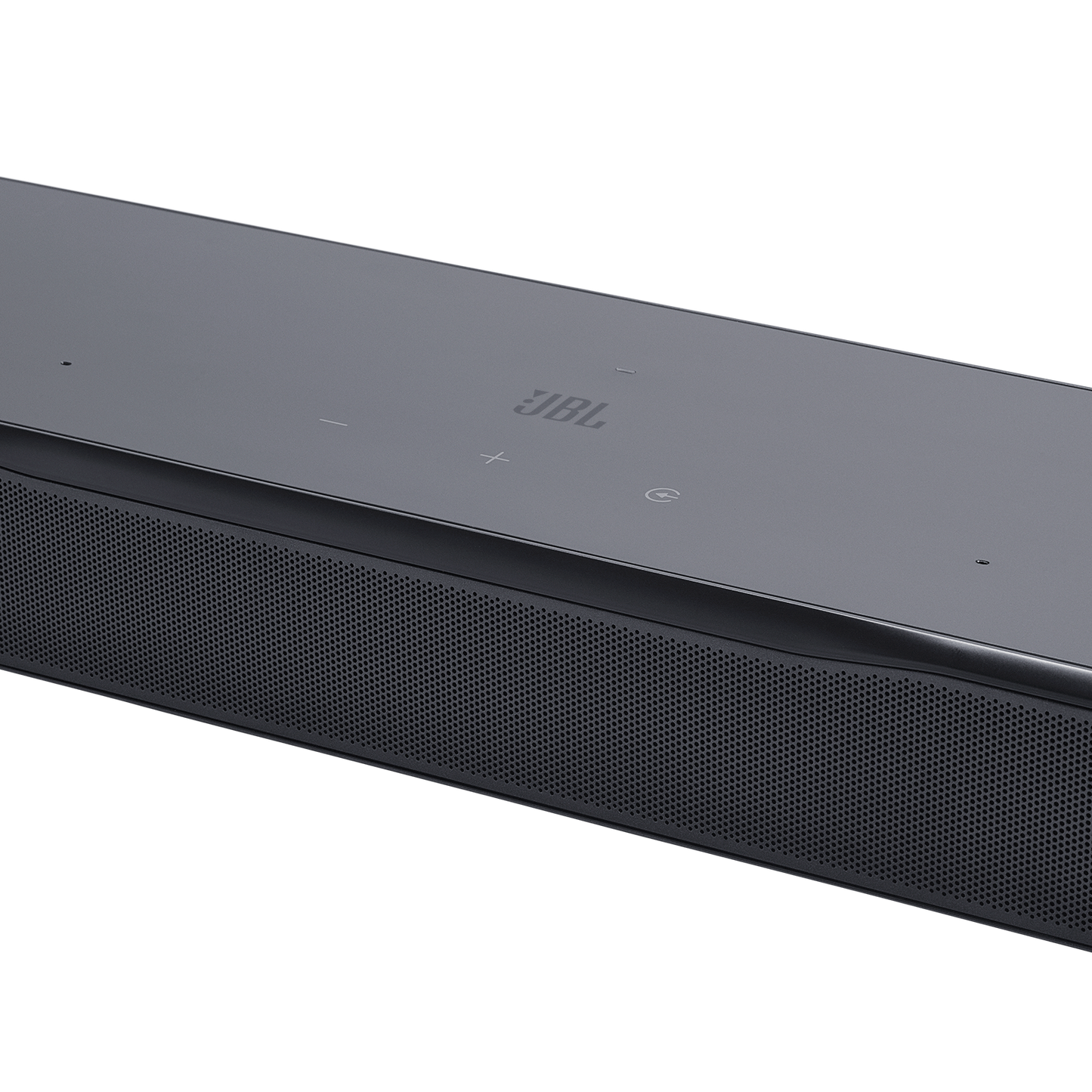

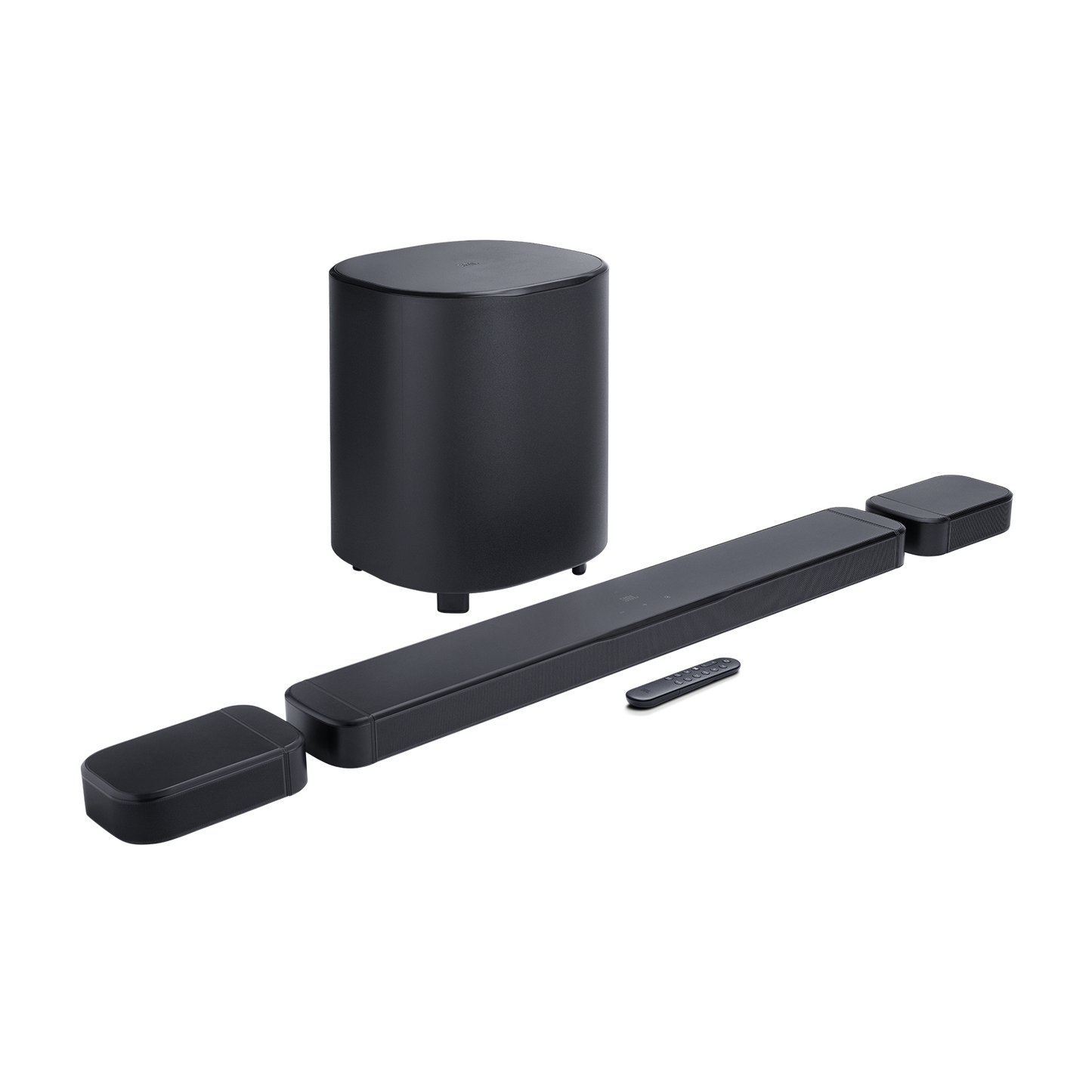

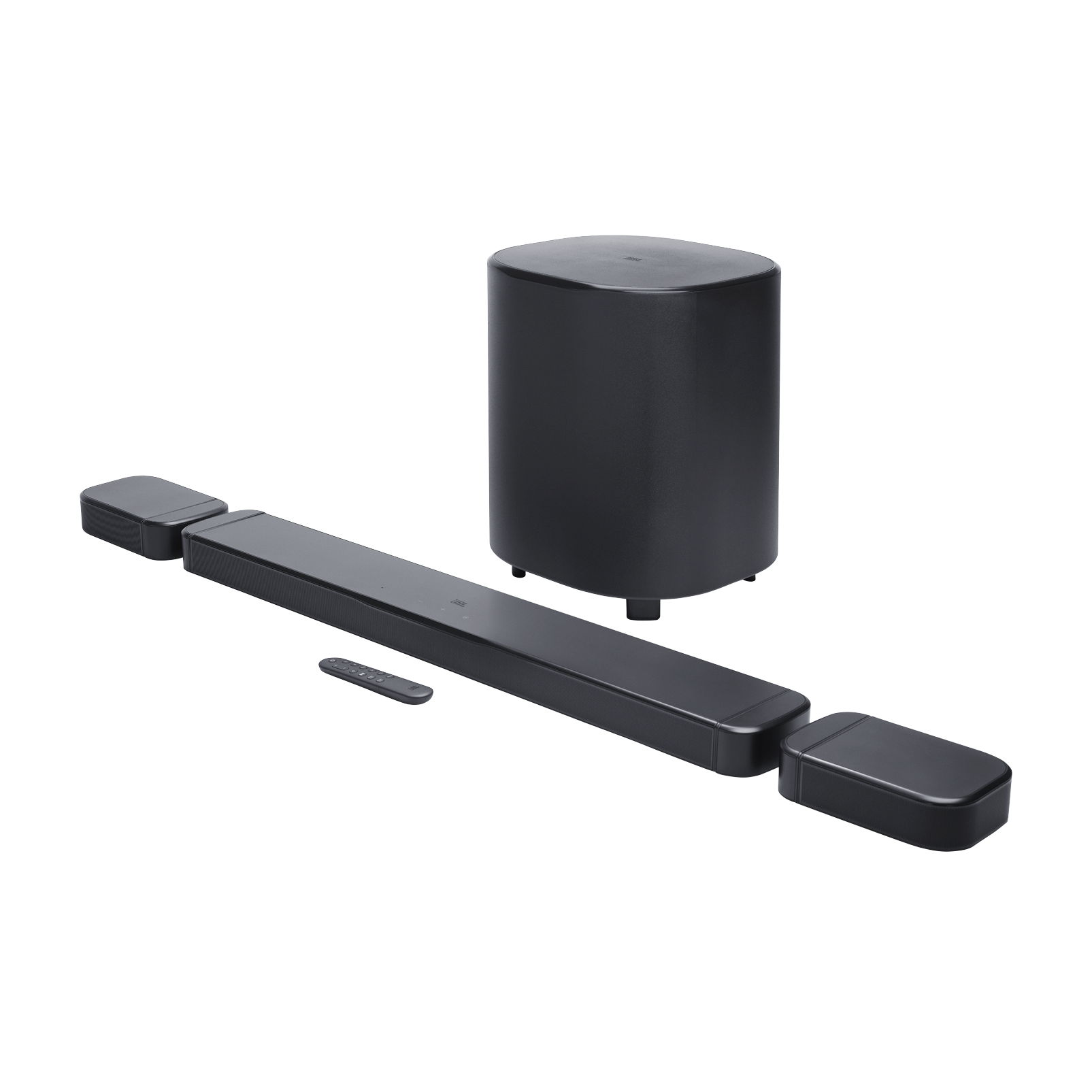

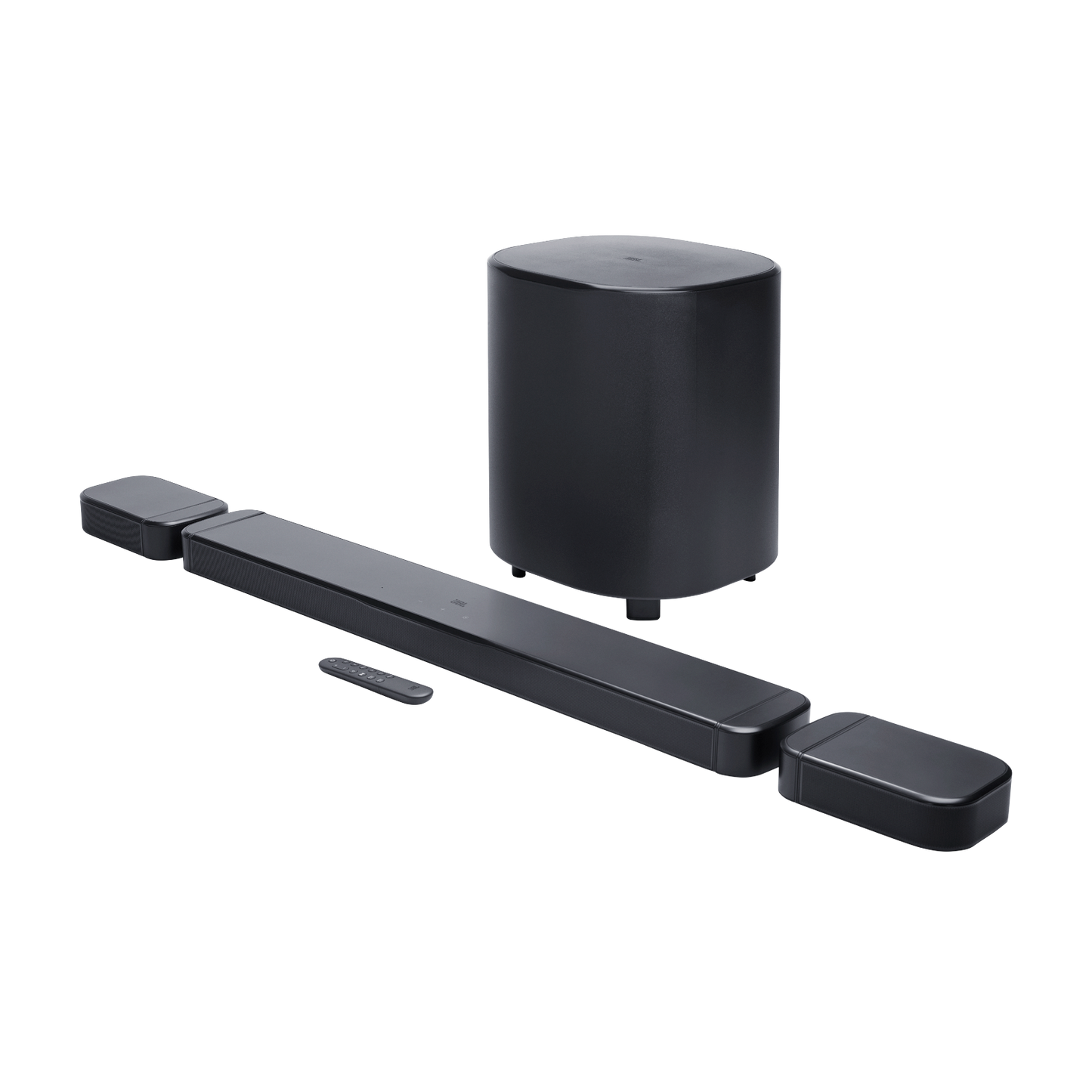

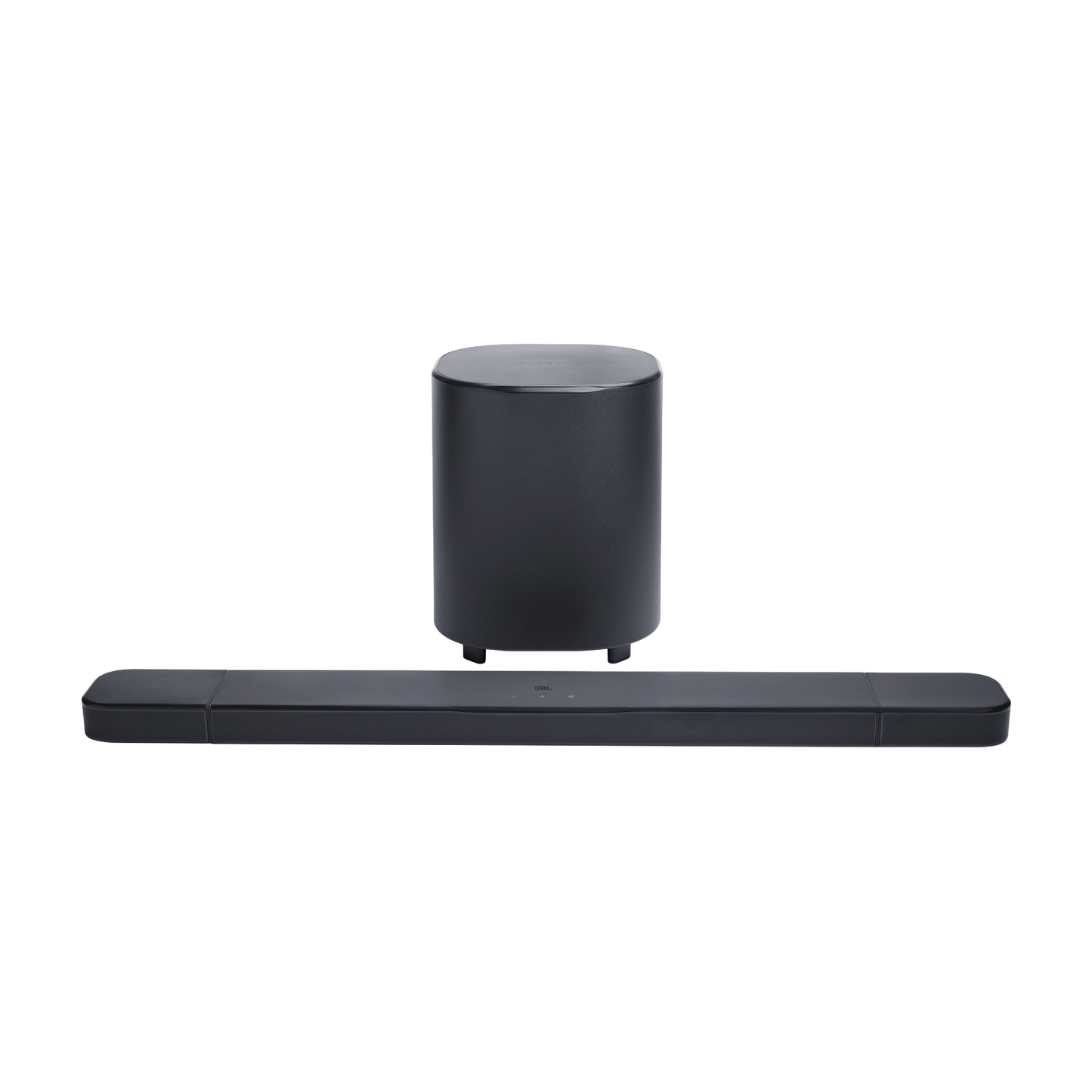

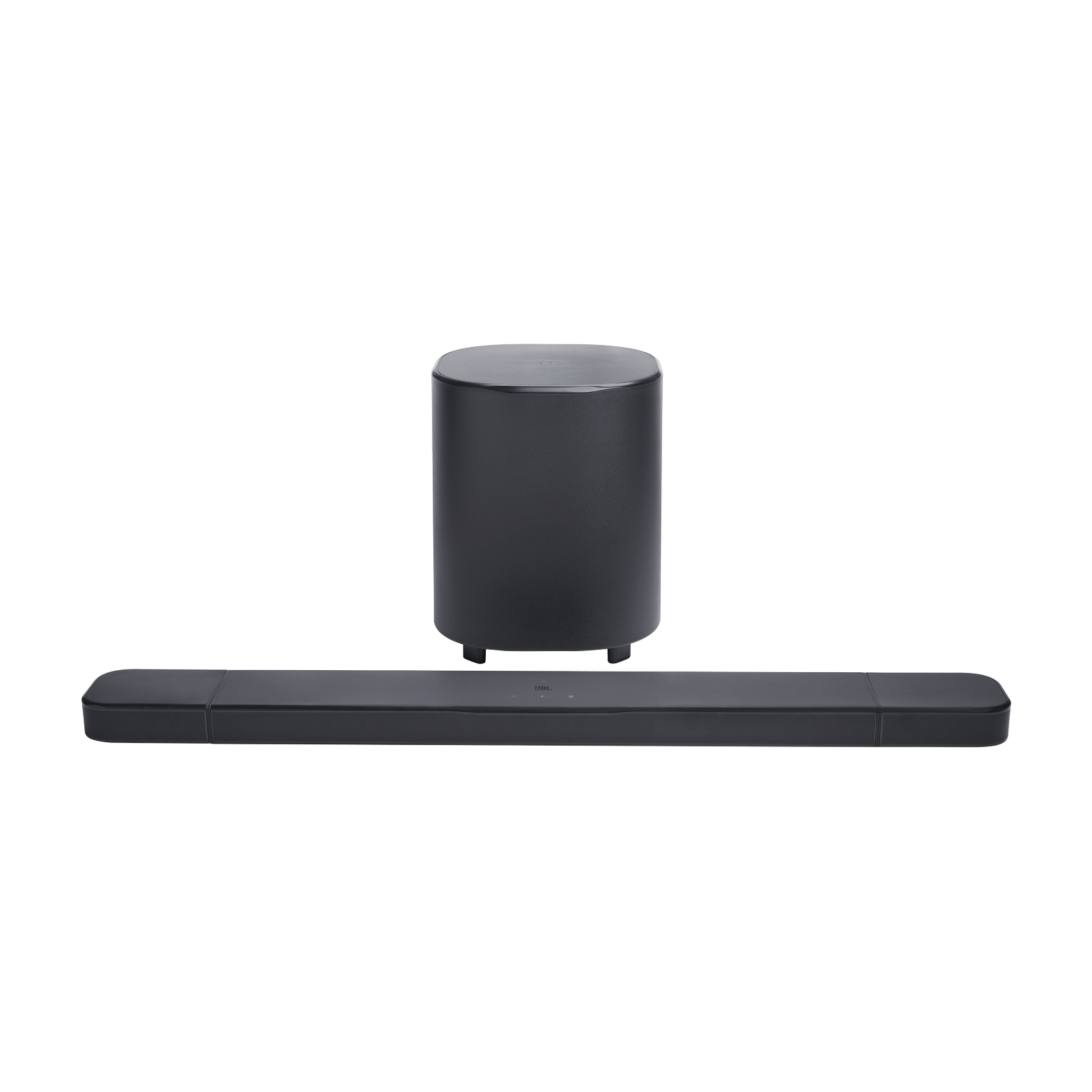

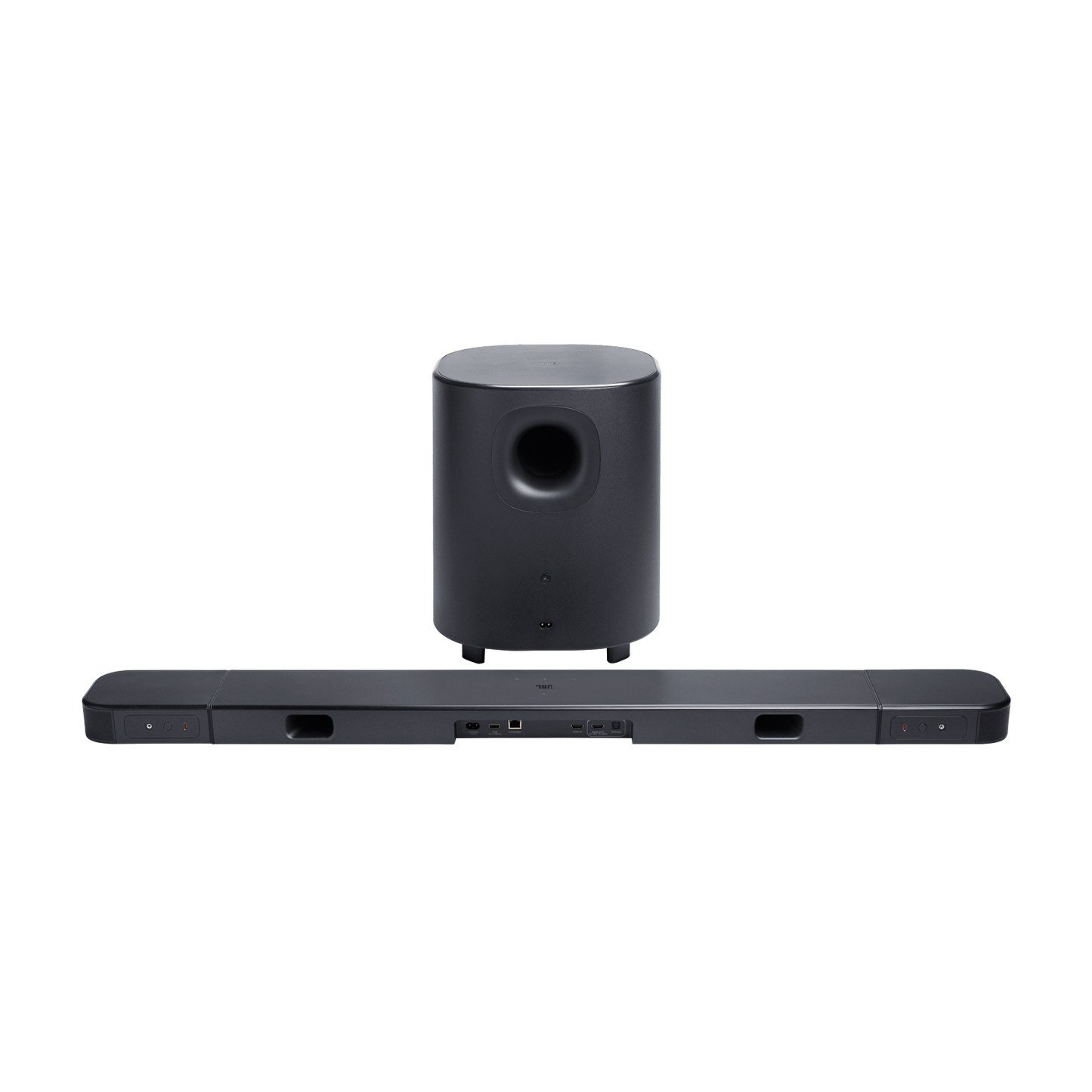

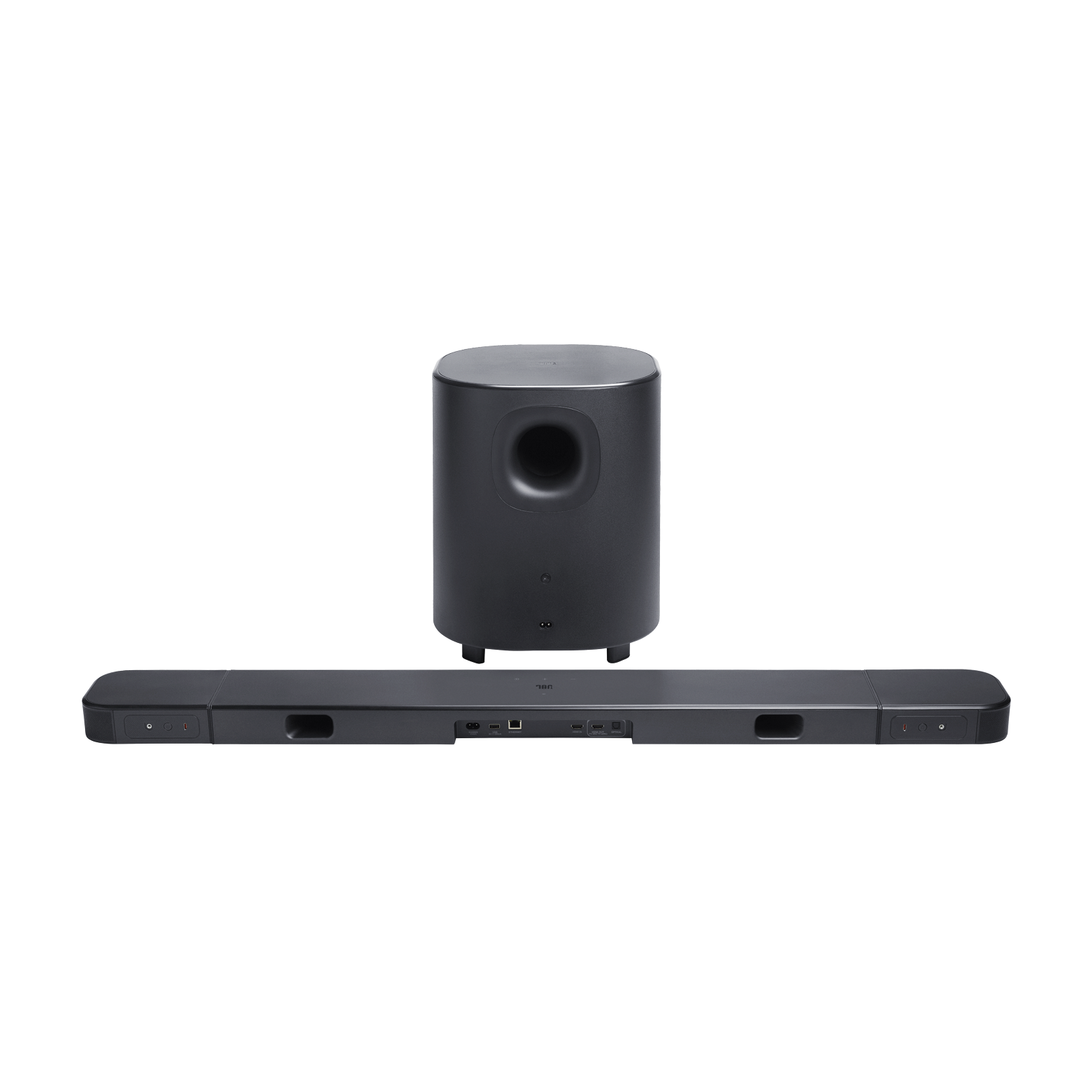

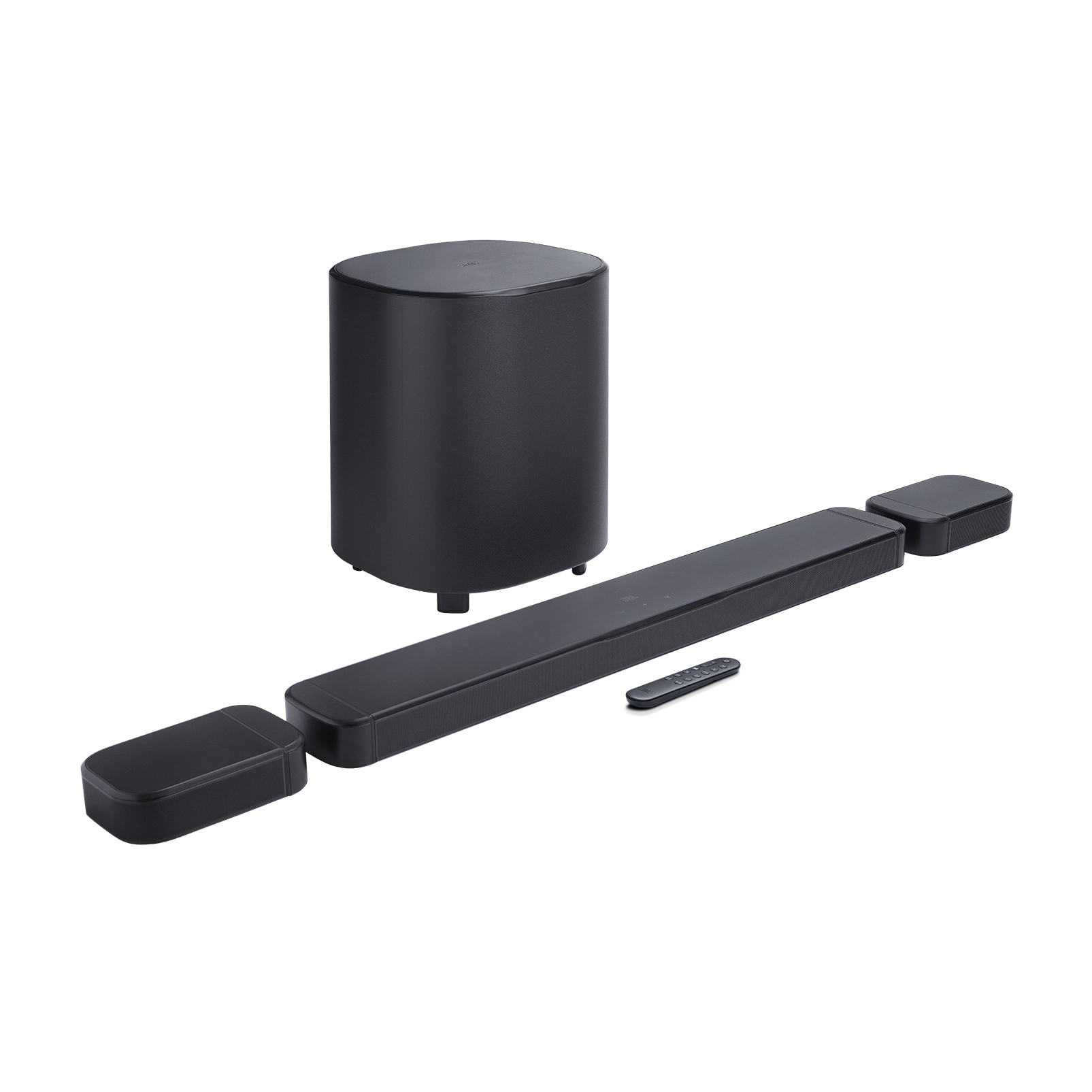

JBL Bar 800MK2 7.1 channel soundbar system with detachable surround speakers, MultiBeam 3.0™, Dolby Atmos® and DTS Virtual:X®- 1 Year JBL Warranty

JBL Bar 800 MK2

Warranty

• 1-Year Official Warranty by JBL Singapore
• Service Centre Location: 60 Marsiling Rd, SKM Building, Singapore 739107

Features

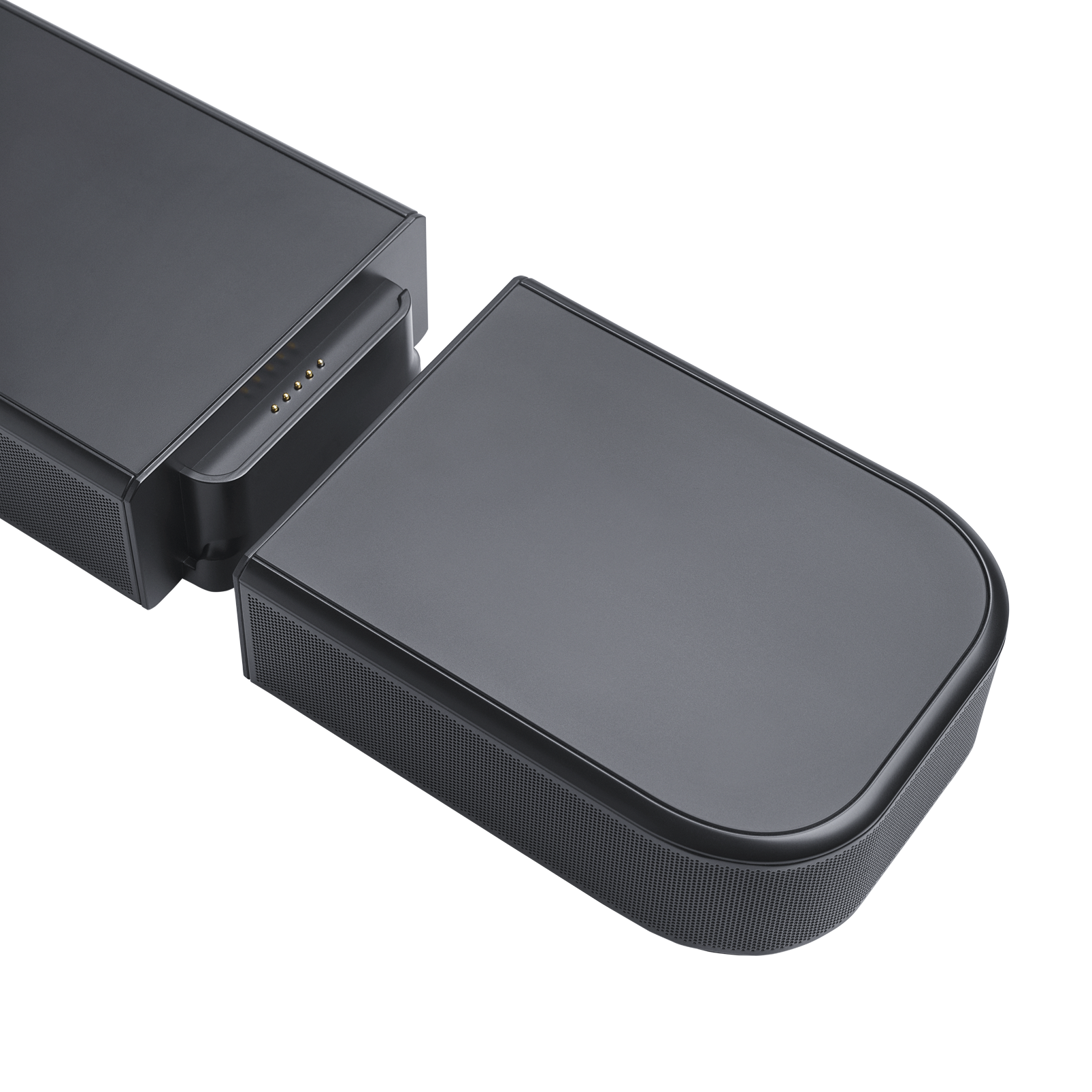

• Real Surround Sound with Detachable Wireless Speakers
• 780W Max Output Power with 10" Wireless Subwoofer
• Dolby Atmos® and DTS Virtual:X®
• MultiBeam™ 3.0
• PureVoice 2.0
• SmartDetails
• Broadcasting
• Night Listening
• Easy Sound Calibration
• Works with All Ecosystems and Music Streaming Services
• JBL One App
• HDMI eARC with 4K Dolby Vision Passthrough

Technical Specifications

General Specifications

• Sound System: 7.1 Channel
• Power Supply: 100 - 240V AC, ~50/60Hz
• Total Speaker Power Output (Max. @ THD 1%): 780W
• Soundbar Output Power (Max. @ THD 1%): 400W
• Surround Speaker Output Power (Max. @ THD 1%): 2 × 40W
• Subwoofer Output Power (Max. @ THD 1%): 300W

Speaker Configuration

• Soundbar:
• 6 × (44 × 80mm) Racetrack Drivers
• 2 × 1" (25mm) Tweeters

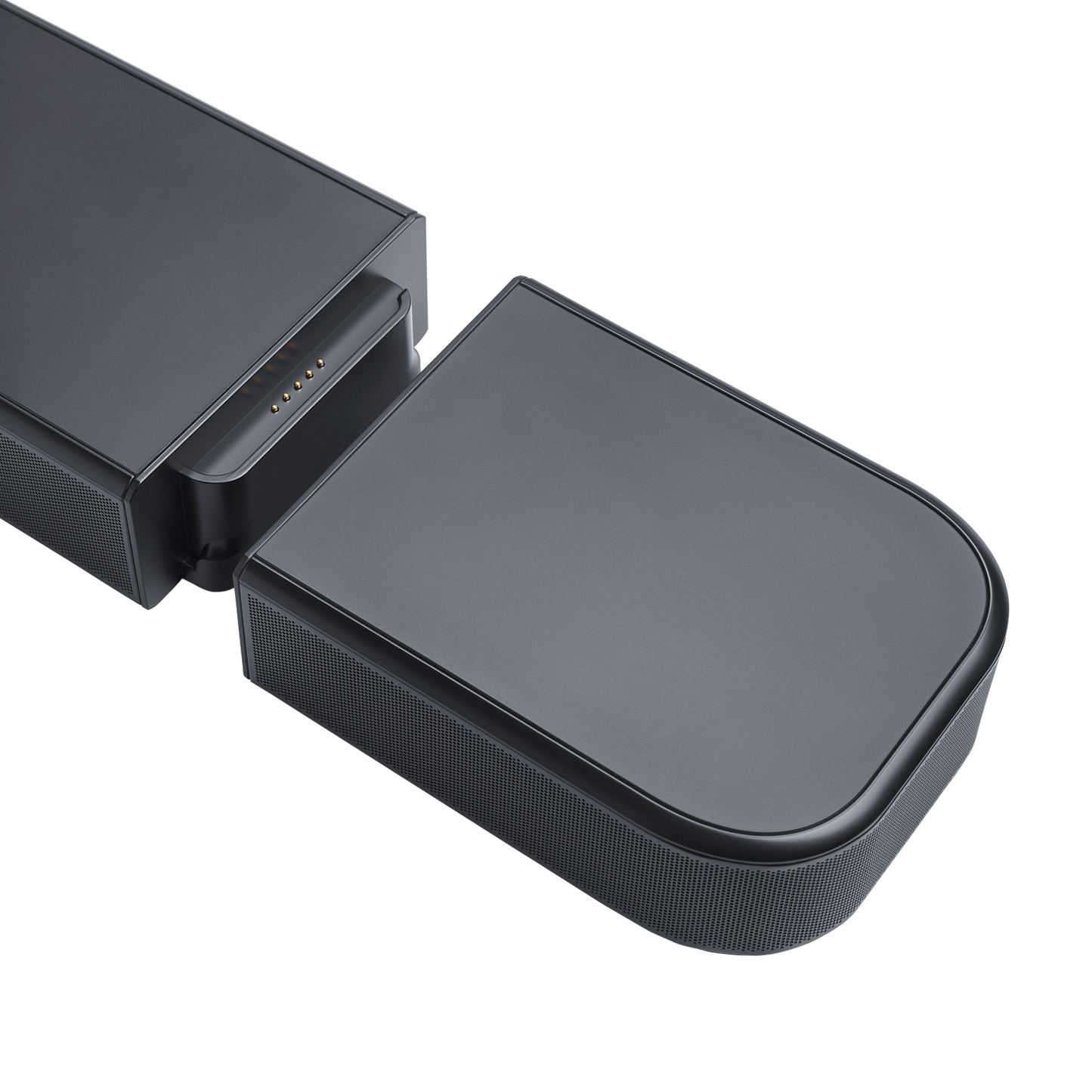

• Detachable Surround Speakers:
• 2 × (44 × 90mm) Racetrack Drivers

• Wireless Subwoofer:
• 10" (260mm) Driver

Surround Speaker Battery

• Battery Type: Lithium Battery (3.635V, 3283mAh)
• Playtime: Up to 10 Hours (varies by volume level and content)

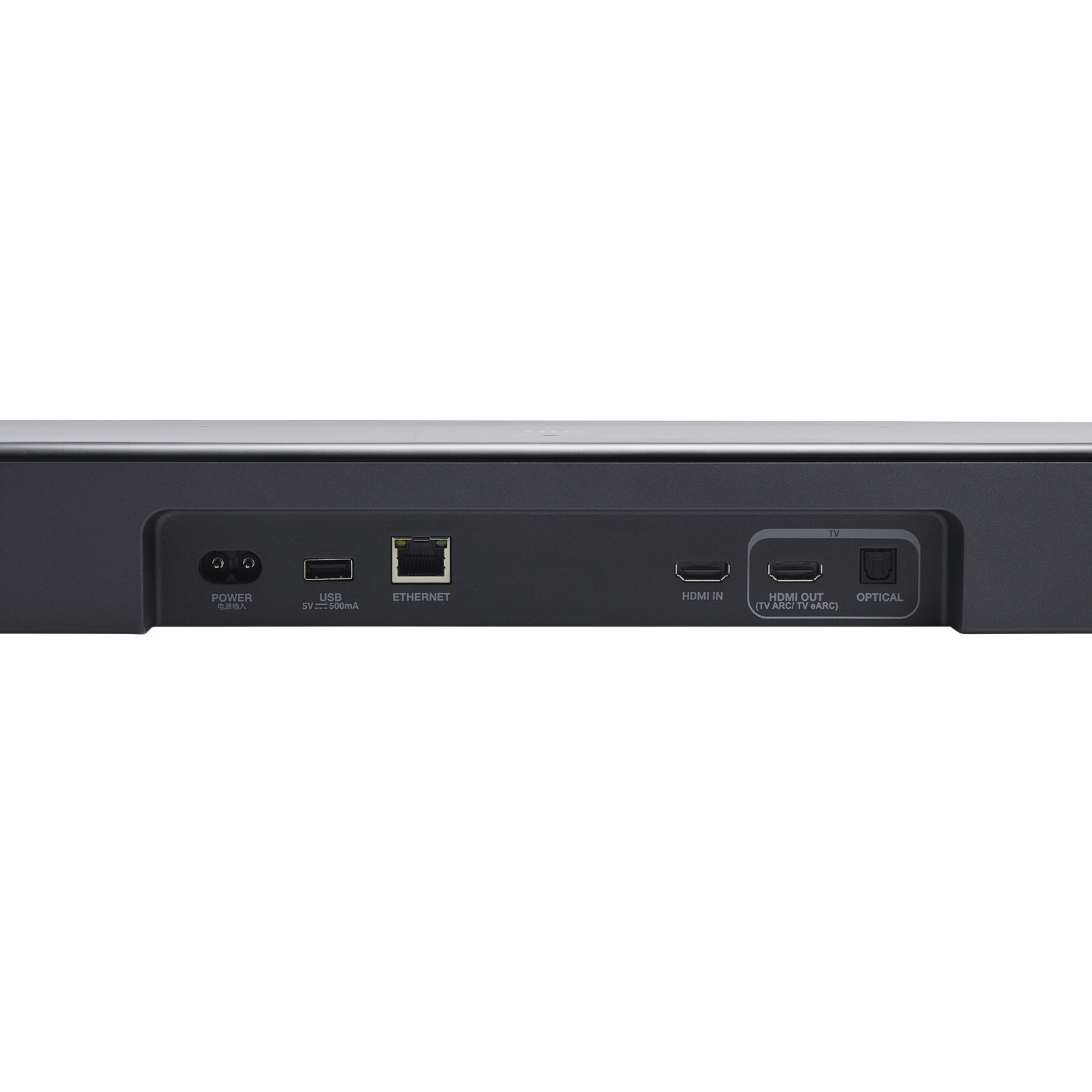

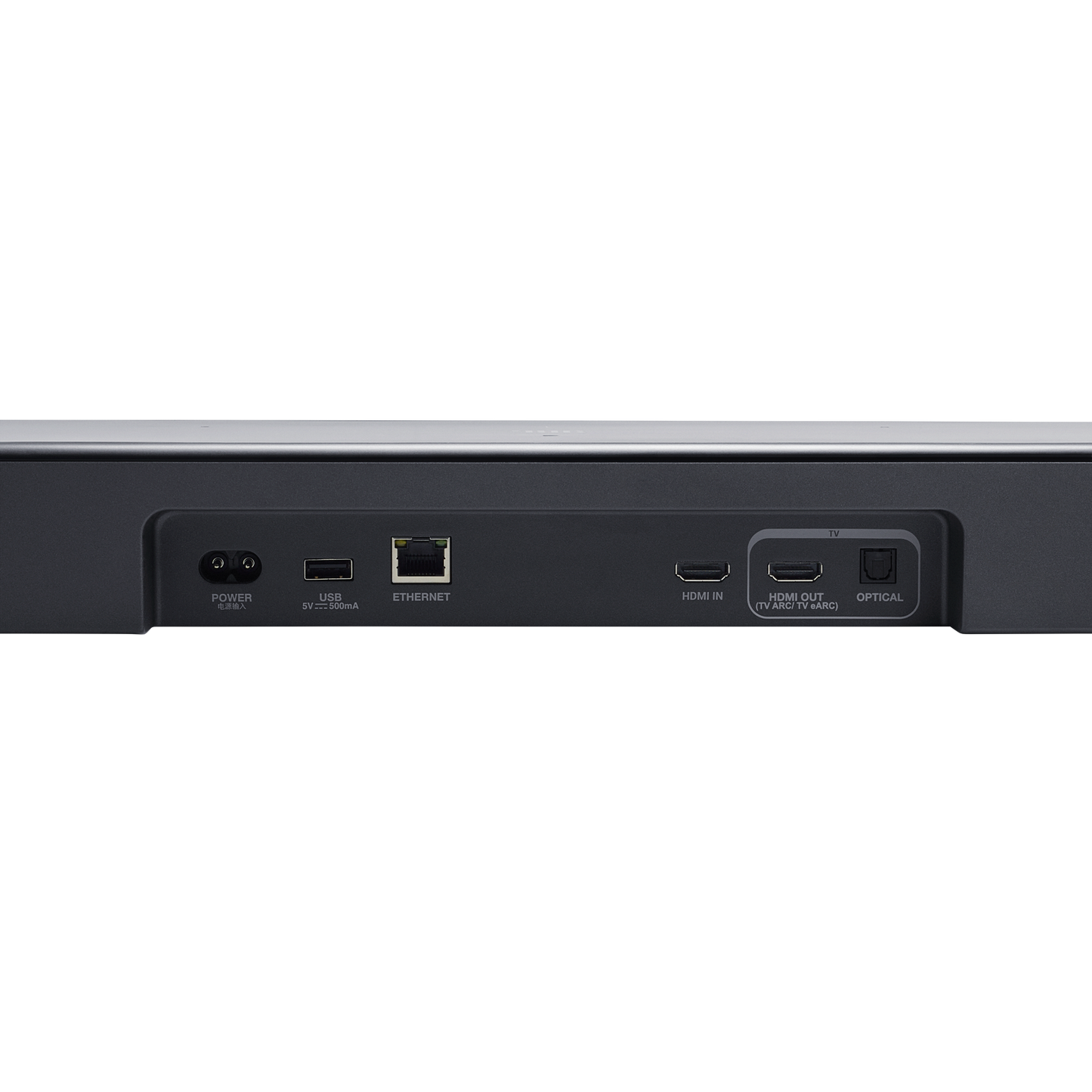

HDMI Specifications

• HDMI Video Input: 1
• HDMI Video Output (eARC): 1
• HDMI HDCP Version: 2.3
• HDR Passthrough: HDR10+, Dolby Vision

Audio Specifications

• Frequency Response: 35Hz – 20kHz (-6dB)
• Audio Inputs:
• Optical
• Bluetooth
• USB (USB playback available in US version only. For other regions, USB is for service use only.)

USB Specifications

• USB Port: Type-A
• USB Rating: 5V DC, 0.5A
• Supported Audio Format: MP3

Wireless Specifications

Bluetooth

• Bluetooth Version: 5.3
• Bluetooth Profile: A2DP v1.3, AVRCP v1.5
• Bluetooth Frequency Range: 2400MHz – 2483.5MHz
• Bluetooth Transmitter Power: <15dBm (EIRP)

Wi-Fi

• Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz)

2.4GHz Wi-Fi
• Frequency Range: 2412 – 2472MHz
• Transmitter Power: <20dBm (EIRP)

5GHz Wi-Fi
• Frequency Range:
• 5.15 – 5.35GHz
• 5.470 – 5.725GHz
• 5.725 – 5.825GHz

• Transmitter Power:
• 5.15 – 5.25GHz: <23dBm
• 5.25 – 5.35GHz & 5.470 – 5.725GHz: <20dBm
• 5.725 – 5.825GHz: <14dBm (EIRP)

Note: Band 5.6 – 5.64GHz is disabled in Australia and New Zealand.

Dimensions & Weight

Total Soundbar (with Surround Speakers Attached)

• 1163 × 52 × 128 mm
• 45.8" × 2.0" × 5.0"

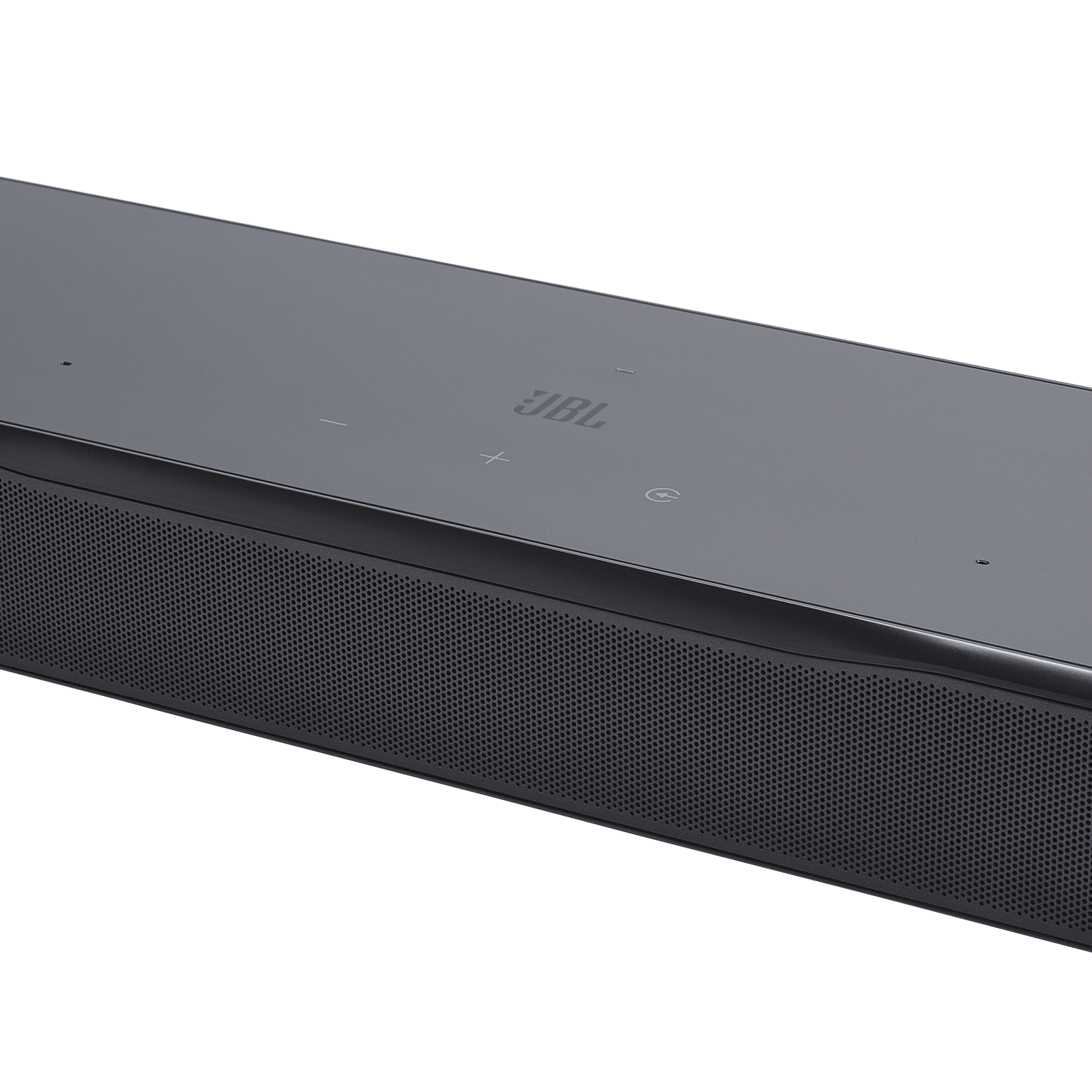

Main Soundbar

• Dimensions: 854 × 52 × 128 mm
• 35.6" × 2.0" × 5.0"
• Weight: 5.0 kg / 11 lbs

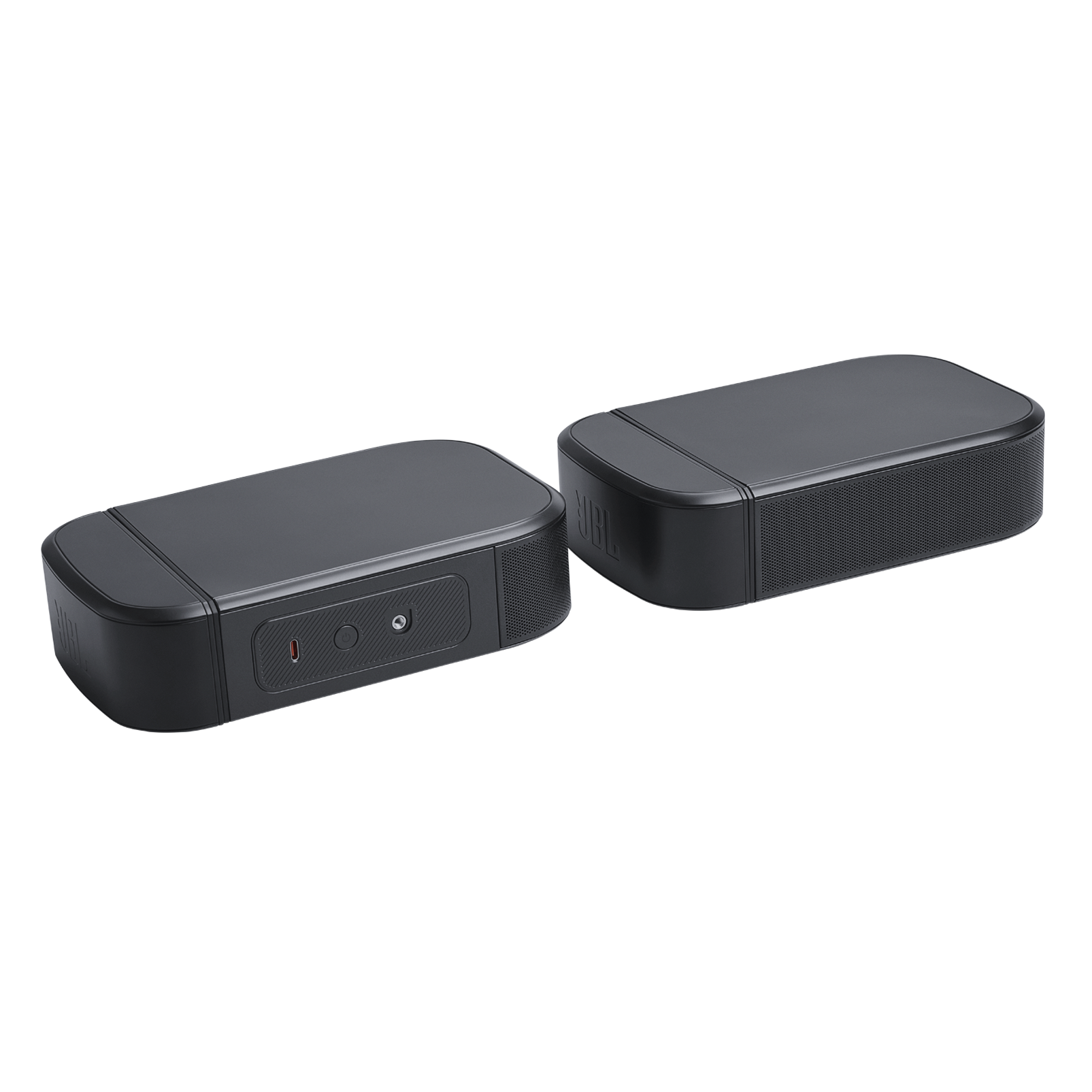

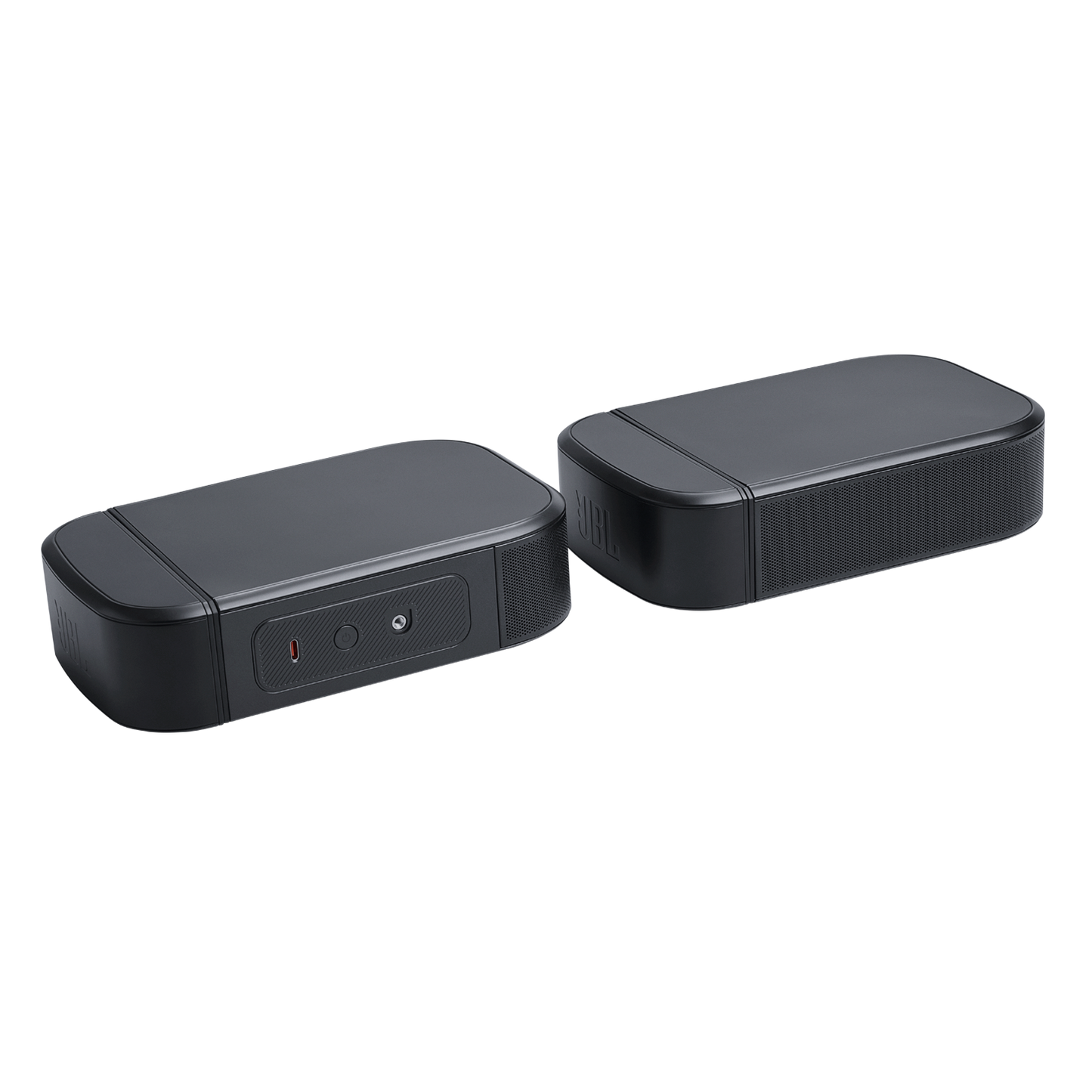

Detachable Surround Speakers (Each)

• Dimensions: 169 × 52 × 128 mm
• 6.7" × 2.0" × 5.0"
• Weight: 0.7 kg / 1.6 lbs

Wireless Subwoofer

• Dimensions: 325 × 400 × 325 mm
• 12.8" × 15.7" × 12.8"
• Weight: 8.1 kg / 17.8 lbs

Packaging

• Dimensions: 980 × 398 × 495 mm
• 38.58" × 15.67" × 19.49"

• Gross Weight:
• 20.8 kg / 45.9 lbs (EMEA / UK / AU / NZ)
• 18.08 kg / 41.4 lbs (Other Regions)

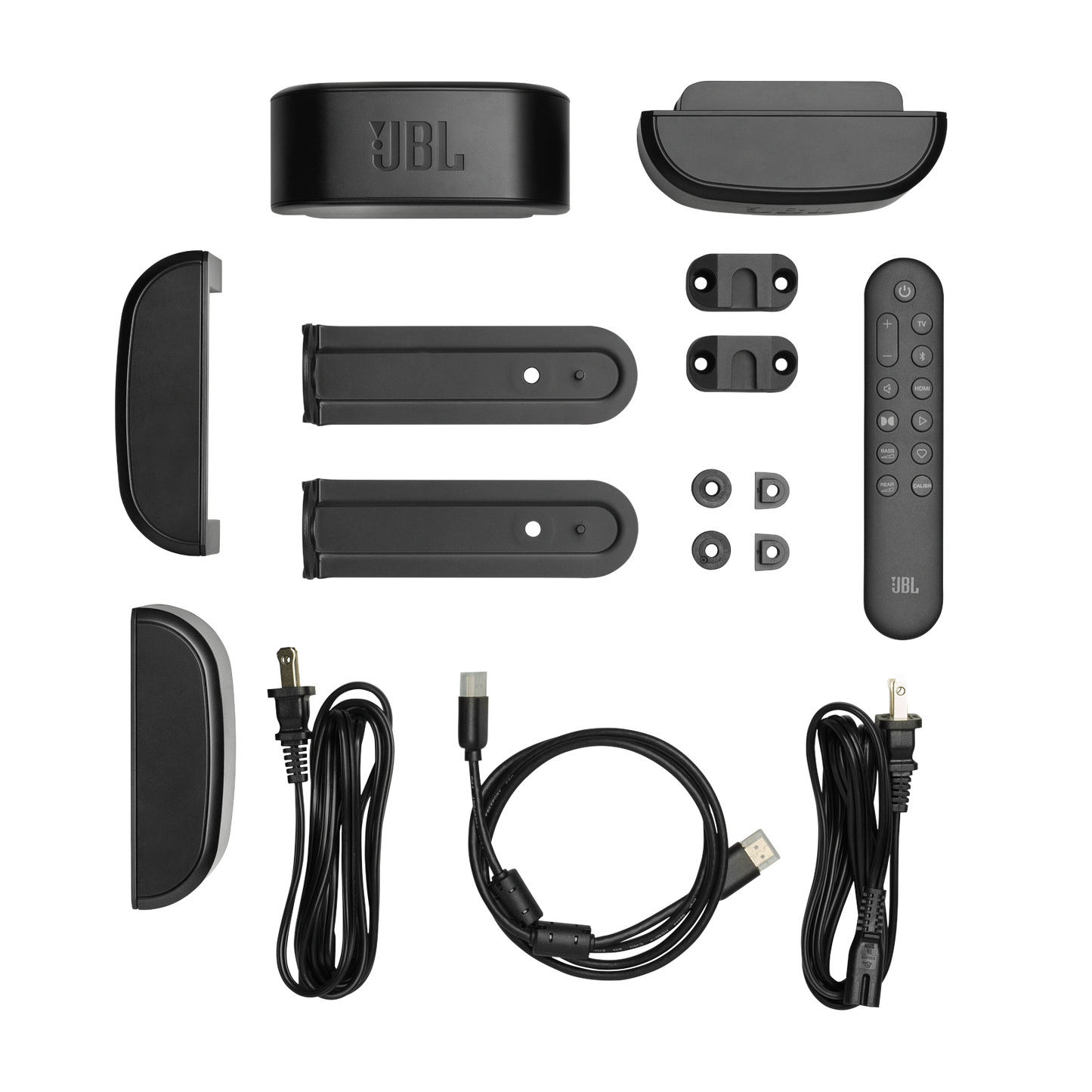

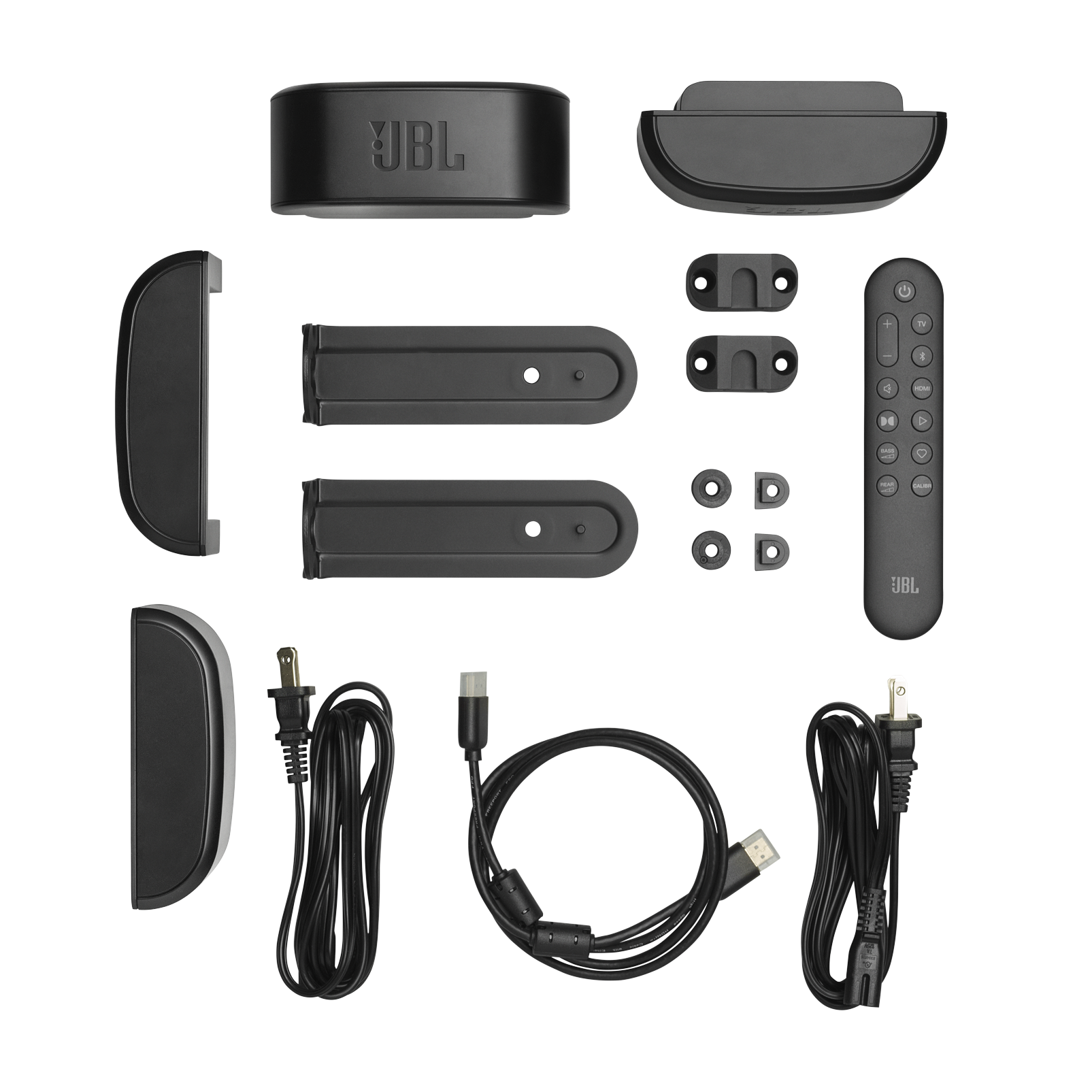

What's in the Box

• 1 × JBL Bar 800 MK2 Main Soundbar
• 2 × Detachable Wireless Surround Speakers
• 1 × Wireless Subwoofer
• 1 × Remote Control with 2 Batteries
• Power Cords (up to 6 pcs depending on region)
• 1 × HDMI Cable
• 2 × L-Shaped Wall-Mount Brackets (Main Soundbar)
• 2 × U-Shaped Wall-Mount Brackets (Surround Speakers) with Screws
• 4 × Side Caps
• 1 × Wall-Mount Template
• 1 × Quick Start Guide
• 1 × Safety Instruction & Warranty Card

Disclaimer

Some features may require subscriptions or services that are not available in all countries.
