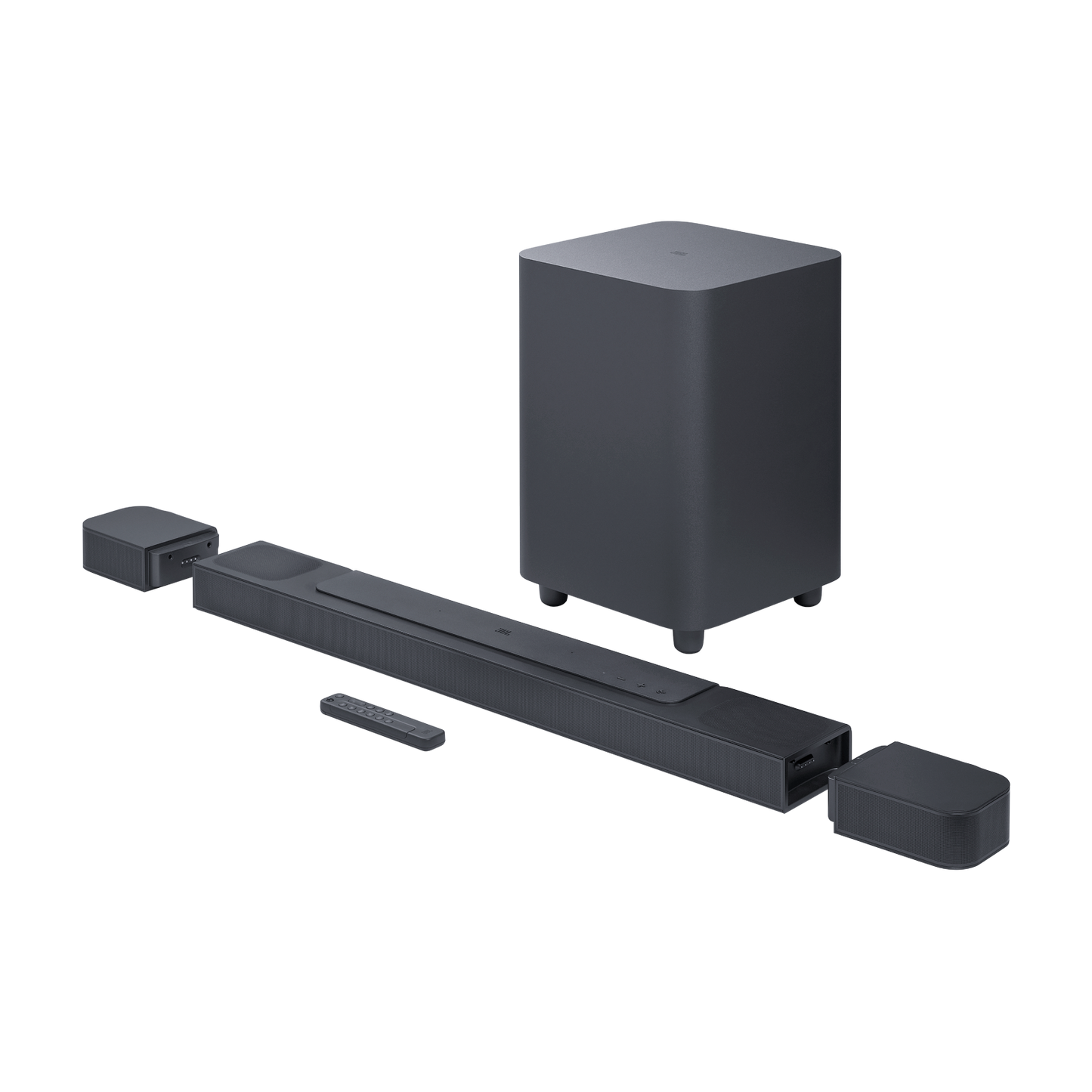

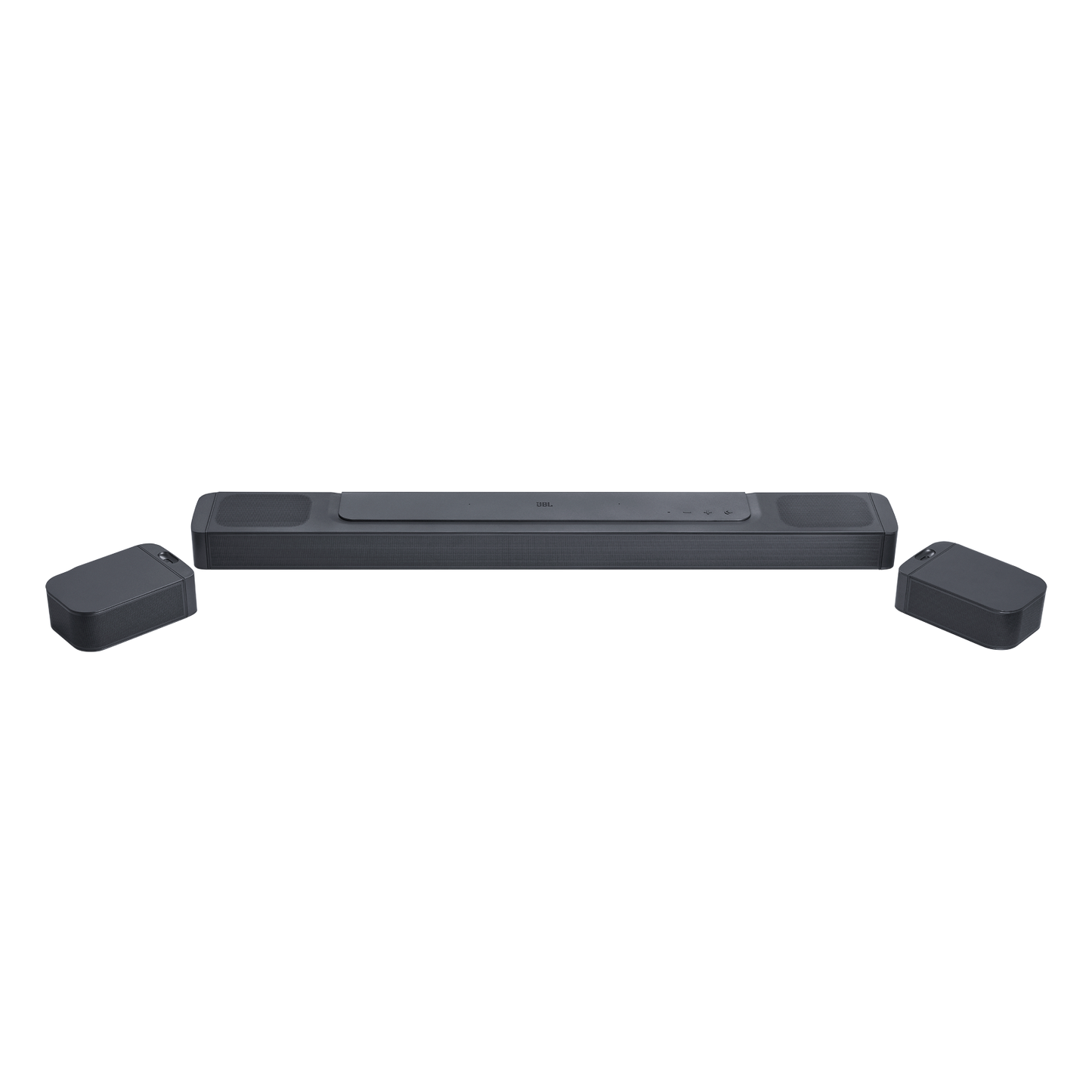

JBL BAR 800 5.1.2-channel soundbar with detachable surround speakers and Dolby Atmos® -1 Year JBL Warranty

JBL Bar 800

Warranty

• 1-Year Official Warranty by JBL Singapore
• Service Centre Location: 60 Marsiling Rd, SKM Building, Singapore 739107

Features

True Dolby Atmos® Surround Sound

• Immerse yourself in theater-quality 3D audio with two up-firing drivers delivering true Dolby Atmos® surround sound.

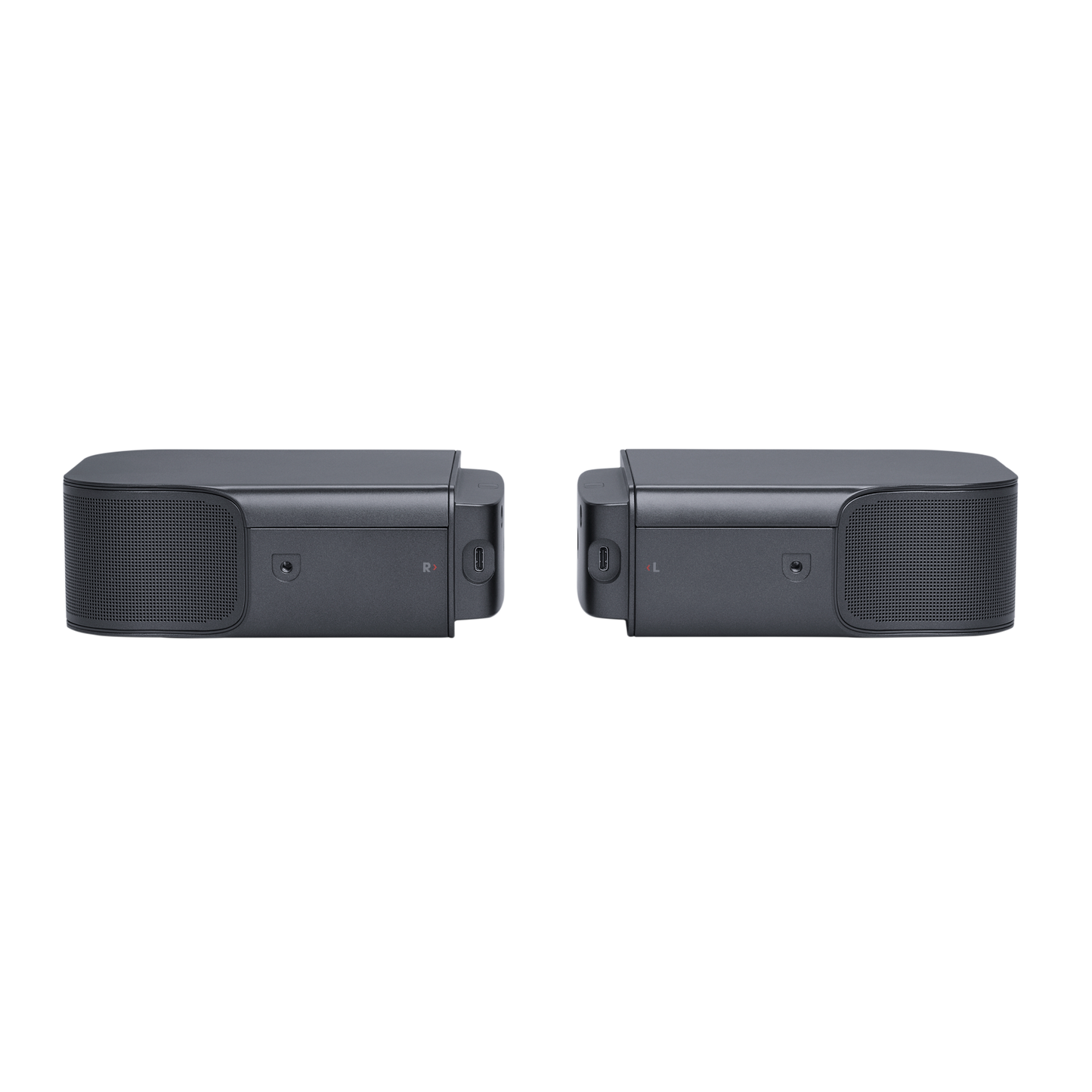

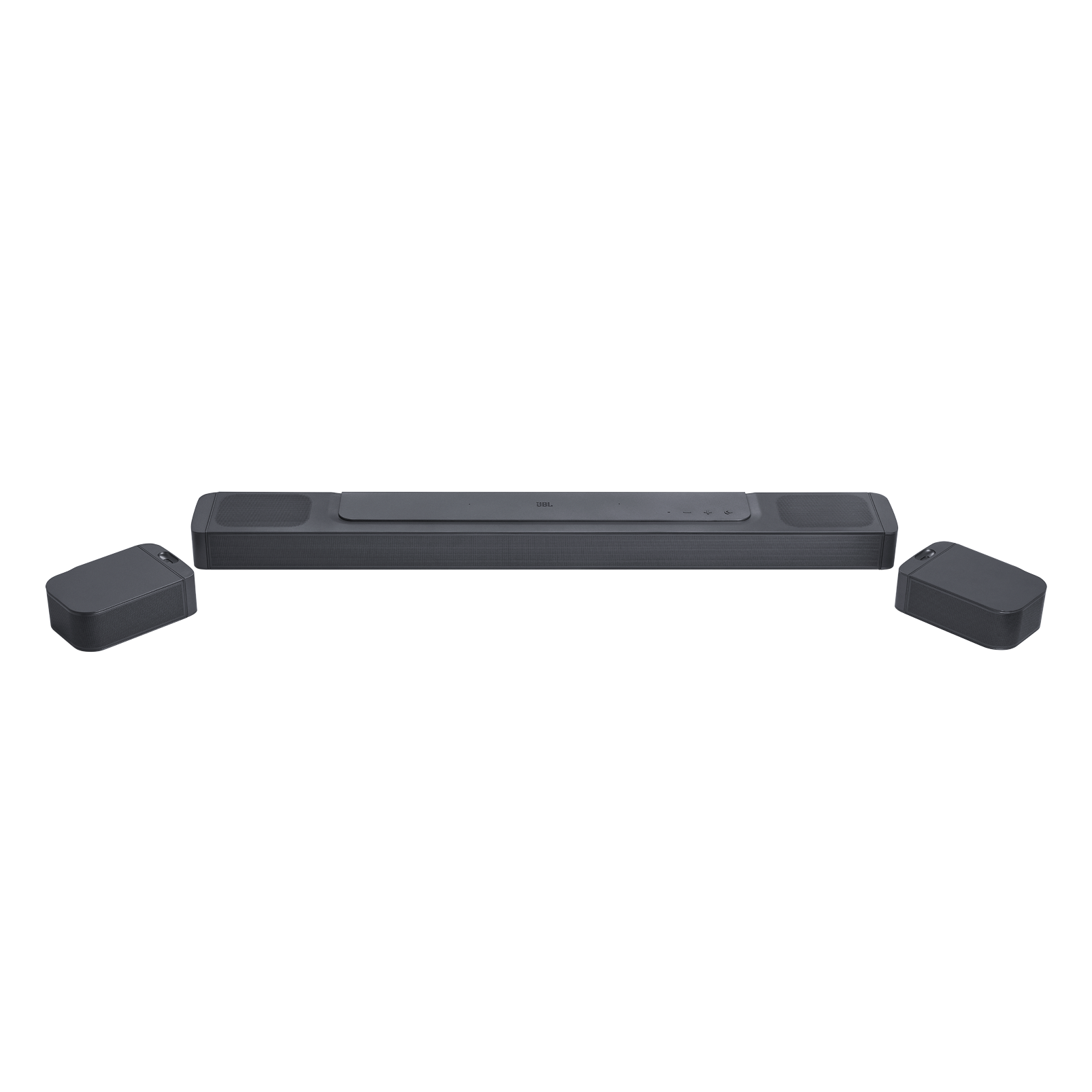

Real Surround Sound with Detachable Speakers

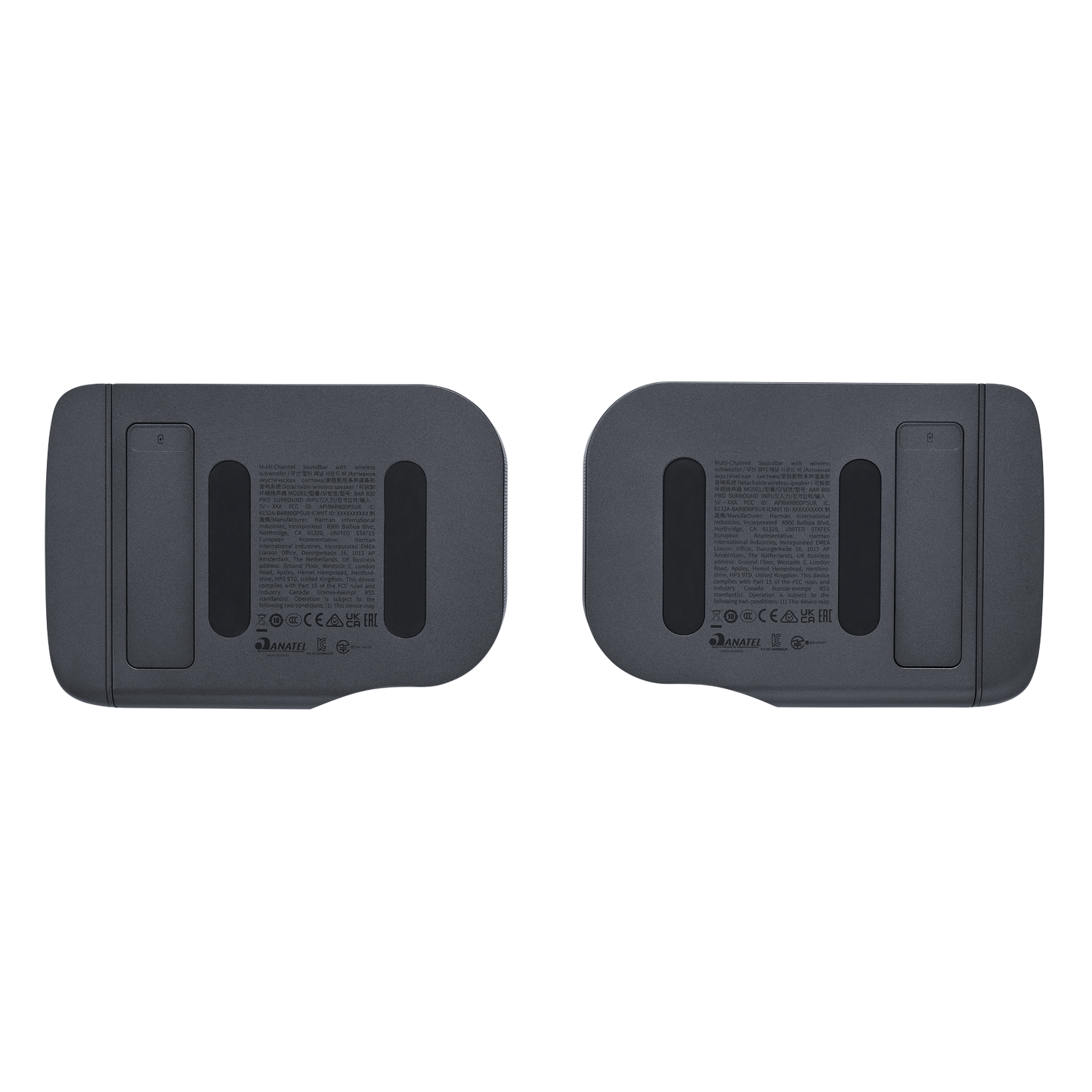

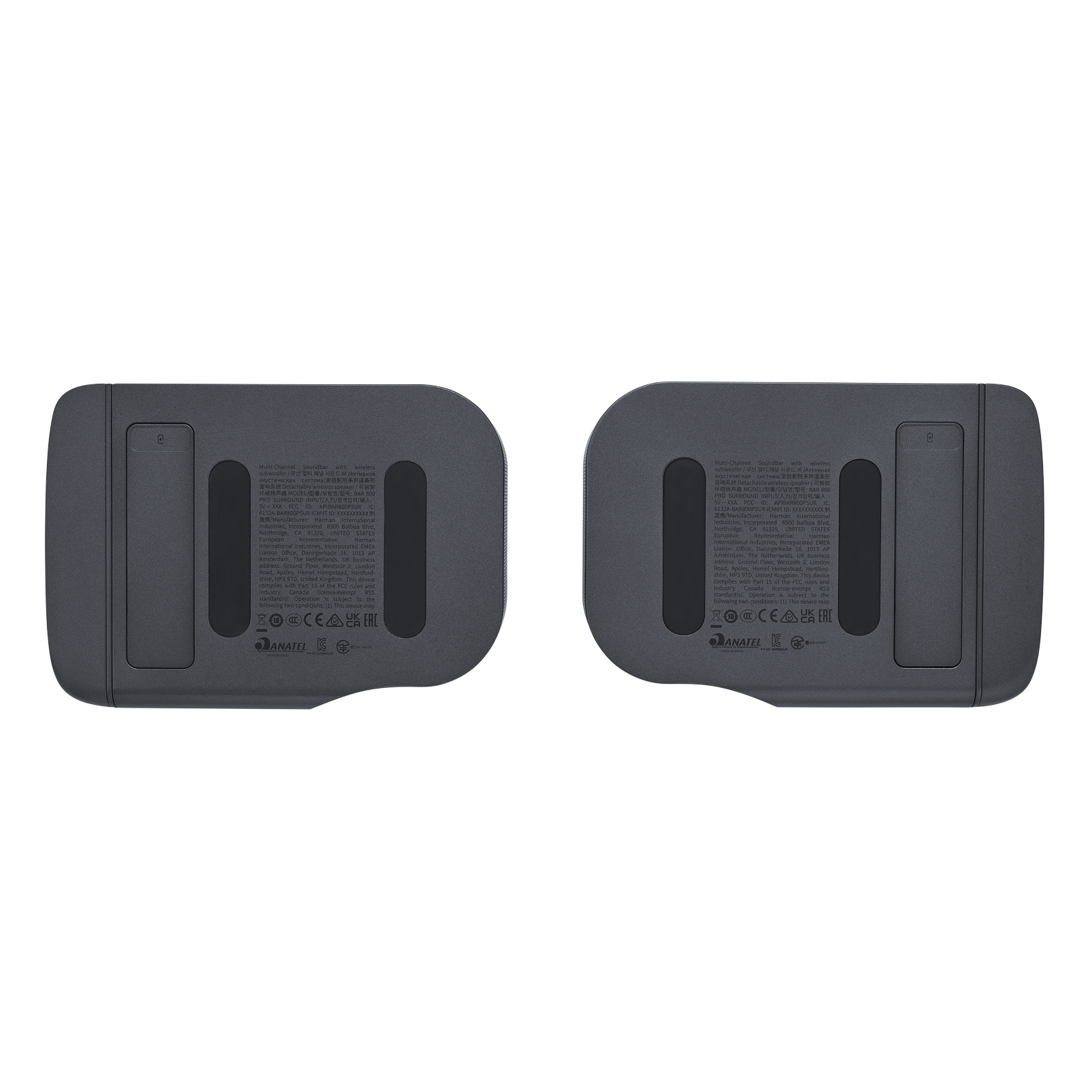

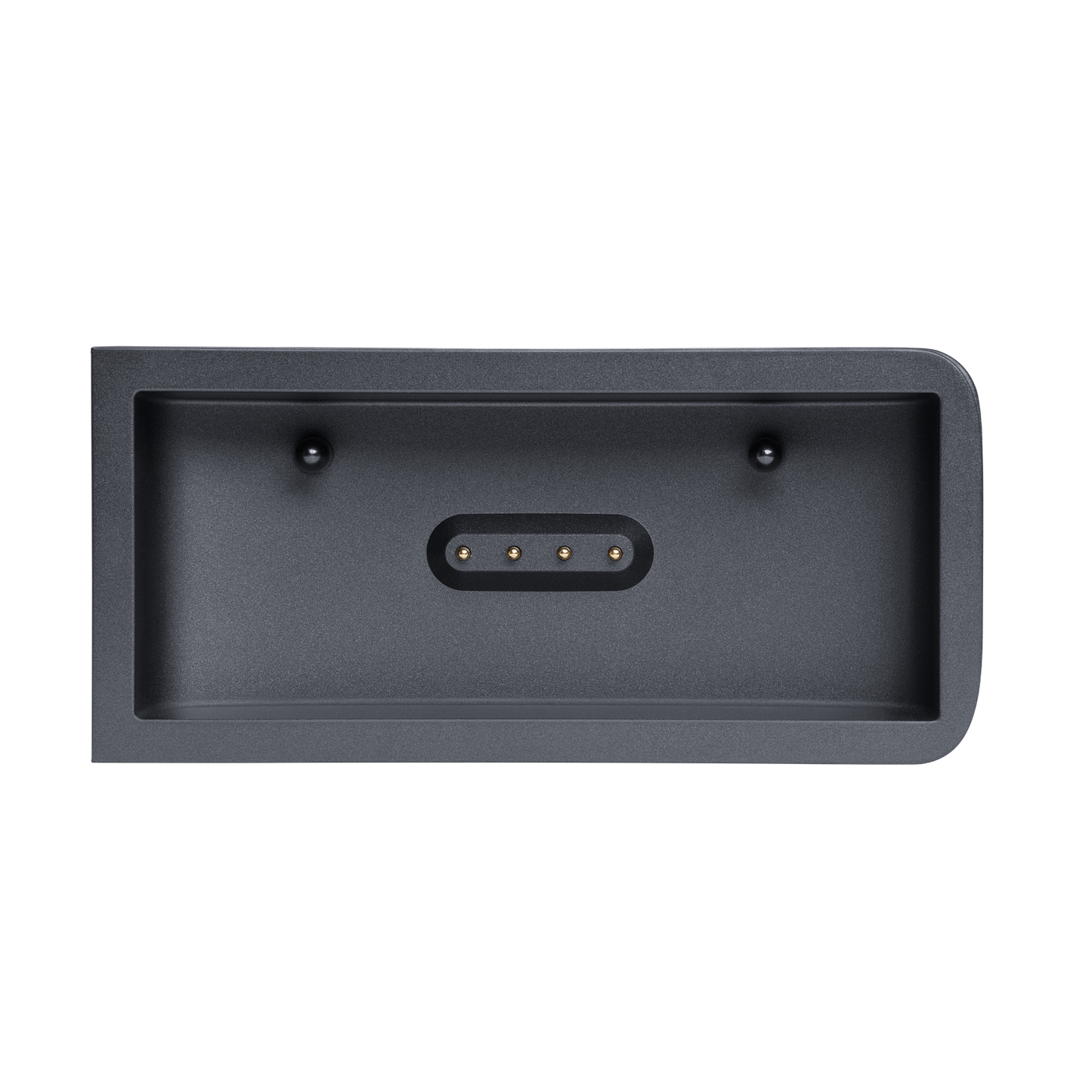

• Enjoy genuine surround sound without extra wires. Simply place the detachable battery-powered surround speakers behind you for a cinematic experience.

Built-in Wi-Fi with AirPlay, Alexa Multi-Room Music & Chromecast Built-in™

• Stream from over 300 online music services through AirPlay, Alexa MRM, and Chromecast built-in™.
• Supports internet radio, podcasts, and high-definition audio streaming.
• Automatic software updates via Wi-Fi ensure access to the latest features.

General Specifications

• Power Supply: 100 – 240V AC, 50/60Hz
• Networked Standby Power: < 2.0W
• Operating Temperature: 0°C – 45°C

Audio Specifications

• Total System Output Power (Max @ THD 1%): 720W
• Soundbar Output Power (Max @ THD 1%): 340W
• Surround Speaker Output Power (Max @ THD 1%): 2 × 40W
• Subwoofer Output Power (Max @ THD 1%): 300W

Drivers

• Soundbar: 3 × (46 × 90 mm) Racetrack Drivers, 3 × 0.75" (20 mm) Tweeters, 2 × 2.75" (70 mm) Up-Firing Full-Range Drivers
• Surround Speakers: 1 × (46 × 90 mm) Racetrack Driver (each)
• Subwoofer: 10" (260 mm) Driver

Audio Performance

• Frequency Response: 35 Hz – 20 kHz (-6 dB)

Audio Inputs

• Optical Input ×1
• Bluetooth
• Chromecast Built-in
• Apple AirPlay
• Alexa Multi-Room Music (MRM)
• USB (Playback available on US version only; Service port on other versions)

Connectivity & Control

USB

• USB Port: Type-A
• USB Rating: 5V DC, 0.5A

Supported Audio Formats

• MP3
• MPEG 1 Layer 2/3
• MPEG 2 Layer 3
• MPEG 2.5 Layer 3
• Sampling Rate: 16 – 48 kHz
• Bitrate: 80 – 320 kbps

Bluetooth

• Bluetooth Version: 5.0
• Bluetooth Profiles: A2DP 1.2, AVRCP 1.5
• Frequency Range: 2400 MHz – 2483.5 MHz
• Transmitter Power: <15 dBm (EIRP)

Wi-Fi

• Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz)

2.4GHz Wi-Fi

• Frequency Range: 2412 – 2472 MHz
• Transmitter Power: <20 dBm (EIRP)

5GHz Wi-Fi

• Frequency Range:
• 5.15 – 5.35 GHz
• 5.470 – 5.725 GHz
• 5.725 – 5.825 GHz

• Transmitter Power:
• 5.15 – 5.25 GHz: <23 dBm
• 5.25 – 5.35 GHz: <20 dBm
• 5.47 – 5.725 GHz: <20 dBm
• 5.725 – 5.825 GHz: <14 dBm (EIRP)

Wireless Surround Connection

• 2.4GHz Wireless Frequency Range: 2406 – 2474 MHz
• Wireless Transmitter Power: <10 dBm (EIRP)

Dimensions & Weight

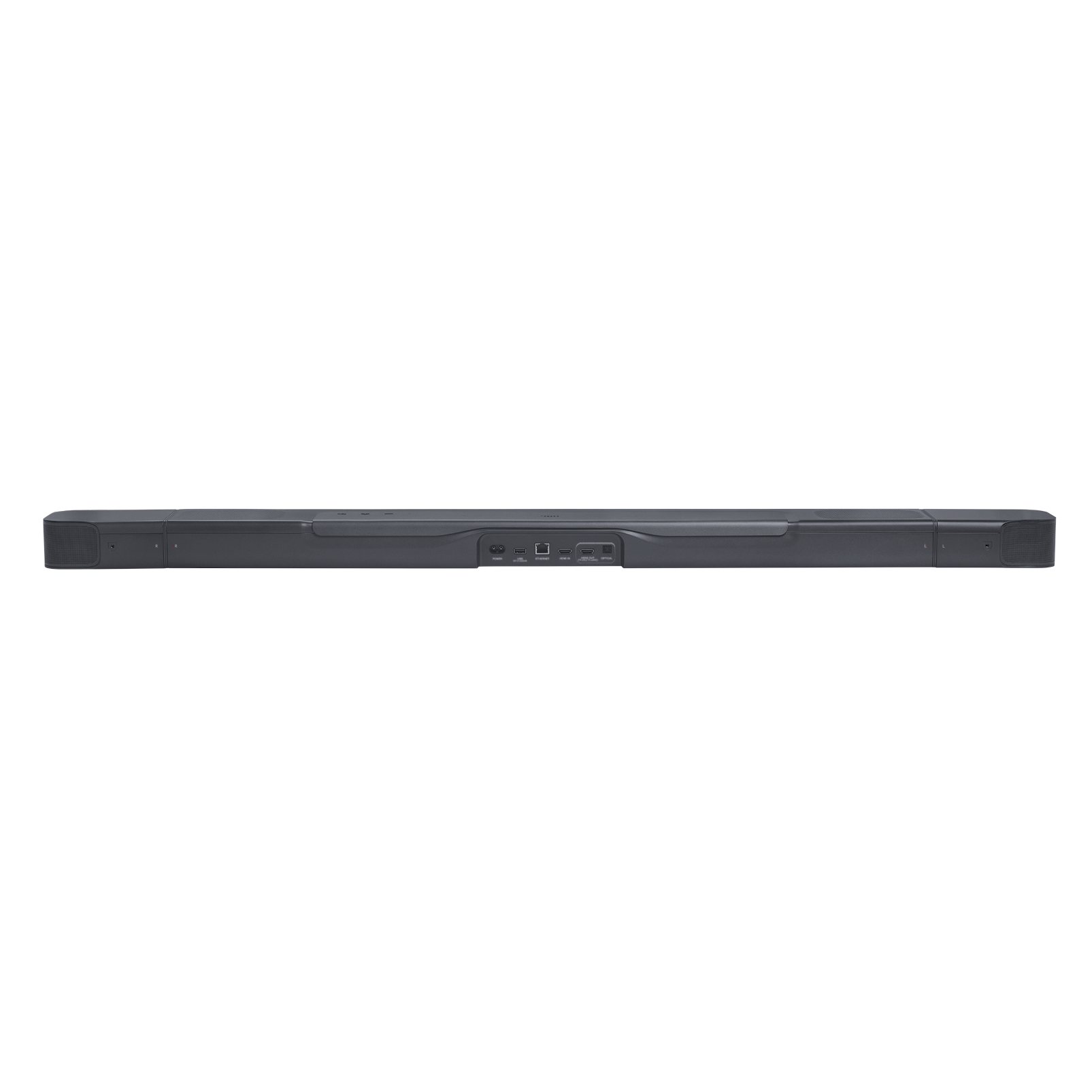

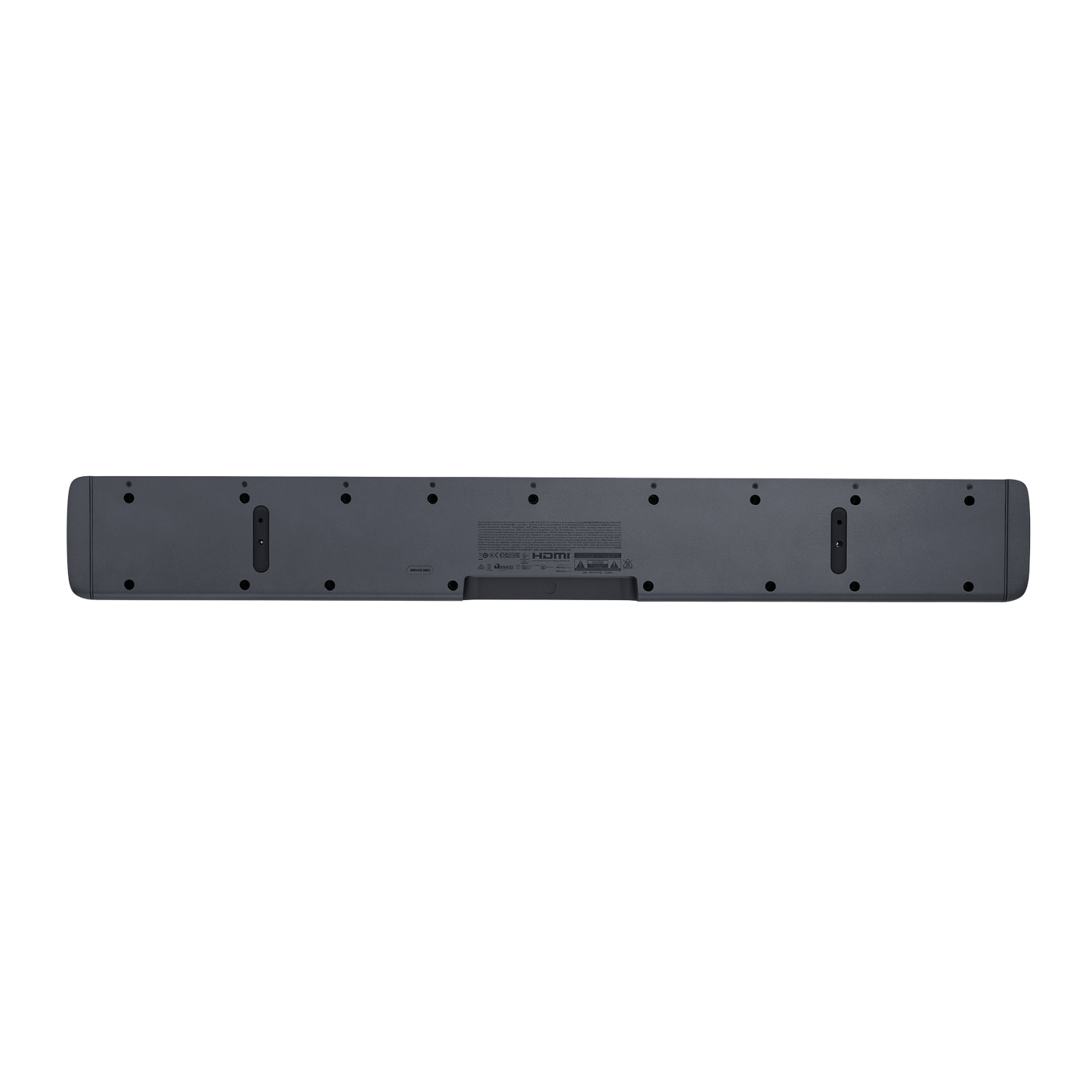

• Main Soundbar Dimensions (W × H × D): 884 × 56 × 120 mm / 34.8" × 2.2" × 4.7"

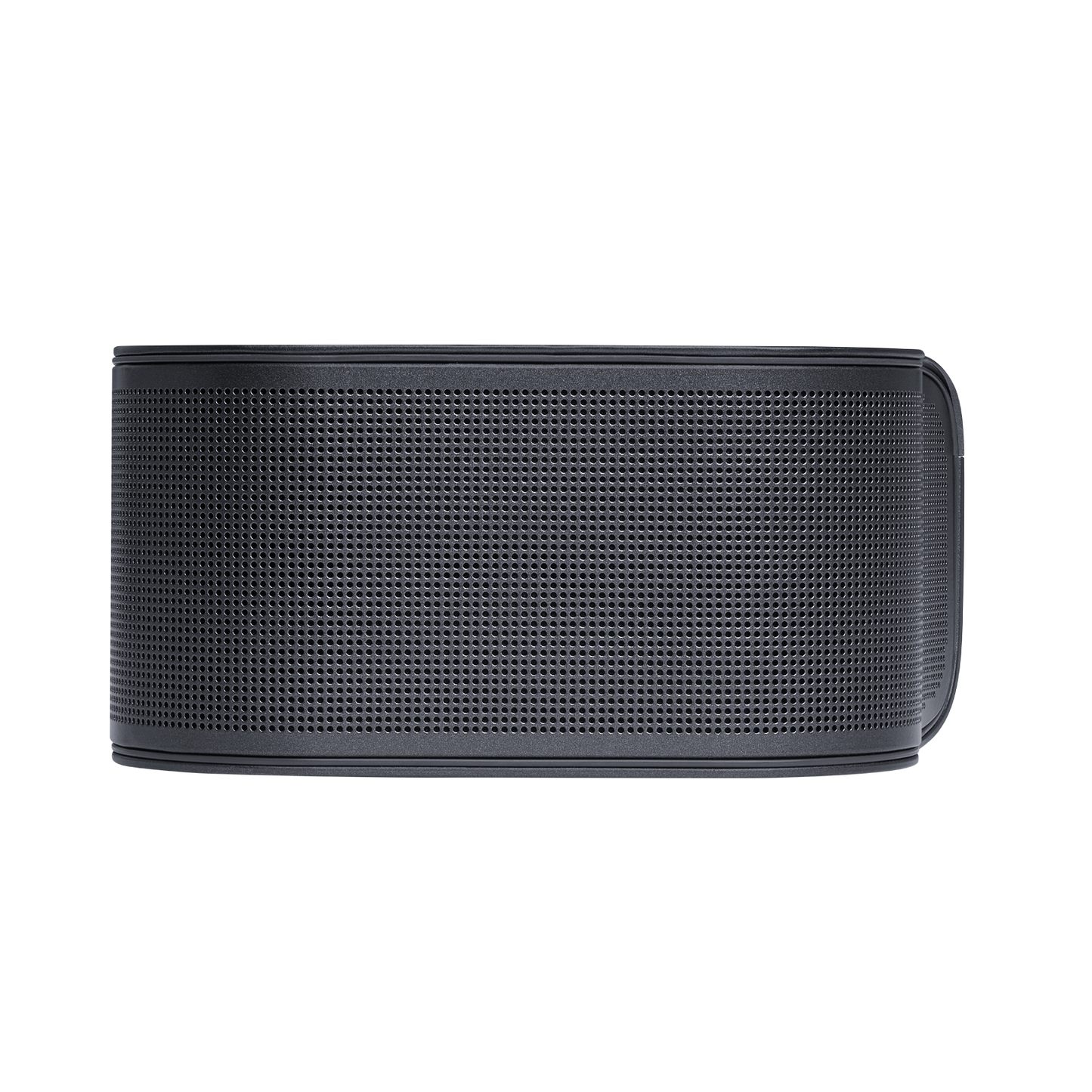

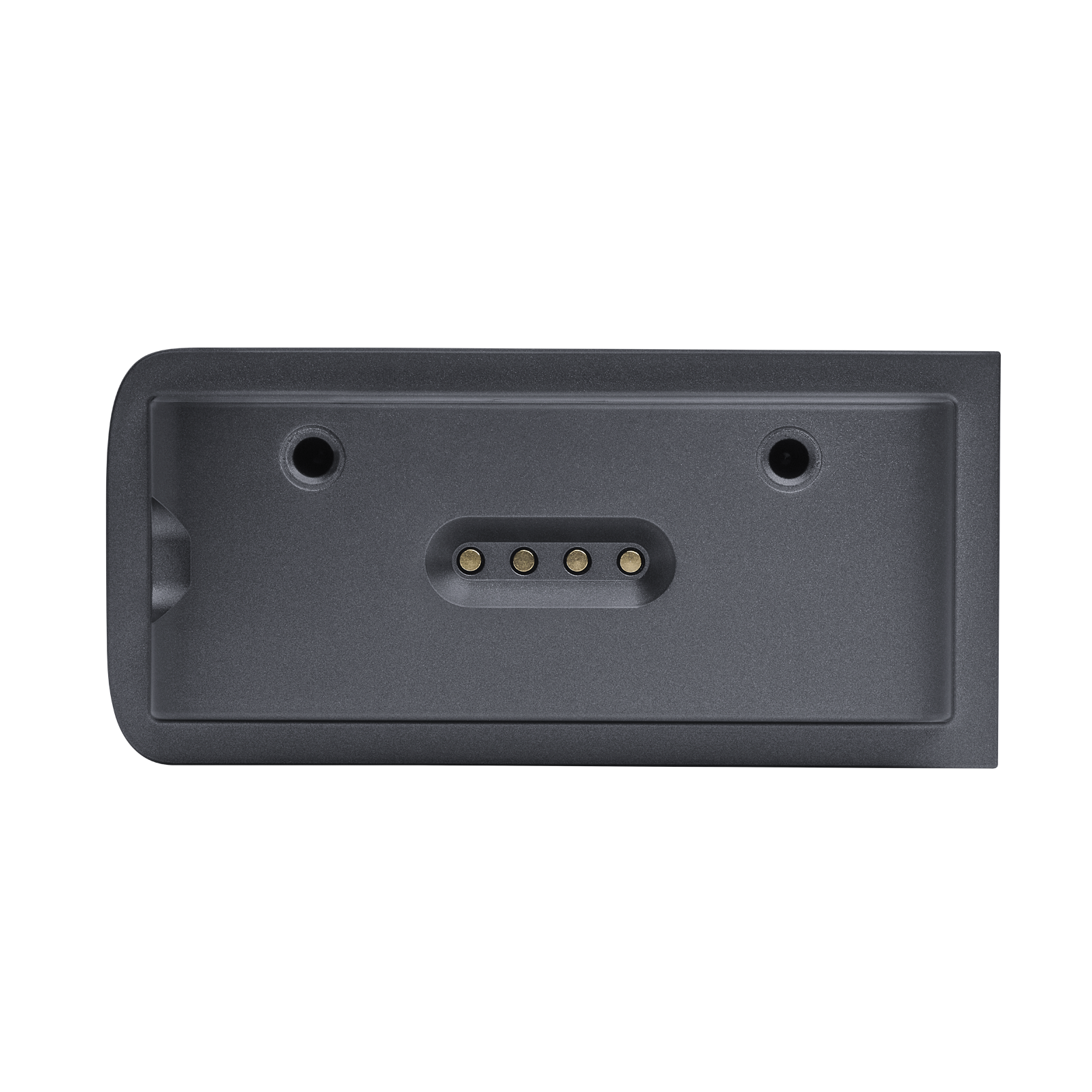

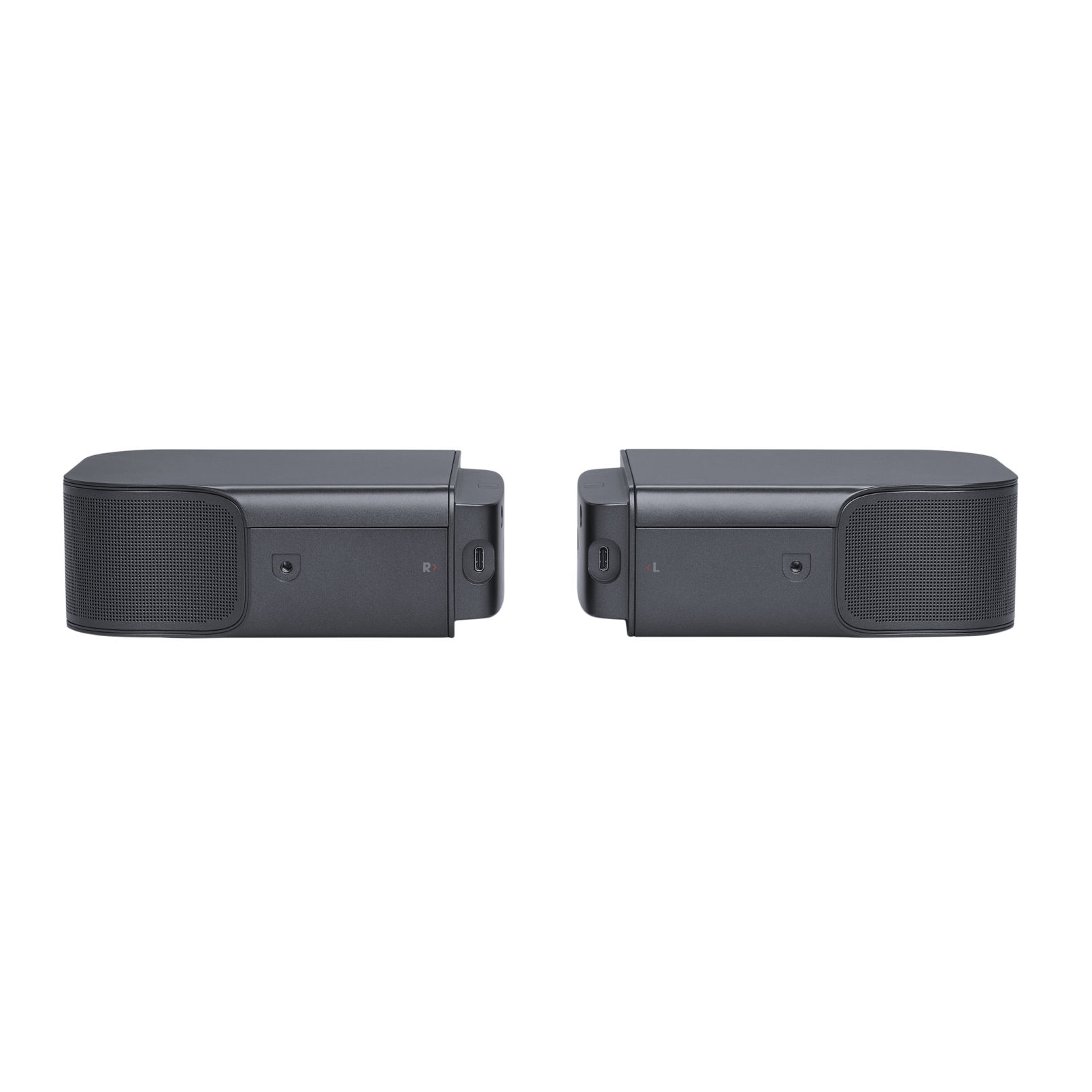

• Detachable Surround Speaker Dimensions (Each) (W × H × D): 145 × 56 × 120 mm / 5.7" × 2.2" × 4.7"
• Subwoofer Dimensions (W × H × D): 305 × 440.4 × 305 mm / 12" × 17.3" × 12"

• Soundbar Weight: 3.4 kg / 7.4 lbs
• Detachable Surround Speaker Weight (Each): 0.65 kg / 1.4 lbs
• Subwoofer Weight: 10 kg / 22 lbs

Packaging

• Packaging Dimensions (W × H × D): 1000 × 375 × 475 mm / 39.4" × 14.8" × 18.7"
• Packaging Weight: 18.9 kg / 41.6 lbs

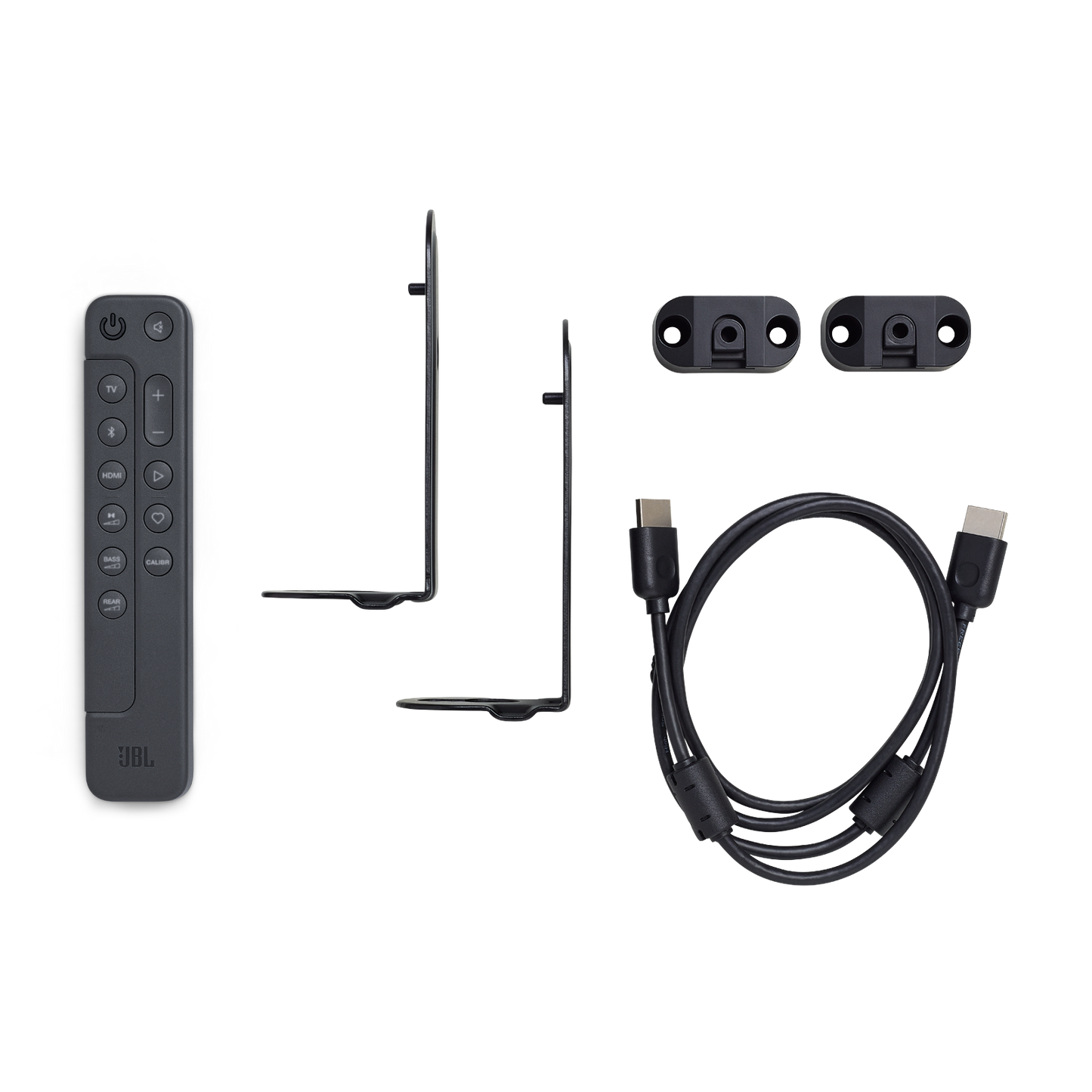

What's in the Box

• 1 × JBL Bar 800 Soundbar
• 2 × Detachable Wireless Surround Speakers
• 1 × Wireless Subwoofer
• 1 × Remote Control
• 2 × Batteries
• Power Cords (up to 8 pcs depending on region)
• 1 × HDMI Cable
• 2 × L-Shaped Wall-Mount Brackets (Main Soundbar)
• 2 × U-Shaped Wall-Mount Brackets (Surround Speakers)
• Mounting Screws Kit
• 4 × Side Caps
• 1 × Wall Mount Template
