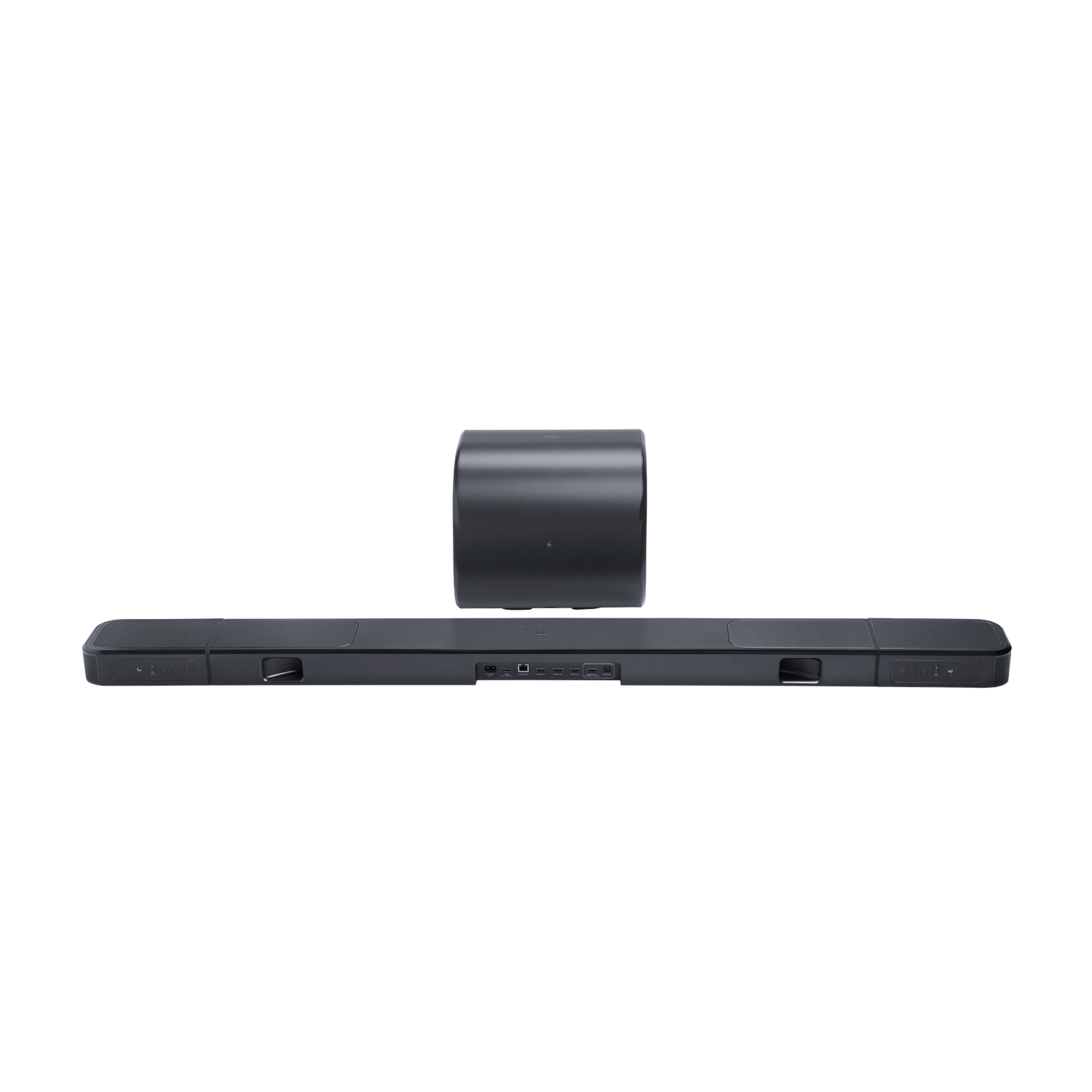

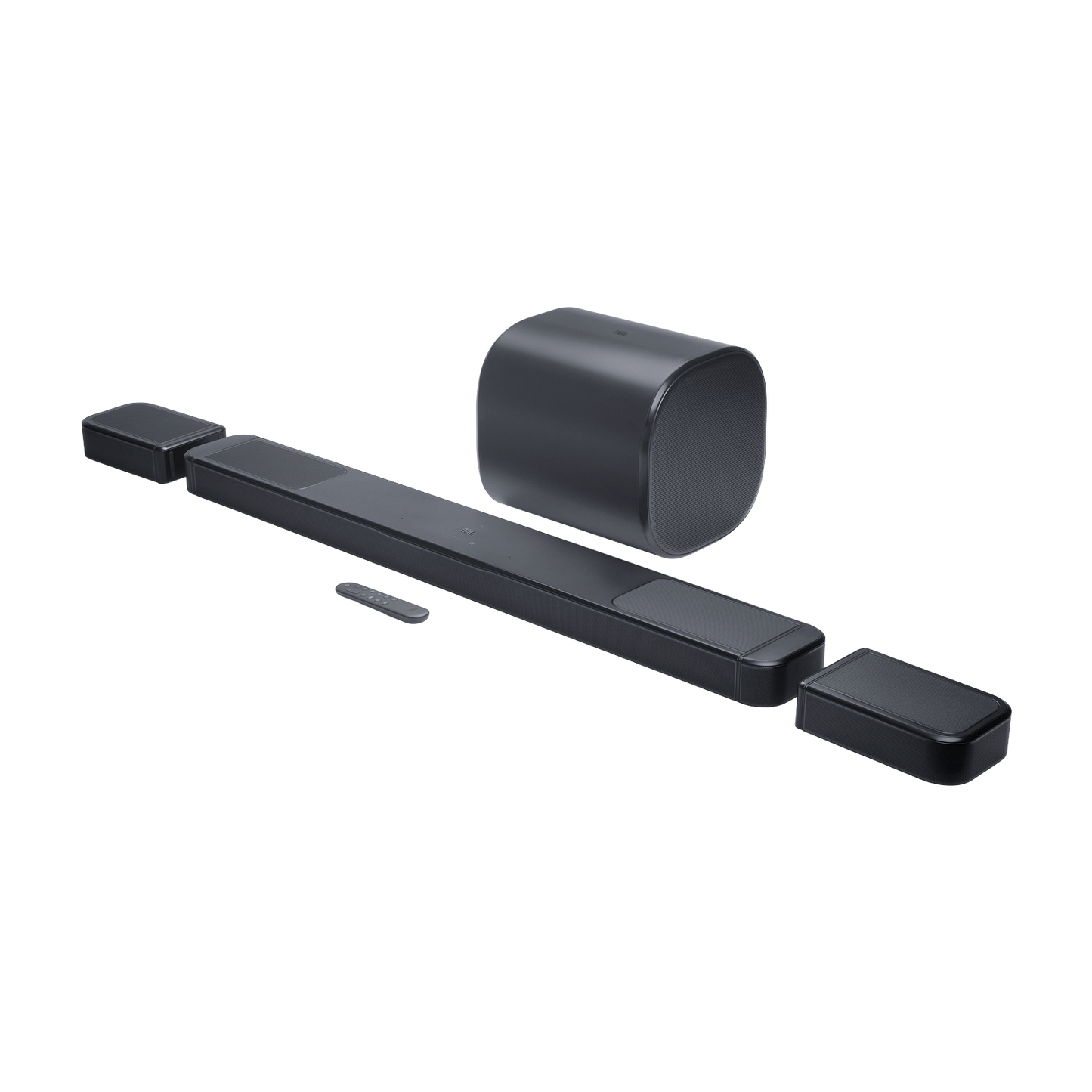

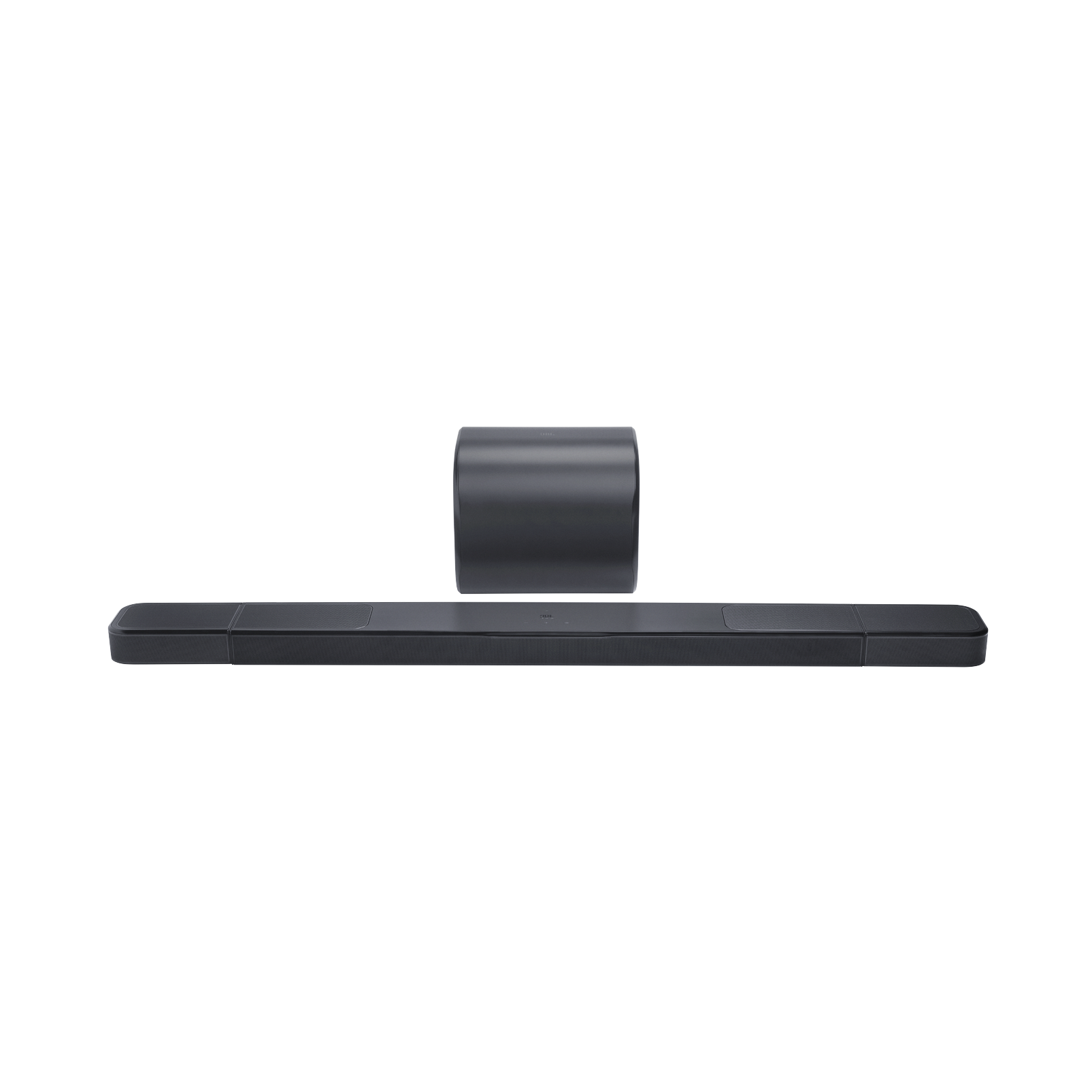

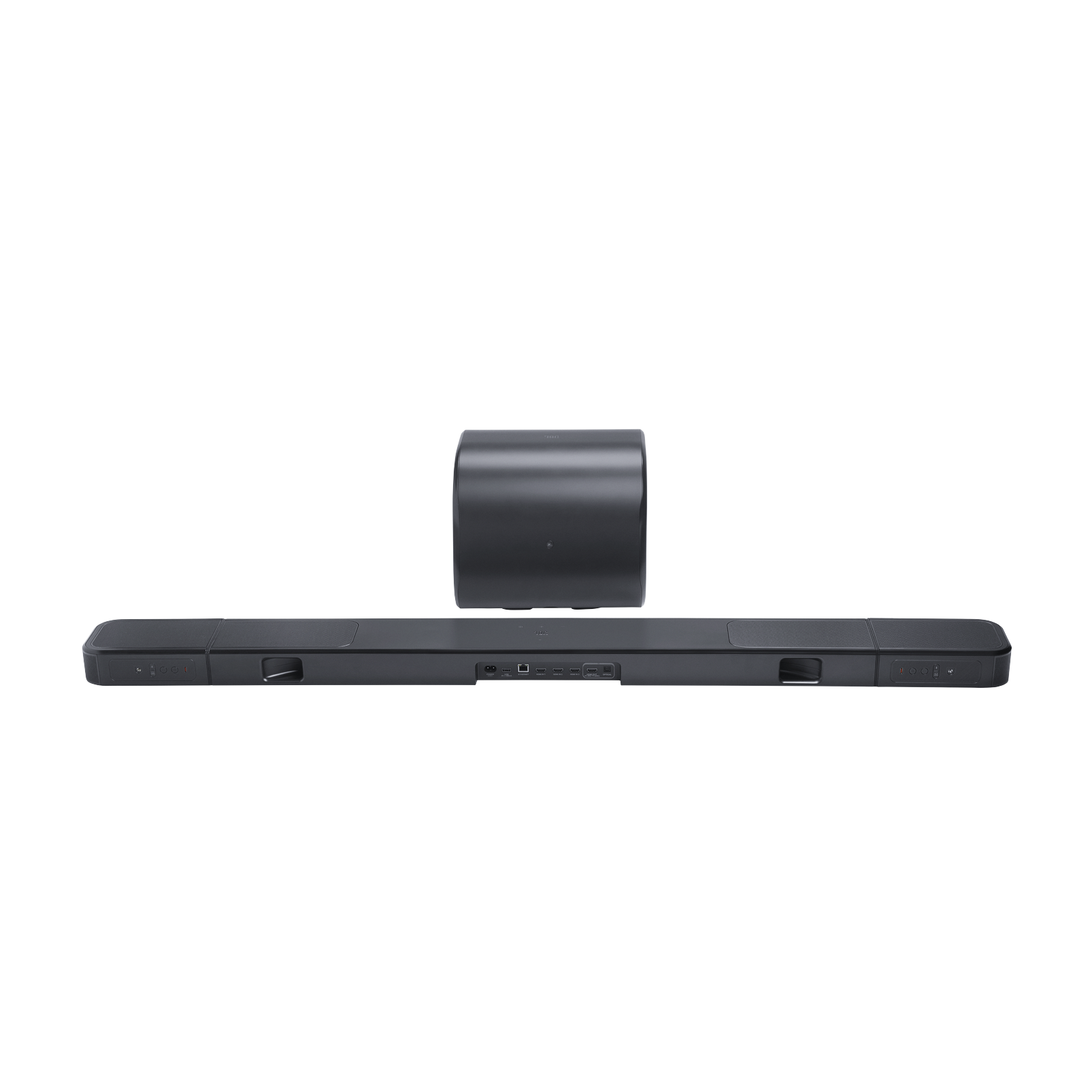

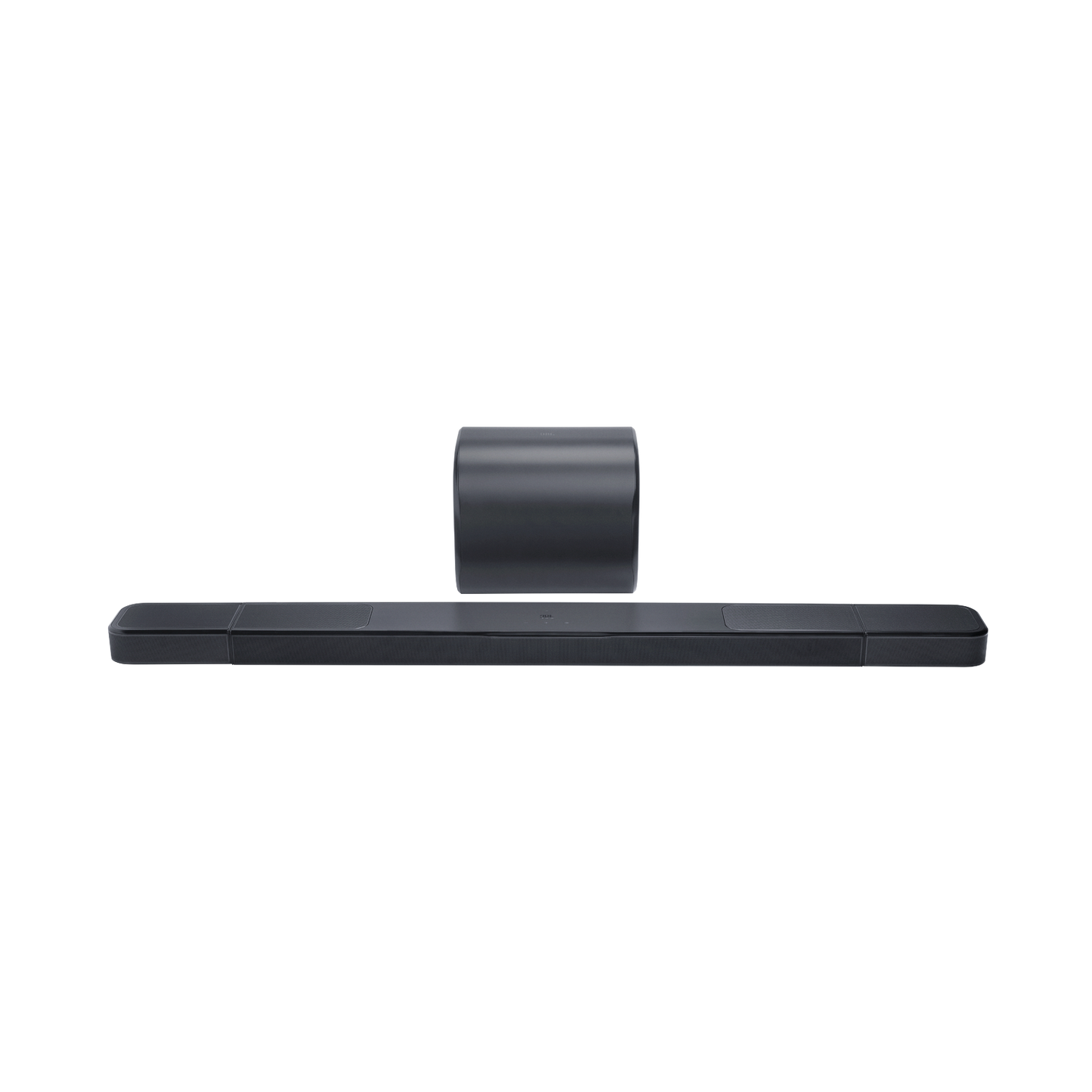

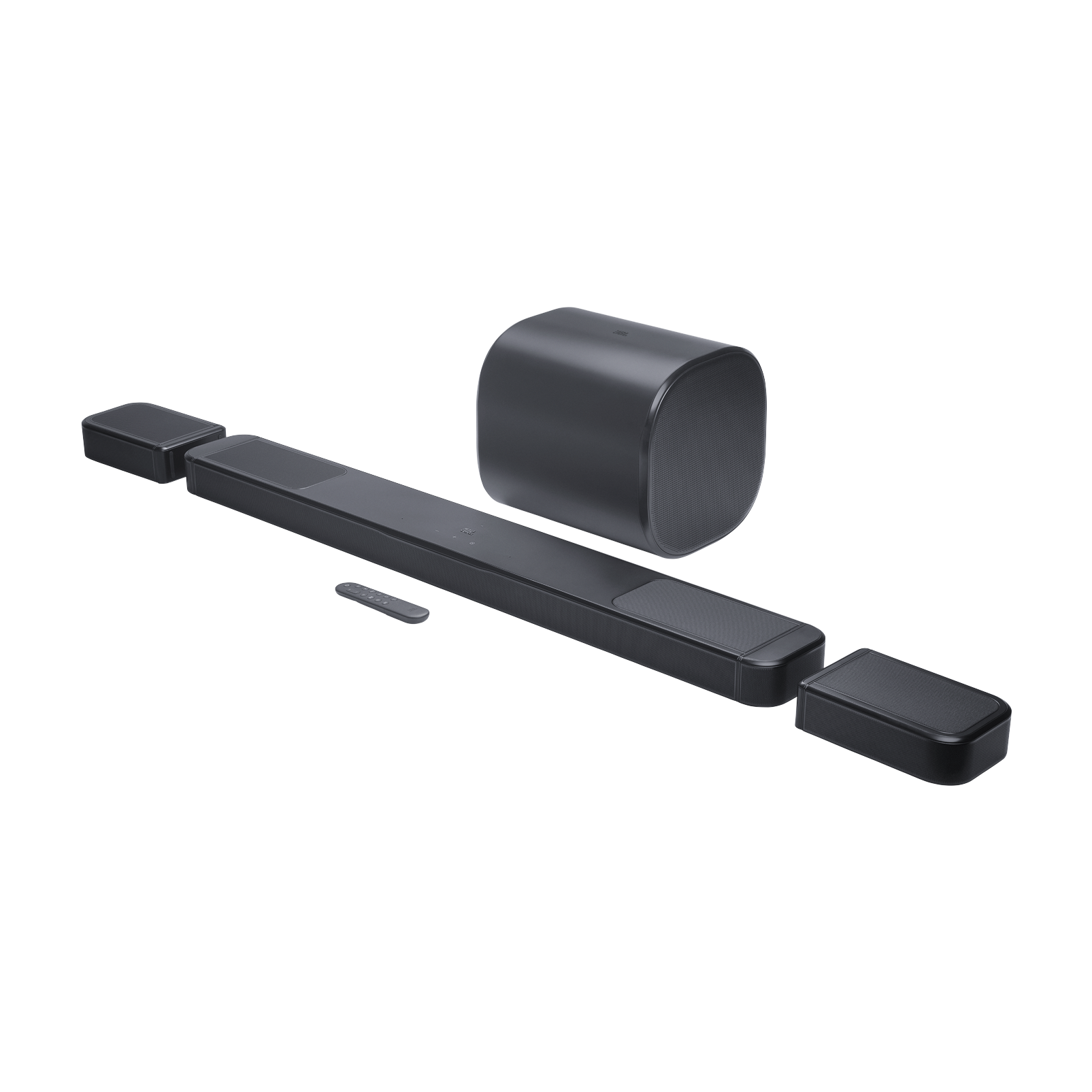

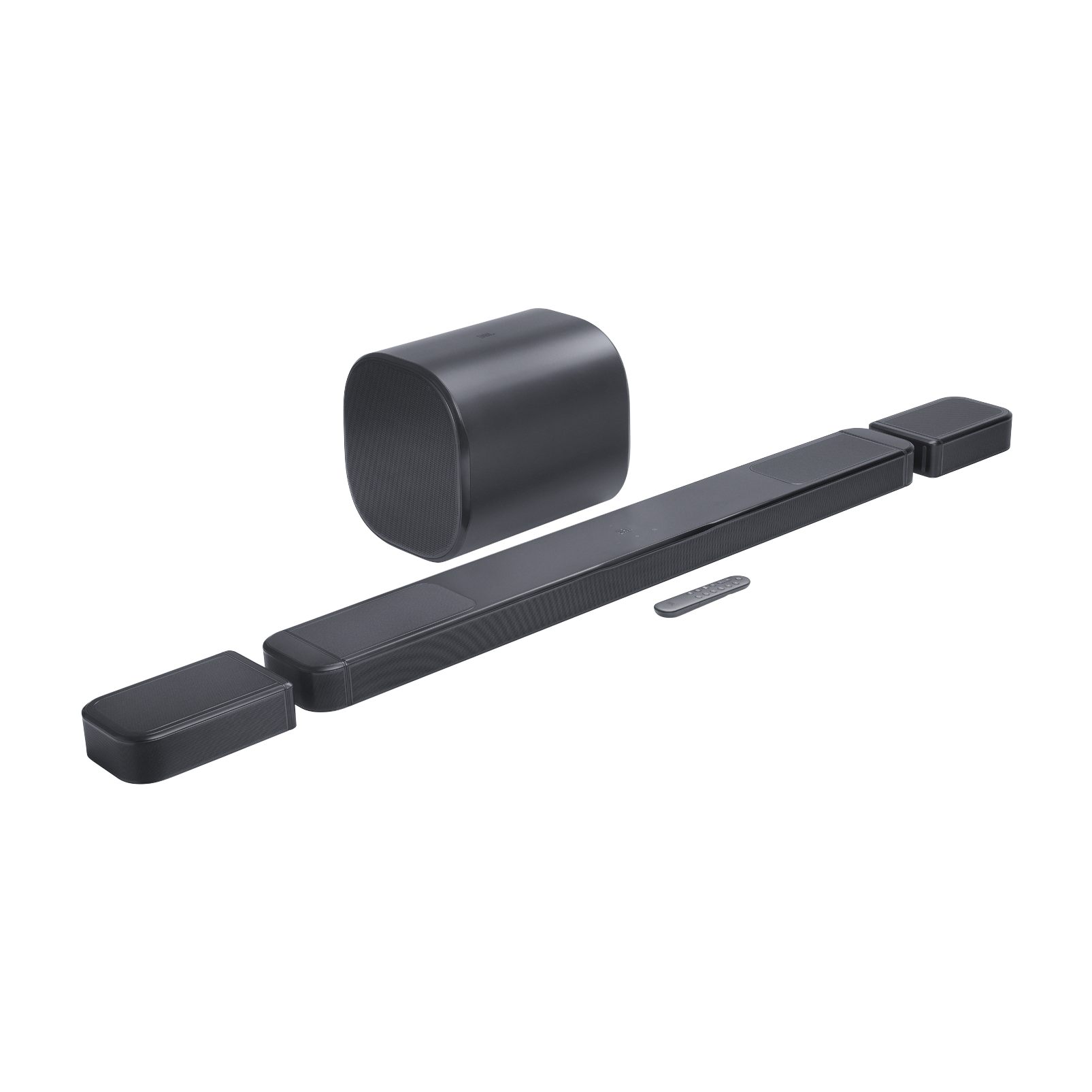

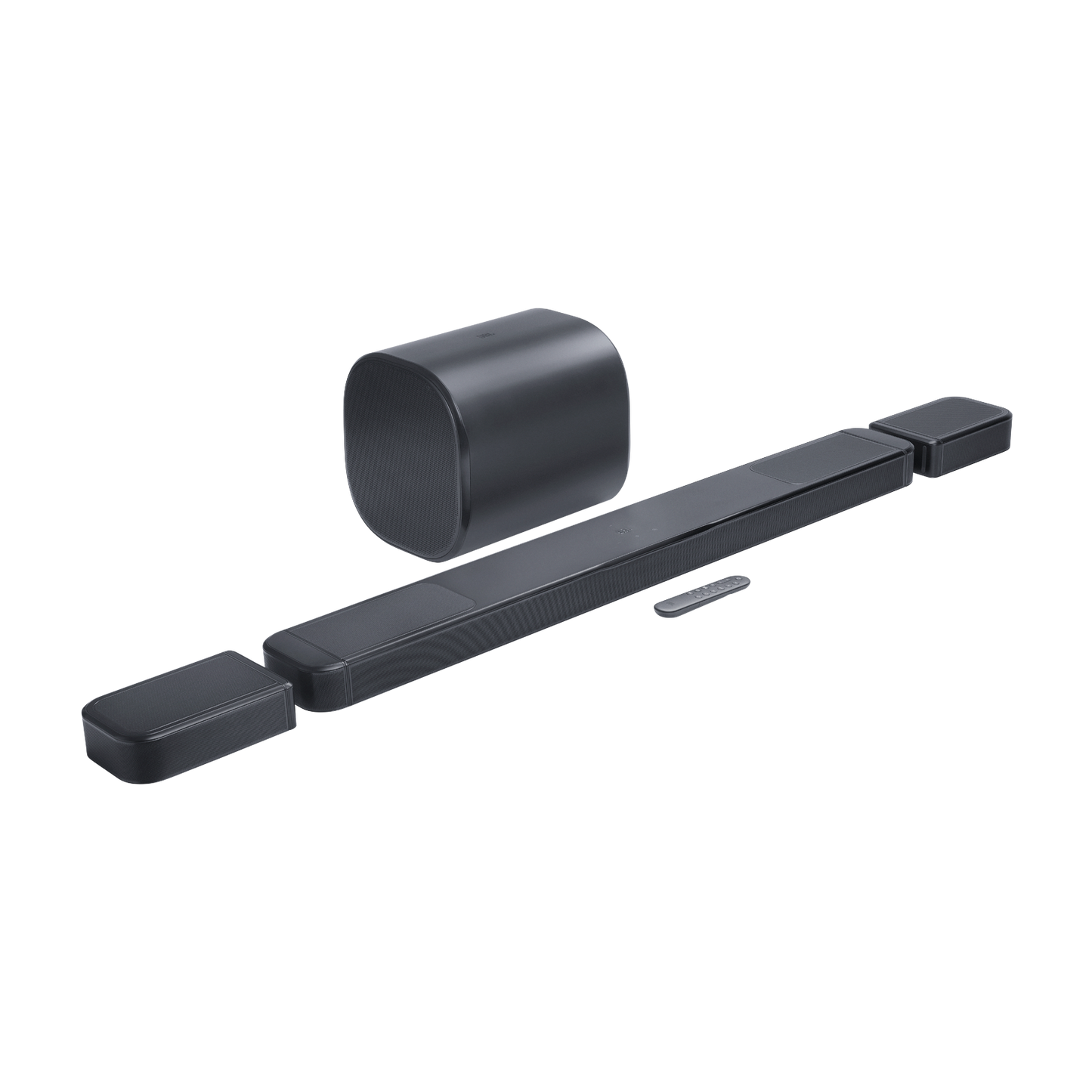

JBL Bar 1300MK2 11.1.4 channel soundbar system with detachable surround speakers, MultiBeam 3.0™, Dolby Atmos® and DTS:X® -1 Year JBL Warranty

JBL Bar 1300 MK2

Warranty

• 1-Year Official Warranty by JBL Singapore
• Service Centre Location: 60 Marsiling Rd, SKM Building, Singapore 739107

Features

• Real Atmospheric Surround Sound with Detachable Wireless Speakers
• 2470W Max Output Power with 8" Dual-Driver Wireless Subwoofer
• True Dolby Atmos® and DTS:X
• MultiBeam™ 3.0
• PureVoice 2.0
• SmartDetails
• AI Sound Boost in a Compact Subwoofer
• Broadcasting
• Night Listening
• Easy Sound Calibration
• Portable Bluetooth® Speakers
• Works with All Ecosystems and Music Streaming Services
• JBL One App
• HDMI eARC with 4K Dolby Vision Passthrough

Technical Specifications

General Specifications

• Sound System: 11.1.4 Channel
• Power Supply: 100 - 240V AC, ~50/60Hz
• Total Speaker Power Output (Max. @ THD 1%): 2470W
• Networked Standby Power: < 2W

Speaker Configuration

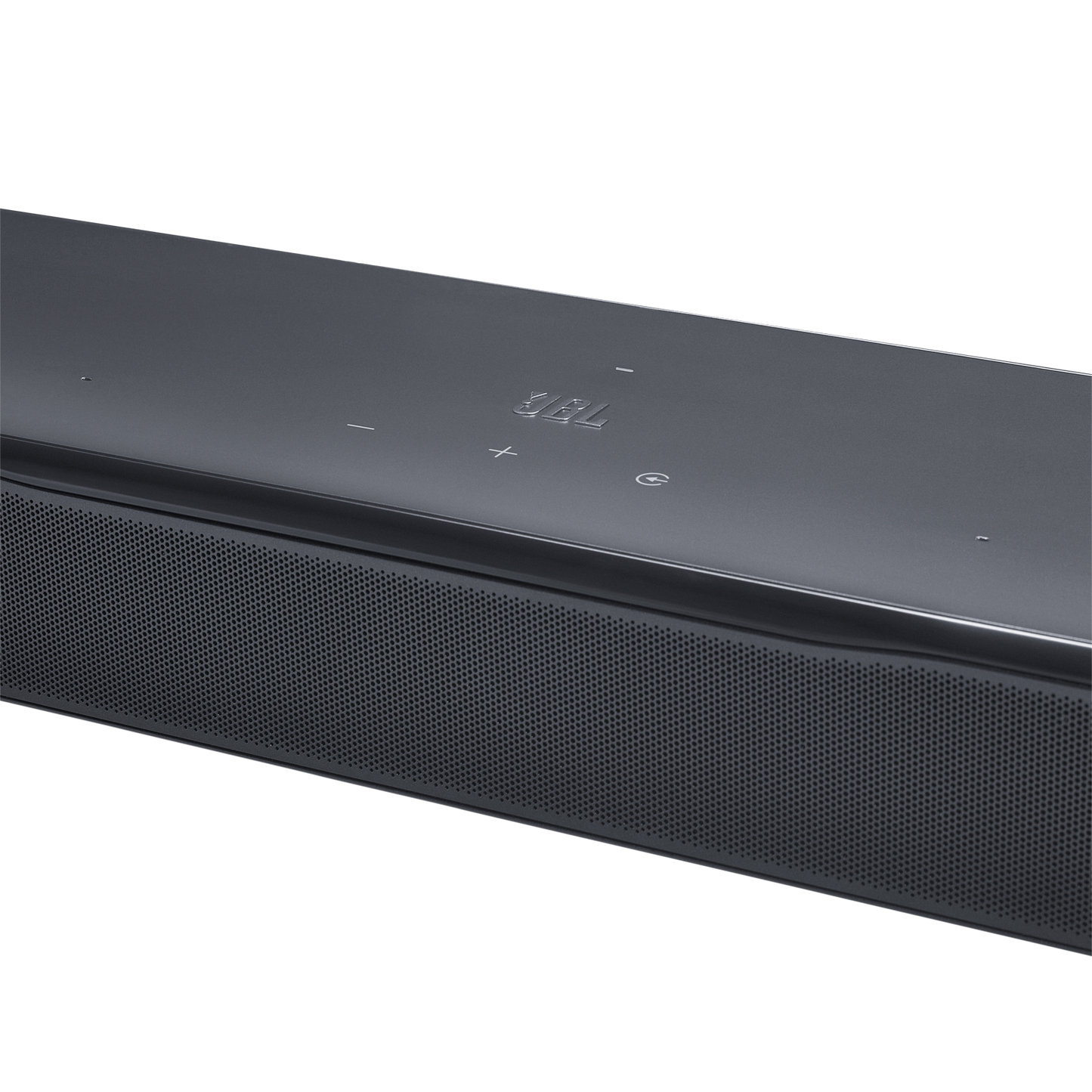

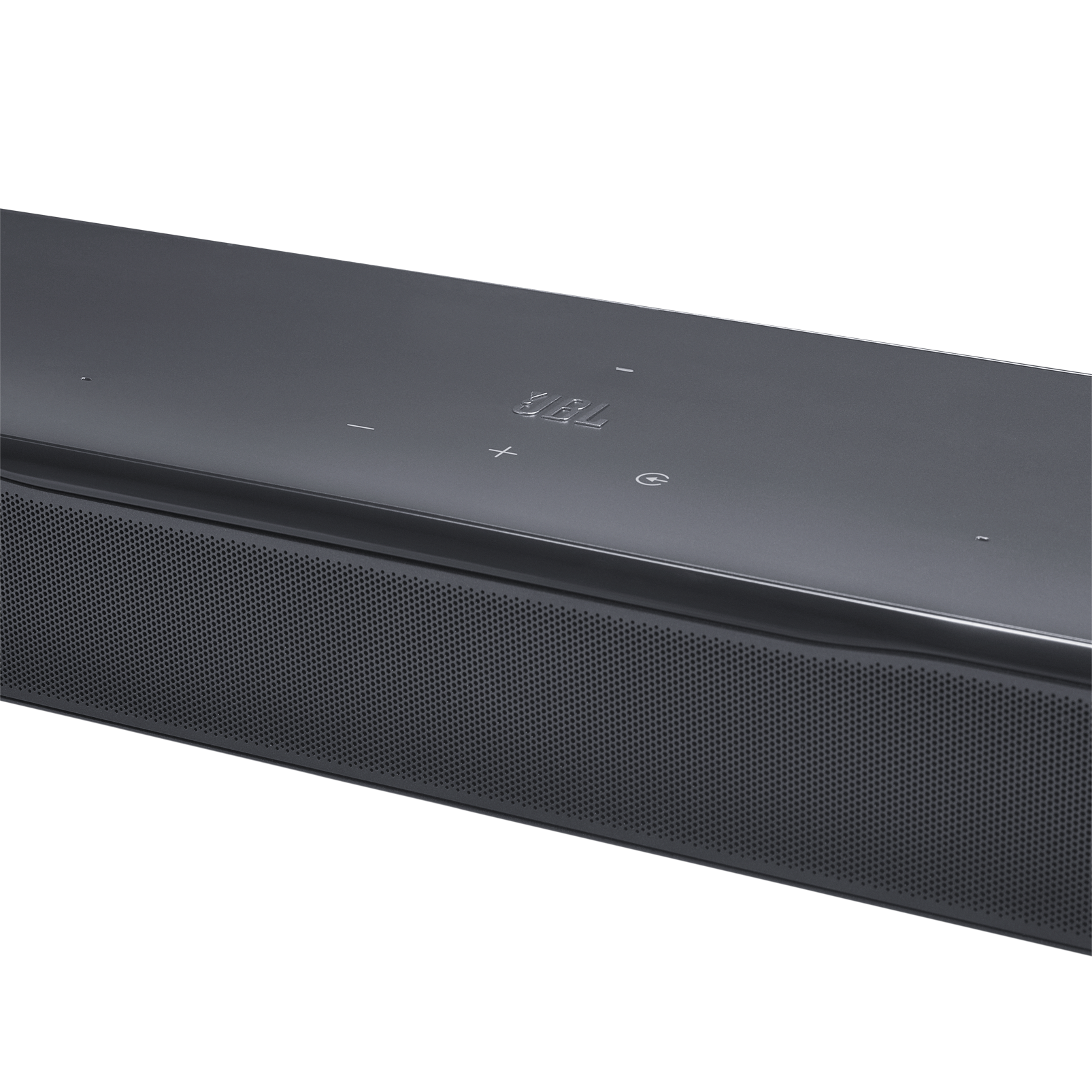

Main Soundbar

• 8 × (50 × 75mm) Racetrack Drivers
• 7 × 1" (25mm) Tweeters
• 4 × 3" (75mm) Up-Firing Full-Range Drivers

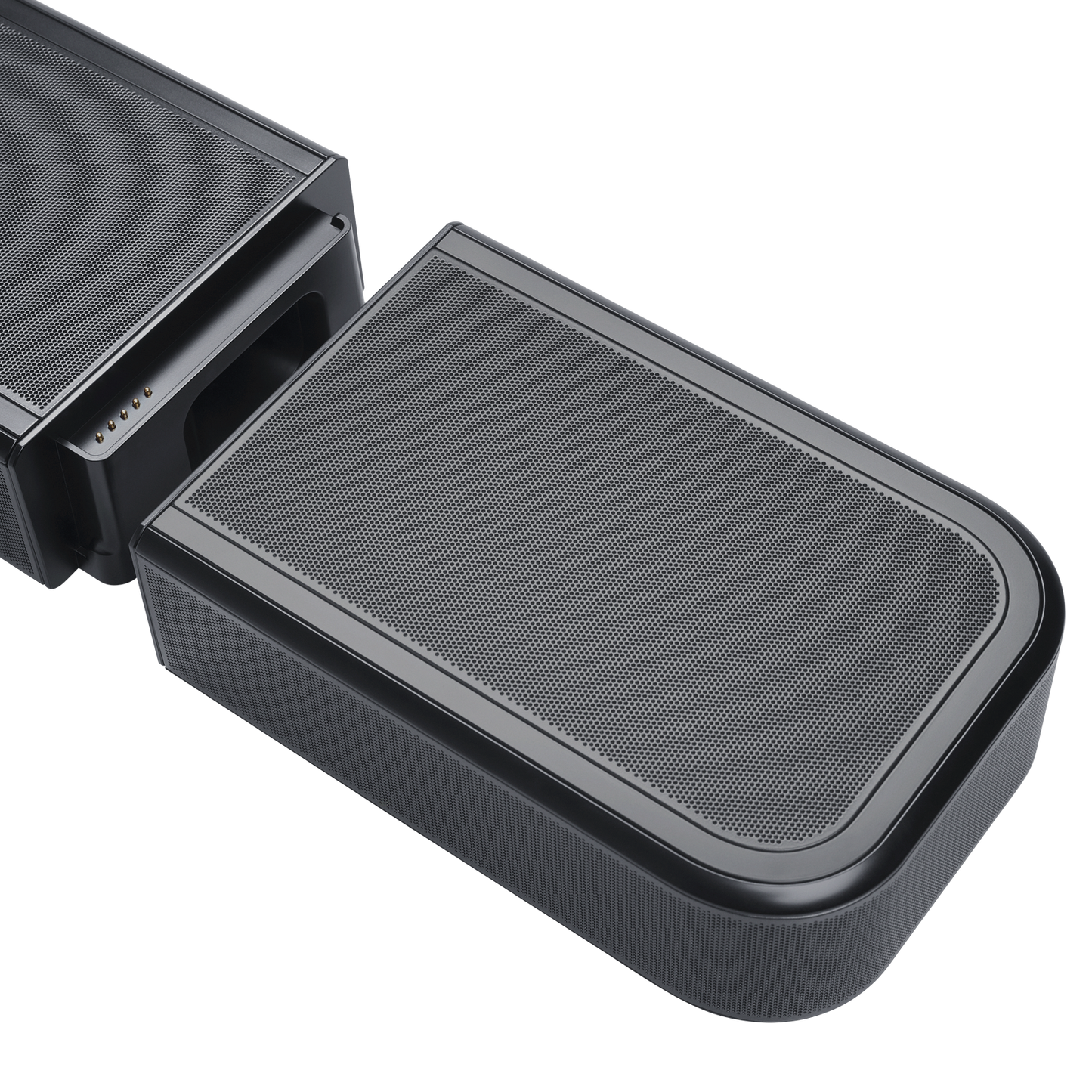

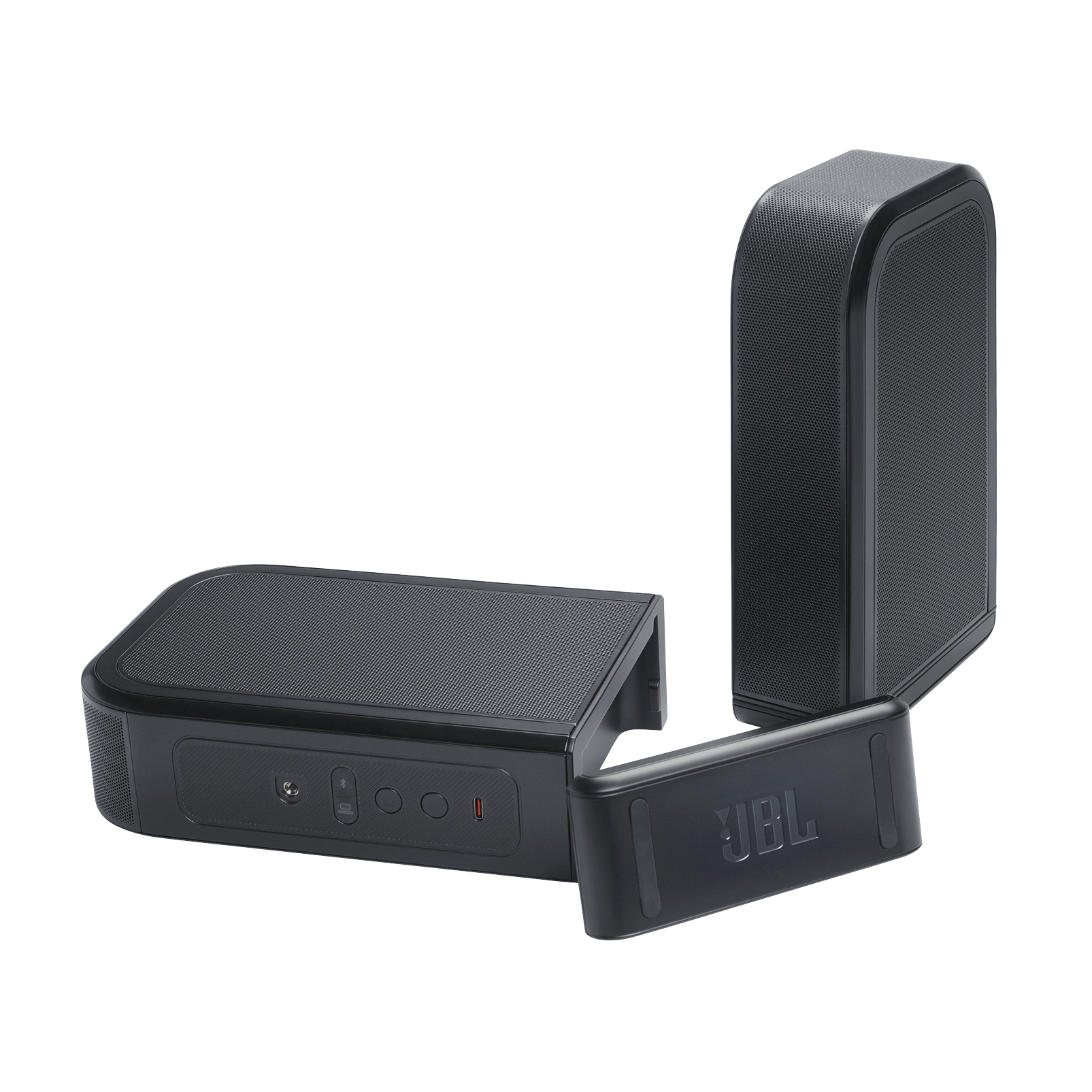

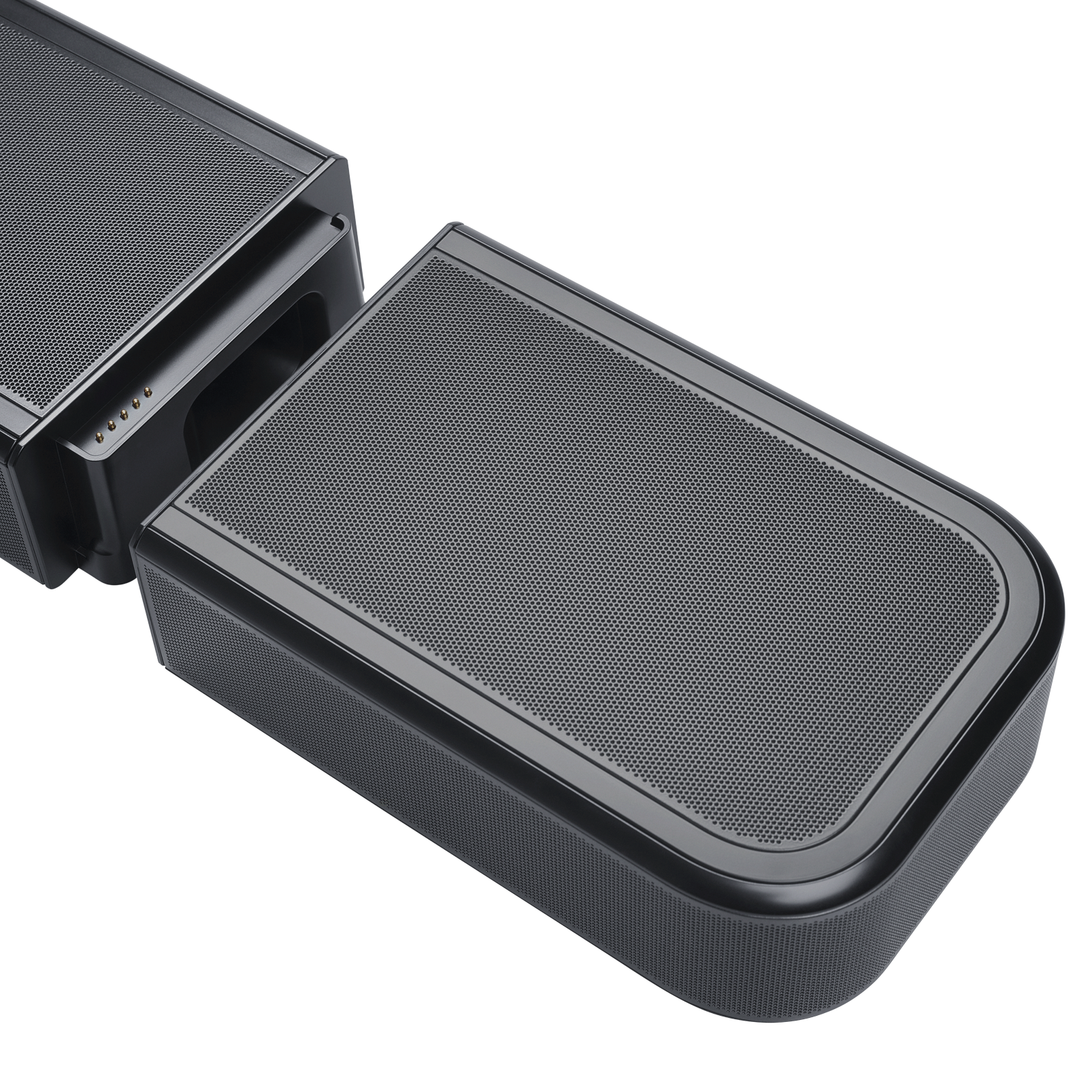

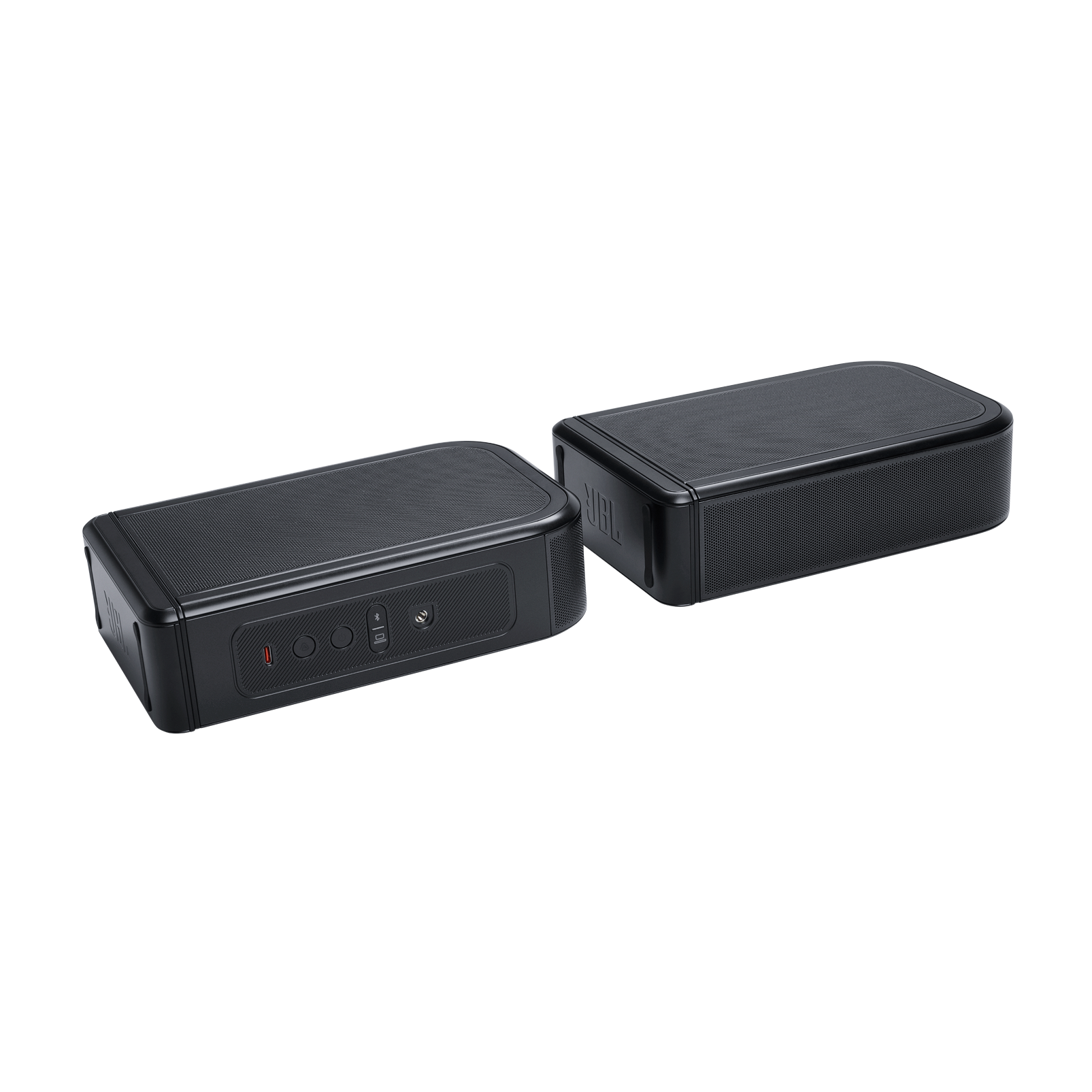

Detachable Wireless Surround Speakers

• 2 × (50 × 90mm) Racetrack Drivers
• 1 × 2" (50mm) Full-Range Driver
• 1 × 3" (75mm) Up-Firing Full-Range Driver

Wireless Subwoofer

• 2 × 8" (200mm) Drivers

Surround Speaker Battery

• Battery Type: Lithium Battery (7.2V, 4722mAh)
• Playtime: Up to 10 Hours (varies by content and volume level)

HDMI Specifications

• HDMI Video Inputs: 3
• HDMI Video Output (eARC): 1
• HDMI HDCP Version: 2.3
• HDR Passthrough: HDR10+, Dolby Vision

Audio Specifications

• Frequency Response: 33Hz – 20kHz (-6dB)
• Audio Inputs:
• Optical
• Bluetooth
• USB (USB playback available in US & APAC versions only. Other regions: service use only.)

USB Specifications

• USB Port: Type-A
• USB Rating: 5V DC, 0.5A
• Supported Audio Format: MP3

Wireless Specifications

Bluetooth

• Main Soundbar: Bluetooth 5.3
• Detachable Surround Speakers: Bluetooth 5.4
• Bluetooth Frequency Range: 2400MHz – 2483.5MHz
• Bluetooth Transmitter Power: <15dBm (EIRP)

Wi-Fi

• Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz)

2.4GHz Wi-Fi
• Frequency Range: 2412 – 2472MHz
• Transmitter Power: <20dBm (EIRP)

5GHz Wi-Fi
• Frequency Ranges:
• 5.15 – 5.35GHz
• 5.470 – 5.725GHz
• 5.725 – 5.825GHz

• Transmitter Power:
• 5.15 – 5.25GHz: <23dBm
• 5.25 – 5.35GHz & 5.470 – 5.725GHz: <20dBm
• 5.725 – 5.825GHz: <14dBm (EIRP)

Note: Band 5.6 – 5.64GHz is disabled in Australia and New Zealand.

Dimensions & Weight

Total Soundbar (with Surround Speakers Attached)

• 1404 × 58 × 136 mm
• 55.3" × 2.3" × 5.4"

Main Soundbar

• Dimensions: 1030 × 58 × 136 mm
• 40.6" × 2.3" × 5.4"
• Weight: 5.93 kg / 13 lbs

Detachable Surround Speakers (Each)

• Dimensions: 202 × 58 × 136 mm
• 8.0" × 2.3" × 5.4"
• Weight: 1.3 kg / 2.8 lbs

Wireless Subwoofer

• Dimensions: 315 × 277 × 275 mm
• 12.4" × 10.9" × 10.8"
• Weight: 12 kg / 26.5 lbs

Packaging

• Dimensions: 1124 × 381 × 452 mm
• 44.3" × 15.0" × 17.8"

• Gross Weight:
• 28.6 kg / 63.1 lbs (EMEA / UK)
• 24.3 kg / 53.6 lbs (JP / IN / CN)
• 28.8 kg / 63.5 lbs (AU / NZ)
• 24.5 kg / 54.0 lbs (APAC Others)

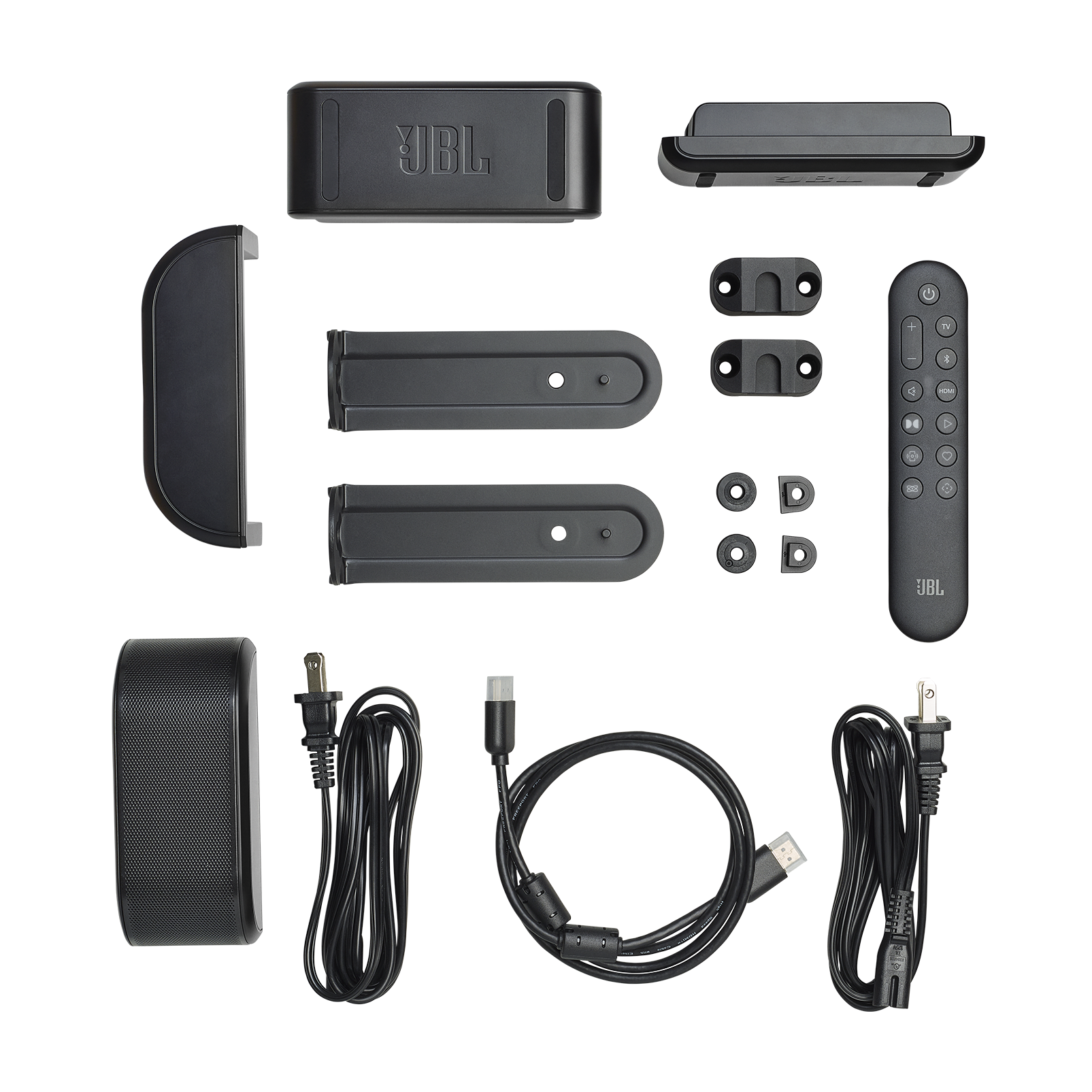

What's in the Box

• 1 × JBL Bar 1300 MK2 Main Soundbar
• 2 × Detachable Wireless Surround Speakers
• 1 × Wireless Subwoofer
• 1 × Remote Control with 2 Batteries
• Power Cords (up to 6 pcs depending on region)
• 1 × HDMI Cable
• 2 × L-Shaped Wall-Mount Brackets (Main Soundbar)
• 2 × U-Shaped Wall-Mount Brackets (Surround Speakers) with Screws
• 4 × Side Caps
• 1 × Wall-Mount Template
• 1 × Quick Start Guide
• 1 × Safety Instruction & Warranty Card

Disclaimer

Some features may require subscriptions or services that are not available in all countries
